◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11041 - FSR(LHD) EURO4 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-66 - HEAD LINING AND TRIM ▶
6-66 — HEAD LINING AND TRIM (#27405) — 52 parça

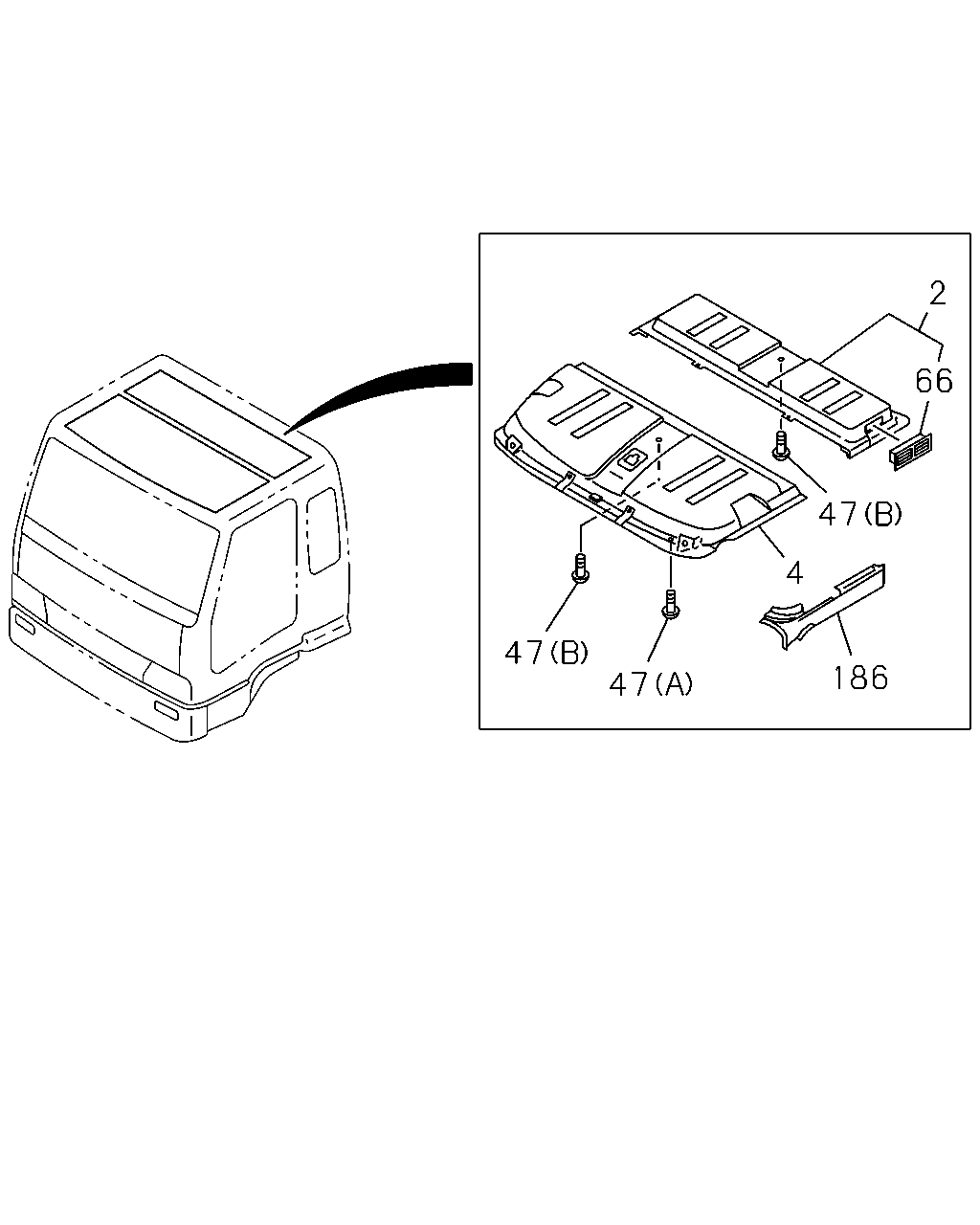

çizim 26393
2 66 47 4 47 186 47
BalonParca AdiParca NoAdetTipApplied Date
2 LINING; HD,ROOF RR
HIGH ROOF<S2F> EXC. PROVISIONAL PACKAGE<NLY> 		1-73318-598-5 01 1 0612-
2 LINING; HD,ROOF RR
LOW ROOF<6XQ> 		1-73318-573-3 01 1 0612-
2 LINING; HD,ROOF RR
PROVISIONAL PACKAGE<NLY> HIGH ROOF<S2F> 		1-73318-708-2 01 1 0612-
4 LINING; ROOF,FRT
HIGH ROOF<S2F> EXC. MAP LAMP<C85>,PROVISIONAL PACKAGE<NLY> 		8-97865-577-4 01 1 0612-
4 LINING; ROOF,FRT
LOW ROOF<6XQ> 		1-73318-572-3 01 1 0612-
4 LINING; ROOF,FRT
MAP LAMP<C85> HIGH ROOF<S2F> EXC. PROVISIONAL PACKAGE<NLY> 		1-73318-597-7 01 1 0612-
4 LINING; ROOF,FRT
MAP LAMP<C85> PROVISIONAL PACKAGE<NLY> HIGH ROOF<S2F> 		1-73318-696-3 01 1 0612-
4 LINING; ROOF,FRT
PROVISIONAL PACKAGE<NLY> HIGH ROOF<S2F> EXC. MAP LAMP<C85> 		8-97893-788-3 01 1 0612-
47 CLIP; HEADLINING
HIGH ROOF<S2F> EXC. MAP LAMP<C85> (C) D6X23 LIGHT GRAY 		1-73318-629-0 12 1 0612-
47 CLIP; HEADLINING
HIGH ROOF<S2F> EXC. MAP LAMP<C85> (B) OD=6 L=17 LIGHT GRAY 		1-73996-301-0 02 1 0612-
47 CLIP; HEADLINING
LOW ROOF<6XQ> (B) OD=6 L=17 LIGHT GRAY 		1-73996-301-0 02 1 0612-
47 CLIP; HEADLINING
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (D) D7.7X25 LIGHT GRAY 		1-73317-371-0 06 1 0612-
47 CLIP; HEADLINING
LOW ROOF<6XQ> (A) D6X23 LIGHT GRAY 		1-73318-629-0 08 1 0612-
47 CLIP; HEADLINING
MAP LAMP<C85> HIGH ROOF<S2F> (C) D6X23 LIGHT GRAY 		1-73318-629-0 13 1 0612-
66 GRILLE; AIR OUTLET
HIGH ROOF<S2F> 		1-73317-366-1 01 1 0612-
66 GRILLE; AIR OUTLET
HIGH ROOF<S2F> 		1-73317-367-1 01 1 0612-
66 GRILLE; AIR OUTLET
LOW ROOF<6XQ> 		1-73318-608-0 02 1 0612-
186 TRIM; ROOM,CANT RAIL SIDE
PROVISIONAL PACKAGE<NLY> 		1-73348-963-1 01 1 0612-
186 TRIM; ROOM,CANT RAIL SIDE
LOW ROOF<6XQ> EXC. PROVISIONAL PACKAGE<NLY> 		1-73348-963-1 01 1 0612-
186 TRIM; ROOM,CANT RAIL SIDE
PROVISIONAL PACKAGE<NLY> 		1-73348-962-1 01 1 0612-
186 TRIM; ROOM,CANT RAIL SIDE
LOW ROOF<6XQ> EXC. PROVISIONAL PACKAGE<NLY> 		1-73348-962-1 01 1 0612-
186 TRIM; ROOM,CANT RAIL SIDE
EXC. PROVISIONAL PACKAGE<NLY>,LOW ROOF<6XQ> 		1-73348-919-2 01 1 0612-
186 TRIM; ROOM,CANT RAIL SIDE
EXC. PROVISIONAL PACKAGE<NLY>,LOW ROOF<6XQ> 		1-73348-918-2 01 1 0612-

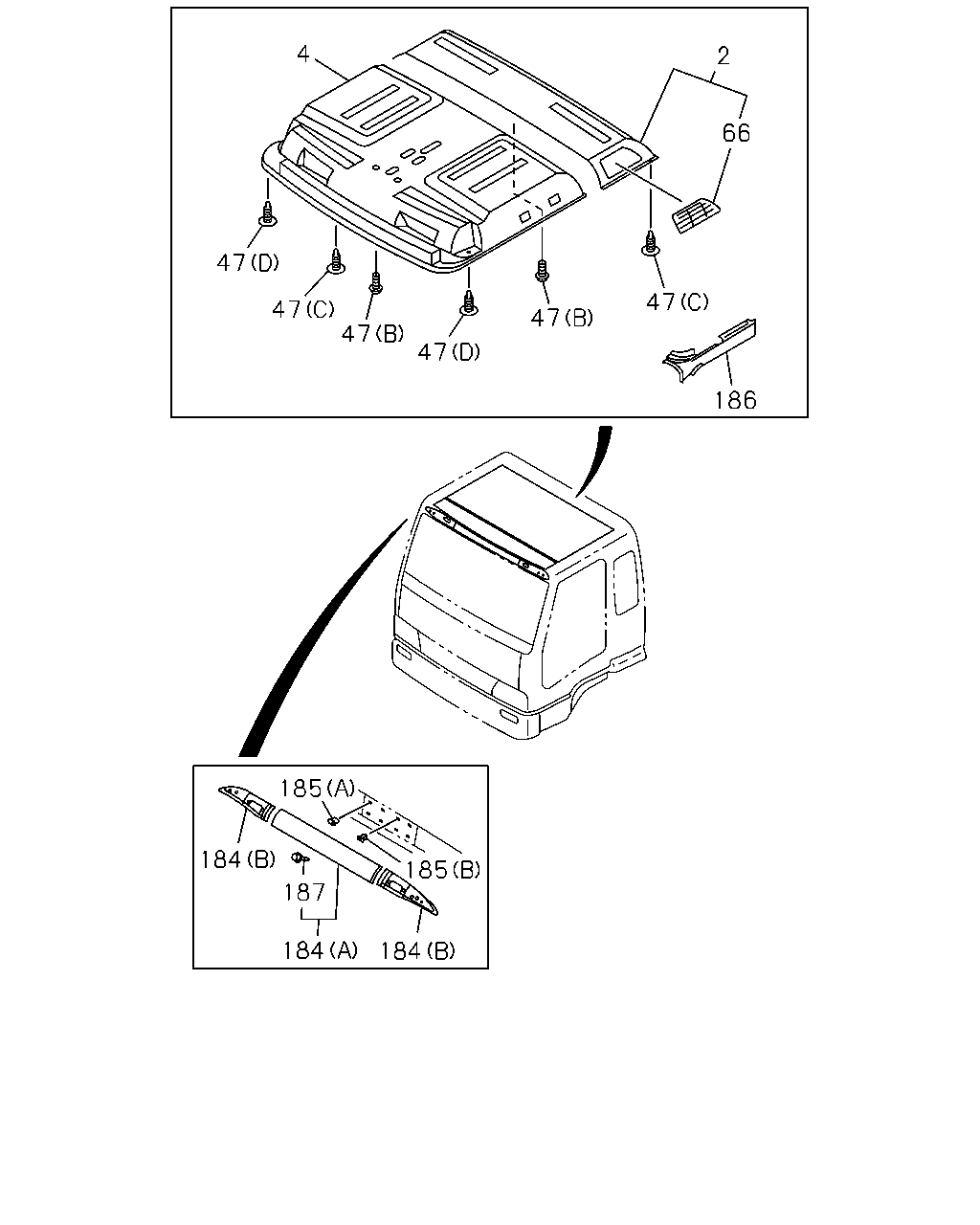

çizim 90405
4 2 66 47 47 47 47 47 47 186 185 184 185 187 184 184
BalonParca AdiParca NoAdetTipApplied Date
2 LINING; HD,ROOF RR
HIGH ROOF<S2F> EXC. PROVISIONAL PACKAGE<NLY> 		1-73318-598-5 01 1 0612-
2 LINING; HD,ROOF RR
LOW ROOF<6XQ> 		1-73318-573-3 01 1 0612-
2 LINING; HD,ROOF RR
PROVISIONAL PACKAGE<NLY> HIGH ROOF<S2F> 		1-73318-708-2 01 1 0612-
4 LINING; ROOF,FRT
HIGH ROOF<S2F> EXC. MAP LAMP<C85>,PROVISIONAL PACKAGE<NLY> 		8-97865-577-4 01 1 0612-
4 LINING; ROOF,FRT
LOW ROOF<6XQ> 		1-73318-572-3 01 1 0612-
4 LINING; ROOF,FRT
MAP LAMP<C85> HIGH ROOF<S2F> EXC. PROVISIONAL PACKAGE<NLY> 		1-73318-597-7 01 1 0612-
4 LINING; ROOF,FRT
MAP LAMP<C85> PROVISIONAL PACKAGE<NLY> HIGH ROOF<S2F> 		1-73318-696-3 01 1 0612-
4 LINING; ROOF,FRT
PROVISIONAL PACKAGE<NLY> HIGH ROOF<S2F> EXC. MAP LAMP<C85> 		8-97893-788-3 01 1 0612-
47 CLIP; HEADLINING
HIGH ROOF<S2F> EXC. MAP LAMP<C85> (C) D6X23 LIGHT GRAY 		1-73318-629-0 12 1 0612-
47 CLIP; HEADLINING
HIGH ROOF<S2F> EXC. MAP LAMP<C85> (B) OD=6 L=17 LIGHT GRAY 		1-73996-301-0 02 1 0612-
47 CLIP; HEADLINING
LOW ROOF<6XQ> (B) OD=6 L=17 LIGHT GRAY 		1-73996-301-0 02 1 0612-
47 CLIP; HEADLINING
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (D) D7.7X25 LIGHT GRAY 		1-73317-371-0 06 1 0612-
47 CLIP; HEADLINING
LOW ROOF<6XQ> (A) D6X23 LIGHT GRAY 		1-73318-629-0 08 1 0612-
47 CLIP; HEADLINING
MAP LAMP<C85> HIGH ROOF<S2F> (C) D6X23 LIGHT GRAY 		1-73318-629-0 13 1 0612-
66 GRILLE; AIR OUTLET
HIGH ROOF<S2F> 		1-73317-366-1 01 1 0612-
66 GRILLE; AIR OUTLET
HIGH ROOF<S2F> 		1-73317-367-1 01 1 0612-
66 GRILLE; AIR OUTLET
LOW ROOF<6XQ> 		1-73318-608-0 02 1 0612-
184 ORNAMENT; ROOF
HIGH ROOF<S2F> (A) 		1-73318-587-0 01 1 0612-
184 ORNAMENT; ROOF
HIGH ROOF<S2F> (B) 		1-73318-581-0 02 1 0612-
184 ORNAMENT; ROOF
HIGH ROOF<S2F> (B) 		1-73318-580-0 02 1 0612-
185 GROMMET; ORNAMENT
HIGH ROOF<S2F> (A) 		1-79198-012-0 06 1 0612-
185 GROMMET; ORNAMENT
HIGH ROOF<S2F> (B) 		1-79198-013-0 02 1 0612-
186 TRIM; ROOM,CANT RAIL SIDE
PROVISIONAL PACKAGE<NLY> 		1-73348-963-1 01 1 0612-
186 TRIM; ROOM,CANT RAIL SIDE
LOW ROOF<6XQ> EXC. PROVISIONAL PACKAGE<NLY> 		1-73348-963-1 01 1 0612-
186 TRIM; ROOM,CANT RAIL SIDE
PROVISIONAL PACKAGE<NLY> 		1-73348-962-1 01 1 0612-
186 TRIM; ROOM,CANT RAIL SIDE
LOW ROOF<6XQ> EXC. PROVISIONAL PACKAGE<NLY> 		1-73348-962-1 01 1 0612-
186 TRIM; ROOM,CANT RAIL SIDE
EXC. PROVISIONAL PACKAGE<NLY>,LOW ROOF<6XQ> 		1-73348-919-2 01 1 0612-
186 TRIM; ROOM,CANT RAIL SIDE
EXC. PROVISIONAL PACKAGE<NLY>,LOW ROOF<6XQ> 		1-73348-918-2 01 1 0612-
187 PIN; ORNAMENT
HIGH ROOF<S2F> D4.2X13 		1-09983-161-0 08 1 0612-
