Isuzu WW
▶
TRUCKS
▶
FSR
▶
11041 - FSR(LHD) EURO4
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-47 - MUD GUARD AND INSULATOR
▶
6-47 — MUD GUARD AND INSULATOR
(#27403) — 55 parça
◀

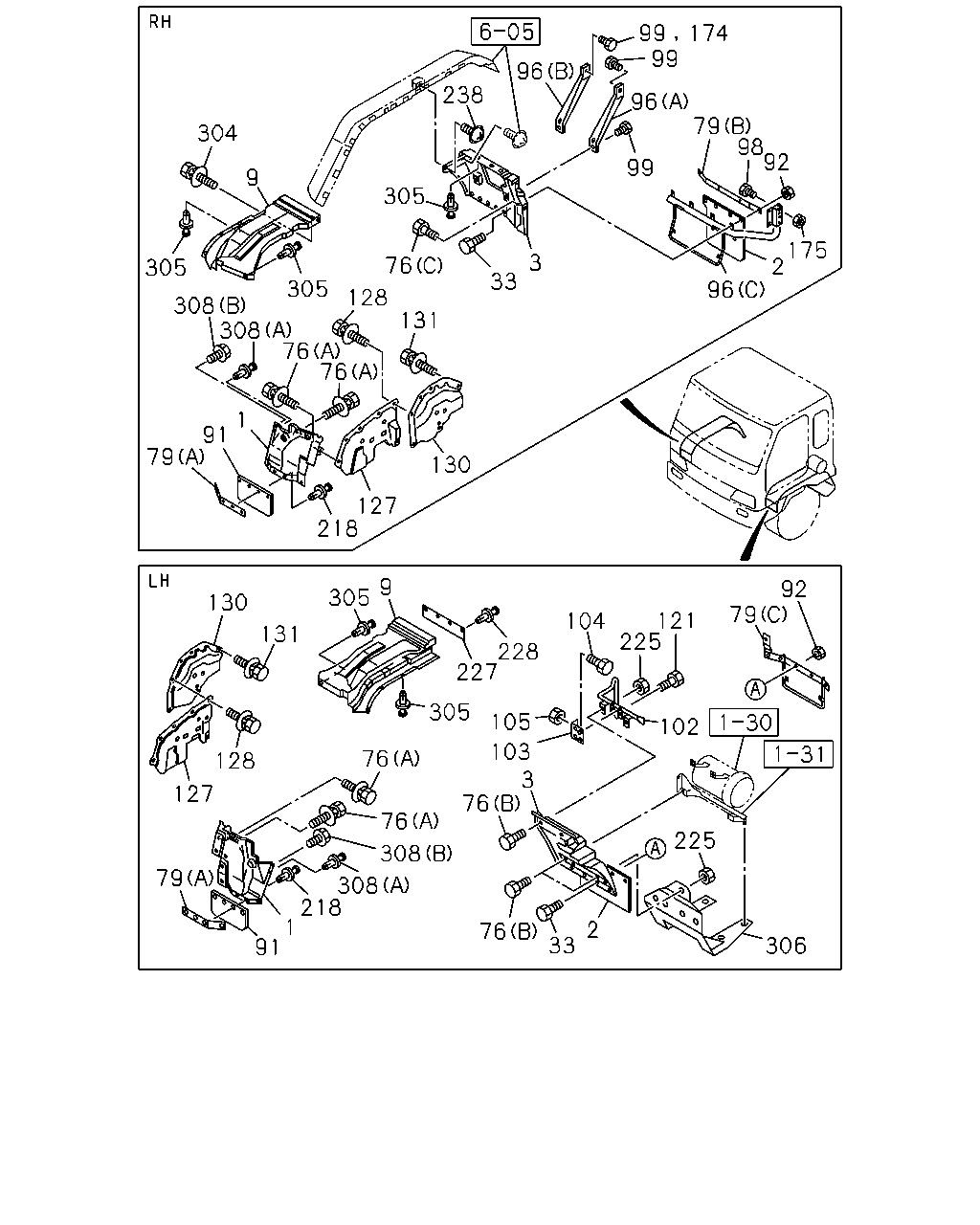

[647A] MUD GUARD AND SPLASH GUARD (51 parça)

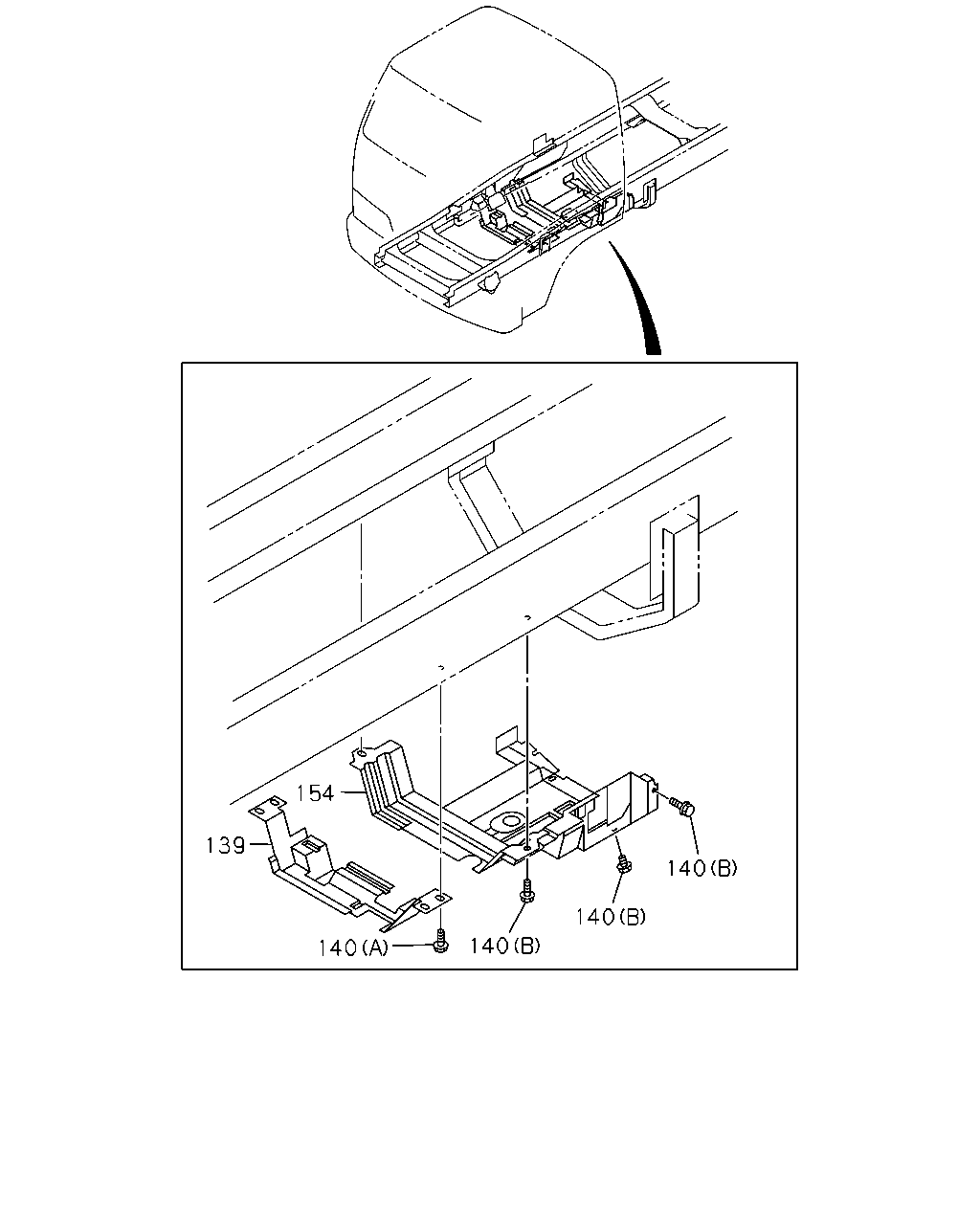

[647A] UNDER PANEL (4 parça)
▶
99
99
174
96
238
96
79
98
92
304
99
9
305
175
2
96
3
76
305
33
305
128
308
308
131
76
76
1
91
79
130
127
218
9
92
79
305
130
121
225
104
131
228
227
305
105
102
128
103
3
76
76
127
76
225
308
79
308
218
1
2
76
33
306
91
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
GUARD; MUD,FRT
1-79938-810-8
01
1
0612-
1
GUARD; MUD,FRT
1-79938-812-8
01
1
0612-
2
COVER; MUD,TIRE RR
1-79931-255-2
01
1
0612-
2
COVER; MUD,TIRE RR
1-79931-271-0
01
1
0612-
3
GUARD; MUD,RR
1-79938-959-2
01
1
0612-
3
GUARD; MUD,RR
FRONT FENDER WIDE<SA4>
1-79938-971-1
01
1
0612-
3
GUARD; MUD,RR
EXC. FRONT FENDER WIDE<SA4>
1-79938-932-4
01
1
0612-
9
GUARD; SPLASH,WHEEL HOUSE
FRONT FENDER WIDE<SA4>
1-79936-007-2
01
1
0612-
9
GUARD; SPLASH,WHEEL HOUSE
FRONT FENDER WIDE<SA4>
1-79938-955-3
01
1
0612-
9
GUARD; SPLASH,WHEEL HOUSE
EXC. FRONT FENDER WIDE<SA4>
1-79936-043-1
01
1
0612-
9
GUARD; SPLASH,WHEEL HOUSE
EXC. FRONT FENDER WIDE<SA4>
1-79936-041-1
01
1
0612-
33
BOLT; MUD COVER
M6X20 W/LK&PL WASHER
1-09980-495-0
13
1
0612-
76
BOLT; MUD GUARD
(B) M8X25 W/LK&PL WASHER
1-09030-074-0
04
1
0612-0805
76
BOLT; MUD GUARD
(B) M8X25 W/LK&PL WASHER
1-09030-093-0
04
1
0806-
76
BOLT; MUD GUARD
(C) M6X20 W/LK&PL WASHER
8-94279-203-0
02
1
0612-
76
BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER
8-94331-747-1
08
1
0612-
79
RETAINER; MUD COVER
(A)
1-79931-044-0
02
1
0612-
79
RETAINER; MUD COVER
(B)
1-79931-269-0
01
1
0612-
79
RETAINER; MUD COVER
(C)
1-79931-288-0
01
1
0612-
91
COVER; MUD,FRT
1-79931-214-1
02
1
0612-
92
NUT; MUD COVER
M6 FLANGE
0-91180-106-0
07
1
0612-
96
STAY; MUD GUARD
(C)
1-53497-637-0
01
1
0612-
96
STAY; MUD GUARD
(A)
1-79938-737-0
01
1
0612-
96
STAY; MUD GUARD
(B)
1-79938-738-1
01
1
0612-
98
BOLT; STAY TO BRKT
M8X30 FLANGE
0-28650-830-0
08
1
0612-
99
BOLT; STAY TO MUD GUARD
M6X20 W/LK&PL WASHER
8-94279-203-0
04
1
0612-
102
STAY; LWR,MUD GUARD
1-53497-535-0
01
1
0612-
103
BRACKET ASM; RR MUD FLAP
1-53497-486-2
01
1
0612-
104
BOLT; BRKT
M8X20 FLANGE
0-28650-820-0
02
1
0612-
105
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
0612-
121
BOLT
M10X25 FLANGE
0-28651-025-0
04
1
0612-
127
APRON; FRT
1-53192-301-3
01
1
0612-
127
APRON; FRT
1-53193-222-1
01
1
0612-
128
BOLT; APRON,FRT
M8X25 W/LK&PL WASHER
8-94331-747-1
10
1
0612-
130
PANEL; SHUTTER NOISE
1-53194-665-0
01
1
0612-
130
PANEL; SHUTTER NOISE
1-53194-486-3
01
1
0612-
131
BOLT; PANEL
M6X20 W/LK&PL WASHER
8-94279-203-0
08
1
0612-
174
BOLT; STAY FIX
FRONT FENDER WIDE<SA4> M6X20 W/LK&PL WASHER
8-94279-203-0
01
1
0612-
175
NUT; STAY FIX
M8 FLANGE
0-91180-108-0
06
1
0612-
218
FASTENER; RUBBER
1-09470-001-0
08
1
0612-
225
NUT; MUD GUARD
M8 FLANGE
0-91180-108-0
03
1
0612-
227
SEAL; MUD GUARD
1-79938-953-1
01
1
0612-
228
FASTENER; MUD GUARD SEAL
D8X13.5
1-09987-248-1
04
1
0612-
238
SCREW; MUD GUARD
M6X20 W/LK&PL WASHER
8-94279-203-0
01
1
0612-
304
BOLT; SPLASH GUARD
M6X20 W/LK&PL WASHER
8-94279-203-0
02
1
0612-
305
FASTENER; SPLASH GUARD
D8X13.5
1-09987-248-1
05
1
0612-
305
FASTENER; SPLASH GUARD
FRONT FENDER WIDE<SA4> D8X13.5
1-09987-248-1
01
1
0612-
305
FASTENER; SPLASH GUARD
EXC. FRONT FENDER WIDE<SA4> D8X13.5
1-09987-248-1
10
1
0612-
306
BRACKET; MUD GUARD
1-53497-618-0
01
1
0612-
308
FASTENER; MUD GUARD
FRONT FENDER WIDE<SA4> (B) M6X22
1-65481-386-0
04
1
0612-
308
FASTENER; MUD GUARD
EXC. FRONT FENDER WIDE<SA4> (A)
1-09470-007-0
04
1
0612-
154
139
140
140
140
140
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
139
PANEL; SIDE
1-53194-654-2
01
1
0612-
140
BOLT; SIDE PANEL
(A) M8X25 FLANGE
0-28650-825-0
04
1
0612-
140
BOLT; SIDE PANEL
(B) M8X35 W/LK&PL WASHER
1-09030-073-0
08
1
0612-
154
PANEL; SIDE,UNDER ENG CTR
1-53194-679-2
01
1
0612-
