◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11041 - FSR(LHD) EURO4 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-43 - SIDE TRIM ▶
6-43 — SIDE TRIM (#27402) — 17 parça

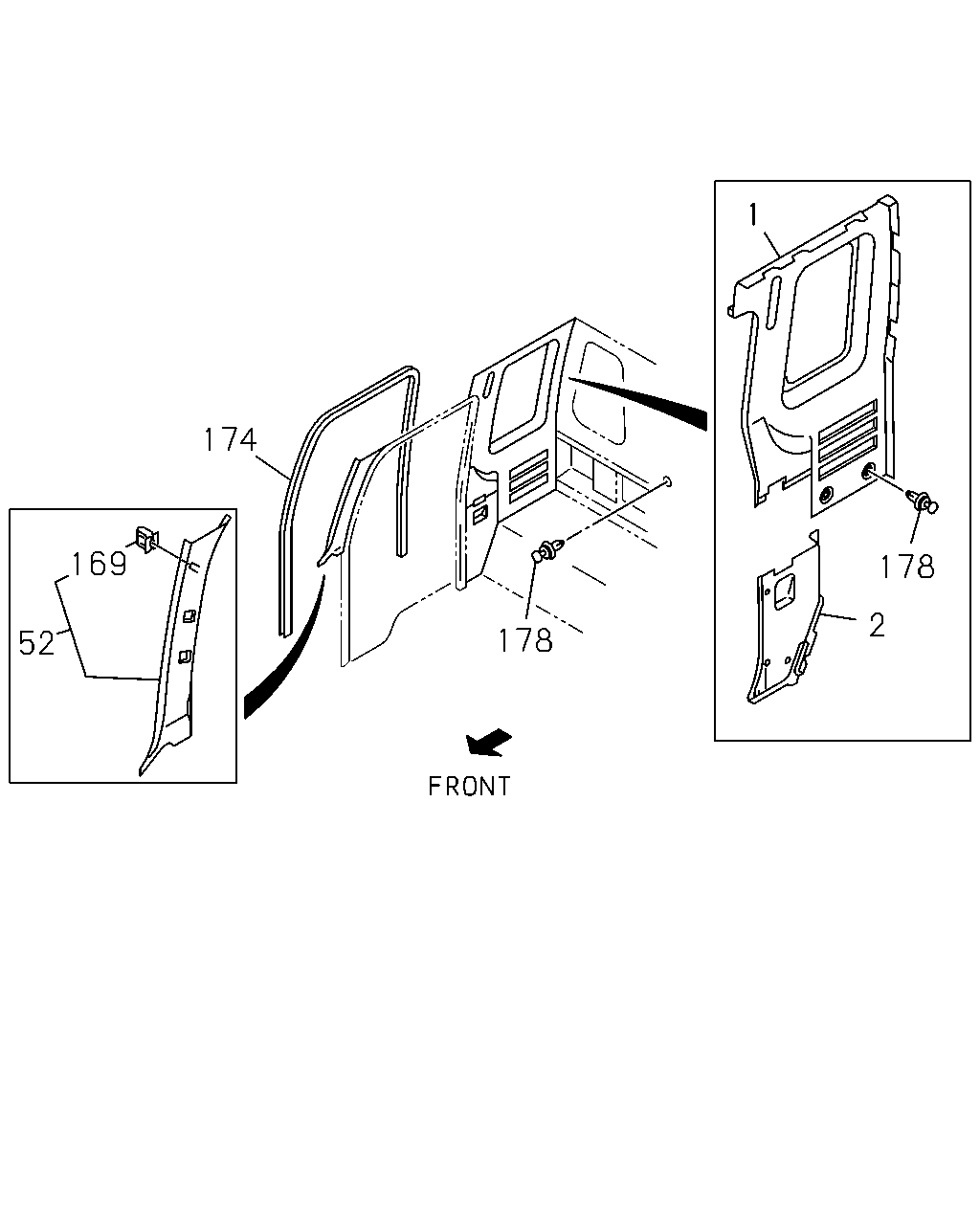

çizim 88577
1 174 169 178 178 2 52
BalonParca AdiParca NoAdetTipApplied Date
1 TRIM; ROOM,QUARTER WINDOW UPR
PROVISIONAL PACKAGE<NLY> 		1-73348-965-3 01 1 0612-
1 TRIM; ROOM,QUARTER WINDOW UPR
LOW ROOF<6XQ> EXC. PROVISIONAL PACKAGE<NLY> 		1-73348-965-3 01 1 0612-
1 TRIM; ROOM,QUARTER WINDOW UPR
PROVISIONAL PACKAGE<NLY> 		1-73348-964-3 01 1 0612-
1 TRIM; ROOM,QUARTER WINDOW UPR
LOW ROOF<6XQ> EXC. PROVISIONAL PACKAGE<NLY> 		1-73348-964-3 01 1 0612-
1 TRIM; ROOM,QUARTER WINDOW UPR
EXC. PROVISIONAL PACKAGE<NLY>,LOW ROOF<6XQ> 		1-73348-961-6 01 1 0612-
1 TRIM; ROOM,QUARTER WINDOW UPR
EXC. PROVISIONAL PACKAGE<NLY>,LOW ROOF<6XQ> 		1-73348-960-6 01 1 0612-
2 TRIM; ROOM,QUARTER WINDOW LWR
PROVISIONAL PACKAGE<NLY> 		1-73348-978-2 01 1 0612-
2 TRIM; ROOM,QUARTER WINDOW LWR
LOW ROOF<6XQ> EXC. PROVISIONAL PACKAGE<NLY> 		1-73348-978-2 01 1 0612-
2 TRIM; ROOM,QUARTER WINDOW LWR
PROVISIONAL PACKAGE<NLY> 		1-73348-977-2 01 1 0612-
2 TRIM; ROOM,QUARTER WINDOW LWR
LOW ROOF<6XQ> EXC. PROVISIONAL PACKAGE<NLY> 		1-73348-977-2 01 1 0612-
2 TRIM; ROOM,QUARTER WINDOW LWR
EXC. PROVISIONAL PACKAGE<NLY>,LOW ROOF<6XQ> 		1-73348-927-3 01 1 0612-
2 TRIM; ROOM,QUARTER WINDOW LWR
EXC. PROVISIONAL PACKAGE<NLY>,LOW ROOF<6XQ> 		1-73348-926-3 01 1 0612-
52 COVER; TRIM,FRT PILLAR 1-73347-833-0 01 1 0612-
52 COVER; TRIM,FRT PILLAR 1-73348-939-0 01 1 0612-
169 CLIP; TRIM COVER,FRT PILLAR 8-94313-458-0 02 1 0612-
174 FINISHER; BODY SIDE 1-76718-175-4 02 1 0612-
178 CLIP; TRIM COVER
OD=6.2 LIGHT GRAY 		1-09983-178-0 09 1 0612-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
