◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11041 - FSR(LHD) EURO4 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-35 - FRONT DOOR TRIM ▶
6-35 — FRONT DOOR TRIM (#27400) — 42 parça

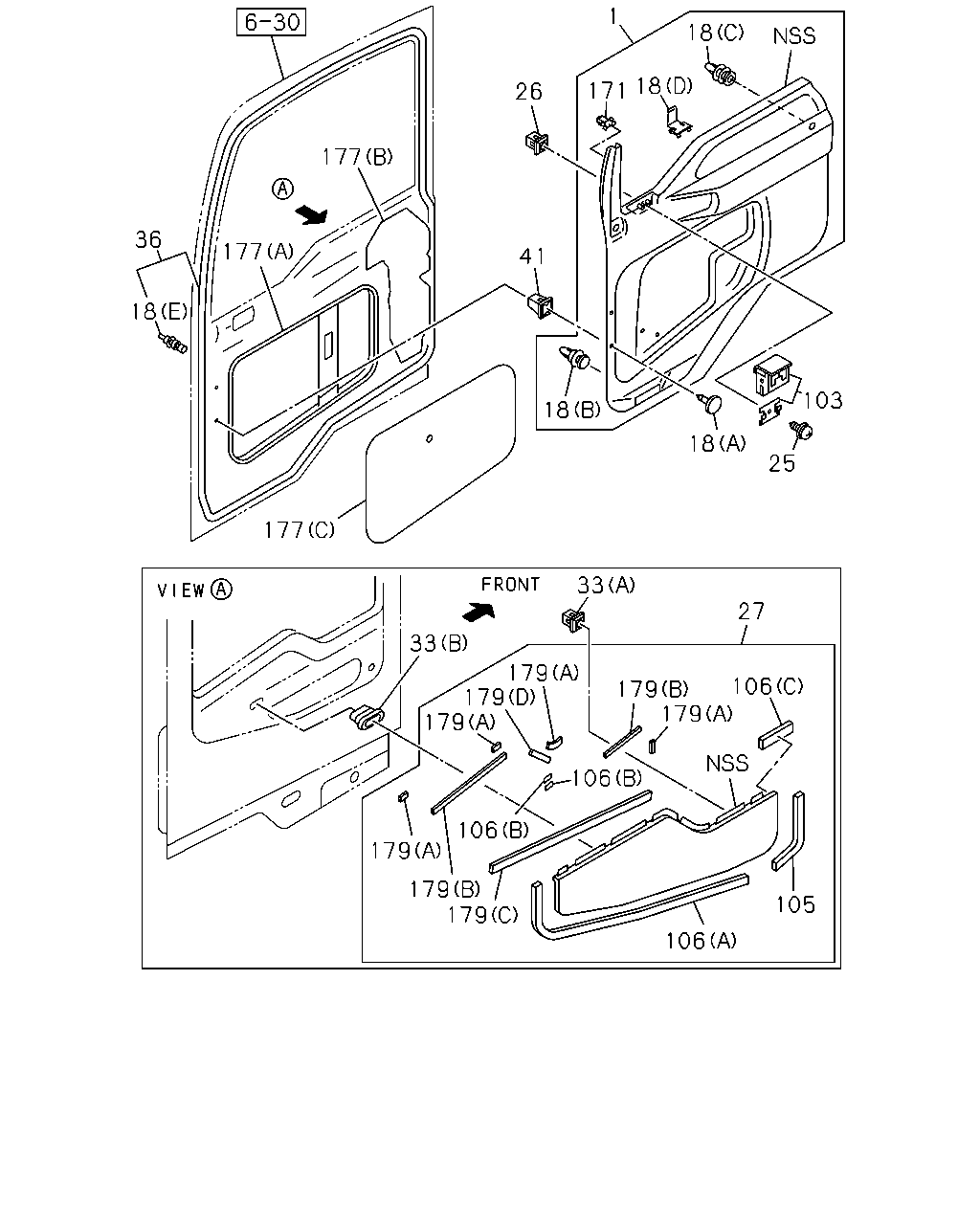

çizim 90460
1 26 171 18 18 41 18 18 25 103 177 36 177 177 18 27 179 106 179 33 179 179 179 33 105 106 106 106 179 179 179
BalonParca AdiParca NoAdetTipApplied Date
1 PAD; TRIM,FRT DOOR
POWER WINDOW<A30> 		1-73337-509-0 01 1 0612-0702
1 PAD; TRIM,FRT DOOR
POWER WINDOW<A30> 		1-73337-513-1 01 1 0703-
1 PAD; TRIM,FRT DOOR
POWER WINDOW<A30> 		1-73338-539-0 01 1 0612-0702
1 PAD; TRIM,FRT DOOR
POWER WINDOW<A30> 		1-73337-516-1 01 1 0703-
1 PAD; TRIM,FRT DOOR
DOOR WINDOW MANUAL CONT<SKF> 		1-73337-510-0 01 1 0612-0702
1 PAD; TRIM,FRT DOOR
DOOR WINDOW MANUAL CONT<SKF> 		1-73337-514-1 01 1 0703-
1 PAD; TRIM,FRT DOOR
DOOR WINDOW MANUAL CONT<SKF> 		1-73338-538-0 01 1 0612-0702
1 PAD; TRIM,FRT DOOR
DOOR WINDOW MANUAL CONT<SKF> 		1-73337-515-1 01 1 0703-
18 CLIP; DOOR PAD
POWER WINDOW<A30>,DOOR WINDOW MANUAL CONT<SKF> (D) 		1-09987-262-0 10 1 0612-
18 CLIP; DOOR PAD
(A) D4.2X19.9 GRAY 		1-09987-272-0 04 1 0612-
18 CLIP; DOOR PAD
POWER WINDOW<A30>,DOOR WINDOW MANUAL CONT<SKF> (C) OD=7.9 BLACK 		8-94279-974-1 02 1 0612-
18 CLIP; DOOR PAD
POWER WINDOW<A30>,DOOR WINDOW MANUAL CONT<SKF> (B) OD=8.5 GRAY 		8-97893-482-0 10 1 0612-
18 CLIP; DOOR PAD
(E) NATURAL 		1-09987-257-0 23 1 0612-
18 CLIP; DOOR PAD
(E) NATURAL 		1-09987-257-0 23 1 0612-
25 SCREW; ASH TRAY,DOOR
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 02 1 0612-
26 GROMMET; SCREW,ASH TRAY DOOR
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 0612-
27 PANEL; ORNAMENT,DOOR 1-76218-096-7 01 1 0612-
27 PANEL; ORNAMENT,DOOR 1-76218-125-7 01 1 0612-1210
27 PANEL; ORNAMENT,DOOR 8-98229-329-0 01 1 1211-
33 GROMMET; DOOR ORNAMENT
(A) 		1-09983-149-1 02 1 0612-0802
33 GROMMET; DOOR ORNAMENT
(A) OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 02 1 0803-
33 GROMMET; DOOR ORNAMENT
(B) 		1-74998-111-0 02 1 0612-
36 SEAL; DOOR,MAIN,CAB SIDE 1-76718-177-9 01 1 0612-1010
36 SEAL; DOOR,MAIN,CAB SIDE 8-98177-764-0 01 1 1011-
36 SEAL; DOOR,MAIN,CAB SIDE 1-76718-176-9 01 1 0612-1010
36 SEAL; DOOR,MAIN,CAB SIDE 8-98177-763-0 01 1 1011-
41 GROMMET; SCREW,DOOR PAD
OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 04 1 0612-
103 TRAY ASM; ASH,DOOR 1-76458-086-1 01 1 0612-
103 TRAY ASM; ASH,DOOR 1-76458-085-1 01 1 0612-
105 SEAL; DOOR ORNAMENT,FRT 1-76218-082-2 02 1 0612-
106 SEAL; DOOR ORNAMENT
(C) 		8-98226-642-0 01 1 1211-
106 SEAL; DOOR ORNAMENT
(A) 		1-76218-083-2 02 1 0612-
106 SEAL; DOOR ORNAMENT
(B) 		1-76218-104-0 02 1 0612-
171 RETAINER; DOOR PAD
POWER WINDOW<A30>,DOOR WINDOW MANUAL CONT<SKF> 		1-09987-264-0 02 1 0612-
177 SEAL; WATER,DOOR
(B) 		1-76778-055-2 02 1 0612-
177 SEAL; WATER,DOOR
DOOR WINDOW MANUAL CONT<SKF> (C) 		1-76778-047-3 02 1 0612-
177 SEAL; WATER,DOOR
POWER WINDOW<A30> (A) 		1-76778-052-2 01 1 0612-
177 SEAL; WATER,DOOR
POWER WINDOW<A30> (A) 		1-76778-035-6 01 1 0612-
179 TAPE; ORNAMENT
(A) L=45 		1-76218-063-2 08 1 0612-
179 TAPE; ORNAMENT
(C) L=770 		1-76218-091-2 02 1 0612-
179 TAPE; ORNAMENT
(D) L=160 		1-76218-094-1 02 1 0612-
179 TAPE; ORNAMENT
(B) L=235 		1-76218-127-1 04 1 0612-
