8-15 — FIXING PARTS; WIRING HARNESS (#274) — 158 parça

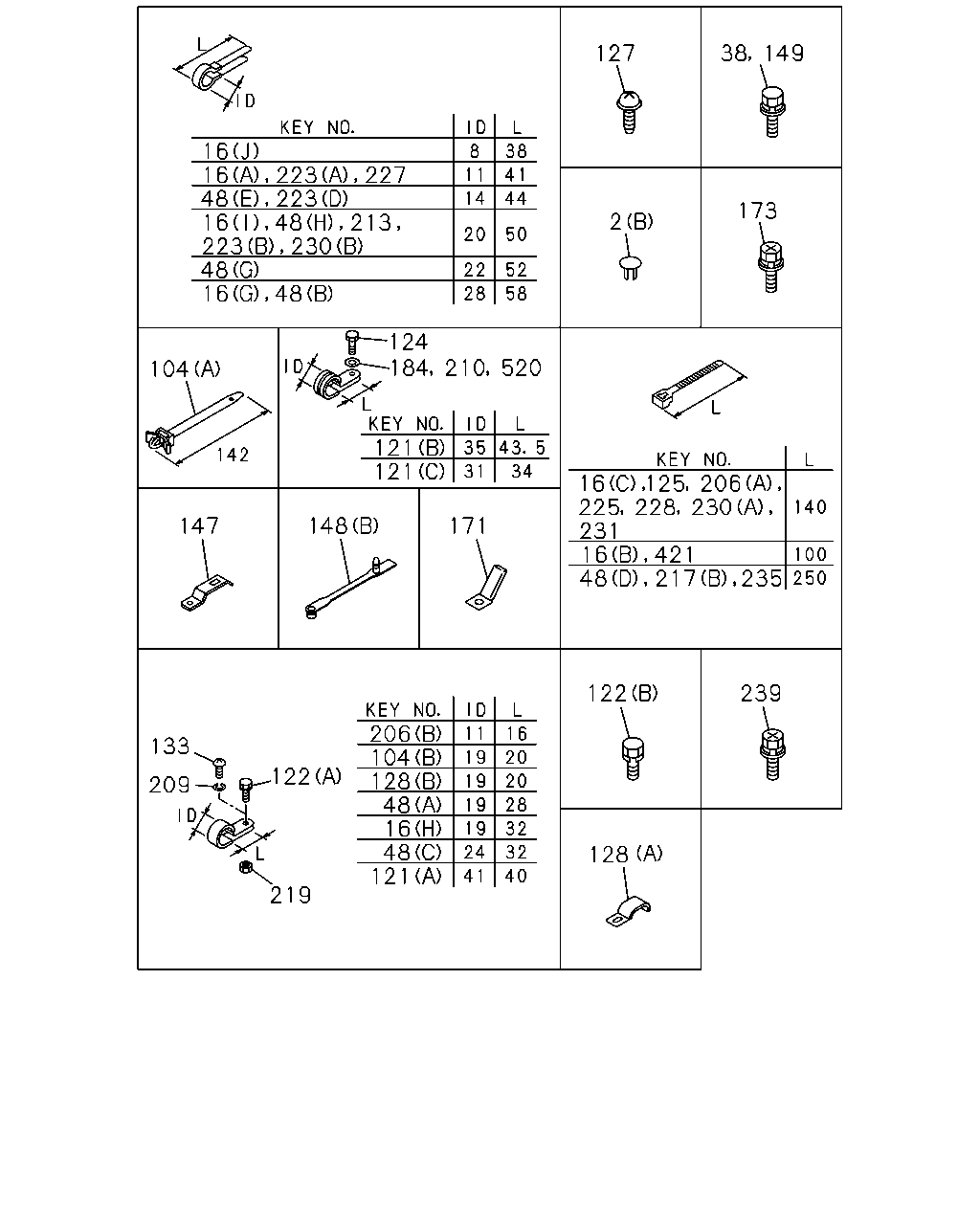

çizim 28389
127 38 149 16 48 173 2 124 184 210 520 104 121 121 231 147 148 171 122 239 206 104 128 48 16 48 121 133 122 209 219 16 223 48 223 16 48 213 223 230 16 48 128 48 16 421 217 235 230 228 225 16 125 206 227
BalonParca AdiParca NoAdetTipApplied Date
2 GROMMET; CLIP HOLE,HARNESS
(A) OD=47 		1-09983-039-1 02 1 9212-
2 GROMMET; CLIP HOLE,HARNESS
(B) OD=12.8 		1-09983-065-0 04 1 9212-
16 CLIP; HARNESS
(G) ID=28 L=58 		1-09700-400-0 01 1 9212-
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 02 1 9212-
16 CLIP; HARNESS
(D) ID=19 H=33 L=45 		1-09701-045-0 01 1 9212-
16 CLIP; HARNESS
(K) L=300 		1-09707-001-0 02 1 9212-
16 CLIP; HARNESS
(E) L=219.5 		1-09987-136-0 03 1 9212-
16 CLIP; HARNESS
(F) L=135 		1-09987-143-1 02 1 9212-
16 CLIP; HARNESS
(H) ID=19 L=32 		9-09525-866-0 01 1 9212-
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 04 1 9212-
16 CLIP; HARNESS
(E) L=250 		5-09707-030-0 01 1 9303-
16 CLIP; HARNESS
HEATER&DEFROSTER(C41),AIR CON MANUAL CONTROL(C60), VENTILATOR & DEFROSTER WO/HEATER(SAZ) EXC. RADIO CLARION(SK2),RADIO AM & TAPE PLAYER(UM1) ,SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> (C) L=140 		5-09707-031-0 01 1 9212-
16 CLIP; HARNESS
HEATER&DEFROSTER(C41),AIR CON MANUAL CONTROL(C60), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) L=100 		5-09707-036-0 02 1 9212-
16 CLIP; HARNESS
EXC. HEATER&DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) L=140 		5-09707-031-0 03 1 9212-
16 CLIP; HARNESS
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (J) ID=8 L=38 		9-09917-424-0 02 1 9212-
38 BOLT; CLIP,HARNESS
M8X14 FLANGE 		0-28080-814-0 01 1 9212-
38 BOLT; CLIP,HARNESS
M8X14 FLANGE 		0-28080-814-0 02 1 9212-
38 BOLT; CLIP,HARNESS
M8X18 FLANGE 		0-28080-818-0 02 1 9212-
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 02 1 9212-
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 01 1 9212-
38 BOLT; CLIP,HARNESS
M8X25 FLANGE 		0-28080-825-0 01 1 9212-
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 01 1 9212-
38 BOLT; CLIP,HARNESS
M8X20 W/LK WASHER 		0-50040-820-0 01 1 9212-
38 BOLT; CLIP,HARNESS
M8X25 W/LK WASHER 		0-50040-825-0 01 1 9212-
38 BOLT; CLIP,HARNESS
M8X30 W/LK&PL WASHER 		0-50140-830-0 01 1 9212-
48 CLIP; FRAME HARNESS
(F) ID=12 H=24 L=20 		1-09700-605-0 01 1 9212-
48 CLIP; FRAME HARNESS
(D) L=250 		5-09707-030-0 02 1 9212-
48 CLIP; FRAME HARNESS
(A) ID=19 L=28 		9-09525-856-0 02 1 9212-
48 CLIP; FRAME HARNESS
(E) ID=14 L=44 		9-09917-427-0 02 1 9212-
48 CLIP; FRAME HARNESS
(H) ID=20 L=50 		9-09917-430-0 01 1 9212-
48 CLIP; FRAME HARNESS
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (H) ID=20 L=50 		9-09917-430-0 01 1 9212-
48 CLIP; FRAME HARNESS
(G) ID=22 L=52 		9-09917-431-0 01 1 9212-
48 CLIP; FRAME HARNESS
(C) ID=24 L=32 		1-09700-766-1 01 1 9212-
48 CLIP; FRAME HARNESS
(G) ID=22 L=52 		9-09917-431-0 02 1 9212-9410
48 CLIP; FRAME HARNESS
(B) ID=28 L=58 		1-09700-400-0 02 1 9411-
48 CLIP; FRAME HARNESS
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) ID=28 L=58 		1-09700-400-0 04 1 9212-
48 CLIP; FRAME HARNESS
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (H) ID=20 L=50 		9-09917-430-0 07 1 9212-
48 CLIP; FRAME HARNESS
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (H) ID=20 L=50 		9-09917-430-0 04 1 9212-9403
48 CLIP; FRAME HARNESS
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (H) ID=20 L=50 		9-09917-430-0 03 1 9404-
48 CLIP; FRAME HARNESS
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) ID=28 L=58 		1-09700-400-0 03 1 9212-
48 CLIP; FRAME HARNESS
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (H) ID=20 L=50 		9-09917-430-0 06 1 9212-
48 CLIP; FRAME HARNESS
WHEEL BASE 3700MM(37W) (H) ID=20 L=50 		9-09917-430-0 10 1 9212-
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (H) ID=20 L=50 		9-09917-430-0 14 1 9212-
48 CLIP; FRAME HARNESS
WHEEL BASE 4800MM(48W) (H) ID=20 L=50 		9-09917-430-0 16 1 9212-
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (H) ID=20 L=50 		9-09917-430-0 20 1 9212-
104 CLIP; HEADLAMP HARNESS
(A) L=142 		8-94232-619-0 02 1 9212-
104 CLIP; HEADLAMP HARNESS
(B) ID=19 L=20 		9-09525-832-0 01 1 9212-
121 CLIP; FACIA HARNESS
(A) ID=41 L=40 		1-09700-596-0 01 1 9212-
121 CLIP; FACIA HARNESS
(B) ID=35 L=35 		1-09700-726-0 03 1 9212-
121 CLIP; FACIA HARNESS
(C) ID=31 L=33.5 		1-09987-165-0 01 1 9212-
122 BOLT; FACIA HARNESS CLIP
(B) M6X20 W/LK&PL WASHER 		1-09980-493-0 03 1 9212-
122 BOLT; FACIA HARNESS CLIP
HEATER&DEFROSTER(C41),AIR CON MANUAL CONTROL(C60), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M6X20 W/LK&PL WASHER 		0-50140-620-0 02 1 9212-
124 BOLT; GRAND,FACIA
M6X22 W/LK&PL WASHER 		1-09980-584-0 01 1 9212-9303
124 BOLT; GRAND,FACIA
M6X20 W/LK&PL WASHER 		8-97086-824-0 01 1 9304-
125 CLIP; BAND,STOP LAMP SW HARNESS
L=140 		5-09707-031-0 01 1 9212-
127 SCREW; FACIA HARNESS CLIP
EXC. HEATER&DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X16 TAPPING W/PL WASHER 		0-74100-516-0 01 1 9212-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) 		1-09987-193-0 01 1 9212-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=19 L=20 		9-09525-832-0 01 1 9212-
133 SCREW; HARNESS CLIP,STRG COLUMN
M6X12 W/LK&PL WASHER 		9-03920-612-0 02 1 9212-
147 BRACKET; HARNESS,HEADLAMP 1-71998-471-0 02 1 9212-
148 CLIP; BAND,HEADLAMP HARNESS
(A) L=219.5 		1-09987-136-0 01 1 9212-
148 CLIP; BAND,HEADLAMP HARNESS
(B) L=85 		8-94232-611-0 03 1 9212-
148 CLIP; BAND,HEADLAMP HARNESS
(C) L=142 		8-94232-619-0 07 1 9212-
149 BOLT; HEADLAMP HARNESS EARTH
M6X22 GREEN 		1-09980-430-0 01 1 9212-9303
149 BOLT; HEADLAMP HARNESS EARTH
M6X20 W/LK&PL WASHER 		8-97086-824-0 02 1 9304-
149 BOLT; HEADLAMP HARNESS EARTH
M6X16 BLACK 		1-09980-537-0 01 1 9212-9303
171 CLIP; STARTER HARNESS
L=140 		5-09707-031-0 01 1 9212-
173 BOLT; STARTER EARTH
M10X16 FLANGE 		0-28081-016-0 01 1 9212-9212
173 BOLT; STARTER EARTH
M10X25 		8-97087-205-0 01 1 9301-
184 WASHER; PL,STARTER EARTH
ID=10.5 		1-09503-265-0 01 1 9301-
206 CLIP; FUEL TANK HARNESS
(A) L=140 		5-09707-031-0 02 1 9212-
206 CLIP; FUEL TANK HARNESS
FUEL TANK 200L FRAME SIDE<N20> (B) ID=11 L=16 		9-09525-022-0 01 1 9212-
209 WASHER; LK,GEN,EARTH
ID=5.1 		9-09150-505-0 01 1 9212-
210 WASHER; PL,GEN
ID=8.4 		1-09503-264-0 01 1 9301-
213 CLIP; END CROSS HARNESS
ID=20 L=50 		9-09917-430-0 03 1 9212-
217 CLIP; RR BODY HARNESS
(A) ID=15 L=70 		1-09700-980-0 02 1 9212-
217 CLIP; RR BODY HARNESS
(B) L=250 		5-09707-030-0 02 1 9212-
219 NUT
M8 		9-09110-408-0 04 1 9212-
219 NUT
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8 		9-09110-408-0 01 1 9212-
223 CLIP; AIR TANK HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 9212-
223 CLIP; AIR TANK HARNESS
(D) ID=14 L=44 		9-09917-427-0 01 1 9212-
223 CLIP; AIR TANK HARNESS
(B) ID=20 L=50 		9-09917-430-0 04 1 9212-
223 CLIP; AIR TANK HARNESS
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C) OD=9 H=6 		1-09709-178-0 01 1 9303-
225 CLIP; AIR TANK HARNESS
L=140 		5-09707-031-0 01 1 9212-9302
225 CLIP; AIR TANK HARNESS
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=140 		5-09707-031-0 01 1 9303-
227 CLIP; FOG LAMP HARNESS
ID=11 L=41 		1-09700-403-0 02 1 9212-
228 CLIP; COOLER HARNESS
AIR CON MANUAL CONTROL(C60) L=140 		5-09707-031-0 01 1 9212-
228 CLIP; COOLER HARNESS
AIR CON MANUAL CONTROL(C60) L=140 		5-09707-031-0 03 1 9212-
230 CLIP; C/MBR HARNESS
(B) ID=20 L=50 		9-09917-430-0 02 1 9212-
230 CLIP; C/MBR HARNESS
HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) L=140 		5-09707-031-0 01 1 9212-
231 CLIP; BAND,OIL PRESS
L=140 		5-09707-031-0 01 1 9212-
235 CLIP; HARNESS,SPD SENSOR,SSPS
L=250 		5-09707-030-0 01 1 9212-
239 BOLT; GRAND
M5X8 		0-20800-508-0 01 1 9212-
239 BOLT; GRAND
M8X20 FLANGE 		0-28480-820-0 01 1 9212-9212
239 BOLT; GRAND
M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 9301-
421 CLIP; FLOOR HARNESS
SAUDI ARABIA EQUIPMENT(WH1) L=100 		5-09707-036-0 01 1 9212-
520 WASHER; PL,EARTH CABLE
ID=8.4 		1-09503-264-0 01 1 9301-
çizim 94532
64 2 27 178 16 148 16 148 223 217 176 185 224 154 242 252 16 48 16 95 182 194 305
BalonParca AdiParca NoAdetTipApplied Date
2 GROMMET; CLIP HOLE,HARNESS
(A) OD=47 		1-09983-039-1 02 1 9212-
2 GROMMET; CLIP HOLE,HARNESS
(B) OD=12.8 		1-09983-065-0 04 1 9212-
16 CLIP; HARNESS
(G) ID=28 L=58 		1-09700-400-0 01 1 9212-
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 02 1 9212-
16 CLIP; HARNESS
(D) ID=19 H=33 L=45 		1-09701-045-0 01 1 9212-
16 CLIP; HARNESS
(K) L=300 		1-09707-001-0 02 1 9212-
16 CLIP; HARNESS
(E) L=219.5 		1-09987-136-0 03 1 9212-
16 CLIP; HARNESS
(F) L=135 		1-09987-143-1 02 1 9212-
16 CLIP; HARNESS
(H) ID=19 L=32 		9-09525-866-0 01 1 9212-
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 04 1 9212-
16 CLIP; HARNESS
(E) L=250 		5-09707-030-0 01 1 9303-
16 CLIP; HARNESS
HEATER&DEFROSTER(C41),AIR CON MANUAL CONTROL(C60), VENTILATOR & DEFROSTER WO/HEATER(SAZ) EXC. RADIO CLARION(SK2),RADIO AM & TAPE PLAYER(UM1) ,SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> (C) L=140 		5-09707-031-0 01 1 9212-
16 CLIP; HARNESS
HEATER&DEFROSTER(C41),AIR CON MANUAL CONTROL(C60), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) L=100 		5-09707-036-0 02 1 9212-
16 CLIP; HARNESS
EXC. HEATER&DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) L=140 		5-09707-031-0 03 1 9212-
16 CLIP; HARNESS
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (J) ID=8 L=38 		9-09917-424-0 02 1 9212-
27 PROTECTOR; EDGE
L=2040 		1-71997-513-1 02 1 9212-
48 CLIP; FRAME HARNESS
(F) ID=12 H=24 L=20 		1-09700-605-0 01 1 9212-
48 CLIP; FRAME HARNESS
(D) L=250 		5-09707-030-0 02 1 9212-
48 CLIP; FRAME HARNESS
(A) ID=19 L=28 		9-09525-856-0 02 1 9212-
48 CLIP; FRAME HARNESS
(E) ID=14 L=44 		9-09917-427-0 02 1 9212-
48 CLIP; FRAME HARNESS
(H) ID=20 L=50 		9-09917-430-0 01 1 9212-
48 CLIP; FRAME HARNESS
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (H) ID=20 L=50 		9-09917-430-0 01 1 9212-
48 CLIP; FRAME HARNESS
(G) ID=22 L=52 		9-09917-431-0 01 1 9212-
48 CLIP; FRAME HARNESS
(C) ID=24 L=32 		1-09700-766-1 01 1 9212-
48 CLIP; FRAME HARNESS
(G) ID=22 L=52 		9-09917-431-0 02 1 9212-9410
48 CLIP; FRAME HARNESS
(B) ID=28 L=58 		1-09700-400-0 02 1 9411-
48 CLIP; FRAME HARNESS
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) ID=28 L=58 		1-09700-400-0 04 1 9212-
48 CLIP; FRAME HARNESS
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (H) ID=20 L=50 		9-09917-430-0 07 1 9212-
48 CLIP; FRAME HARNESS
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (H) ID=20 L=50 		9-09917-430-0 04 1 9212-9403
48 CLIP; FRAME HARNESS
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (H) ID=20 L=50 		9-09917-430-0 03 1 9404-
48 CLIP; FRAME HARNESS
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) ID=28 L=58 		1-09700-400-0 03 1 9212-
48 CLIP; FRAME HARNESS
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (H) ID=20 L=50 		9-09917-430-0 06 1 9212-
48 CLIP; FRAME HARNESS
WHEEL BASE 3700MM(37W) (H) ID=20 L=50 		9-09917-430-0 10 1 9212-
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (H) ID=20 L=50 		9-09917-430-0 14 1 9212-
48 CLIP; FRAME HARNESS
WHEEL BASE 4800MM(48W) (H) ID=20 L=50 		9-09917-430-0 16 1 9212-
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (H) ID=20 L=50 		9-09917-430-0 20 1 9212-
64 SCREW; CLIP
FUEL TANK 200L FRAME SIDE<N20> M5X10 W/LK+PL WASHER 		9-03920-510-0 01 1 9212-
95 CLIP; CABLE
L=135 		1-09987-143-1 02 1 9212-
148 CLIP; BAND,HEADLAMP HARNESS
(A) L=219.5 		1-09987-136-0 01 1 9212-
148 CLIP; BAND,HEADLAMP HARNESS
(B) L=85 		8-94232-611-0 03 1 9212-
148 CLIP; BAND,HEADLAMP HARNESS
(C) L=142 		8-94232-619-0 07 1 9212-
154 BRACKET; STARTER EARTH CABLE 1-47465-518-0 01 1 9212-
176 CLIP; BACK SW HARNESS
MLD6 M/T<X9Y> ID=11 		1-09700-415-0 01 1 9212-
178 GROMMET; HARNESS
ID=15 OD=26 		9-09956-178-0 03 1 9212-
178 GROMMET; HARNESS
ID=28 OD=35 T=17 		9-09956-256-1 01 1 9212-
182 CLIP; HARNESS,OIL FILTER
L=140 		5-09707-031-0 01 1 9212-
185 SLEEVE; RUBBER
ID=9 OD=14 L=35 		8-94127-043-0 01 1 9212-
194 CLIP; BAND
L=180 		1-09707-162-0 03 1 9212-
194 CLIP; BAND
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=180 		1-09707-162-0 01 1 9212-
194 CLIP; BAND
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=180 		1-09707-162-0 02 1 9212-
217 CLIP; RR BODY HARNESS
(A) ID=15 L=70 		1-09700-980-0 02 1 9212-
217 CLIP; RR BODY HARNESS
(B) L=250 		5-09707-030-0 02 1 9212-
223 CLIP; AIR TANK HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 9212-
223 CLIP; AIR TANK HARNESS
(D) ID=14 L=44 		9-09917-427-0 01 1 9212-
223 CLIP; AIR TANK HARNESS
(B) ID=20 L=50 		9-09917-430-0 04 1 9212-
223 CLIP; AIR TANK HARNESS
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C) OD=9 H=6 		1-09709-178-0 01 1 9303-
224 SLEEVE; RUBBER,HARNESS
ID=10 OD=14 L=30 		9-09956-682-0 01 1 9212-9302
224 SLEEVE; RUBBER,HARNESS
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=10 OD=14 L=30 		9-09956-682-0 01 1 9303-
242 BOLT; BRKT,HARNESS
M8X25 W/LK WASHER 		0-50040-825-0 01 1 9212-
252 CLIP; CONNECTOR FIX
W/SPONGE RUBBER 		1-09709-150-0 01 1 9212-
305 CLIP; ENG HARNESS
L=250 		5-09707-030-0 01 1 9212-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
