◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11041 - FSR(LHD) EURO4 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-05 - FRONT PANEL ▶
6-05 — FRONT PANEL (#27394) — 144 parça

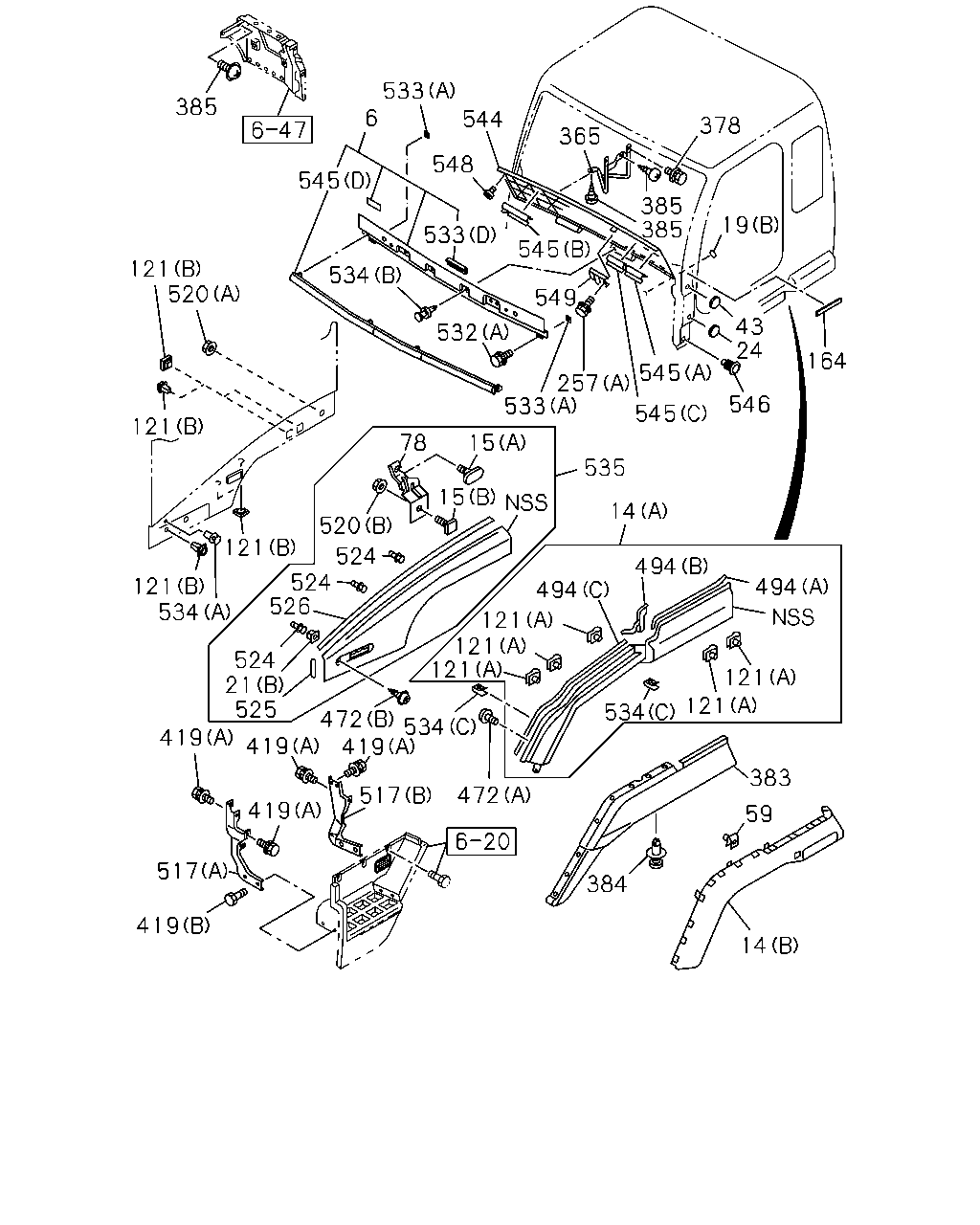

çizim 26051
533 6 544 385 378 365 548 545 385 385 19 533 545 121 520 534 549 43 24 532 164 545 257 533 546 545 121 78 15 535 15 14 520 121 524 524 526 494 121 534 494 494 121 121 121 24 21 525 121 121 534 472 534 419 419 383 472 517 419 59 517 384 419 14 419
BalonParca AdiParca NoAdetTipApplied Date
6 PANEL; FRONT 1-65481-744-2 01 1 0612-
14 FENDER; FRT
FRONT FENDER WIDE<SA4> (B) GRAY 		1-71996-178-1 01 1 0612-
14 FENDER; FRT
FRONT FENDER WIDE<SA4> (B) GRAY 		1-71996-177-1 01 1 0612-
14 FENDER; FRT
FRONT FENDER WIDE<SA4> (A) WHITE 		1-65482-045-1 01 1 0612-
14 FENDER; FRT
FRONT FENDER WIDE<SA4> (A) WHITE 		1-65482-044-1 01 1 0612-
14 FENDER; FRT
EXC. FRONT FENDER WIDE<SA4> (A) WHITE 		1-65482-023-1 01 1 0612-
14 FENDER; FRT
EXC. FRONT FENDER WIDE<SA4> (A) WHITE 		1-65482-022-1 01 1 0612-
15 BOLT; FENDER
(A) M6X7 		1-71268-294-0 02 1 0612-
15 BOLT; FENDER
(B) M6X14 SQUARE HEAD 		1-71268-300-1 02 1 0612-
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 0612-
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-102-1 01 1 0612-
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-807-4 01 1 0612-
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-101-1 01 1 0612-
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-806-4 01 1 0612-
21 GROMMET; SCREW,FRT SIDE PANEL
(A) D=10.5X7 L=10.5 M5 		1-09983-160-3 12 1 0612-
21 GROMMET; SCREW,FRT SIDE PANEL
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 0612-
24 SEAL; FRT PANEL LWR
OD=25 BLACK 		1-76798-019-0 04 1 0612-
43 GROMMET; LOCATION HOLE,A-POST
OD=45 BLACK 		1-76798-017-0 02 1 0612-
59 GROMMET; SCREW
FRONT FENDER WIDE<SA4> 		8-94279-723-0 02 1 0612-
78 BRACKET; FENDER 1-71268-323-0 01 1 0612-
78 BRACKET; FENDER 1-71268-322-0 01 1 0612-
121 GROMMET; FENDER
(B) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 12 1 0612-
121 GROMMET; FENDER
(A) 		8-94279-723-0 16 1 0612-
164 SEAL; FRT PILLAR 1-71907-414-0 02 1 0612-
257 BOLT; BRKT
(A) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 0612-
257 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0612-0904
257 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 0905-
365 SUPPORT; FENDER
FRONT FENDER WIDE<SA4> 		1-71996-147-1 01 1 0612-
378 BOLT; SUPPORT
FRONT FENDER WIDE<SA4> M6X20 W/LK&PL WASHER 		8-94279-203-0 01 1 0612-
383 GUARD; MUD,FENDER LWR
EXC. FRONT FENDER WIDE<SA4> 		1-71996-061-3 01 1 0612-
383 GUARD; MUD,FENDER LWR
EXC. FRONT FENDER WIDE<SA4> 		1-71996-062-3 01 1 0612-
384 CLIP; FENDER LWR
EXC. FRONT FENDER WIDE<SA4> D8X13.5 		1-09987-248-1 06 1 0612-
385 SCREW; FENDER LWR
FRONT FENDER WIDE<SA4> M6X30 		1-65481-387-0 04 1 0612-
385 SCREW; FENDER LWR
EXC. FRONT FENDER WIDE<SA4> M6X30 		1-65481-387-0 01 1 0612-
419 BOLT; STEP
(A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 10 1 0612-0904
419 BOLT; STEP
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 10 1 0905-
419 BOLT; STEP
(B) M8X20 W/LK&PL WASHER 		8-94279-216-0 08 1 0612-
472 SCREW; FENDER TO CAB
(B) M5X16 W/PL WASHER TAPPING 		8-94279-123-0 02 1 0612-
472 SCREW; FENDER TO CAB
FRONT FENDER WIDE<SA4> (A) M6X22 		1-65481-386-0 08 1 0612-
472 SCREW; FENDER TO CAB
FRONT FENDER WIDE<SA4> (A) M6X30 		1-65481-387-0 26 1 0612-
472 SCREW; FENDER TO CAB
FRONT FENDER WIDE<SA4> (A) M6X25 		1-65481-736-0 04 1 0612-
472 SCREW; FENDER TO CAB
EXC. FRONT FENDER WIDE<SA4> (A) M6X22 		1-65481-386-0 17 1 0612-
494 FINISHER; FENDER
(B) 		1-71907-181-4 01 1 0612-
494 FINISHER; FENDER
(B) 		1-71907-180-4 01 1 0612-
494 FINISHER; FENDER
(A) 		1-71998-999-0 02 1 0612-
494 FINISHER; FENDER
(C) 		1-71907-641-0 02 1 0612-
517 SUPPORT; STEP PANEL
(A) 		1-71996-078-3 01 1 0612-
517 SUPPORT; STEP PANEL
(B) 		1-71996-083-4 01 1 0612-
517 SUPPORT; STEP PANEL
(B) 		1-71996-082-2 01 1 0612-
517 SUPPORT; STEP PANEL
(A) 		1-71998-779-5 01 1 0612-
520 NUT; FENDER
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 0612-
520 NUT; FENDER
(B) M6 		1-09984-189-0 02 1 0612-
524 CLIP; FENDER COVER
D5.4X8 		1-09983-154-0 08 1 0612-
525 SEAL; FENDER
10X145 		1-71267-342-0 02 1 0612-
526 FINISHER; FENDER 1-71268-275-1 02 1 0612-
532 BOLT; FRT PANEL
(A) M8X20 		1-79198-002-0 02 1 0612-
532 BOLT; FRT PANEL
(B) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0612-
533 SEAL; FRT PANEL
(D) L=30 		1-71996-079-2 03 1 0612-
533 SEAL; FRT PANEL
(B) 20X65 		1-76778-046-3 02 1 0612-
533 SEAL; FRT PANEL
(C) OD=36 T=0.05 BLACK 		5-76777-035-0 13 1 0612-
533 SEAL; FRT PANEL
(A) 25X25 		8-94272-533-0 02 1 0612-
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-021-0 08 1 0612-1302
534 FASTENER
(A) ID=5.4 OD=6.8 		8-98241-984-0 08 1 1303-
534 FASTENER
(B) D6X12.5 		8-94146-425-0 02 1 0612-
534 FASTENER
FRONT FENDER WIDE<SA4> (C) 		1-71996-035-1 06 1 0612-
534 FASTENER
FRONT FENDER WIDE<SA4> (C) 		1-71996-035-1 20 1 0612-
535 FENDER; BLISTER
WHITE 		1-71268-429-1 01 1 0612-
535 FENDER; BLISTER
WHITE 		1-71268-428-2 01 1 0612-
544 LID; FRT 1-71108-235-3 01 1 0612-
545 SEAL; FRT LID
(C) 		1-71996-255-0 01 1 0612-
545 SEAL; FRT LID
(B) 		1-71996-257-1 01 1 0612-
545 SEAL; FRT LID
(D) 		1-71998-814-4 01 1 0612-
545 SEAL; FRT LID
(A) L=63 		1-71998-963-2 01 1 0612-
546 PLUG; DUMMY HOLE
OD=16 L=11 		1-76378-155-0 02 1 0612-
548 STRIKER; FRT LID PANEL 1-79318-008-1 02 1 0612-
549 BRACKET; STOPPER,FRT LID 8-97589-019-0 01 1 0612-

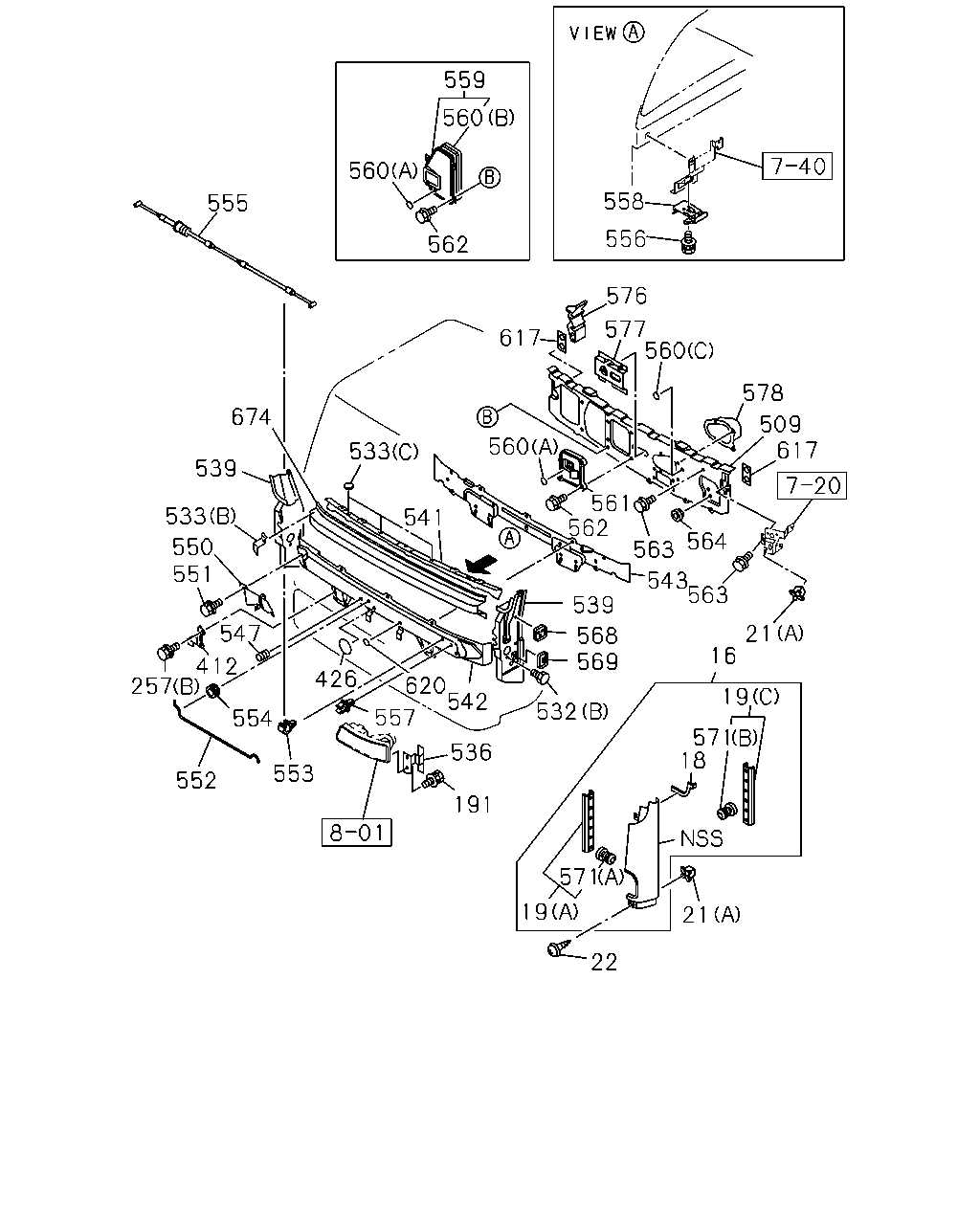

çizim 26053
559 560 560 558 555 556 562 576 577 617 578 674 509 617 539 561 562 533 541 564 550 551 563 543 563 539 547 21 16 568 569 412 426 620 542 557 19 532 554 18 536 553 552 191 571 19 21 22
BalonParca AdiParca NoAdetTipApplied Date
16 PANEL; FRONT,SIDE
WHITE 		1-65481-591-2 01 1 0612-
16 PANEL; FRONT,SIDE
WHITE 		1-65481-562-3 01 1 0612-
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-899-2 01 1 0612-
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-898-2 01 1 0612-
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 0612-
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-102-1 01 1 0612-
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-807-4 01 1 0612-
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-101-1 01 1 0612-
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-806-4 01 1 0612-
21 GROMMET; SCREW,FRT SIDE PANEL
(A) D=10.5X7 L=10.5 M5 		1-09983-160-3 12 1 0612-
21 GROMMET; SCREW,FRT SIDE PANEL
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 0612-
22 SCREW; FRT PANEL SIDE
M5X20 W/PL WASHER TAPPING 		8-97893-344-0 12 1 0612-0810
22 SCREW; FRT PANEL SIDE
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 12 1 0811-1010
22 SCREW; FRT PANEL SIDE
M5X20 W/PL WASHER TAPPING 		8-97893-344-0 12 1 1011-
191 BOLT; HINGE
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0612-0708
191 BOLT; HINGE
M6X16 FLANGE 		0-28650-616-0 04 1 0709-
412 BRACKET ASM; HD LAMP UPR 1-86830-044-3 01 1 0612-
412 BRACKET ASM; HD LAMP UPR 1-86830-043-3 01 1 0612-
426 GASKET
EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK 		1-76798-019-0 03 1 0612-
509 PANEL; DASH 1-62280-198-4 01 1 0612-
532 BOLT; FRT PANEL
(A) M8X20 		1-79198-002-0 02 1 0612-
532 BOLT; FRT PANEL
(B) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0612-
533 SEAL; FRT PANEL
(D) L=30 		1-71996-079-2 03 1 0612-
533 SEAL; FRT PANEL
(B) 20X65 		1-76778-046-3 02 1 0612-
533 SEAL; FRT PANEL
(C) OD=36 T=0.05 BLACK 		5-76777-035-0 13 1 0612-
533 SEAL; FRT PANEL
(A) 25X25 		8-94272-533-0 02 1 0612-
536 HINGE 1-86830-004-5 01 1 0612-
536 HINGE 1-86830-003-5 01 1 0612-
539 CLOSING; PILLAR 1-61480-762-1 01 1 0612-
539 CLOSING; PILLAR 1-61480-763-1 01 1 0612-
541 PANEL; FRONT,INNER 1-61480-765-1 01 1 0612-
542 RAIL; FRT MOUNTING 1-61480-768-5 01 1 0612-
543 CLOSING; FRT MTG RAIL 1-61480-769-2 01 1 0612-
547 RUBBER; CUSHION
OD=22 L=29 		8-94324-556-2 03 1 0612-
550 LOCK ASM; FRT LID 1-79318-007-5 01 1 0612-
550 LOCK ASM; FRT LID 1-79318-006-3 01 1 0612-
551 BOLT; LOCK
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 04 1 0612-
552 STAY; FRT LID 1-71996-311-0 01 1 0612-0706
552 STAY; FRT LID 1-71996-353-0 01 1 0707-
553 CLIP; STAY 8-97031-428-0 01 1 0612-
554 GROMMET; STAY
ID=8 OD=20 T=9 		9-09956-038-0 01 1 0612-
555 CABLE; FRT LID
L=2242 		1-79348-006-2 01 1 0612-
556 BOLT; CABLE
M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 0612-
557 CLIP; CABLE
ID=4.8 		8-94128-483-0 02 1 0612-
558 LEVER; FRT LID 8-97865-110-0 01 1 0612-
559 COVER; EVAPOLATOR 1-71996-193-1 01 1 0612-
560 SEAL; COVER
(B) 		1-71998-827-1 01 1 0612-
560 SEAL; COVER
(C) OD=25 BLACK 		1-76798-019-0 01 1 0612-
560 SEAL; COVER
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 0612-
560 SEAL; COVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (A) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0612-
561 COVER; HEATER CORE 1-71998-993-2 01 1 0612-
562 BOLT; COVER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 0612-
563 BOLT; DASH PANEL
M8X20 		1-79198-002-0 12 1 0612-
563 BOLT; DASH PANEL
M8X29.5 W/LK+PL WASHER 		8-94279-209-0 02 1 0612-
564 GROMMET; DASH PANEL
OD=23.5 		1-09983-101-0 02 1 0612-
568 PATCH; INST REINF 1-61480-675-2 02 1 0612-
569 PATCH; LWR GRIP 1-61480-736-2 01 1 0612-
569 PATCH; LWR GRIP 1-61480-772-0 01 1 0612-
571 CLIP; SEAL
(A) 		1-09987-228-0 12 1 0612-
571 CLIP; SEAL
(B) NATURAL 		1-09987-257-0 07 1 0612-
571 CLIP; SEAL
(B) NATURAL 		1-09987-257-0 07 1 0612-
576 FRAME; INST SIDE 1-62280-200-2 01 1 0612-
576 FRAME; INST SIDE 1-62280-201-2 01 1 0612-
577 BRACKET; IDLER 1-62280-202-0 01 1 0612-
578 COVER; WIPER MOTOR 1-62280-173-4 01 1 0612-
617 SEAL; DASH 1-61281-497-1 02 1 0612-
620 SEAL; FRT MTG
OD=25 BLACK 		1-76798-019-0 01 1 0612-
674 PANEL; UPR 1-61480-677-4 01 1 0612-
