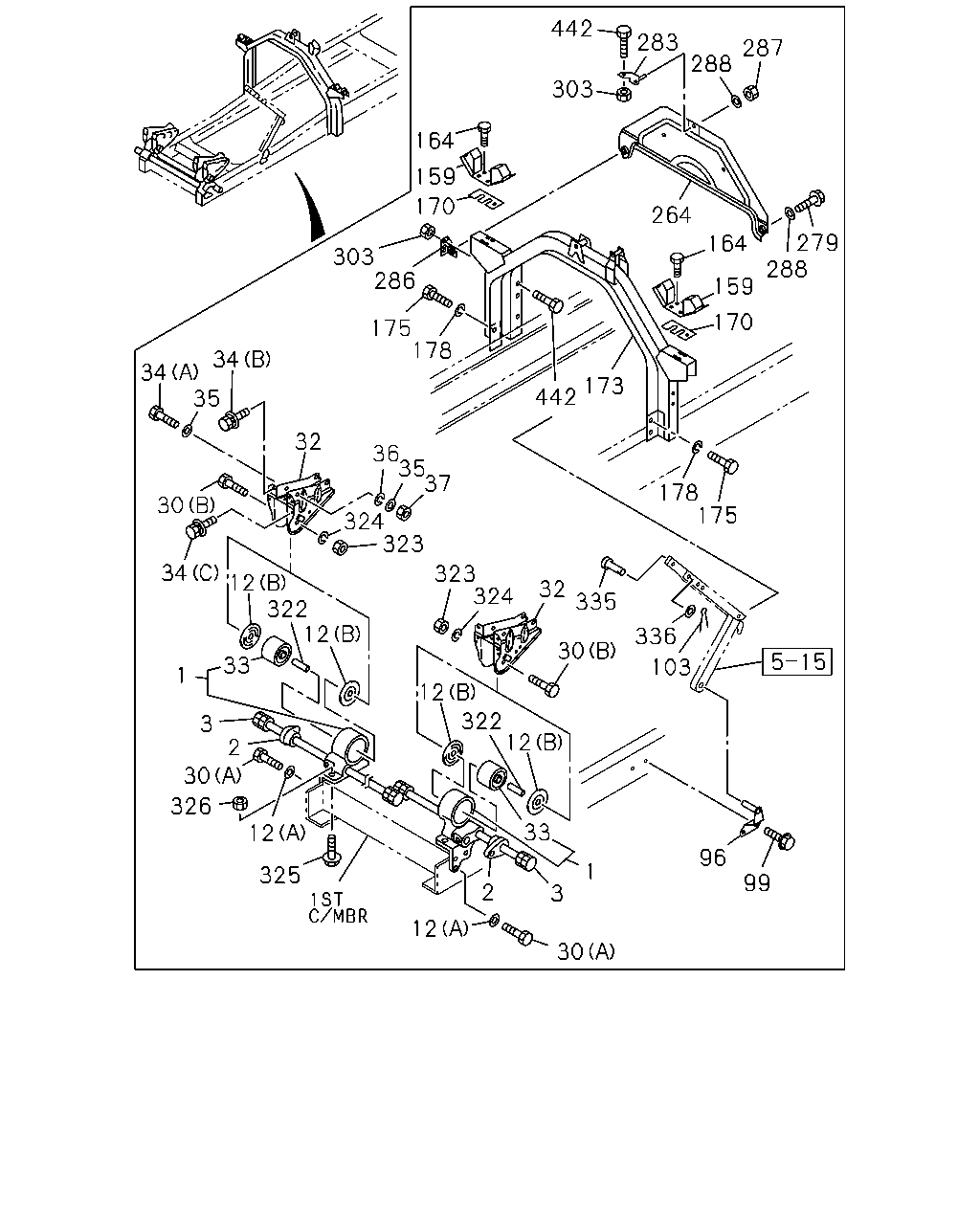

1 |
BRACKET; CAB MTG
|
1-53453-308-1 |
01 |
1 |
0612- |
| |
1 |
BRACKET; CAB MTG
|
1-53453-307-1 |
01 |
1 |
0612- |
| |
2 |
BUSHING; TORSION BAR
|
1-53458-282-0 |
02 |
1 |
0612- |
| |
3 |
TORSION BAR
|
1-09585-129-0 |
01 |
1 |
0612- |
| |
3 |
TORSION BAR
|
1-09585-130-0 |
01 |
1 |
0612- |
| |
12 |
WASHER; LK,BRKT
(B)
ID=23
|
1-53457-076-1 |
04 |
1 |
0612- |
| |
12 |
WASHER; LK,BRKT
(A)
ID=15
|
9-09651-069-0 |
10 |
1 |
0612-1201 |
| |
12 |
WASHER; LK,BRKT
(A)
ID=15
|
8-98010-627-1 |
10 |
1 |
1202- |
| |
30 |
BOLT; CAB FRT FOOT
(A)
M14X40
|
0-20951-440-0 |
10 |
1 |
0612- |
| |
30 |
BOLT; CAB FRT FOOT
(B)
M16X115
|
5-51361-002-1 |
02 |
1 |
0612- |
| |
32 |
BRACKET; CAB FRT MTG,CAB SIDE
|
1-62580-231-4 |
01 |
1 |
0612- |
| |
32 |
BRACKET; CAB FRT MTG,CAB SIDE
|
1-62580-230-4 |
01 |
1 |
0612- |
| |
33 |
BUSHING; RUBBER,CAB MTG BRKT,FRT
|
1-53459-836-3 |
02 |
1 |
0612- |
| |
34 |
BOLT; CAB MTG BRKT,CAB SIDE
(A)
M10X105
|
1-79198-008-1 |
04 |
1 |
0612- |
| |
34 |
BOLT; CAB MTG BRKT,CAB SIDE
(B)
M10X20 W/LK&PL WASHER
|
8-94279-219-0 |
08 |
1 |
0612- |
| |
34 |
BOLT; CAB MTG BRKT,CAB SIDE
AIR CONDITIONER MANUAL CONTROL(C60)
(C)
M8X24.5 W/LK&PL WASHER
|
8-94279-208-0 |
01 |
1 |
0612-0904 |
| |
34 |
BOLT; CAB MTG BRKT,CAB SIDE
AIR CONDITIONER MANUAL CONTROL(C60)
(C)
M8X24.5 W/LK&PL WASHER
|
8-98059-720-0 |
01 |
1 |
0905- |
| |
34 |
BOLT; CAB MTG BRKT,CAB SIDE
EXC. AIR CONDITIONER MANUAL CONTROL(C60)
(C)
M8X24.5 W/LK&PL WASHER
|
8-94279-208-0 |
03 |
1 |
0612-0904 |
| |
34 |
BOLT; CAB MTG BRKT,CAB SIDE
EXC. AIR CONDITIONER MANUAL CONTROL(C60)
(C)
M8X24.5 W/LK&PL WASHER
|
8-98059-720-0 |
03 |
1 |
0905- |
| |
35 |
WASHER; PL,CAB MTG BRKT
ID=10.5 OD=26 T=2.6
|
1-09985-184-0 |
08 |
1 |
0612- |
| |
36 |
WASHER; LK,CAB MTG BRKT
ID=10
|
1-09985-185-0 |
04 |
1 |
0612- |
| |
37 |
NUT; CAB MTG BRKT,CAB SIDE
M10
|
1-09984-142-0 |
04 |
1 |
0612- |
| |
96 |
BRACKET; CAB STAY
|
1-62500-628-0 |
01 |
1 |
0612- |
| |
99 |
BOLT; BRKT
M10X30 FLANGE
|
0-28661-030-0 |
02 |
1 |
0612- |
| |
103 |
PIN; SPLIT,CAB STAY
|
1-09746-021-0 |
01 |
1 |
0612- |
| |
159 |
RUBBER; CUSHION,CAB MTG
|
1-53458-894-0 |
02 |
1 |
0612- |
| |
164 |
BOLT; CUSHION RUBBER,CAB MTG
M8X25 FLANGE
|
0-28650-825-0 |
04 |
1 |
0612- |
| |
170 |
SHIM; CUSHION RUBBER
|
1-53458-897-0 |
AR |
1 |
0612- |
| |
173 |
MEMBER; CAB MTG RR
|
1-53454-827-3 |
01 |
1 |
0612- |
| |
175 |
BOLT; MEMBER TO FRAME
M12X35
|
0-20951-235-0 |
08 |
1 |
0612- |
| |
178 |
WASHER; LK,MEMBER
ID=12.2
|
0-91510-612-0 |
08 |
1 |
0612- |
| |
264 |
PANEL; BACK
FIRE TRUCK(RA9)
|
1-53194-677-0 |
01 |
1 |
0612- |
| |
264 |
PANEL; BACK
EXC. FIRE TRUCK(RA9)
|
1-53192-204-0 |
01 |
1 |
0612- |
| |
279 |
BOLT
M8X25 FLANGE
|
0-28650-825-0 |
02 |
1 |
0612- |
| |
283 |
BRACKET; UPR
|
1-53457-193-0 |
01 |
1 |
0612- |
| |
286 |
BRACKET; LOW
|
1-53459-631-3 |
01 |
1 |
0612- |
| |
286 |
BRACKET; LOW
|
1-53459-632-3 |
01 |
1 |
0612- |
| |
287 |
NUT
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0612- |
| |
288 |
WASHER; PL
ID=8.4 OD=26
|
0-91614-808-0 |
03 |
1 |
0612- |
| |
303 |
NUT; BRKT
M8 FLANGE
|
0-91180-108-0 |
04 |
1 |
0612- |
| |
322 |
COLLAR; CAB FRT FOOT
|
1-53459-941-1 |
02 |
1 |
0612- |
| |
323 |
NUT; CAB FRT FOOT
M16
|
0-91110-516-0 |
02 |
1 |
0612- |
| |
324 |
WASHER; LK
ID=16.2
|
0-91510-816-0 |
02 |
1 |
0612- |
| |
325 |
BOLT; GUIDE NUT
M12X40 FLANGE
|
0-28651-240-0 |
02 |
1 |
0612- |
| |
326 |
NUT; GUIDE NUT
M12
|
0-91110-512-0 |
02 |
1 |
0612- |
| |
335 |
PIN; ADJ,STAY LOCK
OD=10 L=48
|
1-09744-107-0 |
01 |
1 |
0612- |
| |
336 |
WASHER; PL,STAY LOCK
ID=10.5 T=2.0
|
1-09985-183-0 |
01 |
1 |
0612- |
| |
442 |
BOLT; BRKT
M8X20 FLANGE
|
0-28650-820-0 |
06 |
1 |
0612- |
