◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11041 - FSR(LHD) EURO4 ▶ 5 - Frame, Cab Mounting ▶ 5-01 - FRAME AND OTHER PARTS ▶
5-01 — FRAME AND OTHER PARTS (#27386) — 33 parça

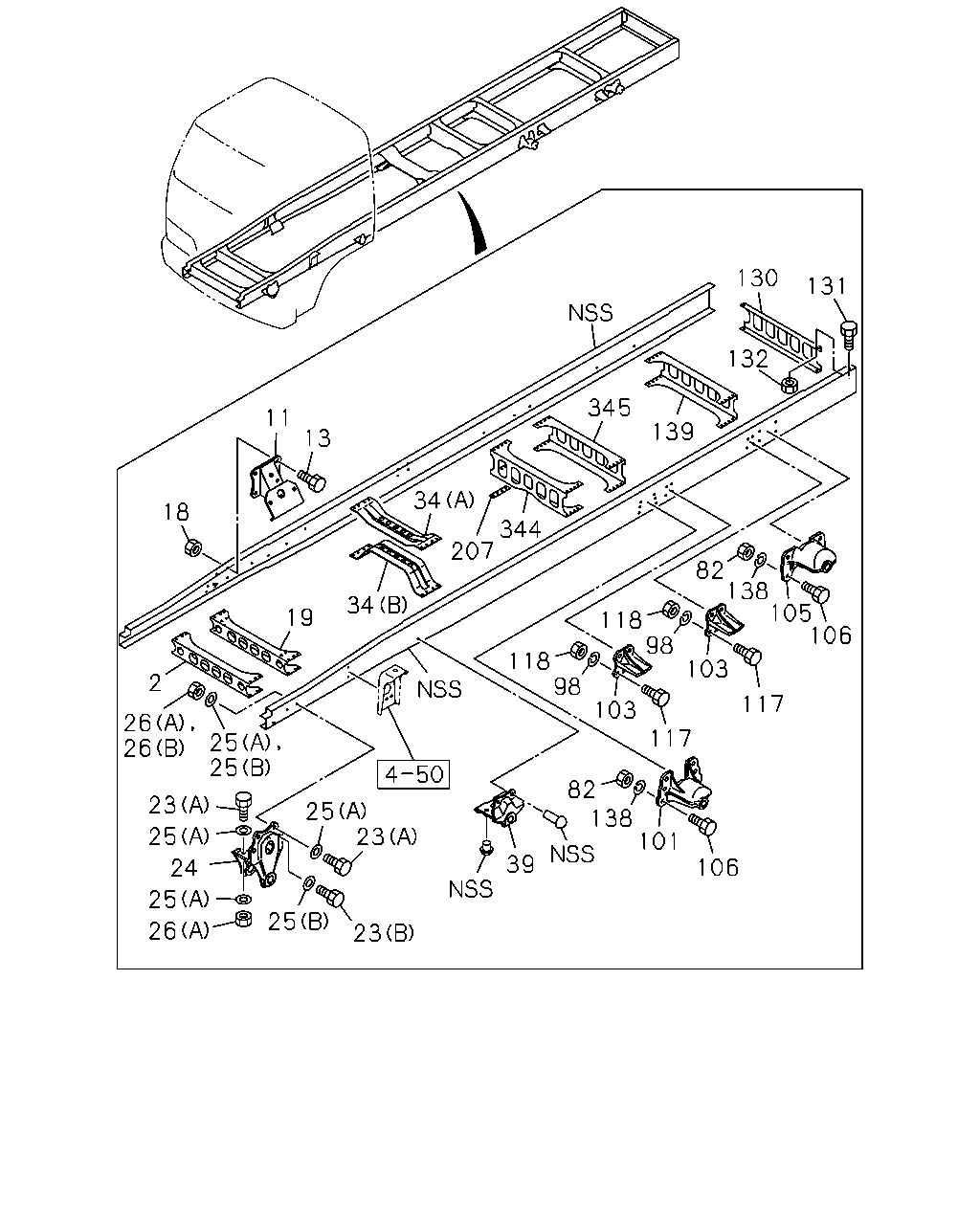

çizim 26785
130 131 132 345 11 139 13 34 18 344 207 82 138 105 106 34 19 118 98 118 98 103 2 117 103 25 25 26 26 117 82 138 101 23 25 23 25 39 106 24 25 25 26 23
BalonParca AdiParca NoAdetTipApplied Date
2 MEMBER; CROSS,1ST 1-53181-892-4 01 1 0612-
11 BRACKET; ENG MTG 1-53211-197-0 02 1 0612-
13 BOLT; BRKT,ENG MTG
M12X40 FLANGE 		0-28661-240-0 08 1 0612-
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 0612-
19 MEMBER; CROSS,2ND 8-97611-712-0 01 1 0612-
23 BOLT; BRKT,SPR
(A) M14X50 		0-10956-450-0 08 1 0612-
23 BOLT; BRKT,SPR
(B) M16X60 		0-10956-660-0 04 1 0612-
24 BRACKET; FRT SPR,FRT 1-53351-115-6 02 1 0612-
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-223-0 08 1 0612-
25 WASHER; PL,BRKT
(A) ID=15 		9-09651-069-0 16 1 0612-1201
25 WASHER; PL,BRKT
(A) ID=15 		8-98010-627-1 16 1 1202-
26 NUT; BRKT,SPR
(A) M14 		0-91110-514-0 08 1 0612-
26 NUT; BRKT,SPR
(B) M16 		0-91110-516-0 04 1 0612-
34 MEMBER; CROSS,3RD
(A) 		1-53175-358-1 01 1 0612-
34 MEMBER; CROSS,3RD
(B) 		1-53175-359-1 01 1 0612-
39 BRACKET; FRT SPR,RR 1-53352-052-1 02 1 0612-
82 NUT; BRKT
M14 		0-91110-514-0 22 1 0612-
98 WASHER; LK,STOPPER
ID=14.2 		0-91510-614-0 16 1 0612-
101 BRACKET; RR SPR,FRT 1-53353-090-4 02 1 0612-
103 STOPPER; SUB SPR 1-53356-059-1 04 1 0612-
105 BRACKET; RR SPR,RR 1-53354-074-0 02 1 0612-
106 BOLT; BRKT
M14X40 		0-20851-440-0 22 1 0612-
117 BOLT; STOPPER
M14X45 		0-20801-445-0 16 1 0612-
118 NUT; STOPPER
M14 		0-91110-514-0 16 1 0612-
130 MEMBER; CROSS,END 1-53181-516-2 01 1 0612-
131 BOLT; END C/MBR
M10X30 FLANGE 		0-28651-030-0 04 1 0612-
132 NUT; END C/MBR
M10 FLANGE 		0-91180-110-0 04 1 0612-
138 WASHER; LK,BRKT
ID=14.2 		0-91510-614-0 22 1 0612-
139 MEMBER; CROSS,6TH 1-53181-465-9 01 1 0612-
207 SPACER; 4TH C/MBR
T=7.0 		1-53168-321-0 02 1 0612-
207 SPACER; 4TH C/MBR
T=4.5 		1-53168-357-0 02 1 0612-
344 MEMBER; CROSS,4TH 1-53181-604-3 01 1 0612-
345 MEMBER; CROSS,5TH 1-53181-465-9 01 1 0612-
