◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11041 - FSR(LHD) EURO4 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶
4-80 — ROAD WHEEL (#27385) — 20 parça

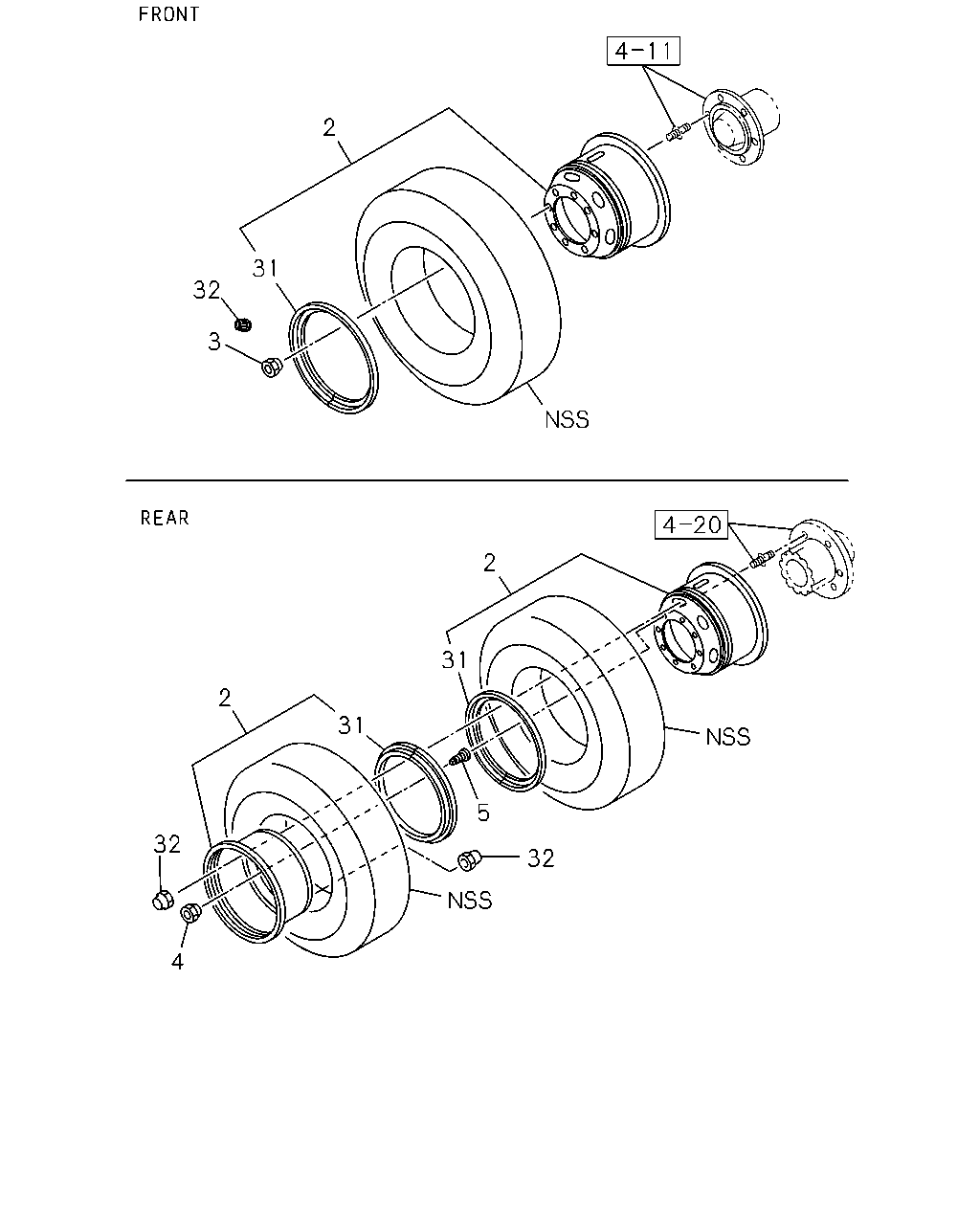

çizim 87374
2 31 32 3 2 31 2 31 5 32 32 4
BalonParca AdiParca NoAdetTipApplied Date
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> SPARE 		1-42350-642-0 01 1 0612-
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL REAR<R46> DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> EXC. DISC WHEEL SPARE<N79> SPARE 		1-42350-642-0 01 1 0612-
2 WHEEL; DISC
DISC WHEEL SPARE<N79> EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> SPARE 		1-42350-641-0 01 1 0612-
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL REAR<R46> EXC. DISC WHEEL SPARE<N79>,DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> SPARE 		1-42350-641-0 01 1 0612-
2 WHEEL; DISC
DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> 		1-42350-642-0 06 1 0612-
2 WHEEL; DISC
EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> 		1-42350-641-0 06 1 0612-
3 NUT; WHEEL,FRT AXLE
M24 LH THREAD 		1-42334-022-3 08 1 0612-
3 NUT; WHEEL,FRT AXLE
M24 		1-42333-022-3 08 1 0612-
4 NUT; WHEEL,RR AXLE
M30 LH THREAD 		8-97359-810-0 08 1 0612-
4 NUT; WHEEL,RR AXLE
M30 RH THREAD 		8-97359-809-0 08 1 0612-
5 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 LH THREAD 		8-97359-806-0 08 1 0612-
5 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 RH THREAD 		8-97359-805-0 08 1 0612-
31 RING; SIDE,DISC WHEEL
DISC WHEEL SPARE<N79> DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> 		1-42355-040-0 01 1 0612-
31 RING; SIDE,DISC WHEEL
SPARE TIRE & DISC WHEEL REAR<R46> DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> EXC. DISC WHEEL SPARE<N79> 		1-42355-040-0 01 1 0612-
31 RING; SIDE,DISC WHEEL
DISC WHEEL SPARE<N79> EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> 		1-42355-012-1 01 1 0612-
31 RING; SIDE,DISC WHEEL
SPARE TIRE & DISC WHEEL REAR<R46> EXC. DISC WHEEL SPARE<N79>,DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> 		1-42355-012-1 01 1 0612-
31 RING; SIDE,DISC WHEEL
DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> 		1-42355-040-0 06 1 0612-
31 RING; SIDE,DISC WHEEL
EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> 		1-42355-012-1 06 1 0612-
32 CAP; VALVE
SPARE TIRE & DISC WHEEL REAR<R46> 		1-42374-001-0 07 1 0612-
32 CAP; VALVE
EXC. SPARE TIRE & DISC WHEEL REAR<R46> 		1-42374-001-0 06 1 0612-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
