0-20B — TIMING GEAR CASE AND FLYWHEEL HOUSING (#2738) — 123 parça

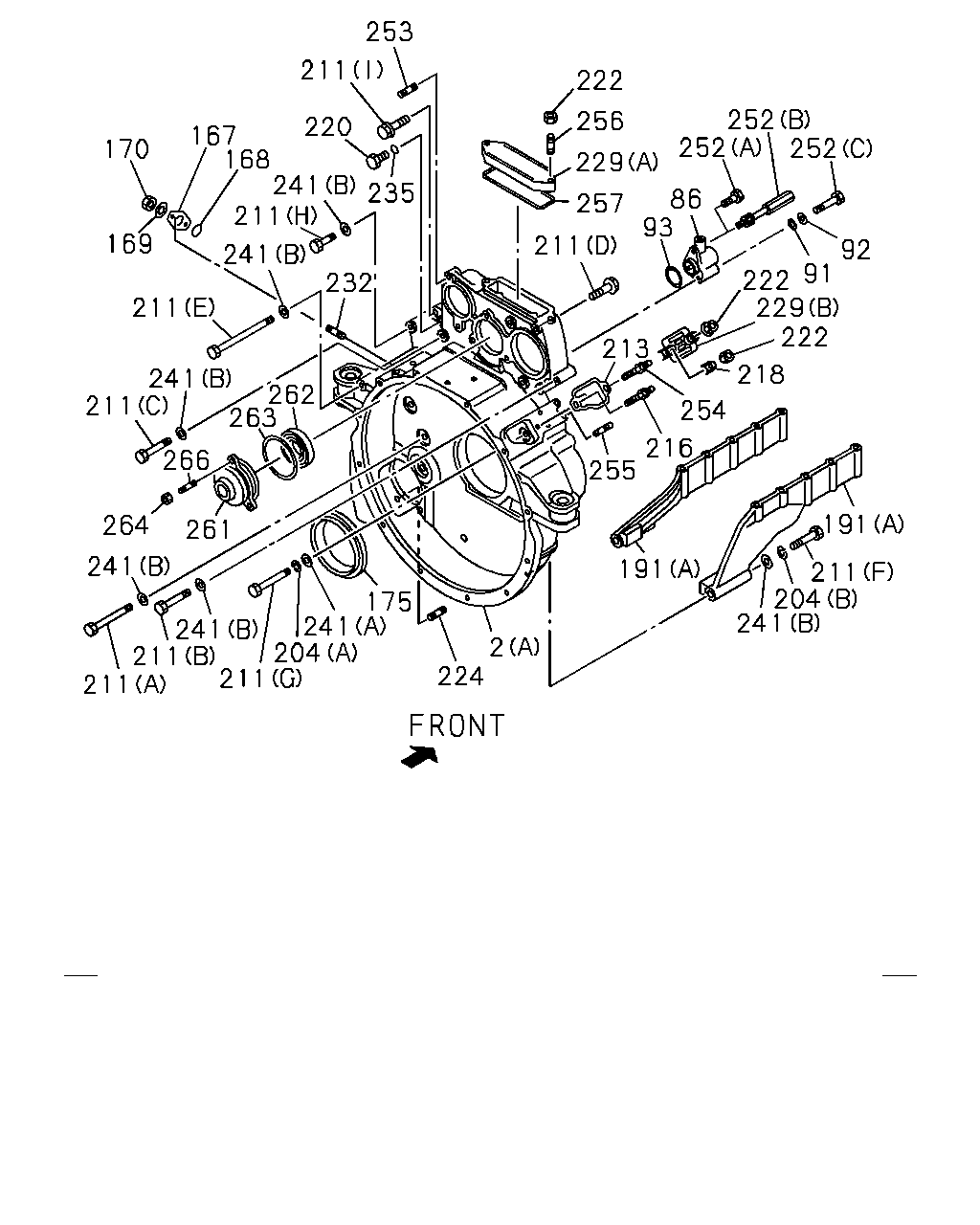

çizim 4338
252 252 92 91 222 229 222 218 213 254 191 216 255 191 211 204 241 2 224 175 241 204 211 211 211 241 241 264 261 266 211 241 262 263 211 169 170 167 241 211 241 168 220 232 235 211 253 222 256 229 252 257 86 93 211
BalonParca AdiParca NoAdetTipApplied Date A B
2 HOUSING; FLYWHEEL
ENGINE REAR PTO(SV1) 		1-11341-226-6 01 1 9002-9302 ●
2 HOUSING; FLYWHEEL
ENGINE REAR PTO(SV1) 		1-11341-430-4 01 1 9303-9306 ●
2 HOUSING; FLYWHEEL
ENGINE REAR PTO(SV1) FLYWHEEL HOUSING AL<E1S> 		1-11341-430-7 01 1 9307- ●
2 HOUSING; FLYWHEEL
ENGINE REAR PTO(SV1) EXC. FLYWHEEL HOUSING AL<E1S> 		1-11341-226-6 01 1 9307- ●
2 HOUSING; FLYWHEEL
EXC. ENGINE REAR PTO(SV1) 		1-11341-223-6 01 1 9002- ●
2 HOUSING; FLYWHEEL 1-11341-223-6 01 1 9002- ●
86 ELBOW; TACHOMETER DRIVE 1-85860-039-1 01 1 9002-9309 ● ●
86 ELBOW; TACHOMETER DRIVE 1-85860-033-2 01 1 9310- ● ●
91 WASHER; LK,ELBOW
ID=8.2 		9-09150-508-0 01 1 9002- ● ●
92 WASHER; PL,ELBOW
ID=8.4 		9-09160-508-0 01 1 9002- ● ●
93 GASKET; ELBOW
ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.7 		1-09623-416-0 01 1 9002- ● ●
167 COVER; OIL
OIL FILLER CAB BACK DELETE<E6X> 		1-11749-074-0 01 1 9111- ●
168 GASKET; COVER,OIL
OIL FILLER CAB BACK DELETE<E6X> ID=35.7 		1-09623-416-0 01 1 9111- ●
169 NUT; COVER
OIL FILLER CAB BACK DELETE<E6X> M10 		9-09110-410-0 02 1 9111- ●
170 WASHER; LK,COVER
OIL FILLER CAB BACK DELETE<E6X> ID=10.2 		9-09150-510-0 02 1 9111- ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09625-507-1 01 1 9002-9302 ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09625-525-2 01 1 9303- ● ●
191 STAY; FLYWHEEL HSG
(A) RH BANK 		1-11349-078-2 01 1 9002-9106 ●
191 STAY; FLYWHEEL HSG
(A) RH BANK 		1-11349-168-0 01 1 9107- ● ●
191 STAY; FLYWHEEL HSG
(A) LH BANK 		1-11349-124-2 01 1 9002-9106 ●
191 STAY; FLYWHEEL HSG
(A) LH BANK 		1-11349-167-0 01 1 9107- ● ●
191 STAY; FLYWHEEL HSG
ENGINE REAR PTO(SV1) (B) 		1-11349-169-0 01 1 9303- ●
204 WASHER; LK,HSG
(A) ID=10.2 		9-09150-510-0 01 1 9002- ● ●
204 WASHER; LK,HSG
(B) ID=14.2 		9-09150-514-0 15 1 9002- ● ●
211 BOLT; HSG
(B) M14X75 		9-91656-475-0 01 1 9002-9005 ●
211 BOLT; HSG
(B) M14X75 		0-16806-475-0 01 1 9006- ● ●
211 BOLT; HSG
ENGINE REAR PTO(SV1) (C) M10X22 FLANGE 		0-28181-022-0 01 1 9002- ●
211 BOLT; HSG
ENGINE REAR PTO(SV1) (A) M14X125 		9-09804-234-0 11 1 9002- ●
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (I) M10X28 FLANGE 		0-28181-028-0 01 1 9002- ●
211 BOLT; HSG
(I) M10X28 FLANGE 		0-28181-028-0 01 1 9002- ●
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (A) M14X125 		9-09804-234-0 09 1 9002- ●
211 BOLT; HSG
(A) M14X125 		9-09804-234-0 09 1 9002- ●
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (H) M14X55 		9-91656-455-0 01 1 9002-9005 ●
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (H) M14X55 		0-16806-455-0 01 1 9006- ●
211 BOLT; HSG
(H) M14X55 		0-16806-455-0 01 1 9006- ●
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (C) M14X95 		9-91656-495-0 01 1 9002-9005 ●
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (C) M14X95 		0-16806-495-0 01 1 9006- ●
211 BOLT; HSG
(C) M14X95 		0-16806-495-0 01 1 9006- ●
211 BOLT; HSG
(D) M10X25 FLANGE 		0-28181-025-0 02 1 9002- ● ●
211 BOLT; HSG
(F) M14X155 		1-09020-008-0 02 1 9002- ● ●
211 BOLT; HSG
(E) M14X230 		1-09020-003-1 01 1 9307- ● ●
211 BOLT; HSG
(G) M10X115 		9-09804-203-1 01 1 9307- ● ●
213 POINTER; FLYWHEEL HSG 1-11342-010-0 01 1 9002- ● ●
216 STUD; COVER,TIMING CHECK HOLE
M8X14,M8X14 L=33 		1-09300-058-1 02 1 9307- ●
218 WASHER; PL,COVER 1-11349-127-0 01 1 9002-9306 ●
218 WASHER; PL,COVER 1-11349-127-0 01 1 9307- ● ●
220 PLUG; GEAR CHECK HOLE
EXC. ENGINE REAR PTO(SV1) 		1-09604-066-1 01 1 9002- ●
220 PLUG; GEAR CHECK HOLE 1-09604-066-1 01 1 9002- ●
222 NUT; COVER,TIMING CHECK HOLE
M8 FLANGE 		0-91150-108-0 02 1 9002- ●
222 NUT; COVER,TIMING CHECK HOLE
M8 FLANGE 		0-91150-108-0 04 1 9307- ●
224 STUD; STARTER
M14X35 L=56 		9-04411-435-0 03 1 9002- ● ●
229 COVER; TIMING CHECK HOLE
(A) 		1-11349-118-2 01 1 9002- ● ●
229 COVER; TIMING CHECK HOLE
(B) 		1-11349-126-0 01 1 9002- ● ●
232 STUD; OIL FILTER
M10X25 L=40 		9-04411-025-0 02 1 9002- ● ●
235 GASKET; PLUG GEAR CHECK HOLE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ENGINE REAR PTO(SV1). ID=12.2 		1-09630-084-0 01 1 9002- ●
235 GASKET; PLUG GEAR CHECK HOLE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2 		1-09630-084-0 01 1 9002- ●
241 WASHER; PL,HSG
ENGINE REAR PTO(SV1) (A) ID=10.5 OD=18 		9-09160-510-0 01 1 9002- ●
241 WASHER; PL,HSG
EXC. ENGINE REAR PTO(SV1) (A) ID=10.5 OD=18 		9-09160-510-0 02 1 9002- ●
241 WASHER; PL,HSG
(A) ID=10.5 OD=18 		9-09160-510-0 02 1 9002- ●
241 WASHER; PL,HSG
(B) ID=15 		9-09160-514-0 14 1 9002- ● ●
252 BOLT; GEAR BOX
(A) M8X18 		0-28010-818-0 01 1 9002-9106 ●
252 BOLT; GEAR BOX
(B) M8X22 W/LK&PL WASHER L=102 		1-09009-129-1 01 1 9107- ● ●
252 BOLT; GEAR BOX
(C) M8X70 		9-01055-870-0 01 1 9002-9005 ●
252 BOLT; GEAR BOX
(C) M8X70 		0-10805-870-0 01 1 9006- ● ●
253 STUD; POWER STRG PUMP
M10X25 L=45 		9-04311-025-0 02 1 9002- ● ●
254 STUD; POINTER & COVER
M8X14,M8X14 L=33 		1-09300-058-1 02 1 9002- ●
255 STUD; RELAY LEVER BRKT
M8X16 L=28 		9-04110-816-0 04 1 9002- ● ●
256 STUD; COVER
M8X35 L=47 		9-04110-835-0 02 1 9002- ● ●
257 GASKET; TIMING CHECK HOLE
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-11349-142-0 01 1 9002- ● ●
261 COVER; INJ PUMP COUPLING 1-11349-117-0 01 1 9002- ● ●
262 BEARING 1-09810-126-0 01 1 9002- ● ●
263 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-422-0 01 1 9002- ● ●
264 NUT; COVER
M8 FLANGE 		0-91150-108-0 05 1 9002- ●
264 NUT; COVER
M8 FLANGE 		0-91150-108-0 03 1 9307- ●
266 STUD; COVER & TACHO BOX
M8X20 L=32 		1-09305-005-0 03 1 9002- ● ●

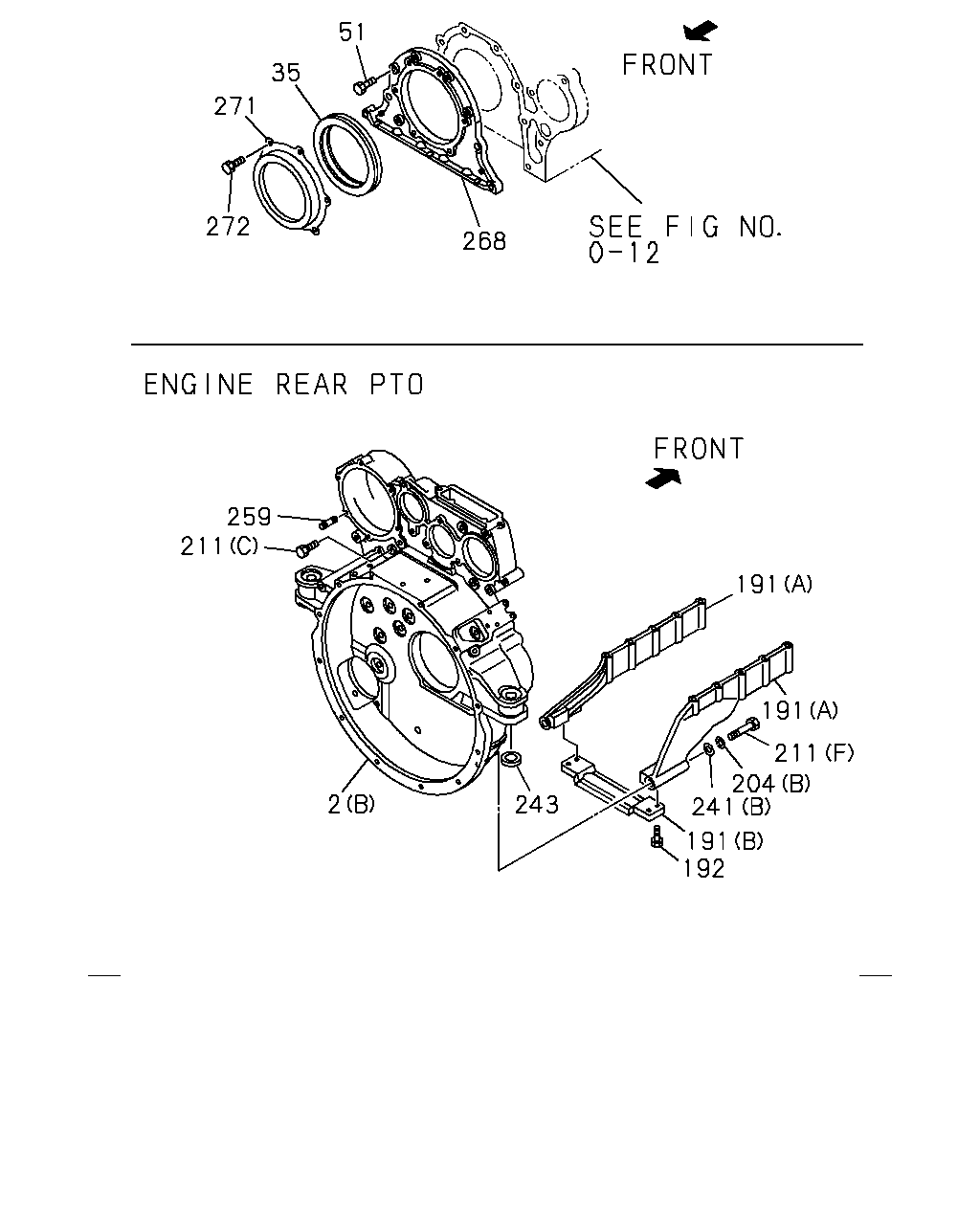

çizim 36159
51 35 271 272 268 191 191 211 204 241 191 192 243 2 211 259
BalonParca AdiParca NoAdetTipApplied Date A B
2 HOUSING; FLYWHEEL
ENGINE REAR PTO(SV1) 		1-11341-226-6 01 1 9002-9302 ●
2 HOUSING; FLYWHEEL
ENGINE REAR PTO(SV1) 		1-11341-430-4 01 1 9303-9306 ●
2 HOUSING; FLYWHEEL
ENGINE REAR PTO(SV1) FLYWHEEL HOUSING AL<E1S> 		1-11341-430-7 01 1 9307- ●
2 HOUSING; FLYWHEEL
ENGINE REAR PTO(SV1) EXC. FLYWHEEL HOUSING AL<E1S> 		1-11341-226-6 01 1 9307- ●
2 HOUSING; FLYWHEEL
EXC. ENGINE REAR PTO(SV1) 		1-11341-223-6 01 1 9002- ●
2 HOUSING; FLYWHEEL 1-11341-223-6 01 1 9002- ●
35 SEAL; OIL,CRANKSHAFT FRT
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09625-506-0 01 1 9002-9302 ●
35 SEAL; OIL,CRANKSHAFT FRT
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09625-524-2 01 1 9303- ● ●
51 BOLT; GEAR CASE COVER
M8X28 FLANGE 		0-28020-828-0 08 1 9002-9005 ●
51 BOLT; GEAR CASE COVER
M8X28 FLANGE 		0-28080-828-0 08 1 9006- ● ●
191 STAY; FLYWHEEL HSG
(A) RH BANK 		1-11349-078-2 01 1 9002-9106 ●
191 STAY; FLYWHEEL HSG
(A) RH BANK 		1-11349-168-0 01 1 9107- ● ●
191 STAY; FLYWHEEL HSG
(A) LH BANK 		1-11349-124-2 01 1 9002-9106 ●
191 STAY; FLYWHEEL HSG
(A) LH BANK 		1-11349-167-0 01 1 9107- ● ●
191 STAY; FLYWHEEL HSG
ENGINE REAR PTO(SV1) (B) 		1-11349-169-0 01 1 9303- ●
192 BOLT; STAY TO HSG
ENGINE REAR PTO(SV1) M10X30 FLANGE 		0-28181-030-0 04 1 9303-9306 ●
192 BOLT; STAY TO HSG
ENGINE REAR PTO(SV1) FLYWHEEL HOUSING AL<E1S> M10X30 FLANGE 		0-28181-030-0 04 1 9307- ●
204 WASHER; LK,HSG
(A) ID=10.2 		9-09150-510-0 01 1 9002- ● ●
204 WASHER; LK,HSG
(B) ID=14.2 		9-09150-514-0 15 1 9002- ● ●
211 BOLT; HSG
(B) M14X75 		9-91656-475-0 01 1 9002-9005 ●
211 BOLT; HSG
(B) M14X75 		0-16806-475-0 01 1 9006- ● ●
211 BOLT; HSG
ENGINE REAR PTO(SV1) (C) M10X22 FLANGE 		0-28181-022-0 01 1 9002- ●
211 BOLT; HSG
ENGINE REAR PTO(SV1) (A) M14X125 		9-09804-234-0 11 1 9002- ●
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (I) M10X28 FLANGE 		0-28181-028-0 01 1 9002- ●
211 BOLT; HSG
(I) M10X28 FLANGE 		0-28181-028-0 01 1 9002- ●
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (A) M14X125 		9-09804-234-0 09 1 9002- ●
211 BOLT; HSG
(A) M14X125 		9-09804-234-0 09 1 9002- ●
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (H) M14X55 		9-91656-455-0 01 1 9002-9005 ●
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (H) M14X55 		0-16806-455-0 01 1 9006- ●
211 BOLT; HSG
(H) M14X55 		0-16806-455-0 01 1 9006- ●
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (C) M14X95 		9-91656-495-0 01 1 9002-9005 ●
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (C) M14X95 		0-16806-495-0 01 1 9006- ●
211 BOLT; HSG
(C) M14X95 		0-16806-495-0 01 1 9006- ●
211 BOLT; HSG
(D) M10X25 FLANGE 		0-28181-025-0 02 1 9002- ● ●
211 BOLT; HSG
(F) M14X155 		1-09020-008-0 02 1 9002- ● ●
211 BOLT; HSG
(E) M14X230 		1-09020-003-1 01 1 9307- ● ●
211 BOLT; HSG
(G) M10X115 		9-09804-203-1 01 1 9307- ● ●
241 WASHER; PL,HSG
ENGINE REAR PTO(SV1) (A) ID=10.5 OD=18 		9-09160-510-0 01 1 9002- ●
241 WASHER; PL,HSG
EXC. ENGINE REAR PTO(SV1) (A) ID=10.5 OD=18 		9-09160-510-0 02 1 9002- ●
241 WASHER; PL,HSG
(A) ID=10.5 OD=18 		9-09160-510-0 02 1 9002- ●
241 WASHER; PL,HSG
(B) ID=15 		9-09160-514-0 14 1 9002- ● ●
243 SEAT; ENG FOOT
ENGINE REAR PTO(SV1) 		1-11349-016-1 02 1 9303-9503 ●
243 SEAT; ENG FOOT
ENGINE REAR PTO(SV1) FLYWHEEL HOUSING AL<E1S> 		1-11349-016-1 02 1 9504- ●
259 STUD; PTO
ENGINE REAR PTO(SV1) M10X35 L=55 		9-04311-035-0 06 1 9002- ●
268 COVER; FRT 1-11320-056-1 01 1 9002- ● ●
271 COVER; DUST 1-11329-004-0 01 1 9002- ● ●
272 BOLT; DUST COVER
M8X10 FLANGE 		0-28020-810-0 06 1 9002-9005 ●
272 BOLT; DUST COVER
M8X10 FLANGE 		0-28080-810-0 06 1 9006- ● ●
