◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LT ▶ 11032 - LT134(LHD) EURO4 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#27377) — 238 parça
çizim 139143
73 62 14 65 65 68 18 168 18 68 65 111 211 180 68 73 68 211
BalonParca AdiParca NoAdetTipApplied Date
14 NUT; S/ABS,UPR
M14 		9-99111-414-0 02 1 0612-0712
14 NUT; S/ABS,UPR
EXC. LOW DECK WO/REAR BODY<PK4> M14 		9-99111-414-0 02 1 0801-
18 WASHER; CENTERING,S/ABS
ID=24 		1-51631-067-0 04 1 0612-0712
18 WASHER; CENTERING,S/ABS
EXC. LOW DECK WO/REAR BODY<PK4> ID=24 		1-51631-067-0 04 1 0801-
62 ABSORBER ASM; SHOCK,FRT
FRT TAPER LEAF SUSPENSION<SAR> (A) 		8-98096-780-0 02 1 0710-0712
62 ABSORBER ASM; SHOCK,FRT
FRT TAPER LEAF SUSPENSION<SAR> EXC. LOW DECK WO/REAR BODY<PK4> (A) 		8-98096-780-0 02 1 0801-
62 ABSORBER ASM; SHOCK,FRT
LOW DECK WO/REAR BODY<PK4> FRT TAPER LEAF SUSPENSION<SAR> (B) 		8-98072-849-0 02 1 0801-
62 ABSORBER ASM; SHOCK,FRT
(A) 		1-51630-417-0 02 1 0612-0709
62 ABSORBER ASM; SHOCK,FRT
EXC. FRT TAPER LEAF SUSPENSION<SAR> (A) 		1-51630-417-0 02 1 0710-0712
62 ABSORBER ASM; SHOCK,FRT
EXC. LOW DECK WO/REAR BODY<PK4>,FRT TAPER LEAF SUSPENSION<SAR> (A) 		1-51630-417-0 02 1 0801-
65 WASHER; S/ABS
(A) ID=16.5 		1-09503-266-0 02 1 0612-0712
65 WASHER; S/ABS
EXC. LOW DECK WO/REAR BODY<PK4> (A) ID=16.5 		1-09503-266-0 02 1 0801-
65 WASHER; S/ABS
(B) ID=16.5 		1-51631-068-0 04 1 0612-0712
65 WASHER; S/ABS
EXC. LOW DECK WO/REAR BODY<PK4> (B) ID=16.5 		1-51631-068-0 04 1 0801-
68 BUSHING; S/ABS
LOW DECK WO/REAR BODY<PK4> FRT TAPER LEAF SUSPENSION<SAR> (C) 		1-51631-084-0 02 1 0801-
68 BUSHING; S/ABS
(A) ID=16 T=25 		1-51631-069-0 04 1 0612-0712
68 BUSHING; S/ABS
EXC. LOW DECK WO/REAR BODY<PK4> (A) ID=16 T=25 		1-51631-069-0 04 1 0801-
68 BUSHING; S/ABS
(B) 		9-51631-026-0 04 1 0612-0712
68 BUSHING; S/ABS
LOW DECK WO/REAR BODY<PK4> FRT TAPER LEAF SUSPENSION<SAR> (B) 		9-51631-026-0 04 1 0801-
68 BUSHING; S/ABS
EXC. LOW DECK WO/REAR BODY<PK4> (B) 		9-51631-026-0 04 1 0801-
73 NUT; BRKT,SHOCK
(B) M20 		0-91110-520-0 02 1 0612-
73 NUT; BRKT,SHOCK
(A) M14 		0-91111-514-0 02 1 0612-0712
73 NUT; BRKT,SHOCK
EXC. LOW DECK WO/REAR BODY<PK4> (A) M14 		0-91111-514-0 02 1 0801-
111 SUPPORTER; S/ABS,FRT SUSP
LOW DECK WO/REAR BODY<PK4> (B) 		8-98077-988-0 01 1 0801-1004
111 SUPPORTER; S/ABS,FRT SUSP
LOW DECK WO/REAR BODY<PK4> (B) 		8-98158-456-0 01 1 1005-
111 SUPPORTER; S/ABS,FRT SUSP
LOW DECK WO/REAR BODY<PK4> (B) 		8-98077-989-0 01 1 0801-1004
111 SUPPORTER; S/ABS,FRT SUSP
LOW DECK WO/REAR BODY<PK4> (B) 		8-98158-455-0 01 1 1005-
111 SUPPORTER; S/ABS,FRT SUSP
EXC. STAB SHF<FE6>,FRT STAB SHF<F59> (A) 		1-51681-723-1 01 1 0612-0712
111 SUPPORTER; S/ABS,FRT SUSP
EXC. STAB SHF<FE6>,FRT STAB SHF<F59>,LOW DECK WO/REAR BODY<PK4> (A) 		1-51681-723-1 01 1 0801-1004
111 SUPPORTER; S/ABS,FRT SUSP
EXC. STAB SHF<FE6>,FRT STAB SHF<F59>,LOW DECK WO/REAR BODY<PK4> (A) 		8-98153-484-0 01 1 1005-
111 SUPPORTER; S/ABS,FRT SUSP
EXC. STAB SHF<FE6>,FRT STAB SHF<F59> (A) 		1-51681-722-1 01 1 0612-0712
111 SUPPORTER; S/ABS,FRT SUSP
EXC. STAB SHF<FE6>,FRT STAB SHF<F59>,LOW DECK WO/REAR BODY<PK4> (A) 		1-51681-722-1 01 1 0801-1004
111 SUPPORTER; S/ABS,FRT SUSP
EXC. STAB SHF<FE6>,FRT STAB SHF<F59>,LOW DECK WO/REAR BODY<PK4> (A) 		8-98153-483-0 01 1 1005-
168 BRACKET; S/ABS,FRT SUSP
LOW DECK WO/REAR BODY<PK4> (B) 		1-51681-757-2 02 1 0801-
168 BRACKET; S/ABS,FRT SUSP
LOW DECK WO/REAR BODY<PK4> (C) 		8-98086-440-0 01 1 0801-
168 BRACKET; S/ABS,FRT SUSP
LOW DECK WO/REAR BODY<PK4> (C) 		8-98086-441-0 01 1 0801-
168 BRACKET; S/ABS,FRT SUSP
(A) 		1-51681-616-0 02 1 0612-0712
168 BRACKET; S/ABS,FRT SUSP
EXC. LOW DECK WO/REAR BODY<PK4> (A) 		1-51681-616-0 02 1 0801-
180 WASHER; PL,PIN
ID=21 		0-91610-520-0 02 1 0612-
211 WASHER; BRKT,SHOCK
(A) ID=27 		9-51631-027-0 02 1 0612-0712
211 WASHER; BRKT,SHOCK
LOW DECK WO/REAR BODY<PK4> FRT TAPER LEAF SUSPENSION<SAR> (A) ID=27 		9-51631-027-0 02 1 0801-
211 WASHER; BRKT,SHOCK
EXC. LOW DECK WO/REAR BODY<PK4> (A) ID=27 		9-51631-027-0 02 1 0801-
211 WASHER; BRKT,SHOCK
(B) ID=21 		9-51631-028-0 02 1 0612-0712
211 WASHER; BRKT,SHOCK
LOW DECK WO/REAR BODY<PK4> FRT TAPER LEAF SUSPENSION<SAR> (B) ID=21 		9-51631-028-0 02 1 0801-
211 WASHER; BRKT,SHOCK
EXC. LOW DECK WO/REAR BODY<PK4> (B) ID=21 		9-51631-028-0 02 1 0801-

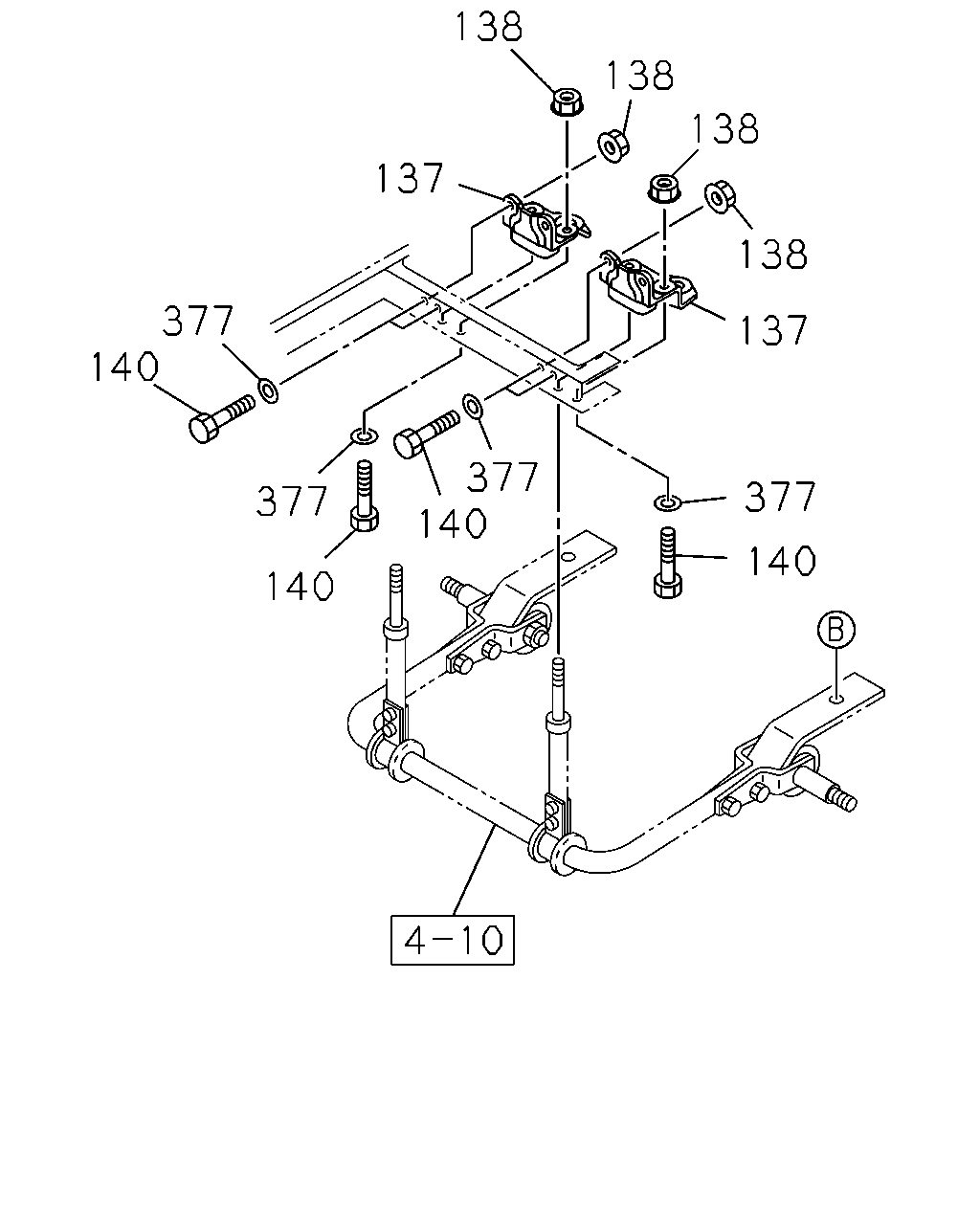

çizim 139145
138 138 138 137 138 377 140 137 377 140 377 377 140 140
BalonParca AdiParca NoAdetTipApplied Date
137 BRACKET; STAB BAR TO FRAME
STAB SHF<FE6> 		1-51781-112-0 01 1 0612-
137 BRACKET; STAB BAR TO FRAME
FRT STAB SHF<F59> 		1-51781-112-0 01 1 0612-
137 BRACKET; STAB BAR TO FRAME
STAB SHF<FE6> 		1-51781-134-0 01 1 0612-
137 BRACKET; STAB BAR TO FRAME
FRT STAB SHF<F59> 		1-51781-134-0 01 1 0612-
138 NUT; BRKT
STAB SHF<FE6> M14 		0-91110-514-0 08 1 0612-
138 NUT; BRKT
FRT STAB SHF<F59> M14 		0-91110-514-0 08 1 0612-
140 BOLT; BRKT
STAB SHF<FE6> M14X45 		0-20801-445-0 08 1 0612-
140 BOLT; BRKT
FRT STAB SHF<F59> M14X45 		0-20801-445-0 08 1 0612-
377 WASHER; LK,BRKT
STAB SHF<FE6> ID=14.2 		0-91510-514-0 08 1 0612-
377 WASHER; LK,BRKT
FRT STAB SHF<F59> ID=14.2 		0-91510-514-0 08 1 0612-

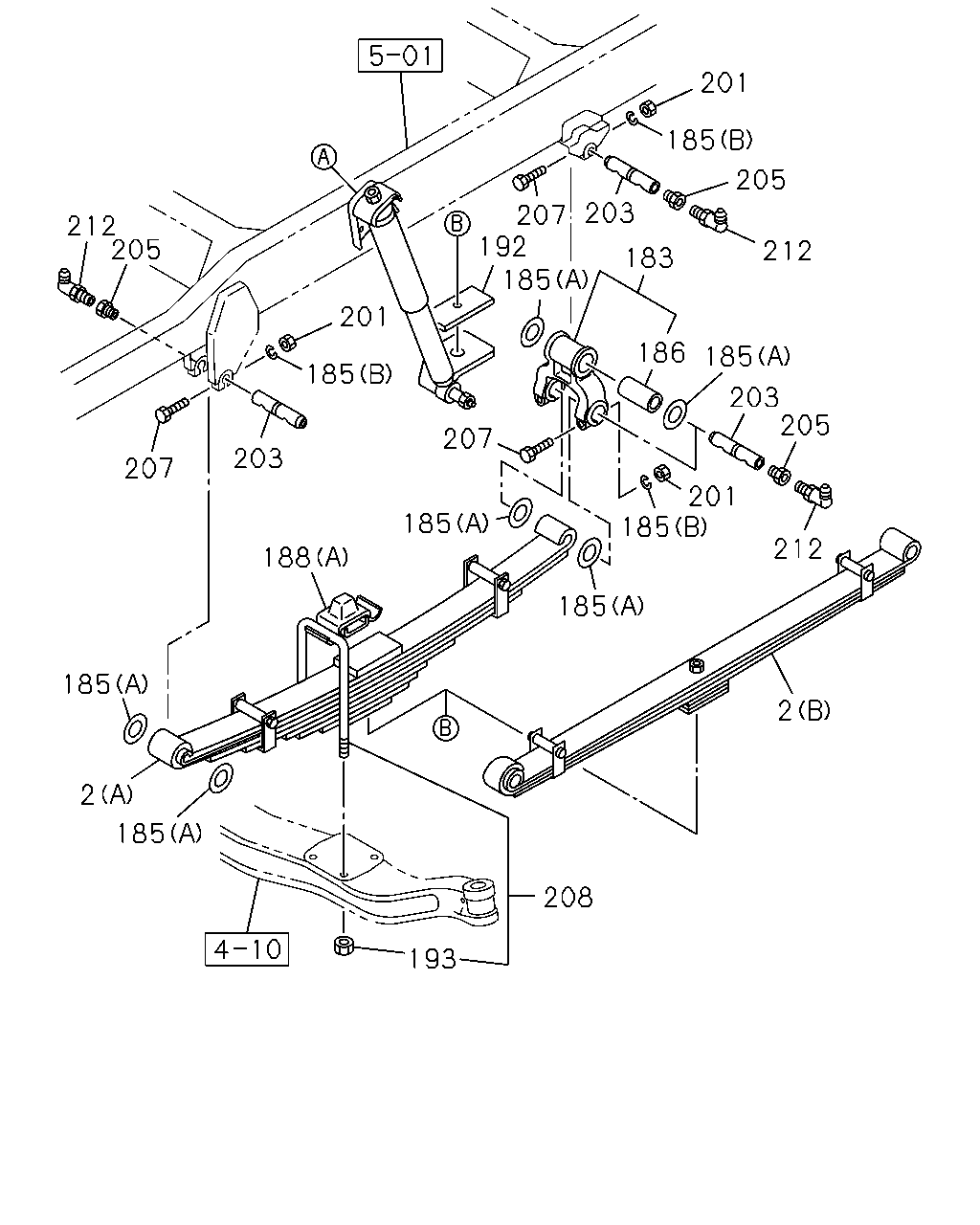

çizim 139177
201 185 205 203 207 192 185 212 205 212 183 201 186 185 185 203 205 207 203 207 201 185 185 212 188 185 185 2 2 185 208 193
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. (A) 8-LEAF 		1-51130-969-1 02 1 0612-0709
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRT TAPER LEAF SUSPENSION<SAR> (A) 8-LEAF 		1-51130-969-1 02 1 0710-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> (B) 3-LEAF 		8-98096-765-0 02 1 0710-0712
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> EXC. LOW DECK WO/REAR BODY<PK4> (B) 3-LEAF 		8-98096-765-0 02 1 0801-1210
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> EXC. LOW DECK WO/REAR BODY<PK4> (B) 3-LEAF 		8-98202-922-0 02 1 1211-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. LOW DECK WO/REAR BODY<PK4> FRT TAPER LEAF SUSPENSION<SAR> (C) 3-LEAF 		8-98072-392-0 02 1 0801-1210
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. LOW DECK WO/REAR BODY<PK4> FRT TAPER LEAF SUSPENSION<SAR> (C) 3-LEAF 		8-98202-923-0 02 1 1211-
183 SHACKLE; FRT SUSP 1-51162-039-2 02 1 0612-0705
183 SHACKLE; FRT SUSP 1-51162-029-5 02 1 0706-
185 WASHER; LK,PIN
LOW DECK WO/REAR BODY<PK4> (C) ID=12.2 		0-91510-612-0 08 1 0801-
185 WASHER; LK,PIN
(B) ID=12.2 		0-91510-612-0 12 1 0612-0712
185 WASHER; LK,PIN
EXC. LOW DECK WO/REAR BODY<PK4> (B) ID=12.2 		0-91510-612-0 12 1 0801-
185 WASHER; LK,PIN
(A) ID=32.4 		1-51169-018-0 12 1 0612-
186 BUSHING; SHACKLE
OD=38 		1-51351-009-0 02 1 0612-0902
186 BUSHING; SHACKLE
OD=38 		8-98081-829-0 02 1 0903-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
STAB SHF<FE6> EXC. FRT STAB SHF<F59>,LOW DECK WO/REAR BODY<PK4> (A) 		1-51172-121-0 02 1 1109-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
FRT STAB SHF<F59> EXC. STAB SHF<FE6>,LOW DECK WO/REAR BODY<PK4> (A) 		1-51172-121-0 02 1 1109-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
LOW DECK WO/REAR BODY<PK4> (B) 		1-51172-111-0 02 1 0801-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(A) 		9-51172-067-1 02 1 0612-0712
188 RUBBER; CLAMP,U-BOLT,FRT SPR
EXC. LOW DECK WO/REAR BODY<PK4> (A) 		9-51172-067-1 02 1 0801-1108
188 RUBBER; CLAMP,U-BOLT,FRT SPR
EXC. STAB SHF<FE6>,FRT STAB SHF<F59>,LOW DECK WO/REAR BODY<PK4> (A) 		9-51172-067-1 02 1 1109-
192 PIECE; DIST
EXC. STAB SHF<FE6>,FRT STAB SHF<F59> 		8-98088-278-0 01 1 0706-0712
192 PIECE; DIST
EXC. STAB SHF<FE6>,FRT STAB SHF<F59>,LOW DECK WO/REAR BODY<PK4> 		8-98088-278-0 01 1 0801-
193 NUT; U BOLT
M22 		0-91112-822-0 08 1 0612-1206
193 NUT; U BOLT
M22 		8-98179-318-0 08 1 1207-
201 NUT; PIN LK
LOW DECK WO/REAR BODY<PK4> M12 		0-91110-512-0 08 1 0801-
201 NUT; PIN LK
M12 		0-91110-512-0 12 1 0612-0712
201 NUT; PIN LK
EXC. LOW DECK WO/REAR BODY<PK4> M12 		0-91110-512-0 12 1 0801-
203 PIN; SPR TO SHACKLE 1-51161-031-0 06 1 0612-
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 0612-
207 BOLT; SPR TO SHACKLE
LOW DECK WO/REAR BODY<PK4> M12X80 		0-10856-280-0 08 1 0801-
207 BOLT; SPR TO SHACKLE
M12X80 		0-10856-280-0 12 1 0612-0712
207 BOLT; SPR TO SHACKLE
EXC. LOW DECK WO/REAR BODY<PK4> M12X80 		0-10856-280-0 12 1 0801-
208 U-BOLT SET; FRT SPRING
EXC. STAB SHF<FE6>,FRT STAB SHF<F59>,LOW DECK WO/REAR BODY<PK4> L=210 		1-87870-309-2 02 1 0812-
208 U-BOLT SET; FRT SPRING
EXC. STAB SHF<FE6>,FRT STAB SHF<F59>,LOW DECK WO/REAR BODY<PK4> L=190 		1-87870-439-2 02 1 0812-
208 U-BOLT SET; FRT SPRING
L=190 		1-87870-439-1 04 1 0612-0705
208 U-BOLT SET; FRT SPRING
STAB SHF<FE6> L=190 		1-87870-439-1 04 1 0706-0709
208 U-BOLT SET; FRT SPRING
FRT STAB SHF<F59> L=190 		1-87870-439-1 04 1 0706-0709
208 U-BOLT SET; FRT SPRING
STAB SHF<FE6> EXC. FRT TAPER LEAF SUSPENSION<SAR> L=190 		1-87870-439-1 02 1 0710-0712
208 U-BOLT SET; FRT SPRING
FRT STAB SHF<F59> EXC. FRT TAPER LEAF SUSPENSION<SAR> L=190 		1-87870-439-1 02 1 0710-0712
208 U-BOLT SET; FRT SPRING
FRT TAPER LEAF SUSPENSION<SAR> L=190 		1-87870-439-1 02 1 0710-0712
208 U-BOLT SET; FRT SPRING
STAB SHF<FE6> EXC. FRT TAPER LEAF SUSPENSION<SAR> L=190 		1-87870-439-1 02 1 0710-0712
208 U-BOLT SET; FRT SPRING
FRT STAB SHF<F59> EXC. FRT TAPER LEAF SUSPENSION<SAR> L=190 		1-87870-439-1 02 1 0710-0712
208 U-BOLT SET; FRT SPRING
STAB SHF<FE6> EXC. FRT TAPER LEAF SUSPENSION<SAR> L=190 		1-87870-439-1 02 1 0801-0805
208 U-BOLT SET; FRT SPRING
FRT STAB SHF<F59> EXC. FRT TAPER LEAF SUSPENSION<SAR> L=190 		1-87870-439-1 02 1 0801-0805
208 U-BOLT SET; FRT SPRING
FRT TAPER LEAF SUSPENSION<SAR> EXC. LOW DECK WO/REAR BODY<PK4> L=190 		1-87870-439-1 02 1 0801-0805
208 U-BOLT SET; FRT SPRING
STAB SHF<FE6> EXC. FRT TAPER LEAF SUSPENSION<SAR> L=190 		1-87870-439-1 02 1 0801-0805
208 U-BOLT SET; FRT SPRING
FRT STAB SHF<F59> EXC. FRT TAPER LEAF SUSPENSION<SAR> L=190 		1-87870-439-1 02 1 0801-0805
208 U-BOLT SET; FRT SPRING
EXC. STAB SHF<FE6>,FRT STAB SHF<F59>,LOW DECK WO/REAR BODY<PK4> L=190 		1-87870-439-1 04 1 0806-0811
208 U-BOLT SET; FRT SPRING
EXC. STAB SHF<FE6>,FRT STAB SHF<F59> L=210 		1-87870-309-1 02 1 0706-0709
208 U-BOLT SET; FRT SPRING
EXC. STAB SHF<FE6>,FRT STAB SHF<F59>,FRT TAPER LEAFSUSPENSION<SAR> L=210 		1-87870-309-1 02 1 0710-0712
208 U-BOLT SET; FRT SPRING
EXC. STAB SHF<FE6>,FRT STAB SHF<F59>,LOW DECK WO/REAR BODY<PK4>,FRT TAPER LEAF SUSPENSION<SAR> L=210 		1-87870-309-1 02 1 0801-0805
208 U-BOLT SET; FRT SPRING
EXC. STAB SHF<FE6>,FRT STAB SHF<F59>,LOW DECK WO/REAR BODY<PK4> L=210 		1-87870-309-1 02 1 0806-0809
208 U-BOLT SET; FRT SPRING
STAB SHF<FE6> FRT STAB SHF<F59> EXC. LOW DECK WO/REAR BODY<PK4> L=210 		1-87870-309-1 04 1 0810-0811
208 U-BOLT SET; FRT SPRING
STAB SHF<FE6> EXC. FRT STAB SHF<F59>,LOW DECK WO/REAR BODY<PK4> L=210 		1-87870-309-1 04 1 0812-1108
208 U-BOLT SET; FRT SPRING
FRT STAB SHF<F59> EXC. STAB SHF<FE6>,LOW DECK WO/REAR BODY<PK4> L=210 		1-87870-309-1 04 1 0812-1108
208 U-BOLT SET; FRT SPRING
STAB SHF<FE6> EXC. FRT STAB SHF<F59>,LOW DECK WO/REAR BODY<PK4> L=210 		1-87870-380-2 04 1 1109-
208 U-BOLT SET; FRT SPRING
FRT STAB SHF<F59> EXC. STAB SHF<FE6>,LOW DECK WO/REAR BODY<PK4> L=210 		1-87870-380-2 04 1 1109-
208 U-BOLT SET; FRT SPRING
EXC. STAB SHF<FE6>,FRT STAB SHF<F59> L=190 		1-87870-439-1 02 1 0706-0709
208 U-BOLT SET; FRT SPRING
EXC. STAB SHF<FE6>,FRT STAB SHF<F59>,FRT TAPER LEAFSUSPENSION<SAR> L=190 		1-87870-439-1 04 1 0710-0712
208 U-BOLT SET; FRT SPRING
EXC. STAB SHF<FE6>,FRT STAB SHF<F59>,LOW DECK WO/REAR BODY<PK4>,FRT TAPER LEAF SUSPENSION<SAR> L=190 		1-87870-439-1 04 1 0801-0805
208 U-BOLT SET; FRT SPRING
LOW DECK WO/REAR BODY<PK4> FRT TAPER LEAF SUSPENSION<SAR> EXC. STAB SHF<FE6>,FRT STAB SHF<F59> L=170 		1-87870-170-3 04 1 0801-1206
208 U-BOLT SET; FRT SPRING
LOW DECK WO/REAR BODY<PK4> FRT TAPER LEAF SUSPENSION<SAR> EXC. STAB SHF<FE6>,FRT STAB SHF<F59> L=170 		1-87870-502-0 04 1 1207-
212 NIPPLE; GREASE,ELBOW
LOW DECK WO/REAR BODY<PK4> PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 05 1 0801-
212 NIPPLE; GREASE,ELBOW
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 06 1 0612-0712
212 NIPPLE; GREASE,ELBOW
EXC. LOW DECK WO/REAR BODY<PK4> PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 06 1 0801-

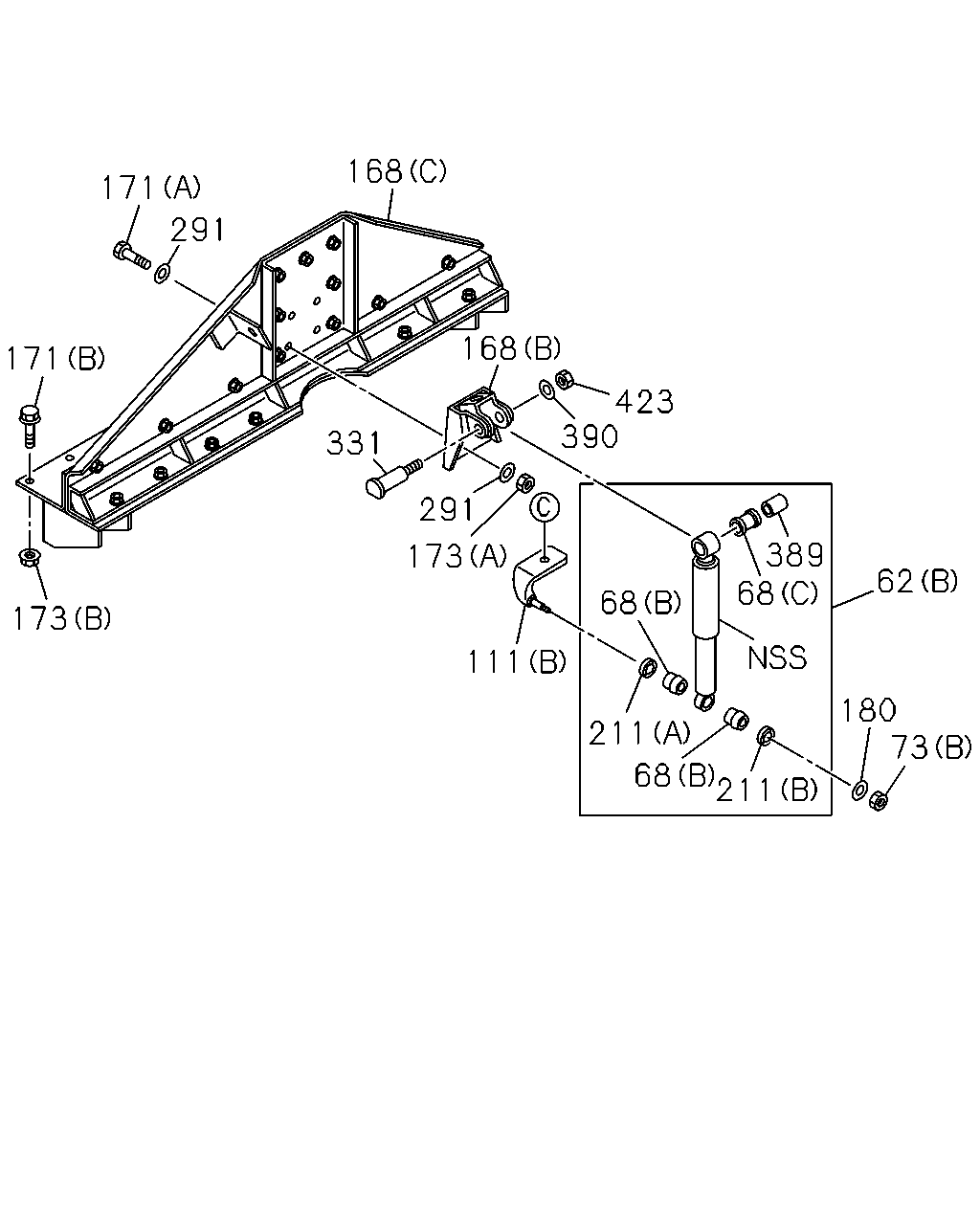

çizim 139217
168 171 291 168 171 423 390 331 291 389 68 173 62 68 173 111 180 73 211 68 211
BalonParca AdiParca NoAdetTipApplied Date
62 ABSORBER ASM; SHOCK,FRT
FRT TAPER LEAF SUSPENSION<SAR> (A) 		8-98096-780-0 02 1 0710-0712
62 ABSORBER ASM; SHOCK,FRT
FRT TAPER LEAF SUSPENSION<SAR> EXC. LOW DECK WO/REAR BODY<PK4> (A) 		8-98096-780-0 02 1 0801-
62 ABSORBER ASM; SHOCK,FRT
LOW DECK WO/REAR BODY<PK4> FRT TAPER LEAF SUSPENSION<SAR> (B) 		8-98072-849-0 02 1 0801-
62 ABSORBER ASM; SHOCK,FRT
(A) 		1-51630-417-0 02 1 0612-0709
62 ABSORBER ASM; SHOCK,FRT
EXC. FRT TAPER LEAF SUSPENSION<SAR> (A) 		1-51630-417-0 02 1 0710-0712
62 ABSORBER ASM; SHOCK,FRT
EXC. LOW DECK WO/REAR BODY<PK4>,FRT TAPER LEAF SUSPENSION<SAR> (A) 		1-51630-417-0 02 1 0801-
68 BUSHING; S/ABS
LOW DECK WO/REAR BODY<PK4> FRT TAPER LEAF SUSPENSION<SAR> (C) 		1-51631-084-0 02 1 0801-
68 BUSHING; S/ABS
(A) ID=16 T=25 		1-51631-069-0 04 1 0612-0712
68 BUSHING; S/ABS
EXC. LOW DECK WO/REAR BODY<PK4> (A) ID=16 T=25 		1-51631-069-0 04 1 0801-
68 BUSHING; S/ABS
(B) 		9-51631-026-0 04 1 0612-0712
68 BUSHING; S/ABS
LOW DECK WO/REAR BODY<PK4> FRT TAPER LEAF SUSPENSION<SAR> (B) 		9-51631-026-0 04 1 0801-
68 BUSHING; S/ABS
EXC. LOW DECK WO/REAR BODY<PK4> (B) 		9-51631-026-0 04 1 0801-
73 NUT; BRKT,SHOCK
(B) M20 		0-91110-520-0 02 1 0612-
73 NUT; BRKT,SHOCK
(A) M14 		0-91111-514-0 02 1 0612-0712
73 NUT; BRKT,SHOCK
EXC. LOW DECK WO/REAR BODY<PK4> (A) M14 		0-91111-514-0 02 1 0801-
111 SUPPORTER; S/ABS,FRT SUSP
LOW DECK WO/REAR BODY<PK4> (B) 		8-98077-988-0 01 1 0801-1004
111 SUPPORTER; S/ABS,FRT SUSP
LOW DECK WO/REAR BODY<PK4> (B) 		8-98158-456-0 01 1 1005-
111 SUPPORTER; S/ABS,FRT SUSP
LOW DECK WO/REAR BODY<PK4> (B) 		8-98077-989-0 01 1 0801-1004
111 SUPPORTER; S/ABS,FRT SUSP
LOW DECK WO/REAR BODY<PK4> (B) 		8-98158-455-0 01 1 1005-
111 SUPPORTER; S/ABS,FRT SUSP
EXC. STAB SHF<FE6>,FRT STAB SHF<F59> (A) 		1-51681-723-1 01 1 0612-0712
111 SUPPORTER; S/ABS,FRT SUSP
EXC. STAB SHF<FE6>,FRT STAB SHF<F59>,LOW DECK WO/REAR BODY<PK4> (A) 		1-51681-723-1 01 1 0801-1004
111 SUPPORTER; S/ABS,FRT SUSP
EXC. STAB SHF<FE6>,FRT STAB SHF<F59>,LOW DECK WO/REAR BODY<PK4> (A) 		8-98153-484-0 01 1 1005-
111 SUPPORTER; S/ABS,FRT SUSP
EXC. STAB SHF<FE6>,FRT STAB SHF<F59> (A) 		1-51681-722-1 01 1 0612-0712
111 SUPPORTER; S/ABS,FRT SUSP
EXC. STAB SHF<FE6>,FRT STAB SHF<F59>,LOW DECK WO/REAR BODY<PK4> (A) 		1-51681-722-1 01 1 0801-1004
111 SUPPORTER; S/ABS,FRT SUSP
EXC. STAB SHF<FE6>,FRT STAB SHF<F59>,LOW DECK WO/REAR BODY<PK4> (A) 		8-98153-483-0 01 1 1005-
168 BRACKET; S/ABS,FRT SUSP
LOW DECK WO/REAR BODY<PK4> (B) 		1-51681-757-2 02 1 0801-
168 BRACKET; S/ABS,FRT SUSP
LOW DECK WO/REAR BODY<PK4> (C) 		8-98086-440-0 01 1 0801-
168 BRACKET; S/ABS,FRT SUSP
LOW DECK WO/REAR BODY<PK4> (C) 		8-98086-441-0 01 1 0801-
168 BRACKET; S/ABS,FRT SUSP
(A) 		1-51681-616-0 02 1 0612-0712
168 BRACKET; S/ABS,FRT SUSP
EXC. LOW DECK WO/REAR BODY<PK4> (A) 		1-51681-616-0 02 1 0801-
171 BOLT; S/ABS BRKT
LOW DECK WO/REAR BODY<PK4> (A) M14X40 		0-20951-440-0 08 1 0801-
171 BOLT; S/ABS BRKT
LOW DECK WO/REAR BODY<PK4> (B) M14X40 FLANGE 		0-28661-440-0 26 1 0801-
173 NUT; S/ABS
LOW DECK WO/REAR BODY<PK4> (A) M14 		0-91110-514-0 08 1 0801-
173 NUT; S/ABS
LOW DECK WO/REAR BODY<PK4> (B) M14 FLANGE 		0-91180-214-0 26 1 0801-
180 WASHER; PL,PIN
ID=21 		0-91610-520-0 02 1 0612-
211 WASHER; BRKT,SHOCK
(A) ID=27 		9-51631-027-0 02 1 0612-0712
211 WASHER; BRKT,SHOCK
LOW DECK WO/REAR BODY<PK4> FRT TAPER LEAF SUSPENSION<SAR> (A) ID=27 		9-51631-027-0 02 1 0801-
211 WASHER; BRKT,SHOCK
EXC. LOW DECK WO/REAR BODY<PK4> (A) ID=27 		9-51631-027-0 02 1 0801-
211 WASHER; BRKT,SHOCK
(B) ID=21 		9-51631-028-0 02 1 0612-0712
211 WASHER; BRKT,SHOCK
LOW DECK WO/REAR BODY<PK4> FRT TAPER LEAF SUSPENSION<SAR> (B) ID=21 		9-51631-028-0 02 1 0801-
211 WASHER; BRKT,SHOCK
EXC. LOW DECK WO/REAR BODY<PK4> (B) ID=21 		9-51631-028-0 02 1 0801-
291 WASHER; PL,BRKT
LOW DECK WO/REAR BODY<PK4> ID=15 		9-09651-069-0 16 1 0801-1201
291 WASHER; PL,BRKT
LOW DECK WO/REAR BODY<PK4> ID=15 		8-98010-627-1 16 1 1202-
331 PIN; UPR,S/ABS
LOW DECK WO/REAR BODY<PK4> M20X110 		1-51361-029-2 02 1 0801-
389 COLLER; S/ABS
LOW DECK WO/REAR BODY<PK4> FRT TAPER LEAF SUSPENSION<SAR> 		1-51631-083-0 02 1 0801-
390 WASHER; PL,S/ABS,UPR
LOW DECK WO/REAR BODY<PK4> ID=21 		9-09164-520-0 02 1 0801-
423 NUT; S/ABS
LOW DECK WO/REAR BODY<PK4> M20 FLANGE 		8-98010-392-0 02 1 0801-

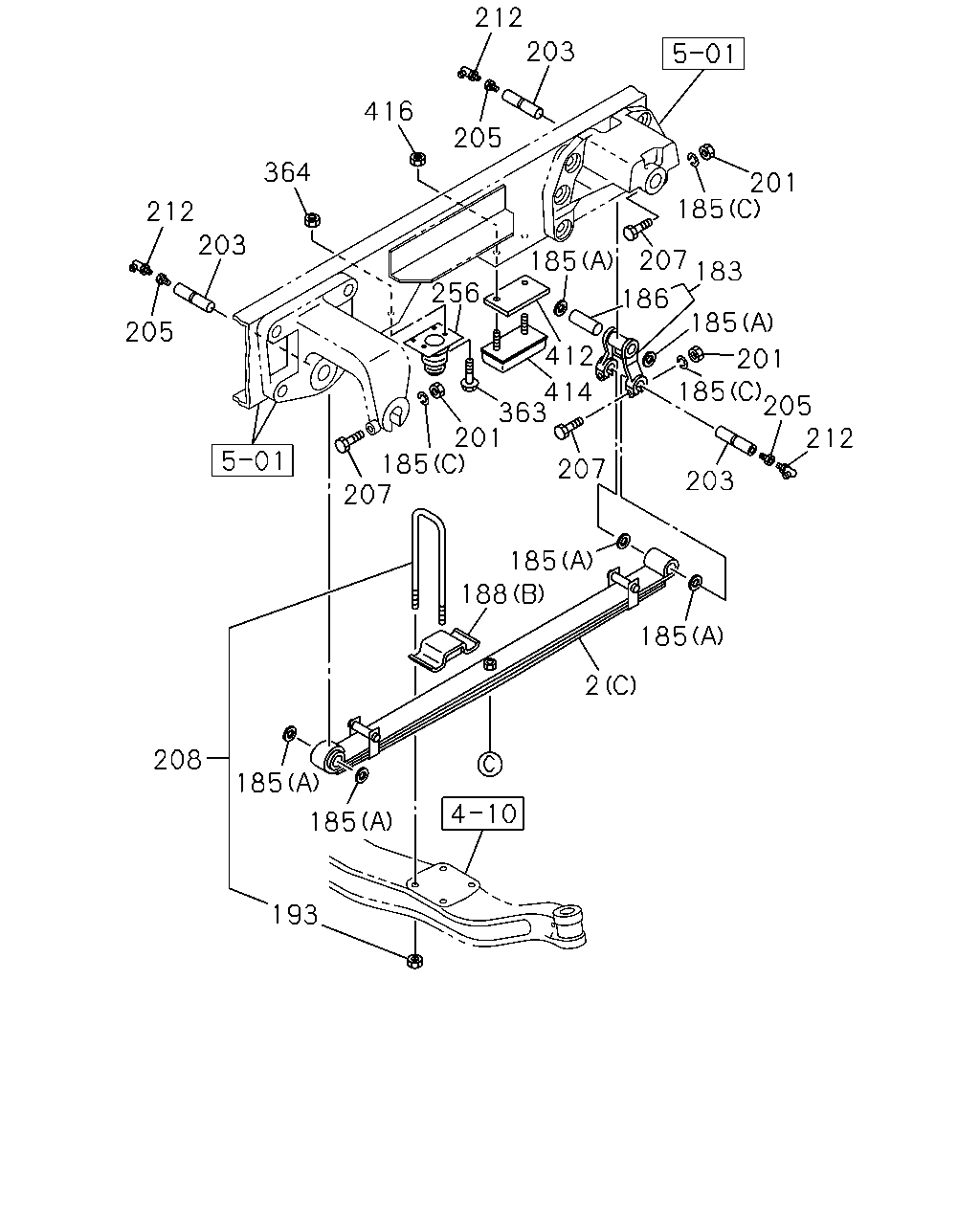

çizim 139222
212 203 416 205 364 201 185 212 203 207 183 185 256 186 185 205 412 414 363 201 185 207 201 185 205 212 207 203 185 188 185 2 208 185 185 193
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. (A) 8-LEAF 		1-51130-969-1 02 1 0612-0709
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRT TAPER LEAF SUSPENSION<SAR> (A) 8-LEAF 		1-51130-969-1 02 1 0710-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> (B) 3-LEAF 		8-98096-765-0 02 1 0710-0712
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> EXC. LOW DECK WO/REAR BODY<PK4> (B) 3-LEAF 		8-98096-765-0 02 1 0801-1210
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> EXC. LOW DECK WO/REAR BODY<PK4> (B) 3-LEAF 		8-98202-922-0 02 1 1211-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. LOW DECK WO/REAR BODY<PK4> FRT TAPER LEAF SUSPENSION<SAR> (C) 3-LEAF 		8-98072-392-0 02 1 0801-1210
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. LOW DECK WO/REAR BODY<PK4> FRT TAPER LEAF SUSPENSION<SAR> (C) 3-LEAF 		8-98202-923-0 02 1 1211-
183 SHACKLE; FRT SUSP 1-51162-039-2 02 1 0612-0705
183 SHACKLE; FRT SUSP 1-51162-029-5 02 1 0706-
185 WASHER; LK,PIN
LOW DECK WO/REAR BODY<PK4> (C) ID=12.2 		0-91510-612-0 08 1 0801-
185 WASHER; LK,PIN
(B) ID=12.2 		0-91510-612-0 12 1 0612-0712
185 WASHER; LK,PIN
EXC. LOW DECK WO/REAR BODY<PK4> (B) ID=12.2 		0-91510-612-0 12 1 0801-
185 WASHER; LK,PIN
(A) ID=32.4 		1-51169-018-0 12 1 0612-
186 BUSHING; SHACKLE
OD=38 		1-51351-009-0 02 1 0612-0902
186 BUSHING; SHACKLE
OD=38 		8-98081-829-0 02 1 0903-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
STAB SHF<FE6> EXC. FRT STAB SHF<F59>,LOW DECK WO/REAR BODY<PK4> (A) 		1-51172-121-0 02 1 1109-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
FRT STAB SHF<F59> EXC. STAB SHF<FE6>,LOW DECK WO/REAR BODY<PK4> (A) 		1-51172-121-0 02 1 1109-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
LOW DECK WO/REAR BODY<PK4> (B) 		1-51172-111-0 02 1 0801-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(A) 		9-51172-067-1 02 1 0612-0712
188 RUBBER; CLAMP,U-BOLT,FRT SPR
EXC. LOW DECK WO/REAR BODY<PK4> (A) 		9-51172-067-1 02 1 0801-1108
188 RUBBER; CLAMP,U-BOLT,FRT SPR
EXC. STAB SHF<FE6>,FRT STAB SHF<F59>,LOW DECK WO/REAR BODY<PK4> (A) 		9-51172-067-1 02 1 1109-
193 NUT; U BOLT
M22 		0-91112-822-0 08 1 0612-1206
193 NUT; U BOLT
M22 		8-98179-318-0 08 1 1207-
201 NUT; PIN LK
LOW DECK WO/REAR BODY<PK4> M12 		0-91110-512-0 08 1 0801-
201 NUT; PIN LK
M12 		0-91110-512-0 12 1 0612-0712
201 NUT; PIN LK
EXC. LOW DECK WO/REAR BODY<PK4> M12 		0-91110-512-0 12 1 0801-
203 PIN; SPR TO SHACKLE 1-51161-031-0 06 1 0612-
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 0612-
207 BOLT; SPR TO SHACKLE
LOW DECK WO/REAR BODY<PK4> M12X80 		0-10856-280-0 08 1 0801-
207 BOLT; SPR TO SHACKLE
M12X80 		0-10856-280-0 12 1 0612-0712
207 BOLT; SPR TO SHACKLE
EXC. LOW DECK WO/REAR BODY<PK4> M12X80 		0-10856-280-0 12 1 0801-
208 U-BOLT SET; FRT SPRING
EXC. STAB SHF<FE6>,FRT STAB SHF<F59>,LOW DECK WO/REAR BODY<PK4> L=210 		1-87870-309-2 02 1 0812-
208 U-BOLT SET; FRT SPRING
EXC. STAB SHF<FE6>,FRT STAB SHF<F59>,LOW DECK WO/REAR BODY<PK4> L=190 		1-87870-439-2 02 1 0812-
208 U-BOLT SET; FRT SPRING
L=190 		1-87870-439-1 04 1 0612-0705
208 U-BOLT SET; FRT SPRING
STAB SHF<FE6> L=190 		1-87870-439-1 04 1 0706-0709
208 U-BOLT SET; FRT SPRING
FRT STAB SHF<F59> L=190 		1-87870-439-1 04 1 0706-0709
208 U-BOLT SET; FRT SPRING
STAB SHF<FE6> EXC. FRT TAPER LEAF SUSPENSION<SAR> L=190 		1-87870-439-1 02 1 0710-0712
208 U-BOLT SET; FRT SPRING
FRT STAB SHF<F59> EXC. FRT TAPER LEAF SUSPENSION<SAR> L=190 		1-87870-439-1 02 1 0710-0712
208 U-BOLT SET; FRT SPRING
FRT TAPER LEAF SUSPENSION<SAR> L=190 		1-87870-439-1 02 1 0710-0712
208 U-BOLT SET; FRT SPRING
STAB SHF<FE6> EXC. FRT TAPER LEAF SUSPENSION<SAR> L=190 		1-87870-439-1 02 1 0710-0712
208 U-BOLT SET; FRT SPRING
FRT STAB SHF<F59> EXC. FRT TAPER LEAF SUSPENSION<SAR> L=190 		1-87870-439-1 02 1 0710-0712
208 U-BOLT SET; FRT SPRING
STAB SHF<FE6> EXC. FRT TAPER LEAF SUSPENSION<SAR> L=190 		1-87870-439-1 02 1 0801-0805
208 U-BOLT SET; FRT SPRING
FRT STAB SHF<F59> EXC. FRT TAPER LEAF SUSPENSION<SAR> L=190 		1-87870-439-1 02 1 0801-0805
208 U-BOLT SET; FRT SPRING
FRT TAPER LEAF SUSPENSION<SAR> EXC. LOW DECK WO/REAR BODY<PK4> L=190 		1-87870-439-1 02 1 0801-0805
208 U-BOLT SET; FRT SPRING
STAB SHF<FE6> EXC. FRT TAPER LEAF SUSPENSION<SAR> L=190 		1-87870-439-1 02 1 0801-0805
208 U-BOLT SET; FRT SPRING
FRT STAB SHF<F59> EXC. FRT TAPER LEAF SUSPENSION<SAR> L=190 		1-87870-439-1 02 1 0801-0805
208 U-BOLT SET; FRT SPRING
EXC. STAB SHF<FE6>,FRT STAB SHF<F59>,LOW DECK WO/REAR BODY<PK4> L=190 		1-87870-439-1 04 1 0806-0811
208 U-BOLT SET; FRT SPRING
EXC. STAB SHF<FE6>,FRT STAB SHF<F59> L=210 		1-87870-309-1 02 1 0706-0709
208 U-BOLT SET; FRT SPRING
EXC. STAB SHF<FE6>,FRT STAB SHF<F59>,FRT TAPER LEAFSUSPENSION<SAR> L=210 		1-87870-309-1 02 1 0710-0712
208 U-BOLT SET; FRT SPRING
EXC. STAB SHF<FE6>,FRT STAB SHF<F59>,LOW DECK WO/REAR BODY<PK4>,FRT TAPER LEAF SUSPENSION<SAR> L=210 		1-87870-309-1 02 1 0801-0805
208 U-BOLT SET; FRT SPRING
EXC. STAB SHF<FE6>,FRT STAB SHF<F59>,LOW DECK WO/REAR BODY<PK4> L=210 		1-87870-309-1 02 1 0806-0809
208 U-BOLT SET; FRT SPRING
STAB SHF<FE6> FRT STAB SHF<F59> EXC. LOW DECK WO/REAR BODY<PK4> L=210 		1-87870-309-1 04 1 0810-0811
208 U-BOLT SET; FRT SPRING
STAB SHF<FE6> EXC. FRT STAB SHF<F59>,LOW DECK WO/REAR BODY<PK4> L=210 		1-87870-309-1 04 1 0812-1108
208 U-BOLT SET; FRT SPRING
FRT STAB SHF<F59> EXC. STAB SHF<FE6>,LOW DECK WO/REAR BODY<PK4> L=210 		1-87870-309-1 04 1 0812-1108
208 U-BOLT SET; FRT SPRING
STAB SHF<FE6> EXC. FRT STAB SHF<F59>,LOW DECK WO/REAR BODY<PK4> L=210 		1-87870-380-2 04 1 1109-
208 U-BOLT SET; FRT SPRING
FRT STAB SHF<F59> EXC. STAB SHF<FE6>,LOW DECK WO/REAR BODY<PK4> L=210 		1-87870-380-2 04 1 1109-
208 U-BOLT SET; FRT SPRING
EXC. STAB SHF<FE6>,FRT STAB SHF<F59> L=190 		1-87870-439-1 02 1 0706-0709
208 U-BOLT SET; FRT SPRING
EXC. STAB SHF<FE6>,FRT STAB SHF<F59>,FRT TAPER LEAFSUSPENSION<SAR> L=190 		1-87870-439-1 04 1 0710-0712
208 U-BOLT SET; FRT SPRING
EXC. STAB SHF<FE6>,FRT STAB SHF<F59>,LOW DECK WO/REAR BODY<PK4>,FRT TAPER LEAF SUSPENSION<SAR> L=190 		1-87870-439-1 04 1 0801-0805
208 U-BOLT SET; FRT SPRING
LOW DECK WO/REAR BODY<PK4> FRT TAPER LEAF SUSPENSION<SAR> EXC. STAB SHF<FE6>,FRT STAB SHF<F59> L=170 		1-87870-170-3 04 1 0801-1206
208 U-BOLT SET; FRT SPRING
LOW DECK WO/REAR BODY<PK4> FRT TAPER LEAF SUSPENSION<SAR> EXC. STAB SHF<FE6>,FRT STAB SHF<F59> L=170 		1-87870-502-0 04 1 1207-
212 NIPPLE; GREASE,ELBOW
LOW DECK WO/REAR BODY<PK4> PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 05 1 0801-
212 NIPPLE; GREASE,ELBOW
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 06 1 0612-0712
212 NIPPLE; GREASE,ELBOW
EXC. LOW DECK WO/REAR BODY<PK4> PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 06 1 0801-
256 RUBBER; CUSHION,FRT SPR
LOW DECK WO/REAR BODY<PK4> 		1-53366-133-0 02 1 0801-
363 BOLT; HELPER RUBBER BRKT
LOW DECK WO/REAR BODY<PK4> M8X25 FLANGE 		0-28050-825-0 08 1 0801-
364 NUT; BRKT,HELPER RUBBER
LOW DECK WO/REAR BODY<PK4> M8 		0-91110-508-0 08 1 0801-
412 PLATE; SETTING
LOW DECK WO/REAR BODY<PK4> 		8-98072-869-0 02 1 0801-
414 RUBBER; BUFFER
LOW DECK WO/REAR BODY<PK4> 		1-53366-049-2 02 1 0801-
416 NUT; RUBBER
LOW DECK WO/REAR BODY<PK4> M12 		0-91110-512-0 04 1 0801-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
