◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LT ▶ 11032 - LT134(LHD) EURO4 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-40 - STEERING UNIT ▶
4-40 — STEERING UNIT (#27375) — 66 parça

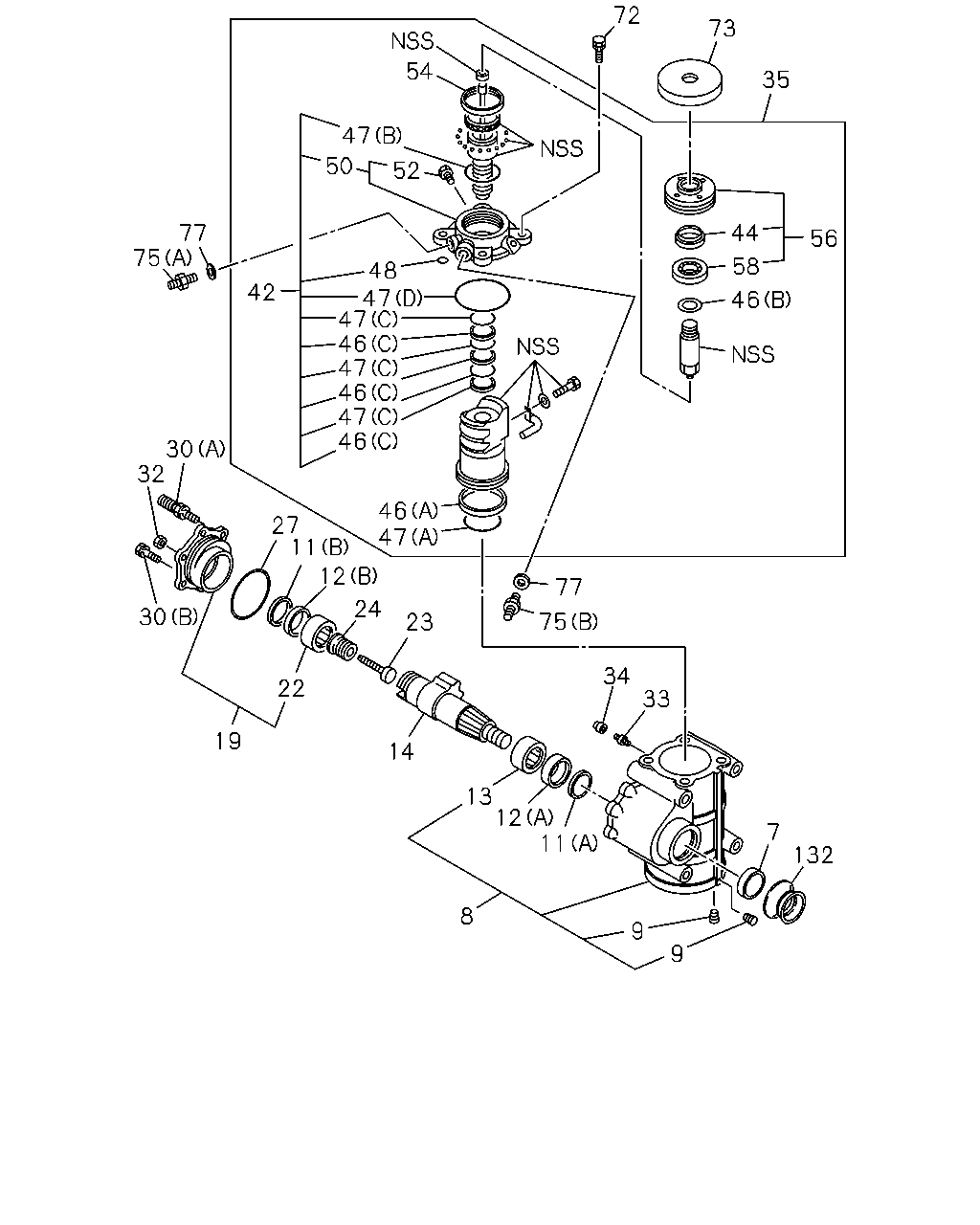

çizim 139147
72 73 54 35 47 50 52 44 77 75 56 58 48 47 47 46 47 46 47 46 42 46 30 32 46 47 27 11 12 77 24 30 75 23 34 22 33 19 14 13 12 11 7 132 8 9 9
BalonParca AdiParca NoAdetTipApplied Date
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-833-3 		1-44249-041-0 01 1 -1001
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-833-3 		8-98159-116-0 01 1 1002-
8 BOX ASM; STRG UNIT
ASM PART: A = 1-44000-833-3 		1-44240-041-0 01 1 -1001
8 BOX ASM; STRG UNIT
ASM PART: A = 1-44000-833-3 		8-98159-749-0 01 1 1002-
9 PLUG; FILLER,STRG UNIT
ASM PART: A = 1-44000-833-3 		1-44519-071-0 02 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: A = 1-44000-833-3 		1-44249-075-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: A = 1-44000-833-3 		1-44519-103-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-833-3 		1-44249-076-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-833-3 		1-44519-226-0 01 1 -
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: A = 1-44000-833-3 		1-44249-038-0 01 1 -1001
14 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 1-44000-833-3 		1-44321-022-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: A = 1-44000-833-3 		1-44260-006-0 01 1 -1001
19 COVER; SIDE STRG UNIT
ASM PART: A = 1-44000-833-3 		8-98159-763-0 01 1 1002-
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: A = 1-44000-833-3 		1-44519-105-0 01 1 -1001
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-833-3 		1-44277-003-1 01 1 -
24 RETAINER; STRG UNIT
ASM PART: A = 1-44000-833-3 		1-44279-011-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 1-44000-833-3 		1-44269-035-0 01 1 -
30 BOLT; COVER STRG UNIT
(A) STUD ASM PART: A = 1-44000-833-3 		1-19519-121-0 03 1 -
30 BOLT; COVER STRG UNIT
(B) ASM PART: A = 1-44000-833-3 		1-44279-012-0 05 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 1-44000-833-3 		1-44269-007-0 01 1 -
33 PLUG; DRAIN,STRG UNIT
ASM PART: A = 1-44000-833-3 		9-83331-704-0 01 1 -
34 PROTECTOR; STRG UNIT
ASM PART: A = 1-44000-833-3 		9-83335-044-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: A = 1-44000-833-3 		1-44150-066-1 01 1 -
42 HOUSING & SEAL ASM; STRG UNIT
ASM PART: A = 1-44000-833-3 		1-44560-073-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: A = 1-44000-833-3 		1-44259-036-1 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: A = 1-44000-833-3 		1-44159-037-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: A = 1-44000-833-3 		1-44519-096-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: A = 1-44000-833-3 		1-44519-255-0 03 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-833-3 		1-44159-036-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 1-44000-833-3 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 1-44000-833-3 		1-44519-116-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-833-3 		1-44519-260-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: A = 1-44000-833-3 		1-44519-262-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
ASM PART: A = 1-44000-833-3 		1-44560-072-0 01 1 -
52 PLUG; HSG STRG UNIT
ASM PART: A = 1-44000-833-3 		1-44519-071-0 01 1 -
54 CASE; BEARING STRG UNIT
ASM PART: A = 1-44000-833-3 		1-44241-088-0 01 1 -
56 PLUG & SEAL ASM; STRG UNIT
ASM PART: A = 1-44000-833-3 		1-44250-006-1 01 1 -
58 BEARING; HSG STRG UNIT
ASM PART: A = 1-44000-833-3 		1-44259-029-0 01 1 -
72 BOLT; HSG FIX STRG UNIT
ASM PART: A = 1-44000-833-3 		1-44259-017-0 04 1 -
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-833-3 		1-44519-114-0 01 1 -1003
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-833-3 		8-98166-307-0 01 1 1004-
75 CONNECTOR; HSG STRG UNIT
(A), M20X1.5 ASM PART: A = 1-44000-833-3 		1-44259-034-1 01 1 -
75 CONNECTOR; HSG STRG UNIT
(B), M22X1.5 ASM PART: A = 1-44000-833-3 		1-44259-035-1 01 1 -
77 GASKET; CONNECTOR,STRG UNIT
ASM PART: A = 1-44000-833-3 		9-89970-787-0 02 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-833-3 		1-44519-227-0 01 1 -

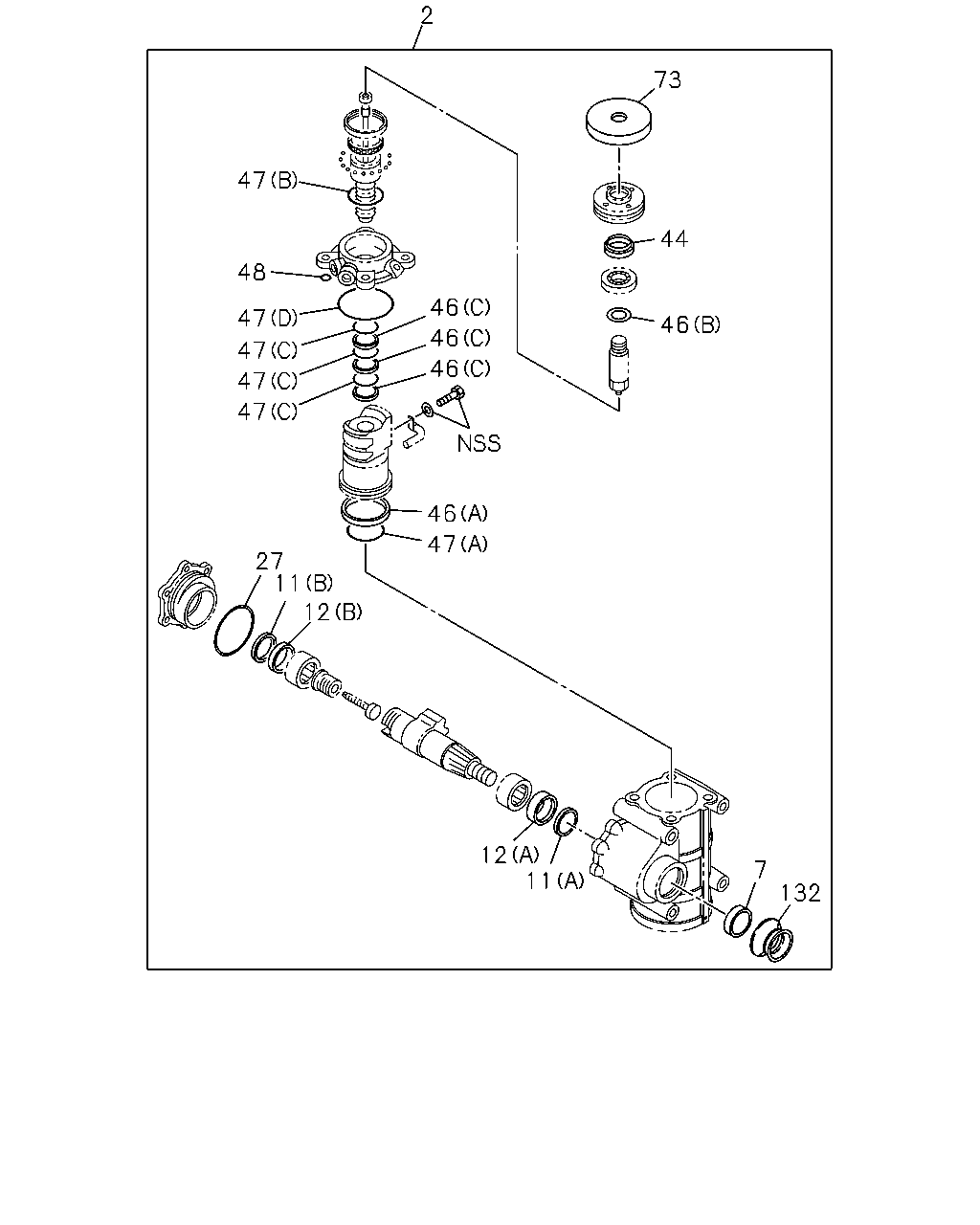

çizim 139150
2 73 47 44 48 46 47 46 46 47 46 47 47 46 47 27 11 12 12 11 7 132
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; STRG UNIT,2 YEAR
2 YEAR ASM PART: A = 1-44000-833-3 		1-85574-030-0 01 1 -1003
2 REPAIR KIT; STRG UNIT,2 YEAR
2 YEAR ASM PART: A = 1-44000-833-3 		8-98176-079-0 01 1 1004-
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-833-3 		1-44249-041-0 01 1 -1001
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-833-3 		8-98159-116-0 01 1 1002-
11 RING; BACKUP,STRG UNIT
(A) ASM PART: A = 1-44000-833-3 		1-44249-075-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: A = 1-44000-833-3 		1-44519-103-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-833-3 		1-44249-076-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-833-3 		1-44519-226-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 1-44000-833-3 		1-44269-035-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: A = 1-44000-833-3 		1-44259-036-1 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: A = 1-44000-833-3 		1-44159-037-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: A = 1-44000-833-3 		1-44519-096-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: A = 1-44000-833-3 		1-44519-255-0 03 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-833-3 		1-44159-036-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 1-44000-833-3 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 1-44000-833-3 		1-44519-116-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-833-3 		1-44519-260-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: A = 1-44000-833-3 		1-44519-262-0 01 1 -
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-833-3 		1-44519-114-0 01 1 -1003
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-833-3 		8-98166-307-0 01 1 1004-
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-833-3 		1-44519-227-0 01 1 -
