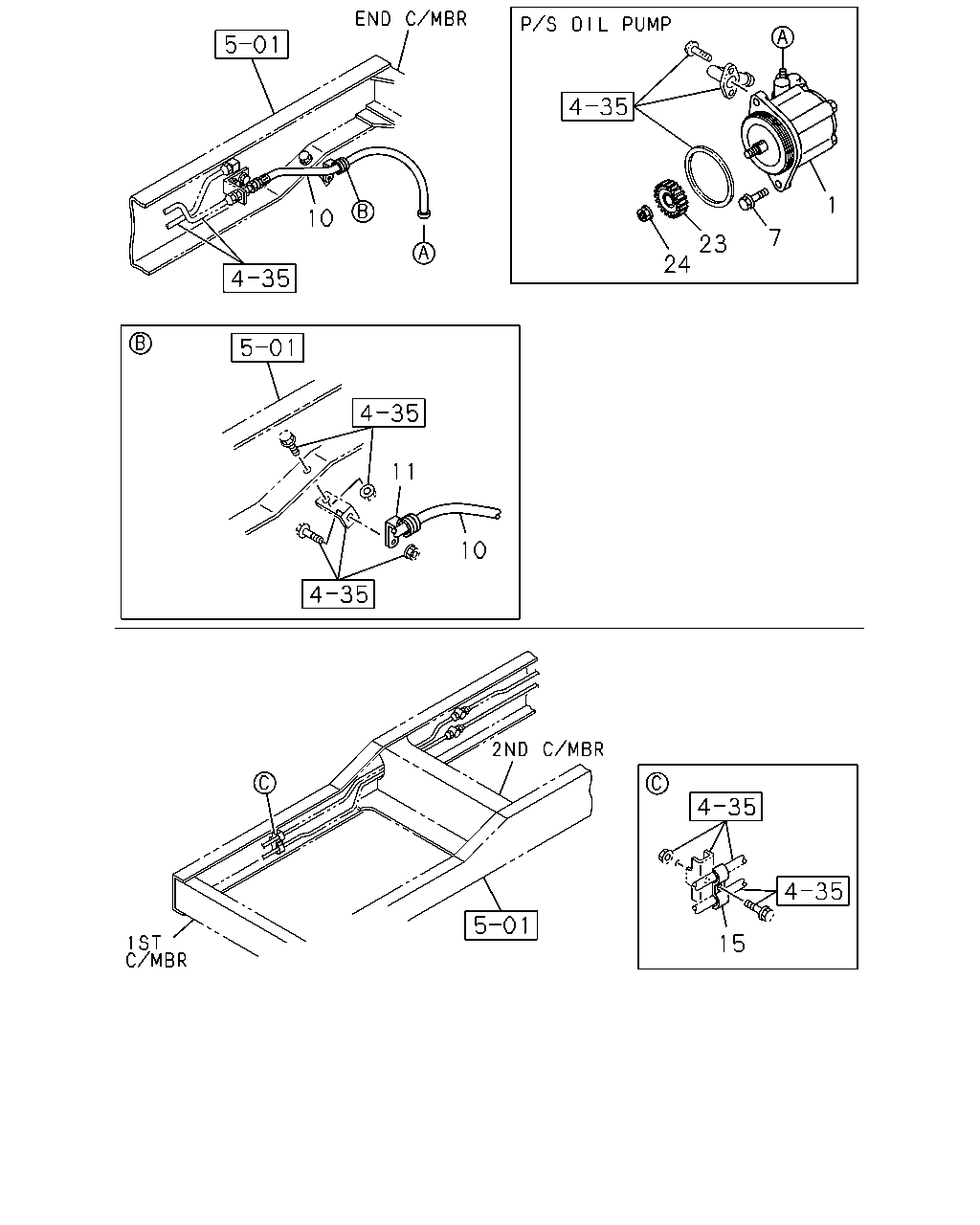

4-36 — POWER STEERING CONTROL; ENGINE SIDE (#27374) — 8 parça

1 10 7 23 24 11 10 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT.	1-19500-573-1	01	1	0612-
7	BOLT; OIL PUMP,P/S M10X55 FLANGE	8-94399-863-1	02	1	0612-0805
7	BOLT; OIL PUMP,P/S M10X55 FLANGE	8-97365-449-0	02	1	0806-
10	HOSE; FLEX,P/S OIL PUMP,INL	1-09365-033-0	01	1	0612-
11	CLIP; FLEX HOSE ID=18 H=23 L=28	1-09700-860-0	01	1	0612-
15	CLIP; OIL PIPE SUCTION ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0612-
23	GEAR; OIL PUMP Z=30	8-94396-957-3	01	1	0612-
24	NUT; GEAR,P/S PUMP M14 FLANGE	0-91180-114-0	01	1	0612-
