Sayfa 4-35 - Isuzu EPC

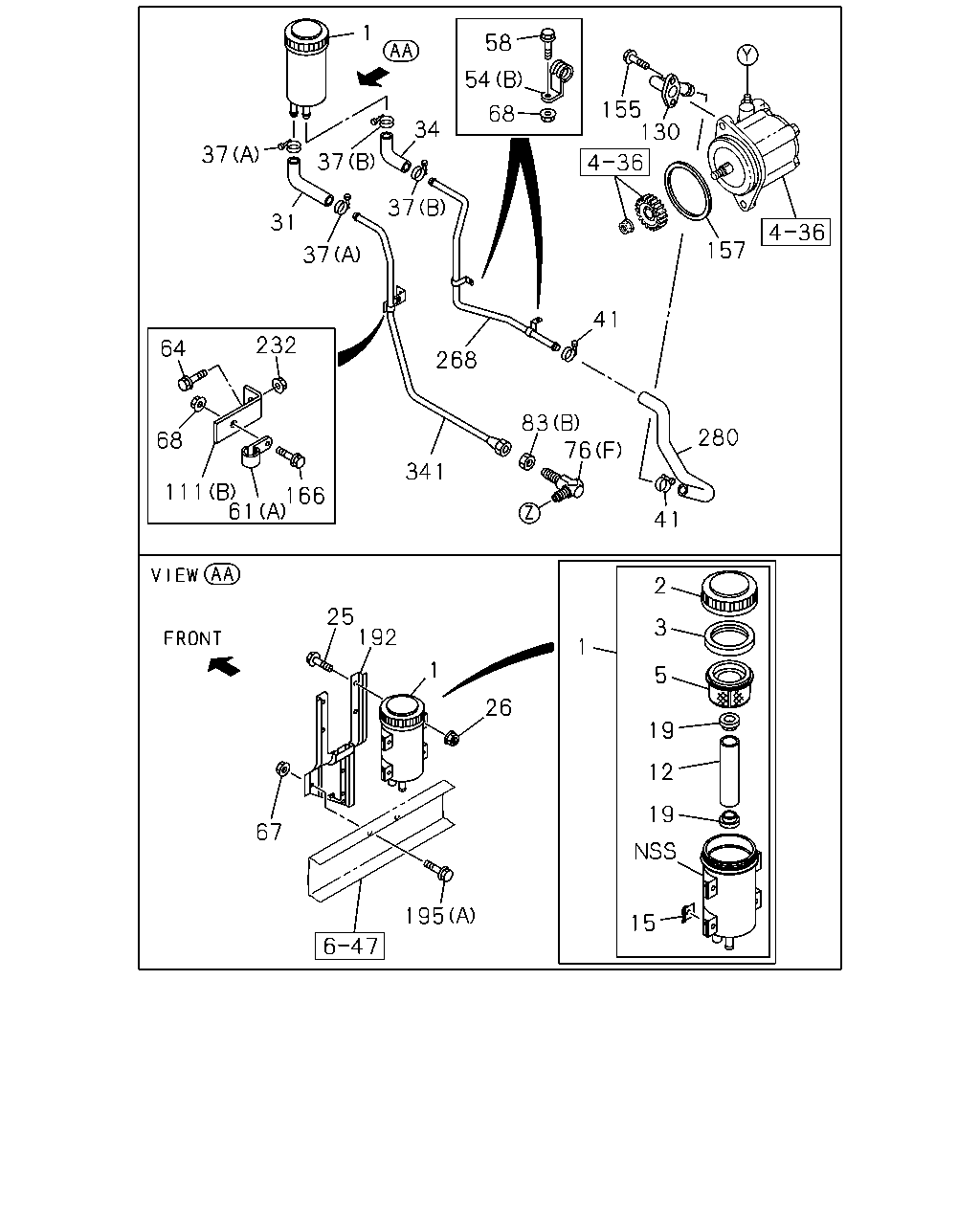

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#27373) — 462 parça

1 58 54 155 130 68 34 37 37 37 31 157 37 41 232 64 268 83 76 280 68 341 111 61 166 41 2 25 192 3 1 1 5 26 19 12 19 67 195 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-237-2	01	1	0612-1006
1	TANK ASM; OIL,P/S	8-98166-927-0	01	1	1007-
2	CAP; OIL TANK,P/S	1-21241-004-4	01	1	0612-1006
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1007-
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	0612-
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	0612-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	0612-
15	PLATE; FILTER,OIL TANK	1-21249-016-0	04	1	0612-
19	SEAT; OIL TANK	1-21249-004-0	02	1	0612-
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28650-825-0	04	1	0612-
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	04	1	0612-
31	HOSE; P/S OIL TANK,INL	1-21115-101-0	01	1	0612-
34	HOSE; P/S OIL TANK,OUTLET	1-21116-093-1	01	1	0612-
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	0612-0705
37	CLIP; HOSE,P/S (A) ID=32	1-09704-085-0	02	1	0706-
37	CLIP; HOSE,P/S (B) ID=36	1-09704-094-0	02	1	0612-
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	0612-
54	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	08	1	0612-0702
54	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	09	1	0703-0706
54	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	06	1	0707-0712
54	CLIP; OIL PIPE EXC. LOW DECK WO/REAR BODY<PK4> (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	06	1	0801-
54	CLIP; OIL PIPE (B) ID=21 L=30 H=40	1-09700-991-1	02	1	0612-
54	CLIP; OIL PIPE WB 5000MM(50W) (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0612-
54	CLIP; OIL PIPE WB 5700MM(57W) (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	03	1	0612-0706
54	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	03	1	0707-0712
54	CLIP; OIL PIPE WB 5700MM(57W) (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	03	1	0707-0712
54	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	03	1	0801-
54	CLIP; OIL PIPE WB 5700MM(57W) (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	03	1	0801-
54	CLIP; OIL PIPE LOW DECK WO/REAR BODY<PK4> (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	03	1	0801-
58	BOLT; CLIP M8X45 FLANGE	0-28050-845-0	02	1	0707-0712
58	BOLT; CLIP EXC. LOW DECK WO/REAR BODY<PK4> M8X45 FLANGE	0-28050-845-0	02	1	0801-
58	BOLT; CLIP M8X40 FLANGE	0-28650-840-0	04	1	0707-0712
58	BOLT; CLIP EXC. LOW DECK WO/REAR BODY<PK4> M8X40 FLANGE	0-28650-840-0	04	1	0801-
58	BOLT; CLIP LOW DECK WO/REAR BODY<PK4> M8X25 FLANGE	0-28650-825-0	01	1	0801-
58	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	03	1	0612-
58	BOLT; CLIP M8X40 FLANGE	0-28650-840-0	06	1	0612-0706
58	BOLT; CLIP M8X40 FLANGE	0-28650-840-0	02	1	0707-0712
58	BOLT; CLIP M8X40 FLANGE	0-28650-840-0	02	1	0801-
58	BOLT; CLIP LOW DECK WO/REAR BODY<PK4> M8X40 FLANGE	0-28650-840-0	02	1	0801-
58	BOLT; CLIP M8X45 FLANGE	0-28050-845-0	03	1	0612-0706
58	BOLT; CLIP M8X45 FLANGE	0-28050-845-0	01	1	0707-0712
58	BOLT; CLIP M8X45 FLANGE	0-28050-845-0	01	1	0801-
58	BOLT; CLIP LOW DECK WO/REAR BODY<PK4> M8X45 FLANGE	0-28050-845-0	01	1	0801-
58	BOLT; CLIP M8X40 FLANGE	0-28650-840-0	03	1	0612-
58	BOLT; CLIP WB 5700MM(57W) M8X40 FLANGE	0-28650-840-0	03	1	0612-
58	BOLT; CLIP WB 5000MM(50W) M8X40 FLANGE	0-28650-840-0	01	1	0612-
61	CLIP; OIL PIPE (A) ID=16 L=20	0-95235-536-0	01	1	0612-0904
61	CLIP; OIL PIPE (A) ID=16 L=20	0-95235-535-0	01	1	0905-
61	CLIP; OIL PIPE (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	03	1	0612-
64	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	01	1	0612-
67	NUT; BRKT M10 FLANGE	0-91180-210-0	03	1	0612-
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	03	1	0612-
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	03	1	0612-
76	UNION; OIL PIPE (A) M20 2WAY	1-09654-138-1	02	1	0707-
76	UNION; OIL PIPE LOW DECK WO/REAR BODY<PK4> (A) M20 2WAY	1-09654-138-1	03	1	0801-
76	UNION; OIL PIPE LOW DECK WO/REAR BODY<PK4> (B) M22 2WAY	1-09654-212-1	03	1	0801-
76	UNION; OIL PIPE LOW DECK WO/REAR BODY<PK4> (G) M20 2WAY	1-09654-218-1	01	1	0801-
76	UNION; OIL PIPE (C) M20 STRAIGHT	0-92123-012-0	01	1	0612-0706
76	UNION; OIL PIPE (C) M20 STRAIGHT	0-92123-012-0	02	1	0707-0712
76	UNION; OIL PIPE EXC. LOW DECK WO/REAR BODY<PK4> (C) M20 STRAIGHT	0-92123-012-0	02	1	0801-
76	UNION; OIL PIPE (C) M20 STRAIGHT	0-92123-012-0	02	1	0612-0706
76	UNION; OIL PIPE (C) M20 STRAIGHT	0-92123-012-0	01	1	0707-
76	UNION; OIL PIPE (D) M22 L=51	0-92123-015-0	01	1	0612-0712
76	UNION; OIL PIPE EXC. LOW DECK WO/REAR BODY<PK4> (D) M22 L=51	0-92123-015-0	01	1	0801-
76	UNION; OIL PIPE (D) M22 L=51	0-92123-015-0	02	1	0612-0712
76	UNION; OIL PIPE EXC. LOW DECK WO/REAR BODY<PK4> (D) M22 L=51	0-92123-015-0	02	1	0801-
76	UNION; OIL PIPE (E) M22	0-92123-315-0	01	1	0612-
76	UNION; OIL PIPE (F) M22	0-92135-215-0	01	1	0612-
76	UNION; OIL PIPE (A) M20 2WAY	1-09654-138-1	03	1	0612-0706
76	UNION; OIL PIPE (A) M20 2WAY	1-09654-138-1	01	1	0707-0712
76	UNION; OIL PIPE EXC. LOW DECK WO/REAR BODY<PK4> (A) M20 2WAY	1-09654-138-1	01	1	0801-
76	UNION; OIL PIPE (B) M22 2WAY	1-09654-212-1	02	1	0612-
83	NUT; UNION,OIL PIPE LOW DECK WO/REAR BODY<PK4> (A) M14	0-91111-514-0	03	1	0801-
83	NUT; UNION,OIL PIPE (A) M14	0-91111-514-0	01	1	0612-
83	NUT; UNION,OIL PIPE (B) M22	0-91111-522-0	01	1	0612-
111	BRACKET; OIL PIPE (A)	1-47475-427-1	02	1	0612-
111	BRACKET; OIL PIPE (B) L=76	1-47475-588-0	01	1	0612-
130	ADAPTER; P/S PUMP	8-94390-583-0	01	1	0612-
155	BOLT; CONNECTOR M8X16 FLANGE	0-28050-816-0	02	1	0612-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4	1-09623-467-0	01	1	0612-
166	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	01	1	0612-0712
166	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	01	1	0801-
166	BOLT; CLIP LOW DECK WO/REAR BODY<PK4> M8X25 FLANGE	0-28650-825-0	01	1	0801-
192	BRACKET; P/S OIL TANK	1-21219-093-2	01	1	0612-
195	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	0612-
195	BOLT; BRKT (A) M10X25 FLANGE	0-28651-025-0	03	1	0612-
232	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0612-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE L=509	8-98057-088-0	01	1	0612-
280	HOSE; P/S OIL PUMP,INL	1-21117-881-0	01	1	0612-
341	PIPE; OIL,UNION TO OIL TANK	1-21117-875-0	01	1	0612-

75 265 265 59 54 58 265 65 265 65 63 75 75 265 195 76 78 257 256 265 83 76 265 54 58 272 65 55 232 255 79 239 257 256 63 271 58 62 79

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
54	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	08	1	0612-0702
54	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	09	1	0703-0706
54	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	06	1	0707-0712
54	CLIP; OIL PIPE EXC. LOW DECK WO/REAR BODY<PK4> (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	06	1	0801-
54	CLIP; OIL PIPE (B) ID=21 L=30 H=40	1-09700-991-1	02	1	0612-
54	CLIP; OIL PIPE WB 5000MM(50W) (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0612-
54	CLIP; OIL PIPE WB 5700MM(57W) (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	03	1	0612-0706
54	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	03	1	0707-0712
54	CLIP; OIL PIPE WB 5700MM(57W) (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	03	1	0707-0712
54	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	03	1	0801-
54	CLIP; OIL PIPE WB 5700MM(57W) (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	03	1	0801-
54	CLIP; OIL PIPE LOW DECK WO/REAR BODY<PK4> (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	03	1	0801-
55	CLIP; P/S RUBBER HOSE ID=15 H=24 L=20	1-09700-606-0	01	1	0612-
58	BOLT; CLIP M8X45 FLANGE	0-28050-845-0	02	1	0707-0712
58	BOLT; CLIP EXC. LOW DECK WO/REAR BODY<PK4> M8X45 FLANGE	0-28050-845-0	02	1	0801-
58	BOLT; CLIP M8X40 FLANGE	0-28650-840-0	04	1	0707-0712
58	BOLT; CLIP EXC. LOW DECK WO/REAR BODY<PK4> M8X40 FLANGE	0-28650-840-0	04	1	0801-
58	BOLT; CLIP LOW DECK WO/REAR BODY<PK4> M8X25 FLANGE	0-28650-825-0	01	1	0801-
58	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	03	1	0612-
58	BOLT; CLIP M8X40 FLANGE	0-28650-840-0	06	1	0612-0706
58	BOLT; CLIP M8X40 FLANGE	0-28650-840-0	02	1	0707-0712
58	BOLT; CLIP M8X40 FLANGE	0-28650-840-0	02	1	0801-
58	BOLT; CLIP LOW DECK WO/REAR BODY<PK4> M8X40 FLANGE	0-28650-840-0	02	1	0801-
58	BOLT; CLIP M8X45 FLANGE	0-28050-845-0	03	1	0612-0706
58	BOLT; CLIP M8X45 FLANGE	0-28050-845-0	01	1	0707-0712
58	BOLT; CLIP M8X45 FLANGE	0-28050-845-0	01	1	0801-
58	BOLT; CLIP LOW DECK WO/REAR BODY<PK4> M8X45 FLANGE	0-28050-845-0	01	1	0801-
58	BOLT; CLIP M8X40 FLANGE	0-28650-840-0	03	1	0612-
58	BOLT; CLIP WB 5700MM(57W) M8X40 FLANGE	0-28650-840-0	03	1	0612-
58	BOLT; CLIP WB 5000MM(50W) M8X40 FLANGE	0-28650-840-0	01	1	0612-
59	BRACKET; CLIP,OIL PIPE LOW DECK WO/REAR BODY<PK4>	1-47475-427-1	01	1	0801-
59	BRACKET; CLIP,OIL PIPE	1-47475-427-1	02	1	0612-0712
59	BRACKET; CLIP,OIL PIPE EXC. LOW DECK WO/REAR BODY<PK4>	1-47475-427-1	02	1	0801-
59	BRACKET; CLIP,OIL PIPE	1-47475-427-1	03	1	0612-
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	07	1	0612-0706
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	04	1	0707-0712
62	NUT; CLIP FIX EXC. LOW DECK WO/REAR BODY<PK4> M8 FLANGE	0-91180-108-0	04	1	0801-
62	NUT; CLIP FIX WB 5000MM(50W) M8 FLANGE	0-91180-108-0	01	1	0612-
62	NUT; CLIP FIX WB 5700MM(57W) M8 FLANGE	0-91180-108-0	03	1	0612-0706
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	03	1	0707-0712
62	NUT; CLIP FIX WB 5700MM(57W) M8 FLANGE	0-91180-108-0	03	1	0707-0712
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	03	1	0801-
62	NUT; CLIP FIX WB 5700MM(57W) M8 FLANGE	0-91180-108-0	03	1	0801-
62	NUT; CLIP FIX LOW DECK WO/REAR BODY<PK4> M8 FLANGE	0-91180-108-0	03	1	0801-
63	BRACKET; CLIP,P/S (A)	1-47475-427-1	04	1	0707-0712
63	BRACKET; CLIP,P/S EXC. LOW DECK WO/REAR BODY<PK4> (A)	1-47475-427-1	04	1	0801-
63	BRACKET; CLIP,P/S (A)	1-47475-427-1	06	1	0612-0706
63	BRACKET; CLIP,P/S (A)	1-47475-427-1	02	1	0707-0712
63	BRACKET; CLIP,P/S (A)	1-47475-427-1	02	1	0801-
63	BRACKET; CLIP,P/S LOW DECK WO/REAR BODY<PK4> (A)	1-47475-427-1	02	1	0801-
63	BRACKET; CLIP,P/S (B)	1-82699-199-0	01	1	0612-
63	BRACKET; CLIP,P/S WB 5000MM(50W) (A)	1-47475-427-1	01	1	0612-
63	BRACKET; CLIP,P/S WB 5700MM(57W) (A)	1-47475-427-1	03	1	0612-
65	NUT; BRKT M8 FLANGE	0-91180-108-0	03	1	0707-
65	NUT; BRKT LOW DECK WO/REAR BODY<PK4> M8 FLANGE	0-91180-108-0	01	1	0801-
65	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0612-0702
65	NUT; BRKT M8 FLANGE	0-91180-108-0	05	1	0703-0706
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0707-0712
65	NUT; BRKT EXC. LOW DECK WO/REAR BODY<PK4> M8 FLANGE	0-91180-108-0	02	1	0801-
75	PIPE; OIL,P/S,UNION TO UNION LOW DECK WO/REAR BODY<PK4> (B) L=1973 SERVICED BY L=2000	1-49115-492-0	01	1	0801-
75	PIPE; OIL,P/S,UNION TO UNION LOW DECK WO/REAR BODY<PK4> (C) L=1740 SERVICED BY L=1800	1-49115-491-0	01	1	0801-
75	PIPE; OIL,P/S,UNION TO UNION LOW DECK WO/REAR BODY<PK4> (E) L=1504 SERVICED BY L=1600	1-49115-490-0	01	1	0801-
75	PIPE; OIL,P/S,UNION TO UNION LOW DECK WO/REAR BODY<PK4> (G) L=1058 SERVICED BY L=1100	1-49115-486-0	01	1	0801-
75	PIPE; OIL,P/S,UNION TO UNION LOW DECK WO/REAR BODY<PK4> (H) L=950	8-98072-435-0	01	1	0801-
75	PIPE; OIL,P/S,UNION TO UNION LOW DECK WO/REAR BODY<PK4> (F) L=1070	8-98072-436-0	01	1	0801-
75	PIPE; OIL,P/S,UNION TO UNION LOW DECK WO/REAR BODY<PK4> (D) L=1836	8-98072-438-0	01	1	0801-
75	PIPE; OIL,P/S,UNION TO UNION (G) L=1120 SERVICED BY L=1200	1-49115-487-0	01	1	0612-0612
75	PIPE; OIL,P/S,UNION TO UNION (G) L=1112 SERVICED BY L=1200	1-49115-487-0	01	1	0701-0712
75	PIPE; OIL,P/S,UNION TO UNION EXC. LOW DECK WO/REAR BODY<PK4> (G) L=1112 SERVICED BY L=1200	1-49115-487-0	01	1	0801-
75	PIPE; OIL,P/S,UNION TO UNION (A) L=1246 SERVICED BY L=1300	1-49115-488-0	01	1	0612-
75	PIPE; OIL,P/S,UNION TO UNION (B) L=1827 SERVICED BY L=2000	1-49115-492-0	01	1	0612-0712
75	PIPE; OIL,P/S,UNION TO UNION EXC. LOW DECK WO/REAR BODY<PK4> (B) L=1827 SERVICED BY L=2000	1-49115-492-0	01	1	0801-
75	PIPE; OIL,P/S,UNION TO UNION (E) L=1506 SERVICED BY L=1600	1-49115-490-0	01	1	0612-0712
75	PIPE; OIL,P/S,UNION TO UNION EXC. LOW DECK WO/REAR BODY<PK4> (E) L=1506 SERVICED BY L=1600	1-49115-490-0	01	1	0801-
75	PIPE; OIL,P/S,UNION TO UNION (F) L=906	1-21117-873-0	01	1	0612-0712
75	PIPE; OIL,P/S,UNION TO UNION EXC. LOW DECK WO/REAR BODY<PK4> (F) L=906	1-21117-873-0	01	1	0801-
75	PIPE; OIL,P/S,UNION TO UNION WB 5000MM(50W) (C) L=820	1-21117-877-0	01	1	0612-
75	PIPE; OIL,P/S,UNION TO UNION WB 5000MM(50W) (D) L=900	1-21117-878-0	01	1	0612-
75	PIPE; OIL,P/S,UNION TO UNION WB 5700MM(57W) (C) L=1522	1-21115-401-0	01	1	0612-0712
75	PIPE; OIL,P/S,UNION TO UNION WB 5700MM(57W) EXC. LOW DECK WO/REAR BODY<PK4> (C) L=1522	1-21115-401-0	01	1	0801-
75	PIPE; OIL,P/S,UNION TO UNION WB 5700MM(57W) (D) L=1602	1-21115-408-0	01	1	0612-0712
75	PIPE; OIL,P/S,UNION TO UNION WB 5700MM(57W) EXC. LOW DECK WO/REAR BODY<PK4> (D) L=1602	1-21115-408-0	01	1	0801-
76	UNION; OIL PIPE (A) M20 2WAY	1-09654-138-1	02	1	0707-
76	UNION; OIL PIPE LOW DECK WO/REAR BODY<PK4> (A) M20 2WAY	1-09654-138-1	03	1	0801-
76	UNION; OIL PIPE LOW DECK WO/REAR BODY<PK4> (B) M22 2WAY	1-09654-212-1	03	1	0801-
76	UNION; OIL PIPE LOW DECK WO/REAR BODY<PK4> (G) M20 2WAY	1-09654-218-1	01	1	0801-
76	UNION; OIL PIPE (C) M20 STRAIGHT	0-92123-012-0	01	1	0612-0706
76	UNION; OIL PIPE (C) M20 STRAIGHT	0-92123-012-0	02	1	0707-0712
76	UNION; OIL PIPE EXC. LOW DECK WO/REAR BODY<PK4> (C) M20 STRAIGHT	0-92123-012-0	02	1	0801-
76	UNION; OIL PIPE (C) M20 STRAIGHT	0-92123-012-0	02	1	0612-0706
76	UNION; OIL PIPE (C) M20 STRAIGHT	0-92123-012-0	01	1	0707-
76	UNION; OIL PIPE (D) M22 L=51	0-92123-015-0	01	1	0612-0712
76	UNION; OIL PIPE EXC. LOW DECK WO/REAR BODY<PK4> (D) M22 L=51	0-92123-015-0	01	1	0801-
76	UNION; OIL PIPE (D) M22 L=51	0-92123-015-0	02	1	0612-0712
76	UNION; OIL PIPE EXC. LOW DECK WO/REAR BODY<PK4> (D) M22 L=51	0-92123-015-0	02	1	0801-
76	UNION; OIL PIPE (E) M22	0-92123-315-0	01	1	0612-
76	UNION; OIL PIPE (F) M22	0-92135-215-0	01	1	0612-
76	UNION; OIL PIPE (A) M20 2WAY	1-09654-138-1	03	1	0612-0706
76	UNION; OIL PIPE (A) M20 2WAY	1-09654-138-1	01	1	0707-0712
76	UNION; OIL PIPE EXC. LOW DECK WO/REAR BODY<PK4> (A) M20 2WAY	1-09654-138-1	01	1	0801-
76	UNION; OIL PIPE (B) M22 2WAY	1-09654-212-1	02	1	0612-
78	BRACKET; UNION	1-47476-729-1	01	1	0612-
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	03	1	0612-
83	NUT; UNION,OIL PIPE LOW DECK WO/REAR BODY<PK4> (A) M14	0-91111-514-0	03	1	0801-
83	NUT; UNION,OIL PIPE (A) M14	0-91111-514-0	01	1	0612-
83	NUT; UNION,OIL PIPE (B) M22	0-91111-522-0	01	1	0612-
195	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	0612-
195	BOLT; BRKT (A) M10X25 FLANGE	0-28651-025-0	03	1	0612-
232	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0612-
239	BRACKET; FLEX HOSE	1-47478-324-0	01	1	0612-
255	UNION; FLEX HOSE	1-09650-045-1	01	1	0612-
256	NUT; UNION LOW DECK WO/REAR BODY<PK4> (A) M14	0-91111-514-0	03	1	0801-
256	NUT; UNION (A) M14	0-91111-514-0	02	1	0612-
256	NUT; UNION (B) M20	0-91111-520-0	01	1	0612-
256	NUT; UNION (C) M22	0-91111-522-0	01	1	0612-
257	WASHER; LK,UNION (A) ID=20.2	0-91510-520-0	01	1	0612-
257	WASHER; LK,UNION (B) ID=22.5	0-91510-522-0	01	1	0612-
265	PIPE; OIL,UNION TO UNION LOW DECK WO/REAR BODY<PK4> (B) L=1597 SERVICED BY L=1600	1-49115-490-0	01	1	0801-
265	PIPE; OIL,UNION TO UNION LOW DECK WO/REAR BODY<PK4> (F) L=926 SERVICED BY L=1000	1-49115-485-0	01	1	0801-
265	PIPE; OIL,UNION TO UNION LOW DECK WO/REAR BODY<PK4> (E) L=1648	8-98072-437-0	01	1	0801-
265	PIPE; OIL,UNION TO UNION LOW DECK WO/REAR BODY<PK4> (C) L=1990	8-98072-439-0	01	1	0801-
265	PIPE; OIL,UNION TO UNION (B) L=2072 SERVICED BY L=2250	1-49115-493-0	01	1	0612-0712
265	PIPE; OIL,UNION TO UNION EXC. LOW DECK WO/REAR BODY<PK4> (B) L=2072 SERVICED BY L=2250	1-49115-493-0	01	1	0801-
265	PIPE; OIL,UNION TO UNION (E) L=1579	8-98057-083-0	01	1	0612-0712
265	PIPE; OIL,UNION TO UNION EXC. LOW DECK WO/REAR BODY<PK4> (E) L=1579	8-98057-083-0	01	1	0801-
265	PIPE; OIL,UNION TO UNION (D) L=1428	8-98057-084-0	01	1	0612-
265	PIPE; OIL,UNION TO UNION (C) L=2456	8-98057-086-0	01	1	0612-0712
265	PIPE; OIL,UNION TO UNION EXC. LOW DECK WO/REAR BODY<PK4> (C) L=2456	8-98057-086-0	01	1	0801-
265	PIPE; OIL,UNION TO UNION (A) L=1337	8-98057-087-0	01	1	0612-
271	BOLT; P/S OIL PIPE FIX M8X25 FLANGE	0-28650-825-0	01	1	0612-
272	NUT; P/S OIL PIPE FIX M8 FLANGE	0-91180-108-0	01	1	0612-

265 76 248 265 265 62 288 63 75 247 75 54 58 256 265 75 76 75 63 62 75 75 76 75 75 54 58 63 62 75 265 265 76 75 54 58 270 256 265 76 75 265 76 265

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
54	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	08	1	0612-0702
54	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	09	1	0703-0706
54	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	06	1	0707-0712
54	CLIP; OIL PIPE EXC. LOW DECK WO/REAR BODY<PK4> (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	06	1	0801-
54	CLIP; OIL PIPE (B) ID=21 L=30 H=40	1-09700-991-1	02	1	0612-
54	CLIP; OIL PIPE WB 5000MM(50W) (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0612-
54	CLIP; OIL PIPE WB 5700MM(57W) (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	03	1	0612-0706
54	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	03	1	0707-0712
54	CLIP; OIL PIPE WB 5700MM(57W) (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	03	1	0707-0712
54	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	03	1	0801-
54	CLIP; OIL PIPE WB 5700MM(57W) (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	03	1	0801-
54	CLIP; OIL PIPE LOW DECK WO/REAR BODY<PK4> (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	03	1	0801-
58	BOLT; CLIP M8X45 FLANGE	0-28050-845-0	02	1	0707-0712
58	BOLT; CLIP EXC. LOW DECK WO/REAR BODY<PK4> M8X45 FLANGE	0-28050-845-0	02	1	0801-
58	BOLT; CLIP M8X40 FLANGE	0-28650-840-0	04	1	0707-0712
58	BOLT; CLIP EXC. LOW DECK WO/REAR BODY<PK4> M8X40 FLANGE	0-28650-840-0	04	1	0801-
58	BOLT; CLIP LOW DECK WO/REAR BODY<PK4> M8X25 FLANGE	0-28650-825-0	01	1	0801-
58	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	03	1	0612-
58	BOLT; CLIP M8X40 FLANGE	0-28650-840-0	06	1	0612-0706
58	BOLT; CLIP M8X40 FLANGE	0-28650-840-0	02	1	0707-0712
58	BOLT; CLIP M8X40 FLANGE	0-28650-840-0	02	1	0801-
58	BOLT; CLIP LOW DECK WO/REAR BODY<PK4> M8X40 FLANGE	0-28650-840-0	02	1	0801-
58	BOLT; CLIP M8X45 FLANGE	0-28050-845-0	03	1	0612-0706
58	BOLT; CLIP M8X45 FLANGE	0-28050-845-0	01	1	0707-0712
58	BOLT; CLIP M8X45 FLANGE	0-28050-845-0	01	1	0801-
58	BOLT; CLIP LOW DECK WO/REAR BODY<PK4> M8X45 FLANGE	0-28050-845-0	01	1	0801-
58	BOLT; CLIP M8X40 FLANGE	0-28650-840-0	03	1	0612-
58	BOLT; CLIP WB 5700MM(57W) M8X40 FLANGE	0-28650-840-0	03	1	0612-
58	BOLT; CLIP WB 5000MM(50W) M8X40 FLANGE	0-28650-840-0	01	1	0612-
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	07	1	0612-0706
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	04	1	0707-0712
62	NUT; CLIP FIX EXC. LOW DECK WO/REAR BODY<PK4> M8 FLANGE	0-91180-108-0	04	1	0801-
62	NUT; CLIP FIX WB 5000MM(50W) M8 FLANGE	0-91180-108-0	01	1	0612-
62	NUT; CLIP FIX WB 5700MM(57W) M8 FLANGE	0-91180-108-0	03	1	0612-0706
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	03	1	0707-0712
62	NUT; CLIP FIX WB 5700MM(57W) M8 FLANGE	0-91180-108-0	03	1	0707-0712
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	03	1	0801-
62	NUT; CLIP FIX WB 5700MM(57W) M8 FLANGE	0-91180-108-0	03	1	0801-
62	NUT; CLIP FIX LOW DECK WO/REAR BODY<PK4> M8 FLANGE	0-91180-108-0	03	1	0801-
63	BRACKET; CLIP,P/S (A)	1-47475-427-1	04	1	0707-0712
63	BRACKET; CLIP,P/S EXC. LOW DECK WO/REAR BODY<PK4> (A)	1-47475-427-1	04	1	0801-
63	BRACKET; CLIP,P/S (A)	1-47475-427-1	06	1	0612-0706
63	BRACKET; CLIP,P/S (A)	1-47475-427-1	02	1	0707-0712
63	BRACKET; CLIP,P/S (A)	1-47475-427-1	02	1	0801-
63	BRACKET; CLIP,P/S LOW DECK WO/REAR BODY<PK4> (A)	1-47475-427-1	02	1	0801-
63	BRACKET; CLIP,P/S (B)	1-82699-199-0	01	1	0612-
63	BRACKET; CLIP,P/S WB 5000MM(50W) (A)	1-47475-427-1	01	1	0612-
63	BRACKET; CLIP,P/S WB 5700MM(57W) (A)	1-47475-427-1	03	1	0612-
75	PIPE; OIL,P/S,UNION TO UNION LOW DECK WO/REAR BODY<PK4> (B) L=1973 SERVICED BY L=2000	1-49115-492-0	01	1	0801-
75	PIPE; OIL,P/S,UNION TO UNION LOW DECK WO/REAR BODY<PK4> (C) L=1740 SERVICED BY L=1800	1-49115-491-0	01	1	0801-
75	PIPE; OIL,P/S,UNION TO UNION LOW DECK WO/REAR BODY<PK4> (E) L=1504 SERVICED BY L=1600	1-49115-490-0	01	1	0801-
75	PIPE; OIL,P/S,UNION TO UNION LOW DECK WO/REAR BODY<PK4> (G) L=1058 SERVICED BY L=1100	1-49115-486-0	01	1	0801-
75	PIPE; OIL,P/S,UNION TO UNION LOW DECK WO/REAR BODY<PK4> (H) L=950	8-98072-435-0	01	1	0801-
75	PIPE; OIL,P/S,UNION TO UNION LOW DECK WO/REAR BODY<PK4> (F) L=1070	8-98072-436-0	01	1	0801-
75	PIPE; OIL,P/S,UNION TO UNION LOW DECK WO/REAR BODY<PK4> (D) L=1836	8-98072-438-0	01	1	0801-
75	PIPE; OIL,P/S,UNION TO UNION (G) L=1120 SERVICED BY L=1200	1-49115-487-0	01	1	0612-0612
75	PIPE; OIL,P/S,UNION TO UNION (G) L=1112 SERVICED BY L=1200	1-49115-487-0	01	1	0701-0712
75	PIPE; OIL,P/S,UNION TO UNION EXC. LOW DECK WO/REAR BODY<PK4> (G) L=1112 SERVICED BY L=1200	1-49115-487-0	01	1	0801-
75	PIPE; OIL,P/S,UNION TO UNION (A) L=1246 SERVICED BY L=1300	1-49115-488-0	01	1	0612-
75	PIPE; OIL,P/S,UNION TO UNION (B) L=1827 SERVICED BY L=2000	1-49115-492-0	01	1	0612-0712
75	PIPE; OIL,P/S,UNION TO UNION EXC. LOW DECK WO/REAR BODY<PK4> (B) L=1827 SERVICED BY L=2000	1-49115-492-0	01	1	0801-
75	PIPE; OIL,P/S,UNION TO UNION (E) L=1506 SERVICED BY L=1600	1-49115-490-0	01	1	0612-0712
75	PIPE; OIL,P/S,UNION TO UNION EXC. LOW DECK WO/REAR BODY<PK4> (E) L=1506 SERVICED BY L=1600	1-49115-490-0	01	1	0801-
75	PIPE; OIL,P/S,UNION TO UNION (F) L=906	1-21117-873-0	01	1	0612-0712
75	PIPE; OIL,P/S,UNION TO UNION EXC. LOW DECK WO/REAR BODY<PK4> (F) L=906	1-21117-873-0	01	1	0801-
75	PIPE; OIL,P/S,UNION TO UNION WB 5000MM(50W) (C) L=820	1-21117-877-0	01	1	0612-
75	PIPE; OIL,P/S,UNION TO UNION WB 5000MM(50W) (D) L=900	1-21117-878-0	01	1	0612-
75	PIPE; OIL,P/S,UNION TO UNION WB 5700MM(57W) (C) L=1522	1-21115-401-0	01	1	0612-0712
75	PIPE; OIL,P/S,UNION TO UNION WB 5700MM(57W) EXC. LOW DECK WO/REAR BODY<PK4> (C) L=1522	1-21115-401-0	01	1	0801-
75	PIPE; OIL,P/S,UNION TO UNION WB 5700MM(57W) (D) L=1602	1-21115-408-0	01	1	0612-0712
75	PIPE; OIL,P/S,UNION TO UNION WB 5700MM(57W) EXC. LOW DECK WO/REAR BODY<PK4> (D) L=1602	1-21115-408-0	01	1	0801-
76	UNION; OIL PIPE (A) M20 2WAY	1-09654-138-1	02	1	0707-
76	UNION; OIL PIPE LOW DECK WO/REAR BODY<PK4> (A) M20 2WAY	1-09654-138-1	03	1	0801-
76	UNION; OIL PIPE LOW DECK WO/REAR BODY<PK4> (B) M22 2WAY	1-09654-212-1	03	1	0801-
76	UNION; OIL PIPE LOW DECK WO/REAR BODY<PK4> (G) M20 2WAY	1-09654-218-1	01	1	0801-
76	UNION; OIL PIPE (C) M20 STRAIGHT	0-92123-012-0	01	1	0612-0706
76	UNION; OIL PIPE (C) M20 STRAIGHT	0-92123-012-0	02	1	0707-0712
76	UNION; OIL PIPE EXC. LOW DECK WO/REAR BODY<PK4> (C) M20 STRAIGHT	0-92123-012-0	02	1	0801-
76	UNION; OIL PIPE (C) M20 STRAIGHT	0-92123-012-0	02	1	0612-0706
76	UNION; OIL PIPE (C) M20 STRAIGHT	0-92123-012-0	01	1	0707-
76	UNION; OIL PIPE (D) M22 L=51	0-92123-015-0	01	1	0612-0712
76	UNION; OIL PIPE EXC. LOW DECK WO/REAR BODY<PK4> (D) M22 L=51	0-92123-015-0	01	1	0801-
76	UNION; OIL PIPE (D) M22 L=51	0-92123-015-0	02	1	0612-0712
76	UNION; OIL PIPE EXC. LOW DECK WO/REAR BODY<PK4> (D) M22 L=51	0-92123-015-0	02	1	0801-
76	UNION; OIL PIPE (E) M22	0-92123-315-0	01	1	0612-
76	UNION; OIL PIPE (F) M22	0-92135-215-0	01	1	0612-
76	UNION; OIL PIPE (A) M20 2WAY	1-09654-138-1	03	1	0612-0706
76	UNION; OIL PIPE (A) M20 2WAY	1-09654-138-1	01	1	0707-0712
76	UNION; OIL PIPE EXC. LOW DECK WO/REAR BODY<PK4> (A) M20 2WAY	1-09654-138-1	01	1	0801-
76	UNION; OIL PIPE (B) M22 2WAY	1-09654-212-1	02	1	0612-
247	BOLT; BRKT,CLIP LOW DECK WO/REAR BODY<PK4> M8X25 FLANGE	0-28650-825-0	02	1	0801-
248	NUT; BRKT,CLIP LOW DECK WO/REAR BODY<PK4> M8 FLANGE	0-91180-108-0	02	1	0801-
256	NUT; UNION LOW DECK WO/REAR BODY<PK4> (A) M14	0-91111-514-0	03	1	0801-
256	NUT; UNION (A) M14	0-91111-514-0	02	1	0612-
256	NUT; UNION (B) M20	0-91111-520-0	01	1	0612-
256	NUT; UNION (C) M22	0-91111-522-0	01	1	0612-
265	PIPE; OIL,UNION TO UNION LOW DECK WO/REAR BODY<PK4> (B) L=1597 SERVICED BY L=1600	1-49115-490-0	01	1	0801-
265	PIPE; OIL,UNION TO UNION LOW DECK WO/REAR BODY<PK4> (F) L=926 SERVICED BY L=1000	1-49115-485-0	01	1	0801-
265	PIPE; OIL,UNION TO UNION LOW DECK WO/REAR BODY<PK4> (E) L=1648	8-98072-437-0	01	1	0801-
265	PIPE; OIL,UNION TO UNION LOW DECK WO/REAR BODY<PK4> (C) L=1990	8-98072-439-0	01	1	0801-
265	PIPE; OIL,UNION TO UNION (B) L=2072 SERVICED BY L=2250	1-49115-493-0	01	1	0612-0712
265	PIPE; OIL,UNION TO UNION EXC. LOW DECK WO/REAR BODY<PK4> (B) L=2072 SERVICED BY L=2250	1-49115-493-0	01	1	0801-
265	PIPE; OIL,UNION TO UNION (E) L=1579	8-98057-083-0	01	1	0612-0712
265	PIPE; OIL,UNION TO UNION EXC. LOW DECK WO/REAR BODY<PK4> (E) L=1579	8-98057-083-0	01	1	0801-
265	PIPE; OIL,UNION TO UNION (D) L=1428	8-98057-084-0	01	1	0612-
265	PIPE; OIL,UNION TO UNION (C) L=2456	8-98057-086-0	01	1	0612-0712
265	PIPE; OIL,UNION TO UNION EXC. LOW DECK WO/REAR BODY<PK4> (C) L=2456	8-98057-086-0	01	1	0801-
265	PIPE; OIL,UNION TO UNION (A) L=1337	8-98057-087-0	01	1	0612-
270	NUT; UNION TO OIL PIPE M14	0-91111-514-0	02	1	0612-
288	BRACKET; CLIP,P/S LOW DECK WO/REAR BODY<PK4>	1-47478-408-0	01	1	0801-

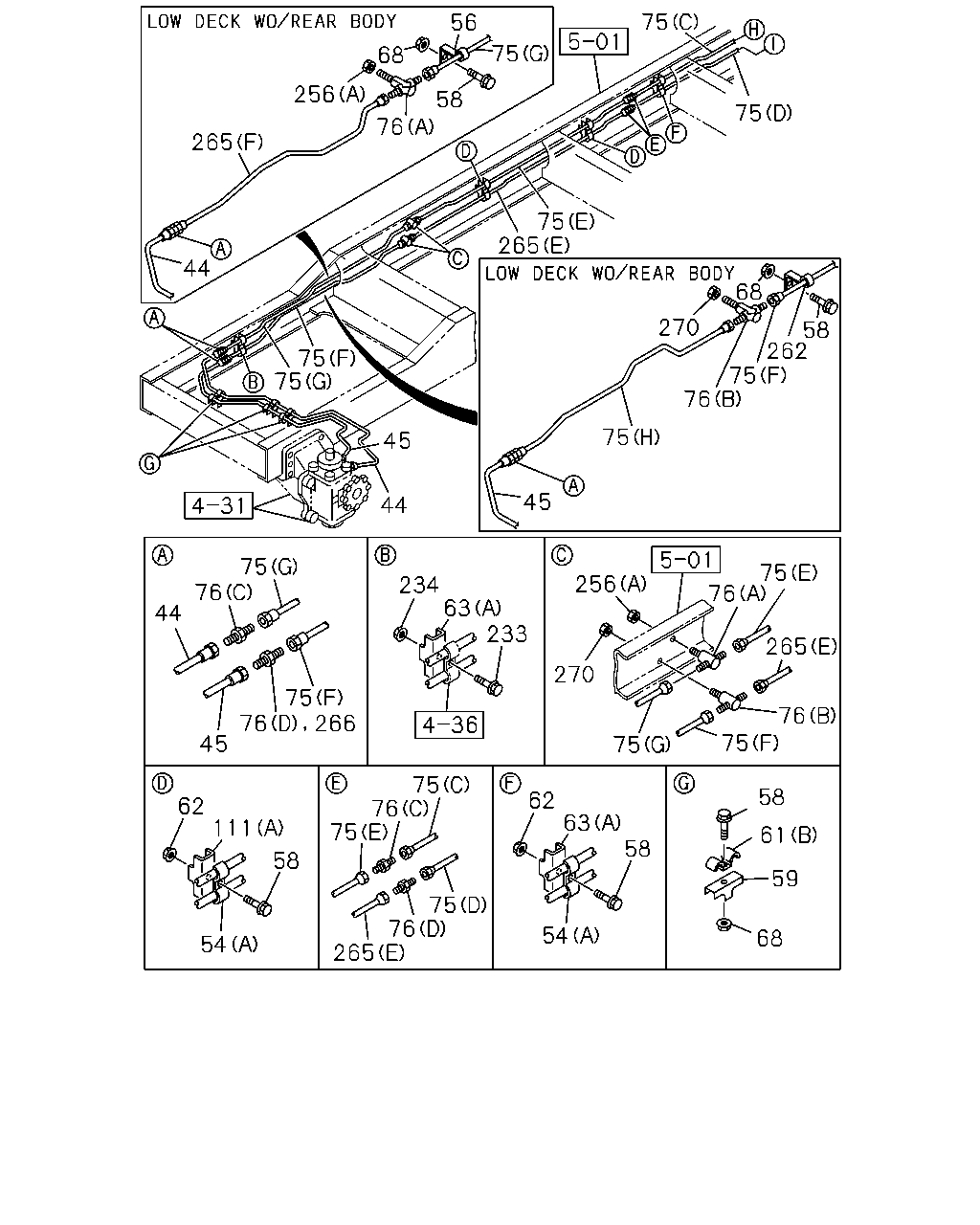

75 56 75 68 256 58 75 76 265 75 265 44 68 75 75 270 58 262 75 76 75 45 45 44 75 76 75 256 234 63 233 76 44 265 270 75 76 75 45 75 75 76 75 58 62 63 62 58 111 61 58 59 75 76 265 54 68 54 76 266

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
44	PIPE; OIL,P/S UNIT TO NIPPLE LOW DECK WO/REAR BODY<PK4> L=1598	8-98072-433-0	01	1	0801-
44	PIPE; OIL,P/S UNIT TO NIPPLE L=1630	1-21117-870-0	01	1	0612-0712
44	PIPE; OIL,P/S UNIT TO NIPPLE EXC. LOW DECK WO/REAR BODY<PK4> L=1630	1-21117-870-0	01	1	0801-
45	PIPE; OIL,P/S UNIT TO UNION LOW DECK WO/REAR BODY<PK4> L=1617	8-98072-434-0	01	1	0801-
45	PIPE; OIL,P/S UNIT TO UNION L=1645	1-21117-872-0	01	1	0612-0712
45	PIPE; OIL,P/S UNIT TO UNION EXC. LOW DECK WO/REAR BODY<PK4> L=1645	1-21117-872-0	01	1	0801-
54	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	08	1	0612-0702
54	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	09	1	0703-0706
54	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	06	1	0707-0712
54	CLIP; OIL PIPE EXC. LOW DECK WO/REAR BODY<PK4> (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	06	1	0801-
54	CLIP; OIL PIPE (B) ID=21 L=30 H=40	1-09700-991-1	02	1	0612-
54	CLIP; OIL PIPE WB 5000MM(50W) (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0612-
54	CLIP; OIL PIPE WB 5700MM(57W) (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	03	1	0612-0706
54	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	03	1	0707-0712
54	CLIP; OIL PIPE WB 5700MM(57W) (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	03	1	0707-0712
54	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	03	1	0801-
54	CLIP; OIL PIPE WB 5700MM(57W) (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	03	1	0801-
54	CLIP; OIL PIPE LOW DECK WO/REAR BODY<PK4> (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	03	1	0801-
56	CLIP; OIL PIPE LOW DECK WO/REAR BODY<PK4> ID=13 H=40 L=25	1-09700-620-0	01	1	0801-
58	BOLT; CLIP M8X45 FLANGE	0-28050-845-0	02	1	0707-0712
58	BOLT; CLIP EXC. LOW DECK WO/REAR BODY<PK4> M8X45 FLANGE	0-28050-845-0	02	1	0801-
58	BOLT; CLIP M8X40 FLANGE	0-28650-840-0	04	1	0707-0712
58	BOLT; CLIP EXC. LOW DECK WO/REAR BODY<PK4> M8X40 FLANGE	0-28650-840-0	04	1	0801-
58	BOLT; CLIP LOW DECK WO/REAR BODY<PK4> M8X25 FLANGE	0-28650-825-0	01	1	0801-
58	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	03	1	0612-
58	BOLT; CLIP M8X40 FLANGE	0-28650-840-0	06	1	0612-0706
58	BOLT; CLIP M8X40 FLANGE	0-28650-840-0	02	1	0707-0712
58	BOLT; CLIP M8X40 FLANGE	0-28650-840-0	02	1	0801-
58	BOLT; CLIP LOW DECK WO/REAR BODY<PK4> M8X40 FLANGE	0-28650-840-0	02	1	0801-
58	BOLT; CLIP M8X45 FLANGE	0-28050-845-0	03	1	0612-0706
58	BOLT; CLIP M8X45 FLANGE	0-28050-845-0	01	1	0707-0712
58	BOLT; CLIP M8X45 FLANGE	0-28050-845-0	01	1	0801-
58	BOLT; CLIP LOW DECK WO/REAR BODY<PK4> M8X45 FLANGE	0-28050-845-0	01	1	0801-
58	BOLT; CLIP M8X40 FLANGE	0-28650-840-0	03	1	0612-
58	BOLT; CLIP WB 5700MM(57W) M8X40 FLANGE	0-28650-840-0	03	1	0612-
58	BOLT; CLIP WB 5000MM(50W) M8X40 FLANGE	0-28650-840-0	01	1	0612-
59	BRACKET; CLIP,OIL PIPE LOW DECK WO/REAR BODY<PK4>	1-47475-427-1	01	1	0801-
59	BRACKET; CLIP,OIL PIPE	1-47475-427-1	02	1	0612-0712
59	BRACKET; CLIP,OIL PIPE EXC. LOW DECK WO/REAR BODY<PK4>	1-47475-427-1	02	1	0801-
59	BRACKET; CLIP,OIL PIPE	1-47475-427-1	03	1	0612-
61	CLIP; OIL PIPE (A) ID=16 L=20	0-95235-536-0	01	1	0612-0904
61	CLIP; OIL PIPE (A) ID=16 L=20	0-95235-535-0	01	1	0905-
61	CLIP; OIL PIPE (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	03	1	0612-
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	07	1	0612-0706
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	04	1	0707-0712
62	NUT; CLIP FIX EXC. LOW DECK WO/REAR BODY<PK4> M8 FLANGE	0-91180-108-0	04	1	0801-
62	NUT; CLIP FIX WB 5000MM(50W) M8 FLANGE	0-91180-108-0	01	1	0612-
62	NUT; CLIP FIX WB 5700MM(57W) M8 FLANGE	0-91180-108-0	03	1	0612-0706
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	03	1	0707-0712
62	NUT; CLIP FIX WB 5700MM(57W) M8 FLANGE	0-91180-108-0	03	1	0707-0712
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	03	1	0801-
62	NUT; CLIP FIX WB 5700MM(57W) M8 FLANGE	0-91180-108-0	03	1	0801-
62	NUT; CLIP FIX LOW DECK WO/REAR BODY<PK4> M8 FLANGE	0-91180-108-0	03	1	0801-
63	BRACKET; CLIP,P/S (A)	1-47475-427-1	04	1	0707-0712
63	BRACKET; CLIP,P/S EXC. LOW DECK WO/REAR BODY<PK4> (A)	1-47475-427-1	04	1	0801-
63	BRACKET; CLIP,P/S (A)	1-47475-427-1	06	1	0612-0706
63	BRACKET; CLIP,P/S (A)	1-47475-427-1	02	1	0707-0712
63	BRACKET; CLIP,P/S (A)	1-47475-427-1	02	1	0801-
63	BRACKET; CLIP,P/S LOW DECK WO/REAR BODY<PK4> (A)	1-47475-427-1	02	1	0801-
63	BRACKET; CLIP,P/S (B)	1-82699-199-0	01	1	0612-
63	BRACKET; CLIP,P/S WB 5000MM(50W) (A)	1-47475-427-1	01	1	0612-
63	BRACKET; CLIP,P/S WB 5700MM(57W) (A)	1-47475-427-1	03	1	0612-
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	03	1	0612-
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	03	1	0612-
75	PIPE; OIL,P/S,UNION TO UNION LOW DECK WO/REAR BODY<PK4> (B) L=1973 SERVICED BY L=2000	1-49115-492-0	01	1	0801-
75	PIPE; OIL,P/S,UNION TO UNION LOW DECK WO/REAR BODY<PK4> (C) L=1740 SERVICED BY L=1800	1-49115-491-0	01	1	0801-
75	PIPE; OIL,P/S,UNION TO UNION LOW DECK WO/REAR BODY<PK4> (E) L=1504 SERVICED BY L=1600	1-49115-490-0	01	1	0801-
75	PIPE; OIL,P/S,UNION TO UNION LOW DECK WO/REAR BODY<PK4> (G) L=1058 SERVICED BY L=1100	1-49115-486-0	01	1	0801-
75	PIPE; OIL,P/S,UNION TO UNION LOW DECK WO/REAR BODY<PK4> (H) L=950	8-98072-435-0	01	1	0801-
75	PIPE; OIL,P/S,UNION TO UNION LOW DECK WO/REAR BODY<PK4> (F) L=1070	8-98072-436-0	01	1	0801-
75	PIPE; OIL,P/S,UNION TO UNION LOW DECK WO/REAR BODY<PK4> (D) L=1836	8-98072-438-0	01	1	0801-
75	PIPE; OIL,P/S,UNION TO UNION (G) L=1120 SERVICED BY L=1200	1-49115-487-0	01	1	0612-0612
75	PIPE; OIL,P/S,UNION TO UNION (G) L=1112 SERVICED BY L=1200	1-49115-487-0	01	1	0701-0712
75	PIPE; OIL,P/S,UNION TO UNION EXC. LOW DECK WO/REAR BODY<PK4> (G) L=1112 SERVICED BY L=1200	1-49115-487-0	01	1	0801-
75	PIPE; OIL,P/S,UNION TO UNION (A) L=1246 SERVICED BY L=1300	1-49115-488-0	01	1	0612-
75	PIPE; OIL,P/S,UNION TO UNION (B) L=1827 SERVICED BY L=2000	1-49115-492-0	01	1	0612-0712
75	PIPE; OIL,P/S,UNION TO UNION EXC. LOW DECK WO/REAR BODY<PK4> (B) L=1827 SERVICED BY L=2000	1-49115-492-0	01	1	0801-
75	PIPE; OIL,P/S,UNION TO UNION (E) L=1506 SERVICED BY L=1600	1-49115-490-0	01	1	0612-0712
75	PIPE; OIL,P/S,UNION TO UNION EXC. LOW DECK WO/REAR BODY<PK4> (E) L=1506 SERVICED BY L=1600	1-49115-490-0	01	1	0801-
75	PIPE; OIL,P/S,UNION TO UNION (F) L=906	1-21117-873-0	01	1	0612-0712
75	PIPE; OIL,P/S,UNION TO UNION EXC. LOW DECK WO/REAR BODY<PK4> (F) L=906	1-21117-873-0	01	1	0801-
75	PIPE; OIL,P/S,UNION TO UNION WB 5000MM(50W) (C) L=820	1-21117-877-0	01	1	0612-
75	PIPE; OIL,P/S,UNION TO UNION WB 5000MM(50W) (D) L=900	1-21117-878-0	01	1	0612-
75	PIPE; OIL,P/S,UNION TO UNION WB 5700MM(57W) (C) L=1522	1-21115-401-0	01	1	0612-0712
75	PIPE; OIL,P/S,UNION TO UNION WB 5700MM(57W) EXC. LOW DECK WO/REAR BODY<PK4> (C) L=1522	1-21115-401-0	01	1	0801-
75	PIPE; OIL,P/S,UNION TO UNION WB 5700MM(57W) (D) L=1602	1-21115-408-0	01	1	0612-0712
75	PIPE; OIL,P/S,UNION TO UNION WB 5700MM(57W) EXC. LOW DECK WO/REAR BODY<PK4> (D) L=1602	1-21115-408-0	01	1	0801-
76	UNION; OIL PIPE (A) M20 2WAY	1-09654-138-1	02	1	0707-
76	UNION; OIL PIPE LOW DECK WO/REAR BODY<PK4> (A) M20 2WAY	1-09654-138-1	03	1	0801-
76	UNION; OIL PIPE LOW DECK WO/REAR BODY<PK4> (B) M22 2WAY	1-09654-212-1	03	1	0801-
76	UNION; OIL PIPE LOW DECK WO/REAR BODY<PK4> (G) M20 2WAY	1-09654-218-1	01	1	0801-
76	UNION; OIL PIPE (C) M20 STRAIGHT	0-92123-012-0	01	1	0612-0706
76	UNION; OIL PIPE (C) M20 STRAIGHT	0-92123-012-0	02	1	0707-0712
76	UNION; OIL PIPE EXC. LOW DECK WO/REAR BODY<PK4> (C) M20 STRAIGHT	0-92123-012-0	02	1	0801-
76	UNION; OIL PIPE (C) M20 STRAIGHT	0-92123-012-0	02	1	0612-0706
76	UNION; OIL PIPE (C) M20 STRAIGHT	0-92123-012-0	01	1	0707-
76	UNION; OIL PIPE (D) M22 L=51	0-92123-015-0	01	1	0612-0712
76	UNION; OIL PIPE EXC. LOW DECK WO/REAR BODY<PK4> (D) M22 L=51	0-92123-015-0	01	1	0801-
76	UNION; OIL PIPE (D) M22 L=51	0-92123-015-0	02	1	0612-0712
76	UNION; OIL PIPE EXC. LOW DECK WO/REAR BODY<PK4> (D) M22 L=51	0-92123-015-0	02	1	0801-
76	UNION; OIL PIPE (E) M22	0-92123-315-0	01	1	0612-
76	UNION; OIL PIPE (F) M22	0-92135-215-0	01	1	0612-
76	UNION; OIL PIPE (A) M20 2WAY	1-09654-138-1	03	1	0612-0706
76	UNION; OIL PIPE (A) M20 2WAY	1-09654-138-1	01	1	0707-0712
76	UNION; OIL PIPE EXC. LOW DECK WO/REAR BODY<PK4> (A) M20 2WAY	1-09654-138-1	01	1	0801-
76	UNION; OIL PIPE (B) M22 2WAY	1-09654-212-1	02	1	0612-
111	BRACKET; OIL PIPE (A)	1-47475-427-1	02	1	0612-
111	BRACKET; OIL PIPE (B) L=76	1-47475-588-0	01	1	0612-
233	BOLT; PIPE CLIP,P/S M8X40 FLANGE	0-28650-840-0	01	1	0612-
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91180-108-0	01	1	0612-0712
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91180-108-0	01	1	0801-
234	NUT; PIPE CLIP,P/S LOW DECK WO/REAR BODY<PK4> M8 FLANGE	0-91180-108-0	01	1	0801-
256	NUT; UNION LOW DECK WO/REAR BODY<PK4> (A) M14	0-91111-514-0	03	1	0801-
256	NUT; UNION (A) M14	0-91111-514-0	02	1	0612-
256	NUT; UNION (B) M20	0-91111-520-0	01	1	0612-
256	NUT; UNION (C) M22	0-91111-522-0	01	1	0612-
262	CLIP; P/S PIPE LOW DECK WO/REAR BODY<PK4> D=15 L=45	5-09700-076-0	01	1	0801-
265	PIPE; OIL,UNION TO UNION LOW DECK WO/REAR BODY<PK4> (B) L=1597 SERVICED BY L=1600	1-49115-490-0	01	1	0801-
265	PIPE; OIL,UNION TO UNION LOW DECK WO/REAR BODY<PK4> (F) L=926 SERVICED BY L=1000	1-49115-485-0	01	1	0801-
265	PIPE; OIL,UNION TO UNION LOW DECK WO/REAR BODY<PK4> (E) L=1648	8-98072-437-0	01	1	0801-
265	PIPE; OIL,UNION TO UNION LOW DECK WO/REAR BODY<PK4> (C) L=1990	8-98072-439-0	01	1	0801-
265	PIPE; OIL,UNION TO UNION (B) L=2072 SERVICED BY L=2250	1-49115-493-0	01	1	0612-0712
265	PIPE; OIL,UNION TO UNION EXC. LOW DECK WO/REAR BODY<PK4> (B) L=2072 SERVICED BY L=2250	1-49115-493-0	01	1	0801-
265	PIPE; OIL,UNION TO UNION (E) L=1579	8-98057-083-0	01	1	0612-0712
265	PIPE; OIL,UNION TO UNION EXC. LOW DECK WO/REAR BODY<PK4> (E) L=1579	8-98057-083-0	01	1	0801-
265	PIPE; OIL,UNION TO UNION (D) L=1428	8-98057-084-0	01	1	0612-
265	PIPE; OIL,UNION TO UNION (C) L=2456	8-98057-086-0	01	1	0612-0712
265	PIPE; OIL,UNION TO UNION EXC. LOW DECK WO/REAR BODY<PK4> (C) L=2456	8-98057-086-0	01	1	0801-
265	PIPE; OIL,UNION TO UNION (A) L=1337	8-98057-087-0	01	1	0612-
266	UNION; OIL PIPE,P/S LOW DECK WO/REAR BODY<PK4> M22 L=51	0-92123-015-0	01	1	0801-
270	NUT; UNION TO OIL PIPE M14	0-91111-514-0	02	1	0612-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
