◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LT ▶ 11032 - LT134(LHD) EURO4 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-33 - STEERING LINKAGE ▶
4-33 — STEERING LINKAGE (#27372) — 108 parça

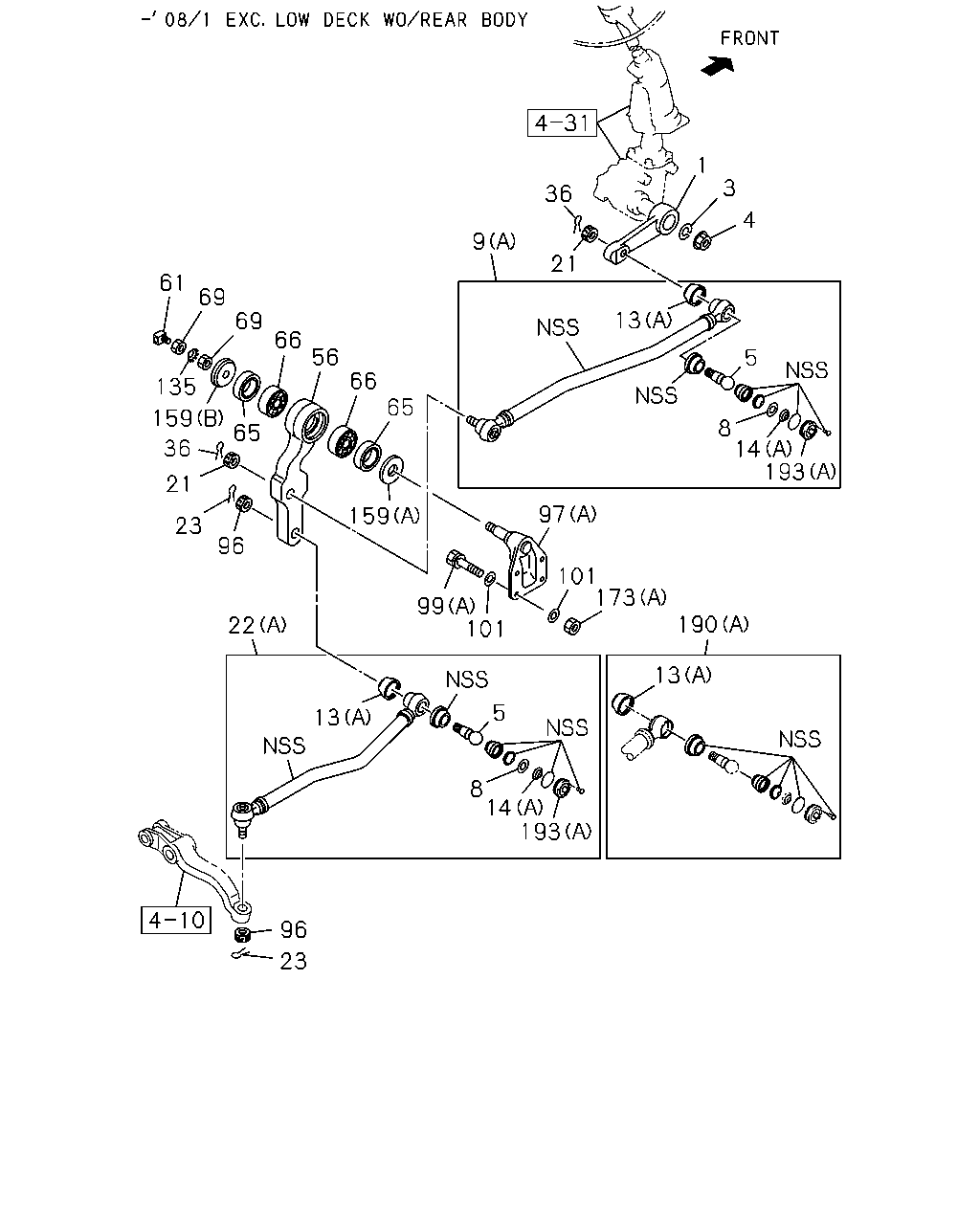

çizim 139136
1 3 36 4 9 21 61 69 13 69 66 56 5 135 66 65 159 8 14 193 65 36 21 97 159 23 96 101 173 99 101 190 22 13 5 13 8 14 193 96 23
BalonParca AdiParca NoAdetTipApplied Date
1 ARM; PITMAN,STRG
LOW DECK WO/REAR BODY<PK4> 		8-98072-635-0 01 1 0801-
1 ARM; PITMAN,STRG 1-44341-502-0 01 1 0612-0712
1 ARM; PITMAN,STRG
EXC. LOW DECK WO/REAR BODY<PK4> 		1-44341-502-0 01 1 0801-
3 WASHER; LK,PITMAN ARM
ID=36.5 		1-09500-021-0 01 1 0612-
4 NUT; PITMAN ARM
M36 FLANGE 		1-09440-013-0 01 1 0612-0805
4 NUT; PITMAN ARM
M36 FLANGE 		1-09440-098-0 01 1 0806-
5 BALL; JOINT,DRAG LINK 1-44361-105-1 04 1 0612-
8 SEAT; SPR,ROD END 1-43159-075-0 04 1 0612-0712
8 SEAT; SPR,ROD END
EXC. LOW DECK WO/REAR BODY<PK4> 		1-43159-075-0 04 1 0801-0801
9 LINK; DRAG
LOW DECK WO/REAR BODY<PK4> (B) 		8-98071-047-3 01 1 0801-
9 LINK; DRAG
(A) 		1-44380-296-0 01 1 0612-0712
9 LINK; DRAG
EXC. LOW DECK WO/REAR BODY<PK4> (A) 		1-44380-296-0 01 1 0801-0801
9 LINK; DRAG
EXC. LOW DECK WO/REAR BODY<PK4> (B) 		8-98098-096-2 01 1 0802-
13 BOOT; DRAG LINK
LOW DECK WO/REAR BODY<PK4> (B) 		1-43159-131-0 04 1 0801-0801
13 BOOT; DRAG LINK
(B) 		1-43159-131-0 04 1 0802-
13 BOOT; DRAG LINK
(A) 		1-43159-107-0 04 1 0612-0712
13 BOOT; DRAG LINK
EXC. LOW DECK WO/REAR BODY<PK4> (A) 		1-43159-107-0 04 1 0801-0801
14 SPRING; COIL,DRAG LINK
LOW DECK WO/REAR BODY<PK4> (B) 		1-43159-129-0 04 1 0801-0801
14 SPRING; COIL,DRAG LINK
(B) 		1-43159-129-0 04 1 0802-
14 SPRING; COIL,DRAG LINK
(A) 		1-43159-074-0 04 1 0612-0712
14 SPRING; COIL,DRAG LINK
EXC. LOW DECK WO/REAR BODY<PK4> (A) 		1-43159-074-0 04 1 0801-0801
21 NUT; LK,JOINT BALL
M24 SLOTTED 		1-09442-020-0 02 1 0612-0805
21 NUT; LK,JOINT BALL
M24 		1-09442-032-0 02 1 0806-
22 LINK; DRAG,2ND
LOW DECK WO/REAR BODY<PK4> (B) 		8-98077-522-2 01 1 0801-
22 LINK; DRAG,2ND
(A) 		1-44380-297-1 01 1 0612-0712
22 LINK; DRAG,2ND
EXC. LOW DECK WO/REAR BODY<PK4> (A) 		1-44380-297-1 01 1 0801-0801
22 LINK; DRAG,2ND
EXC. LOW DECK WO/REAR BODY<PK4> (B) 		8-98098-097-1 01 1 0802-
23 PIN; SPLIT DRAG LINK 3RD
OD=4.6 L=35 		0-81125-035-0 02 1 0612-
36 PIN; SPLIT,DRAG LINK
OD=4.6 L=35 		0-81125-035-0 02 1 0612-
56 ARM; LINK,FRT,W/JOINT BALL 1-44345-191-0 01 1 0612-
61 NIPPLE; PIN LINK ARM
PT1/8 ELBOW 		0-90301-610-0 01 1 0612-
65 SEAL; DUST,LINK ARM 9-44349-040-1 02 1 0612-
66 BEARING; LINK ARM 9-00030-207-0 02 1 0612-
69 NUT; LINK ARM
M24 		9-09840-264-0 02 1 0612-
96 NUT; LINK ARM
M24 SLOTTED 		1-09442-020-0 02 1 0612-0805
96 NUT; LINK ARM
M24 		1-09442-032-0 02 1 0806-
97 BRACKET; LINK ARM
LOW DECK WO/REAR BODY<PK4> (B) 		8-98086-189-0 01 1 0801-
97 BRACKET; LINK ARM
(A) 		1-44348-078-1 01 1 0612-
99 BOLT; BRKT
LOW DECK WO/REAR BODY<PK4> (B) M14X35 FLANGE 		0-28661-435-0 06 1 0801-
99 BOLT; BRKT
(A) M14X50 		0-20951-450-0 04 1 0612-
101 WASHER; PL,BRKT
ID=14.2 		1-09503-050-0 08 1 0612-
135 WASHER; LK,PIN SET,LINK ARM 9-09853-842-0 01 1 0612-
159 WASHER; LINK ARM
(B) ID=24 T=8 		9-44349-039-0 01 1 0612-
159 WASHER; LINK ARM
(A) ID=35 T=9 		9-44349-046-0 01 1 0612-
173 NUT; BRKT,LINK ASM
LOW DECK WO/REAR BODY<PK4> (B) M14 FLANGE 		0-91180-214-0 06 1 0801-
173 NUT; BRKT,LINK ASM
(A) M14 		0-91110-514-0 04 1 0612-
190 REPAIR KIT; DRAG LINK
LOW DECK WO/REAR BODY<PK4> (B) 		1-85574-089-0 04 1 0801-0801
190 REPAIR KIT; DRAG LINK
(B) 		1-85574-089-0 04 1 0802-
190 REPAIR KIT; DRAG LINK
(A) 		1-85574-041-0 04 1 0612-0712
190 REPAIR KIT; DRAG LINK
EXC. LOW DECK WO/REAR BODY<PK4> (A) 		1-85574-041-0 04 1 0801-0801
193 PLUG; END,DRAG LINK
LOW DECK WO/REAR BODY<PK4> (B) 		1-43159-130-0 04 1 0801-0801
193 PLUG; END,DRAG LINK
(B) 		1-43159-130-0 04 1 0802-
193 PLUG; END,DRAG LINK
(A) 		1-43159-093-0 04 1 0612-0712
193 PLUG; END,DRAG LINK
EXC. LOW DECK WO/REAR BODY<PK4> (A) 		1-43159-093-0 04 1 0801-0801

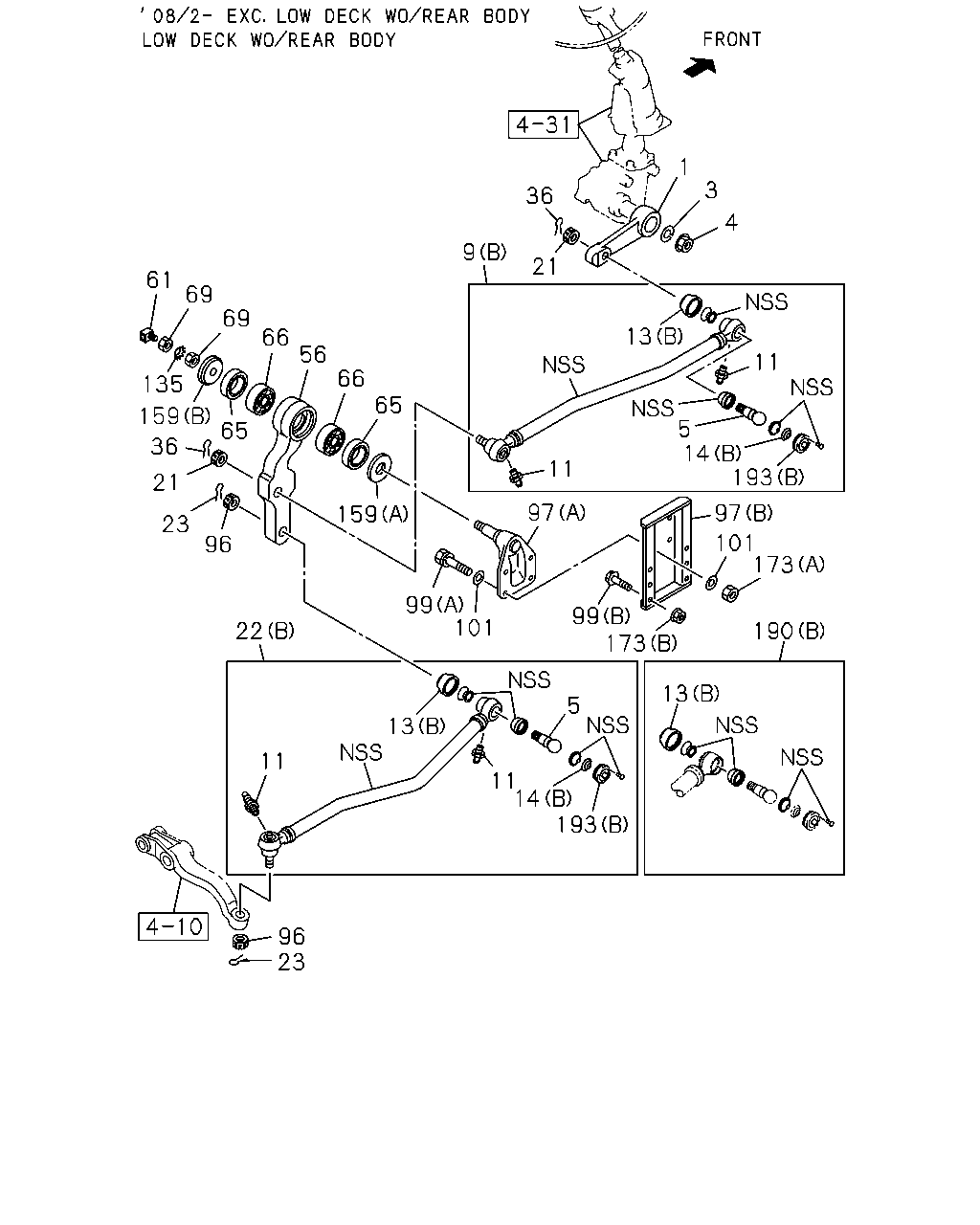

çizim 139221
1 3 36 4 9 21 61 69 69 13 66 56 11 135 66 65 5 14 193 159 65 36 11 21 97 97 159 23 101 173 96 99 101 99 173 22 190 13 5 13 11 11 14 193 96 23
BalonParca AdiParca NoAdetTipApplied Date
1 ARM; PITMAN,STRG
LOW DECK WO/REAR BODY<PK4> 		8-98072-635-0 01 1 0801-
1 ARM; PITMAN,STRG 1-44341-502-0 01 1 0612-0712
1 ARM; PITMAN,STRG
EXC. LOW DECK WO/REAR BODY<PK4> 		1-44341-502-0 01 1 0801-
3 WASHER; LK,PITMAN ARM
ID=36.5 		1-09500-021-0 01 1 0612-
4 NUT; PITMAN ARM
M36 FLANGE 		1-09440-013-0 01 1 0612-0805
4 NUT; PITMAN ARM
M36 FLANGE 		1-09440-098-0 01 1 0806-
5 BALL; JOINT,DRAG LINK 1-44361-105-1 04 1 0612-
9 LINK; DRAG
LOW DECK WO/REAR BODY<PK4> (B) 		8-98071-047-3 01 1 0801-
9 LINK; DRAG
(A) 		1-44380-296-0 01 1 0612-0712
9 LINK; DRAG
EXC. LOW DECK WO/REAR BODY<PK4> (A) 		1-44380-296-0 01 1 0801-0801
9 LINK; DRAG
EXC. LOW DECK WO/REAR BODY<PK4> (B) 		8-98098-096-2 01 1 0802-
11 NIPPLE; GREASE,DRAG LINK
LOW DECK WO/REAR BODY<PK4> 		1-43159-132-0 04 1 0801-0801
11 NIPPLE; GREASE,DRAG LINK 1-43159-132-0 04 1 0802-
13 BOOT; DRAG LINK
LOW DECK WO/REAR BODY<PK4> (B) 		1-43159-131-0 04 1 0801-0801
13 BOOT; DRAG LINK
(B) 		1-43159-131-0 04 1 0802-
13 BOOT; DRAG LINK
(A) 		1-43159-107-0 04 1 0612-0712
13 BOOT; DRAG LINK
EXC. LOW DECK WO/REAR BODY<PK4> (A) 		1-43159-107-0 04 1 0801-0801
14 SPRING; COIL,DRAG LINK
LOW DECK WO/REAR BODY<PK4> (B) 		1-43159-129-0 04 1 0801-0801
14 SPRING; COIL,DRAG LINK
(B) 		1-43159-129-0 04 1 0802-
14 SPRING; COIL,DRAG LINK
(A) 		1-43159-074-0 04 1 0612-0712
14 SPRING; COIL,DRAG LINK
EXC. LOW DECK WO/REAR BODY<PK4> (A) 		1-43159-074-0 04 1 0801-0801
21 NUT; LK,JOINT BALL
M24 SLOTTED 		1-09442-020-0 02 1 0612-0805
21 NUT; LK,JOINT BALL
M24 		1-09442-032-0 02 1 0806-
22 LINK; DRAG,2ND
LOW DECK WO/REAR BODY<PK4> (B) 		8-98077-522-2 01 1 0801-
22 LINK; DRAG,2ND
(A) 		1-44380-297-1 01 1 0612-0712
22 LINK; DRAG,2ND
EXC. LOW DECK WO/REAR BODY<PK4> (A) 		1-44380-297-1 01 1 0801-0801
22 LINK; DRAG,2ND
EXC. LOW DECK WO/REAR BODY<PK4> (B) 		8-98098-097-1 01 1 0802-
23 PIN; SPLIT DRAG LINK 3RD
OD=4.6 L=35 		0-81125-035-0 02 1 0612-
36 PIN; SPLIT,DRAG LINK
OD=4.6 L=35 		0-81125-035-0 02 1 0612-
56 ARM; LINK,FRT,W/JOINT BALL 1-44345-191-0 01 1 0612-
61 NIPPLE; PIN LINK ARM
PT1/8 ELBOW 		0-90301-610-0 01 1 0612-
65 SEAL; DUST,LINK ARM 9-44349-040-1 02 1 0612-
66 BEARING; LINK ARM 9-00030-207-0 02 1 0612-
69 NUT; LINK ARM
M24 		9-09840-264-0 02 1 0612-
96 NUT; LINK ARM
M24 SLOTTED 		1-09442-020-0 02 1 0612-0805
96 NUT; LINK ARM
M24 		1-09442-032-0 02 1 0806-
97 BRACKET; LINK ARM
LOW DECK WO/REAR BODY<PK4> (B) 		8-98086-189-0 01 1 0801-
97 BRACKET; LINK ARM
(A) 		1-44348-078-1 01 1 0612-
99 BOLT; BRKT
LOW DECK WO/REAR BODY<PK4> (B) M14X35 FLANGE 		0-28661-435-0 06 1 0801-
99 BOLT; BRKT
(A) M14X50 		0-20951-450-0 04 1 0612-
101 WASHER; PL,BRKT
ID=14.2 		1-09503-050-0 08 1 0612-
135 WASHER; LK,PIN SET,LINK ARM 9-09853-842-0 01 1 0612-
159 WASHER; LINK ARM
(B) ID=24 T=8 		9-44349-039-0 01 1 0612-
159 WASHER; LINK ARM
(A) ID=35 T=9 		9-44349-046-0 01 1 0612-
173 NUT; BRKT,LINK ASM
LOW DECK WO/REAR BODY<PK4> (B) M14 FLANGE 		0-91180-214-0 06 1 0801-
173 NUT; BRKT,LINK ASM
(A) M14 		0-91110-514-0 04 1 0612-
190 REPAIR KIT; DRAG LINK
LOW DECK WO/REAR BODY<PK4> (B) 		1-85574-089-0 04 1 0801-0801
190 REPAIR KIT; DRAG LINK
(B) 		1-85574-089-0 04 1 0802-
190 REPAIR KIT; DRAG LINK
(A) 		1-85574-041-0 04 1 0612-0712
190 REPAIR KIT; DRAG LINK
EXC. LOW DECK WO/REAR BODY<PK4> (A) 		1-85574-041-0 04 1 0801-0801
193 PLUG; END,DRAG LINK
LOW DECK WO/REAR BODY<PK4> (B) 		1-43159-130-0 04 1 0801-0801
193 PLUG; END,DRAG LINK
(B) 		1-43159-130-0 04 1 0802-
193 PLUG; END,DRAG LINK
(A) 		1-43159-093-0 04 1 0612-0712
193 PLUG; END,DRAG LINK
EXC. LOW DECK WO/REAR BODY<PK4> (A) 		1-43159-093-0 04 1 0801-0801
