11032 - LT134(LHD) EURO4
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-31 - STEERING COLUMN AND SHAFT
▶

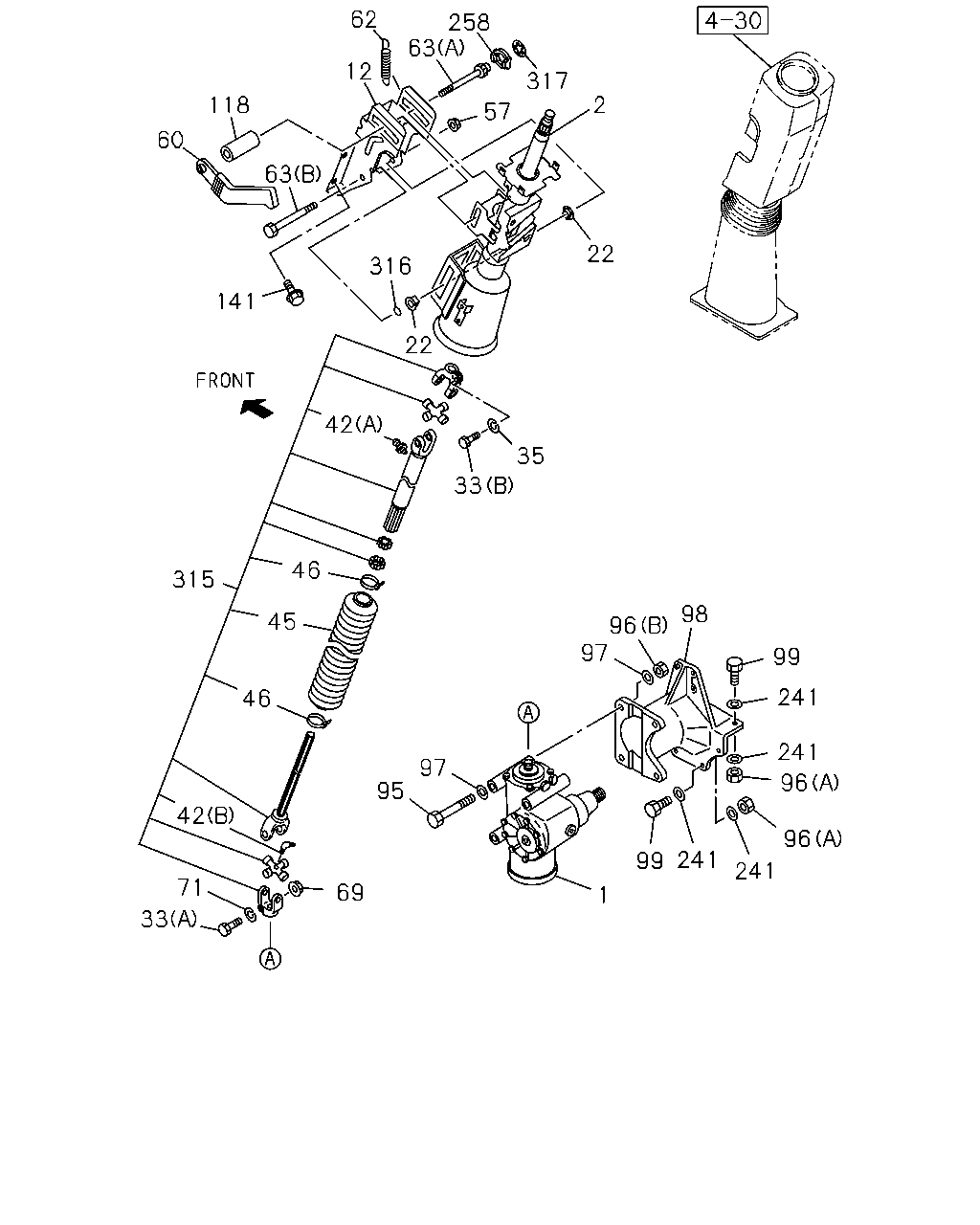

4-31 — STEERING COLUMN AND SHAFT
(#27371) — 38 parça
62
258
63
12
317
2
118
57
60
63
22
316
141
22
42
35
33
46
315
98
45
96
97
99
241
46
241
97
96
95
42
96
241
99
241
71
69
1
33
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT.
1-44000-833-3
01
1
0612-
2
SHAFT ASM; STRG
1-44130-689-1
01
1
0612-
12
BRACKET; LWR,STRG COLUMN
1-44227-143-0
01
1
0612-0811
12
BRACKET; LWR,STRG COLUMN
1-44227-167-0
01
1
0812-
22
BUSHING; STRG COLUMN
1-44227-150-0
02
1
0612-
33
BOLT; STRG SHAFT TO UNIT
(A) M10X50
1-09000-489-0
01
1
0612-0709
33
BOLT; STRG SHAFT TO UNIT
(A) M10X50
1-09000-786-0
01
1
0710-
33
BOLT; STRG SHAFT TO UNIT
(B)
1-44139-153-0
01
1
0612-
35
WASHER; LK,STRG SHAFT
1-44139-154-0
01
1
0612-
42
NIPPLE; GREASE,SLEEVE YOKE
(A)
1-44135-375-0
01
1
0612-
42
NIPPLE; GREASE,SLEEVE YOKE
(B)
1-44135-376-0
01
1
0612-
45
BOOT; STRG SHAFT
1-44139-155-0
01
1
0612-
46
CLIP; BOOT
1-44139-156-0
02
1
0612-
57
NUT; ADJ BOLT
1-44227-151-0
01
1
0612-
60
LEVER; ADJ,STRG COLUMN
1-44227-144-0
01
1
0612-
62
SPRING; LK,LEVER
1-44227-153-0
01
1
0612-
63
BOLT; ADJ LEVER,TILT STRG
(A)
1-44227-145-0
01
1
0612-
63
BOLT; ADJ LEVER,TILT STRG
(B)
1-44227-149-0
01
1
0612-
69
NUT; TILT CENTER
M10
0-91110-510-0
01
1
0612-
71
WASHER; LK,SHAFT TO UNIT
ID=10.2
0-91510-810-0
02
1
0612-1006
71
WASHER; LK,SHAFT TO UNIT
ID=10.2
0-91510-810-0
01
1
1007-
95
BOLT; STRG UNIT
M16X177
1-09000-426-0
02
1
0612-
95
BOLT; STRG UNIT
M16X163
1-09040-078-0
02
1
0612-
96
NUT; STRG UNIT
(A) M14
0-91110-514-0
06
1
0612-
96
NUT; STRG UNIT
(B) M16
0-91110-516-0
02
1
0612-
97
WASHER; PL,STRG UNIT
ID=16.2
1-09503-223-0
06
1
0612-
98
BRACKET; STRG GEAR BOX
LOW DECK WO/REAR BODY<PK4>
1-44226-131-1
01
1
0801-
98
BRACKET; STRG GEAR BOX
1-44226-133-2
01
1
0612-0712
98
BRACKET; STRG GEAR BOX
EXC. LOW DECK WO/REAR BODY<PK4>
1-44226-133-2
01
1
0801-
99
BOLT; BRKT TO FRAME
M14X45
9-92061-445-0
06
1
0612-
118
NUT; LEVER,TILT BOLT
1-44227-163-0
01
1
0612-
141
BOLT; BRKT TO STRG COLUMN
M8X16 FLANGE
0-28050-816-0
04
1
0612-
241
WASHER; PL
ID=15
9-09651-069-0
12
1
0612-1201
241
WASHER; PL
ID=15
8-98010-627-1
12
1
1202-
258
STOPPER; STRG COLUMN,TILT & TELESCOPIC
1-44227-147-0
01
1
0612-
315
JOINT; SPLINE
1-44135-341-1
01
1
0612-
316
RING
1-44227-152-0
01
1
0612-
317
NUT; PUSH
1-44227-148-0
01
1
0612-
