1 |

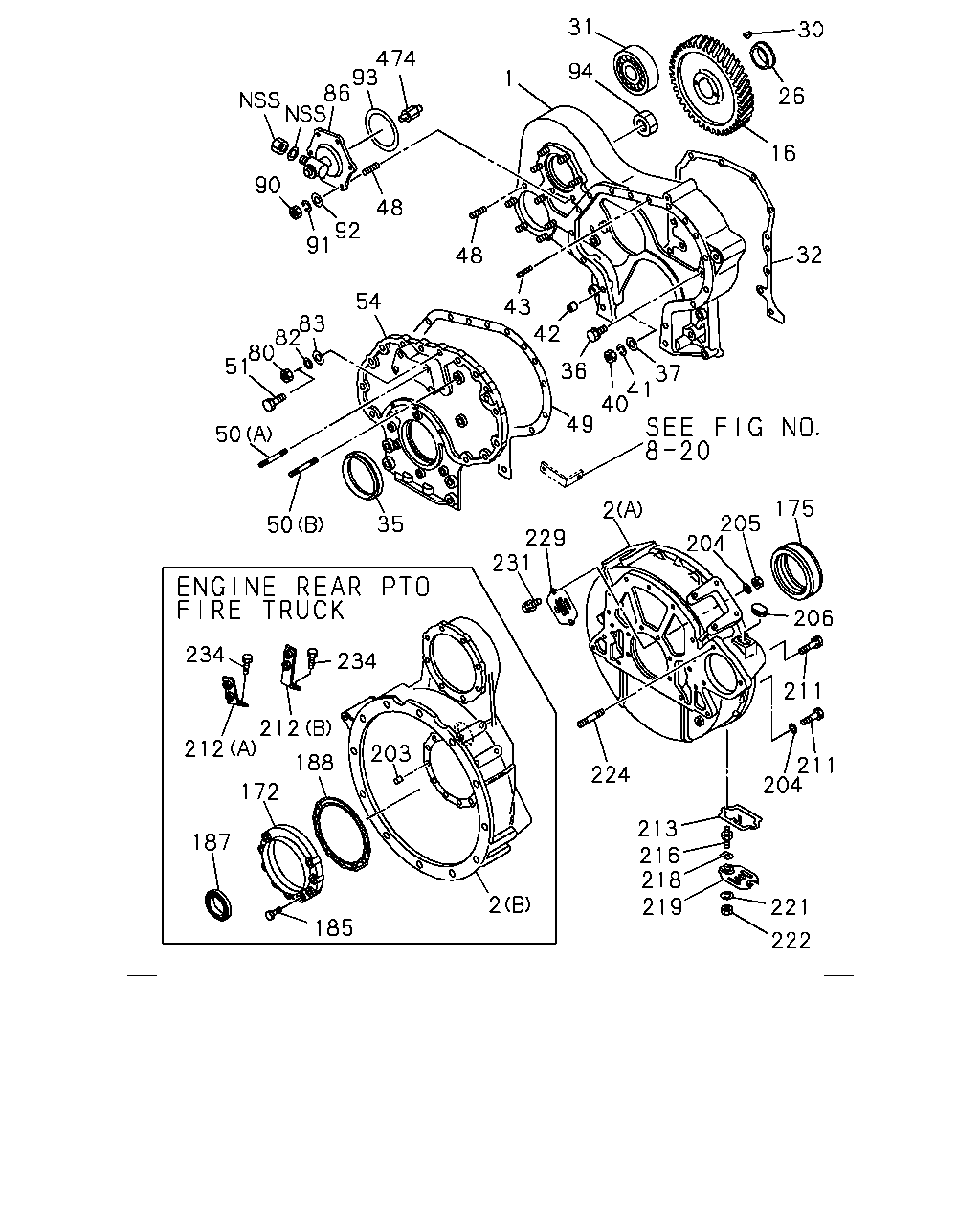

CASE; TIMING GEAR
|
1-11311-034-0 |
01 |
1 |
9002- |
| |
2 |
HOUSING; FLYWHEEL
ENGINE REAR PTO(SV1)
(B)
|
1-11341-273-2 |
01 |
1 |
9002- |
| |
2 |
HOUSING; FLYWHEEL
EXC. ENGINE REAR PTO(SV1)
(A)
|
1-11341-270-1 |
01 |
1 |
9002- |
| |
16 |
GEAR; INJ PUMP DRIVE
Z=64
|
1-12524-013-1 |
01 |
1 |
9002- |
| |
26 |
ADAPTER
|
1-11329-008-0 |
01 |
1 |
9002- |
| |
30 |
KEY; DRIVE GEAR
|
9-08055-519-0 |
01 |
1 |
9002- |
| |
31 |
BEARING; DRIVE SHAFT
AIR COMPRESSOR HEAVY DUTY(E1Q)
|
9-00090-230-0 |
01 |
1 |
9002- |
| |
32 |
GASKET; GEAR CASE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
|
1-11312-015-0 |
01 |
1 |
9002-9502 |
| |
32 |
GASKET; GEAR CASE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
|
1-11312-016-0 |
01 |
1 |
9503- |
| |
35 |
SEAL; OIL,CRANKSHAFT FRT
ALSO INCLUDED IN GASKET SET(ENGINE).
|
1-09625-442-0 |
01 |
1 |
9002- |
| |
36 |
BOLT; GEAR CASE
M8X35
|
9-01055-835-0 |
01 |
1 |
9002-9005 |
| |
36 |
BOLT; GEAR CASE
M8X35
|
0-10805-835-0 |
01 |
1 |
9006-9006 |
| |
36 |
BOLT; GEAR CASE
M12X30 W/LK WASHER
|
9-01931-230-0 |
06 |
1 |
9002-9005 |
| |
36 |
BOLT; GEAR CASE
M12X30 W/LK WASHER
|
0-50051-230-0 |
06 |
1 |
9006- |
| |
36 |
BOLT; GEAR CASE
M10X28
|
9-02361-028-0 |
01 |
1 |
9002- |
| |
36 |
BOLT; GEAR CASE
M8X35
|
0-10810-835-0 |
01 |
1 |
9007- |
| |
37 |
WASHER; PL,GEAR CASE
D=19 T=4
|
1-09503-183-1 |
01 |
1 |
9002- |
| |
37 |
WASHER; PL,GEAR CASE
ID=10.5
|
9-09851-950-0 |
01 |
1 |
9002- |
| |
40 |
NUT; GEAR CASE
M12
|
9-99110-412-0 |
06 |
1 |
9002- |
| |
41 |
WASHER; LK,GEAR CASE
ID=12.2
|
9-09150-512-0 |
06 |
1 |
9002- |
| |
42 |
DOWEL; GEAR CASE COVER
OD=14 L=10
|
9-11319-065-2 |
02 |
1 |
9002- |
| |
43 |
STUD; BRG COVER
M10X35 L=50
|
1-09302-048-1 |
04 |
1 |
9002- |
| |
48 |
STUD; COVER,ELBOW,P/S
M8X25 L=36
|
1-09300-050-0 |
12 |
1 |
9002-9309 |
| |
48 |
STUD; COVER,ELBOW,P/S
M8X25 L=36
|
1-09300-050-0 |
11 |
1 |
9310-9402 |
| |
48 |
STUD; COVER,ELBOW,P/S
M8X25 L=36
|
1-09300-050-0 |
12 |
1 |
9403- |
| |
49 |
GASKET; GEAR CASE TO COVER
ALSO INCLUDED IN GASKET SET(ENGINE).
|
1-11322-029-0 |
01 |
1 |
9002- |
| |
50 |
STUD
(B)
M10X25 L=45
|
9-04311-025-0 |
03 |
1 |
9002- |
| |
50 |
STUD
(A)
M10X30 L=45
|
9-04411-030-0 |
04 |
1 |
9203- |
| |
51 |
BOLT; GEAR CASE COVER
M10X30 W/LK&PL WASHER
|
0-50151-030-0 |
03 |
1 |
9002- |
| |
51 |
BOLT; GEAR CASE COVER
M10X35 W/LK&PL WASHER
|
0-50151-035-0 |
09 |
1 |
9002-9308 |
| |
51 |
BOLT; GEAR CASE COVER
M10X35 W/LK&PL WASHER
|
0-50151-035-0 |
07 |
1 |
9309- |
| |
51 |
BOLT; GEAR CASE COVER
M10X40 W/LK&PL WASHER
|
0-50151-040-0 |
01 |
1 |
9002- |
| |
51 |
BOLT; GEAR CASE COVER
M10X45 W/LK&PL WASHER
|
0-50151-045-0 |
01 |
1 |
9002- |
| |
51 |
BOLT; GEAR CASE COVER
M10X35
|
0-23801-035-0 |
02 |
1 |
9309- |
| |
54 |
COVER; GEAR CASE
|
1-11321-086-1 |
01 |
1 |
9002- |
| |
80 |
NUT; COVER
M10
|
9-09110-410-0 |
04 |
1 |
9002- |
| |
82 |
WASHER; LK,COVER
ID=10.2
|
9-09150-510-0 |
04 |
1 |
9002- |
| |
83 |
WASHER; PL,COVER
ID=10.5 OD=18
|
9-09160-510-0 |
04 |
1 |
9002-9308 |
| |
83 |
WASHER; PL,COVER
ID=10.5 OD=18
|
9-09160-510-0 |
06 |
1 |
9309- |
| |
86 |
ELBOW; TACHOMETER DRIVE
AIR COMPRESSOR HEAVY DUTY(E1Q)
|
1-85860-040-1 |
01 |
1 |
9002- |
| |
86 |
ELBOW; TACHOMETER DRIVE
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)
|
1-85860-044-1 |
01 |
1 |
9002- |
| |
90 |
NUT; ELBOW
M8
|
9-09110-408-0 |
06 |
1 |
9002- |
| |
91 |
WASHER; LK,ELBOW
ID=8.2
|
9-09150-508-0 |
06 |
1 |
9002- |
| |
92 |
WASHER; PL,ELBOW
ID=8.4
|
9-09160-508-0 |
06 |
1 |
9002- |
| |
93 |
GASKET; ELBOW
ALSO INCLUDED IN GASKET SET(ENGINE).
ID=96.4
|
1-09623-467-0 |
01 |
1 |
9002- |
| |
94 |
NUT; GEAR
AIR COMPRESSOR HEAVY DUTY(E1Q)
M24 FLANGE
|
1-09440-027-0 |
01 |
1 |
9002- |
| |
94 |
NUT; GEAR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)
M24
|
9-99111-524-0 |
01 |
1 |
9002- |
| |
95 |
WASHER; LK,GEAR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)
ID=24.5
|
9-09150-524-0 |
01 |
1 |
9002- |
| |
96 |
WASHER; PL,GEAR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)
ID=25
|
9-09160-524-0 |
01 |
1 |
9002- |
| |
172 |
RETAINER; CR/SHF
ENGINE REAR PTO(SV1)
|
1-12363-002-1 |
01 |
1 |
9002- |
| |
175 |
SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE).
EXC. ENGINE REAR PTO(SV1)
|
1-09625-441-0 |
01 |
1 |
9002- |
| |
185 |
BOLT; RET TO C/BL
ENGINE REAR PTO(SV1)
M8X40
|
9-01970-840-0 |
10 |
1 |
9002-9005 |
| |
185 |
BOLT; RET TO C/BL
ENGINE REAR PTO(SV1)
M8X40 W/LK&PL WASHER
|
0-50140-840-0 |
10 |
1 |
9006- |
| |
187 |
SEAL; OIL,CR/SHF,RR
ENGINE REAR PTO(SV1)
|
1-09625-504-0 |
01 |
1 |
9002- |
| |
188 |
GASKET; OIL RET
ENGINE REAR PTO(SV1)
|
1-12364-007-0 |
01 |
1 |
9002- |
| |
203 |
DOWEL; RET OIL SEAL
ENGINE REAR PTO(SV1)
|
9-11229-032-0 |
02 |
1 |
9002-9406 |
| |
203 |
DOWEL; RET OIL SEAL
ENGINE REAR PTO(SV1)
|
1-11229-012-1 |
02 |
1 |
9407- |
| |
204 |
WASHER; LK,HSG
ENGINE REAR PTO(SV1)
ID=14.2
|
9-09150-514-0 |
10 |
1 |
9002- |
| |
204 |
WASHER; LK,HSG
EXC. ENGINE REAR PTO(SV1)
ID=14.2
|
9-09150-514-0 |
01 |
1 |
9002- |
| |
205 |
NUT; HSG
M14
|
9-99110-414-0 |
01 |
1 |
9002- |
| |
206 |
COVER; STARTER CHECK HOLE
|
9-11349-049-0 |
01 |
1 |
9002- |
| |
211 |
BOLT; HSG
ENGINE REAR PTO(SV1)
M14X50 W/LK WASHER
|
1-09033-002-0 |
04 |
1 |
9002- |
| |
211 |
BOLT; HSG
ENGINE REAR PTO(SV1)
M14X130
|
9-09804-194-1 |
04 |
1 |
9002- |
| |
211 |
BOLT; HSG
ENGINE REAR PTO(SV1)
M14X95
|
9-91656-495-0 |
03 |
1 |
9002-9005 |
| |
211 |
BOLT; HSG
ENGINE REAR PTO(SV1)
M14X95
|
0-16806-495-0 |
03 |
1 |
9006- |
| |
211 |
BOLT; HSG
ENGINE REAR PTO(SV1)
M14X40
|
9-92351-440-0 |
02 |
1 |
9002-9005 |
| |
211 |
BOLT; HSG
ENGINE REAR PTO(SV1)
M14X40
|
0-23801-440-0 |
02 |
1 |
9006- |
| |
211 |
BOLT; HSG
EXC. ENGINE REAR PTO(SV1)
M14X50 W/LK WASHER
|
1-09033-002-0 |
10 |
1 |
9002- |
| |
211 |
BOLT; HSG
EXC. ENGINE REAR PTO(SV1)
M14X55 W/LK WASHER
|
1-09033-003-0 |
02 |
1 |
9002- |
| |
211 |
BOLT; HSG
EXC. ENGINE REAR PTO(SV1)
M8X40
|
9-01970-840-0 |
06 |
1 |
9002-9005 |
| |
211 |
BOLT; HSG
EXC. ENGINE REAR PTO(SV1)
M8X40 W/LK&PL WASHER
|
0-50140-840-0 |
06 |
1 |
9006- |
| |
212 |
BRACKET; ENG CONT,FLYWHEEL HSG
ENGINE REAR PTO(SV1)
(A)
|
1-23335-236-0 |
01 |
1 |
9002- |
| |
212 |
BRACKET; ENG CONT,FLYWHEEL HSG
FIRE TRUCK<RA9>
(B)
|
1-23335-234-0 |
01 |
1 |
9002- |
| |
213 |
POINTER; FLYWHEEL HSG
ENGINE REAR PTO(SV1)
|
1-11327-027-2 |
01 |
1 |
9002- |
| |
213 |
POINTER; FLYWHEEL HSG
EXC. ENGINE REAR PTO(SV1)
|
1-11327-025-2 |
01 |
1 |
9002- |
| |
216 |
STUD; COVER,TIMING CHECK HOLE
M8X14,M8X14 L=33
|
1-09300-058-1 |
02 |
1 |
9203-9306 |
| |
216 |
STUD; COVER,TIMING CHECK HOLE
M8X14,M8X14 L=33
|
1-09300-058-1 |
02 |
1 |
9307- |
| |
218 |
WASHER; PL,COVER
|
1-11349-127-0 |
01 |
1 |
9002-9306 |
| |
218 |
WASHER; PL,COVER
|
1-11349-127-0 |
01 |
1 |
9307- |
| |
219 |
COVER; POINTER
|
1-11349-131-0 |
01 |
1 |
9002- |
| |
221 |
WASHER; PL,POINTER
ID=8.4 OD=18
|
9-09160-608-0 |
02 |
1 |
9002- |
| |
222 |
NUT; COVER,TIMING CHECK HOLE
M8
|
9-09110-408-0 |
02 |
1 |
9002- |
| |
224 |
STUD; STARTER
M14X35 L=56
|
9-04411-435-0 |
02 |
1 |
9002- |
| |
229 |
COVER; TIMING CHECK HOLE
|
1-11349-073-0 |
01 |
1 |
9002-9303 |
| |
229 |
COVER; TIMING CHECK HOLE
|
1-11349-122-0 |
01 |
1 |
9304- |
| |
231 |
BOLT; COVER
M8X12 W/LK WASHER
|
9-01900-812-0 |
02 |
1 |
9002-9204 |
| |
231 |
BOLT; COVER
M8X12 W/LK WASHER
|
0-50040-812-0 |
02 |
1 |
9205- |
| |
234 |
BOLT; BRKT
FIRE TRUCK<RA9>
M10X20 W/LK WASHER
|
0-50051-020-0 |
01 |
1 |
9002- |
| |
234 |
BOLT; BRKT
ENGINE REAR PTO(SV1)
M10X20 W/LK WASHER
|
0-50051-020-0 |
01 |
1 |
9002- |
| |
474 |
ADAPTER; ELBOW DRIVE
|
1-12539-012-1 |
01 |
1 |
9002- |
