1 |

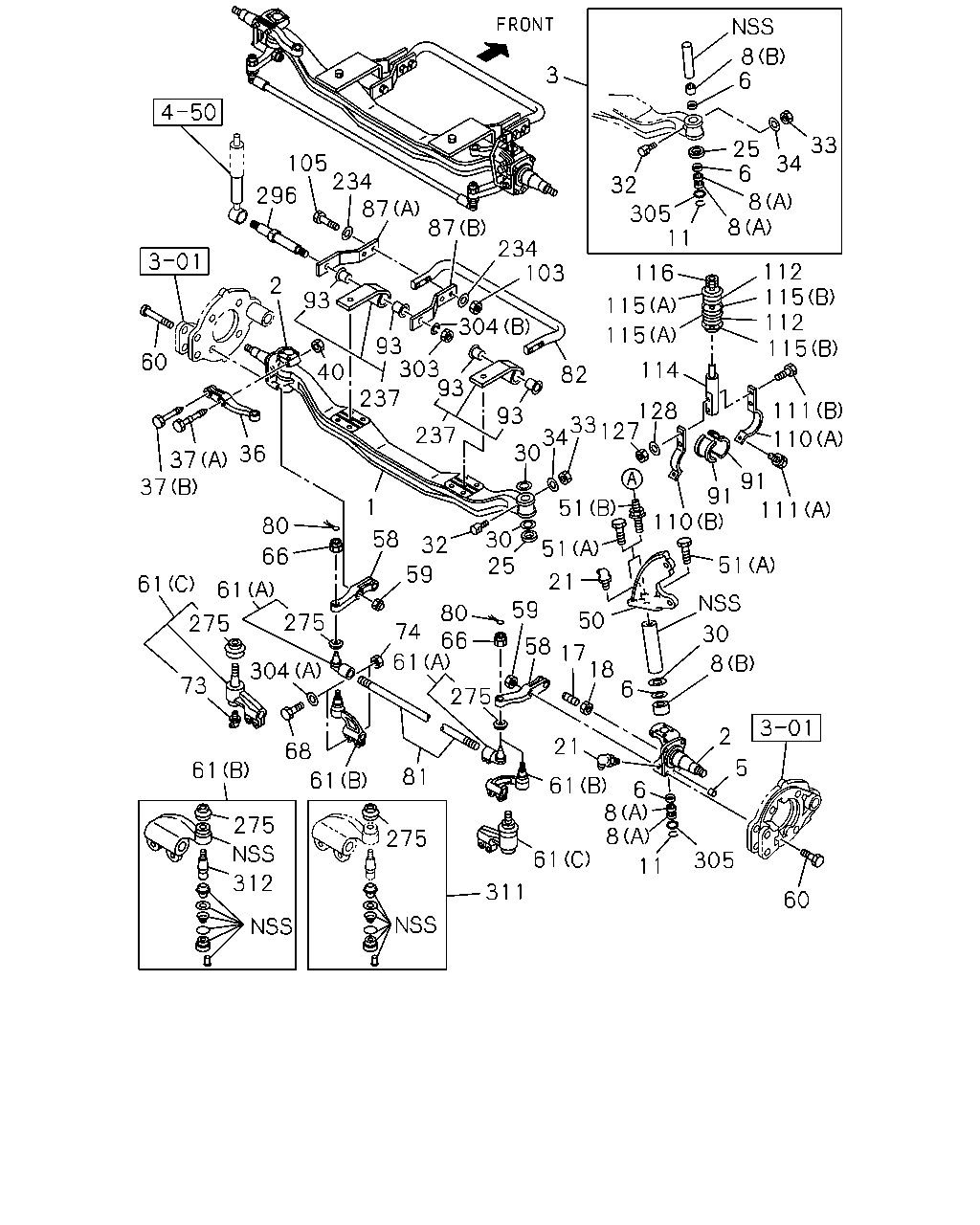

AXLE; FRT
FRONT AXLE WIDE TYPE<C1U>
|
1-43111-107-9 |
01 |
1 |
0801- |
| |
1 |
AXLE; FRT
|
1-43111-113-6 |
01 |
1 |
0612-0712 |
| |
1 |
AXLE; FRT
EXC. FRONT AXLE WIDE TYPE<C1U>
|
1-43111-113-6 |
01 |
1 |
0801- |
| |
2 |
KNUCKLE; FRT AXLE
|
1-43131-079-1 |
01 |
1 |
0612- |
| |
2 |
KNUCKLE; FRT AXLE
|
1-43132-079-1 |
01 |
1 |
0612- |
| |
3 |
KING PIN SET
|
1-87830-738-5 |
02 |
1 |
0612- |
| |
5 |
PIN; KNUCKLE TO DRUM COVER
|
1-09740-072-0 |
02 |
1 |
0612- |
| |
6 |
SEAL; KING PIN
|
9-09926-024-0 |
04 |
1 |
0612- |
| |
8 |
BEARING; NEEDLE,KING PIN
(A)
NTN
|
9-00096-242-0 |
04 |
1 |
0612- |
| |
8 |
BEARING; NEEDLE,KING PIN
(B)
NTN
|
9-00096-243-0 |
02 |
1 |
0612- |
| |
11 |
RING; SNAP,KNUCKLE PLUG
|
9-09950-204-0 |
02 |
1 |
0612- |
| |
17 |
BOLT; STOPPER KNUCKLE
FRONT AXLE WIDE TYPE<C1U>
M18X53
|
1-09009-066-0 |
01 |
1 |
0801- |
| |
17 |
BOLT; STOPPER KNUCKLE
M18X43
|
1-09009-065-0 |
02 |
1 |
0612-0705 |
| |
17 |
BOLT; STOPPER KNUCKLE
M18X43
|
1-09009-190-0 |
02 |
1 |
0706- |
| |
18 |
NUT; STOPPER BOLT,KNUCKLE
FRONT AXLE WIDE TYPE<C1U>
OCTAGON
M18
|
1-09469-011-1 |
01 |
1 |
0801- |
| |
18 |
NUT; STOPPER BOLT,KNUCKLE
M18
|
0-91110-518-0 |
02 |
1 |
0612- |
| |
21 |
NIPPLE; GREASE,KING PIN
PT1/8 ELBOW 67.5 DEGREES
|
0-90301-510-0 |
04 |
1 |
0612- |
| |
25 |
BEARING; THRUST,KING PIN
NSK
|
1-09829-043-2 |
02 |
1 |
0612- |
| |
30 |
WASHER; THRUST,KING PIN
T=4.875 -4.900
|
1-43171-185-0 |
AR |
1 |
0612- |
| |
30 |
WASHER; THRUST,KING PIN
T=4.900 -4.925
|
1-43171-186-0 |
AR |
1 |
0612- |
| |
30 |
WASHER; THRUST,KING PIN
T=4.925 -4.950
|
1-43171-187-0 |
AR |
1 |
0612- |
| |
30 |
WASHER; THRUST,KING PIN
T=4.950 -4.975
|
1-43171-188-0 |
AR |
1 |
0612- |
| |
30 |
WASHER; THRUST,KING PIN
T=4.975 -5.000
|
1-43171-189-0 |
AR |
1 |
0612- |
| |
30 |
WASHER; THRUST,KING PIN
T=5.000 -5.025
|
1-43171-190-0 |
AR |
1 |
0612- |
| |
30 |
WASHER; THRUST,KING PIN
T=5.025 -5.050
|
1-43171-191-0 |
AR |
1 |
0612- |
| |
30 |
WASHER; THRUST,KING PIN
T=5.050 -5.075
|
1-43171-192-0 |
AR |
1 |
0612- |
| |
30 |
WASHER; THRUST,KING PIN
T=5.075 -5.100
|
1-43171-193-0 |
AR |
1 |
0612- |
| |
30 |
WASHER; THRUST,KING PIN
T=5.100 -5.125
|
1-43171-194-0 |
AR |
1 |
0612- |
| |
30 |
WASHER; THRUST,KING PIN
T=5.125 -5.150
|
1-43171-195-0 |
AR |
1 |
0612- |
| |
30 |
WASHER; THRUST,KING PIN
T=5.150 -5.175
|
1-43171-196-0 |
AR |
1 |
0612- |
| |
30 |
WASHER; THRUST,KING PIN
T=5.175 -5.200
|
1-43171-197-0 |
AR |
1 |
0612- |
| |
30 |
WASHER; THRUST,KING PIN
T=5.200 -5.225
|
1-43171-198-0 |
AR |
1 |
0612- |
| |
30 |
WASHER; THRUST,KING PIN
T=5.225 -5.250
|
1-43171-199-0 |
AR |
1 |
0612- |
| |
32 |
BOLT; KEY,KING PIN
|
1-43116-002-2 |
02 |
1 |
0612- |
| |
33 |
NUT; KEY BOLT
M10
|
0-91110-510-0 |
02 |
1 |
0612- |
| |
34 |
WASHER; LK,KEY BOLT
ID=10.2
|
0-91510-510-0 |
02 |
1 |
0612- |
| |
36 |
ARM; KNUCKLE
|
1-43133-063-3 |
01 |
1 |
0612- |
| |
37 |
BOLT; KNUCKLE ARM
(A)
M22X179
|
1-09000-578-1 |
01 |
1 |
0612-0704 |
| |
37 |
BOLT; KNUCKLE ARM
(A)
M22X179
|
8-98052-380-1 |
01 |
1 |
0705- |
| |
37 |
BOLT; KNUCKLE ARM
(B)
M22X167
|
9-09806-847-3 |
01 |
1 |
0612-0704 |
| |
37 |
BOLT; KNUCKLE ARM
(B)
M22X167
|
8-98052-381-1 |
01 |
1 |
0705- |
| |
40 |
NUT; KNUCKLE ARM
M22
|
9-09844-670-1 |
02 |
1 |
0612-0704 |
| |
40 |
NUT; KNUCKLE ARM
M22
|
1-09449-084-0 |
02 |
1 |
0705- |
| |
50 |
BRACKET; POWER CHAMBER
|
1-43145-009-3 |
01 |
1 |
0612- |
| |
50 |
BRACKET; POWER CHAMBER
|
1-43145-010-3 |
01 |
1 |
0612- |
| |
51 |
BOLT; POWER CHAMBER BRKT
(A)
M12X60 FLANGE
|
0-28051-260-0 |
02 |
1 |
0612- |
| |
51 |
BOLT; POWER CHAMBER BRKT
ANTILOCK BRK SYSTEM<BFA>
(A)
M12X25 FLANGE
|
0-28651-225-0 |
02 |
1 |
0612- |
| |
51 |
BOLT; POWER CHAMBER BRKT
ANTILOCK BRK SYSTEM<BFA>
(B)
M8X15,M12X26 L=52.7
|
1-09029-099-0 |
04 |
1 |
0612- |
| |
51 |
BOLT; POWER CHAMBER BRKT
EXC. ANTILOCK BRK SYSTEM<BFA>
(A)
M12X25 FLANGE
|
0-28651-225-0 |
06 |
1 |
0612- |
| |
58 |
ARM; TIE ROD
|
1-43134-042-3 |
01 |
1 |
0612- |
| |
58 |
ARM; TIE ROD
|
1-43135-042-3 |
01 |
1 |
0612- |
| |
59 |
NUT; TIE ROD ARM
M22
|
9-09844-670-1 |
04 |
1 |
0612-0704 |
| |
59 |
NUT; TIE ROD ARM
M22
|
1-09449-084-0 |
04 |
1 |
0705- |
| |
60 |
BOLT; TIE ROD ARM
M22X193
|
1-09000-154-2 |
04 |
1 |
0612-0704 |
| |
60 |
BOLT; TIE ROD ARM
M22X193
|
8-98052-379-1 |
04 |
1 |
0705- |
| |
61 |
ROD END; TIE ROD
FRONT AXLE WIDE TYPE<C1U>
(B)
|
1-43150-803-0 |
01 |
1 |
0801-1009 |
| |
61 |
ROD END; TIE ROD
FRONT AXLE WIDE TYPE<C1U>
(C)
|
8-98170-514-0 |
01 |
1 |
1010-1306 |
| |
61 |
ROD END; TIE ROD
FRONT AXLE WIDE TYPE<C1U>
(C)
|
8-98236-798-0 |
01 |
1 |
1307- |
| |
61 |
ROD END; TIE ROD
FRONT AXLE WIDE TYPE<C1U>
(B)
|
1-43150-804-0 |
01 |
1 |
0801-1009 |
| |
61 |
ROD END; TIE ROD
FRONT AXLE WIDE TYPE<C1U>
(C)
|
8-98170-515-0 |
01 |
1 |
1010-1306 |
| |
61 |
ROD END; TIE ROD
FRONT AXLE WIDE TYPE<C1U>
(C)
|
8-98236-799-0 |
01 |
1 |
1307- |
| |
61 |
ROD END; TIE ROD
(A)
|
1-43150-801-0 |
01 |
1 |
0612-0712 |
| |
61 |
ROD END; TIE ROD
EXC. FRONT AXLE WIDE TYPE<C1U>
(A)
|
1-43150-801-0 |
01 |
1 |
0801-1009 |
| |
61 |
ROD END; TIE ROD
EXC. FRONT AXLE WIDE TYPE<C1U>
(C)
|
8-98171-444-0 |
01 |
1 |
1010-1306 |
| |
61 |
ROD END; TIE ROD
EXC. FRONT AXLE WIDE TYPE<C1U>
(C)
|
8-98236-800-0 |
01 |
1 |
1307- |
| |
61 |
ROD END; TIE ROD
(A)
|
1-43150-802-0 |
01 |
1 |
0612-0712 |
| |
61 |
ROD END; TIE ROD
EXC. FRONT AXLE WIDE TYPE<C1U>
(A)
|
1-43150-802-0 |
01 |
1 |
0801-1009 |
| |
61 |
ROD END; TIE ROD
EXC. FRONT AXLE WIDE TYPE<C1U>
(C)
|
8-98171-445-0 |
01 |
1 |
1010-1306 |
| |
61 |
ROD END; TIE ROD
EXC. FRONT AXLE WIDE TYPE<C1U>
(C)
|
8-98236-801-0 |
01 |
1 |
1307- |
| |
66 |
NUT; TIE ROD END
M24 SLOTTED
|
1-09442-020-0 |
02 |
1 |
0612-0805 |
| |
66 |
NUT; TIE ROD END
M24
|
1-09442-032-0 |
02 |
1 |
0806- |
| |
68 |
BOLT; TIE ROD END
M12X65
|
9-91061-265-0 |
04 |
1 |
0612-0704 |
| |
68 |
BOLT; TIE ROD END
M12X65
|
8-98053-922-0 |
04 |
1 |
0705- |
| |
73 |
NIPPLE; GREASE,TIE ROD END
|
1-43159-133-0 |
02 |
1 |
1010- |
| |
74 |
NUT; TIE ROD END
M12
|
0-91110-512-0 |
04 |
1 |
0612- |
| |
80 |
PIN; SPLIT,ROD END
OD=4.6 L=35
|
0-81125-035-0 |
02 |
1 |
0612- |
| |
81 |
ROD; TIE
FRONT AXLE WIDE TYPE<C1U>
|
1-43151-121-0 |
01 |
1 |
0801- |
| |
81 |
ROD; TIE
|
1-43151-119-0 |
01 |
1 |
0612-0712 |
| |
81 |
ROD; TIE
EXC. FRONT AXLE WIDE TYPE<C1U>
|
1-43151-119-0 |
01 |
1 |
0801-1009 |
| |
81 |
ROD; TIE
EXC. FRONT AXLE WIDE TYPE<C1U>
|
8-98172-133-0 |
01 |
1 |
1010-1109 |
| |
81 |
ROD; TIE
EXC. FRONT AXLE WIDE TYPE<C1U>
|
8-98193-965-0 |
01 |
1 |
1110- |
| |
82 |
BAR; STAB,FRT SUSP
STAB SHF<FE6>
|
1-51771-203-0 |
01 |
1 |
0612- |
| |
82 |
BAR; STAB,FRT SUSP
FRT STAB SHF<F59>
|
1-51771-203-0 |
01 |
1 |
0612- |
| |
87 |
BRACKET; STABILIZER
STAB SHF<FE6>
(A)
|
1-51781-083-1 |
02 |
1 |
0612-0912 |
| |
87 |
BRACKET; STABILIZER
FRT STAB SHF<F59>
(A)
|
1-51781-083-1 |
02 |
1 |
0612-0912 |
| |
87 |
BRACKET; STABILIZER
STAB SHF<FE6>
(A)
|
8-98012-958-0 |
02 |
1 |
1001- |
| |
87 |
BRACKET; STABILIZER
FRT STAB SHF<F59>
(A)
|
8-98012-958-0 |
02 |
1 |
1001- |
| |
87 |
BRACKET; STABILIZER
STAB SHF<FE6>
(B)
|
1-51781-084-1 |
02 |
1 |
0612-0912 |
| |
87 |
BRACKET; STABILIZER
FRT STAB SHF<F59>
(B)
|
1-51781-084-1 |
02 |
1 |
0612-0912 |
| |
87 |
BRACKET; STABILIZER
STAB SHF<FE6>
(B)
|
8-98012-959-0 |
02 |
1 |
1001- |
| |
87 |
BRACKET; STABILIZER
FRT STAB SHF<F59>
(B)
|
8-98012-959-0 |
02 |
1 |
1001- |
| |
91 |
BUSHING; RUBBER,STAB BAR
STAB SHF<FE6>
|
1-51779-087-1 |
04 |
1 |
0612- |
| |
91 |
BUSHING; RUBBER,STAB BAR
FRT STAB SHF<F59>
|
1-51779-087-1 |
04 |
1 |
0612- |
| |
93 |
BUSHING; STABILIZER
STAB SHF<FE6>
|
1-51689-015-3 |
04 |
1 |
0612- |
| |
93 |
BUSHING; STABILIZER
FRT STAB SHF<F59>
|
1-51689-015-3 |
04 |
1 |
0612- |
| |
103 |
NUT; BRKT FIX
STAB SHF<FE6>
M14
|
0-91110-514-0 |
04 |
1 |
0612- |
| |
103 |
NUT; BRKT FIX
FRT STAB SHF<F59>
M14
|
0-91110-514-0 |
04 |
1 |
0612- |
| |
105 |
BOLT; BRKT FIX
STAB SHF<FE6>
M14X70
|
9-91066-470-0 |
04 |
1 |
0612-0910 |
| |
105 |
BOLT; BRKT FIX
FRT STAB SHF<F59>
M14X70
|
9-91066-470-0 |
04 |
1 |
0612-0910 |
| |
105 |
BOLT; BRKT FIX
STAB SHF<FE6>
M14X70
|
0-10956-470-0 |
04 |
1 |
0911- |
| |
105 |
BOLT; BRKT FIX
FRT STAB SHF<F59>
M14X70
|
0-10956-470-0 |
04 |
1 |
0911- |
| |
110 |
CLAMP; STAB TO ROD
STAB SHF<FE6>
(A)
|
1-51789-027-2 |
02 |
1 |
0612- |
| |
110 |
CLAMP; STAB TO ROD
FRT STAB SHF<F59>
(A)
|
1-51789-027-2 |
02 |
1 |
0612- |
| |
110 |
CLAMP; STAB TO ROD
STAB SHF<FE6>
(B)
|
1-51789-028-1 |
02 |
1 |
0612- |
| |
110 |
CLAMP; STAB TO ROD
FRT STAB SHF<F59>
(B)
|
1-51789-028-1 |
02 |
1 |
0612- |
| |
111 |
BOLT; CLAMP TO ROD
STAB SHF<FE6>
(A)
M12X30
|
0-20801-230-0 |
02 |
1 |
0612-0910 |
| |
111 |
BOLT; CLAMP TO ROD
FRT STAB SHF<F59>
(A)
M12X30
|
0-20801-230-0 |
02 |
1 |
0612-0910 |
| |
111 |
BOLT; CLAMP TO ROD
STAB SHF<FE6>
(A)
M12X30
|
0-20851-230-0 |
02 |
1 |
0911- |
| |
111 |
BOLT; CLAMP TO ROD
FRT STAB SHF<F59>
(A)
M12X30
|
0-20851-230-0 |
02 |
1 |
0911- |
| |
111 |
BOLT; CLAMP TO ROD
STAB SHF<FE6>
(B)
M12X50
|
0-20801-250-0 |
04 |
1 |
0612-0910 |
| |
111 |
BOLT; CLAMP TO ROD
FRT STAB SHF<F59>
(B)
M12X50
|
0-20801-250-0 |
04 |
1 |
0612-0910 |
| |
111 |
BOLT; CLAMP TO ROD
STAB SHF<FE6>
(B)
M12X50
|
0-20851-250-0 |
04 |
1 |
0911- |
| |
111 |
BOLT; CLAMP TO ROD
FRT STAB SHF<F59>
(B)
M12X50
|
0-20851-250-0 |
04 |
1 |
0911- |
| |
112 |
BUSHING; ROD
STAB SHF<FE6>
|
9-51631-039-0 |
04 |
1 |
0612- |
| |
112 |
BUSHING; ROD
FRT STAB SHF<F59>
|
9-51631-039-0 |
04 |
1 |
0612- |
| |
114 |
ROD; STAB BAR
STAB SHF<FE6>
|
1-51773-083-2 |
02 |
1 |
0612- |
| |
114 |
ROD; STAB BAR
FRT STAB SHF<F59>
|
1-51773-083-2 |
02 |
1 |
0612- |
| |
115 |
WASHER; CENTER,STAB TO FRAME
STAB SHF<FE6>
(A)
ID=16.5
|
9-51631-040-0 |
04 |
1 |
0612- |
| |
115 |
WASHER; CENTER,STAB TO FRAME
FRT STAB SHF<F59>
(A)
ID=16.5
|
9-51631-040-0 |
04 |
1 |
0612- |
| |
115 |
WASHER; CENTER,STAB TO FRAME
STAB SHF<FE6>
(B)
ID=20.8
|
9-51631-041-0 |
04 |
1 |
0612- |
| |
115 |
WASHER; CENTER,STAB TO FRAME
FRT STAB SHF<F59>
(B)
ID=20.8
|
9-51631-041-0 |
04 |
1 |
0612- |
| |
116 |
NUT; LK,STAB TO FRAME
STAB SHF<FE6>
M14
|
0-91111-514-0 |
04 |
1 |
0612- |
| |
116 |
NUT; LK,STAB TO FRAME
FRT STAB SHF<F59>
M14
|
0-91111-514-0 |
04 |
1 |
0612- |
| |
127 |
NUT; CLAMP
STAB SHF<FE6>
M12
|
0-91110-512-0 |
06 |
1 |
0612- |
| |
127 |
NUT; CLAMP
FRT STAB SHF<F59>
M12
|
0-91110-512-0 |
06 |
1 |
0612- |
| |
128 |
WASHER; LK,CLAMP
STAB SHF<FE6>
ID=12.2
|
0-91510-512-0 |
06 |
1 |
0612-0912 |
| |
128 |
WASHER; LK,CLAMP
FRT STAB SHF<F59>
ID=12.2
|
0-91510-512-0 |
06 |
1 |
0612-0912 |
| |
128 |
WASHER; LK,CLAMP
STAB SHF<FE6>
ID=12.2
|
0-91510-812-0 |
06 |
1 |
1001- |
| |
128 |
WASHER; LK,CLAMP
FRT STAB SHF<F59>
ID=12.2
|
0-91510-812-0 |
06 |
1 |
1001- |
| |
234 |
WASHER; STAB
STAB SHF<FE6>
ID=15
|
9-09651-069-0 |
08 |
1 |
0612-0910 |
| |
234 |
WASHER; STAB
FRT STAB SHF<F59>
ID=15
|
9-09651-069-0 |
08 |
1 |
0612-0910 |
| |
234 |
WASHER; STAB
STAB SHF<FE6>
ID=15
|
8-98010-627-1 |
08 |
1 |
0911- |
| |
234 |
WASHER; STAB
FRT STAB SHF<F59>
ID=15
|
8-98010-627-1 |
08 |
1 |
0911- |
| |
237 |
SUPPORT; STAB BAR
STAB SHF<FE6>
|
1-51681-662-0 |
02 |
1 |
0612- |
| |
237 |
SUPPORT; STAB BAR
FRT STAB SHF<F59>
|
1-51681-662-0 |
02 |
1 |
0612- |
| |
275 |
BOOT; ROD END,TIE
|
1-43159-107-0 |
02 |
1 |
0612-1009 |
| |
275 |
BOOT; ROD END,TIE
|
1-43159-131-0 |
02 |
1 |
1010-1306 |
| |
275 |
BOOT; ROD END,TIE
|
8-98229-116-0 |
02 |
1 |
1307- |
| |
296 |
PIN; STAB
STAB SHF<FE6>
|
1-51682-145-2 |
02 |
1 |
0612-0907 |
| |
296 |
PIN; STAB
FRT STAB SHF<F59>
|
1-51682-145-2 |
02 |
1 |
0612-0907 |
| |
296 |
PIN; STAB
STAB SHF<FE6>
|
8-98022-874-1 |
02 |
1 |
0908- |
| |
296 |
PIN; STAB
FRT STAB SHF<F59>
|
8-98022-874-1 |
02 |
1 |
0908- |
| |
303 |
NUT; PIN
STAB SHF<FE6>
M20
|
0-91110-520-0 |
02 |
1 |
0612- |
| |
303 |
NUT; PIN
FRT STAB SHF<F59>
M20
|
0-91110-520-0 |
02 |
1 |
0612- |
| |
304 |
WASHER; PL
(A)
ID=12.5
|
9-09164-512-0 |
04 |
1 |
0612-0704 |
| |
304 |
WASHER; PL
(A)
ID=12.5
|
0-91614-512-0 |
04 |
1 |
0705- |
| |
304 |
WASHER; PL
STAB SHF<FE6>
(B)
ID=21
|
9-09164-520-0 |
02 |
1 |
0612-0907 |
| |
304 |
WASHER; PL
FRT STAB SHF<F59>
(B)
ID=21
|
9-09164-520-0 |
02 |
1 |
0612-0907 |
| |
304 |
WASHER; PL
STAB SHF<FE6>
(B)
ID=21
|
0-91614-520-0 |
02 |
1 |
0908- |
| |
304 |
WASHER; PL
FRT STAB SHF<F59>
(B)
ID=21
|
0-91614-520-0 |
02 |
1 |
0908- |
| |
305 |
COVER; KNUCKLE
|
1-43175-021-0 |
02 |
1 |
0612-0704 |
| |
305 |
COVER; KNUCKLE
|
8-98052-291-0 |
02 |
1 |
0705- |
| |
311 |
REPAIR KIT; ROD END,TIE
FRONT AXLE WIDE TYPE<C1U>
|
1-85574-041-0 |
02 |
1 |
0801-1009 |
| |
312 |
JOINT; BALL,ROD END,TIE
FRONT AXLE WIDE TYPE<C1U>
|
1-44361-105-1 |
02 |
1 |
0801-1009 |
