◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LT ▶ 11032 - LT134(LHD) EURO4 ▶ 3 - Brakes, Brake System ▶ 3-78 - FIXING PARTS; AIR PIPING ▶
3-78 — FIXING PARTS; AIR PIPING (#27364) — 150 parça

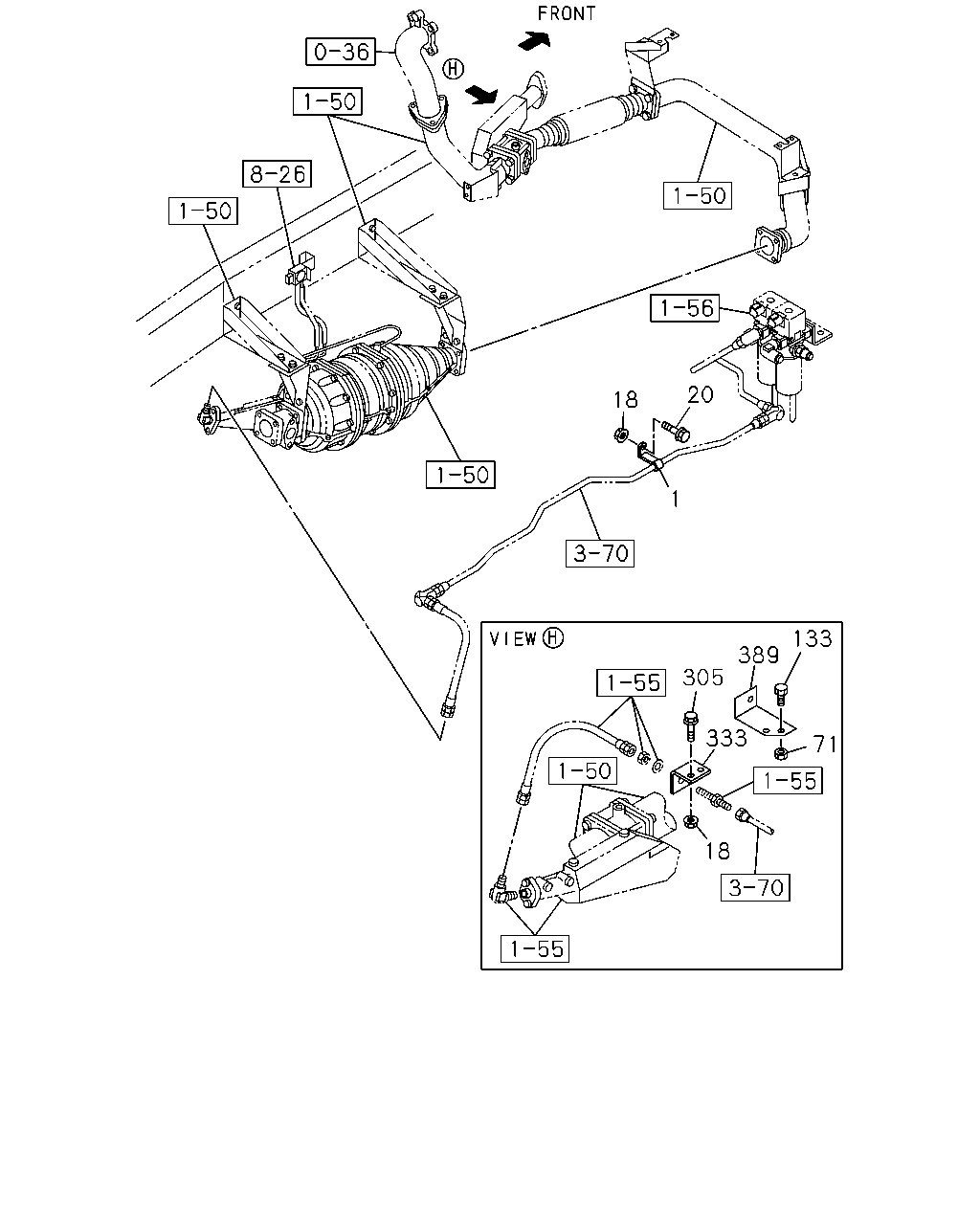

çizim 139129
20 18 1 133 389 305 333 71 18
BalonParca AdiParca NoAdetTipApplied Date
1 CLIP; AIR PIPE
ID=6 H=20 L=20 		1-09700-603-0 02 1 0612-
18 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0612-
18 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0612-
20 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 0612-
20 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 0612-
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0612-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0612-
133 BOLT; BRKT
ANTILOCK BRK SYSTEM<BFA> M8X25 FLANGE 		0-28650-825-0 02 1 0612-
305 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0612-
333 BRACKET; BRK AIR PIPE 8-98057-110-0 01 1 0612-
389 BRACKET; UNION 1-47475-721-0 01 1 0612-
çizim 139133
372 297 372 387 81 297 297 372 81 81 372 297
BalonParca AdiParca NoAdetTipApplied Date
81 BRACKET; CLIP
(D) L=55 		1-47476-177-0 01 1 0612-0712
81 BRACKET; CLIP
EXC. LOW DECK WO/REAR BODY<PK4> (D) L=55 		1-47476-177-0 01 1 0801-
81 BRACKET; CLIP
(E) 		1-47476-550-1 01 1 0612-0712
81 BRACKET; CLIP
EXC. LOW DECK WO/REAR BODY<PK4> (E) 		1-47476-550-1 01 1 0801-
81 BRACKET; CLIP
(B) L=150 H=30 		1-47477-629-2 01 1 0612-
81 BRACKET; CLIP
(A) 		8-97614-149-0 01 1 0612-0712
81 BRACKET; CLIP
EXC. LOW DECK WO/REAR BODY<PK4> (A) 		8-97614-149-0 01 1 0801-
81 BRACKET; CLIP
(C) 		8-98053-702-0 01 1 0612-
297 NUT; BRKT
LOW DECK WO/REAR BODY<PK4> M8 FLANGE 		0-91180-108-0 06 1 0801-
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 10 1 0612-0712
297 NUT; BRKT
EXC. LOW DECK WO/REAR BODY<PK4> M8 FLANGE 		0-91180-108-0 10 1 0801-
297 NUT; BRKT
M10 FLANGE 		0-91180-110-0 02 1 0612-0712
297 NUT; BRKT
EXC. LOW DECK WO/REAR BODY<PK4> M10 FLANGE 		0-91180-110-0 02 1 0801-0801
297 NUT; BRKT
EXC. LOW DECK WO/REAR BODY<PK4> M10 FLANGE 		0-91180-210-0 02 1 0802-
297 NUT; BRKT
ANTILOCK BRK SYSTEM<BFA> M8 FLANGE 		0-91180-108-0 02 1 0612-
372 BOLT; CLIP BRKT
LOW DECK WO/REAR BODY<PK4> M8X25 FLANGE 		0-28650-825-0 06 1 0801-
372 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0701-0703
372 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0704-0706
372 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 10 1 0707-0712
372 BOLT; CLIP BRKT
EXC. LOW DECK WO/REAR BODY<PK4> M8X25 FLANGE 		0-28650-825-0 10 1 0801-
372 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 10 1 0612-0706
372 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0707-0712
372 BOLT; CLIP BRKT
EXC. LOW DECK WO/REAR BODY<PK4> M8X25 FLANGE 		0-28650-825-0 02 1 0801-
372 BOLT; CLIP BRKT
M10X30 FLANGE 		0-28651-030-0 02 1 0612-0712
372 BOLT; CLIP BRKT
EXC. LOW DECK WO/REAR BODY<PK4> M10X30 FLANGE 		0-28651-030-0 02 1 0801-
387 STAY
LOW DECK WO/REAR BODY<PK4> 		8-98088-705-0 01 1 0801-
387 STAY 1-47471-434-0 01 1 0612-0712
387 STAY
EXC. LOW DECK WO/REAR BODY<PK4> 		1-47471-434-0 01 1 0801-

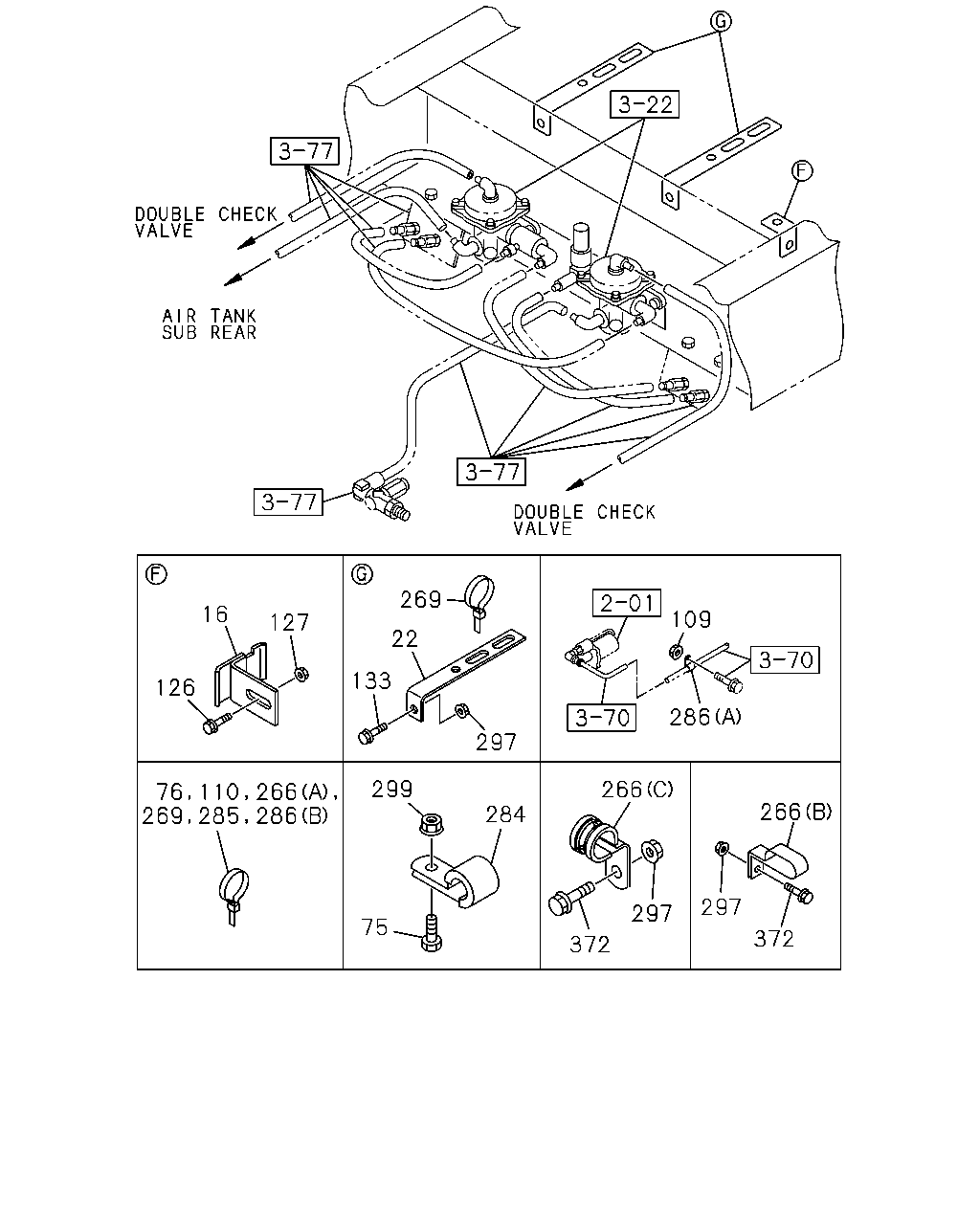

çizim 139135
269 16 109 127 22 133 126 286 297 299 266 266 284 297 297 75 372 372 76 110 266 286 285 269
BalonParca AdiParca NoAdetTipApplied Date
16 BRACKET; PIPE CLIP
ANTILOCK BRK SYSTEM<BFA> 		1-47479-693-0 01 1 0612-
22 BRACKET; CLIP
ANTILOCK BRK SYSTEM<BFA> L=225 		1-47477-646-3 02 1 0612-
75 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0612-
76 CLIP; NYLON TUBE
LOW DECK WO/REAR BODY<PK4> L=350 		1-09707-183-0 14 1 0801-
76 CLIP; NYLON TUBE
DOOR CONT AIR W/SUB AIR TANK<SGW> L=350 		1-09707-183-0 02 1 0612-
76 CLIP; NYLON TUBE
AIR HORN(WB8) L=350 		1-09707-183-0 02 1 0612-
76 CLIP; NYLON TUBE
L=350 		1-09707-183-0 20 1 0612-0705
76 CLIP; NYLON TUBE
L=350 		1-09707-183-0 21 1 0706-0712
76 CLIP; NYLON TUBE
EXC. LOW DECK WO/REAR BODY<PK4> L=350 		1-09707-183-0 21 1 0801-
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 01 1 0612-
110 CLIP; BAND,NYLON TUBE
LOW DECK WO/REAR BODY<PK4> ID=18 L=25 H=50 		1-09701-096-0 01 1 0801-
110 CLIP; BAND,NYLON TUBE
WB 5000MM(50W) L=350 		1-09707-183-0 03 1 0612-
110 CLIP; BAND,NYLON TUBE
WB 5700MM(57W) L=350 		1-09707-183-0 04 1 0612-0712
110 CLIP; BAND,NYLON TUBE
WB 5700MM(57W) EXC. LOW DECK WO/REAR BODY<PK4> L=350 		1-09707-183-0 04 1 0801-
110 CLIP; BAND,NYLON TUBE
ANTILOCK BRK SYSTEM<BFA> L=250 		1-09707-126-0 02 1 0612-
110 CLIP; BAND,NYLON TUBE
EXC. ANTILOCK BRK SYSTEM<BFA> L=250 		1-09707-126-0 03 1 0612-0712
110 CLIP; BAND,NYLON TUBE
EXC. ANTILOCK BRK SYSTEM<BFA>,LOW DECK WO/REAR BODY<PK4> L=250 		1-09707-126-0 03 1 0801-
126 BOLT; CLIP BRKT
ANTILOCK BRK SYSTEM<BFA> M8X25 FLANGE 		0-28650-825-0 01 1 0612-
127 NUT; CLIP BRKT
ANTILOCK BRK SYSTEM<BFA> M8 FLANGE 		0-91180-108-0 01 1 0612-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0612-
133 BOLT; BRKT
ANTILOCK BRK SYSTEM<BFA> M8X25 FLANGE 		0-28650-825-0 02 1 0612-
266 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 08 1 0612-0712
266 CLIP; NYLON TUBE
EXC. LOW DECK WO/REAR BODY<PK4> (A) L=350 		1-09707-183-0 08 1 0801-
266 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 11 1 0612-
266 CLIP; NYLON TUBE
(B) ID=19 L=60 		0-95235-896-0 01 1 0612-0712
266 CLIP; NYLON TUBE
EXC. LOW DECK WO/REAR BODY<PK4> (B) ID=19 L=60 		0-95235-896-0 01 1 0801-
266 CLIP; NYLON TUBE
(C) ID=39 H=28 L=32 		1-09701-263-0 01 1 0612-
269 CLIP; BAND,NYLON TUBE
LOW DECK WO/REAR BODY<PK4> L=350 		1-09707-183-0 10 1 0801-
269 CLIP; BAND,NYLON TUBE
WB 5000MM(50W) L=350 		1-09707-183-0 14 1 0612-
269 CLIP; BAND,NYLON TUBE
WB 5700MM(57W) L=350 		1-09707-183-0 16 1 0612-0712
269 CLIP; BAND,NYLON TUBE
WB 5700MM(57W) EXC. LOW DECK WO/REAR BODY<PK4> L=350 		1-09707-183-0 16 1 0801-
269 CLIP; BAND,NYLON TUBE
ANTILOCK BRK SYSTEM<BFA> L=350 		1-09707-183-0 08 1 0612-0612
269 CLIP; BAND,NYLON TUBE
ANTILOCK BRK SYSTEM<BFA> L=350 		1-09707-183-0 09 1 0701-
269 CLIP; BAND,NYLON TUBE
DOOR CONT AIR W/SUB AIR TANK<SGW> L=350 		1-09707-183-0 01 1 0612-
269 CLIP; BAND,NYLON TUBE
EXC. ANTILOCK BRK SYSTEM<BFA> L=350 		1-09707-183-0 03 1 0612-
284 CLIP; FLEX HOSE
ID=14.5 L=20 		1-09701-012-0 04 1 0612-
285 CLIP; BAND
L=140 		5-09707-031-1 01 1 0612-
286 CLIP; NYLON TUBE
(B) L=350 		1-09707-183-0 05 1 0612-
286 CLIP; NYLON TUBE
(A) ID=9 		1-09700-839-1 01 1 0612-
297 NUT; BRKT
LOW DECK WO/REAR BODY<PK4> M8 FLANGE 		0-91180-108-0 06 1 0801-
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 10 1 0612-0712
297 NUT; BRKT
EXC. LOW DECK WO/REAR BODY<PK4> M8 FLANGE 		0-91180-108-0 10 1 0801-
297 NUT; BRKT
M10 FLANGE 		0-91180-110-0 02 1 0612-0712
297 NUT; BRKT
EXC. LOW DECK WO/REAR BODY<PK4> M10 FLANGE 		0-91180-110-0 02 1 0801-0801
297 NUT; BRKT
EXC. LOW DECK WO/REAR BODY<PK4> M10 FLANGE 		0-91180-210-0 02 1 0802-
297 NUT; BRKT
ANTILOCK BRK SYSTEM<BFA> M8 FLANGE 		0-91180-108-0 02 1 0612-
299 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0612-
372 BOLT; CLIP BRKT
LOW DECK WO/REAR BODY<PK4> M8X25 FLANGE 		0-28650-825-0 06 1 0801-
372 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0701-0703
372 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0704-0706
372 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 10 1 0707-0712
372 BOLT; CLIP BRKT
EXC. LOW DECK WO/REAR BODY<PK4> M8X25 FLANGE 		0-28650-825-0 10 1 0801-
372 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 10 1 0612-0706
372 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0707-0712
372 BOLT; CLIP BRKT
EXC. LOW DECK WO/REAR BODY<PK4> M8X25 FLANGE 		0-28650-825-0 02 1 0801-
372 BOLT; CLIP BRKT
M10X30 FLANGE 		0-28651-030-0 02 1 0612-0712
372 BOLT; CLIP BRKT
EXC. LOW DECK WO/REAR BODY<PK4> M10X30 FLANGE 		0-28651-030-0 02 1 0801-

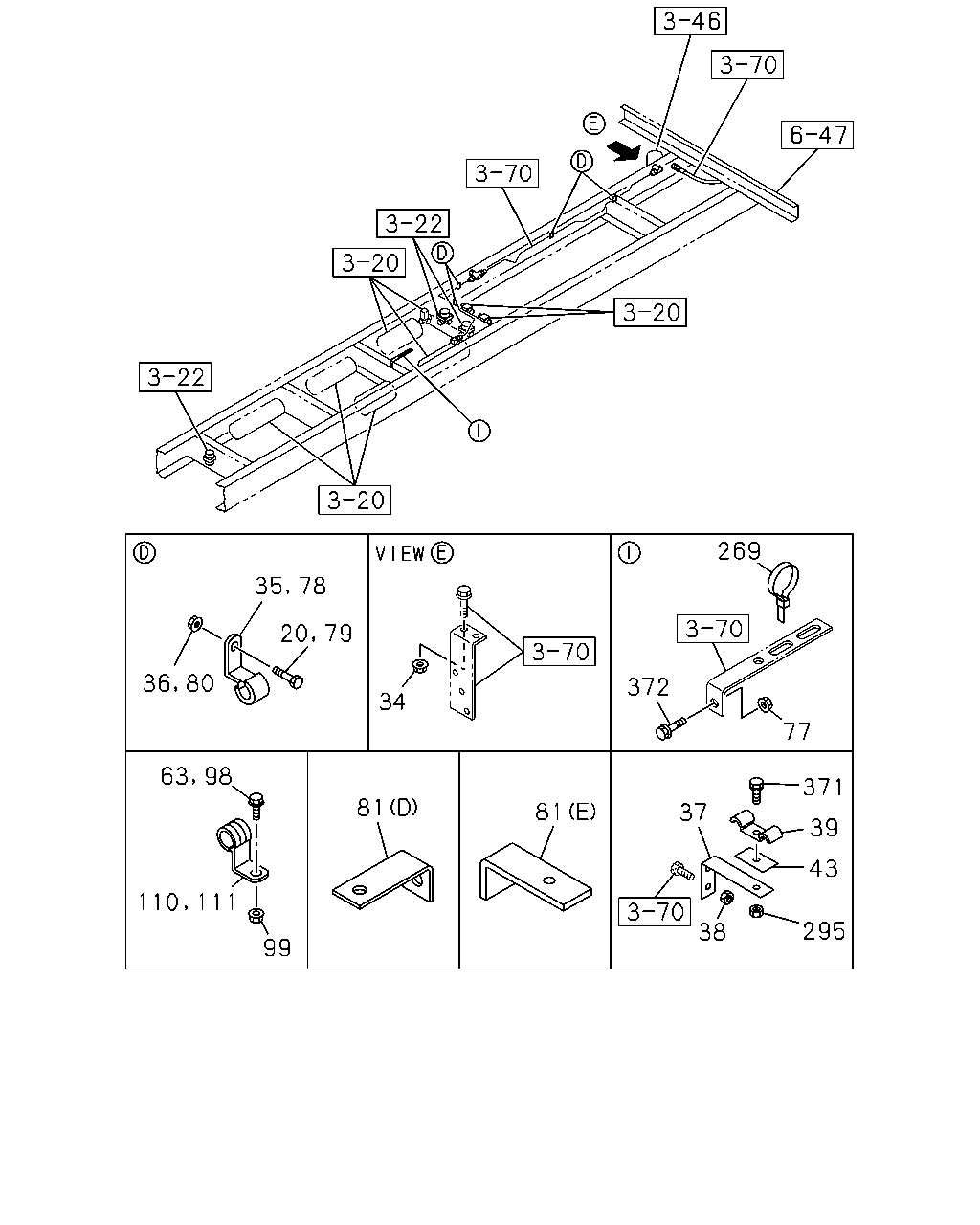

çizim 139142
269 372 34 77 371 81 81 37 39 43 110 111 295 38 99 35 78 79 20 80 36 63 98
BalonParca AdiParca NoAdetTipApplied Date
20 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 0612-
20 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 0612-
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0612-1104
35 CLIP; AIR PIPE
ID=15 H=24 L=20 		1-09700-606-0 02 1 0612-
36 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0612-
37 BRACKET; PIPE CLIP 1-47475-105-2 01 1 1105-
38 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1105-
39 CLIP; AIR PIPE
ID=16 & 16 L=21.5 & 21.5 		1-09700-674-0 02 1 1105-
43 PLATE; CLIP,AIR PIPE
L=50 		1-47475-299-2 01 1 1105-
63 BOLT; CLIP
LOW DECK WO/REAR BODY<PK4> M8X25 FLANGE 		0-28650-825-0 01 1 0801-
77 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 01 1 0701-0703
77 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 02 1 0704-0712
77 NUT; CLIP BRKT
EXC. LOW DECK WO/REAR BODY<PK4> M8 FLANGE 		0-91180-108-0 02 1 0801-
78 CLIP; AIR PIPE
ID=15 H=24 L=20 		1-09700-606-0 02 1 0612-
79 BOLT; PIPE CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 0612-
80 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91180-108-0 02 1 0612-
81 BRACKET; CLIP
(D) L=55 		1-47476-177-0 01 1 0612-0712
81 BRACKET; CLIP
EXC. LOW DECK WO/REAR BODY<PK4> (D) L=55 		1-47476-177-0 01 1 0801-
81 BRACKET; CLIP
(E) 		1-47476-550-1 01 1 0612-0712
81 BRACKET; CLIP
EXC. LOW DECK WO/REAR BODY<PK4> (E) 		1-47476-550-1 01 1 0801-
81 BRACKET; CLIP
(B) L=150 H=30 		1-47477-629-2 01 1 0612-
81 BRACKET; CLIP
(A) 		8-97614-149-0 01 1 0612-0712
81 BRACKET; CLIP
EXC. LOW DECK WO/REAR BODY<PK4> (A) 		8-97614-149-0 01 1 0801-
81 BRACKET; CLIP
(C) 		8-98053-702-0 01 1 0612-
98 BOLT; PIPE CLIP
LOW DECK WO/REAR BODY<PK4> M8X25 FLANGE 		0-28650-825-0 01 1 0801-
99 NUT; PIPE CLIP
LOW DECK WO/REAR BODY<PK4> M8 FLANGE 		0-91180-108-0 01 1 0801-
110 CLIP; BAND,NYLON TUBE
LOW DECK WO/REAR BODY<PK4> ID=18 L=25 H=50 		1-09701-096-0 01 1 0801-
110 CLIP; BAND,NYLON TUBE
WB 5000MM(50W) L=350 		1-09707-183-0 03 1 0612-
110 CLIP; BAND,NYLON TUBE
WB 5700MM(57W) L=350 		1-09707-183-0 04 1 0612-0712
110 CLIP; BAND,NYLON TUBE
WB 5700MM(57W) EXC. LOW DECK WO/REAR BODY<PK4> L=350 		1-09707-183-0 04 1 0801-
110 CLIP; BAND,NYLON TUBE
ANTILOCK BRK SYSTEM<BFA> L=250 		1-09707-126-0 02 1 0612-
110 CLIP; BAND,NYLON TUBE
EXC. ANTILOCK BRK SYSTEM<BFA> L=250 		1-09707-126-0 03 1 0612-0712
110 CLIP; BAND,NYLON TUBE
EXC. ANTILOCK BRK SYSTEM<BFA>,LOW DECK WO/REAR BODY<PK4> L=250 		1-09707-126-0 03 1 0801-
111 CLIP; AIR PIPE
LOW DECK WO/REAR BODY<PK4> ID=18 L=25 H=50 		1-09701-096-0 01 1 0801-
269 CLIP; BAND,NYLON TUBE
LOW DECK WO/REAR BODY<PK4> L=350 		1-09707-183-0 10 1 0801-
269 CLIP; BAND,NYLON TUBE
WB 5000MM(50W) L=350 		1-09707-183-0 14 1 0612-
269 CLIP; BAND,NYLON TUBE
WB 5700MM(57W) L=350 		1-09707-183-0 16 1 0612-0712
269 CLIP; BAND,NYLON TUBE
WB 5700MM(57W) EXC. LOW DECK WO/REAR BODY<PK4> L=350 		1-09707-183-0 16 1 0801-
269 CLIP; BAND,NYLON TUBE
ANTILOCK BRK SYSTEM<BFA> L=350 		1-09707-183-0 08 1 0612-0612
269 CLIP; BAND,NYLON TUBE
ANTILOCK BRK SYSTEM<BFA> L=350 		1-09707-183-0 09 1 0701-
269 CLIP; BAND,NYLON TUBE
DOOR CONT AIR W/SUB AIR TANK<SGW> L=350 		1-09707-183-0 01 1 0612-
269 CLIP; BAND,NYLON TUBE
EXC. ANTILOCK BRK SYSTEM<BFA> L=350 		1-09707-183-0 03 1 0612-
295 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91180-108-0 02 1 1105-
371 BOLT; CLIP,AIR PIPE
M8X20 FLANGE 		0-28650-820-0 02 1 1105-
372 BOLT; CLIP BRKT
LOW DECK WO/REAR BODY<PK4> M8X25 FLANGE 		0-28650-825-0 06 1 0801-
372 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0701-0703
372 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0704-0706
372 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 10 1 0707-0712
372 BOLT; CLIP BRKT
EXC. LOW DECK WO/REAR BODY<PK4> M8X25 FLANGE 		0-28650-825-0 10 1 0801-
372 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 10 1 0612-0706
372 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0707-0712
372 BOLT; CLIP BRKT
EXC. LOW DECK WO/REAR BODY<PK4> M8X25 FLANGE 		0-28650-825-0 02 1 0801-
372 BOLT; CLIP BRKT
M10X30 FLANGE 		0-28651-030-0 02 1 0612-0712
372 BOLT; CLIP BRKT
EXC. LOW DECK WO/REAR BODY<PK4> M10X30 FLANGE 		0-28651-030-0 02 1 0801-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
