Isuzu WW
▶
BUSES
▶
LT
▶
11032 - LT134(LHD) EURO4
▶
3 - Brakes, Brake System
▶
3-77 - BRAKE PIPING; AIR,REAR
▶
3-77 — BRAKE PIPING; AIR,REAR
(#27363) — 27 parça
◀

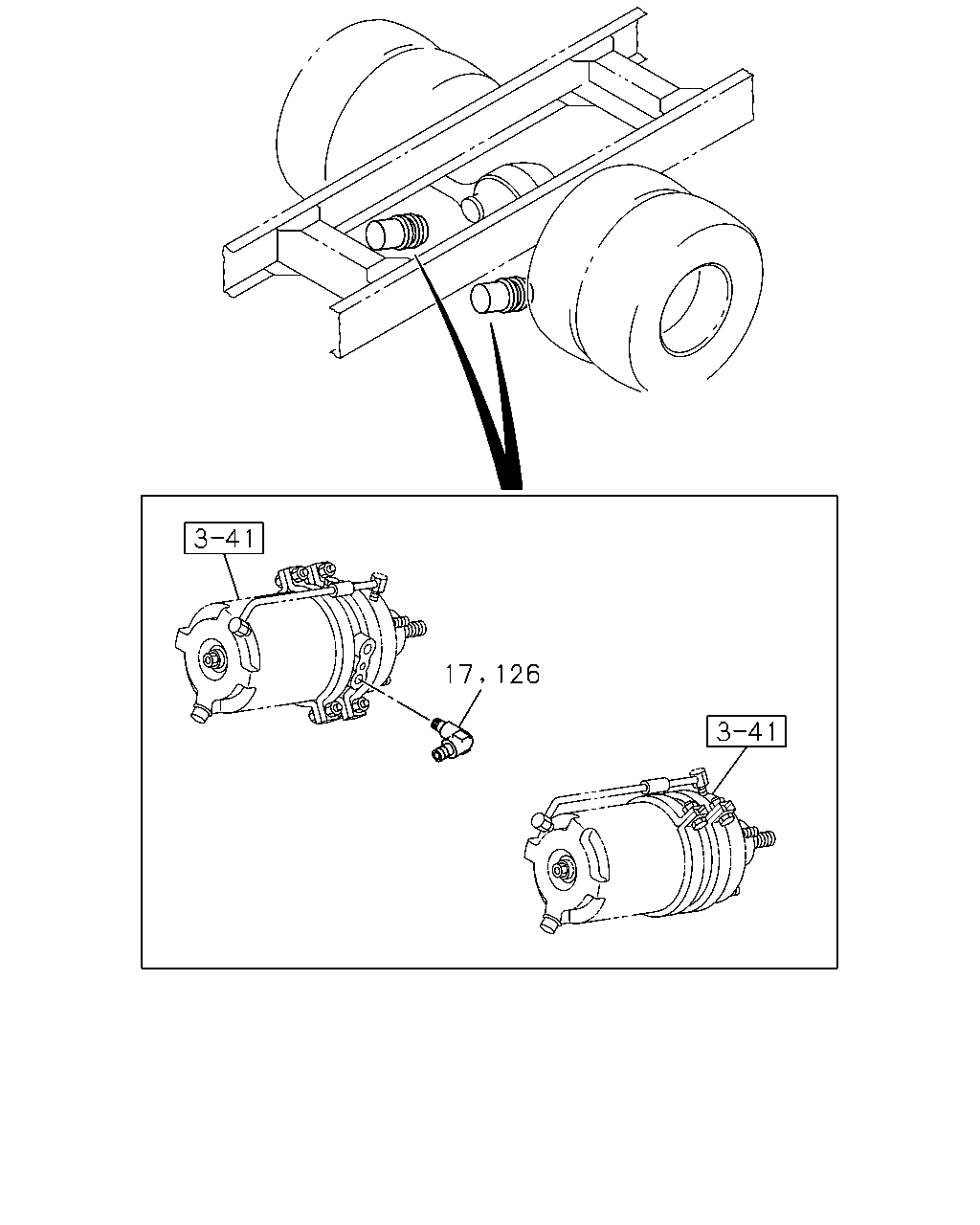

[377A] NO.2 (2 parça)
[377A] NO.1 (25 parça)
▶
17
126
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
17
UNION; AIR PIPE
M16 & PT3/8 ELBOW
1-09650-438-0
02
1
0612-
126
UNION; NYLON TUBE
M16 & PT3/8 ELBOW
1-09650-438-0
02
1
0612-
192
192
192
192
223
192
192
192
192
224
64
64
80
204
60
61
192
74
20
76
181
192
72
224
204
64
64
80
60
61
192
74
20
181
76
72
192
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
20
WASHER; LK,PIPE UNION
ID=16.2
0-91510-516-0
02
1
0612-
60
NUT; NIPPLE,AIR PIPE
M16
0-91111-516-0
02
1
0612-
61
WASHER; LK,NIPPLE
ID=16.2
0-91510-516-0
02
1
0612-
64
GASKET; FLEX HOSE
ID=17.5
9-09572-515-0
04
1
0612-
72
NUT; BRKT
M10 FLANGE
0-91180-210-0
04
1
0612-
74
ADAPTER; UNION TO NYLON TUBE
DIN12 & M16 STRAIGHT
1-09660-876-0
02
1
0612-
76
ADAPTER; NYLON TUBE
DIN12 & M16 STRAIGHT
1-09660-876-0
02
1
0612-
80
HOSE; FLEX,POWER CHAMBER
LOW DECK WO/REAR BODY<PK4> L=700
1-09363-604-1
01
1
0801-
80
HOSE; FLEX,POWER CHAMBER
EXC. LOW DECK WO/REAR BODY<PK4> L=660
1-09363-921-0
02
1
0801-
80
HOSE; FLEX,POWER CHAMBER
L=660
1-09363-921-0
02
1
0612-0712
80
HOSE; FLEX,POWER CHAMBER
LOW DECK WO/REAR BODY<PK4> L=660
1-09363-921-0
01
1
0801-
181
NUT; TUBE UNION
M16
0-91111-516-0
02
1
0612-
192
TUBE; NYLON
EXC. ANTILOCK BRK SYSTEM<BFA> SERVICED BY L=2000 OD=12
1-87410-069-0
04
1
0707-0712
192
TUBE; NYLON
EXC. ANTILOCK BRK SYSTEM<BFA>,LOW DECK WO/REAR BODY<PK4> SERVICED BY L=2000 OD=12
1-87410-069-0
04
1
0801-
192
TUBE; NYLON
SERVICED BY L=2000 OD=8
1-87411-006-0
AR
1
0612-
192
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
0612-
204
BRACKET; TUBE UNION
LOW DECK WO/REAR BODY<PK4>
8-98088-192-0
01
1
0801-
204
BRACKET; TUBE UNION
LOW DECK WO/REAR BODY<PK4>
8-98088-193-0
01
1
0801-
204
BRACKET; TUBE UNION
1-47479-377-1
01
1
0612-0712
204
BRACKET; TUBE UNION
EXC. LOW DECK WO/REAR BODY<PK4>
1-47479-377-1
01
1
0801-
204
BRACKET; TUBE UNION
1-47479-378-1
01
1
0612-0712
204
BRACKET; TUBE UNION
EXC. LOW DECK WO/REAR BODY<PK4>
1-47479-378-1
01
1
0801-
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=13
1-87411-022-0
AR
1
0612-
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=28
1-87411-033-0
AR
1
0612-
224
BOLT; TUBE UNION
M10X30 FLANGE
0-28651-030-0
04
1
0612-
