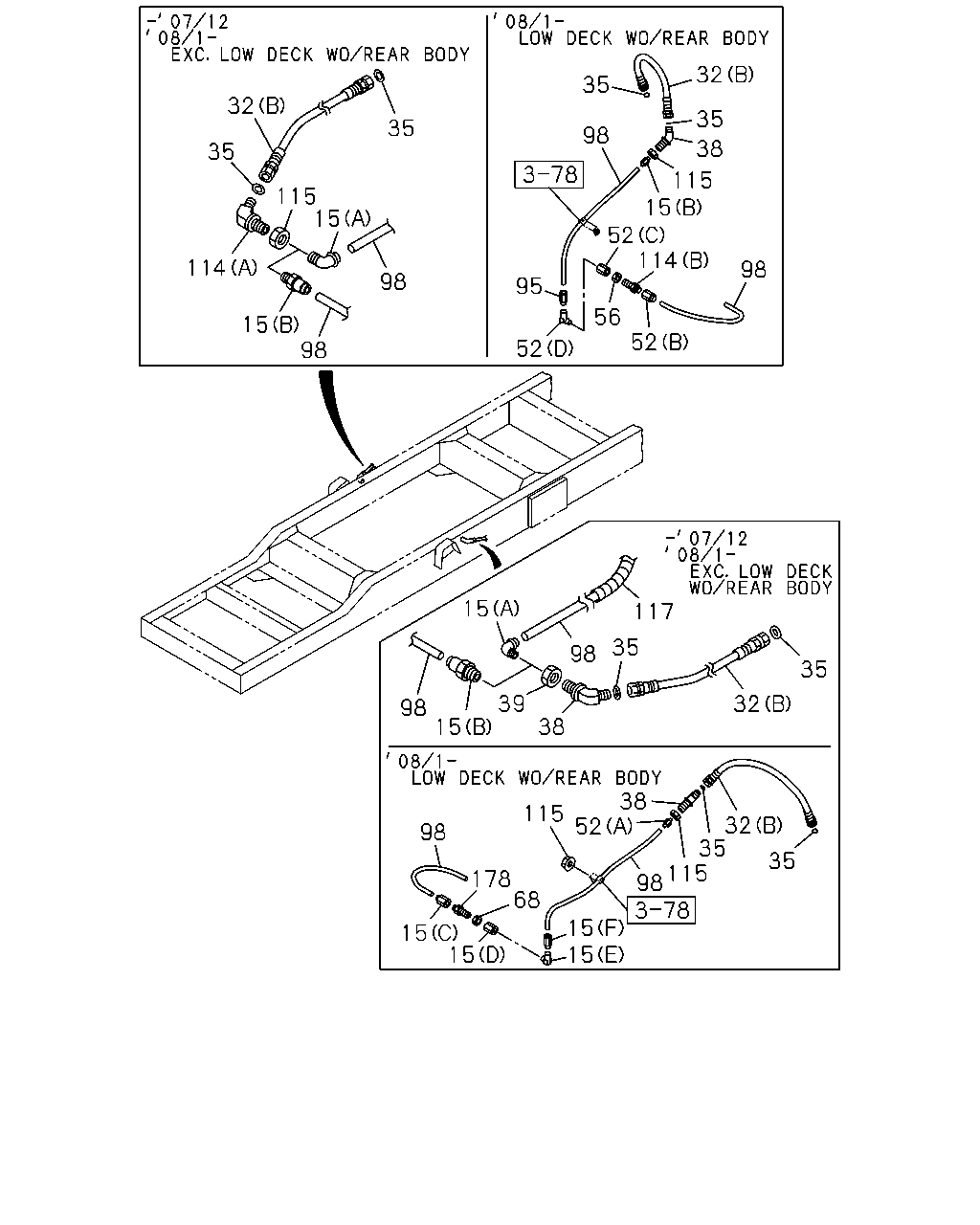

3-75 — BRAKE PIPING; AIR,FRONT (#27362) — 51 parça

32 35 32 35 35 98 38 35 115 15 52 114 15 15 114 98 98 95 56 15 98 52 52 15 117 35 98 35 39 15 32 98 38 38 52 115 32 35 115 98 98 35 178 68 15 15 15 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
15	CONNECTOR; AIR PIPE LOW DECK WO/REAR BODY<PK4> (C) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0801-
15	CONNECTOR; AIR PIPE LOW DECK WO/REAR BODY<PK4> (D) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	0801-
15	CONNECTOR; AIR PIPE LOW DECK WO/REAR BODY<PK4> (E) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0801-
15	CONNECTOR; AIR PIPE LOW DECK WO/REAR BODY<PK4> (F) PT3/8	1-48319-058-0	01	1	0801-
15	CONNECTOR; AIR PIPE ANTILOCK BRK SYSTEM<BFA> (B) DIN12 R1/4 STRAIGHT	1-09660-754-1	02	1	0612-0706
15	CONNECTOR; AIR PIPE ANTILOCK BRK SYSTEM<BFA> (B) DIN12 R1/4 STRAIGHT	1-09660-754-1	01	1	0707-0712
15	CONNECTOR; AIR PIPE ANTILOCK BRK SYSTEM<BFA> (B) DIN12 R1/4 STRAIGHT	1-09660-754-1	01	1	0707-0712
15	CONNECTOR; AIR PIPE ANTILOCK BRK SYSTEM<BFA> (B) DIN12 R1/4 STRAIGHT	1-09660-754-1	01	1	0801-
15	CONNECTOR; AIR PIPE ANTILOCK BRK SYSTEM<BFA> (B) DIN12 R1/4 STRAIGHT	1-09660-754-1	01	1	0801-
15	CONNECTOR; AIR PIPE LOW DECK WO/REAR BODY<PK4> (B) DIN12 R1/4 STRAIGHT	1-09660-754-1	01	1	0801-
15	CONNECTOR; AIR PIPE EXC. ANTILOCK BRK SYSTEM<BFA> (A) DIN12 & R1/4 ELBOW	1-09660-655-1	02	1	0612-0712
15	CONNECTOR; AIR PIPE EXC. ANTILOCK BRK SYSTEM<BFA>,LOW DECK WO/REAR BODY<PK4> (A) DIN12 & R1/4 ELBOW	1-09660-655-1	02	1	0801-1211
15	CONNECTOR; AIR PIPE EXC. ANTILOCK BRK SYSTEM<BFA>,LOW DECK WO/REAR BODY<PK4> (A) DIN12 & R1/4 ELBOW	1-09660-958-0	02	1	1212-
32	HOSE; FLEX,FRT LOW DECK WO/REAR BODY<PK4> (A) L=700	1-09363-604-1	01	1	0801-
32	HOSE; FLEX,FRT LOW DECK WO/REAR BODY<PK4> (B) L=580	0-57847-580-1	01	1	0801-
32	HOSE; FLEX,FRT LOW DECK WO/REAR BODY<PK4> (B) L=580	0-57847-580-1	01	1	0801-
32	HOSE; FLEX,FRT EXC. LOW DECK WO/REAR BODY<PK4> (A) L=660	1-09363-921-0	02	1	0801-
32	HOSE; FLEX,FRT (B) L=630	0-57847-630-1	02	1	0612-0712
32	HOSE; FLEX,FRT EXC. LOW DECK WO/REAR BODY<PK4> (B) L=630	0-57847-630-1	02	1	0801-
32	HOSE; FLEX,FRT (A) L=660	1-09363-921-0	02	1	0612-0712
32	HOSE; FLEX,FRT LOW DECK WO/REAR BODY<PK4> (A) L=660	1-09363-921-0	01	1	0801-
35	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	04	1	0612-
38	UNION; AIR PIPE M20 & PT1/4 ELBOW	1-09650-081-1	01	1	0612-
39	NUT; PIPE UNION M22	0-91111-522-0	01	1	0612-
52	CONNECTOR; NYLON TUBE LOW DECK WO/REAR BODY<PK4> (A) DIN12 R1/4 STRAIGHT	1-09660-754-1	01	1	0801-
52	CONNECTOR; NYLON TUBE LOW DECK WO/REAR BODY<PK4> (B) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0801-
52	CONNECTOR; NYLON TUBE LOW DECK WO/REAR BODY<PK4> (C) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	0801-
52	CONNECTOR; NYLON TUBE LOW DECK WO/REAR BODY<PK4> (D) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0801-
56	BOLT; UNION BRKT LOW DECK WO/REAR BODY<PK4> M20	0-91111-520-0	01	1	0801-
68	NUT; UNION LOW DECK WO/REAR BODY<PK4> M20	0-91111-520-0	01	1	0801-
95	ADAPTER; BRKT LOW DECK WO/REAR BODY<PK4> PT3/8	1-48319-058-0	01	1	0801-
98	TUBE; NYLON LOW DECK WO/REAR BODY<PK4> SERVICED BY L=2000 OD=12	1-87411-011-0	04	1	0801-
98	TUBE; NYLON ANTILOCK BRK SYSTEM<BFA> SERVICED BY L=2000 OD=12	1-87411-011-0	03	1	0801-
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0612-
114	UNION; NYLON TUBE LOW DECK WO/REAR BODY<PK4> (B) M20 L=77.5	0-92123-212-0	01	1	0801-
114	UNION; NYLON TUBE (A) M20 & PT1/4 ELBOW	1-09650-081-1	01	1	0612-
115	NUT; TUBE UNION LOW DECK WO/REAR BODY<PK4> M8 FLANGE	0-91180-108-0	01	1	0801-
115	NUT; TUBE UNION M22	0-91111-522-0	01	1	0612-
117	TUBE; CORRUGATE LOW DECK WO/REAR BODY<PK4> SERVICED BY L=2000 ID=13	1-87411-022-0	02	1	0801-
117	TUBE; CORRUGATE DOOR CONT AIR W/SUB AIR TANK<SGW> SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	0707-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	0612-
178	UNION LOW DECK WO/REAR BODY<PK4> M20 L=77.5	0-92123-212-0	01	1	0801-

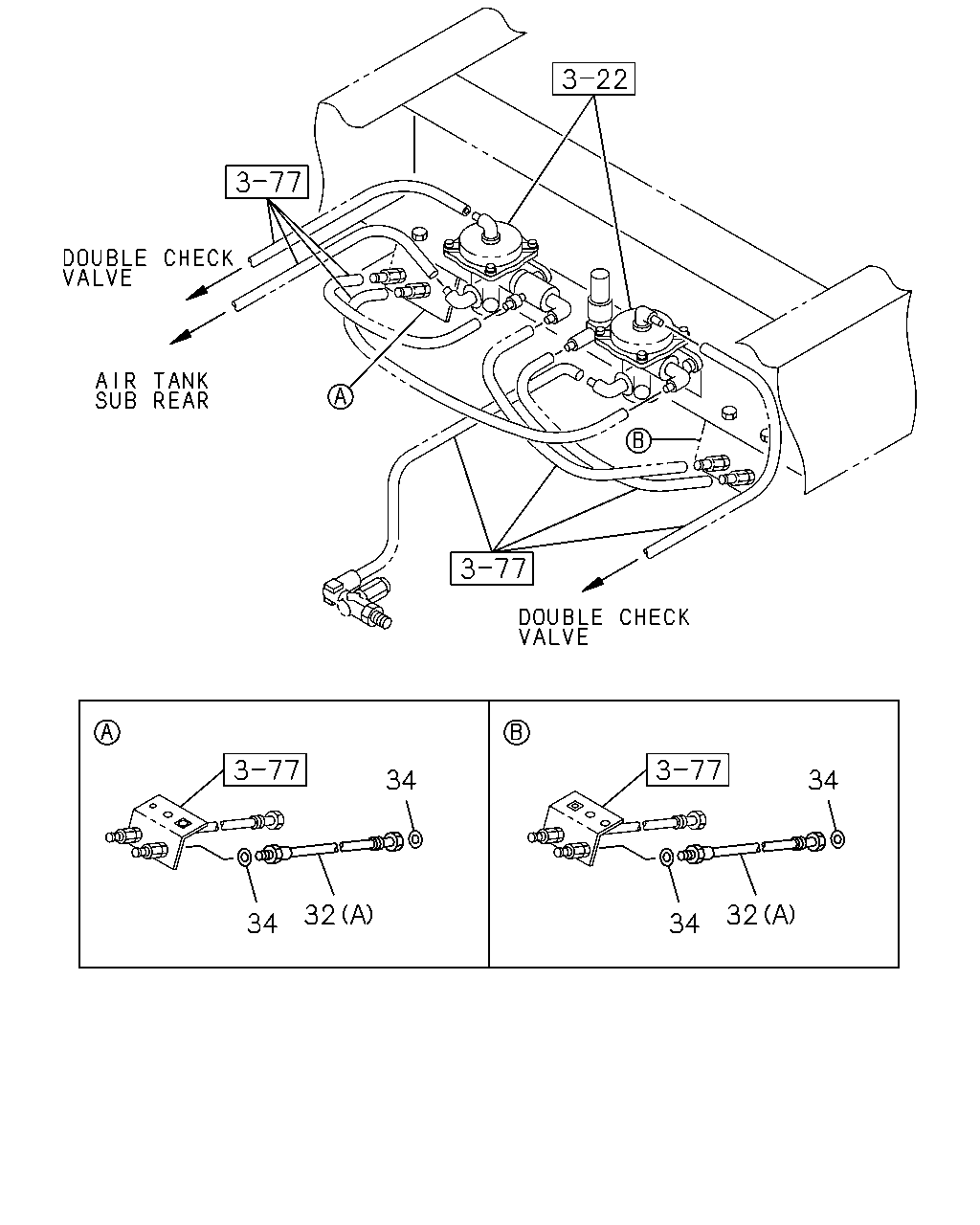

34 34 32 32 34 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
32	HOSE; FLEX,FRT LOW DECK WO/REAR BODY<PK4> (A) L=700	1-09363-604-1	01	1	0801-
32	HOSE; FLEX,FRT LOW DECK WO/REAR BODY<PK4> (B) L=580	0-57847-580-1	01	1	0801-
32	HOSE; FLEX,FRT LOW DECK WO/REAR BODY<PK4> (B) L=580	0-57847-580-1	01	1	0801-
32	HOSE; FLEX,FRT EXC. LOW DECK WO/REAR BODY<PK4> (A) L=660	1-09363-921-0	02	1	0801-
32	HOSE; FLEX,FRT (B) L=630	0-57847-630-1	02	1	0612-0712
32	HOSE; FLEX,FRT EXC. LOW DECK WO/REAR BODY<PK4> (B) L=630	0-57847-630-1	02	1	0801-
32	HOSE; FLEX,FRT (A) L=660	1-09363-921-0	02	1	0612-0712
32	HOSE; FLEX,FRT LOW DECK WO/REAR BODY<PK4> (A) L=660	1-09363-921-0	01	1	0801-
34	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	04	1	0612-
