◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LT ▶ 11032 - LT134(LHD) EURO4 ▶ 3 - Brakes, Brake System ▶ 3-70 - BRAKE PIPING; AIR,AIR MASTER ▶
3-70 — BRAKE PIPING; AIR,AIR MASTER (#27361) — 218 parça

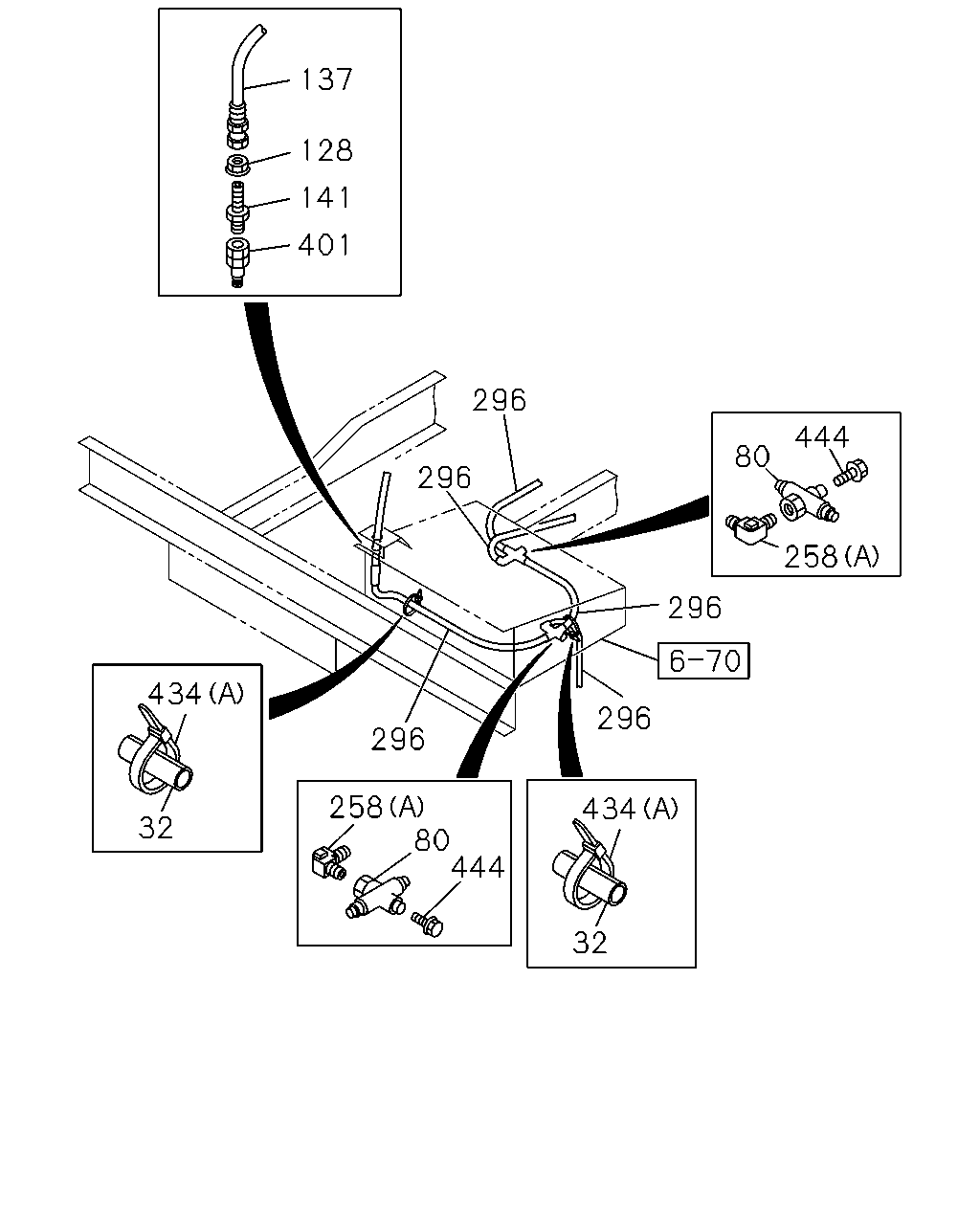

çizim 139122
137 128 141 401 296 444 80 296 258 296 434 296 296 258 80 444 434 32 32
BalonParca AdiParca NoAdetTipApplied Date
32 SLEEVE; RUBBER,AIR PIPE
ID=17 OD=21 L=40 		1-09337-012-0 01 1 0612-
80 UNION; 3 WAY
DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 0612-0801
80 UNION; 3 WAY
AIR HORN(WB8) DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 0612-0801
80 UNION; 3 WAY
AIR HORN(WB8) EXC. DOOR CONT AIR W/SUB AIR TANK<SGW> DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 0612-0801
80 UNION; 3 WAY
AIR HORN(WB8) DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 0802-
80 UNION; 3 WAY
AIR HORN(WB8) EXC. DOOR CONT AIR W/SUB AIR TANK<SGW> DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 0802-
80 UNION; 3 WAY
LOW DECK WO/REAR BODY<PK4> EXC. BRK SYSTEM RETARDER<RE2> DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 0802-
80 UNION; 3 WAY
EXC. LOW DECK WO/REAR BODY<PK4> DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 0802-
128 NUT; PIPE UNION
M10 FLANGE 		0-91180-210-0 02 1 0612-
137 HOSE; FLEX,AIR PRESSURE GAGE
L=810 		0-57210-810-0 02 1 0612-
141 UNION; FLEX HOSE 1-09650-270-1 02 1 0612-
258 CONNECTOR; NYLON TUBE
(A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0612-0801
258 CONNECTOR; NYLON TUBE
LOW DECK WO/REAR BODY<PK4> EXC. BRK SYSTEM RETARDER<RE2> (A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0802-
258 CONNECTOR; NYLON TUBE
EXC. LOW DECK WO/REAR BODY<PK4> (A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0802-
258 CONNECTOR; NYLON TUBE
(C) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0612-
258 CONNECTOR; NYLON TUBE
(B) R1/4 & RC1/4 		1-09664-211-0 01 1 0612-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0612-
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0612-
296 TUBE; NYLON
SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 0612-
296 TUBE; NYLON
SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 0612-
296 TUBE; NYLON
SERVICED BY L=12000 OD=8 		1-87411-010-0 AR 1 0612-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0612-
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0612-
296 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 0612-
296 TUBE; NYLON
SERVICED BY L=8000 OD=12 		1-87411-014-0 AR 1 0612-
401 CONNECTOR; FLEX HOSE
DIN8 & M12 STRAIGHT 		1-09660-873-0 02 1 0612-
434 CLIP
LOW DECK WO/REAR BODY<PK4> (B) ID=25 H=30 L=35 		1-09700-944-0 01 1 0801-
434 CLIP
LOW DECK WO/REAR BODY<PK4> BRK SYSTEM RETARDER<RE2> (C) ID=9 L=50 		0-95234-885-0 01 1 0801-
434 CLIP
LOW DECK WO/REAR BODY<PK4> BRK SYSTEM RETARDER<RE2> (A) L=350 		1-09707-183-0 09 1 0801-
434 CLIP
BRK SYSTEM RETARDER<RE2> (A) L=350 		1-09707-183-0 07 1 0612-
434 CLIP
EXC. BRK SYSTEM RETARDER<RE2> (A) L=350 		1-09707-183-0 08 1 0612-
434 CLIP
(B) ID=25 H=60 L=35 		1-09701-103-0 01 1 0612-0712
434 CLIP
EXC. LOW DECK WO/REAR BODY<PK4> (B) ID=25 H=60 L=35 		1-09701-103-0 01 1 0801-
444 BOLT; UNION
M8X20 FLANGE 		0-28050-820-0 02 1 0904-
444 BOLT; UNION
LOW DECK WO/REAR BODY<PK4> M8X20 FLANGE 		0-28050-820-0 03 1 0801-
444 BOLT; UNION
BRK SYSTEM RETARDER<RE2> M8X20 FLANGE 		0-28050-820-0 01 1 0612-0706
444 BOLT; UNION
M8X20 FLANGE 		0-28050-820-0 01 1 0707-0712
444 BOLT; UNION
BRK SYSTEM RETARDER<RE2> M8X20 FLANGE 		0-28050-820-0 01 1 0707-0712
444 BOLT; UNION
M8X20 FLANGE 		0-28050-820-0 01 1 0801-0801
444 BOLT; UNION
LOW DECK WO/REAR BODY<PK4> M8X20 FLANGE 		0-28050-820-0 01 1 0801-0801
444 BOLT; UNION
BRK SYSTEM RETARDER<RE2> EXC. LOW DECK WO/REAR BODY<PK4> M8X20 FLANGE 		0-28050-820-0 01 1 0801-0801
444 BOLT; UNION
LOW DECK WO/REAR BODY<PK4> M8X20 FLANGE 		0-28050-820-0 01 1 0802-
444 BOLT; UNION
BRK SYSTEM RETARDER<RE2> EXC. LOW DECK WO/REAR BODY<PK4> M8X20 FLANGE 		0-28050-820-0 01 1 0802-
444 BOLT; UNION
M8X20 FLANGE 		0-28050-820-0 05 1 0612-0706
444 BOLT; UNION
M8X20 FLANGE 		0-28050-820-0 04 1 0707-0712
444 BOLT; UNION
EXC. LOW DECK WO/REAR BODY<PK4> M8X20 FLANGE 		0-28050-820-0 04 1 0801-0801
444 BOLT; UNION
EXC. LOW DECK WO/REAR BODY<PK4> M8X20 FLANGE 		0-28050-820-0 05 1 0802-

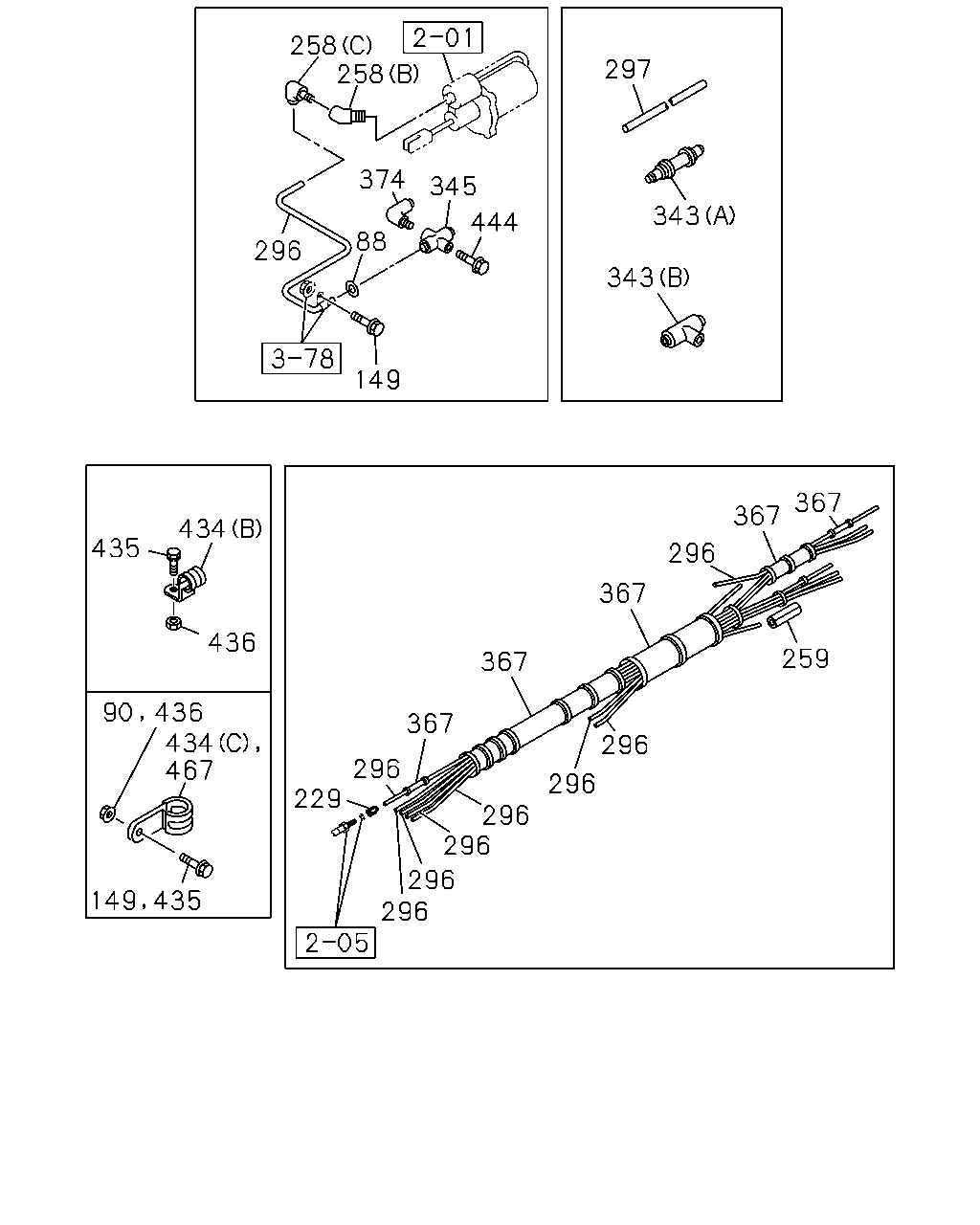

çizim 139123
258 258 296 149 88 374 345 444 297 343 343 434 435 436 90 436 434 467 149 435 229 296 367 367 367 296 367 367 259 296 296 296 296 296 296
BalonParca AdiParca NoAdetTipApplied Date
88 GASKET; NYLON TUBE
ID=14.2 OD=23.0 		9-09572-014-0 01 1 0612-
90 NUT; TUBE CLIP
LOW DECK WO/REAR BODY<PK4> M8 FLANGE 		0-91180-108-0 01 1 0802-
149 BOLT; TUBE CLIP
M8X30 FLANGE 		0-28650-830-0 01 1 0612-0801
149 BOLT; TUBE CLIP
M8X30 FLANGE 		0-28650-830-0 01 1 0802-
149 BOLT; TUBE CLIP
LOW DECK WO/REAR BODY<PK4> M8X30 FLANGE 		0-28650-830-0 01 1 0802-
229 ADAPTER; NYLON TUBE
M14 & PT1/4 STRAIGHT 		1-09669-130-0 01 1 0612-
258 CONNECTOR; NYLON TUBE
(A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0612-0801
258 CONNECTOR; NYLON TUBE
LOW DECK WO/REAR BODY<PK4> EXC. BRK SYSTEM RETARDER<RE2> (A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0802-
258 CONNECTOR; NYLON TUBE
EXC. LOW DECK WO/REAR BODY<PK4> (A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0802-
258 CONNECTOR; NYLON TUBE
(C) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0612-
258 CONNECTOR; NYLON TUBE
(B) R1/4 & RC1/4 		1-09664-211-0 01 1 0612-
259 SLEEVE; RUBBER,NYLON TUBE
DOOR CONT AIR W/SUB AIR TANK<SGW> ID=17 OD=21 L=40 		1-09337-012-0 01 1 0612-
259 SLEEVE; RUBBER,NYLON TUBE
ID=17 OD=21 L=40 		1-09337-012-0 06 1 0612-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0612-
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0612-
296 TUBE; NYLON
SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 0612-
296 TUBE; NYLON
SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 0612-
296 TUBE; NYLON
SERVICED BY L=12000 OD=8 		1-87411-010-0 AR 1 0612-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0612-
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0612-
296 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 0612-
296 TUBE; NYLON
SERVICED BY L=8000 OD=12 		1-87411-014-0 AR 1 0612-
297 TUBE; NYLON
LOW DECK WO/REAR BODY<PK4> SERVICED BY L=2000 OD=8 		1-87411-006-0 02 1 0801-0903
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 02 1 0904-
343 UNION; NYLON TUBE
LOW DECK WO/REAR BODY<PK4> (A) 		1-09660-798-0 02 1 0801-0903
343 UNION; NYLON TUBE
(B) DIN8X2 & M8 2WAY 		1-09661-133-0 02 1 0904-
345 UNION; AIR PIPE
BRK SYSTEM RETARDER<RE2> DIN12X2 & R3/8 3WAY 		1-09661-131-0 01 1 0612-0801
345 UNION; AIR PIPE
BRK SYSTEM RETARDER<RE2> EXC. LOW DECK WO/REAR BODY<PK4> DIN12X2 & R3/8 3WAY 		1-09661-131-0 01 1 0802-
367 TUBE; CORRUGATE
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0612-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0612-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 0612-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=15 		1-87411-025-0 AR 1 0612-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87411-027-0 AR 1 0612-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=32 		1-87411-035-0 AR 1 0612-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 AR 1 0701-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87411-033-0 AR 1 0801-
374 CONNECTOR
BRK SYSTEM RETARDER<RE2> DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0612-0801
374 CONNECTOR
BRK SYSTEM RETARDER<RE2> EXC. LOW DECK WO/REAR BODY<PK4> DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0802-
434 CLIP
LOW DECK WO/REAR BODY<PK4> (B) ID=25 H=30 L=35 		1-09700-944-0 01 1 0801-
434 CLIP
LOW DECK WO/REAR BODY<PK4> BRK SYSTEM RETARDER<RE2> (C) ID=9 L=50 		0-95234-885-0 01 1 0801-
434 CLIP
LOW DECK WO/REAR BODY<PK4> BRK SYSTEM RETARDER<RE2> (A) L=350 		1-09707-183-0 09 1 0801-
434 CLIP
BRK SYSTEM RETARDER<RE2> (A) L=350 		1-09707-183-0 07 1 0612-
434 CLIP
EXC. BRK SYSTEM RETARDER<RE2> (A) L=350 		1-09707-183-0 08 1 0612-
434 CLIP
(B) ID=25 H=60 L=35 		1-09701-103-0 01 1 0612-0712
434 CLIP
EXC. LOW DECK WO/REAR BODY<PK4> (B) ID=25 H=60 L=35 		1-09701-103-0 01 1 0801-
435 BOLT; CLIP
LOW DECK WO/REAR BODY<PK4> BRK SYSTEM RETARDER<RE2> M8X30 FLANGE 		0-28650-830-0 01 1 0801-
435 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 0612-
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0612-0712
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0801-
436 NUT; CLIP
LOW DECK WO/REAR BODY<PK4> BRK SYSTEM RETARDER<RE2> M8 FLANGE 		0-91180-108-0 01 1 0801-
444 BOLT; UNION
M8X20 FLANGE 		0-28050-820-0 02 1 0904-
444 BOLT; UNION
LOW DECK WO/REAR BODY<PK4> M8X20 FLANGE 		0-28050-820-0 03 1 0801-
444 BOLT; UNION
BRK SYSTEM RETARDER<RE2> M8X20 FLANGE 		0-28050-820-0 01 1 0612-0706
444 BOLT; UNION
M8X20 FLANGE 		0-28050-820-0 01 1 0707-0712
444 BOLT; UNION
BRK SYSTEM RETARDER<RE2> M8X20 FLANGE 		0-28050-820-0 01 1 0707-0712
444 BOLT; UNION
M8X20 FLANGE 		0-28050-820-0 01 1 0801-0801
444 BOLT; UNION
LOW DECK WO/REAR BODY<PK4> M8X20 FLANGE 		0-28050-820-0 01 1 0801-0801
444 BOLT; UNION
BRK SYSTEM RETARDER<RE2> EXC. LOW DECK WO/REAR BODY<PK4> M8X20 FLANGE 		0-28050-820-0 01 1 0801-0801
444 BOLT; UNION
LOW DECK WO/REAR BODY<PK4> M8X20 FLANGE 		0-28050-820-0 01 1 0802-
444 BOLT; UNION
BRK SYSTEM RETARDER<RE2> EXC. LOW DECK WO/REAR BODY<PK4> M8X20 FLANGE 		0-28050-820-0 01 1 0802-
444 BOLT; UNION
M8X20 FLANGE 		0-28050-820-0 05 1 0612-0706
444 BOLT; UNION
M8X20 FLANGE 		0-28050-820-0 04 1 0707-0712
444 BOLT; UNION
EXC. LOW DECK WO/REAR BODY<PK4> M8X20 FLANGE 		0-28050-820-0 04 1 0801-0801
444 BOLT; UNION
EXC. LOW DECK WO/REAR BODY<PK4> M8X20 FLANGE 		0-28050-820-0 05 1 0802-
467 CLIP; NYLON TUBE
LOW DECK WO/REAR BODY<PK4> ID=19 L=20 		0-95235-836-0 01 1 0802-

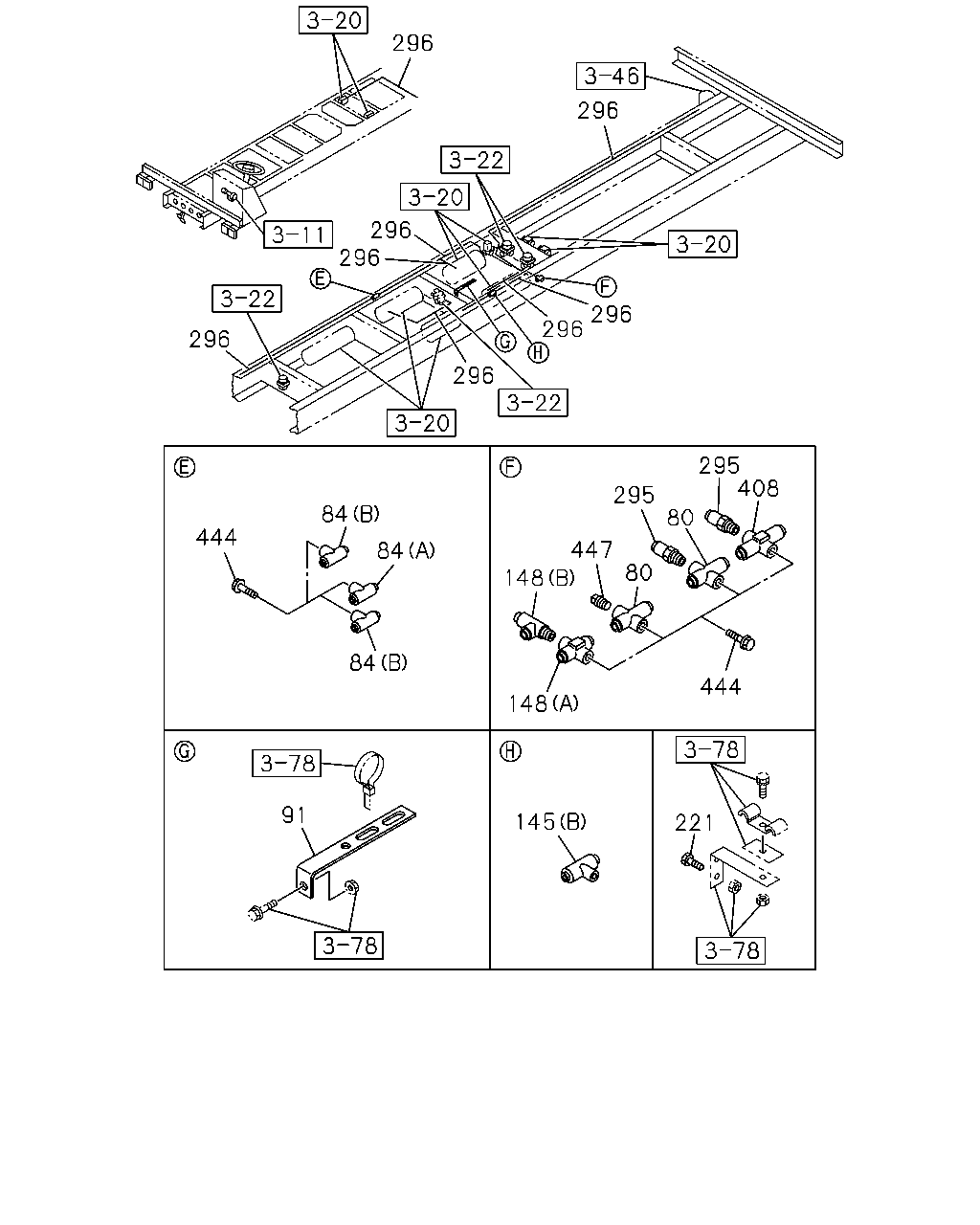

çizim 139125
296 296 296 296 296 296 296 296 295 408 295 84 80 444 447 148 84 80 84 444 148 91 145 221
BalonParca AdiParca NoAdetTipApplied Date
80 UNION; 3 WAY
DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 0612-0801
80 UNION; 3 WAY
AIR HORN(WB8) DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 0612-0801
80 UNION; 3 WAY
AIR HORN(WB8) EXC. DOOR CONT AIR W/SUB AIR TANK<SGW> DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 0612-0801
80 UNION; 3 WAY
AIR HORN(WB8) DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 0802-
80 UNION; 3 WAY
AIR HORN(WB8) EXC. DOOR CONT AIR W/SUB AIR TANK<SGW> DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 0802-
80 UNION; 3 WAY
LOW DECK WO/REAR BODY<PK4> EXC. BRK SYSTEM RETARDER<RE2> DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 0802-
80 UNION; 3 WAY
EXC. LOW DECK WO/REAR BODY<PK4> DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 0802-
84 UNION; NYLON TUBE
LOW DECK WO/REAR BODY<PK4> (A) 		1-09661-128-0 02 1 0801-
84 UNION; NYLON TUBE
LOW DECK WO/REAR BODY<PK4> (B) DIN8X2 & M8 2WAY 		1-09661-133-0 01 1 0801-
84 UNION; NYLON TUBE
(A) 		1-09661-128-0 01 1 0612-0712
84 UNION; NYLON TUBE
EXC. LOW DECK WO/REAR BODY<PK4> (A) 		1-09661-128-0 01 1 0801-
84 UNION; NYLON TUBE
(B) DIN8X2 & M8 2WAY 		1-09661-133-0 02 1 0612-0712
84 UNION; NYLON TUBE
EXC. LOW DECK WO/REAR BODY<PK4> (B) DIN8X2 & M8 2WAY 		1-09661-133-0 02 1 0801-
91 BRACKET; TUBE CLIP
L=100 H=30 		1-47477-645-2 01 1 0701-0703
91 BRACKET; TUBE CLIP
L=100 H=30 		1-47477-645-2 02 1 0704-0712
91 BRACKET; TUBE CLIP
EXC. LOW DECK WO/REAR BODY<PK4> L=100 H=30 		1-47477-645-2 02 1 0801-
145 UNION; NYLON TUBE
LOW DECK WO/REAR BODY<PK4> BRK SYSTEM RETARDER<RE2> (B) DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 0802-
145 UNION; NYLON TUBE
LOW DECK WO/REAR BODY<PK4> EXC. BRK SYSTEM RETARDER<RE2> (B) 		1-09661-128-0 01 1 0801-0801
145 UNION; NYLON TUBE
LOW DECK WO/REAR BODY<PK4> BRK SYSTEM RETARDER<RE2> (B) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 0802-
145 UNION; NYLON TUBE
(A) M12 ELBOW 		0-92125-206-0 01 1 0612-
148 CONNECTOR; UNION
DOOR CONT AIR W/SUB AIR TANK<SGW> AIR HORN(WB8) (A) DIN12X2 & R3/8 3WAY 		1-09661-131-0 01 1 0612-
148 CONNECTOR; UNION
DOOR CONT AIR W/SUB AIR TANK<SGW> AIR HORN(WB8) (B) 		1-09661-207-0 01 1 0612-
221 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0612-1104
221 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1105-
295 CONNECTOR; NYLON TUBE
AIR HORN(WB8) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0612-
295 CONNECTOR; NYLON TUBE
DOOR CONT AIR W/SUB AIR TANK<SGW> EXC. AIR HORN(WB8) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0612-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0612-
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0612-
296 TUBE; NYLON
SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 0612-
296 TUBE; NYLON
SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 0612-
296 TUBE; NYLON
SERVICED BY L=12000 OD=8 		1-87411-010-0 AR 1 0612-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0612-
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0612-
296 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 0612-
296 TUBE; NYLON
SERVICED BY L=8000 OD=12 		1-87411-014-0 AR 1 0612-
408 UNION; 3 WAY,NYLON TUBE
DOOR CONT AIR W/SUB AIR TANK<SGW> EXC. AIR HORN(WB8) DIN12X2 & R3/8 3WAY 		1-09661-131-0 01 1 0612-
444 BOLT; UNION
M8X20 FLANGE 		0-28050-820-0 02 1 0904-
444 BOLT; UNION
LOW DECK WO/REAR BODY<PK4> M8X20 FLANGE 		0-28050-820-0 03 1 0801-
444 BOLT; UNION
BRK SYSTEM RETARDER<RE2> M8X20 FLANGE 		0-28050-820-0 01 1 0612-0706
444 BOLT; UNION
M8X20 FLANGE 		0-28050-820-0 01 1 0707-0712
444 BOLT; UNION
BRK SYSTEM RETARDER<RE2> M8X20 FLANGE 		0-28050-820-0 01 1 0707-0712
444 BOLT; UNION
M8X20 FLANGE 		0-28050-820-0 01 1 0801-0801
444 BOLT; UNION
LOW DECK WO/REAR BODY<PK4> M8X20 FLANGE 		0-28050-820-0 01 1 0801-0801
444 BOLT; UNION
BRK SYSTEM RETARDER<RE2> EXC. LOW DECK WO/REAR BODY<PK4> M8X20 FLANGE 		0-28050-820-0 01 1 0801-0801
444 BOLT; UNION
LOW DECK WO/REAR BODY<PK4> M8X20 FLANGE 		0-28050-820-0 01 1 0802-
444 BOLT; UNION
BRK SYSTEM RETARDER<RE2> EXC. LOW DECK WO/REAR BODY<PK4> M8X20 FLANGE 		0-28050-820-0 01 1 0802-
444 BOLT; UNION
M8X20 FLANGE 		0-28050-820-0 05 1 0612-0706
444 BOLT; UNION
M8X20 FLANGE 		0-28050-820-0 04 1 0707-0712
444 BOLT; UNION
EXC. LOW DECK WO/REAR BODY<PK4> M8X20 FLANGE 		0-28050-820-0 04 1 0801-0801
444 BOLT; UNION
EXC. LOW DECK WO/REAR BODY<PK4> M8X20 FLANGE 		0-28050-820-0 05 1 0802-
447 PLUG; UNION
AIR HORN(WB8) EXC. DOOR CONT AIR W/SUB AIR TANK<SGW> PT3/8 		9-09204-517-0 01 1 0612-

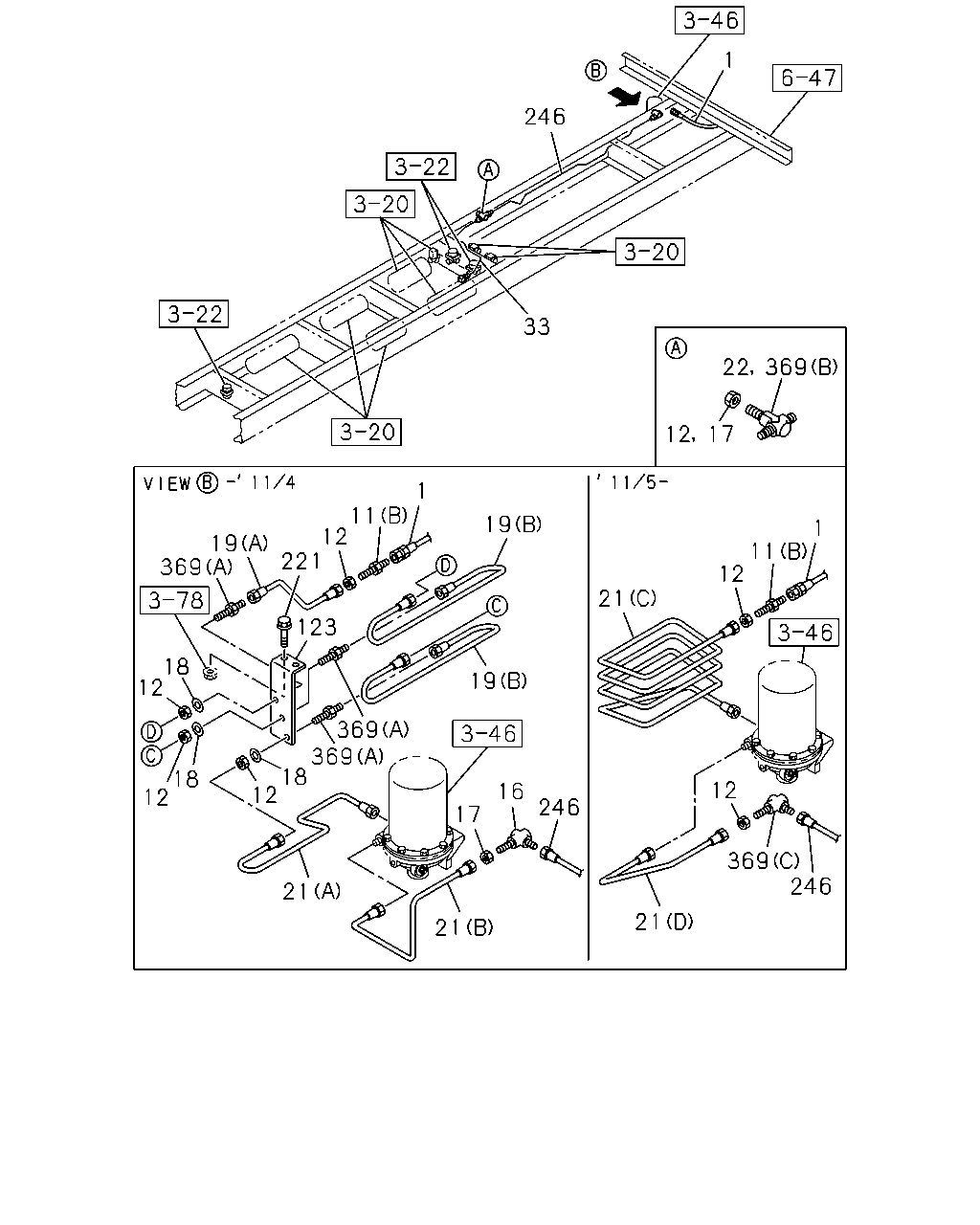

çizim 139127
1 246 33 22 369 12 17 1 11 12 22 19 1 11 12 19 369 21 123 18 12 19 369 369 18 12 18 12 12 16 246 17 369 246 21 21 21
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK 1-09363-871-0 01 1 0612-
11 UNION; AIR PIPE
(B) M22 		0-92123-315-0 01 1 0612-
11 UNION; AIR PIPE
(A) M12 ELBOW 		0-92125-206-0 02 1 0612-
12 NUT; UNION
M14 		0-91111-514-0 01 1 0612-1104
12 NUT; UNION
M22 		0-91111-522-0 04 1 0612-1104
12 NUT; UNION
M22 		0-91111-522-0 02 1 1105-
12 NUT; UNION
M12 		9-09840-280-0 02 1 0612-
16 UNION; AIR PIPE
M22 		0-92135-215-0 01 1 0612-1104
17 NUT; UNION
M22 		0-91111-522-0 01 1 0612-1104
17 NUT; UNION
M14 		0-91111-514-0 01 1 1105-
18 WASHER; LK,UNION
ID=22.5 		0-91510-622-0 03 1 0612-1104
19 PIPE; AIR,CONNECTOR TO CONNECTOR
(A) L=337 		8-98055-825-0 01 1 0612-1104
19 PIPE; AIR,CONNECTOR TO CONNECTOR
(B) L=377 		8-98055-826-0 02 1 0612-1104
21 PIPE; AIR,UNION TO AIR DRYER
(A) L=377 		8-98055-827-0 01 1 0612-1104
21 PIPE; AIR,UNION TO AIR DRYER
(D) 		8-98105-794-0 01 1 1105-
21 PIPE; AIR,UNION TO AIR DRYER
(B) L=772 		8-98055-828-0 01 1 0612-1104
21 PIPE; AIR,UNION TO AIR DRYER
(C) 		8-98112-687-0 01 1 1105-
22 NIPPLE; AIR PIPE
M22 2WAY 		1-09654-212-1 01 1 1105-
33 PIPE; AIR,UNION TO AIR TANK
LOW DECK WO/REAR BODY<PK4> L=1348 		8-98072-520-0 01 1 0801-
33 PIPE; AIR,UNION TO AIR TANK
L=1297 		1-49124-939-0 01 1 0612-0712
33 PIPE; AIR,UNION TO AIR TANK
EXC. LOW DECK WO/REAR BODY<PK4> L=1297 		1-49124-939-0 01 1 0801-
123 BRACKET; UNION 8-98055-758-0 01 1 0612-1104
246 PIPE; AIR,UNION TO UNION
L=1488 		1-49124-938-0 01 1 0612-1104
246 PIPE; AIR,UNION TO UNION
L=1488 		8-98105-792-0 01 1 1105-
369 UNION; AIR PIPE
(A) M22 		0-92123-315-0 03 1 0612-1104
369 UNION; AIR PIPE
(B) M22 2WAY 		1-09654-212-1 01 1 0612-1104
369 UNION; AIR PIPE
(C) M22 		0-92135-215-0 01 1 1105-

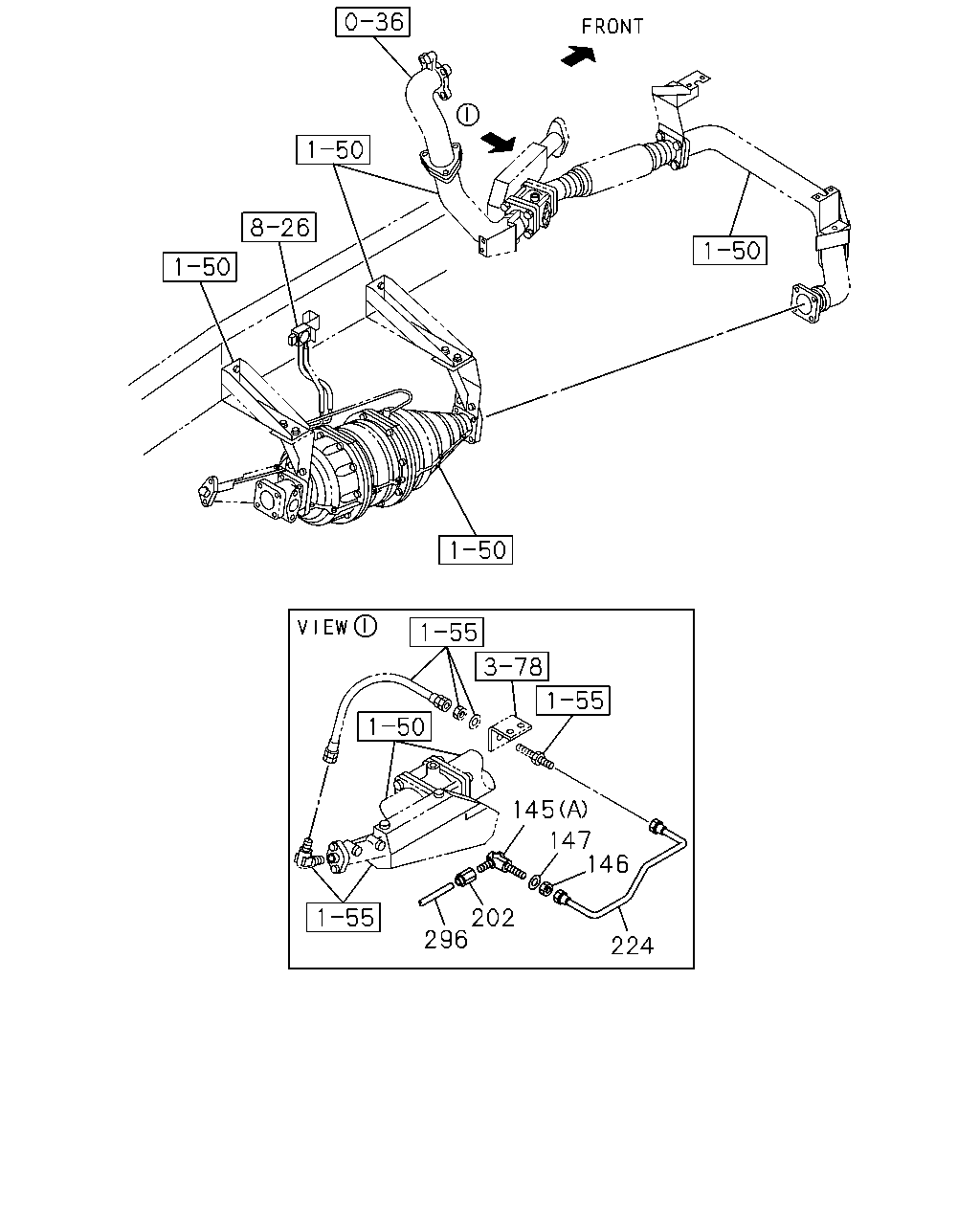

çizim 139134
145 147 146 202 296 224
BalonParca AdiParca NoAdetTipApplied Date
145 UNION; NYLON TUBE
LOW DECK WO/REAR BODY<PK4> BRK SYSTEM RETARDER<RE2> (B) DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 0802-
145 UNION; NYLON TUBE
LOW DECK WO/REAR BODY<PK4> EXC. BRK SYSTEM RETARDER<RE2> (B) 		1-09661-128-0 01 1 0801-0801
145 UNION; NYLON TUBE
LOW DECK WO/REAR BODY<PK4> BRK SYSTEM RETARDER<RE2> (B) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 0802-
145 UNION; NYLON TUBE
(A) M12 ELBOW 		0-92125-206-0 01 1 0612-
146 NUT; UNION
M12 		9-09840-280-0 01 1 0612-
147 WASHER; LK,UNION
ID=12.2 		0-91510-512-0 01 1 0612-
202 ADAPTER
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0612-
224 PIPE; AIR,UNION TO FLEX HOSE
L=406 		8-98055-824-0 01 1 0612-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0612-
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0612-
296 TUBE; NYLON
SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 0612-
296 TUBE; NYLON
SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 0612-
296 TUBE; NYLON
SERVICED BY L=12000 OD=8 		1-87411-010-0 AR 1 0612-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0612-
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0612-
296 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 0612-
296 TUBE; NYLON
SERVICED BY L=8000 OD=12 		1-87411-014-0 AR 1 0612-

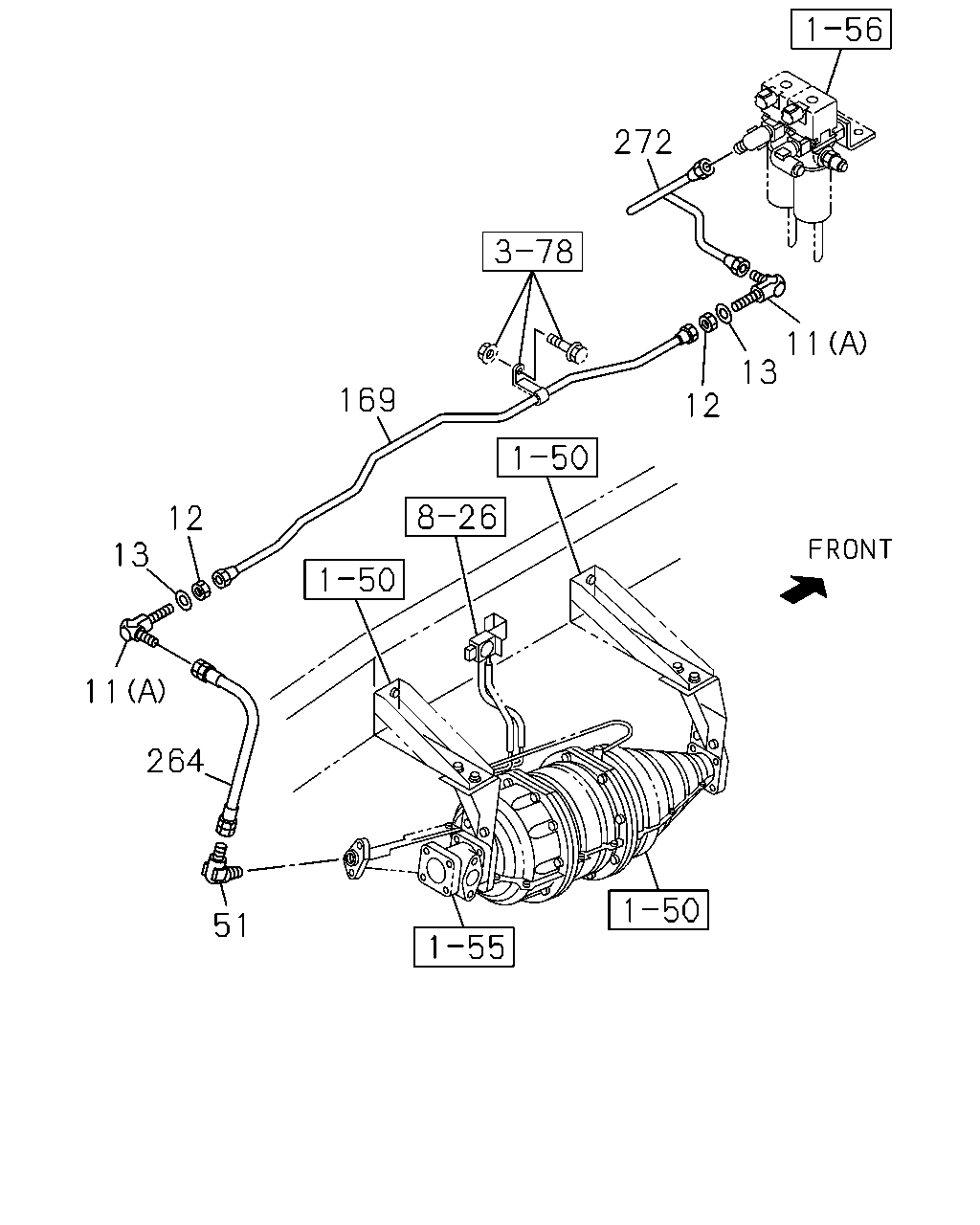

çizim 139151
272 11 13 169 12 12 13 11 264 51
BalonParca AdiParca NoAdetTipApplied Date
11 UNION; AIR PIPE
(B) M22 		0-92123-315-0 01 1 0612-
11 UNION; AIR PIPE
(A) M12 ELBOW 		0-92125-206-0 02 1 0612-
12 NUT; UNION
M14 		0-91111-514-0 01 1 0612-1104
12 NUT; UNION
M22 		0-91111-522-0 04 1 0612-1104
12 NUT; UNION
M22 		0-91111-522-0 02 1 1105-
12 NUT; UNION
M12 		9-09840-280-0 02 1 0612-
13 WASHER; LK,UNION
ID=12.2 		0-91510-512-0 02 1 0612-
51 UNION
M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0612-
169 PIPE; AIR,UNION TO FLEX HOSE
L=1169 SERVICED BY L=1200 		1-47428-816-0 01 1 0612-
264 HOSE; FLEX
L=250 		1-09363-618-0 01 1 0612-
272 PIPE; AIR,MAG VLV TO UNION
L=345 		8-98055-823-0 01 1 0612-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
