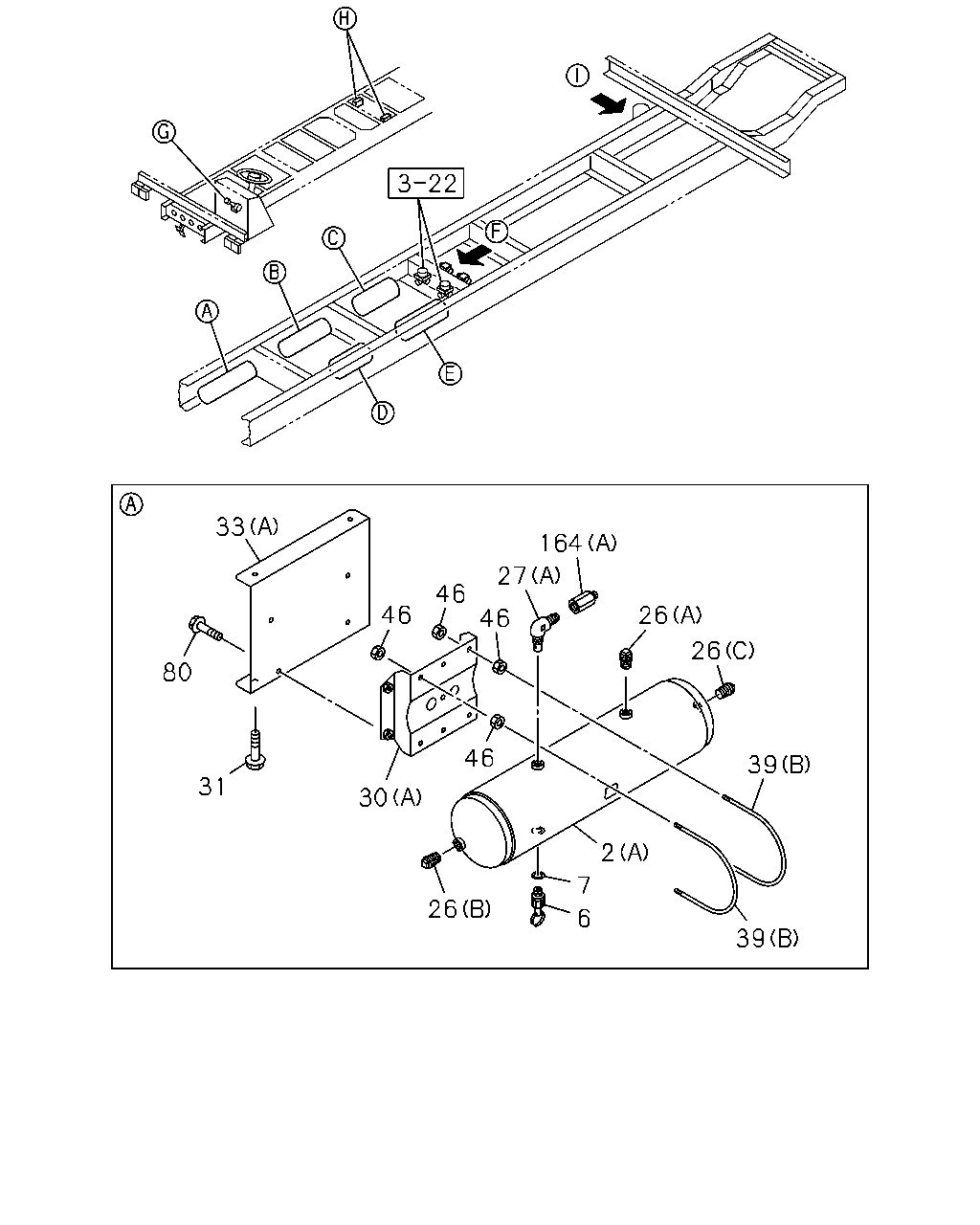

3-20 — AIR TANK (#27355) — 174 parça

33 164 27 46 46 26 46 26 80 46 39 31 30 2 7 26 6 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	TANK; AIR (B)	1-48371-108-0	01	1	0612-
2	TANK; AIR DOOR CONT AIR W/SUB AIR TANK<SGW> (A)	1-48370-153-0	01	1	0612-
6	COCK; DRAIN,AIR TANK LOW DECK WO/REAR BODY<PK4>	1-48312-017-0	05	1	0801-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	05	1	0612-0712
6	COCK; DRAIN,AIR TANK EXC. LOW DECK WO/REAR BODY<PK4>	1-48312-015-0	05	1	0801-
6	COCK; DRAIN,AIR TANK DOOR CONT AIR W/SUB AIR TANK<SGW>	1-48312-015-0	01	1	0612-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	05	1	0612-
7	GASKET; DRAIN COCK DOOR CONT AIR W/SUB AIR TANK<SGW> ID=14	1-09630-145-0	01	1	0612-
26	PLUG; SUB AIR TANK (B) PT3/4	9-09204-526-0	02	1	0612-
26	PLUG; SUB AIR TANK DOOR CONT AIR W/SUB AIR TANK<SGW> (A) PT3/8	9-09204-517-0	01	1	0612-
26	PLUG; SUB AIR TANK DOOR CONT AIR W/SUB AIR TANK<SGW> (B) PT3/4	9-09204-526-0	01	1	0612-
26	PLUG; SUB AIR TANK DOOR CONT AIR W/SUB AIR TANK<SGW> (C) PT1/4	9-99204-513-0	01	1	0612-
27	UNION; ELBOW,AIR TANK (B) R1/4 & RC1/4 ELBOW	1-09660-501-0	01	1	0612-1005
27	UNION; ELBOW,AIR TANK (B) PT1/4 2WAY	1-09660-693-0	01	1	1006-
27	UNION; ELBOW,AIR TANK (C) DIN12X2 & R3/8 3WAY	1-09661-005-0	01	1	0612-
27	UNION; ELBOW,AIR TANK DOOR CONT AIR W/SUB AIR TANK<SGW> (A) M20 & PT3/4	1-48411-009-1	01	1	0612-
30	BRACKET; AIR TANK,SUB (B) L=300	1-48317-247-6	02	1	0612-
30	BRACKET; AIR TANK,SUB DOOR CONT AIR W/SUB AIR TANK<SGW> (A)	1-48317-473-2	01	1	0612-
31	BOLT; BRKT TO FRAME DOOR CONT AIR W/SUB AIR TANK<SGW> M12X30 FLANGE	0-28651-230-0	04	1	0612-
31	BOLT; BRKT TO FRAME M12X30 FLANGE	0-28651-230-0	12	1	0612-
33	BRACKET; BRKT,AIR TANK LOW DECK WO/REAR BODY<PK4> (B)	8-98072-213-0	01	1	0801-
33	BRACKET; BRKT,AIR TANK LOW DECK WO/REAR BODY<PK4> (D)	8-98072-214-0	02	1	0801-
33	BRACKET; BRKT,AIR TANK LOW DECK WO/REAR BODY<PK4> (A)	8-98072-215-0	01	1	0801-
33	BRACKET; BRKT,AIR TANK DOOR CONT AIR W/SUB AIR TANK<SGW> (A)	1-48316-081-0	01	1	0612-0712
33	BRACKET; BRKT,AIR TANK (A)	1-48316-081-0	01	1	0612-0712
33	BRACKET; BRKT,AIR TANK DOOR CONT AIR W/SUB AIR TANK<SGW> (A)	1-48316-081-0	01	1	0801-
33	BRACKET; BRKT,AIR TANK EXC. LOW DECK WO/REAR BODY<PK4> (A)	1-48316-081-0	01	1	0801-
33	BRACKET; BRKT,AIR TANK (B)	1-48316-079-0	02	1	0612-0712
33	BRACKET; BRKT,AIR TANK EXC. LOW DECK WO/REAR BODY<PK4> (B)	1-48316-079-0	02	1	0801-
33	BRACKET; BRKT,AIR TANK (C)	1-48316-080-0	01	1	0612-0712
33	BRACKET; BRKT,AIR TANK EXC. LOW DECK WO/REAR BODY<PK4> (C)	1-48316-080-0	01	1	0801-
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	06	1	0612-
39	U-BOLT; AIR TANK DOOR CONT AIR W/SUB AIR TANK<SGW> (B) L=210	1-48317-458-1	02	1	0612-
39	U-BOLT; AIR TANK (B) L=210	1-48317-458-1	02	1	0612-
46	NUT; U-BOLT M8	0-91111-508-0	32	1	0612-0712
46	NUT; U-BOLT M8	0-91110-508-0	32	1	0801-
46	NUT; U-BOLT DOOR CONT AIR W/SUB AIR TANK<SGW> M8	0-91110-508-0	08	1	0612-
80	BOLT; BRKT M12X30 FLANGE	0-28651-230-0	12	1	0707-
80	BOLT; BRKT DOOR CONT AIR W/SUB AIR TANK<SGW> M10X30 FLANGE	0-28651-030-0	04	1	0612-
80	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	04	1	0612-
80	BOLT; BRKT M12X30 FLANGE	0-28651-230-0	16	1	0612-0706
80	BOLT; BRKT M12X30 FLANGE	0-28651-230-0	04	1	0707-
164	CONNECTOR; SUB AIR TANK (B) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	0612-
164	CONNECTOR; SUB AIR TANK DOOR CONT AIR W/SUB AIR TANK<SGW> (A) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0612-

126 101 107 176 257 257 176 100 126 8 113 114 101 102 317 109 176 257 257 176 100 103 317 178 177

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	CONNECTOR; AIR TANK (A) DIN12 & M12 STRAIGHT	1-09660-878-0	03	1	0612-
8	CONNECTOR; AIR TANK (B) DIN8 R1/4 STRAIGHT	1-09660-963-0	02	1	0612-
100	BOLT; MODULATOR ANTILOCK BRK SYSTEM<BFA> M8X80 FLANGE	0-28050-880-0	08	1	0612-
101	NUT; MODULATOR ANTILOCK BRK SYSTEM<BFA> M8 FLANGE	0-91180-108-0	08	1	0612-
102	BRACKET; MODULATOR ANTILOCK BRK SYSTEM<BFA>	1-47479-519-0	02	1	0612-
103	BOLT; BRKT ANTILOCK BRK SYSTEM<BFA> M8X25 FLANGE	0-28650-825-0	04	1	0612-
107	MODULATOR; RR ANTILOCK BRK SYSTEM<BFA>	1-48240-115-0	02	1	0612-
109	MODULATOR; FRT ANTILOCK BRK SYSTEM<BFA>	1-48240-115-0	02	1	0612-
113	HOSE; VINYL,EXH L=650 SERVICED BY L=10000	9-09914-701-0	01	1	0612-
114	CLAMP; HOSE ID=14	1-09704-102-0	01	1	0612-
126	CONNECTOR; ELBOW (B) M22 & PT3/4 ELBOW	1-09650-277-0	02	1	0710-
126	CONNECTOR; ELBOW ANTILOCK BRK SYSTEM<BFA> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	0612-
176	ADAPTER ANTILOCK BRK SYSTEM<BFA> INNER PT3/8,OUTER M22	1-09650-494-1	04	1	0612-
177	HOSE; RUBBER,DRAIN L=90	9-09712-638-0	01	1	0612-
178	CLIP; HOSE ID=33.6	8-94362-518-0	01	1	0612-
257	GASKET; PLUG ANTILOCK BRK SYSTEM<BFA> ID=22.5	9-09571-422-0	04	1	0612-
317	CONNECTOR; MODULATOR ANTILOCK BRK SYSTEM<BFA> DIN12 & M22 STRAIGHT	1-09661-050-0	04	1	0612-

33 46 46 46 5 166 31 3 8 126 80 46 5 28 39 39 1 7 10 6 33 46 46 28 46 166 5 5 80 46 5 8 8 39 31 28 33 5 1 7 10 6 80 39 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

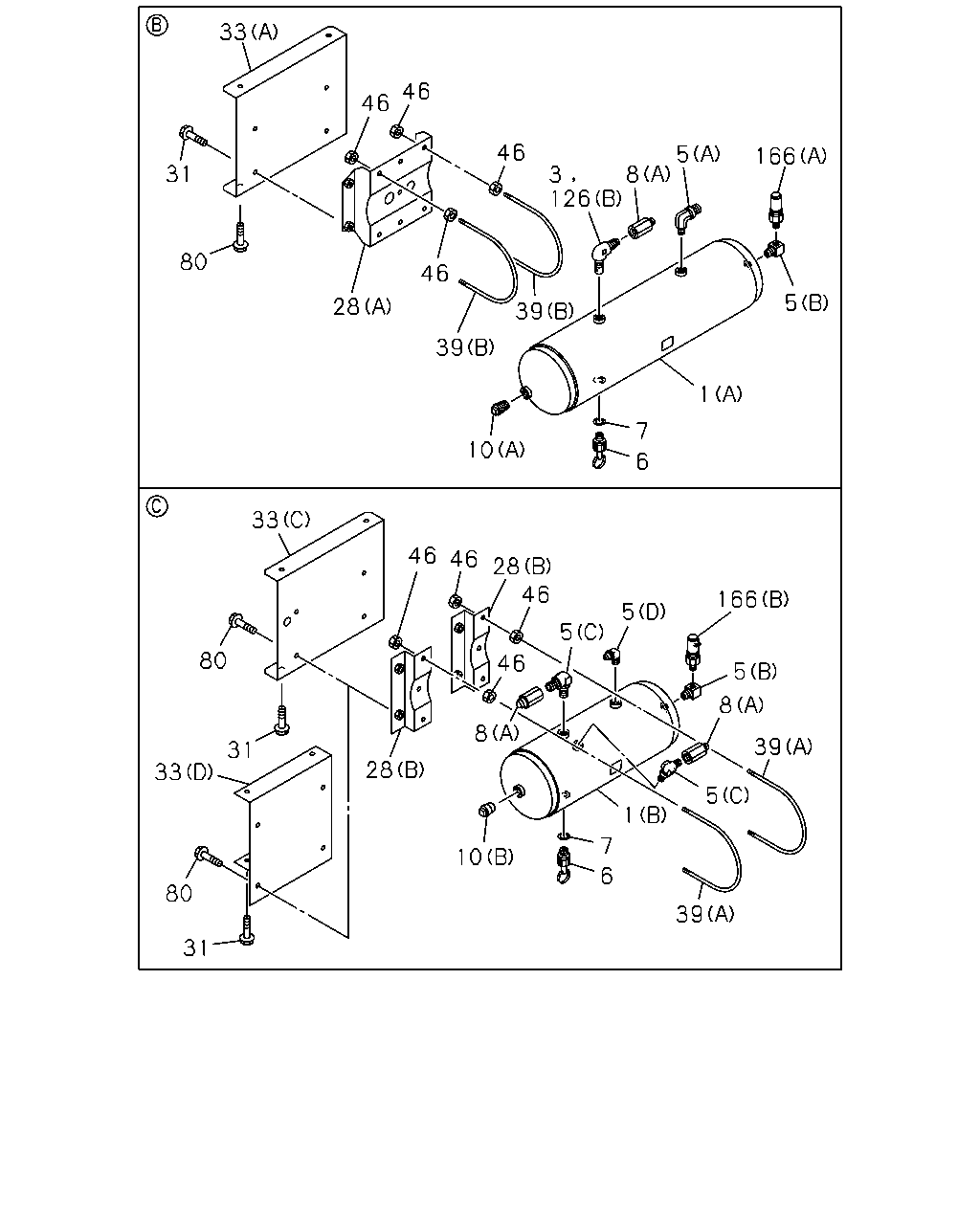

1	TANK ASM; AIR (A)	1-48370-153-0	01	1	0612-
1	TANK ASM; AIR (B)	1-48371-108-0	01	1	0612-
1	TANK ASM; AIR (C)	1-48371-109-0	01	1	0612-
3	VALVE; CHECK,AIR TANK M22 & PT3/4 ELBOW	1-48410-134-3	02	1	0612-0709
5	UNION; AIR TANK (C) M22 & PT3/4 ELBOW	1-09650-277-0	03	1	0612-
5	UNION; AIR TANK (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0612-
5	UNION; AIR TANK (B) R1/4 & RC1/4 ELBOW	1-09660-501-0	02	1	0612-1005
5	UNION; AIR TANK (B) PT1/4 2WAY	1-09660-693-0	02	1	1006-
5	UNION; AIR TANK (A) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	0612-
6	COCK; DRAIN,AIR TANK LOW DECK WO/REAR BODY<PK4>	1-48312-017-0	05	1	0801-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	05	1	0612-0712
6	COCK; DRAIN,AIR TANK EXC. LOW DECK WO/REAR BODY<PK4>	1-48312-015-0	05	1	0801-
6	COCK; DRAIN,AIR TANK DOOR CONT AIR W/SUB AIR TANK<SGW>	1-48312-015-0	01	1	0612-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	05	1	0612-
7	GASKET; DRAIN COCK DOOR CONT AIR W/SUB AIR TANK<SGW> ID=14	1-09630-145-0	01	1	0612-
8	CONNECTOR; AIR TANK (A) DIN12 & M12 STRAIGHT	1-09660-878-0	03	1	0612-
8	CONNECTOR; AIR TANK (B) DIN8 R1/4 STRAIGHT	1-09660-963-0	02	1	0612-
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	01	1	0612-
10	PLUG; AIR TANK (B) PT3/4	9-09204-526-0	02	1	0612-
10	PLUG; AIR TANK (C) PT1/4	9-99204-513-0	02	1	0612-
28	BRACKET; AIR TANK (B) L=300	1-48317-247-6	04	1	0612-
28	BRACKET; AIR TANK (A)	1-48317-473-2	01	1	0612-
31	BOLT; BRKT TO FRAME DOOR CONT AIR W/SUB AIR TANK<SGW> M12X30 FLANGE	0-28651-230-0	04	1	0612-
31	BOLT; BRKT TO FRAME M12X30 FLANGE	0-28651-230-0	12	1	0612-
33	BRACKET; BRKT,AIR TANK LOW DECK WO/REAR BODY<PK4> (B)	8-98072-213-0	01	1	0801-
33	BRACKET; BRKT,AIR TANK LOW DECK WO/REAR BODY<PK4> (D)	8-98072-214-0	02	1	0801-
33	BRACKET; BRKT,AIR TANK LOW DECK WO/REAR BODY<PK4> (A)	8-98072-215-0	01	1	0801-
33	BRACKET; BRKT,AIR TANK DOOR CONT AIR W/SUB AIR TANK<SGW> (A)	1-48316-081-0	01	1	0612-0712
33	BRACKET; BRKT,AIR TANK (A)	1-48316-081-0	01	1	0612-0712
33	BRACKET; BRKT,AIR TANK DOOR CONT AIR W/SUB AIR TANK<SGW> (A)	1-48316-081-0	01	1	0801-
33	BRACKET; BRKT,AIR TANK EXC. LOW DECK WO/REAR BODY<PK4> (A)	1-48316-081-0	01	1	0801-
33	BRACKET; BRKT,AIR TANK (B)	1-48316-079-0	02	1	0612-0712
33	BRACKET; BRKT,AIR TANK EXC. LOW DECK WO/REAR BODY<PK4> (B)	1-48316-079-0	02	1	0801-
33	BRACKET; BRKT,AIR TANK (C)	1-48316-080-0	01	1	0612-0712
33	BRACKET; BRKT,AIR TANK EXC. LOW DECK WO/REAR BODY<PK4> (C)	1-48316-080-0	01	1	0801-
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	06	1	0612-
39	U-BOLT; AIR TANK DOOR CONT AIR W/SUB AIR TANK<SGW> (B) L=210	1-48317-458-1	02	1	0612-
39	U-BOLT; AIR TANK (B) L=210	1-48317-458-1	02	1	0612-
46	NUT; U-BOLT M8	0-91111-508-0	32	1	0612-0712
46	NUT; U-BOLT M8	0-91110-508-0	32	1	0801-
46	NUT; U-BOLT DOOR CONT AIR W/SUB AIR TANK<SGW> M8	0-91110-508-0	08	1	0612-
80	BOLT; BRKT M12X30 FLANGE	0-28651-230-0	12	1	0707-
80	BOLT; BRKT DOOR CONT AIR W/SUB AIR TANK<SGW> M10X30 FLANGE	0-28651-030-0	04	1	0612-
80	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	04	1	0612-
80	BOLT; BRKT M12X30 FLANGE	0-28651-230-0	16	1	0612-0706
80	BOLT; BRKT M12X30 FLANGE	0-28651-230-0	04	1	0707-
126	CONNECTOR; ELBOW (B) M22 & PT3/4 ELBOW	1-09650-277-0	02	1	0710-
126	CONNECTOR; ELBOW ANTILOCK BRK SYSTEM<BFA> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	0612-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK (A) 530KPA	1-48340-054-1	01	1	0612-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK (B)	1-48340-058-2	01	1	0612-

39 26 164 3 26 27 33 46 30 46 2 39 167 46 46 27 7 104 31 6 80 30 39 5 11 5 10 5 1 33 46 28 46 46 39 46 7 5 10 104 7 6 6 28 31 80 3 126

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

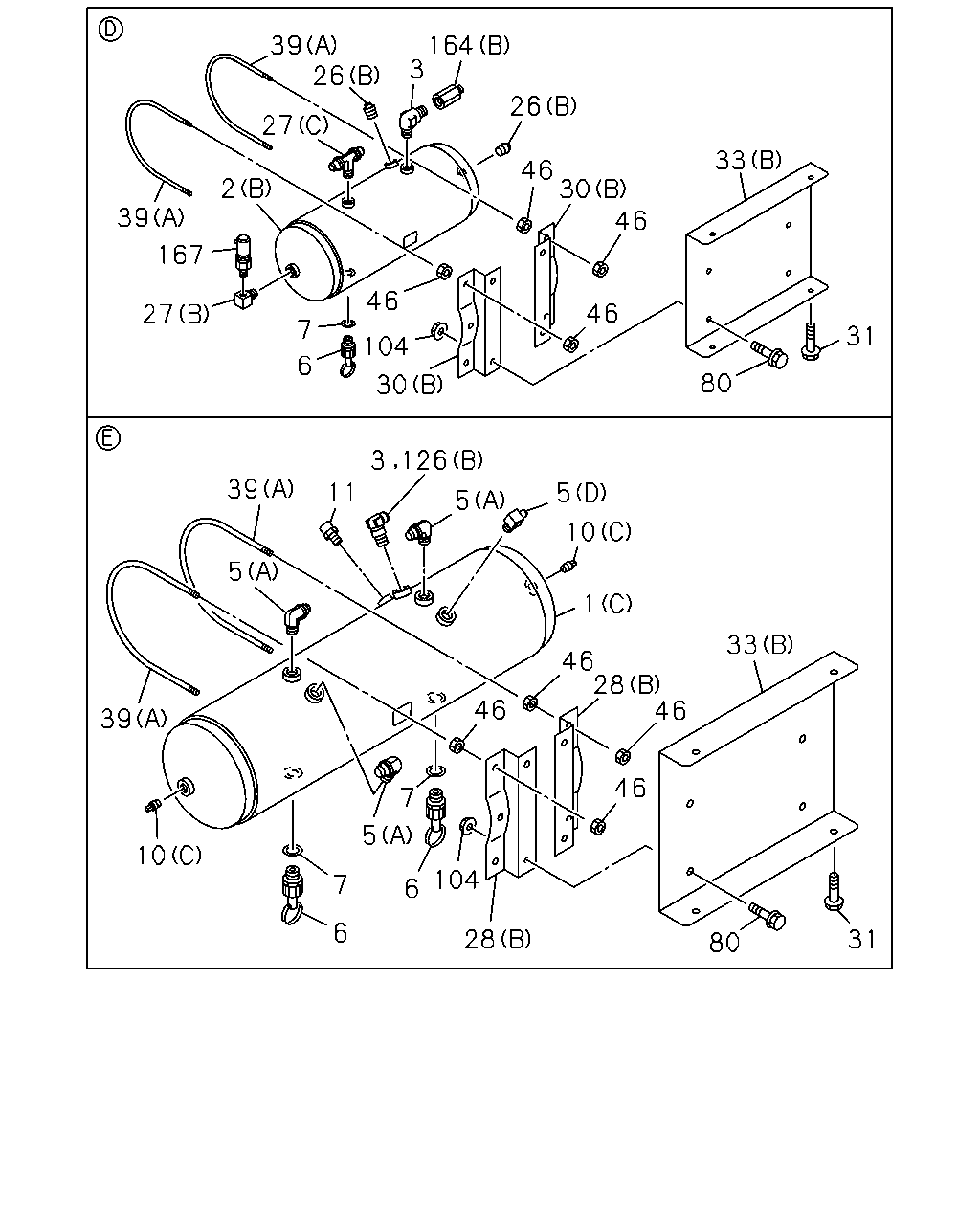

1	TANK ASM; AIR (A)	1-48370-153-0	01	1	0612-
1	TANK ASM; AIR (B)	1-48371-108-0	01	1	0612-
1	TANK ASM; AIR (C)	1-48371-109-0	01	1	0612-
2	TANK; AIR (B)	1-48371-108-0	01	1	0612-
2	TANK; AIR DOOR CONT AIR W/SUB AIR TANK<SGW> (A)	1-48370-153-0	01	1	0612-
3	VALVE; CHECK,AIR TANK M22 & PT3/4 ELBOW	1-48410-134-3	02	1	0612-0709
5	UNION; AIR TANK (C) M22 & PT3/4 ELBOW	1-09650-277-0	03	1	0612-
5	UNION; AIR TANK (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0612-
5	UNION; AIR TANK (B) R1/4 & RC1/4 ELBOW	1-09660-501-0	02	1	0612-1005
5	UNION; AIR TANK (B) PT1/4 2WAY	1-09660-693-0	02	1	1006-
5	UNION; AIR TANK (A) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	0612-
6	COCK; DRAIN,AIR TANK LOW DECK WO/REAR BODY<PK4>	1-48312-017-0	05	1	0801-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	05	1	0612-0712
6	COCK; DRAIN,AIR TANK EXC. LOW DECK WO/REAR BODY<PK4>	1-48312-015-0	05	1	0801-
6	COCK; DRAIN,AIR TANK DOOR CONT AIR W/SUB AIR TANK<SGW>	1-48312-015-0	01	1	0612-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	05	1	0612-
7	GASKET; DRAIN COCK DOOR CONT AIR W/SUB AIR TANK<SGW> ID=14	1-09630-145-0	01	1	0612-
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	01	1	0612-
10	PLUG; AIR TANK (B) PT3/4	9-09204-526-0	02	1	0612-
10	PLUG; AIR TANK (C) PT1/4	9-99204-513-0	02	1	0612-
11	VALVE; SAFETY,AIR TANK	1-48320-012-2	01	1	0612-
26	PLUG; SUB AIR TANK (B) PT3/4	9-09204-526-0	02	1	0612-
26	PLUG; SUB AIR TANK DOOR CONT AIR W/SUB AIR TANK<SGW> (A) PT3/8	9-09204-517-0	01	1	0612-
26	PLUG; SUB AIR TANK DOOR CONT AIR W/SUB AIR TANK<SGW> (B) PT3/4	9-09204-526-0	01	1	0612-
26	PLUG; SUB AIR TANK DOOR CONT AIR W/SUB AIR TANK<SGW> (C) PT1/4	9-99204-513-0	01	1	0612-
27	UNION; ELBOW,AIR TANK (B) R1/4 & RC1/4 ELBOW	1-09660-501-0	01	1	0612-1005
27	UNION; ELBOW,AIR TANK (B) PT1/4 2WAY	1-09660-693-0	01	1	1006-
27	UNION; ELBOW,AIR TANK (C) DIN12X2 & R3/8 3WAY	1-09661-005-0	01	1	0612-
27	UNION; ELBOW,AIR TANK DOOR CONT AIR W/SUB AIR TANK<SGW> (A) M20 & PT3/4	1-48411-009-1	01	1	0612-
28	BRACKET; AIR TANK (B) L=300	1-48317-247-6	04	1	0612-
28	BRACKET; AIR TANK (A)	1-48317-473-2	01	1	0612-
30	BRACKET; AIR TANK,SUB (B) L=300	1-48317-247-6	02	1	0612-
30	BRACKET; AIR TANK,SUB DOOR CONT AIR W/SUB AIR TANK<SGW> (A)	1-48317-473-2	01	1	0612-
31	BOLT; BRKT TO FRAME DOOR CONT AIR W/SUB AIR TANK<SGW> M12X30 FLANGE	0-28651-230-0	04	1	0612-
31	BOLT; BRKT TO FRAME M12X30 FLANGE	0-28651-230-0	12	1	0612-
33	BRACKET; BRKT,AIR TANK LOW DECK WO/REAR BODY<PK4> (B)	8-98072-213-0	01	1	0801-
33	BRACKET; BRKT,AIR TANK LOW DECK WO/REAR BODY<PK4> (D)	8-98072-214-0	02	1	0801-
33	BRACKET; BRKT,AIR TANK LOW DECK WO/REAR BODY<PK4> (A)	8-98072-215-0	01	1	0801-
33	BRACKET; BRKT,AIR TANK DOOR CONT AIR W/SUB AIR TANK<SGW> (A)	1-48316-081-0	01	1	0612-0712
33	BRACKET; BRKT,AIR TANK (A)	1-48316-081-0	01	1	0612-0712
33	BRACKET; BRKT,AIR TANK DOOR CONT AIR W/SUB AIR TANK<SGW> (A)	1-48316-081-0	01	1	0801-
33	BRACKET; BRKT,AIR TANK EXC. LOW DECK WO/REAR BODY<PK4> (A)	1-48316-081-0	01	1	0801-
33	BRACKET; BRKT,AIR TANK (B)	1-48316-079-0	02	1	0612-0712
33	BRACKET; BRKT,AIR TANK EXC. LOW DECK WO/REAR BODY<PK4> (B)	1-48316-079-0	02	1	0801-
33	BRACKET; BRKT,AIR TANK (C)	1-48316-080-0	01	1	0612-0712
33	BRACKET; BRKT,AIR TANK EXC. LOW DECK WO/REAR BODY<PK4> (C)	1-48316-080-0	01	1	0801-
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	06	1	0612-
39	U-BOLT; AIR TANK DOOR CONT AIR W/SUB AIR TANK<SGW> (B) L=210	1-48317-458-1	02	1	0612-
39	U-BOLT; AIR TANK (B) L=210	1-48317-458-1	02	1	0612-
46	NUT; U-BOLT M8	0-91111-508-0	32	1	0612-0712
46	NUT; U-BOLT M8	0-91110-508-0	32	1	0801-
46	NUT; U-BOLT DOOR CONT AIR W/SUB AIR TANK<SGW> M8	0-91110-508-0	08	1	0612-
80	BOLT; BRKT M12X30 FLANGE	0-28651-230-0	12	1	0707-
80	BOLT; BRKT DOOR CONT AIR W/SUB AIR TANK<SGW> M10X30 FLANGE	0-28651-030-0	04	1	0612-
80	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	04	1	0612-
80	BOLT; BRKT M12X30 FLANGE	0-28651-230-0	16	1	0612-0706
80	BOLT; BRKT M12X30 FLANGE	0-28651-230-0	04	1	0707-
104	NUT; BRKT M12 FLANGE	0-91180-212-0	12	1	0612-
126	CONNECTOR; ELBOW (B) M22 & PT3/4 ELBOW	1-09650-277-0	02	1	0710-
126	CONNECTOR; ELBOW ANTILOCK BRK SYSTEM<BFA> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	0612-
164	CONNECTOR; SUB AIR TANK (B) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	0612-
164	CONNECTOR; SUB AIR TANK DOOR CONT AIR W/SUB AIR TANK<SGW> (A) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0612-
167	SWITCH; LOW PRESS GAUGE,AIR TANK,SUB 530KPA	1-48340-054-1	01	1	0612-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
