3-08 — PARKING BRAKE (#27352) — 74 parça

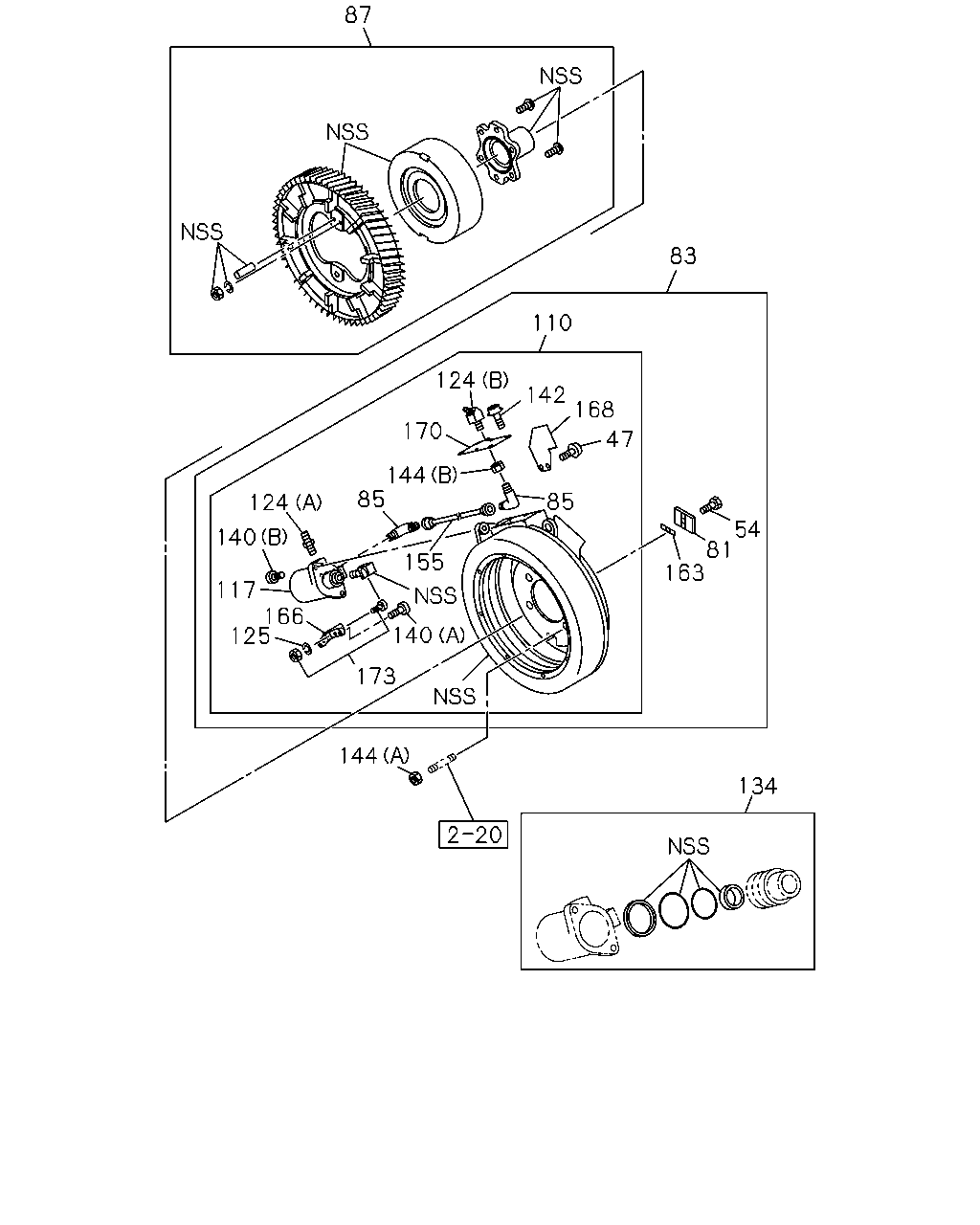

çizim 139099
87 83 110 124 142 168 170 47 144 85 85 124 54 81 163 140 155 117 166 125 140 173 144 134
BalonParca AdiParca NoAdetTipApplied Date
47 BOLT; SUPPORT PLATE
BRK SYSTEM RETARDER<RE2> M6X14 HEX SOCKET 		1-48629-145-0 02 1 0612-0712
47 BOLT; SUPPORT PLATE
BRK SYSTEM RETARDER<RE2> EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) M6X14 HEX SOCKET 		1-48629-145-0 02 1 0801-
54 BOLT; COVER
BRK SYSTEM RETARDER<RE2> M8X16 		9-05820-816-0 01 1 0612-0712
54 BOLT; COVER
BRK SYSTEM RETARDER<RE2> EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) M8X16 		9-05820-816-0 01 1 0801-0812
81 COVER; CHECK HOLE,PARKING BRK
BRK SYSTEM RETARDER<RE2> 		1-48629-124-0 01 1 0612-0712
81 COVER; CHECK HOLE,PARKING BRK
BRK SYSTEM RETARDER<RE2> EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-48629-124-0 01 1 0801-0812
83 RETARDER ASM; PARKING BRK
BRK SYSTEM RETARDER<RE2> 		1-48610-482-4 01 1 0612-0712
83 RETARDER ASM; PARKING BRK
BRK SYSTEM RETARDER<RE2> EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-48610-482-4 01 1 0801-
85 CONNECTOR; RETARDER
BRK SYSTEM RETARDER<RE2> 		1-48629-224-0 02 1 0612-0712
85 CONNECTOR; RETARDER
BRK SYSTEM RETARDER<RE2> EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-48629-224-0 02 1 0801-
87 DRUM; RETARDER,PARKING BRK
BRK SYSTEM RETARDER<RE2> 		1-48610-365-1 01 1 0612-0712
87 DRUM; RETARDER,PARKING BRK
BRK SYSTEM RETARDER<RE2> EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-48610-365-1 01 1 0801-
110 BRAKE ASM; PARKING
BRK SYSTEM RETARDER<RE2> 		1-48610-483-4 01 1 0612-0712
110 BRAKE ASM; PARKING
BRK SYSTEM RETARDER<RE2> EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-48610-483-4 01 1 0801-
117 CYLINDER ASM; AIR
BRK SYSTEM RETARDER<RE2> 		1-48629-220-0 01 1 0612-0712
117 CYLINDER ASM; AIR
BRK SYSTEM RETARDER<RE2> EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-48629-220-0 01 1 0801-
124 CONNECTOR; FLEX HOSE
BRK SYSTEM RETARDER<RE2> (A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0612-0712
124 CONNECTOR; FLEX HOSE
BRK SYSTEM RETARDER<RE2> EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) (A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0801-
124 CONNECTOR; FLEX HOSE
BRK SYSTEM RETARDER<RE2> (B) 		1-48629-243-0 01 1 0612-0712
124 CONNECTOR; FLEX HOSE
BRK SYSTEM RETARDER<RE2> EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) (B) 		1-48629-243-0 01 1 0801-
125 WASHER; LK
BRK SYSTEM RETARDER<RE2> ID=6.1 		0-91510-506-0 01 1 0612-0712
125 WASHER; LK
BRK SYSTEM RETARDER<RE2> EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) ID=6.1 		0-91510-506-0 01 1 0801-
134 REPAIR KIT; AIR CYL
BRK SYSTEM RETARDER<RE2> 		1-48629-230-0 01 1 0612-0712
134 REPAIR KIT; AIR CYL
BRK SYSTEM RETARDER<RE2> EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-48629-230-0 01 1 0801-
140 BOLT
BRK SYSTEM RETARDER<RE2> (B) 		1-48629-170-0 02 1 0612-0712
140 BOLT
BRK SYSTEM RETARDER<RE2> EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) (B) 		1-48629-170-0 02 1 0801-
140 BOLT
BRK SYSTEM RETARDER<RE2> (A) 		1-48629-182-0 04 1 0612-0712
140 BOLT
BRK SYSTEM RETARDER<RE2> EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) (A) 		1-48629-182-0 04 1 0801-
142 SCREW
BRK SYSTEM RETARDER<RE2> M6X14 HEX SOCKET 		1-48629-145-0 06 1 0612-0712
142 SCREW
BRK SYSTEM RETARDER<RE2> EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) M6X14 HEX SOCKET 		1-48629-145-0 06 1 0801-
144 NUT
BRK SYSTEM RETARDER<RE2> (B) 		1-48629-244-0 01 1 0612-0712
144 NUT
BRK SYSTEM RETARDER<RE2> EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) (B) 		1-48629-244-0 01 1 0801-
144 NUT
BRK SYSTEM RETARDER<RE2> (A) M14 FLANGE 		8-97365-444-0 04 1 0612-0712
144 NUT
BRK SYSTEM RETARDER<RE2> EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) (A) M14 FLANGE 		8-97365-444-0 04 1 0801-
155 TUBE
BRK SYSTEM RETARDER<RE2> 		1-48629-225-0 01 1 0612-0712
155 TUBE
BRK SYSTEM RETARDER<RE2> EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-48629-225-0 01 1 0801-
163 BAR; FLAT
BRK SYSTEM RETARDER<RE2> 		1-48629-125-0 01 1 0612-0712
163 BAR; FLAT
BRK SYSTEM RETARDER<RE2> EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-48629-125-0 01 1 0801-0812
166 ATTACHMENT; YOKE
BRK SYSTEM RETARDER<RE2> 		1-48629-181-0 01 1 0612-0712
166 ATTACHMENT; YOKE
BRK SYSTEM RETARDER<RE2> EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-48629-181-0 01 1 0801-
168 PROTECTOR; HEAT
BRK SYSTEM RETARDER<RE2> 		1-48629-222-0 01 1 0612-0712
168 PROTECTOR; HEAT
BRK SYSTEM RETARDER<RE2> EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-48629-222-0 01 1 0801-
170 COVER; CASE
BRK SYSTEM RETARDER<RE2> 		1-48629-219-0 01 1 0612-0712
170 COVER; CASE
BRK SYSTEM RETARDER<RE2> EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-48629-219-0 01 1 0801-
173 FOLLOWER
BRK SYSTEM RETARDER<RE2> 		1-48629-159-0 01 1 0612-0712
173 FOLLOWER
BRK SYSTEM RETARDER<RE2> EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-48629-159-0 01 1 0801-

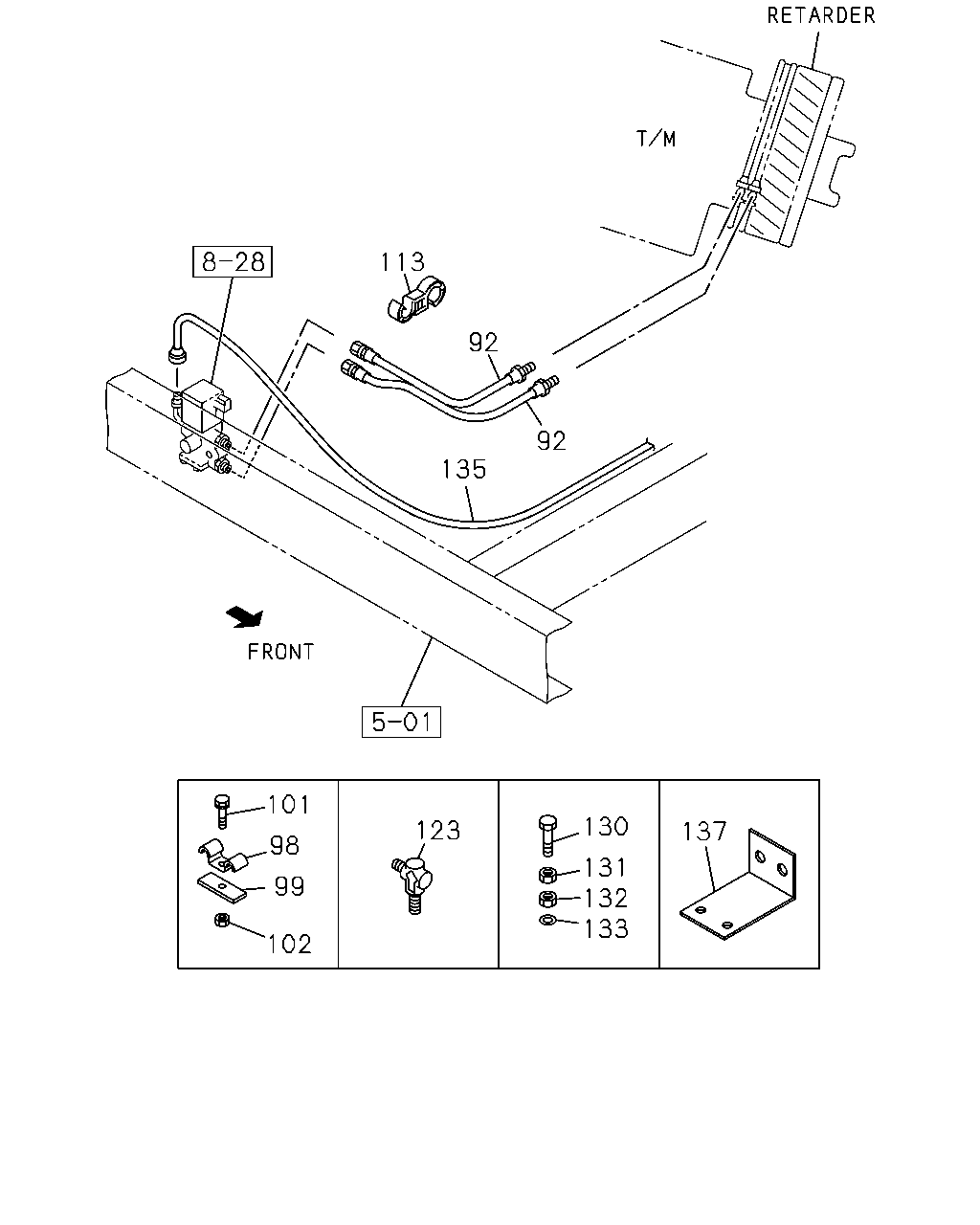

çizim 139101
113 92 92 135 101 130 123 137 98 131 132 133 99 102
BalonParca AdiParca NoAdetTipApplied Date
92 HOSE; FLEX,RETARDER
BRK SYSTEM RETARDER<RE2> L=350 		1-09363-877-0 02 1 0612-
98 CLIP; AIR PIPE
BRK SYSTEM RETARDER<RE2> ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 01 1 0612-0712
98 CLIP; AIR PIPE
BRK SYSTEM RETARDER<RE2> EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 01 1 0801-
99 BRACKET; CLIP
BRK SYSTEM RETARDER<RE2> L=50 		1-47475-299-2 01 1 0612-0712
99 BRACKET; CLIP
BRK SYSTEM RETARDER<RE2> EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) L=50 		1-47475-299-2 01 1 0801-
101 BOLT; CLIP
BRK SYSTEM RETARDER<RE2> M8X20 FLANGE 		0-28650-820-0 01 1 0612-0712
101 BOLT; CLIP
BRK SYSTEM RETARDER<RE2> EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) M8X20 FLANGE 		0-28650-820-0 01 1 0801-
102 NUT; CLIP,AIR PIPE
BRK SYSTEM RETARDER<RE2> M8 FLANGE 		0-91180-108-0 01 1 0612-0712
102 NUT; CLIP,AIR PIPE
BRK SYSTEM RETARDER<RE2> EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) M8 FLANGE 		0-91180-108-0 01 1 0801-
113 CLIP; HOSE
BRK SYSTEM RETARDER<RE2> ID=10 & 10 		1-09709-277-1 01 1 0612-
123 UNION
BRK SYSTEM RETARDER<RE2> M12 ELBOW 		0-92125-206-0 02 1 0612-0712
123 UNION
BRK SYSTEM RETARDER<RE2> EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) M12 ELBOW 		0-92125-206-0 02 1 0801-
130 BOLT; BRKT
BRK SYSTEM RETARDER<RE2> M8X35 FLANGE 		0-28050-835-0 02 1 0612-0712
130 BOLT; BRKT
BRK SYSTEM RETARDER<RE2> EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) M8X35 FLANGE 		0-28050-835-0 02 1 0801-
130 BOLT; BRKT
BRK SYSTEM RETARDER<RE2> M8X20 FLANGE 		0-28650-820-0 01 1 0612-0712
130 BOLT; BRKT
BRK SYSTEM RETARDER<RE2> EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) M8X20 FLANGE 		0-28650-820-0 01 1 0801-
131 NUT; BRKT
BRK SYSTEM RETARDER<RE2> M8 FLANGE 		0-91180-108-0 03 1 0612-0712
131 NUT; BRKT
BRK SYSTEM RETARDER<RE2> EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) M8 FLANGE 		0-91180-108-0 03 1 0801-
132 NUT; UNION
BRK SYSTEM RETARDER<RE2> M12 		9-09840-280-0 02 1 0612-0712
132 NUT; UNION
BRK SYSTEM RETARDER<RE2> EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) M12 		9-09840-280-0 02 1 0801-
133 WASHER; UNION
BRK SYSTEM RETARDER<RE2> ID=12.2 		0-91510-512-0 02 1 0612-0712
133 WASHER; UNION
BRK SYSTEM RETARDER<RE2> EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) ID=12.2 		0-91510-512-0 02 1 0801-
135 PIPE; AIR,MAG VLV TO UNION
BRK SYSTEM RETARDER<RE2> L=510 SERVICED BY L=550 		1-47428-808-0 01 1 0612-0712
135 PIPE; AIR,MAG VLV TO UNION
BRK SYSTEM RETARDER<RE2> EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) L=510 SERVICED BY L=550 		1-47428-808-0 01 1 0801-
135 PIPE; AIR,MAG VLV TO UNION
BRK SYSTEM RETARDER<RE2> L=437 		1-49124-933-0 01 1 0612-0712
135 PIPE; AIR,MAG VLV TO UNION
BRK SYSTEM RETARDER<RE2> EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) L=437 		1-49124-933-0 01 1 0801-
137 BRACKET; AIR PIPE
BRK SYSTEM RETARDER<RE2> 		1-47471-226-0 01 1 0612-0712
137 BRACKET; AIR PIPE
BRK SYSTEM RETARDER<RE2> EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-47471-226-0 01 1 0801-
