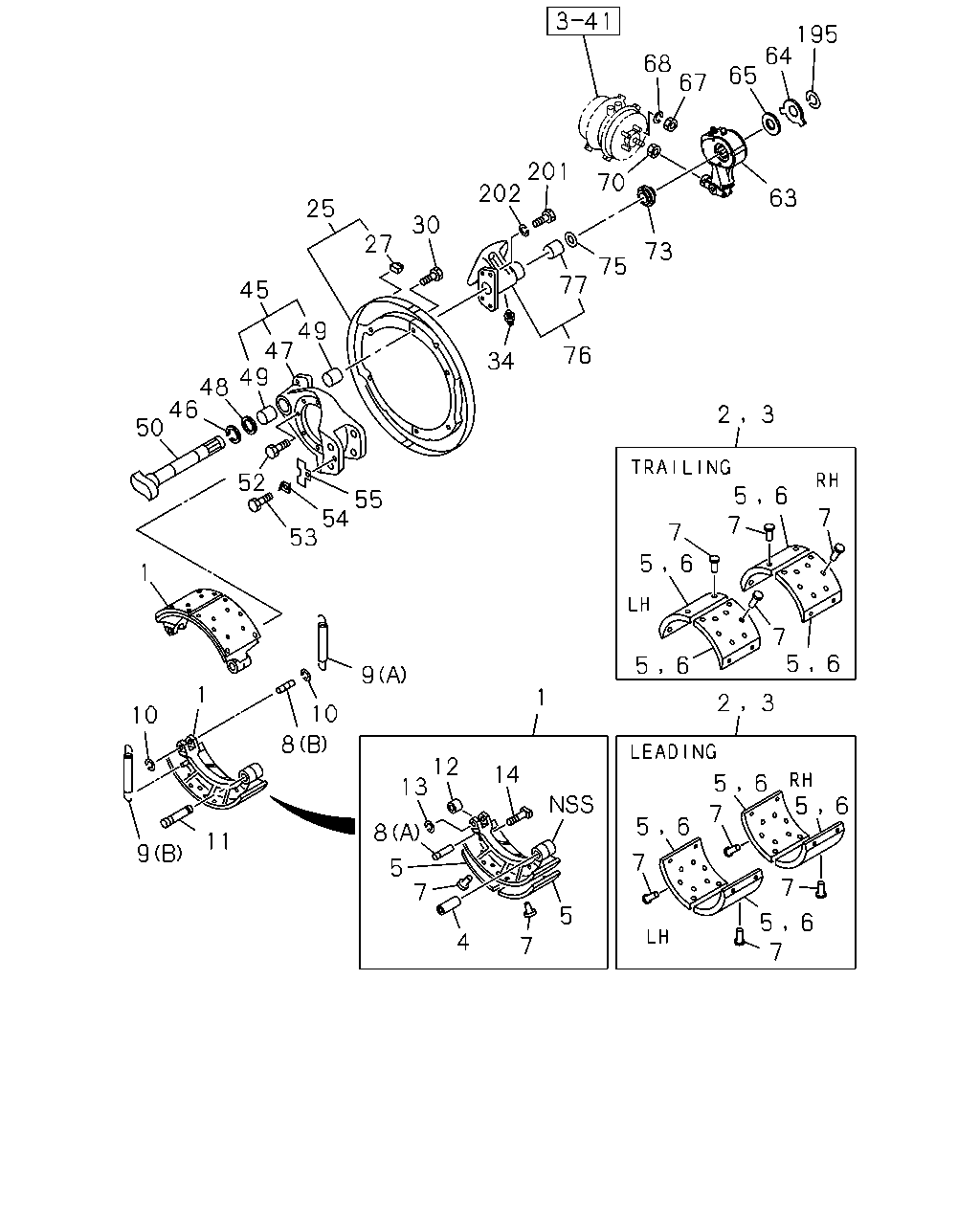

1 |
SHOE; BRK,RR
TRAILING
|
1-47120-337-0 |
01 |
1 |
0612- |
| |
1 |
SHOE; BRK,RR
TRAILING
|
1-47120-339-0 |
01 |
1 |
0612- |
| |
1 |
SHOE; BRK,RR
LEADING
|
1-47170-476-0 |
01 |
1 |
0612- |
| |
1 |
SHOE; BRK,RR
LEADING
|
1-47170-477-0 |
01 |
1 |
0612- |
| |
2 |
LINING SET; RR BRK,STANDARD
LEADING
|
1-88310-315-1 |
01 |
1 |
0612- |
| |
2 |
LINING SET; RR BRK,STANDARD
TRAILING
|
1-88311-361-0 |
01 |
1 |
0612- |
| |
3 |
LINING SET; RR BRK,OVER SIZE
LEADING
|
1-88310-316-1 |
01 |
1 |
0612- |
| |
3 |
LINING SET; RR BRK,OVER SIZE
TRAILING
|
1-88311-362-0 |
01 |
1 |
0612- |
| |
4 |
BUSHING; BRK SHOE,RR WHEEL
|
1-47112-012-0 |
04 |
1 |
0612- |
| |
5 |
LINING; RR BRK SHOE,STANDARD
LEADING
T=16
|
1-47125-436-0 |
04 |
1 |
0612- |
| |
5 |
LINING; RR BRK SHOE,STANDARD
TRAILING
|
1-47126-751-0 |
04 |
1 |
0612- |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
LEADING
T=17
|
1-47125-438-0 |
04 |
1 |
0612- |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
TRAILING
|
1-47126-752-0 |
04 |
1 |
0612- |
| |
7 |
RIVET; LINING,RR BRK
L=18.5
|
1-09732-034-0 |
AR |
1 |
0612- |
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
(A)
|
1-47119-021-0 |
04 |
1 |
0612-1209 |
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
(B)
|
1-47119-029-0 |
04 |
1 |
0612- |
| |
9 |
SPRING; RETURN,BRK SHOE
(A)
|
1-09583-175-0 |
02 |
1 |
0612-1209 |
| |
9 |
SPRING; RETURN,BRK SHOE
(B)
|
8-98219-175-0 |
02 |
1 |
1210- |
| |
9 |
SPRING; RETURN,BRK SHOE
(B)
|
1-09583-196-0 |
02 |
1 |
0612-1209 |
| |
10 |
RING; SNAP,SPR PIN
ID=10
|
0-91805-510-0 |
08 |
1 |
0612-1209 |
| |
11 |
PIN; ANCHOR,RR WHEEL BRK
L=121.5
|
1-47131-039-0 |
04 |
1 |
0612- |
| |
12 |
ROLLER; CAM,BRK SHOE
|
1-47113-005-0 |
04 |
1 |
0612- |
| |
13 |
CLIP; ROLLER PIN,BRK SHOE
|
9-47119-022-0 |
04 |
1 |
0612- |
| |
14 |
PIN; CAM ROLLER,BRK SHOE
|
1-09744-061-0 |
04 |
1 |
0612- |
| |
25 |
COVER SET; RR BRK DRUM
|
1-47151-462-1 |
02 |
1 |
0612- |
| |
27 |
COVER; CHECK HOLE,DRUM COVER
|
1-09333-151-0 |
04 |
1 |
0612- |
| |
30 |
BOLT; DRUM COVER
M10X12
|
1-47159-187-0 |
12 |
1 |
0612- |
| |
34 |
NIPPLE; GREASE,CHAMBER BRKT
PT1/8 STRAIGHT
|
0-90301-410-0 |
02 |
1 |
0612- |
| |
45 |
BRACKET; ANCHOR PIN,W/BUSHING
ANTILOCK BRK SYSTEM<BFA>
|
1-47137-538-0 |
01 |
1 |
0612- |
| |
45 |
BRACKET; ANCHOR PIN,W/BUSHING
ANTILOCK BRK SYSTEM<BFA>
|
1-47137-539-0 |
01 |
1 |
0612- |
| |
45 |
BRACKET; ANCHOR PIN,W/BUSHING
EXC. ANTILOCK BRK SYSTEM<BFA>
|
1-47137-138-1 |
01 |
1 |
0612- |
| |
45 |
BRACKET; ANCHOR PIN,W/BUSHING
EXC. ANTILOCK BRK SYSTEM<BFA>
|
1-47137-139-1 |
01 |
1 |
0612- |
| |
46 |
RING; SPACER,CM/SHF,RR BRK
|
1-47143-005-0 |
02 |
1 |
0612- |
| |
47 |
BRACKET; ANCHOR PIN,RR WHEEL BRK
ANTILOCK BRK SYSTEM<BFA>
|
1-47137-540-0 |
01 |
1 |
0612- |
| |
47 |
BRACKET; ANCHOR PIN,RR WHEEL BRK
ANTILOCK BRK SYSTEM<BFA>
|
1-47137-541-0 |
01 |
1 |
0612- |
| |
48 |
SEAL; OIL,CM/SHF,RR BRK
|
1-09625-228-0 |
02 |
1 |
0612- |
| |
49 |
BUSHING; CM/SHF,RR BRK
|
1-47146-003-1 |
02 |
1 |
0612- |
| |
50 |
CAMSHAFT; BRK,RR BRK
|
1-47141-053-0 |
01 |
1 |
0612- |
| |
50 |
CAMSHAFT; BRK,RR BRK
|
1-47141-054-0 |
01 |
1 |
0612- |
| |
52 |
BOLT; ANCHOR BRKT
M14X50
|
1-09040-066-0 |
02 |
1 |
0612-1209 |
| |
53 |
BOLT; LOCK PLATE
M10X16
|
0-20851-016-0 |
02 |
1 |
0612-1209 |
| |
53 |
BOLT; LOCK PLATE
M10X16
|
1-47139-173-0 |
02 |
1 |
1210- |
| |
54 |
WASHER; LK,ANCHOR PIN,RR BRK
|
1-47133-011-0 |
02 |
1 |
0612- |
| |
55 |
PLATE; LK,RR WHEEL CYL
|
1-47133-005-0 |
02 |
1 |
0612- |
| |
63 |
ADJUSTER ASM; SLACK,RR BRK
|
1-48270-075-0 |
01 |
1 |
0612- |
| |
63 |
ADJUSTER ASM; SLACK,RR BRK
|
1-48270-076-0 |
01 |
1 |
0612- |
| |
64 |
PLATE; STOPPER,CM/SHF
|
1-47149-054-0 |
02 |
1 |
0612- |
| |
65 |
SPACER; SLACK ADJ,BRK
|
1-47143-011-0 |
02 |
1 |
0612- |
| |
67 |
NUT; POWER CHAMBER FIX
M16
|
0-91110-516-0 |
08 |
1 |
0612- |
| |
68 |
WASHER; LK,CHAMBER
ID=16.2
|
0-91510-516-0 |
08 |
1 |
0612-0802 |
| |
68 |
WASHER; LK,CHAMBER
ID=16.2
|
0-91510-816-0 |
08 |
1 |
0803- |
| |
70 |
NUT; LK,JAW JOINT
M16
|
0-91111-516-0 |
02 |
1 |
0612- |
| |
73 |
COLLAR; FELT RING,CM/SHF
|
1-47143-010-0 |
02 |
1 |
0612- |
| |
75 |
RING; FELT,CM/SHF
|
1-09620-009-0 |
02 |
1 |
0612- |
| |
76 |
BRACKET; POWER CHAMBER,RR,W/BUSHING
|
1-48258-083-0 |
01 |
1 |
0612-0906 |
| |
76 |
BRACKET; POWER CHAMBER,RR,W/BUSHING
|
1-48258-248-0 |
01 |
1 |
0907- |
| |
76 |
BRACKET; POWER CHAMBER,RR,W/BUSHING
|
1-48258-084-0 |
01 |
1 |
0612-0906 |
| |
76 |
BRACKET; POWER CHAMBER,RR,W/BUSHING
|
1-48258-249-0 |
01 |
1 |
0907- |
| |
77 |
BUSHING
|
1-47146-003-1 |
02 |
1 |
0612- |
| |
195 |
RING; SNAP,CM/SHF
|
9-09180-038-0 |
02 |
1 |
0612- |
| |
201 |
BOLT; BRKT,POWER CHAMBER
M14X35
|
0-20851-435-0 |
08 |
1 |
0612- |
| |
202 |
WASHER; LK,BRKT
ID=14.2
|
0-91510-514-0 |
08 |
1 |
0612- |
