◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LT ▶ 11032 - LT134(LHD) EURO4 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-36 - MANUAL TRANSMISSION CONT LINK AND CABLE ▶
2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#27348) — 416 parça

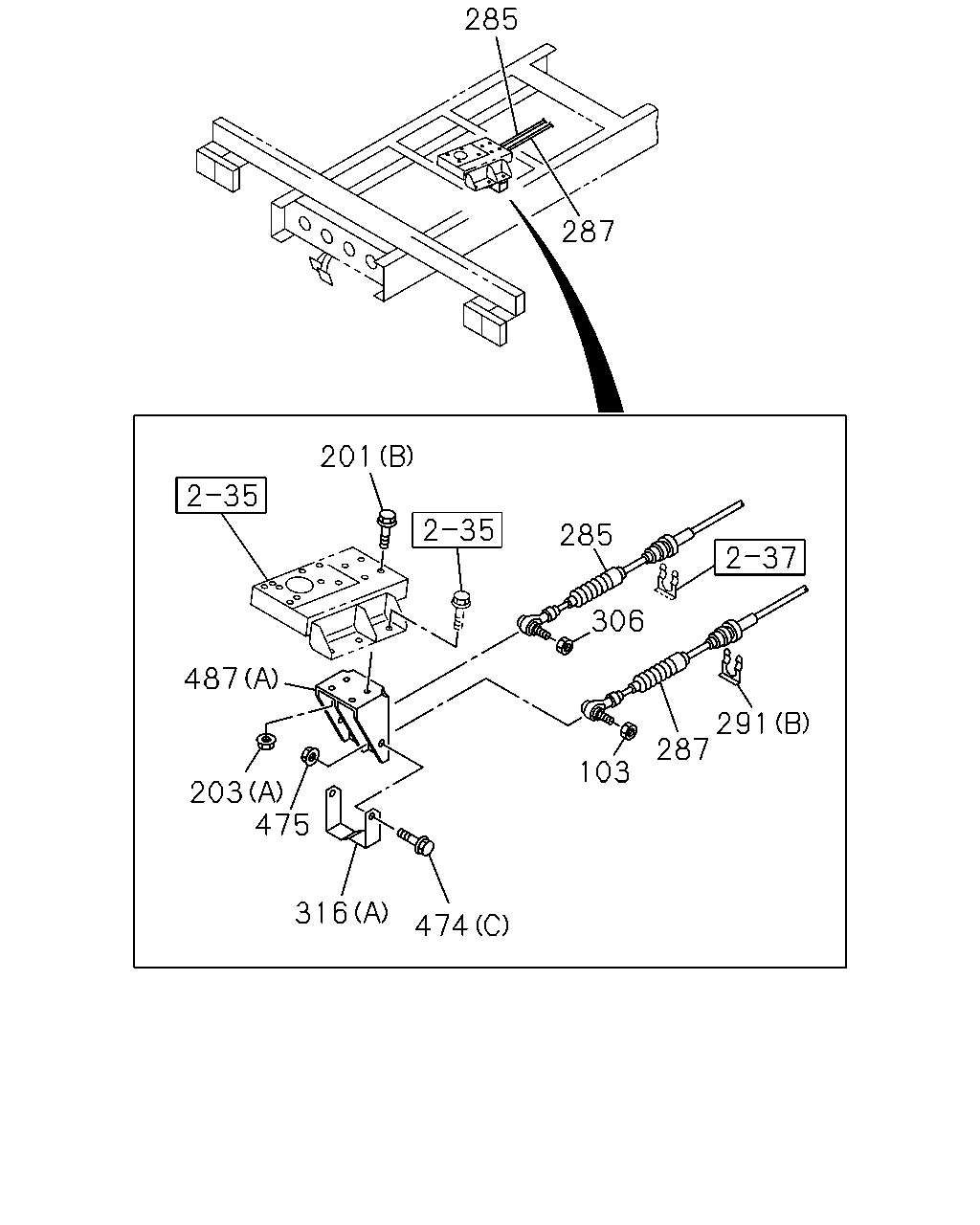

çizim 139090
285 287 201 285 306 487 291 287 103 203 475 316 474
BalonParca AdiParca NoAdetTipApplied Date
103 NUT
M8 FLANGE 		1-09440-062-1 01 1 0612-
201 BOLT; BRKT
TRANSMISSION CONTROL CABLE TYPE(C1A) (E) M10X20 FLANGE 		0-28151-020-0 02 1 0801-
201 BOLT; BRKT
(D) M10X30 FLANGE 		0-28651-030-0 02 1 0707-
201 BOLT; BRKT
TRANSMISSION CONTROL CABLE TYPE(C1A) (C) M10X25 FLANGE 		0-28651-025-0 04 1 0801-
201 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 04 1 0612-
201 BOLT; BRKT
(A) M10X30 FLANGE 		0-28651-030-0 06 1 0612-0706
201 BOLT; BRKT
(A) M10X30 FLANGE 		0-28651-030-0 04 1 0707-0712
201 BOLT; BRKT
EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) (A) M10X30 FLANGE 		0-28651-030-0 04 1 0801-
203 NUT; BRKT FIX
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) M10 FLANGE 		0-91180-210-0 05 1 0801-0905
203 NUT; BRKT FIX
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) M10 FLANGE 		0-91180-210-0 03 1 0906-
203 NUT; BRKT FIX
(A) M8 FLANGE 		0-91180-108-0 04 1 0612-
203 NUT; BRKT FIX
(B) M10 FLANGE 		0-91180-210-0 02 1 0612-0712
203 NUT; BRKT FIX
EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) (B) M10 FLANGE 		0-91180-210-0 02 1 0801-0905
203 NUT; BRKT FIX
(B) M10 FLANGE 		0-91180-210-0 02 1 0906-
203 NUT; BRKT FIX
EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) (B) M10 FLANGE 		0-91180-210-0 02 1 0906-
285 WIRE; SHIFT,TRANS CONT
WB 5700MM(57W) LOW DECK WO/REAR BODY<PK4> 		8-98072-479-3 01 1 0801-
285 WIRE; SHIFT,TRANS CONT
WB 5000MM(50W) 		1-33672-048-1 01 1 0612-
285 WIRE; SHIFT,TRANS CONT
WB 5700MM(57W) 		1-33672-010-1 01 1 0612-0712
285 WIRE; SHIFT,TRANS CONT
WB 5700MM(57W) EXC. LOW DECK WO/REAR BODY<PK4> 		1-33672-010-1 01 1 0801-
287 WIRE; SELECT,TRANS CONT
WB 5700MM(57W) LOW DECK WO/REAR BODY<PK4> 		8-98072-478-2 01 1 0801-
287 WIRE; SELECT,TRANS CONT
WB 5000MM(50W) 		1-33672-049-0 01 1 0612-
287 WIRE; SELECT,TRANS CONT
WB 5700MM(57W) 		1-33672-011-0 01 1 0612-0712
287 WIRE; SELECT,TRANS CONT
WB 5700MM(57W) EXC. LOW DECK WO/REAR BODY<PK4> 		1-33672-011-0 01 1 0801-
291 CLIP; SHIFT TO SELECT,FRAME
(A) ID=13 H=29 L=30 		1-09700-001-0 02 1 0612-
291 CLIP; SHIFT TO SELECT,FRAME
(B) ID=22.2 		1-09701-209-1 01 1 0612-
306 NUT; WIRE BRKT
LOW DECK WO/REAR BODY<PK4> M8 FLANGE 		0-91180-108-0 01 1 0801-
306 NUT; WIRE BRKT
M10 FLANGE 		1-09440-061-0 01 1 0612-
316 BRACKET; CLIP
LOW DECK WO/REAR BODY<PK4> (B) 		1-47479-729-0 08 1 0801-
316 BRACKET; CLIP
(A) 		1-33657-736-0 01 1 0612-0712
316 BRACKET; CLIP
EXC. LOW DECK WO/REAR BODY<PK4> (A) 		1-33657-736-0 01 1 0801-
316 BRACKET; CLIP
WB 5000MM(50W) (B) 		1-47479-729-0 09 1 0612-
316 BRACKET; CLIP
WB 5700MM(57W) (B) 		1-47479-729-0 10 1 0612-0712
316 BRACKET; CLIP
WB 5700MM(57W) EXC. LOW DECK WO/REAR BODY<PK4> (B) 		1-47479-729-0 10 1 0801-
474 BOLT; BRKT
LOW DECK WO/REAR BODY<PK4> (B) M8X30 FLANGE 		0-28650-830-0 06 1 0801-
474 BOLT; BRKT
LOW DECK WO/REAR BODY<PK4> (A) M12X40 FLANGE 		0-28651-240-0 03 1 0801-
474 BOLT; BRKT
(D) M10X30 FLANGE 		0-28651-030-0 02 1 0612-0712
474 BOLT; BRKT
EXC. LOW DECK WO/REAR BODY<PK4> (D) M10X30 FLANGE 		0-28651-030-0 02 1 0801-
474 BOLT; BRKT
(C) M8X20 FLANGE 		0-28650-820-0 02 1 0612-0712
474 BOLT; BRKT
EXC. LOW DECK WO/REAR BODY<PK4> (C) M8X20 FLANGE 		0-28650-820-0 02 1 0801-
474 BOLT; BRKT
(F) M8X25 FLANGE 		0-28650-825-0 02 1 0612-
474 BOLT; BRKT
WB 5000MM(50W) (E) M8X25 FLANGE 		0-28650-825-0 18 1 0612-0712
474 BOLT; BRKT
WB 5000MM(50W) (E) M8X25 FLANGE 		0-28650-825-0 18 1 0801-
474 BOLT; BRKT
LOW DECK WO/REAR BODY<PK4> (E) M8X25 FLANGE 		0-28650-825-0 18 1 0801-
474 BOLT; BRKT
WB 5700MM(57W) (E) M8X25 FLANGE 		0-28650-825-0 20 1 0612-0712
474 BOLT; BRKT
WB 5700MM(57W) EXC. LOW DECK WO/REAR BODY<PK4> (E) M8X25 FLANGE 		0-28650-825-0 20 1 0801-
475 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 0612-0707
475 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0708-0712
475 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0708-0712
475 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0801-
475 NUT; BRKT
EXC. LOW DECK WO/REAR BODY<PK4> M8 FLANGE 		0-91180-108-0 02 1 0801-
475 NUT; BRKT
WB 5000MM(50W) M8 FLANGE 		0-91180-108-0 18 1 0612-0712
475 NUT; BRKT
WB 5000MM(50W) M8 FLANGE 		0-91180-108-0 18 1 0801-
475 NUT; BRKT
LOW DECK WO/REAR BODY<PK4> M8 FLANGE 		0-91180-108-0 18 1 0801-
475 NUT; BRKT
WB 5700MM(57W) M8 FLANGE 		0-91180-108-0 20 1 0612-0712
475 NUT; BRKT
WB 5700MM(57W) EXC. LOW DECK WO/REAR BODY<PK4> M8 FLANGE 		0-91180-108-0 20 1 0801-
487 BRACKET; CONT CABLE
TRANSMISSION CONTROL CABLE TYPE(C1A) (D) 		8-98075-430-0 01 1 0801-
487 BRACKET; CONT CABLE
LOW DECK WO/REAR BODY<PK4> (C) 		8-98096-018-1 01 1 0801-
487 BRACKET; CONT CABLE
(A) 		1-33657-725-0 01 1 0612-0712
487 BRACKET; CONT CABLE
EXC. LOW DECK WO/REAR BODY<PK4> (A) 		1-33657-725-0 01 1 0801-
487 BRACKET; CONT CABLE
(B) 		1-33657-803-0 01 1 0612-0712
487 BRACKET; CONT CABLE
EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) (B) 		1-33657-803-0 01 1 0801-

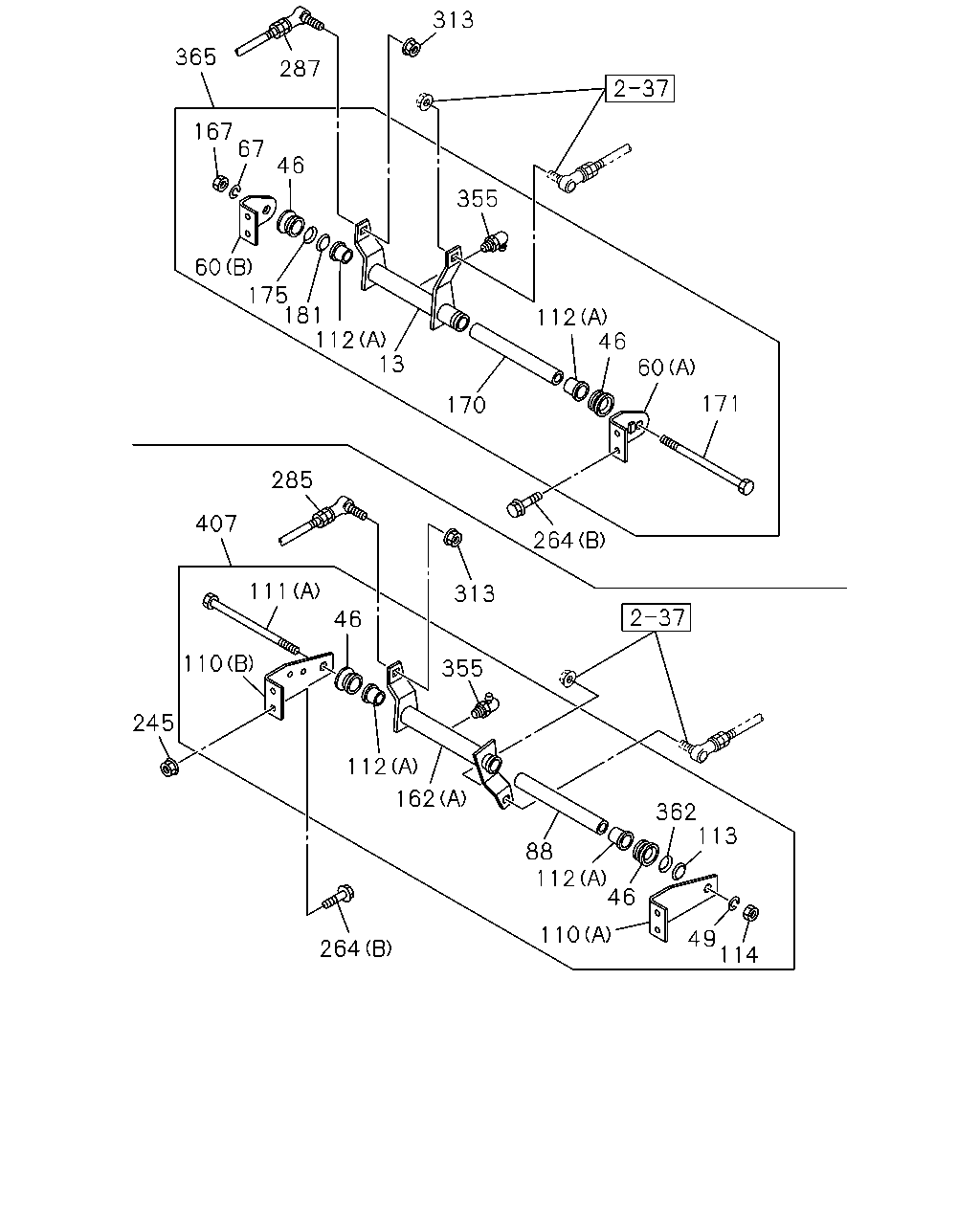

çizim 139098
313 365 287 167 67 46 355 60 175 181 112 112 46 13 60 171 170 285 407 264 111 313 46 110 355 245 112 162 362 113 88 112 46 110 49 114 264
BalonParca AdiParca NoAdetTipApplied Date
13 LEVER; RELAY,1ST SELECT INNER 1-33651-818-0 01 1 0612-0712
13 LEVER; RELAY,1ST SELECT INNER
EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-33651-818-0 01 1 0801-
46 SEAL; DUST,RELAY LEVER 1-33659-113-0 04 1 0612-0712
46 SEAL; DUST,RELAY LEVER
EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-33659-113-0 04 1 0801-
49 WASHER; LK
LOW DECK WO/REAR BODY<PK4> 		1-09500-043-0 02 1 0801-
49 WASHER; LK
ID=14.2 		0-91510-514-0 01 1 0612-0712
49 WASHER; LK
EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) ID=14.2 		0-91510-514-0 01 1 0801-
60 BRACKET; RELAY LEVER,SELECT ROD
(A) 		1-33657-833-0 01 1 0612-0712
60 BRACKET; RELAY LEVER,SELECT ROD
EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) (A) 		1-33657-833-0 01 1 0801-
60 BRACKET; RELAY LEVER,SELECT ROD
(B) 		1-33657-834-0 01 1 0612-0712
60 BRACKET; RELAY LEVER,SELECT ROD
EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) (B) 		1-33657-834-0 01 1 0801-
67 WASHER; LK,RELAY LEVER,SELECT ROD
ID=14.2 		0-91510-514-0 01 1 0612-0712
67 WASHER; LK,RELAY LEVER,SELECT ROD
EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) ID=14.2 		0-91510-514-0 01 1 0801-
88 COLLAR; RELAY LEVER 1-33659-154-0 01 1 0612-0712
88 COLLAR; RELAY LEVER
EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-33659-154-0 01 1 0801-
110 BRACKET; RELAY LEVER,1ST
TRANSMISSION CONTROL CABLE TYPE(C1A) (C) 		8-98075-373-0 01 1 0801-
110 BRACKET; RELAY LEVER,1ST
(A) 		1-33657-797-1 01 1 0612-0712
110 BRACKET; RELAY LEVER,1ST
EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) (A) 		1-33657-797-1 01 1 0801-
110 BRACKET; RELAY LEVER,1ST
(B) 		1-33657-835-0 01 1 0612-0712
110 BRACKET; RELAY LEVER,1ST
EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) (B) 		1-33657-835-0 01 1 0801-
111 SHAFT; RELAY LEVER,1ST
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) 		8-98075-371-0 01 1 0801-
111 SHAFT; RELAY LEVER,1ST
(A) 		1-33619-508-0 01 1 0612-0712
111 SHAFT; RELAY LEVER,1ST
EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) (A) 		1-33619-508-0 01 1 0801-
112 BUSHING; RELAY LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) 		8-98075-387-0 02 1 0801-
112 BUSHING; RELAY LEVER
(A) L=24 		5-33659-054-0 04 1 0612-0712
112 BUSHING; RELAY LEVER
EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) (A) L=24 		5-33659-054-0 04 1 0801-
113 WASHER; RELAY LEVER 1-33659-093-0 01 1 0612-0712
113 WASHER; RELAY LEVER
EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-33659-093-0 01 1 0801-
114 NUT; RELAY LEVER
M14 		0-91111-514-0 01 1 0612-0712
114 NUT; RELAY LEVER
EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) M14 		0-91111-514-0 01 1 0801-
162 LEVER; RELAY
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) 		8-98075-364-0 01 1 0801-
162 LEVER; RELAY
(A) 		1-33651-817-0 01 1 0612-0712
162 LEVER; RELAY
EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) (A) 		1-33651-817-0 01 1 0801-
167 NUT; RELAY LEVER,SELECT ROD
M14 		0-91111-514-0 01 1 0612-0712
167 NUT; RELAY LEVER,SELECT ROD
EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) M14 		0-91111-514-0 01 1 0801-
170 COLLAR; RELAY LEVER,SELECT ROD,1ST 1-33659-154-0 01 1 0612-0712
170 COLLAR; RELAY LEVER,SELECT ROD,1ST
EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-33659-154-0 01 1 0801-
171 SHAFT; RELAY LEVER,SELECT ROD,1ST 1-33619-508-0 01 1 0612-0712
171 SHAFT; RELAY LEVER,SELECT ROD,1ST
EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-33619-508-0 01 1 0801-
175 WASHER; RELAY LEVER,SELECT CONT ROD 1-33659-093-0 01 1 0612-0712
175 WASHER; RELAY LEVER,SELECT CONT ROD
EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-33659-093-0 01 1 0801-
181 SHIM; RELAY LEVER,SELECT ROD 1-33659-092-0 01 1 0612-0712
181 SHIM; RELAY LEVER,SELECT ROD
EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-33659-092-0 01 1 0801-
245 NUT; BRKT,RELAY LEVER
M8 FLANGE 		0-91180-108-0 04 1 0612-
264 BOLT; BRKT,RELAY LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) (A) M14X25 W/LK WASHER 		0-50541-425-0 02 1 0801-
264 BOLT; BRKT,RELAY LEVER
(B) M8X30 FLANGE 		0-28650-830-0 08 1 0612-0706
264 BOLT; BRKT,RELAY LEVER
(B) M8X30 FLANGE 		0-28650-830-0 04 1 0707-0712
264 BOLT; BRKT,RELAY LEVER
(B) M8X30 FLANGE 		0-28650-830-0 04 1 0707-0712
264 BOLT; BRKT,RELAY LEVER
(B) M8X30 FLANGE 		0-28650-830-0 04 1 0801-
264 BOLT; BRKT,RELAY LEVER
EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) (B) M8X30 FLANGE 		0-28650-830-0 04 1 0801-
285 WIRE; SHIFT,TRANS CONT
WB 5700MM(57W) LOW DECK WO/REAR BODY<PK4> 		8-98072-479-3 01 1 0801-
285 WIRE; SHIFT,TRANS CONT
WB 5000MM(50W) 		1-33672-048-1 01 1 0612-
285 WIRE; SHIFT,TRANS CONT
WB 5700MM(57W) 		1-33672-010-1 01 1 0612-0712
285 WIRE; SHIFT,TRANS CONT
WB 5700MM(57W) EXC. LOW DECK WO/REAR BODY<PK4> 		1-33672-010-1 01 1 0801-
287 WIRE; SELECT,TRANS CONT
WB 5700MM(57W) LOW DECK WO/REAR BODY<PK4> 		8-98072-478-2 01 1 0801-
287 WIRE; SELECT,TRANS CONT
WB 5000MM(50W) 		1-33672-049-0 01 1 0612-
287 WIRE; SELECT,TRANS CONT
WB 5700MM(57W) 		1-33672-011-0 01 1 0612-0712
287 WIRE; SELECT,TRANS CONT
WB 5700MM(57W) EXC. LOW DECK WO/REAR BODY<PK4> 		1-33672-011-0 01 1 0801-
313 NUT; CLIP BRKT
M10 FLANGE 		1-09440-061-0 01 1 0612-
313 NUT; CLIP BRKT
M8 FLANGE 		1-09440-062-1 01 1 0612-
355 NIPPLE; GREASE,RELAY LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0801-
355 NIPPLE; GREASE,RELAY LEVER
PT1/8 ELBOW 		0-90301-610-0 02 1 0612-0712
355 NIPPLE; GREASE,RELAY LEVER
EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) PT1/8 ELBOW 		0-90301-610-0 02 1 0801-
362 SHIM 1-33659-092-0 01 1 0612-0712
362 SHIM
EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-33659-092-0 01 1 0801-
365 LEVER; RELAY,SELECT 1-33671-915-0 01 1 0612-0712
365 LEVER; RELAY,SELECT
EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-33671-915-0 01 1 0801-
407 LEVER; RELAY,SHIFT
TRANSMISSION CONTROL CABLE TYPE(C1A) 		8-98075-342-0 01 1 0801-
407 LEVER; RELAY,SHIFT 1-33671-914-1 01 1 0612-0712
407 LEVER; RELAY,SHIFT
EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-33671-914-1 01 1 0801-

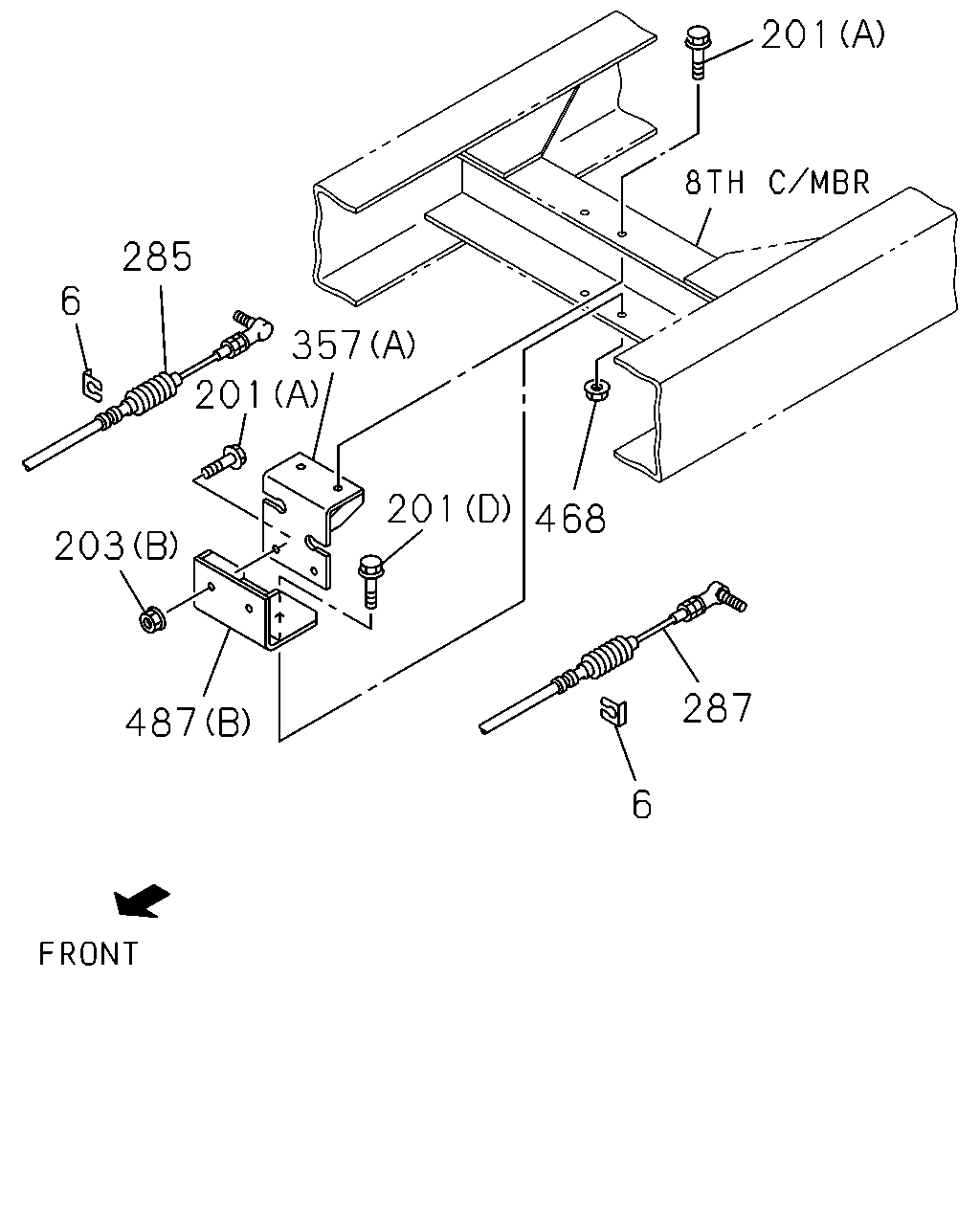

çizim 139100
201 285 6 357 201 201 468 203 287 487 6
BalonParca AdiParca NoAdetTipApplied Date
6 CLIP; CABLE
ID=22.2 		1-09701-209-1 02 1 0612-
201 BOLT; BRKT
TRANSMISSION CONTROL CABLE TYPE(C1A) (E) M10X20 FLANGE 		0-28151-020-0 02 1 0801-
201 BOLT; BRKT
(D) M10X30 FLANGE 		0-28651-030-0 02 1 0707-
201 BOLT; BRKT
TRANSMISSION CONTROL CABLE TYPE(C1A) (C) M10X25 FLANGE 		0-28651-025-0 04 1 0801-
201 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 04 1 0612-
201 BOLT; BRKT
(A) M10X30 FLANGE 		0-28651-030-0 06 1 0612-0706
201 BOLT; BRKT
(A) M10X30 FLANGE 		0-28651-030-0 04 1 0707-0712
201 BOLT; BRKT
EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) (A) M10X30 FLANGE 		0-28651-030-0 04 1 0801-
203 NUT; BRKT FIX
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) M10 FLANGE 		0-91180-210-0 05 1 0801-0905
203 NUT; BRKT FIX
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) M10 FLANGE 		0-91180-210-0 03 1 0906-
203 NUT; BRKT FIX
(A) M8 FLANGE 		0-91180-108-0 04 1 0612-
203 NUT; BRKT FIX
(B) M10 FLANGE 		0-91180-210-0 02 1 0612-0712
203 NUT; BRKT FIX
EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) (B) M10 FLANGE 		0-91180-210-0 02 1 0801-0905
203 NUT; BRKT FIX
(B) M10 FLANGE 		0-91180-210-0 02 1 0906-
203 NUT; BRKT FIX
EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) (B) M10 FLANGE 		0-91180-210-0 02 1 0906-
285 WIRE; SHIFT,TRANS CONT
WB 5700MM(57W) LOW DECK WO/REAR BODY<PK4> 		8-98072-479-3 01 1 0801-
285 WIRE; SHIFT,TRANS CONT
WB 5000MM(50W) 		1-33672-048-1 01 1 0612-
285 WIRE; SHIFT,TRANS CONT
WB 5700MM(57W) 		1-33672-010-1 01 1 0612-0712
285 WIRE; SHIFT,TRANS CONT
WB 5700MM(57W) EXC. LOW DECK WO/REAR BODY<PK4> 		1-33672-010-1 01 1 0801-
287 WIRE; SELECT,TRANS CONT
WB 5700MM(57W) LOW DECK WO/REAR BODY<PK4> 		8-98072-478-2 01 1 0801-
287 WIRE; SELECT,TRANS CONT
WB 5000MM(50W) 		1-33672-049-0 01 1 0612-
287 WIRE; SELECT,TRANS CONT
WB 5700MM(57W) 		1-33672-011-0 01 1 0612-0712
287 WIRE; SELECT,TRANS CONT
WB 5700MM(57W) EXC. LOW DECK WO/REAR BODY<PK4> 		1-33672-011-0 01 1 0801-
357 BRACKET; RELAY LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) 		8-98075-708-0 01 1 0801-
357 BRACKET; RELAY LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) (C) 		8-98088-363-0 01 1 0801-
357 BRACKET; RELAY LEVER
(A) 		1-33657-832-0 01 1 0612-0712
357 BRACKET; RELAY LEVER
EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) (A) 		1-33657-832-0 01 1 0801-
468 NUT; BRKT
LOW DECK WO/REAR BODY<PK4> M8 FLANGE 		0-91180-108-0 06 1 0801-
468 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0612-0712
468 NUT; BRKT
EXC. LOW DECK WO/REAR BODY<PK4> M10 FLANGE 		0-91180-210-0 02 1 0801-
487 BRACKET; CONT CABLE
TRANSMISSION CONTROL CABLE TYPE(C1A) (D) 		8-98075-430-0 01 1 0801-
487 BRACKET; CONT CABLE
LOW DECK WO/REAR BODY<PK4> (C) 		8-98096-018-1 01 1 0801-
487 BRACKET; CONT CABLE
(A) 		1-33657-725-0 01 1 0612-0712
487 BRACKET; CONT CABLE
EXC. LOW DECK WO/REAR BODY<PK4> (A) 		1-33657-725-0 01 1 0801-
487 BRACKET; CONT CABLE
(B) 		1-33657-803-0 01 1 0612-0712
487 BRACKET; CONT CABLE
EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) (B) 		1-33657-803-0 01 1 0801-

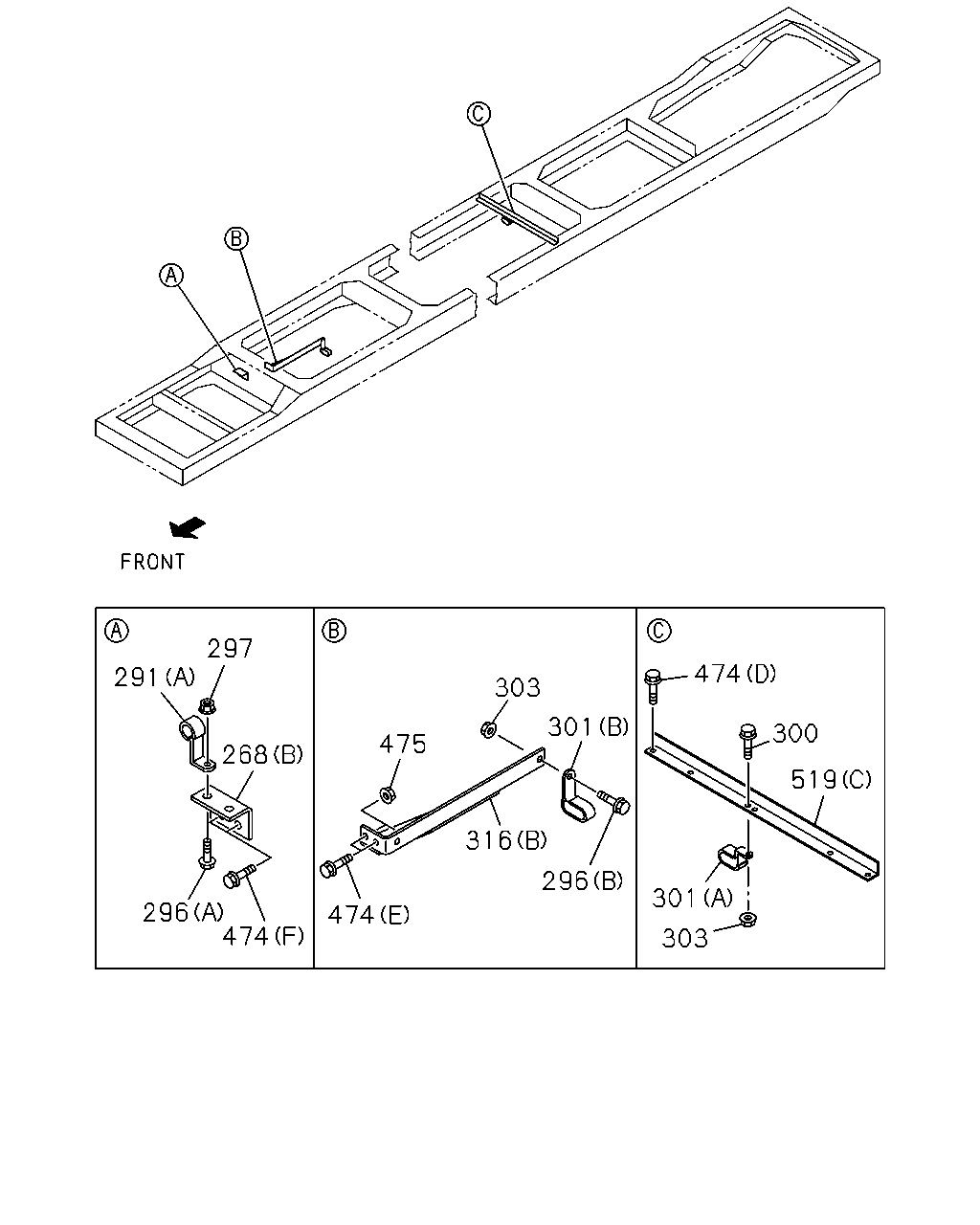

çizim 139102
297 474 291 303 301 300 475 268 519 316 296 301 296 474 474 303
BalonParca AdiParca NoAdetTipApplied Date
268 BRACKET; LINK ROD
LOW DECK WO/REAR BODY<PK4> (A) 		8-98077-510-2 01 1 0801-
268 BRACKET; LINK ROD
(B) 		1-47479-107-0 01 1 0612-
291 CLIP; SHIFT TO SELECT,FRAME
(A) ID=13 H=29 L=30 		1-09700-001-0 02 1 0612-
291 CLIP; SHIFT TO SELECT,FRAME
(B) ID=22.2 		1-09701-209-1 01 1 0612-
296 BOLT; CLIP,SHIFT & SELECT
LOW DECK WO/REAR BODY<PK4> (B) M8X20 FLANGE 		0-28650-820-0 14 1 0801-
296 BOLT; CLIP,SHIFT & SELECT
(A) M10X20 FLANGE 		0-28651-020-0 02 1 0612-
296 BOLT; CLIP,SHIFT & SELECT
WB 5000MM(50W) (B) M8X20 FLANGE 		0-28650-820-0 13 1 0612-
296 BOLT; CLIP,SHIFT & SELECT
WB 5700MM(57W) (B) M8X20 FLANGE 		0-28650-820-0 15 1 0612-0712
296 BOLT; CLIP,SHIFT & SELECT
WB 5700MM(57W) EXC. LOW DECK WO/REAR BODY<PK4> (B) M8X20 FLANGE 		0-28650-820-0 15 1 0801-
297 NUT; CLIP
M10 FLANGE 		0-91180-210-0 02 1 0612-
300 BOLT; CLIP
LOW DECK WO/REAR BODY<PK4> M6X20 FLANGE 		0-28050-620-0 02 1 0801-
300 BOLT; CLIP
LOW DECK WO/REAR BODY<PK4> M8X20 FLANGE 		0-28650-820-0 03 1 0801-
300 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0612-0712
300 BOLT; CLIP
EXC. LOW DECK WO/REAR BODY<PK4> M8X20 FLANGE 		0-28650-820-0 01 1 0801-
301 CLIP; WIRE
LOW DECK WO/REAR BODY<PK4> (A) ID=11X2 L=16 		0-95325-026-0 01 1 0801-
301 CLIP; WIRE
LOW DECK WO/REAR BODY<PK4> (A) ID=13 & 13 L=20 H=21.5 		1-09700-975-0 02 1 0801-0906
301 CLIP; WIRE
LOW DECK WO/REAR BODY<PK4> (A) ID=13 & 13 L=20 H=21.5 		8-98033-769-0 02 1 0907-
301 CLIP; WIRE
LOW DECK WO/REAR BODY<PK4> (B) ID=13X2 L=32 		1-09701-245-0 14 1 0801-
301 CLIP; WIRE
(A) ID=13 & 13 L=20 H=21.5 		1-09700-975-0 01 1 0612-0712
301 CLIP; WIRE
EXC. LOW DECK WO/REAR BODY<PK4> (A) ID=13 & 13 L=20 H=21.5 		1-09700-975-0 01 1 0801-0906
301 CLIP; WIRE
EXC. LOW DECK WO/REAR BODY<PK4> (A) ID=13 & 13 L=20 H=21.5 		8-98033-769-0 01 1 0907-
301 CLIP; WIRE
WB 5000MM(50W) (B) ID=13X2 L=32 		1-09701-245-0 13 1 0612-
301 CLIP; WIRE
WB 5700MM(57W) (B) ID=13X2 L=32 		1-09701-245-0 15 1 0612-0712
301 CLIP; WIRE
WB 5700MM(57W) EXC. LOW DECK WO/REAR BODY<PK4> (B) ID=13X2 L=32 		1-09701-245-0 15 1 0801-
303 NUT; CLIP
LOW DECK WO/REAR BODY<PK4> M8 FLANGE 		0-91180-108-0 16 1 0801-
303 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0612-0712
303 NUT; CLIP
EXC. LOW DECK WO/REAR BODY<PK4> M8 FLANGE 		0-91180-108-0 01 1 0801-
303 NUT; CLIP
WB 5000MM(50W) M8 FLANGE 		0-91180-108-0 13 1 0612-
303 NUT; CLIP
WB 5700MM(57W) M8 FLANGE 		0-91180-108-0 15 1 0612-0712
303 NUT; CLIP
WB 5700MM(57W) EXC. LOW DECK WO/REAR BODY<PK4> M8 FLANGE 		0-91180-108-0 15 1 0801-
316 BRACKET; CLIP
LOW DECK WO/REAR BODY<PK4> (B) 		1-47479-729-0 08 1 0801-
316 BRACKET; CLIP
(A) 		1-33657-736-0 01 1 0612-0712
316 BRACKET; CLIP
EXC. LOW DECK WO/REAR BODY<PK4> (A) 		1-33657-736-0 01 1 0801-
316 BRACKET; CLIP
WB 5000MM(50W) (B) 		1-47479-729-0 09 1 0612-
316 BRACKET; CLIP
WB 5700MM(57W) (B) 		1-47479-729-0 10 1 0612-0712
316 BRACKET; CLIP
WB 5700MM(57W) EXC. LOW DECK WO/REAR BODY<PK4> (B) 		1-47479-729-0 10 1 0801-
474 BOLT; BRKT
LOW DECK WO/REAR BODY<PK4> (B) M8X30 FLANGE 		0-28650-830-0 06 1 0801-
474 BOLT; BRKT
LOW DECK WO/REAR BODY<PK4> (A) M12X40 FLANGE 		0-28651-240-0 03 1 0801-
474 BOLT; BRKT
(D) M10X30 FLANGE 		0-28651-030-0 02 1 0612-0712
474 BOLT; BRKT
EXC. LOW DECK WO/REAR BODY<PK4> (D) M10X30 FLANGE 		0-28651-030-0 02 1 0801-
474 BOLT; BRKT
(C) M8X20 FLANGE 		0-28650-820-0 02 1 0612-0712
474 BOLT; BRKT
EXC. LOW DECK WO/REAR BODY<PK4> (C) M8X20 FLANGE 		0-28650-820-0 02 1 0801-
474 BOLT; BRKT
(F) M8X25 FLANGE 		0-28650-825-0 02 1 0612-
474 BOLT; BRKT
WB 5000MM(50W) (E) M8X25 FLANGE 		0-28650-825-0 18 1 0612-0712
474 BOLT; BRKT
WB 5000MM(50W) (E) M8X25 FLANGE 		0-28650-825-0 18 1 0801-
474 BOLT; BRKT
LOW DECK WO/REAR BODY<PK4> (E) M8X25 FLANGE 		0-28650-825-0 18 1 0801-
474 BOLT; BRKT
WB 5700MM(57W) (E) M8X25 FLANGE 		0-28650-825-0 20 1 0612-0712
474 BOLT; BRKT
WB 5700MM(57W) EXC. LOW DECK WO/REAR BODY<PK4> (E) M8X25 FLANGE 		0-28650-825-0 20 1 0801-
475 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 0612-0707
475 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0708-0712
475 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0708-0712
475 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0801-
475 NUT; BRKT
EXC. LOW DECK WO/REAR BODY<PK4> M8 FLANGE 		0-91180-108-0 02 1 0801-
475 NUT; BRKT
WB 5000MM(50W) M8 FLANGE 		0-91180-108-0 18 1 0612-0712
475 NUT; BRKT
WB 5000MM(50W) M8 FLANGE 		0-91180-108-0 18 1 0801-
475 NUT; BRKT
LOW DECK WO/REAR BODY<PK4> M8 FLANGE 		0-91180-108-0 18 1 0801-
475 NUT; BRKT
WB 5700MM(57W) M8 FLANGE 		0-91180-108-0 20 1 0612-0712
475 NUT; BRKT
WB 5700MM(57W) EXC. LOW DECK WO/REAR BODY<PK4> M8 FLANGE 		0-91180-108-0 20 1 0801-
519 BRACKET; FRAME
LOW DECK WO/REAR BODY<PK4> (A) 		1-47479-111-0 02 1 0801-
519 BRACKET; FRAME
LOW DECK WO/REAR BODY<PK4> (B) 		1-47479-555-0 01 1 0801-
519 BRACKET; FRAME
(C) 		1-47479-486-0 01 1 0612-0712
519 BRACKET; FRAME
EXC. LOW DECK WO/REAR BODY<PK4> (C) 		1-47479-486-0 01 1 0801-

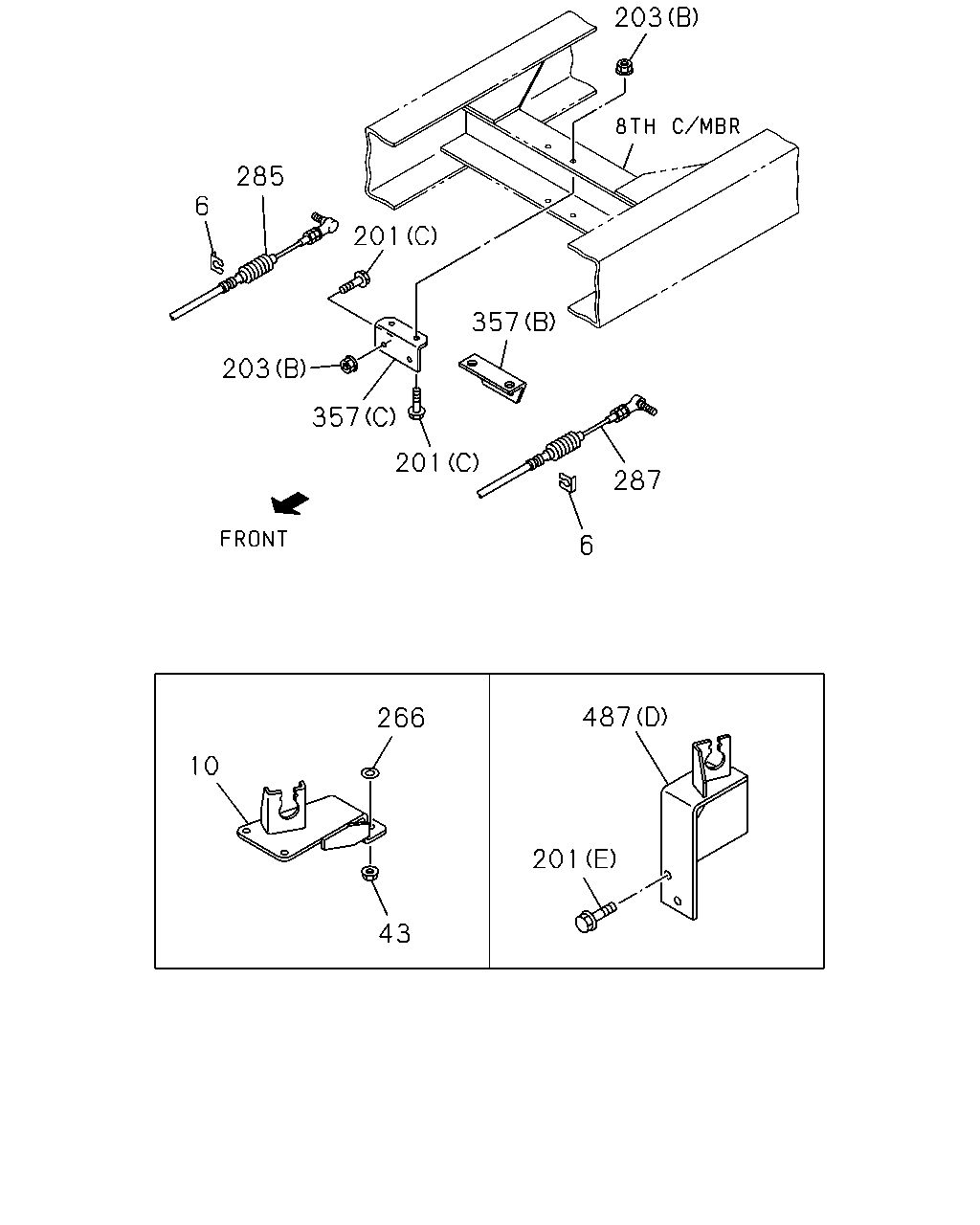

çizim 139200
285 6 201 203 357 357 287 6 201 203 266 10 43 201 487
BalonParca AdiParca NoAdetTipApplied Date
6 CLIP; CABLE
ID=22.2 		1-09701-209-1 02 1 0612-
10 BRACKET; SHIFT & SELECT
TRANSMISSION CONTROL CABLE TYPE(C1A) 		8-98075-709-1 01 1 0801-
43 NUT; BRKT
TRANSMISSION CONTROL CABLE TYPE(C1A) M10 FLANGE 		0-91180-210-0 03 1 0801-
43 NUT; BRKT
LOW DECK WO/REAR BODY<PK4> M12 FLANGE 		0-91180-212-0 03 1 0801-
201 BOLT; BRKT
TRANSMISSION CONTROL CABLE TYPE(C1A) (E) M10X20 FLANGE 		0-28151-020-0 02 1 0801-
201 BOLT; BRKT
(D) M10X30 FLANGE 		0-28651-030-0 02 1 0707-
201 BOLT; BRKT
TRANSMISSION CONTROL CABLE TYPE(C1A) (C) M10X25 FLANGE 		0-28651-025-0 04 1 0801-
201 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 04 1 0612-
201 BOLT; BRKT
(A) M10X30 FLANGE 		0-28651-030-0 06 1 0612-0706
201 BOLT; BRKT
(A) M10X30 FLANGE 		0-28651-030-0 04 1 0707-0712
201 BOLT; BRKT
EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) (A) M10X30 FLANGE 		0-28651-030-0 04 1 0801-
203 NUT; BRKT FIX
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) M10 FLANGE 		0-91180-210-0 05 1 0801-0905
203 NUT; BRKT FIX
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) M10 FLANGE 		0-91180-210-0 03 1 0906-
203 NUT; BRKT FIX
(A) M8 FLANGE 		0-91180-108-0 04 1 0612-
203 NUT; BRKT FIX
(B) M10 FLANGE 		0-91180-210-0 02 1 0612-0712
203 NUT; BRKT FIX
EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) (B) M10 FLANGE 		0-91180-210-0 02 1 0801-0905
203 NUT; BRKT FIX
(B) M10 FLANGE 		0-91180-210-0 02 1 0906-
203 NUT; BRKT FIX
EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) (B) M10 FLANGE 		0-91180-210-0 02 1 0906-
266 WASHER; PL,BRKT
TRANSMISSION CONTROL CABLE TYPE(C1A) ID=10.5 OD=22 		0-91614-610-0 01 1 0801-
285 WIRE; SHIFT,TRANS CONT
WB 5700MM(57W) LOW DECK WO/REAR BODY<PK4> 		8-98072-479-3 01 1 0801-
285 WIRE; SHIFT,TRANS CONT
WB 5000MM(50W) 		1-33672-048-1 01 1 0612-
285 WIRE; SHIFT,TRANS CONT
WB 5700MM(57W) 		1-33672-010-1 01 1 0612-0712
285 WIRE; SHIFT,TRANS CONT
WB 5700MM(57W) EXC. LOW DECK WO/REAR BODY<PK4> 		1-33672-010-1 01 1 0801-
287 WIRE; SELECT,TRANS CONT
WB 5700MM(57W) LOW DECK WO/REAR BODY<PK4> 		8-98072-478-2 01 1 0801-
287 WIRE; SELECT,TRANS CONT
WB 5000MM(50W) 		1-33672-049-0 01 1 0612-
287 WIRE; SELECT,TRANS CONT
WB 5700MM(57W) 		1-33672-011-0 01 1 0612-0712
287 WIRE; SELECT,TRANS CONT
WB 5700MM(57W) EXC. LOW DECK WO/REAR BODY<PK4> 		1-33672-011-0 01 1 0801-
357 BRACKET; RELAY LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) 		8-98075-708-0 01 1 0801-
357 BRACKET; RELAY LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) (C) 		8-98088-363-0 01 1 0801-
357 BRACKET; RELAY LEVER
(A) 		1-33657-832-0 01 1 0612-0712
357 BRACKET; RELAY LEVER
EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) (A) 		1-33657-832-0 01 1 0801-
487 BRACKET; CONT CABLE
TRANSMISSION CONTROL CABLE TYPE(C1A) (D) 		8-98075-430-0 01 1 0801-
487 BRACKET; CONT CABLE
LOW DECK WO/REAR BODY<PK4> (C) 		8-98096-018-1 01 1 0801-
487 BRACKET; CONT CABLE
(A) 		1-33657-725-0 01 1 0612-0712
487 BRACKET; CONT CABLE
EXC. LOW DECK WO/REAR BODY<PK4> (A) 		1-33657-725-0 01 1 0801-
487 BRACKET; CONT CABLE
(B) 		1-33657-803-0 01 1 0612-0712
487 BRACKET; CONT CABLE
EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) (B) 		1-33657-803-0 01 1 0801-
çizim 139205
407 162 110 264 112 285 111 112 264 355 313
BalonParca AdiParca NoAdetTipApplied Date
110 BRACKET; RELAY LEVER,1ST
TRANSMISSION CONTROL CABLE TYPE(C1A) (C) 		8-98075-373-0 01 1 0801-
110 BRACKET; RELAY LEVER,1ST
(A) 		1-33657-797-1 01 1 0612-0712
110 BRACKET; RELAY LEVER,1ST
EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) (A) 		1-33657-797-1 01 1 0801-
110 BRACKET; RELAY LEVER,1ST
(B) 		1-33657-835-0 01 1 0612-0712
110 BRACKET; RELAY LEVER,1ST
EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) (B) 		1-33657-835-0 01 1 0801-
111 SHAFT; RELAY LEVER,1ST
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) 		8-98075-371-0 01 1 0801-
111 SHAFT; RELAY LEVER,1ST
(A) 		1-33619-508-0 01 1 0612-0712
111 SHAFT; RELAY LEVER,1ST
EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) (A) 		1-33619-508-0 01 1 0801-
112 BUSHING; RELAY LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) 		8-98075-387-0 02 1 0801-
112 BUSHING; RELAY LEVER
(A) L=24 		5-33659-054-0 04 1 0612-0712
112 BUSHING; RELAY LEVER
EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) (A) L=24 		5-33659-054-0 04 1 0801-
162 LEVER; RELAY
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) 		8-98075-364-0 01 1 0801-
162 LEVER; RELAY
(A) 		1-33651-817-0 01 1 0612-0712
162 LEVER; RELAY
EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) (A) 		1-33651-817-0 01 1 0801-
264 BOLT; BRKT,RELAY LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) (A) M14X25 W/LK WASHER 		0-50541-425-0 02 1 0801-
264 BOLT; BRKT,RELAY LEVER
(B) M8X30 FLANGE 		0-28650-830-0 08 1 0612-0706
264 BOLT; BRKT,RELAY LEVER
(B) M8X30 FLANGE 		0-28650-830-0 04 1 0707-0712
264 BOLT; BRKT,RELAY LEVER
(B) M8X30 FLANGE 		0-28650-830-0 04 1 0707-0712
264 BOLT; BRKT,RELAY LEVER
(B) M8X30 FLANGE 		0-28650-830-0 04 1 0801-
264 BOLT; BRKT,RELAY LEVER
EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) (B) M8X30 FLANGE 		0-28650-830-0 04 1 0801-
285 WIRE; SHIFT,TRANS CONT
WB 5700MM(57W) LOW DECK WO/REAR BODY<PK4> 		8-98072-479-3 01 1 0801-
285 WIRE; SHIFT,TRANS CONT
WB 5000MM(50W) 		1-33672-048-1 01 1 0612-
285 WIRE; SHIFT,TRANS CONT
WB 5700MM(57W) 		1-33672-010-1 01 1 0612-0712
285 WIRE; SHIFT,TRANS CONT
WB 5700MM(57W) EXC. LOW DECK WO/REAR BODY<PK4> 		1-33672-010-1 01 1 0801-
313 NUT; CLIP BRKT
M10 FLANGE 		1-09440-061-0 01 1 0612-
313 NUT; CLIP BRKT
M8 FLANGE 		1-09440-062-1 01 1 0612-
355 NIPPLE; GREASE,RELAY LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0801-
355 NIPPLE; GREASE,RELAY LEVER
PT1/8 ELBOW 		0-90301-610-0 02 1 0612-0712
355 NIPPLE; GREASE,RELAY LEVER
EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) PT1/8 ELBOW 		0-90301-610-0 02 1 0801-
407 LEVER; RELAY,SHIFT
TRANSMISSION CONTROL CABLE TYPE(C1A) 		8-98075-342-0 01 1 0801-
407 LEVER; RELAY,SHIFT 1-33671-914-1 01 1 0612-0712
407 LEVER; RELAY,SHIFT
EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-33671-914-1 01 1 0801-

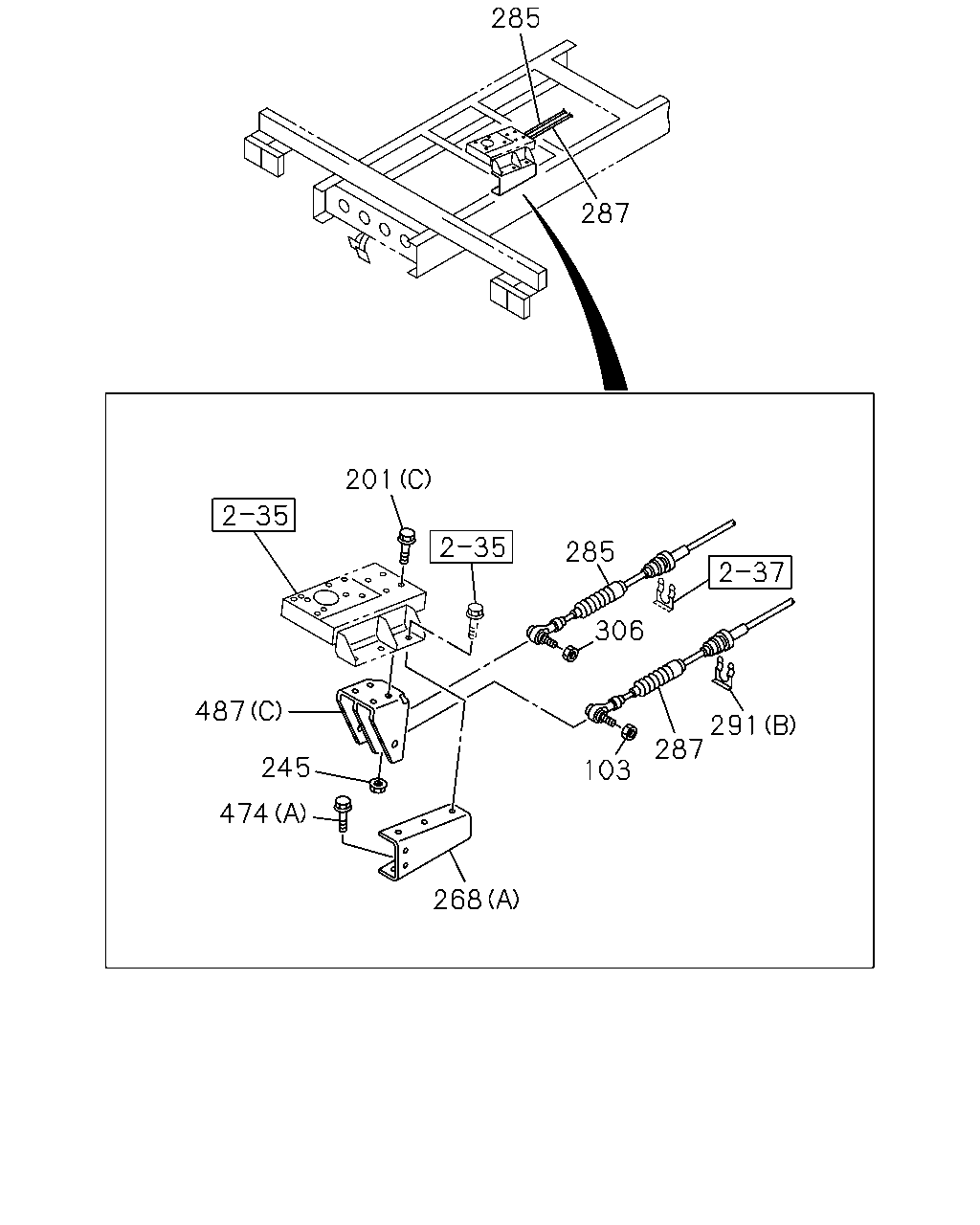

çizim 139206
285 287 201 285 306 487 291 287 245 103 474 268
BalonParca AdiParca NoAdetTipApplied Date
103 NUT
M8 FLANGE 		1-09440-062-1 01 1 0612-
201 BOLT; BRKT
TRANSMISSION CONTROL CABLE TYPE(C1A) (E) M10X20 FLANGE 		0-28151-020-0 02 1 0801-
201 BOLT; BRKT
(D) M10X30 FLANGE 		0-28651-030-0 02 1 0707-
201 BOLT; BRKT
TRANSMISSION CONTROL CABLE TYPE(C1A) (C) M10X25 FLANGE 		0-28651-025-0 04 1 0801-
201 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 04 1 0612-
201 BOLT; BRKT
(A) M10X30 FLANGE 		0-28651-030-0 06 1 0612-0706
201 BOLT; BRKT
(A) M10X30 FLANGE 		0-28651-030-0 04 1 0707-0712
201 BOLT; BRKT
EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) (A) M10X30 FLANGE 		0-28651-030-0 04 1 0801-
245 NUT; BRKT,RELAY LEVER
M8 FLANGE 		0-91180-108-0 04 1 0612-
268 BRACKET; LINK ROD
LOW DECK WO/REAR BODY<PK4> (A) 		8-98077-510-2 01 1 0801-
268 BRACKET; LINK ROD
(B) 		1-47479-107-0 01 1 0612-
285 WIRE; SHIFT,TRANS CONT
WB 5700MM(57W) LOW DECK WO/REAR BODY<PK4> 		8-98072-479-3 01 1 0801-
285 WIRE; SHIFT,TRANS CONT
WB 5000MM(50W) 		1-33672-048-1 01 1 0612-
285 WIRE; SHIFT,TRANS CONT
WB 5700MM(57W) 		1-33672-010-1 01 1 0612-0712
285 WIRE; SHIFT,TRANS CONT
WB 5700MM(57W) EXC. LOW DECK WO/REAR BODY<PK4> 		1-33672-010-1 01 1 0801-
287 WIRE; SELECT,TRANS CONT
WB 5700MM(57W) LOW DECK WO/REAR BODY<PK4> 		8-98072-478-2 01 1 0801-
287 WIRE; SELECT,TRANS CONT
WB 5000MM(50W) 		1-33672-049-0 01 1 0612-
287 WIRE; SELECT,TRANS CONT
WB 5700MM(57W) 		1-33672-011-0 01 1 0612-0712
287 WIRE; SELECT,TRANS CONT
WB 5700MM(57W) EXC. LOW DECK WO/REAR BODY<PK4> 		1-33672-011-0 01 1 0801-
291 CLIP; SHIFT TO SELECT,FRAME
(A) ID=13 H=29 L=30 		1-09700-001-0 02 1 0612-
291 CLIP; SHIFT TO SELECT,FRAME
(B) ID=22.2 		1-09701-209-1 01 1 0612-
306 NUT; WIRE BRKT
LOW DECK WO/REAR BODY<PK4> M8 FLANGE 		0-91180-108-0 01 1 0801-
306 NUT; WIRE BRKT
M10 FLANGE 		1-09440-061-0 01 1 0612-
474 BOLT; BRKT
LOW DECK WO/REAR BODY<PK4> (B) M8X30 FLANGE 		0-28650-830-0 06 1 0801-
474 BOLT; BRKT
LOW DECK WO/REAR BODY<PK4> (A) M12X40 FLANGE 		0-28651-240-0 03 1 0801-
474 BOLT; BRKT
(D) M10X30 FLANGE 		0-28651-030-0 02 1 0612-0712
474 BOLT; BRKT
EXC. LOW DECK WO/REAR BODY<PK4> (D) M10X30 FLANGE 		0-28651-030-0 02 1 0801-
474 BOLT; BRKT
(C) M8X20 FLANGE 		0-28650-820-0 02 1 0612-0712
474 BOLT; BRKT
EXC. LOW DECK WO/REAR BODY<PK4> (C) M8X20 FLANGE 		0-28650-820-0 02 1 0801-
474 BOLT; BRKT
(F) M8X25 FLANGE 		0-28650-825-0 02 1 0612-
474 BOLT; BRKT
WB 5000MM(50W) (E) M8X25 FLANGE 		0-28650-825-0 18 1 0612-0712
474 BOLT; BRKT
WB 5000MM(50W) (E) M8X25 FLANGE 		0-28650-825-0 18 1 0801-
474 BOLT; BRKT
LOW DECK WO/REAR BODY<PK4> (E) M8X25 FLANGE 		0-28650-825-0 18 1 0801-
474 BOLT; BRKT
WB 5700MM(57W) (E) M8X25 FLANGE 		0-28650-825-0 20 1 0612-0712
474 BOLT; BRKT
WB 5700MM(57W) EXC. LOW DECK WO/REAR BODY<PK4> (E) M8X25 FLANGE 		0-28650-825-0 20 1 0801-
487 BRACKET; CONT CABLE
TRANSMISSION CONTROL CABLE TYPE(C1A) (D) 		8-98075-430-0 01 1 0801-
487 BRACKET; CONT CABLE
LOW DECK WO/REAR BODY<PK4> (C) 		8-98096-018-1 01 1 0801-
487 BRACKET; CONT CABLE
(A) 		1-33657-725-0 01 1 0612-0712
487 BRACKET; CONT CABLE
EXC. LOW DECK WO/REAR BODY<PK4> (A) 		1-33657-725-0 01 1 0801-
487 BRACKET; CONT CABLE
(B) 		1-33657-803-0 01 1 0612-0712
487 BRACKET; CONT CABLE
EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) (B) 		1-33657-803-0 01 1 0801-

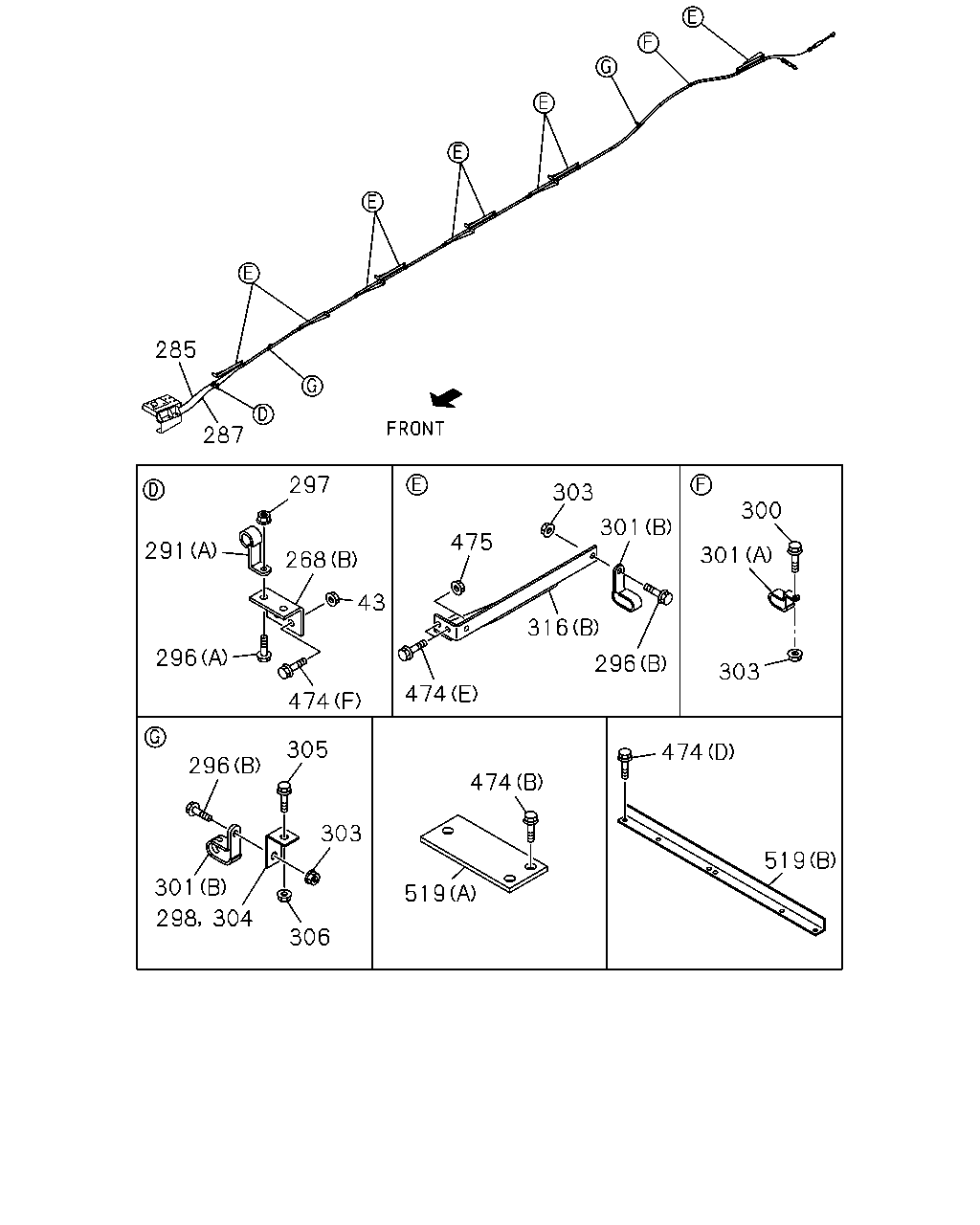

çizim 139216
285 287 297 303 300 301 475 291 301 268 43 316 296 296 303 474 474 305 474 296 474 303 519 301 519 298 304 306
BalonParca AdiParca NoAdetTipApplied Date
43 NUT; BRKT
TRANSMISSION CONTROL CABLE TYPE(C1A) M10 FLANGE 		0-91180-210-0 03 1 0801-
43 NUT; BRKT
LOW DECK WO/REAR BODY<PK4> M12 FLANGE 		0-91180-212-0 03 1 0801-
268 BRACKET; LINK ROD
LOW DECK WO/REAR BODY<PK4> (A) 		8-98077-510-2 01 1 0801-
268 BRACKET; LINK ROD
(B) 		1-47479-107-0 01 1 0612-
285 WIRE; SHIFT,TRANS CONT
WB 5700MM(57W) LOW DECK WO/REAR BODY<PK4> 		8-98072-479-3 01 1 0801-
285 WIRE; SHIFT,TRANS CONT
WB 5000MM(50W) 		1-33672-048-1 01 1 0612-
285 WIRE; SHIFT,TRANS CONT
WB 5700MM(57W) 		1-33672-010-1 01 1 0612-0712
285 WIRE; SHIFT,TRANS CONT
WB 5700MM(57W) EXC. LOW DECK WO/REAR BODY<PK4> 		1-33672-010-1 01 1 0801-
287 WIRE; SELECT,TRANS CONT
WB 5700MM(57W) LOW DECK WO/REAR BODY<PK4> 		8-98072-478-2 01 1 0801-
287 WIRE; SELECT,TRANS CONT
WB 5000MM(50W) 		1-33672-049-0 01 1 0612-
287 WIRE; SELECT,TRANS CONT
WB 5700MM(57W) 		1-33672-011-0 01 1 0612-0712
287 WIRE; SELECT,TRANS CONT
WB 5700MM(57W) EXC. LOW DECK WO/REAR BODY<PK4> 		1-33672-011-0 01 1 0801-
291 CLIP; SHIFT TO SELECT,FRAME
(A) ID=13 H=29 L=30 		1-09700-001-0 02 1 0612-
291 CLIP; SHIFT TO SELECT,FRAME
(B) ID=22.2 		1-09701-209-1 01 1 0612-
296 BOLT; CLIP,SHIFT & SELECT
LOW DECK WO/REAR BODY<PK4> (B) M8X20 FLANGE 		0-28650-820-0 14 1 0801-
296 BOLT; CLIP,SHIFT & SELECT
(A) M10X20 FLANGE 		0-28651-020-0 02 1 0612-
296 BOLT; CLIP,SHIFT & SELECT
WB 5000MM(50W) (B) M8X20 FLANGE 		0-28650-820-0 13 1 0612-
296 BOLT; CLIP,SHIFT & SELECT
WB 5700MM(57W) (B) M8X20 FLANGE 		0-28650-820-0 15 1 0612-0712
296 BOLT; CLIP,SHIFT & SELECT
WB 5700MM(57W) EXC. LOW DECK WO/REAR BODY<PK4> (B) M8X20 FLANGE 		0-28650-820-0 15 1 0801-
297 NUT; CLIP
M10 FLANGE 		0-91180-210-0 02 1 0612-
298 BRACKET
LOW DECK WO/REAR BODY<PK4> L=40 		1-47478-410-0 02 1 0801-
300 BOLT; CLIP
LOW DECK WO/REAR BODY<PK4> M6X20 FLANGE 		0-28050-620-0 02 1 0801-
300 BOLT; CLIP
LOW DECK WO/REAR BODY<PK4> M8X20 FLANGE 		0-28650-820-0 03 1 0801-
300 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0612-0712
300 BOLT; CLIP
EXC. LOW DECK WO/REAR BODY<PK4> M8X20 FLANGE 		0-28650-820-0 01 1 0801-
301 CLIP; WIRE
LOW DECK WO/REAR BODY<PK4> (A) ID=11X2 L=16 		0-95325-026-0 01 1 0801-
301 CLIP; WIRE
LOW DECK WO/REAR BODY<PK4> (A) ID=13 & 13 L=20 H=21.5 		1-09700-975-0 02 1 0801-0906
301 CLIP; WIRE
LOW DECK WO/REAR BODY<PK4> (A) ID=13 & 13 L=20 H=21.5 		8-98033-769-0 02 1 0907-
301 CLIP; WIRE
LOW DECK WO/REAR BODY<PK4> (B) ID=13X2 L=32 		1-09701-245-0 14 1 0801-
301 CLIP; WIRE
(A) ID=13 & 13 L=20 H=21.5 		1-09700-975-0 01 1 0612-0712
301 CLIP; WIRE
EXC. LOW DECK WO/REAR BODY<PK4> (A) ID=13 & 13 L=20 H=21.5 		1-09700-975-0 01 1 0801-0906
301 CLIP; WIRE
EXC. LOW DECK WO/REAR BODY<PK4> (A) ID=13 & 13 L=20 H=21.5 		8-98033-769-0 01 1 0907-
301 CLIP; WIRE
WB 5000MM(50W) (B) ID=13X2 L=32 		1-09701-245-0 13 1 0612-
301 CLIP; WIRE
WB 5700MM(57W) (B) ID=13X2 L=32 		1-09701-245-0 15 1 0612-0712
301 CLIP; WIRE
WB 5700MM(57W) EXC. LOW DECK WO/REAR BODY<PK4> (B) ID=13X2 L=32 		1-09701-245-0 15 1 0801-
303 NUT; CLIP
LOW DECK WO/REAR BODY<PK4> M8 FLANGE 		0-91180-108-0 16 1 0801-
303 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0612-0712
303 NUT; CLIP
EXC. LOW DECK WO/REAR BODY<PK4> M8 FLANGE 		0-91180-108-0 01 1 0801-
303 NUT; CLIP
WB 5000MM(50W) M8 FLANGE 		0-91180-108-0 13 1 0612-
303 NUT; CLIP
WB 5700MM(57W) M8 FLANGE 		0-91180-108-0 15 1 0612-0712
303 NUT; CLIP
WB 5700MM(57W) EXC. LOW DECK WO/REAR BODY<PK4> M8 FLANGE 		0-91180-108-0 15 1 0801-
304 BRACKET; WIRE,TRANS CONT
LOW DECK WO/REAR BODY<PK4> L=40 		1-47478-410-0 01 1 0801-
305 BOLT; WIRE BRKT
LOW DECK WO/REAR BODY<PK4> M8X25 FLANGE 		0-28650-825-0 01 1 0801-
306 NUT; WIRE BRKT
LOW DECK WO/REAR BODY<PK4> M8 FLANGE 		0-91180-108-0 01 1 0801-
306 NUT; WIRE BRKT
M10 FLANGE 		1-09440-061-0 01 1 0612-
316 BRACKET; CLIP
LOW DECK WO/REAR BODY<PK4> (B) 		1-47479-729-0 08 1 0801-
316 BRACKET; CLIP
(A) 		1-33657-736-0 01 1 0612-0712
316 BRACKET; CLIP
EXC. LOW DECK WO/REAR BODY<PK4> (A) 		1-33657-736-0 01 1 0801-
316 BRACKET; CLIP
WB 5000MM(50W) (B) 		1-47479-729-0 09 1 0612-
316 BRACKET; CLIP
WB 5700MM(57W) (B) 		1-47479-729-0 10 1 0612-0712
316 BRACKET; CLIP
WB 5700MM(57W) EXC. LOW DECK WO/REAR BODY<PK4> (B) 		1-47479-729-0 10 1 0801-
474 BOLT; BRKT
LOW DECK WO/REAR BODY<PK4> (B) M8X30 FLANGE 		0-28650-830-0 06 1 0801-
474 BOLT; BRKT
LOW DECK WO/REAR BODY<PK4> (A) M12X40 FLANGE 		0-28651-240-0 03 1 0801-
474 BOLT; BRKT
(D) M10X30 FLANGE 		0-28651-030-0 02 1 0612-0712
474 BOLT; BRKT
EXC. LOW DECK WO/REAR BODY<PK4> (D) M10X30 FLANGE 		0-28651-030-0 02 1 0801-
474 BOLT; BRKT
(C) M8X20 FLANGE 		0-28650-820-0 02 1 0612-0712
474 BOLT; BRKT
EXC. LOW DECK WO/REAR BODY<PK4> (C) M8X20 FLANGE 		0-28650-820-0 02 1 0801-
474 BOLT; BRKT
(F) M8X25 FLANGE 		0-28650-825-0 02 1 0612-
474 BOLT; BRKT
WB 5000MM(50W) (E) M8X25 FLANGE 		0-28650-825-0 18 1 0612-0712
474 BOLT; BRKT
WB 5000MM(50W) (E) M8X25 FLANGE 		0-28650-825-0 18 1 0801-
474 BOLT; BRKT
LOW DECK WO/REAR BODY<PK4> (E) M8X25 FLANGE 		0-28650-825-0 18 1 0801-
474 BOLT; BRKT
WB 5700MM(57W) (E) M8X25 FLANGE 		0-28650-825-0 20 1 0612-0712
474 BOLT; BRKT
WB 5700MM(57W) EXC. LOW DECK WO/REAR BODY<PK4> (E) M8X25 FLANGE 		0-28650-825-0 20 1 0801-
475 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 0612-0707
475 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0708-0712
475 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0708-0712
475 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0801-
475 NUT; BRKT
EXC. LOW DECK WO/REAR BODY<PK4> M8 FLANGE 		0-91180-108-0 02 1 0801-
475 NUT; BRKT
WB 5000MM(50W) M8 FLANGE 		0-91180-108-0 18 1 0612-0712
475 NUT; BRKT
WB 5000MM(50W) M8 FLANGE 		0-91180-108-0 18 1 0801-
475 NUT; BRKT
LOW DECK WO/REAR BODY<PK4> M8 FLANGE 		0-91180-108-0 18 1 0801-
475 NUT; BRKT
WB 5700MM(57W) M8 FLANGE 		0-91180-108-0 20 1 0612-0712
475 NUT; BRKT
WB 5700MM(57W) EXC. LOW DECK WO/REAR BODY<PK4> M8 FLANGE 		0-91180-108-0 20 1 0801-
519 BRACKET; FRAME
LOW DECK WO/REAR BODY<PK4> (A) 		1-47479-111-0 02 1 0801-
519 BRACKET; FRAME
LOW DECK WO/REAR BODY<PK4> (B) 		1-47479-555-0 01 1 0801-
519 BRACKET; FRAME
(C) 		1-47479-486-0 01 1 0612-0712
519 BRACKET; FRAME
EXC. LOW DECK WO/REAR BODY<PK4> (C) 		1-47479-486-0 01 1 0801-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
