Isuzu WW
▶
BUSES
▶
LT
▶
11032 - LT134(LHD) EURO4
▶
2 - Clutch, Transmission, Trans Axle
▶
2-35 - MANUAL TRANSMISSION SHIFT CONTROL LEVER
▶

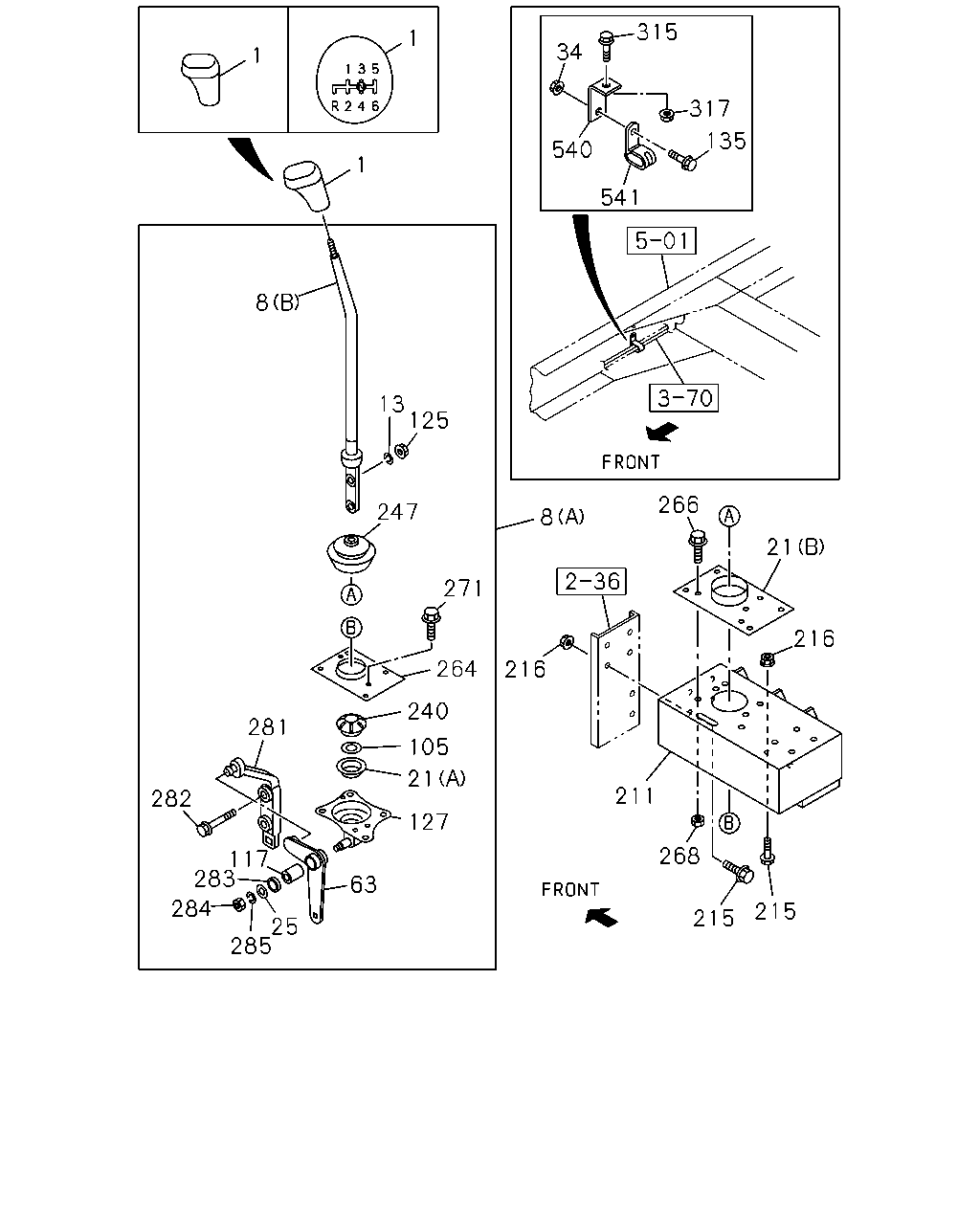

2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER
(#27347) — 33 parça
1
1
1
8
13
125
247
271
264
240
105
21
127
63
25
285
284
282
281
283
117
216
211
268
215
215
216
21
8
266
541
540
135
317
34
315
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
KNOB; CHANGE LEVER
1-33611-070-1
01
1
0612-
8
LEVER; CHANGE
(B)
1-33613-354-1
01
1
0612-
8
LEVER; CHANGE
(A)
1-33620-106-0
01
1
0612-
13
WASHER; PL,SUPER SHIFT LEVER
ID=10.5
9-09164-510-0
02
1
0612-
21
SEAT; CHANGE LEVER
(B)
1-33619-081-0
01
1
0612-
21
SEAT; CHANGE LEVER
(A)
1-33619-293-0
01
1
0612-
25
WASHER
ID=10.5 OD=26
9-09160-710-0
01
1
0612-
34
NUT
LOW DECK WO/REAR BODY<PK4> M8 FLANGE
0-91180-108-0
01
1
0802-
63
LEVER; RELAY,SELECT
1-33651-760-0
01
1
0612-
105
SHIM; CHANGE LEVER
T=0.3 ID=25
1-33612-004-0
AR
1
0612-
105
SHIM; CHANGE LEVER
T=0.1 ID=25
1-33612-005-0
AR
1
0612-
117
BUSHING; RELAY LEVER
1-09330-004-0
01
1
0612-
125
NUT; ARM
M10
0-91110-510-0
02
1
0612-
127
SUPPORT; CHANGE LEVER
1-33619-092-0
01
1
0612-
135
BOLT
LOW DECK WO/REAR BODY<PK4> M8X20 FLANGE
0-28650-820-0
01
1
0802-
211
BRACKET; CHANGE LEVER
1-33657-846-0
01
1
0612-
215
BOLT; BRKT,CHANGE LEVER
M12X40 FLANGE
0-28651-240-0
03
1
0612-
216
NUT; BRKT,CHANGE LEVER
M12 FLANGE
0-91180-212-0
03
1
0612-
240
COVER; SPHERICAL,CHANGE LEVER
1-33614-108-0
01
1
0612-
247
SEAL; DUST,CHANGE LEVER
1-33614-046-0
01
1
0612-
264
PLATE; COVER
1-33619-026-0
01
1
0612-
266
BOLT; SEAT SET
M8X40 FLANGE
0-28650-840-0
04
1
0612-
268
NUT; SEAT SET
M8 FLANGE
0-91180-108-0
04
1
0612-
271
BOLT; BRKT
M6X12 W/LK WASHER
0-50540-612-0
02
1
0612-
281
ARM; SELECT,CHANGE LEVER
1-33651-759-1
01
1
0612-
282
BOLT; ARM
M10X55
0-10811-055-0
02
1
0612-
283
WASHER; LK,ARM
ID=16.5 OD=27.8 H=3.5
1-09503-047-0
02
1
0612-
284
NUT; RELAY LEVER
M10
0-91110-510-0
01
1
0612-
285
WASHER; LK,RELAY LEVER
ID=10.2
0-91510-510-0
01
1
0612-
315
BOLT; BRKT
LOW DECK WO/REAR BODY<PK4> M8X25 FLANGE
0-28650-825-0
01
1
0802-
317
NUT; BRKT
LOW DECK WO/REAR BODY<PK4> M8 FLANGE
0-91180-108-0
01
1
0802-
540
BRACKET; CLIP
LOW DECK WO/REAR BODY<PK4> L=40
1-47478-410-0
01
1
0802-
541
CLIP; CABLE
LOW DECK WO/REAR BODY<PK4> ID=13X2 L=32
1-09701-245-0
01
1
0802-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
