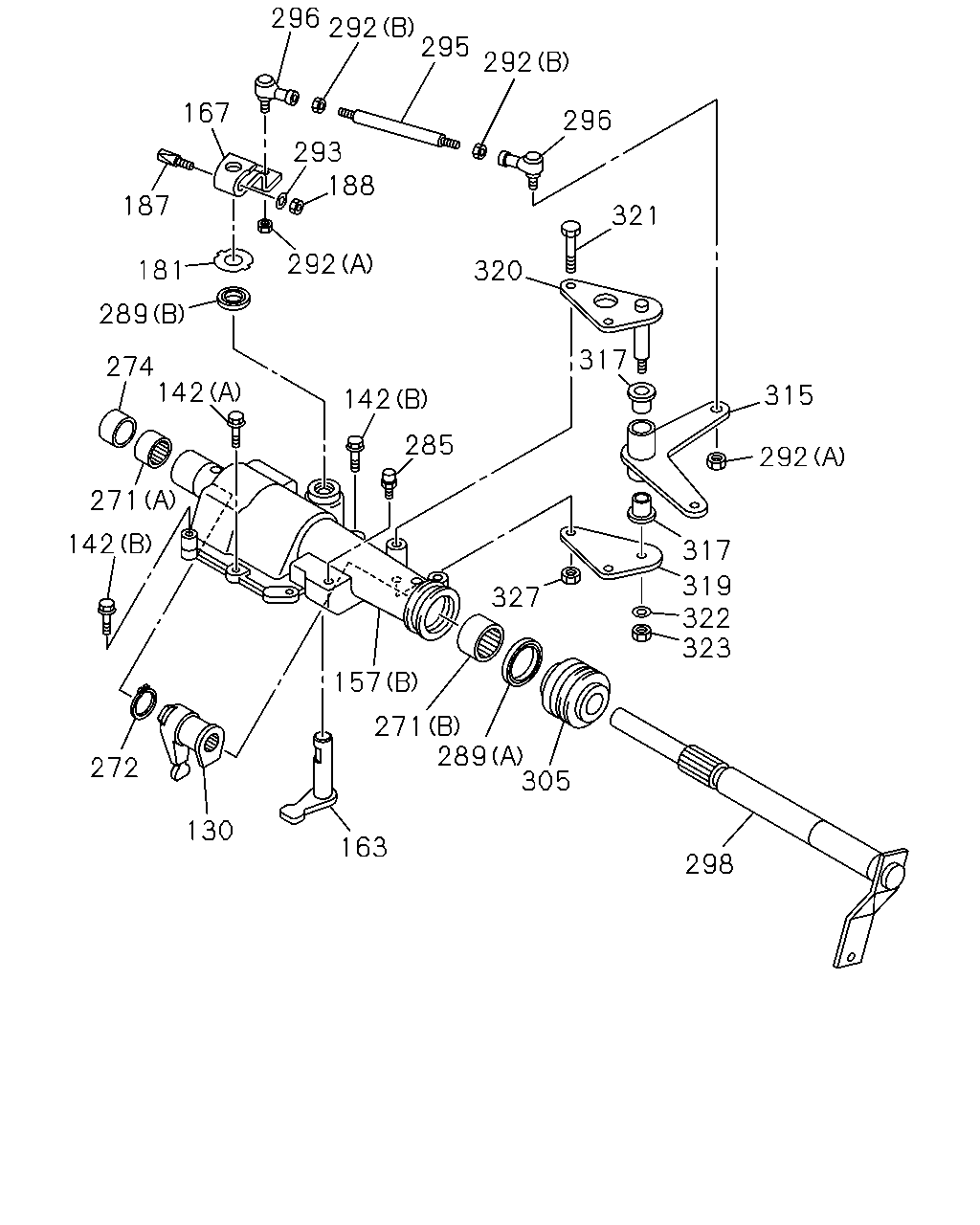

2-30 — GEAR SHIFTER AND QUADRANT BOX (#27346) — 182 parça

296 292 295 292 167 296 293 188 187 321 292 181 320 289 317 274 142 315 142 285 292 271 142 317 319 322 323 327 157 271 289 305 272 130 163 298

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
130	LEVER; SHIFT,INTERNAL	1-33521-111-1	01	1	0612-
142	BOLT; QUAD BOX TRANSMISSION CONTROL CABLE TYPE(C1A) (C) M10X60 FLANGE	0-28151-060-0	02	1	0801-
142	BOLT; QUAD BOX TRANSMISSION CONTROL CABLE TYPE(C1A) (A) M10X28 FLANGE	0-28181-028-0	08	1	0801-0805
142	BOLT; QUAD BOX TRANSMISSION CONTROL CABLE TYPE(C1A) (A) M10X28 FLANGE	8-98044-944-0	08	1	0806-
142	BOLT; QUAD BOX TRANSMISSION CONTROL CABLE TYPE(C1A) (B) M10X28 FLANGE REAMER	1-09040-089-1	01	1	0801-0805
142	BOLT; QUAD BOX TRANSMISSION CONTROL CABLE TYPE(C1A) (B) M10X28 FLANGE REAMER	8-97365-375-0	01	1	0806-
142	BOLT; QUAD BOX TRANSMISSION CONTROL CABLE TYPE(C1A) (D) M10X20,M10X60 L=90	1-09049-020-0	02	1	0801-
142	BOLT; QUAD BOX TRANSMISSION CONTROL CABLE TYPE(C1A) (D) M10X20,M10X26 L=56	8-98010-334-0	05	1	0801-
142	BOLT; QUAD BOX (C) M10X60 FLANGE	0-28151-060-0	03	1	0612-0712
142	BOLT; QUAD BOX EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) (C) M10X60 FLANGE	0-28151-060-0	03	1	0801-
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	12	1	0612-0712
142	BOLT; QUAD BOX EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) (A) M10X28 FLANGE	0-28181-028-0	12	1	0801-0805
142	BOLT; QUAD BOX EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) (A) M10X28 FLANGE	8-98044-944-0	12	1	0806-
142	BOLT; QUAD BOX (B) M10X28 FLANGE REAMER	1-09040-089-1	02	1	0612-0712
142	BOLT; QUAD BOX EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) (B) M10X28 FLANGE REAMER	1-09040-089-1	02	1	0801-0805
142	BOLT; QUAD BOX EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) (B) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0806-
142	BOLT; QUAD BOX (D) M10X20,M10X60 L=90	1-09049-020-0	01	1	0612-0712
142	BOLT; QUAD BOX EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) (D) M10X20,M10X60 L=90	1-09049-020-0	01	1	0801-
157	BOX; QUAD,TRANS (B)	1-33541-478-0	01	1	0612-
157	BOX; QUAD,TRANS (A)	1-33541-481-0	01	1	0612-
163	LEVER; SELECT,INTERNAL	1-33522-041-4	01	1	0612-
167	LEVER; SELECT,EXTERNAL TRANSMISSION CONTROL CABLE TYPE(C1A)	8-98088-364-0	01	1	0801-
167	LEVER; SELECT,EXTERNAL	1-33521-064-1	01	1	0612-0712
167	LEVER; SELECT,EXTERNAL EXC. TRANSMISSION CONTROL CABLE TYPE(C1A)	1-33521-064-1	01	1	0801-
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	0612-
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	0612-
188	NUT; SELECT LEVER M8 FLANGE	1-09440-062-1	01	1	0612-
271	BUSHING; QUAD BOX (A) ID=20 OD=23	1-33549-016-0	01	1	0612-
271	BUSHING; QUAD BOX (B) ID=28 OD=32	1-33549-104-0	01	1	0612-
272	RING; SNAP,QUAD BOX	1-09588-175-0	01	1	0612-
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	0612-
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	0612-
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30	1-09625-386-0	01	1	0612-
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-647-0	01	1	0612-
292	NUT; LINK ROD (B) M8	0-91111-508-0	02	1	0612-0712
292	NUT; LINK ROD EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) (B) M8	0-91111-508-0	02	1	0801-
292	NUT; LINK ROD (A) M8 FLANGE	1-09440-062-1	02	1	0612-0712
292	NUT; LINK ROD EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) (A) M8 FLANGE	1-09440-062-1	02	1	0801-
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	0-91610-708-0	01	1	0612-
295	ROD; LINK,RELAY LEVER L=130	1-09765-262-0	01	1	0612-0712
295	ROD; LINK,RELAY LEVER EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) L=130	1-09765-262-0	01	1	0801-
296	ROD END L=45.5	1-09760-118-1	02	1	0612-0712
296	ROD END EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) L=45.5	1-09760-118-1	02	1	0801-
298	SHAFT; SHIFT LEVER TRANSMISSION CONTROL CABLE TYPE(C1A)	8-98088-365-0	01	1	0801-
298	SHAFT; SHIFT LEVER	1-33522-186-0	01	1	0612-0712
298	SHAFT; SHIFT LEVER EXC. TRANSMISSION CONTROL CABLE TYPE(C1A)	1-33522-186-0	01	1	0801-
305	BOOT; LEVER SHAFT	1-33529-028-0	01	1	0612-
315	LEVER; SELECT	1-33651-487-0	01	1	0612-0712
315	LEVER; SELECT EXC. TRANSMISSION CONTROL CABLE TYPE(C1A)	1-33651-487-0	01	1	0801-
317	BUSHING; LEVER ID=16 OD=18 H=16	1-09503-151-0	02	1	0612-0712
317	BUSHING; LEVER EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) ID=16 OD=18 H=16	1-09503-151-0	02	1	0801-
319	BRACKET; SELECT LEVER	1-33657-412-0	01	1	0612-0712
319	BRACKET; SELECT LEVER EXC. TRANSMISSION CONTROL CABLE TYPE(C1A)	1-33657-412-0	01	1	0801-
320	SHAFT; LEVER	1-33657-413-0	01	1	0612-0712
320	SHAFT; LEVER EXC. TRANSMISSION CONTROL CABLE TYPE(C1A)	1-33657-413-0	01	1	0801-
321	BOLT; BRKT,RELAY LEVER M10X80	0-10856-080-0	02	1	0612-0712
321	BOLT; BRKT,RELAY LEVER EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) M10X80	0-10856-080-0	02	1	0801-
322	WASHER; LK ID=10.2	9-09150-510-0	01	1	0612-0712
322	WASHER; LK EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) ID=10.2	9-09150-510-0	01	1	0801-
323	NUT; LK,SELECT LEVER M10	9-09110-410-0	01	1	0612-0712
323	NUT; LK,SELECT LEVER EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) M10	9-09110-410-0	01	1	0801-
327	NUT; BRKT,RELAY LEVER M10 FLANGE	0-91180-210-0	02	1	0612-

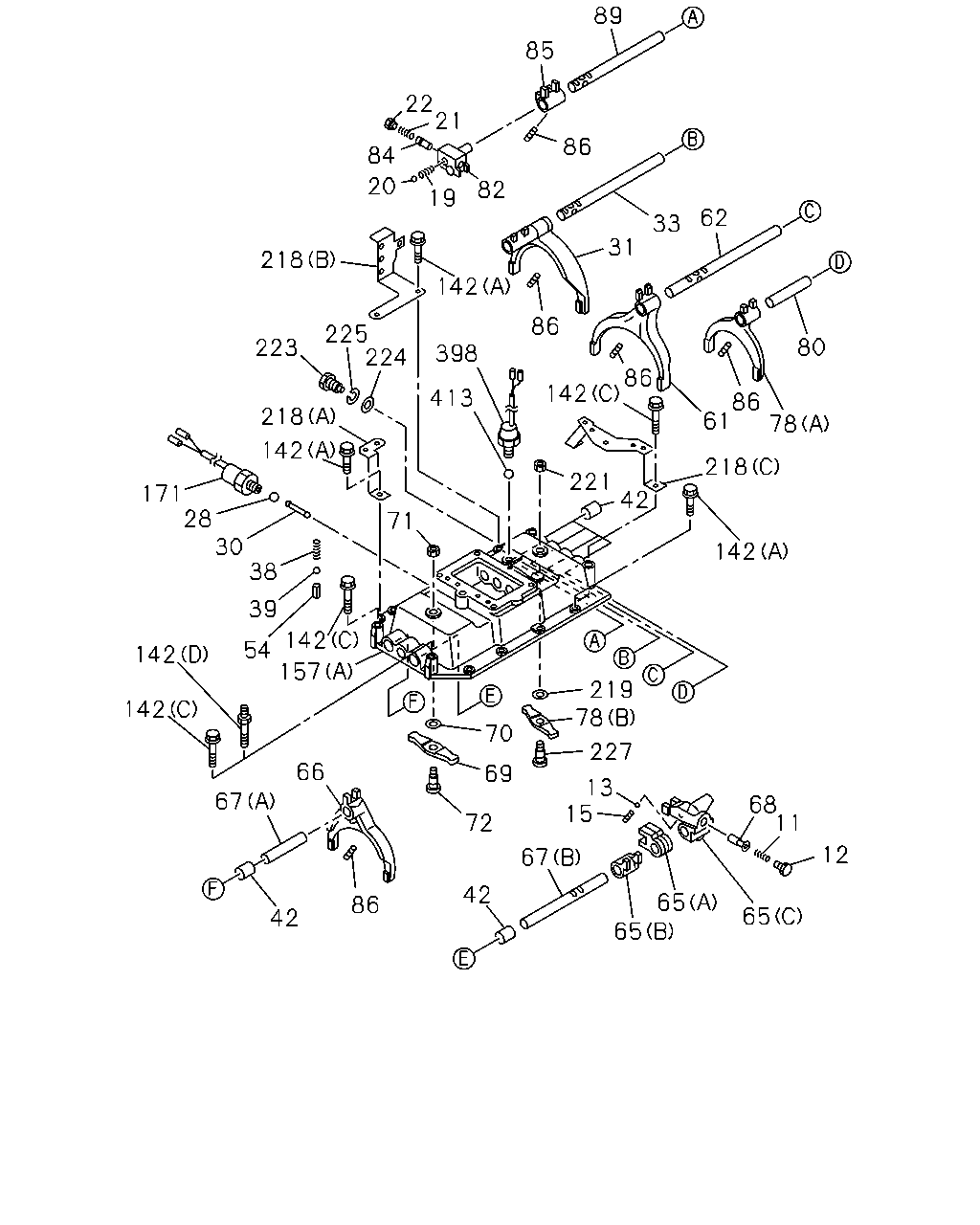

89 85 22 21 84 86 19 20 82 62 33 31 218 142 225 224 86 80 223 398 86 142 413 86 61 78 218 142 218 221 42 171 28 30 38 71 142 39 142 54 142 157 219 78 142 70 227 66 69 13 15 67 68 11 72 12 67 42 65 65 86 65 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
11	SPRING; RETURN,SHIFT SLEEVE	9-09941-160-0	01	1	0612-
12	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	0612-
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	0612-
15	SPRING; LK,SHIFT SLEEVE	1-09580-442-0	01	1	0612-
19	SPRING; COIL COMP	1-09580-441-0	01	1	0612-
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	0612-
21	SPRING; COIL COMP SLEEVE	9-09941-160-0	01	1	0612-
22	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	0612-
28	BALL; INTER LK	9-00097-501-0	04	1	0612-
30	PIN; INTER LK	9-33534-003-0	03	1	0612-
31	ARM; SHIFT,LOW & 2ND	1-33511-439-1	01	1	0612-
33	ROD; SHIFT,LOW & 2ND	1-33531-253-1	01	1	0612-1202
33	ROD; SHIFT,LOW & 2ND	8-98207-578-0	01	1	1203-
38	SPRING; DETENT	1-09580-379-0	04	1	0612-
39	BALL; DETENT	1-09843-012-0	04	1	0612-
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	06	1	0612-
54	PIN; SPR,SHIFT BLOCK	1-09748-014-0	03	1	0612-
61	ARM; SHIFT,3RD & 4TH	1-33511-490-1	01	1	0612-
62	ROD; SHIFT,3RD & 4TH	1-33531-254-1	01	1	0612-1202
62	ROD; SHIFT,3RD & 4TH	8-98207-586-0	01	1	1203-
65	BLOCK ASM; SHIFT,5TH & 6TH (A)	1-33511-202-3	01	1	0612-
65	BLOCK ASM; SHIFT,5TH & 6TH (B)	1-33511-208-3	01	1	0612-
65	BLOCK ASM; SHIFT,5TH & 6TH (C)	1-33511-513-0	01	1	0612-
66	ARM; SHIFT,5TH & 6TH	1-33511-505-0	01	1	0612-
67	ROD; SHIFT,5TH & 6TH (A) L=122	1-33531-235-1	01	1	0612-1202
67	ROD; SHIFT,5TH & 6TH (A) L=122	8-98207-587-0	01	1	1203-
67	ROD; SHIFT,5TH & 6TH (B) L=278	1-33531-255-1	01	1	0612-1202
67	ROD; SHIFT,5TH & 6TH (B) L=278	8-98207-589-0	01	1	1203-
68	SLEEVE; 5TH & 6TH	1-33516-025-0	01	1	0612-
69	LEVER; SHIFT,5TH & 6TH	1-33511-082-0	01	1	0612-
70	WASHER; PL,SHIFT LEVER ID=16.5	9-09857-042-0	01	1	0612-
71	NUT; SHIFT LEVER M12 FLANGE	0-91180-212-0	01	1	0612-
72	SPINDLE; 5TH & 6TH	1-33519-012-0	01	1	0612-
78	ARM; SHIFT,REV (B)	1-33511-082-0	01	1	0612-
78	ARM; SHIFT,REV (A)	1-33511-234-1	01	1	0612-
80	ROD; SHIFT,REV ARM	1-33531-234-1	01	1	0612-1202
80	ROD; SHIFT,REV ARM	8-98207-584-0	01	1	1203-
82	BLOCK; SHIFT,REV	1-33511-310-1	01	1	0612-
84	SLEEVE; REV	1-33516-025-0	01	1	0612-
85	BLOCK; SHIFT,REV RR	1-33511-201-3	01	1	0612-
86	SCREW; TAPER,ARM TO ROD M12X20	1-09052-039-0	09	1	0612-
89	ROD; SHIFT,REV	1-33531-252-1	01	1	0612-1202
89	ROD; SHIFT,REV	8-98207-582-0	01	1	1203-
142	BOLT; QUAD BOX TRANSMISSION CONTROL CABLE TYPE(C1A) (C) M10X60 FLANGE	0-28151-060-0	02	1	0801-
142	BOLT; QUAD BOX TRANSMISSION CONTROL CABLE TYPE(C1A) (A) M10X28 FLANGE	0-28181-028-0	08	1	0801-0805
142	BOLT; QUAD BOX TRANSMISSION CONTROL CABLE TYPE(C1A) (A) M10X28 FLANGE	8-98044-944-0	08	1	0806-
142	BOLT; QUAD BOX TRANSMISSION CONTROL CABLE TYPE(C1A) (B) M10X28 FLANGE REAMER	1-09040-089-1	01	1	0801-0805
142	BOLT; QUAD BOX TRANSMISSION CONTROL CABLE TYPE(C1A) (B) M10X28 FLANGE REAMER	8-97365-375-0	01	1	0806-
142	BOLT; QUAD BOX TRANSMISSION CONTROL CABLE TYPE(C1A) (D) M10X20,M10X60 L=90	1-09049-020-0	02	1	0801-
142	BOLT; QUAD BOX TRANSMISSION CONTROL CABLE TYPE(C1A) (D) M10X20,M10X26 L=56	8-98010-334-0	05	1	0801-
142	BOLT; QUAD BOX (C) M10X60 FLANGE	0-28151-060-0	03	1	0612-0712
142	BOLT; QUAD BOX EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) (C) M10X60 FLANGE	0-28151-060-0	03	1	0801-
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	12	1	0612-0712
142	BOLT; QUAD BOX EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) (A) M10X28 FLANGE	0-28181-028-0	12	1	0801-0805
142	BOLT; QUAD BOX EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) (A) M10X28 FLANGE	8-98044-944-0	12	1	0806-
142	BOLT; QUAD BOX (B) M10X28 FLANGE REAMER	1-09040-089-1	02	1	0612-0712
142	BOLT; QUAD BOX EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) (B) M10X28 FLANGE REAMER	1-09040-089-1	02	1	0801-0805
142	BOLT; QUAD BOX EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) (B) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0806-
142	BOLT; QUAD BOX (D) M10X20,M10X60 L=90	1-09049-020-0	01	1	0612-0712
142	BOLT; QUAD BOX EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) (D) M10X20,M10X60 L=90	1-09049-020-0	01	1	0801-
157	BOX; QUAD,TRANS (B)	1-33541-478-0	01	1	0612-
157	BOX; QUAD,TRANS (A)	1-33541-481-0	01	1	0612-
171	SWITCH; NEUTRAL	1-82440-101-1	01	1	0612-0702
171	SWITCH; NEUTRAL	8-98072-777-0	01	1	0703-0801
171	SWITCH; NEUTRAL	8-98108-345-0	01	1	0802-1104
171	SWITCH; NEUTRAL	8-98166-989-0	01	1	1105-1109
171	SWITCH; NEUTRAL	8-97640-725-0	01	1	1110-
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-82699-639-1	01	1	0612-
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82699-663-1	01	1	0612-
218	BRACKET; HARNESS CLIP,QUAD BOX (C)	1-82699-733-0	01	1	0612-
219	WASHER; PL,SPINDLE ID=16.5	9-09857-042-0	01	1	0612-
221	NUT; SPINDLE M12 FLANGE	0-91180-212-0	01	1	0612-
223	SCREW; SET,QUAD BOX M14X45	9-09816-057-1	01	1	0612-
224	WASHER; PL,QUAD BOX ID=15	0-91610-514-0	01	1	0612-
225	WASHER; LK,QUAD BOX ID=14.2	0-91510-514-0	01	1	0612-
227	SPINDLE; 1ST & REV	1-33519-012-0	01	1	0612-
398	SWITCH; REV LAMP	8-98042-853-0	01	1	0612-1209
398	SWITCH; REV LAMP	8-98228-482-0	01	1	1210-
413	BALL; BACK SW	9-00097-013-0	01	1	0612-

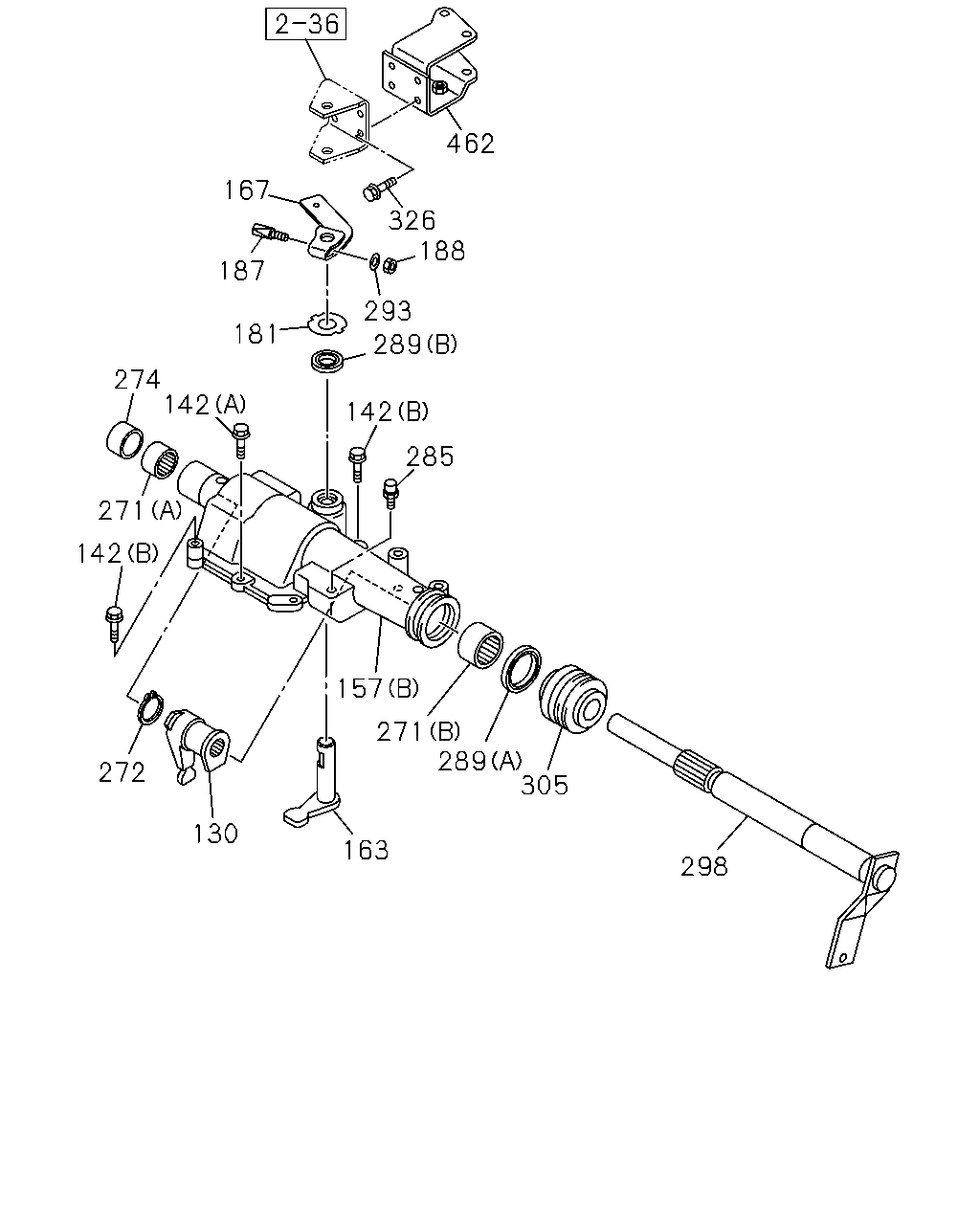

462 167 326 187 188 293 181 289 274 142 142 285 271 142 157 271 272 130 163 298 305 289

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
130	LEVER; SHIFT,INTERNAL	1-33521-111-1	01	1	0612-
142	BOLT; QUAD BOX TRANSMISSION CONTROL CABLE TYPE(C1A) (C) M10X60 FLANGE	0-28151-060-0	02	1	0801-
142	BOLT; QUAD BOX TRANSMISSION CONTROL CABLE TYPE(C1A) (A) M10X28 FLANGE	0-28181-028-0	08	1	0801-0805
142	BOLT; QUAD BOX TRANSMISSION CONTROL CABLE TYPE(C1A) (A) M10X28 FLANGE	8-98044-944-0	08	1	0806-
142	BOLT; QUAD BOX TRANSMISSION CONTROL CABLE TYPE(C1A) (B) M10X28 FLANGE REAMER	1-09040-089-1	01	1	0801-0805
142	BOLT; QUAD BOX TRANSMISSION CONTROL CABLE TYPE(C1A) (B) M10X28 FLANGE REAMER	8-97365-375-0	01	1	0806-
142	BOLT; QUAD BOX TRANSMISSION CONTROL CABLE TYPE(C1A) (D) M10X20,M10X60 L=90	1-09049-020-0	02	1	0801-
142	BOLT; QUAD BOX TRANSMISSION CONTROL CABLE TYPE(C1A) (D) M10X20,M10X26 L=56	8-98010-334-0	05	1	0801-
142	BOLT; QUAD BOX (C) M10X60 FLANGE	0-28151-060-0	03	1	0612-0712
142	BOLT; QUAD BOX EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) (C) M10X60 FLANGE	0-28151-060-0	03	1	0801-
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	12	1	0612-0712
142	BOLT; QUAD BOX EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) (A) M10X28 FLANGE	0-28181-028-0	12	1	0801-0805
142	BOLT; QUAD BOX EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) (A) M10X28 FLANGE	8-98044-944-0	12	1	0806-
142	BOLT; QUAD BOX (B) M10X28 FLANGE REAMER	1-09040-089-1	02	1	0612-0712
142	BOLT; QUAD BOX EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) (B) M10X28 FLANGE REAMER	1-09040-089-1	02	1	0801-0805
142	BOLT; QUAD BOX EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) (B) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0806-
142	BOLT; QUAD BOX (D) M10X20,M10X60 L=90	1-09049-020-0	01	1	0612-0712
142	BOLT; QUAD BOX EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) (D) M10X20,M10X60 L=90	1-09049-020-0	01	1	0801-
157	BOX; QUAD,TRANS (B)	1-33541-478-0	01	1	0612-
157	BOX; QUAD,TRANS (A)	1-33541-481-0	01	1	0612-
163	LEVER; SELECT,INTERNAL	1-33522-041-4	01	1	0612-
167	LEVER; SELECT,EXTERNAL TRANSMISSION CONTROL CABLE TYPE(C1A)	8-98088-364-0	01	1	0801-
167	LEVER; SELECT,EXTERNAL	1-33521-064-1	01	1	0612-0712
167	LEVER; SELECT,EXTERNAL EXC. TRANSMISSION CONTROL CABLE TYPE(C1A)	1-33521-064-1	01	1	0801-
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	0612-
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	0612-
188	NUT; SELECT LEVER M8 FLANGE	1-09440-062-1	01	1	0612-
271	BUSHING; QUAD BOX (A) ID=20 OD=23	1-33549-016-0	01	1	0612-
271	BUSHING; QUAD BOX (B) ID=28 OD=32	1-33549-104-0	01	1	0612-
272	RING; SNAP,QUAD BOX	1-09588-175-0	01	1	0612-
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	0612-
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	0612-
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30	1-09625-386-0	01	1	0612-
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-647-0	01	1	0612-
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	0-91610-708-0	01	1	0612-
298	SHAFT; SHIFT LEVER TRANSMISSION CONTROL CABLE TYPE(C1A)	8-98088-365-0	01	1	0801-
298	SHAFT; SHIFT LEVER	1-33522-186-0	01	1	0612-0712
298	SHAFT; SHIFT LEVER EXC. TRANSMISSION CONTROL CABLE TYPE(C1A)	1-33522-186-0	01	1	0801-
305	BOOT; LEVER SHAFT	1-33529-028-0	01	1	0612-
326	BOLT; RELAY LEVER ASM TRANSMISSION CONTROL CABLE TYPE(C1A) M10X80	0-10856-080-0	02	1	0801-
462	BRACKET; RELAY LEVER TRANSMISSION CONTROL CABLE TYPE(C1A)	8-98075-432-0	01	1	0801-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
