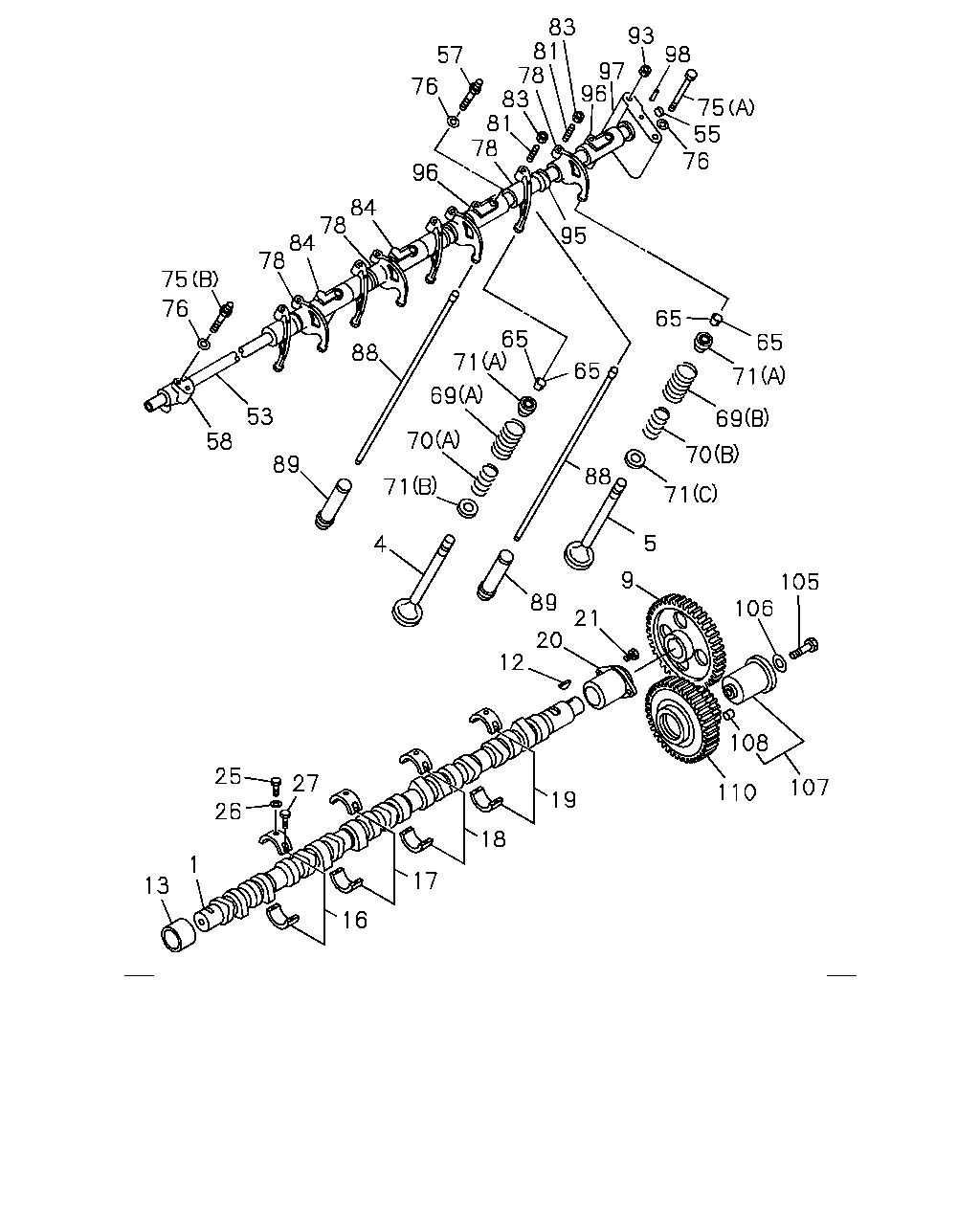

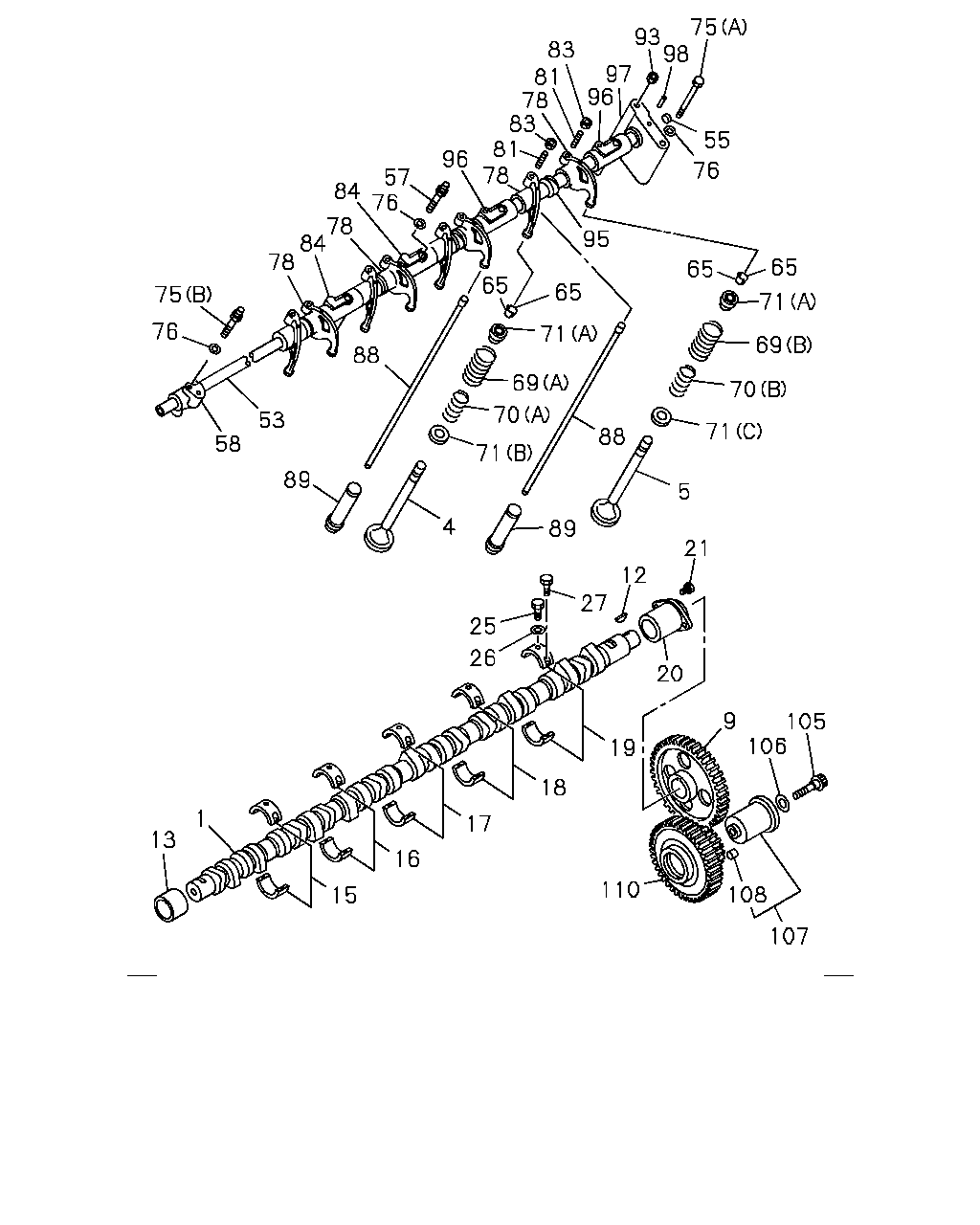

0-14B — CAMSHAFT AND VALVE (#2734) — 171 parça

75 93 98 83 81 97 55 96 76 78 81 78 96 57 95 76 84 78 84 78 75 76 58 53 88 65 65 65 65 71 69 71 69 70 70 71 88 71 4 89 89 5 25 26 12 21 27 20 9 105 106 19 110 108 107 18 17 16 15 1 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CAMSHAFT	1-12511-189-3	01	1	9002-	●
1	CAMSHAFT	1-12511-190-2	01	1	9307-		●
4	VALVE; INL	1-12551-127-0	10	1	9002-9405	●
4	VALVE; INL	1-12551-136-1	10	1	9406-	●
4	VALVE; INL	1-12551-127-0	12	1	9307-9405		●
4	VALVE; INL	1-12551-136-1	12	1	9406-		●
5	VALVE; EXH	1-12552-064-0	10	1	9002-9408	●
5	VALVE; EXH	1-12552-092-0	10	1	9409-9601	●
5	VALVE; EXH	1-12552-097-0	10	1	9602-	●
5	VALVE; EXH	1-12552-064-0	12	1	9307-9408		●
5	VALVE; EXH	1-12552-092-0	12	1	9409-9601		●
5	VALVE; EXH	1-12552-097-0	12	1	9602-		●
9	GEAR; CM/SHF	1-12522-019-1	01	1	9002-	●	●
12	KEY; CAM GEAR SET	9-08055-516-0	01	1	9002-	●	●
13	METAL; CM/SHF,NO 1	1-11611-003-2	01	1	9002-	●	●
15	METAL; CM/SHF,NO 2	1-11616-006-0	01	1	9307-		●
16	METAL; CM/SHF,NO 3	1-11617-007-1	01	1	9002-	●	●
17	METAL; CM/SHF,NO 4	1-11618-006-1	01	1	9002-	●	●
18	METAL; CM/SHF,NO 5	1-11619-015-1	01	1	9002-	●	●
19	METAL; CM/SHF,NO 6	1-11619-018-1	01	1	9002-	●	●
20	METAL; CM/SHF,NO 7	1-11619-059-1	01	1	9002-	●	●
21	BOLT; CM/SHF METAL,NO 7 M10X22 FLANGE	0-28181-022-0	02	1	9002-	●	●
25	SCREW; CM/SHF METAL M8X31	1-09129-004-2	05	1	9002-	●
25	SCREW; CM/SHF METAL M8X31	1-09129-004-2	06	1	9307-		●
26	GASKET; SET SCREW ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	05	1	9002-	●
26	GASKET; SET SCREW ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	06	1	9307-		●
27	SCREW; CM/SHF METAL M4X14 W/LK WASHER	9-03910-414-0	08	1	9002-	●
27	SCREW; CM/SHF METAL M4X14 W/LK WASHER	9-03910-414-0	10	1	9307-		●
53	SHAFT; ROCKER ARM	1-12621-011-0	02	1	9002-	●
53	SHAFT; ROCKER ARM	1-12621-012-0	02	1	9307-		●
55	PLUG; ROCKER SHAFT END OD=16	9-11129-081-0	04	1	9002-	●	●
57	BOLT; ROCKER ARM BRKT M8X13,M10X70 L=90	1-09029-024-1	08	1	9002-	●
57	BOLT; ROCKER ARM BRKT M8X13,M10X70 L=90	1-09029-024-1	10	1	9307-		●
58	BRACKET; ROCKER SHAFT,FRT	1-12628-048-0	02	1	9002-	●	●
65	COLLAR; SPLIT	1-12565-007-0	40	1	9002-	●
65	COLLAR; SPLIT	1-12565-007-0	48	1	9307-		●
69	SPRING; VLV,OUTER (B) EXHAUST	1-12561-074-0	10	1	9002-	●
69	SPRING; VLV,OUTER (A) INLET	1-12561-075-0	10	1	9002-	●
69	SPRING; VLV,OUTER (B) EXHAUST	1-12561-074-0	12	1	9307-		●
69	SPRING; VLV,OUTER (A) INLET	1-12561-075-0	12	1	9307-		●
70	SPRING; VLV,INNER (B) EXHAUST	1-12562-046-0	10	1	9002-	●
70	SPRING; VLV,INNER (A) INLET	1-12562-047-0	10	1	9002-	●
70	SPRING; VLV,INNER (B) EXHAUST	1-12562-046-0	12	1	9307-		●
70	SPRING; VLV,INNER (A) INLET	1-12562-047-0	12	1	9307-		●
71	SEAT; SPR (B) INLET	1-12563-027-0	10	1	9002-	●
71	SEAT; SPR (C) EXHAUST	1-12563-034-1	10	1	9002-	●
71	SEAT; SPR (A)	1-12563-049-0	20	1	9002-	●
71	SEAT; SPR (B) INLET	1-12563-027-0	12	1	9307-		●
71	SEAT; SPR (C) EXHAUST	1-12563-034-1	12	1	9307-		●
71	SEAT; SPR (A)	1-12563-049-0	24	1	9307-		●
75	BOLT; BRKT (B) M8X13,M10X70 L=90	1-09029-024-1	02	1	9002-	●	●
75	BOLT; BRKT (A) M10X70	9-01661-070-0	02	1	9002-	●	●
76	WASHER; PL,BRKT ID=10	1-09503-033-1	12	1	9002-	●
76	WASHER; PL,BRKT ID=10	1-09503-033-1	14	1	9307-		●
78	ARM; ROCKER INLET	1-12611-184-0	10	1	9002-9401	●
78	ARM; ROCKER INLET	1-12611-266-0	10	1	9402-	●
78	ARM; ROCKER EXHAUST	1-12611-186-0	10	1	9002-9401	●
78	ARM; ROCKER EXHAUST	1-12611-267-0	10	1	9402-	●
78	ARM; ROCKER INLET	1-12611-184-0	12	1	9307-9401		●
78	ARM; ROCKER INLET	1-12611-266-0	12	1	9402-		●
78	ARM; ROCKER EXHAUST	1-12611-186-0	12	1	9307-9401		●
78	ARM; ROCKER EXHAUST	1-12611-267-0	12	1	9402-		●
81	SCREW; ADJ,ROCKER ARM	1-12616-001-0	20	1	9002-	●
81	SCREW; ADJ,ROCKER ARM	1-12616-001-0	24	1	9307-		●
83	NUT; ADJ SCREW,LK M10	9-09840-310-0	20	1	9002-	●
83	NUT; ADJ SCREW,LK M10	9-09840-310-0	24	1	9307-		●
84	BRACKET; ROCKER SHAFT,INTER	1-12628-012-1	04	1	9002-	●	●
88	ROD; PUSH	1-12575-048-1	20	1	9002-	●
88	ROD; PUSH	1-12575-048-1	24	1	9307-		●
89	TAPPET; VLV	1-12571-221-0	20	1	9002-9505	●
89	TAPPET; VLV	1-12571-228-4	20	1	9506-	●
89	TAPPET; VLV	1-12571-221-0	24	1	9307-9505		●
89	TAPPET; VLV	1-12571-228-4	24	1	9506-		●
93	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	9002-	●	●
95	SPRING; ROCKER SHAFT	9-09941-218-0	10	1	9002-	●
95	SPRING; ROCKER SHAFT	9-09941-218-0	12	1	9307-		●
96	BRACKET; ROCKER ARM SHAFT	1-12628-011-1	04	1	9002-	●
96	BRACKET; ROCKER ARM SHAFT	1-12628-011-1	06	1	9307-		●
97	BRACKET; ROCKER SHAFT,RR	1-12628-006-2	02	1	9002-	●	●
98	PIN; SHAFT SET	9-08160-430-0	02	1	9002-	●	●
105	BOLT; IDLE GEAR SHAFT M16X94 FLANGE	1-09070-031-0	01	1	9002-	●	●
106	WASHER; IDLE GEAR SHAFT ID=16.2	1-09503-022-1	01	1	9002-9306	●
106	WASHER; IDLE GEAR SHAFT ID=16.2	1-09503-022-1	01	1	9307-	●	●
107	SHAFT; IDLE GEAR	1-12531-015-1	01	1	9002-	●	●
108	DOWEL; SHAFT	9-12539-079-0	01	1	9002-	●	●
110	GEAR ASM; IDLE	1-12523-123-0	01	1	9002-	●	●

107 110 108 106 105 19 18 17 16 13 25 26 27 12 20 21 89 9 5 71 70 69 71 65 65 88 65 65 71 69 70 71 4 89 58 53 88 76 75 78 84 78 84 96 95 76 55 75 98 93 83 81 57 76 78 83 81 78 96 97 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CAMSHAFT	1-12511-189-3	01	1	9002-	●
1	CAMSHAFT	1-12511-190-2	01	1	9307-		●
4	VALVE; INL	1-12551-127-0	10	1	9002-9405	●
4	VALVE; INL	1-12551-136-1	10	1	9406-	●
4	VALVE; INL	1-12551-127-0	12	1	9307-9405		●
4	VALVE; INL	1-12551-136-1	12	1	9406-		●
5	VALVE; EXH	1-12552-064-0	10	1	9002-9408	●
5	VALVE; EXH	1-12552-092-0	10	1	9409-9601	●
5	VALVE; EXH	1-12552-097-0	10	1	9602-	●
5	VALVE; EXH	1-12552-064-0	12	1	9307-9408		●
5	VALVE; EXH	1-12552-092-0	12	1	9409-9601		●
5	VALVE; EXH	1-12552-097-0	12	1	9602-		●
9	GEAR; CM/SHF	1-12522-019-1	01	1	9002-	●	●
12	KEY; CAM GEAR SET	9-08055-516-0	01	1	9002-	●	●
13	METAL; CM/SHF,NO 1	1-11611-003-2	01	1	9002-	●	●
16	METAL; CM/SHF,NO 3	1-11617-007-1	01	1	9002-	●	●
17	METAL; CM/SHF,NO 4	1-11618-006-1	01	1	9002-	●	●
18	METAL; CM/SHF,NO 5	1-11619-015-1	01	1	9002-	●	●
19	METAL; CM/SHF,NO 6	1-11619-018-1	01	1	9002-	●	●
20	METAL; CM/SHF,NO 7	1-11619-059-1	01	1	9002-	●	●
21	BOLT; CM/SHF METAL,NO 7 M10X22 FLANGE	0-28181-022-0	02	1	9002-	●	●
25	SCREW; CM/SHF METAL M8X31	1-09129-004-2	05	1	9002-	●
25	SCREW; CM/SHF METAL M8X31	1-09129-004-2	06	1	9307-		●
26	GASKET; SET SCREW ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	05	1	9002-	●
26	GASKET; SET SCREW ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	06	1	9307-		●
27	SCREW; CM/SHF METAL M4X14 W/LK WASHER	9-03910-414-0	08	1	9002-	●
27	SCREW; CM/SHF METAL M4X14 W/LK WASHER	9-03910-414-0	10	1	9307-		●
53	SHAFT; ROCKER ARM	1-12621-011-0	02	1	9002-	●
53	SHAFT; ROCKER ARM	1-12621-012-0	02	1	9307-		●
55	PLUG; ROCKER SHAFT END OD=16	9-11129-081-0	04	1	9002-	●	●
57	BOLT; ROCKER ARM BRKT M8X13,M10X70 L=90	1-09029-024-1	08	1	9002-	●
57	BOLT; ROCKER ARM BRKT M8X13,M10X70 L=90	1-09029-024-1	10	1	9307-		●
58	BRACKET; ROCKER SHAFT,FRT	1-12628-048-0	02	1	9002-	●	●
65	COLLAR; SPLIT	1-12565-007-0	40	1	9002-	●
65	COLLAR; SPLIT	1-12565-007-0	48	1	9307-		●
69	SPRING; VLV,OUTER (B) EXHAUST	1-12561-074-0	10	1	9002-	●
69	SPRING; VLV,OUTER (A) INLET	1-12561-075-0	10	1	9002-	●
69	SPRING; VLV,OUTER (B) EXHAUST	1-12561-074-0	12	1	9307-		●
69	SPRING; VLV,OUTER (A) INLET	1-12561-075-0	12	1	9307-		●
70	SPRING; VLV,INNER (B) EXHAUST	1-12562-046-0	10	1	9002-	●
70	SPRING; VLV,INNER (A) INLET	1-12562-047-0	10	1	9002-	●
70	SPRING; VLV,INNER (B) EXHAUST	1-12562-046-0	12	1	9307-		●
70	SPRING; VLV,INNER (A) INLET	1-12562-047-0	12	1	9307-		●
71	SEAT; SPR (B) INLET	1-12563-027-0	10	1	9002-	●
71	SEAT; SPR (C) EXHAUST	1-12563-034-1	10	1	9002-	●
71	SEAT; SPR (A)	1-12563-049-0	20	1	9002-	●
71	SEAT; SPR (B) INLET	1-12563-027-0	12	1	9307-		●
71	SEAT; SPR (C) EXHAUST	1-12563-034-1	12	1	9307-		●
71	SEAT; SPR (A)	1-12563-049-0	24	1	9307-		●
75	BOLT; BRKT (B) M8X13,M10X70 L=90	1-09029-024-1	02	1	9002-	●	●
75	BOLT; BRKT (A) M10X70	9-01661-070-0	02	1	9002-	●	●
76	WASHER; PL,BRKT ID=10	1-09503-033-1	12	1	9002-	●
76	WASHER; PL,BRKT ID=10	1-09503-033-1	14	1	9307-		●
78	ARM; ROCKER INLET	1-12611-184-0	10	1	9002-9401	●
78	ARM; ROCKER INLET	1-12611-266-0	10	1	9402-	●
78	ARM; ROCKER EXHAUST	1-12611-186-0	10	1	9002-9401	●
78	ARM; ROCKER EXHAUST	1-12611-267-0	10	1	9402-	●
78	ARM; ROCKER INLET	1-12611-184-0	12	1	9307-9401		●
78	ARM; ROCKER INLET	1-12611-266-0	12	1	9402-		●
78	ARM; ROCKER EXHAUST	1-12611-186-0	12	1	9307-9401		●
78	ARM; ROCKER EXHAUST	1-12611-267-0	12	1	9402-		●
81	SCREW; ADJ,ROCKER ARM	1-12616-001-0	20	1	9002-	●
81	SCREW; ADJ,ROCKER ARM	1-12616-001-0	24	1	9307-		●
83	NUT; ADJ SCREW,LK M10	9-09840-310-0	20	1	9002-	●
83	NUT; ADJ SCREW,LK M10	9-09840-310-0	24	1	9307-		●
84	BRACKET; ROCKER SHAFT,INTER	1-12628-012-1	04	1	9002-	●	●
88	ROD; PUSH	1-12575-048-1	20	1	9002-	●
88	ROD; PUSH	1-12575-048-1	24	1	9307-		●
89	TAPPET; VLV	1-12571-221-0	20	1	9002-9505	●
89	TAPPET; VLV	1-12571-228-4	20	1	9506-	●
89	TAPPET; VLV	1-12571-221-0	24	1	9307-9505		●
89	TAPPET; VLV	1-12571-228-4	24	1	9506-		●
93	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	9002-	●	●
95	SPRING; ROCKER SHAFT	9-09941-218-0	10	1	9002-	●
95	SPRING; ROCKER SHAFT	9-09941-218-0	12	1	9307-		●
96	BRACKET; ROCKER ARM SHAFT	1-12628-011-1	04	1	9002-	●
96	BRACKET; ROCKER ARM SHAFT	1-12628-011-1	06	1	9307-		●
97	BRACKET; ROCKER SHAFT,RR	1-12628-006-2	02	1	9002-	●	●
98	PIN; SHAFT SET	9-08160-430-0	02	1	9002-	●	●
105	BOLT; IDLE GEAR SHAFT M16X94 FLANGE	1-09070-031-0	01	1	9002-	●	●
106	WASHER; IDLE GEAR SHAFT ID=16.2	1-09503-022-1	01	1	9002-9306	●
106	WASHER; IDLE GEAR SHAFT ID=16.2	1-09503-022-1	01	1	9307-	●	●
107	SHAFT; IDLE GEAR	1-12531-015-1	01	1	9002-	●	●
108	DOWEL; SHAFT	9-12539-079-0	01	1	9002-	●	●
110	GEAR ASM; IDLE	1-12523-123-0	01	1	9002-	●	●
