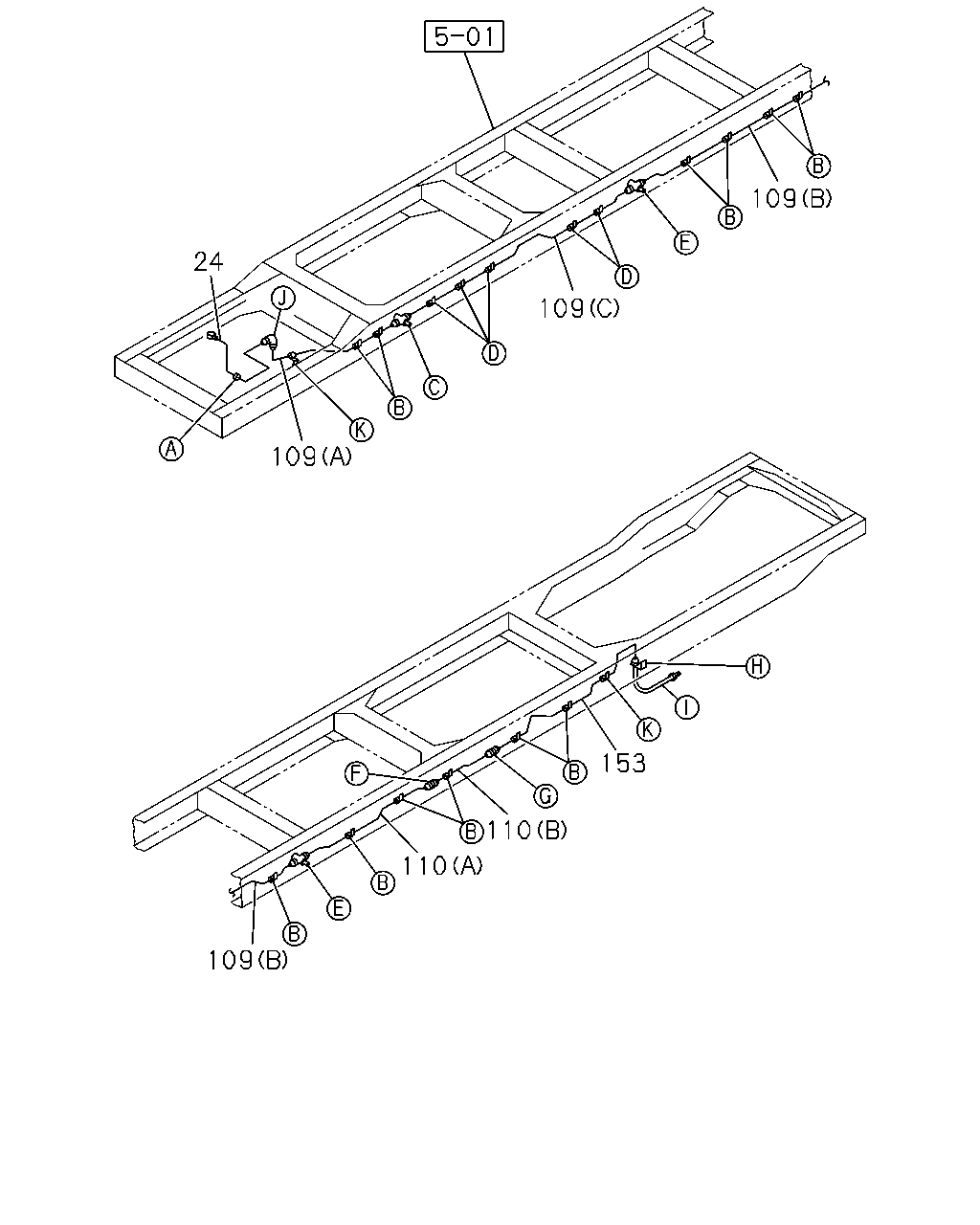

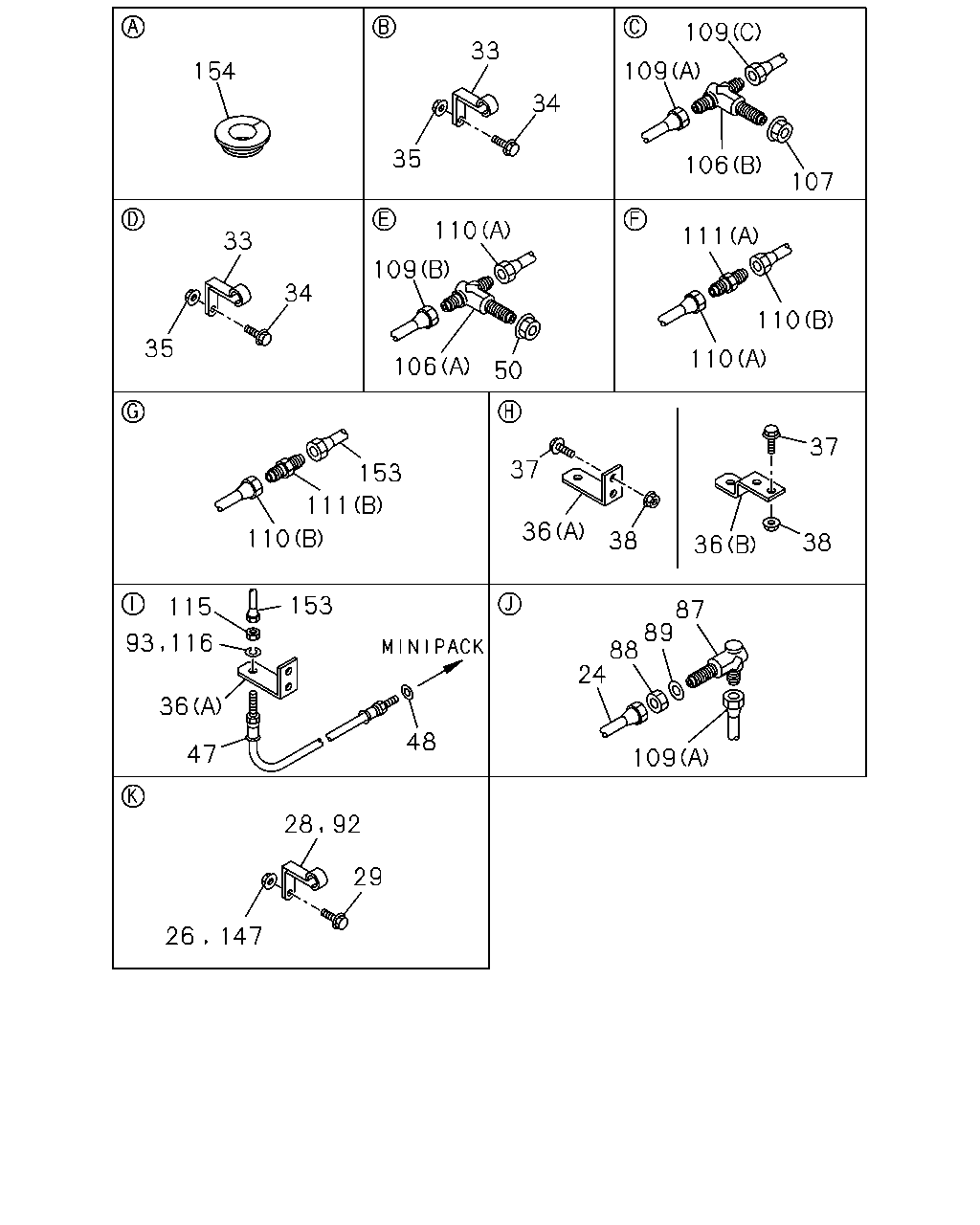

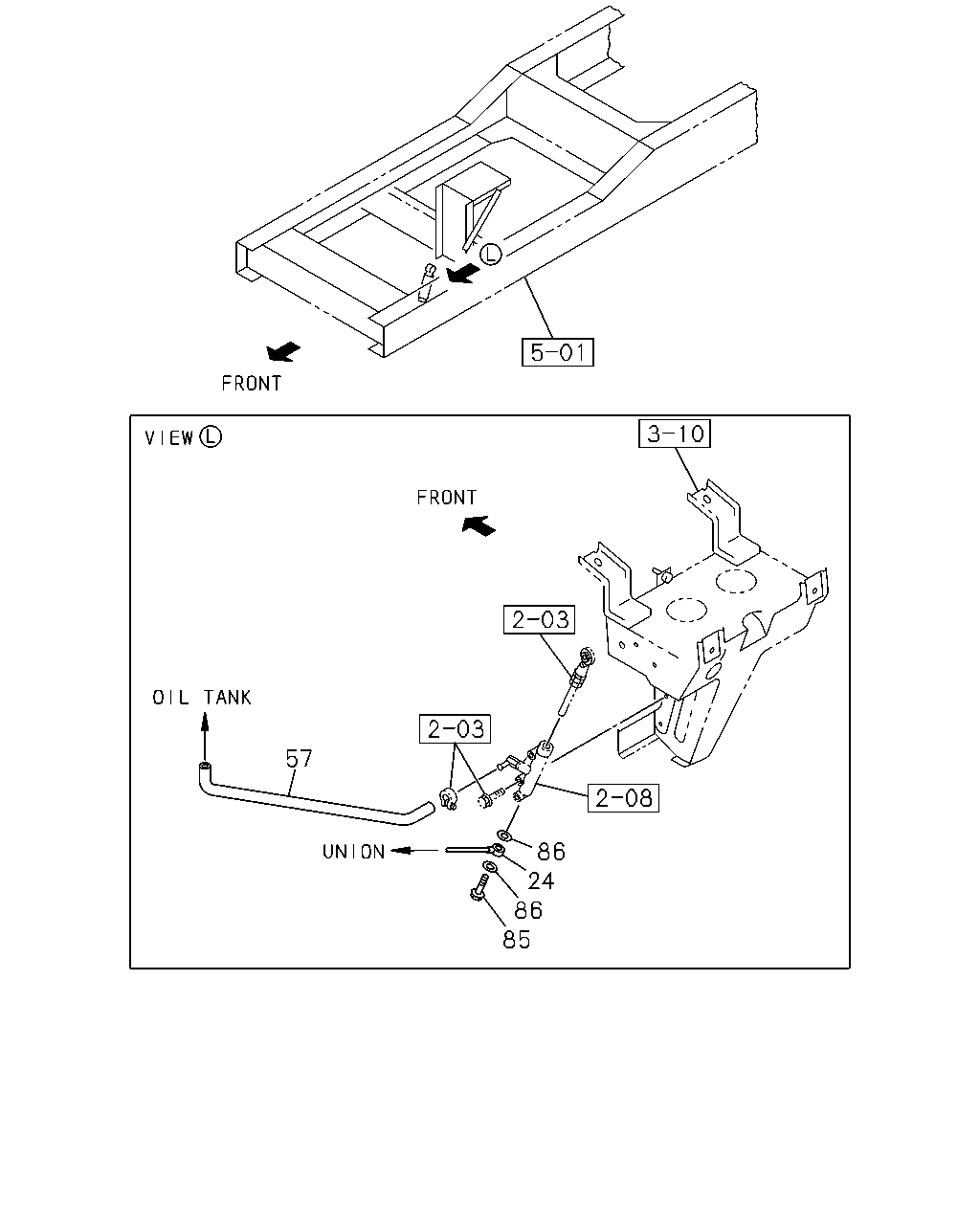

2-05 — CLUTCH PIPING (#27339) — 140 parça

57 86 24 86 85

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	PIPE ASM; CLU,M/CYL TO UNION LOW DECK WO/REAR BODY<PK4>	8-98072-458-0	01	1	0801-1002
24	PIPE ASM; CLU,M/CYL TO UNION LOW DECK WO/REAR BODY<PK4>	8-98157-710-0	01	1	1003-
24	PIPE ASM; CLU,M/CYL TO UNION	1-49167-507-0	01	1	0612-0712
24	PIPE ASM; CLU,M/CYL TO UNION EXC. LOW DECK WO/REAR BODY<PK4>	1-49167-507-0	01	1	0801-
57	HOSE; CLU M/CYL TO OIL TANK L=920 SERVICED BY L=1800	1-09360-320-0	01	1	0612-
85	BOLT; EYE JOINT,CLU M/CYL M14X29 EYE-BOLT	9-09906-325-1	01	1	0612-
86	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=20.0	9-09571-414-0	02	1	0612-

109 33 109 154 34 35 106 107 110 111 33 109 34 110 35 110 106 50 37 37 153 36 111 36 110 38 38 153 115 87 89 88 24 36 48 47 109 29 26 147 93 116 28 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	PIPE ASM; CLU,M/CYL TO UNION LOW DECK WO/REAR BODY<PK4>	8-98072-458-0	01	1	0801-1002
24	PIPE ASM; CLU,M/CYL TO UNION LOW DECK WO/REAR BODY<PK4>	8-98157-710-0	01	1	1003-
24	PIPE ASM; CLU,M/CYL TO UNION	1-49167-507-0	01	1	0612-0712
24	PIPE ASM; CLU,M/CYL TO UNION EXC. LOW DECK WO/REAR BODY<PK4>	1-49167-507-0	01	1	0801-
26	NUT; CLIP,OIL PIPE LOW DECK WO/REAR BODY<PK4> M8 FLANGE	0-91180-108-0	03	1	0801-
28	CLIP; OIL PIPE LOW DECK WO/REAR BODY<PK4> ID=8 H=20 L=20	1-09700-604-0	03	1	0801-
29	BOLT; CLIP,OIL PIPE LOW DECK WO/REAR BODY<PK4> M8X25 FLANGE	0-28650-825-0	06	1	0801-
29	BOLT; CLIP,OIL PIPE LOW DECK WO/REAR BODY<PK4> M8X30 FLANGE	0-28650-830-0	01	1	0801-
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28650-825-0	01	1	0612-0712
29	BOLT; CLIP,OIL PIPE EXC. LOW DECK WO/REAR BODY<PK4> M8X25 FLANGE	0-28650-825-0	01	1	0801-
33	CLIP; OIL PIPE WB 5000MM(50W) ID=8 H=20 L=20	1-09700-604-0	03	1	0801-
33	CLIP; OIL PIPE LOW DECK WO/REAR BODY<PK4> ID=8 H=20 L=20	1-09700-604-0	03	1	0801-
33	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	07	1	0707-
33	CLIP; OIL PIPE LOW DECK WO/REAR BODY<PK4> ID=9 L=25 H=45	1-09700-867-0	01	1	0801-
33	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	13	1	0612-0706
33	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	06	1	0707-0712
33	CLIP; OIL PIPE EXC. LOW DECK WO/REAR BODY<PK4> ID=8 H=20 L=20	1-09700-604-0	06	1	0801-
33	CLIP; OIL PIPE WB 5000MM(50W) ID=8 H=20 L=20	1-09700-604-0	03	1	0612-0712
33	CLIP; OIL PIPE WB 5000MM(50W) ID=8 H=20 L=20	1-09700-604-0	03	1	0801-0801
33	CLIP; OIL PIPE LOW DECK WO/REAR BODY<PK4> ID=8 H=20 L=20	1-09700-604-0	03	1	0801-0801
33	CLIP; OIL PIPE LOW DECK WO/REAR BODY<PK4> ID=8 H=20 L=20	1-09700-604-0	03	1	0801-0801
33	CLIP; OIL PIPE LOW DECK WO/REAR BODY<PK4> ID=8 H=20 L=20	1-09700-604-0	02	1	0801-
33	CLIP; OIL PIPE WB 5700MM(57W) ID=8 H=20 L=20	1-09700-604-0	05	1	0612-0712
33	CLIP; OIL PIPE WB 5700MM(57W) EXC. LOW DECK WO/REAR BODY<PK4> ID=8 H=20 L=20	1-09700-604-0	05	1	0801-
34	BOLT; PIPE CLIP WB 5000MM(50W) EXC. LOW DECK WO/REAR BODY<PK4> M8X30 FLANGE	0-28650-830-0	03	1	0801-
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28650-830-0	07	1	0707-
34	BOLT; PIPE CLIP LOW DECK WO/REAR BODY<PK4> M8X30 FLANGE	0-28650-830-0	04	1	0801-
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28650-830-0	13	1	0612-0706
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28650-830-0	06	1	0707-0712
34	BOLT; PIPE CLIP EXC. LOW DECK WO/REAR BODY<PK4> M8X30 FLANGE	0-28650-830-0	06	1	0801-
34	BOLT; PIPE CLIP WB 5000MM(50W) M8X30 FLANGE	0-28650-830-0	03	1	0612-0712
34	BOLT; PIPE CLIP WB 5000MM(50W) M8X30 FLANGE	0-28650-830-0	03	1	0801-0801
34	BOLT; PIPE CLIP LOW DECK WO/REAR BODY<PK4> M8X30 FLANGE	0-28650-830-0	03	1	0801-0801
34	BOLT; PIPE CLIP LOW DECK WO/REAR BODY<PK4> M8X30 FLANGE	0-28650-830-0	02	1	0801-
34	BOLT; PIPE CLIP WB 5700MM(57W) M8X30 FLANGE	0-28650-830-0	05	1	0612-0712
34	BOLT; PIPE CLIP WB 5700MM(57W) EXC. LOW DECK WO/REAR BODY<PK4> M8X30 FLANGE	0-28650-830-0	05	1	0801-
35	NUT; PIPE CLIP WB 5000MM(50W) EXC. LOW DECK WO/REAR BODY<PK4> M8 FLANGE	0-91180-108-0	03	1	0801-
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	07	1	0707-
35	NUT; PIPE CLIP LOW DECK WO/REAR BODY<PK4> M8 FLANGE	0-91180-108-0	04	1	0801-
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	13	1	0612-0706
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	06	1	0707-0712
35	NUT; PIPE CLIP EXC. LOW DECK WO/REAR BODY<PK4> M8 FLANGE	0-91180-108-0	06	1	0801-
35	NUT; PIPE CLIP WB 5000MM(50W) M8 FLANGE	0-91180-108-0	03	1	0612-0712
35	NUT; PIPE CLIP WB 5000MM(50W) M8 FLANGE	0-91180-108-0	03	1	0801-0801
35	NUT; PIPE CLIP LOW DECK WO/REAR BODY<PK4> M8 FLANGE	0-91180-108-0	03	1	0801-0801
35	NUT; PIPE CLIP LOW DECK WO/REAR BODY<PK4> M8 FLANGE	0-91180-108-0	02	1	0801-
35	NUT; PIPE CLIP WB 5700MM(57W) M8 FLANGE	0-91180-108-0	05	1	0612-0712
35	NUT; PIPE CLIP WB 5700MM(57W) EXC. LOW DECK WO/REAR BODY<PK4> M8 FLANGE	0-91180-108-0	05	1	0801-
36	BRACKET; CLIP LOW DECK WO/REAR BODY<PK4> (A) L=40	1-47478-410-0	01	1	0801-
36	BRACKET; CLIP LOW DECK WO/REAR BODY<PK4> (B)	8-98088-888-0	01	1	0801-
36	BRACKET; CLIP (A)	1-47477-865-0	01	1	0612-0712
36	BRACKET; CLIP EXC. LOW DECK WO/REAR BODY<PK4> (A)	1-47477-865-0	01	1	0801-
37	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	02	1	0612-
38	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	02	1	0612-
47	HOSE; FLEX,CLU CONT L=500	1-09364-329-0	01	1	0612-
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	0612-
50	NUT; UNION M12 FLANGE	0-91180-212-0	02	1	0612-0706
50	NUT; UNION M12 FLANGE	0-91180-212-0	01	1	0707-
50	NUT; UNION M12 FLANGE	0-91180-212-0	01	1	0707-
87	UNION; OIL PIPE LOW DECK WO/REAR BODY<PK4> M14 2WAY	1-09654-176-2	02	1	0801-
87	UNION; OIL PIPE M14	0-92125-108-0	01	1	0612-0712
87	UNION; OIL PIPE EXC. LOW DECK WO/REAR BODY<PK4> M14	0-92125-108-0	01	1	0801-
88	NUT; PIPE UNION LOW DECK WO/REAR BODY<PK4> M12 FLANGE	0-91180-212-0	01	1	0801-
88	NUT; PIPE UNION M14	0-91111-514-0	01	1	0612-0712
88	NUT; PIPE UNION EXC. LOW DECK WO/REAR BODY<PK4> M14	0-91111-514-0	01	1	0801-
89	WASHER; LK,PIPE UNION ID=14.2	0-91510-514-0	01	1	0612-0712
89	WASHER; LK,PIPE UNION EXC. LOW DECK WO/REAR BODY<PK4> ID=14.2	0-91510-514-0	01	1	0801-
92	CLIP; OIL PIPE LOW DECK WO/REAR BODY<PK4> ID=8 H=20 L=20	1-09700-604-0	03	1	0801-
92	CLIP; OIL PIPE LOW DECK WO/REAR BODY<PK4> ID=9 L=25 H=45	1-09700-867-0	01	1	0801-
92	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	01	1	0612-0712
92	CLIP; OIL PIPE EXC. LOW DECK WO/REAR BODY<PK4> ID=8 H=20 L=20	1-09700-604-0	01	1	0801-
93	WASHER; LK,UNION,OIL PIPE ID=14.2	0-91510-514-0	01	1	0707-0712
93	WASHER; LK,UNION,OIL PIPE EXC. LOW DECK WO/REAR BODY<PK4> ID=14.2	0-91510-514-0	01	1	0801-
106	UNION; OIL PIPE LOW DECK WO/REAR BODY<PK4> (A) M14 2WAY	1-09654-176-2	01	1	0801-
106	UNION; OIL PIPE (B) M14	0-92125-108-0	01	1	0612-0712
106	UNION; OIL PIPE EXC. LOW DECK WO/REAR BODY<PK4> (B) M14	0-92125-108-0	01	1	0801-
106	UNION; OIL PIPE (A) M14 2WAY	1-09654-176-2	02	1	0612-
107	NUT; UNION,OIL PIPE LOW DECK WO/REAR BODY<PK4> M12 FLANGE	0-91180-212-0	01	1	0801-
107	NUT; UNION,OIL PIPE M14	0-91111-514-0	01	1	0612-0712
107	NUT; UNION,OIL PIPE EXC. LOW DECK WO/REAR BODY<PK4> M14	0-91111-514-0	01	1	0801-
107	NUT; UNION,OIL PIPE M12 FLANGE	0-91180-212-0	02	1	0612-
109	PIPE; AIR,UNION TO UNION LOW DECK WO/REAR BODY<PK4> (A) L=1249 SERVICED BY L=1250	1-47428-764-0	01	1	0801-
109	PIPE; AIR,UNION TO UNION LOW DECK WO/REAR BODY<PK4> (C) L=997 SERVICED BY L=1000	1-47428-762-0	01	1	0801-
109	PIPE; AIR,UNION TO UNION LOW DECK WO/REAR BODY<PK4> (B) L=1127 SERVICED BY L=1250	1-47428-764-0	01	1	0801-
109	PIPE; AIR,UNION TO UNION WB 5000MM(50W) (B) L=1355 SERVICED BY L=1400	1-47428-765-0	01	1	0612-
109	PIPE; AIR,UNION TO UNION WB 5700MM(57W) (B) L=2059 SERVICED BY L=2150	1-47428-770-0	01	1	0612-0712
109	PIPE; AIR,UNION TO UNION WB 5700MM(57W) EXC. LOW DECK WO/REAR BODY<PK4> (B) L=2059 SERVICED BY L=2150	1-47428-770-0	01	1	0801-
109	PIPE; AIR,UNION TO UNION (A) L=489	1-49167-828-0	01	1	0612-0712
109	PIPE; AIR,UNION TO UNION EXC. LOW DECK WO/REAR BODY<PK4> (A) L=489	1-49167-828-0	01	1	0801-
109	PIPE; AIR,UNION TO UNION (C) L=1071 SERVICED BY L=1100	1-47426-387-0	01	1	0612-0712
109	PIPE; AIR,UNION TO UNION EXC. LOW DECK WO/REAR BODY<PK4> (C) L=1071 SERVICED BY L=1100	1-47426-387-0	01	1	0801-
110	PIPE; OIL,UNION TO UNION LOW DECK WO/REAR BODY<PK4> (B) L=952 SERVICED BY L=970	1-47428-761-0	01	1	0801-
110	PIPE; OIL,UNION TO UNION LOW DECK WO/REAR BODY<PK4> (B) L=1168 SERVICED BY L=1250	1-47428-764-0	01	1	0801-
110	PIPE; OIL,UNION TO UNION (A) L=1935 SERVICED BY L=1950	1-47428-769-0	01	1	0612-
110	PIPE; OIL,UNION TO UNION (B) L=1017 SERVICED BY L=1100	1-47428-763-0	01	1	0612-0712
110	PIPE; OIL,UNION TO UNION EXC. LOW DECK WO/REAR BODY<PK4> (B) L=1017 SERVICED BY L=1100	1-47428-763-0	01	1	0801-
111	UNION; OIL PIPE LOW DECK WO/REAR BODY<PK4> (B) M14 STRAIGHT	0-92113-008-0	01	1	0801-
111	UNION; OIL PIPE (A) M14 2WAY	1-09654-176-2	02	1	0612-0706
111	UNION; OIL PIPE (A) M14 2WAY	1-09654-176-2	01	1	0707-0712
111	UNION; OIL PIPE (A) M14 2WAY	1-09654-176-2	01	1	0707-0712
111	UNION; OIL PIPE (A) M14 2WAY	1-09654-176-2	01	1	0801-
111	UNION; OIL PIPE EXC. LOW DECK WO/REAR BODY<PK4> (A) M14 2WAY	1-09654-176-2	01	1	0801-
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0612-
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0612-
147	NUT; CLIP FIX LOW DECK WO/REAR BODY<PK4> M8 FLANGE	0-91180-108-0	04	1	0801-
147	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	01	1	0612-0712
147	NUT; CLIP FIX EXC. LOW DECK WO/REAR BODY<PK4> M8 FLANGE	0-91180-108-0	01	1	0801-
153	PIPE ASM; CLU,UNION TO FLEX LOW DECK WO/REAR BODY<PK4> L=1639 SERVICED BY L=1700	1-47428-767-0	01	1	0801-
153	PIPE ASM; CLU,UNION TO FLEX L=2249 SERVICED BY L=2400	1-47428-771-0	01	1	0612-0712
153	PIPE ASM; CLU,UNION TO FLEX EXC. LOW DECK WO/REAR BODY<PK4> L=2249 SERVICED BY L=2400	1-47428-771-0	01	1	0801-
154	GROMMET; CLU OIL PIPE	1-09333-026-2	01	1	0612-

109 24 109 109 153 110 110 109

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	PIPE ASM; CLU,M/CYL TO UNION LOW DECK WO/REAR BODY<PK4>	8-98072-458-0	01	1	0801-1002
24	PIPE ASM; CLU,M/CYL TO UNION LOW DECK WO/REAR BODY<PK4>	8-98157-710-0	01	1	1003-
24	PIPE ASM; CLU,M/CYL TO UNION	1-49167-507-0	01	1	0612-0712
24	PIPE ASM; CLU,M/CYL TO UNION EXC. LOW DECK WO/REAR BODY<PK4>	1-49167-507-0	01	1	0801-
109	PIPE; AIR,UNION TO UNION LOW DECK WO/REAR BODY<PK4> (A) L=1249 SERVICED BY L=1250	1-47428-764-0	01	1	0801-
109	PIPE; AIR,UNION TO UNION LOW DECK WO/REAR BODY<PK4> (C) L=997 SERVICED BY L=1000	1-47428-762-0	01	1	0801-
109	PIPE; AIR,UNION TO UNION LOW DECK WO/REAR BODY<PK4> (B) L=1127 SERVICED BY L=1250	1-47428-764-0	01	1	0801-
109	PIPE; AIR,UNION TO UNION WB 5000MM(50W) (B) L=1355 SERVICED BY L=1400	1-47428-765-0	01	1	0612-
109	PIPE; AIR,UNION TO UNION WB 5700MM(57W) (B) L=2059 SERVICED BY L=2150	1-47428-770-0	01	1	0612-0712
109	PIPE; AIR,UNION TO UNION WB 5700MM(57W) EXC. LOW DECK WO/REAR BODY<PK4> (B) L=2059 SERVICED BY L=2150	1-47428-770-0	01	1	0801-
109	PIPE; AIR,UNION TO UNION (A) L=489	1-49167-828-0	01	1	0612-0712
109	PIPE; AIR,UNION TO UNION EXC. LOW DECK WO/REAR BODY<PK4> (A) L=489	1-49167-828-0	01	1	0801-
109	PIPE; AIR,UNION TO UNION (C) L=1071 SERVICED BY L=1100	1-47426-387-0	01	1	0612-0712
109	PIPE; AIR,UNION TO UNION EXC. LOW DECK WO/REAR BODY<PK4> (C) L=1071 SERVICED BY L=1100	1-47426-387-0	01	1	0801-
110	PIPE; OIL,UNION TO UNION LOW DECK WO/REAR BODY<PK4> (B) L=952 SERVICED BY L=970	1-47428-761-0	01	1	0801-
110	PIPE; OIL,UNION TO UNION LOW DECK WO/REAR BODY<PK4> (B) L=1168 SERVICED BY L=1250	1-47428-764-0	01	1	0801-
110	PIPE; OIL,UNION TO UNION (A) L=1935 SERVICED BY L=1950	1-47428-769-0	01	1	0612-
110	PIPE; OIL,UNION TO UNION (B) L=1017 SERVICED BY L=1100	1-47428-763-0	01	1	0612-0712
110	PIPE; OIL,UNION TO UNION EXC. LOW DECK WO/REAR BODY<PK4> (B) L=1017 SERVICED BY L=1100	1-47428-763-0	01	1	0801-
153	PIPE ASM; CLU,UNION TO FLEX LOW DECK WO/REAR BODY<PK4> L=1639 SERVICED BY L=1700	1-47428-767-0	01	1	0801-
153	PIPE ASM; CLU,UNION TO FLEX L=2249 SERVICED BY L=2400	1-47428-771-0	01	1	0612-0712
153	PIPE ASM; CLU,UNION TO FLEX EXC. LOW DECK WO/REAR BODY<PK4> L=2249 SERVICED BY L=2400	1-47428-771-0	01	1	0801-
