2-36B — MANUAL TRANSMISSION CONT LINK AND CABLE
(#27332) — 19 parça
◀

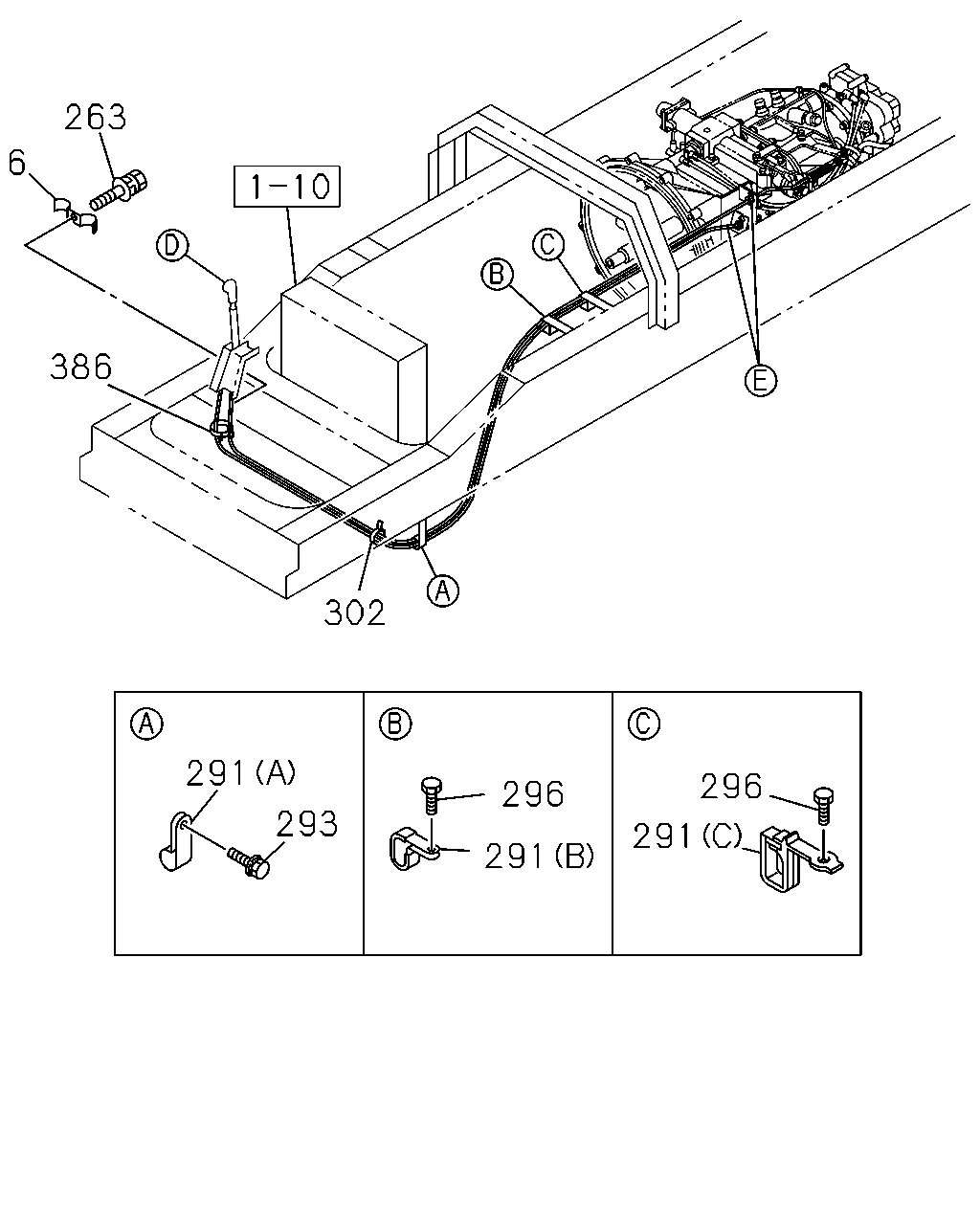

[236B] FRAME SIDE (9 parça)

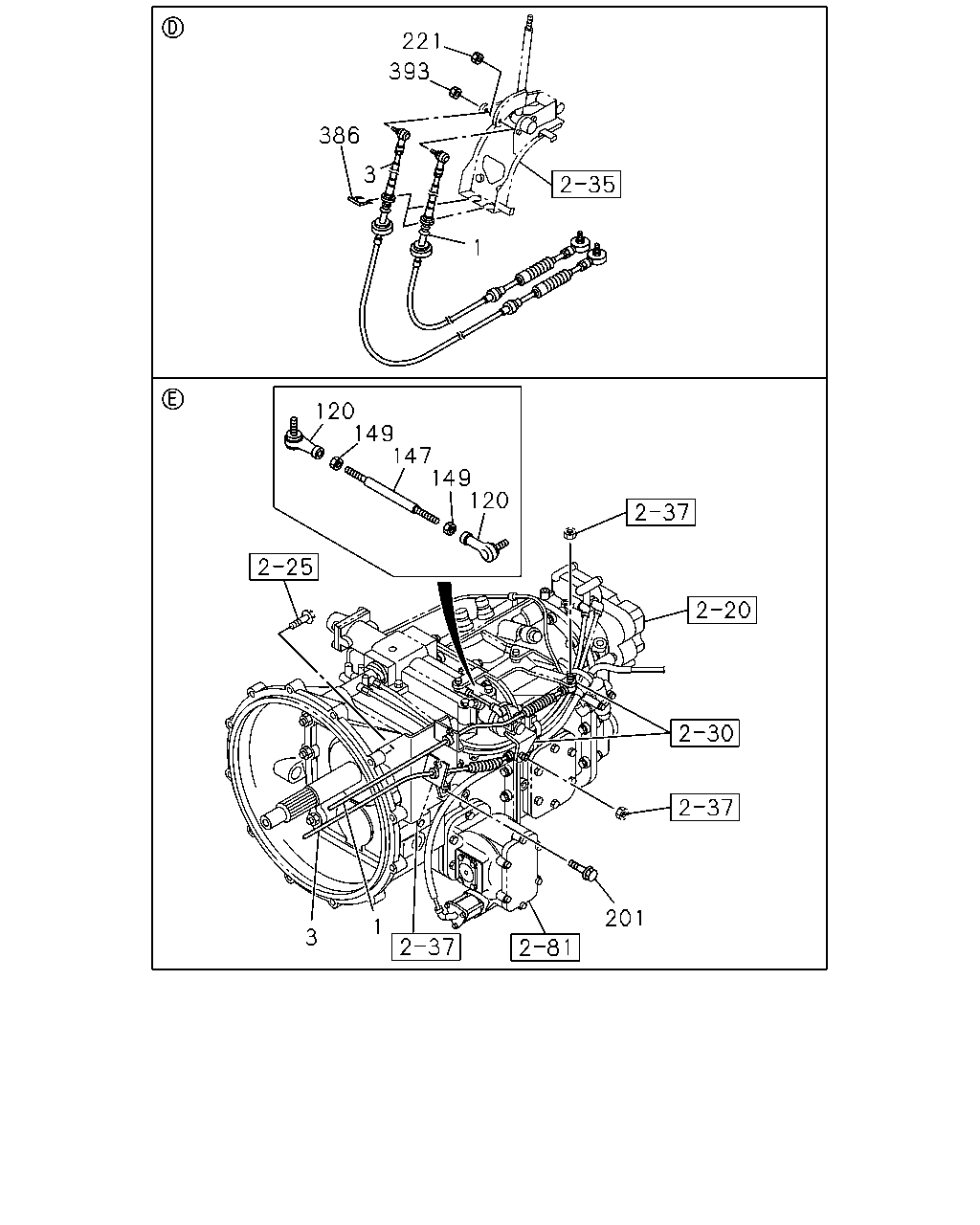

[236B] CAB AND TRANSMISSION SIDE (10 parça)
▶
263
6
386
302
291
296
296
293
291
291
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
CLIP; CABLE
ID=11 & 11 L=17.5 & 17.5 THA
1-09700-739-0
01
1
0212-
263
BOLT; CLIP,TRANS CONT WIRE
M8X20.5 W/LK&PL WASHER
8-94279-207-0
01
1
0212-
291
CLIP; SHIFT TO SELECT,FRAME
(C) THA
1-09701-220-0
01
1
0212-
291
CLIP; SHIFT TO SELECT,FRAME
(B) ID=13X2 L=32 THA
1-09701-245-0
01
1
0212-
291
CLIP; SHIFT TO SELECT,FRAME
(A) ID=11X2 L=16
9-09535-026-0
01
1
0212-
293
BOLT; CLIP,SHIFT TO SELECT
M8X16 FLANGE
0-28080-816-0
01
1
0212-
296
BOLT; CLIP,SHIFT & SELECT
M8X30 FLANGE
0-28680-830-0
02
1
0212-
302
CLIP; BAND
L=300 THA
1-09707-001-1
01
1
0212-
386
CLIP; CONT CABLE & TUBE
1-09700-966-1
02
1
0212-
221
393
386
3
1
120
149
147
149
120
201
1
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CABLE; SHIFT,TRANS CONT
L=3550 THA
8-97917-970-1
01
1
0212-
3
CABLE; SELECT,TRANS CONT
L=3750 THA
8-97917-972-1
01
1
0212-
120
JOINT ASM; BALL,CONT ROD
L=48
1-09760-038-1
02
1
0212-0309
120
JOINT ASM; BALL,CONT ROD
L=45.5
1-09760-118-1
02
1
0310-
147
ROD; LINK
1-33652-460-0
01
1
0212-
149
NUT; SLEEVE TO CONT ROD
M8
9-09111-408-0
02
1
0212-
201
BOLT; BRKT
M12X25
0-28781-225-0
01
1
0212-
221
NUT; SHIFT WIRE TO LEVER
M8 FLANGE
1-09440-049-0
01
1
0212-
386
CLIP; CONT CABLE & TUBE
1-09700-966-1
02
1
0212-
393
NUT; SELECT CABLE,CAB
M8 FLANGE
1-09440-049-0
01
1
0212-
