2-35B — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#27330) — 28 parça

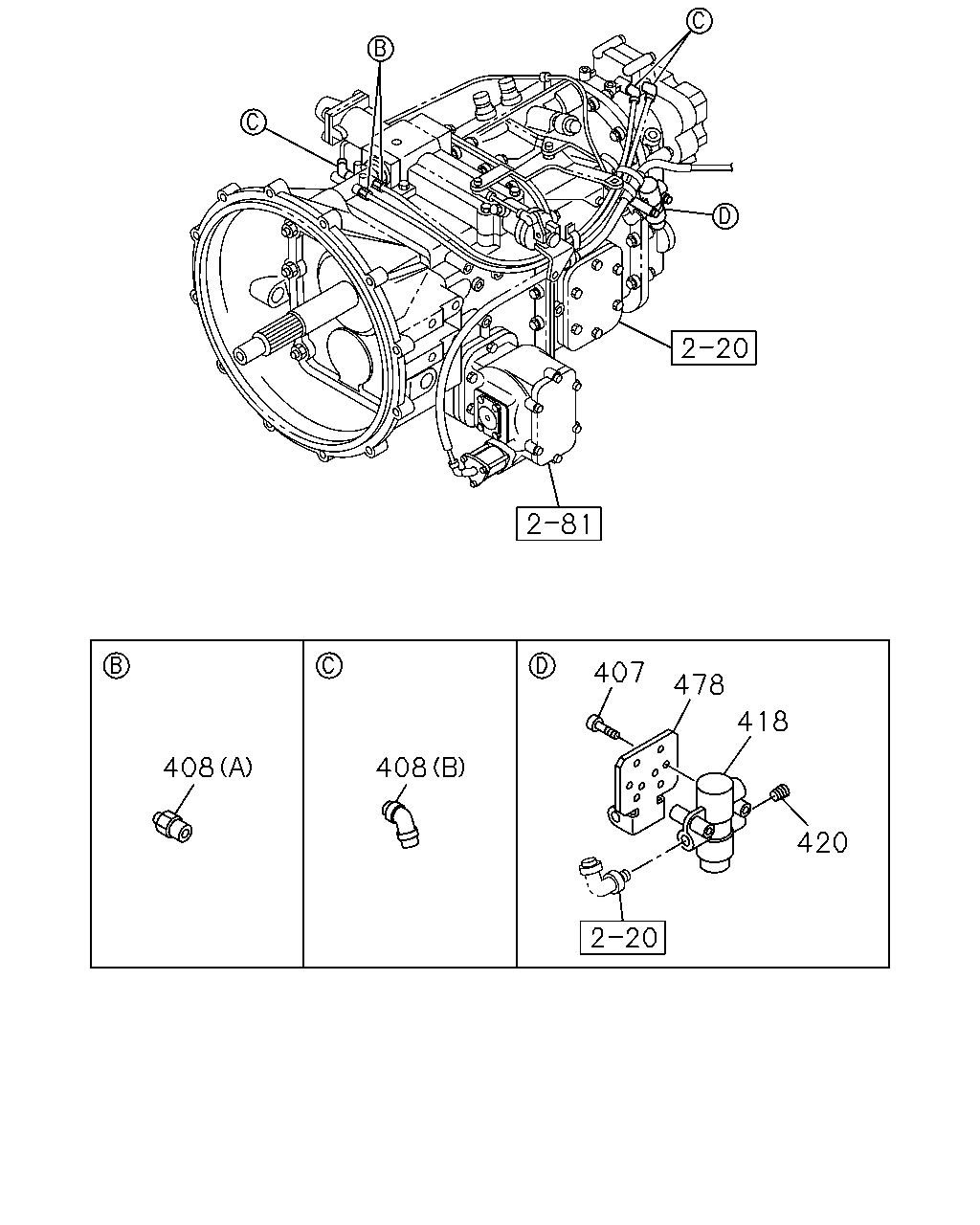

407 478 418 408 408 420

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
407	BOLT; VALVE	1-34119-123-0	02	1	0212-
408	CONNECTOR; AIR HOSE (A)	1-33119-461-0	02	1	0212-
408	CONNECTOR; AIR HOSE (B)	1-33119-473-0	03	1	0212-
418	VALVE ASM; AIR FILTER REG	1-33549-379-0	01	1	0212-
420	PLUG; VALVE	1-33549-239-0	01	1	0212-
478	BRACKET; AIR FILTER REG	1-34119-121-0	01	1	0212-

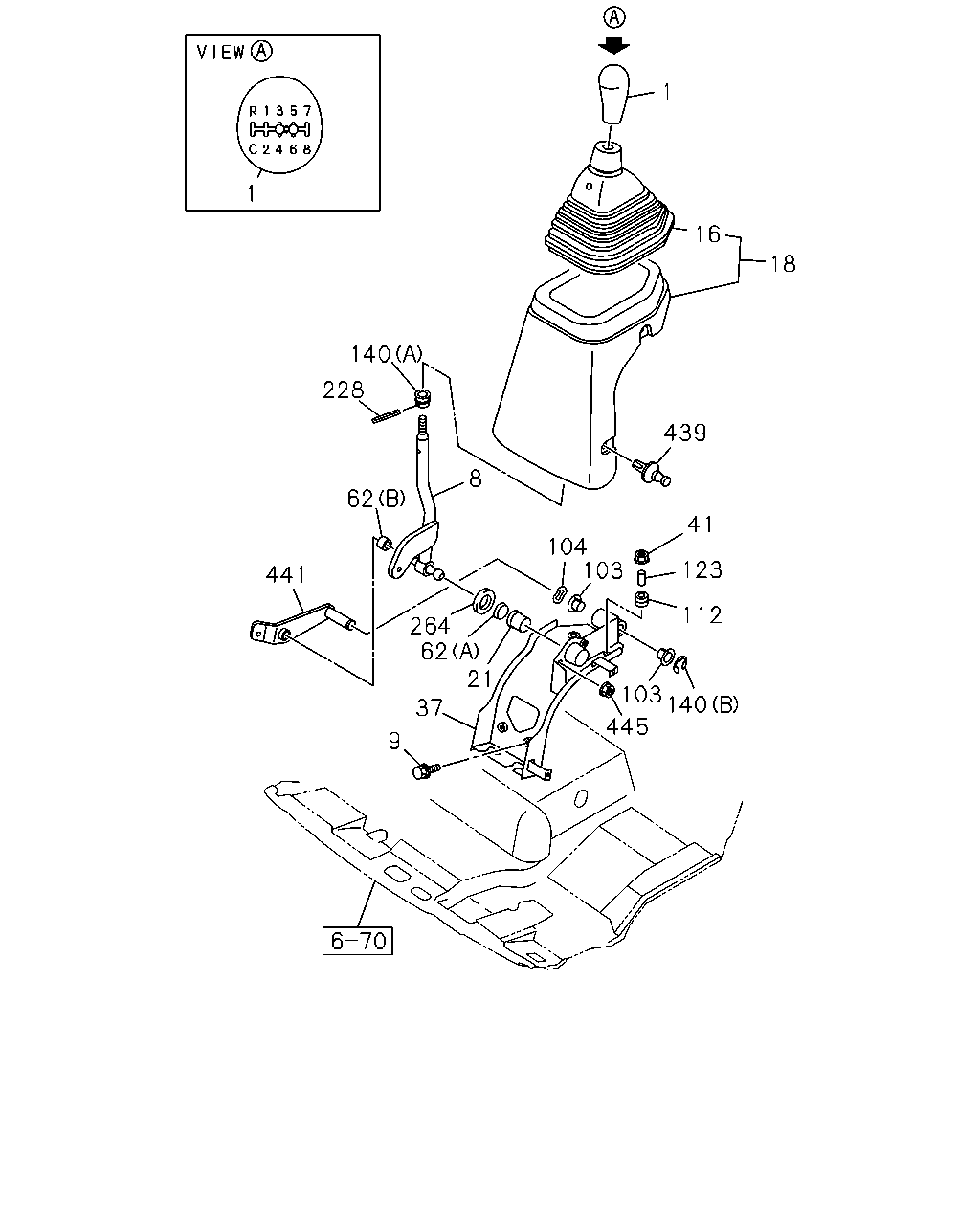

1 1 16 18 140 228 439 8 62 41 104 103 123 441 264 62 21 112 103 140 37 445 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	KNOB; CHANGE LEVER	1-33611-099-0	01	1	0212-
8	LEVER; CHANGE	1-33619-553-0	01	1	0212-
9	BOLT; CHANGE LEVER M8X25	8-94412-342-0	02	1	0212-
16	BOOT; CHANGE LEVER THA	1-79998-751-3	01	1	0212-
16	BOOT; CHANGE LEVER THA	1-79998-751-3	01	1	0212-
18	BOOT; CHANGE LEVER	1-79996-394-1	01	1	0212-
21	SEAT; CHANGE LEVER	1-33619-429-0	01	1	0212-
37	BRACKET; CHANGE LEVER SUPPORT	1-33619-444-2	01	1	0212-
41	NUT; CHANGE LEVER M8 FLANGE	8-97046-127-0	02	1	0212-
62	SEAT; BALL,CHANGE LEVER (A)	1-33619-427-0	01	1	0212-
62	SEAT; BALL,CHANGE LEVER (B)	8-97011-900-0	01	1	0212-
103	BUSHING; RELAY LEVER ID=14 OD=16	8-94252-671-0	02	1	0212-
104	WASHER; WAVED	1-09550-009-0	01	1	0212-
112	RUBBER; CUSHION	1-33619-442-0	04	1	0212-
123	COLLAR; DIST,CHANGE LEVER	1-33619-443-0	04	1	0212-
140	RING; SNAP (A)	1-33619-504-0	01	1	0212-
140	RING; SNAP (B) ID=10	9-09185-410-0	01	1	0212-
228	PIN; SPR,CHANGE LEVER	1-33619-505-0	01	1	0212-
264	PLATE; COVER	1-33619-430-0	01	1	0212-
439	FASTENER; COVER D8X13.5	1-09987-270-0	04	1	0212-
441	LEVER; SELECT	1-33619-437-2	01	1	0212-
445	NUT; PLATE M6 FLANGE	0-91150-106-0	02	1	0212-
