◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 10908 - FVZ(THAI) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-30B - GEAR SHIFTER AND QUADRANT BOX ▶
2-30B — GEAR SHIFTER AND QUADRANT BOX (#27328) — 90 parça

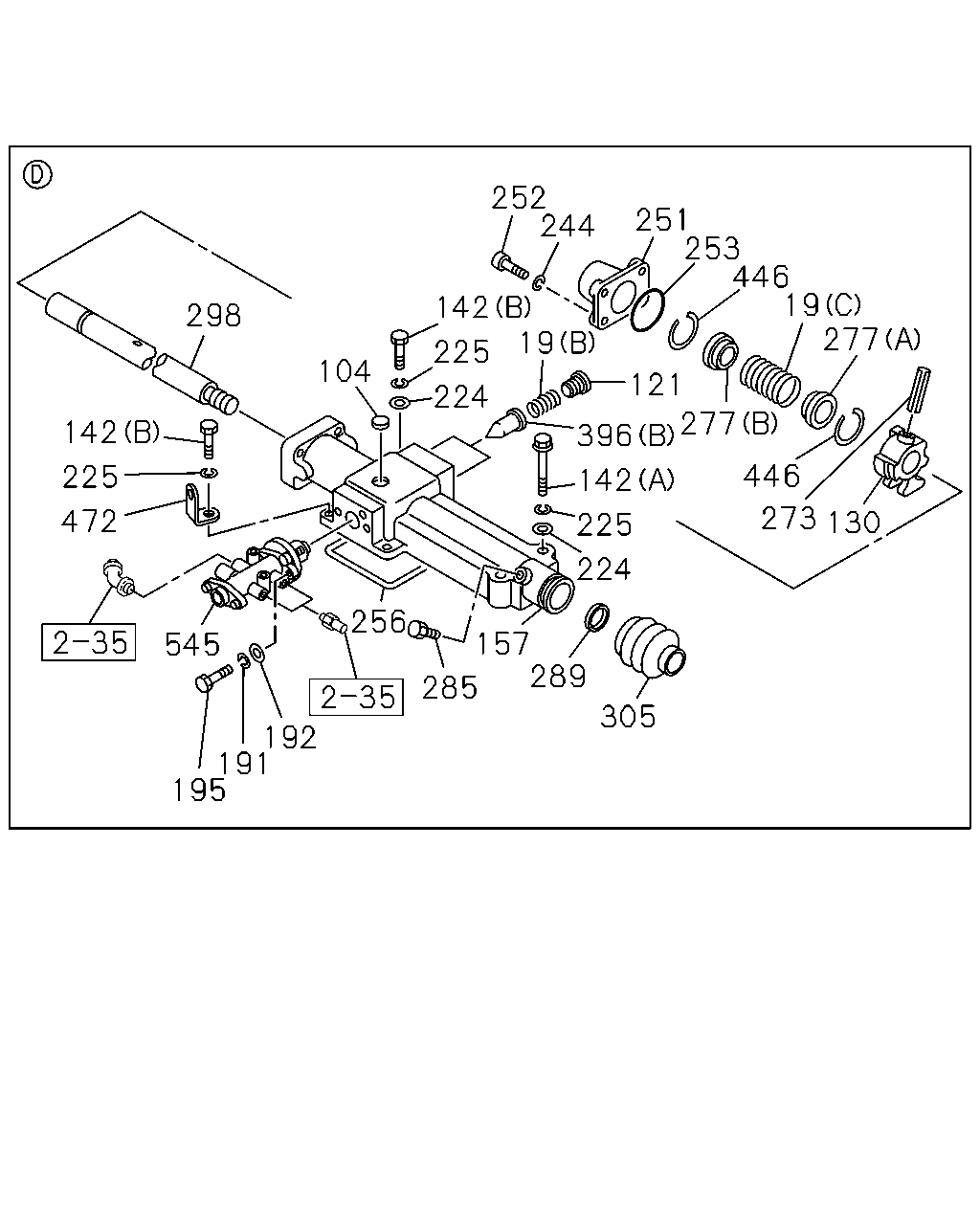

çizim 22732
252 244 251 253 446 19 277 142 19 298 225 104 121 224 277 396 142 446 225 142 273 130 472 225 224 256 157 289 545 285 305 192 191 195
BalonParca AdiParca NoAdetTipApplied Date
19 SPRING; COIL COMP
(A) 		1-33539-052-0 01 1 0212-
19 SPRING; COIL COMP
(B) 		1-33539-081-0 02 1 0212-
19 SPRING; COIL COMP
(C) 		1-33549-373-0 01 1 0212-
104 PLUG; PLATE 1-33549-353-0 01 1 0212-
121 PLUG; DETENT SPR 1-33119-472-0 02 1 0212-
130 LEVER; SHIFT,INTERNAL 1-33521-184-0 01 1 0212-
142 BOLT; QUAD BOX
(A) M10X55 		1-33119-422-0 02 1 0212-
142 BOLT; QUAD BOX
(B) M10X35 		1-33549-350-0 04 1 0212-
157 BOX; QUAD,TRANS 1-33541-536-0 01 1 0212-
191 WASHER; LK 1-33549-356-0 02 1 0212-
192 WASHER; PL 1-33119-434-0 02 1 0212-
195 BOLT 1-33549-385-0 02 1 0212-
224 WASHER; PL,QUAD BOX 1-33119-424-0 05 1 0212-
225 WASHER; LK,QUAD BOX 1-34159-096-0 06 1 0212-
244 WASHER; LK,COVER 1-33119-427-0 06 1 0212-
251 COVER; SIDE 1-33545-012-0 01 1 0212-
252 BOLT; SIDE COVER 1-33549-375-0 04 1 0212-
253 GASKET; SIDE COVER
ALSO INCLUDED IN GASKET SET(M/T). 		1-33544-055-0 01 1 0212-
256 GASKET; QUAD BOX TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 		1-33549-377-0 01 1 0212-
273 PIN; SPR,STOPPER 1-33529-095-0 01 1 0212-
277 PLATE; SPRING SEAT
(A) 		1-33549-224-0 01 1 0212-
277 PLATE; SPRING SEAT
(B) 		1-33549-372-0 01 1 0212-
285 BREATHER; AIR,QUAD BOX 1-33549-354-0 01 1 0212-
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 		1-33542-059-0 01 1 0212-
298 SHAFT; SHIFT LEVER 1-33522-178-0 01 1 0212-
305 BOOT; LEVER SHAFT 1-33549-233-0 01 1 0212-
396 PLUNGER; SHIFT ROD
(A) 		1-33539-051-0 01 1 0212-
396 PLUNGER; SHIFT ROD
(B) 		1-33549-384-0 02 1 0212-
446 RING; SNAP,SPR SEAT 1-33549-223-0 02 1 0212-
472 EYE; LIFTING 1-33119-430-0 01 1 0212-
545 VALVE; POPPET 1-33549-386-0 01 1 0212-

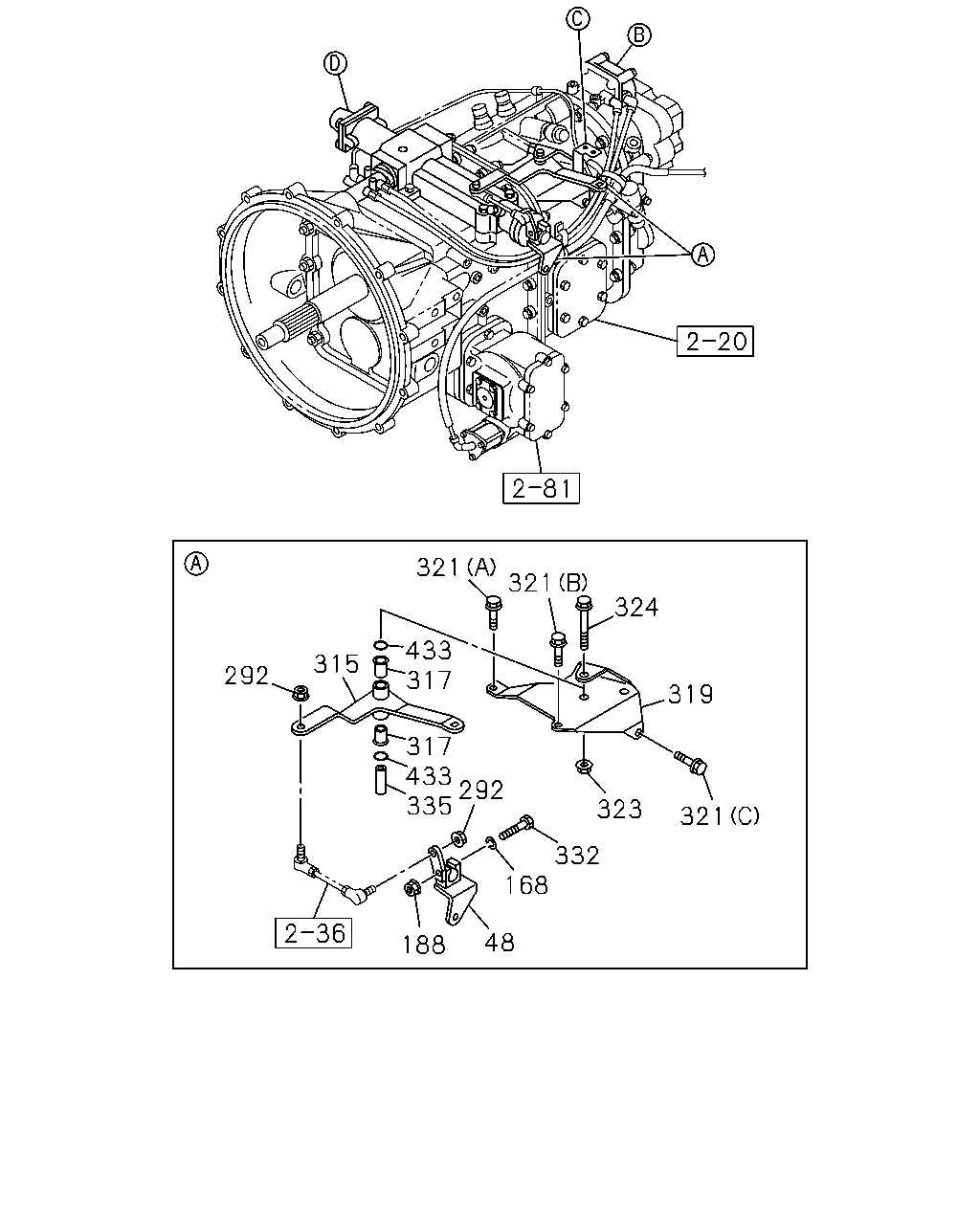

çizim 81485
321 321 324 433 317 315 292 319 317 433 292 335 323 321 332 168 48 188
BalonParca AdiParca NoAdetTipApplied Date
48 LEVER; 4TH,SHIFT 1-33651-716-1 01 1 0212-
168 WASHER; LK,SELECT LEVER
ID=10.2 		9-09150-510-0 01 1 0212-
188 NUT; SELECT LEVER
M10 FLANGE 		0-91150-110-0 01 1 0212-0403
188 NUT; SELECT LEVER
M10 FLANGE 		0-91150-110-0 02 1 0404-
292 NUT; LINK ROD
M8 FLANGE 		1-09440-062-1 02 1 0212-
315 LEVER; SELECT 1-33651-715-0 01 1 0212-
317 BUSHING; LEVER 1-09330-119-0 02 1 0212-
319 BRACKET; SELECT LEVER 1-33657-816-0 01 1 0212-
321 BOLT; BRKT,RELAY LEVER
(A) M10X30 FLANGE 		0-28181-030-0 01 1 0212-
321 BOLT; BRKT,RELAY LEVER
(B) M10X60 FLANGE 		0-28181-060-0 01 1 0212-
321 BOLT; BRKT,RELAY LEVER
(C) M10X25 FLANGE 		0-28781-025-0 01 1 0212-
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91150-110-0 01 1 0212-
324 BOLT; SHAFT
M10X60 FLANGE 		0-28081-060-0 01 1 0212-
332 BOLT; 4TH,SHIFT LEVER 0-20801-060-0 01 1 0212-
335 COLLAR; DIST,RELAY LEVER ASM 1-33659-203-0 01 1 0212-
433 GASKET; BUSHING 1-09623-594-0 02 1 0212-
çizim 81555
359 359 364 359 363 362 362 359 358 359 359 359 359 361 359 358 356 27 218
BalonParca AdiParca NoAdetTipApplied Date
27 BUSHING; SHIFT ROD 1-33569-042-0 01 1 0212-
218 BRACKET; HARNESS CLIP,QUAD BOX 1-82699-639-1 01 1 0212-
356 PISTON; AIR CYL 1-33551-015-0 01 1 0212-
358 NUT; SHIFT ROD 1-33539-053-0 01 1 0212-
359 GASKET; AIR CYL
(A) 		1-33552-006-0 01 1 0212-
359 GASKET; AIR CYL
(B) 		1-33552-007-0 01 1 0212-
359 GASKET; AIR CYL
(C) 		1-33563-008-0 01 1 0212-
359 GASKET; AIR CYL
(D) 		1-33569-043-0 01 1 0212-
359 GASKET; AIR CYL
(E) 		1-33569-044-0 01 1 0212-
361 CYLINDER; AIR,SHIFT 1-33569-045-0 01 1 0212-
362 WASHER; AIR CYL
(A) 		1-33119-424-0 03 1 0212-
362 WASHER; AIR CYL
(B) 		1-34159-096-0 03 1 0212-
363 BOLT; AIR CYL 1-33119-433-0 03 1 0212-
364 SEAL KIT; AIR CYL 1-85572-108-0 01 1 0212-

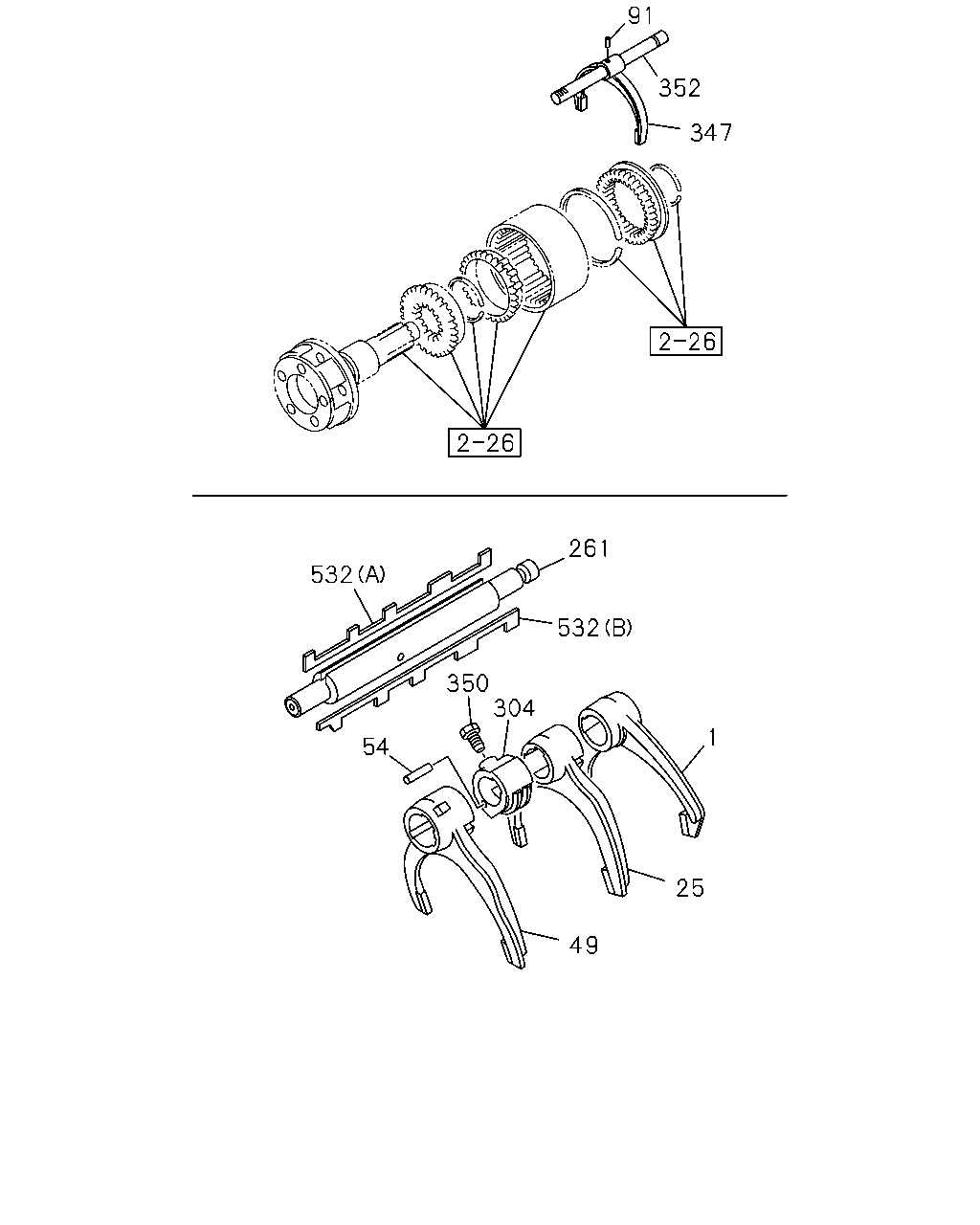

çizim 81640
91 352 347 261 532 532 350 304 1 54 25 49
BalonParca AdiParca NoAdetTipApplied Date
1 ARM; SHIFT,1ST & REV 1-33511-629-0 01 1 0212-
25 ARM; SHIFT,2ND & 3RD 1-33511-630-0 01 1 0212-
49 ARM; SHIFT,4TH & 5TH 1-33511-631-0 01 1 0212-
54 PIN; SPR,SHIFT BLOCK 1-33519-101-0 01 1 0212-
91 PIN; SPR,SHIFT ARM 1-33519-100-0 01 1 0212-
261 ROD; GEAR CONT 1-33531-478-0 01 1 0212-
304 BLOCK; SHIFT SHAFT 1-33511-534-0 01 1 0212-
347 ARM; SHIFT,RANGE CHANGE 1-33511-533-0 01 1 0212-
350 SCREW; SHIFT ARM 1-33519-102-0 01 1 0212-
352 ROD; SHIFT,RANGE CHANGE 1-33531-435-0 01 1 0212-
532 PLATE; SHIFT FORK
(A) 		1-33539-054-0 01 1 0212-
532 PLATE; SHIFT FORK
(B) 		1-33539-080-0 01 1 0212-

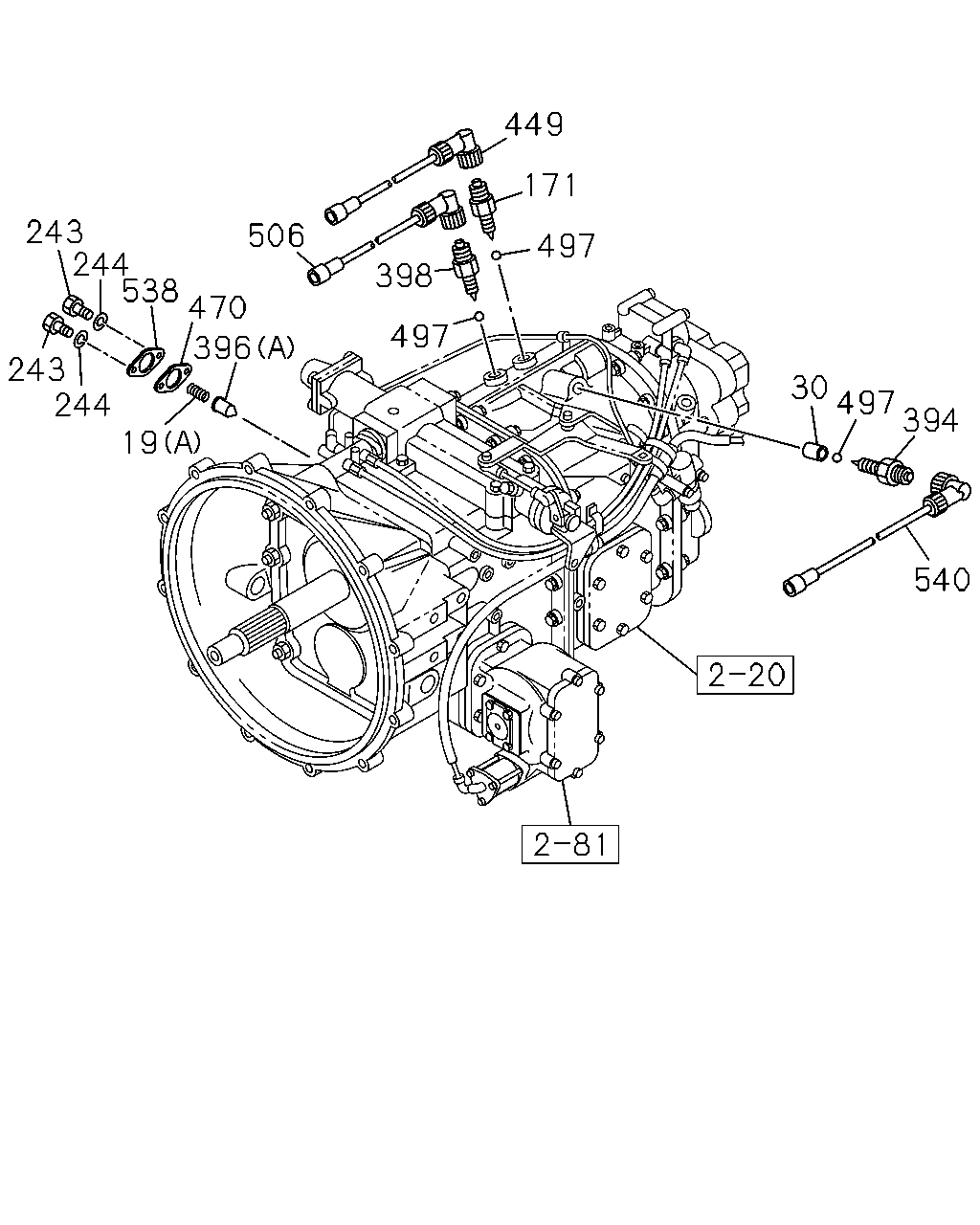

çizim 82093
449 171 243 244 538 470 506 497 398 497 396 243 244 19 30 497 394 540
BalonParca AdiParca NoAdetTipApplied Date
19 SPRING; COIL COMP
(A) 		1-33539-052-0 01 1 0212-
19 SPRING; COIL COMP
(B) 		1-33539-081-0 02 1 0212-
19 SPRING; COIL COMP
(C) 		1-33549-373-0 01 1 0212-
30 PIN; INTER LK 1-33119-309-0 01 1 0212-
171 SWITCH; NEUTRAL 1-82440-120-0 01 1 0212-
243 BOLT; COVER 1-33549-352-0 02 1 0212-
244 WASHER; LK,COVER 1-33119-427-0 06 1 0212-
394 SWITCH; RANGE CHANGE 1-82440-121-0 01 1 0212-
396 PLUNGER; SHIFT ROD
(A) 		1-33539-051-0 01 1 0212-
396 PLUNGER; SHIFT ROD
(B) 		1-33549-384-0 02 1 0212-
398 SWITCH; REV LAMP 1-82440-121-0 01 1 0212-
449 HARNESS; NEUTRAL SW 1-82676-207-0 01 1 0212-
470 GASKET; SPRING COVER 1-33119-321-0 01 1 0212-
497 BALL; SWITCH 1-33119-308-0 03 1 0212-
506 HARNESS; REV SW 1-82676-207-0 01 1 0212-
538 COVER; DETENT 1-33119-425-0 01 1 0212-
540 HARNESS; RANGE SW 1-82676-207-0 01 1 0212-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
