0-13B — OIL PAN AND LEVEL GAUGE (#2732) — 99 parça

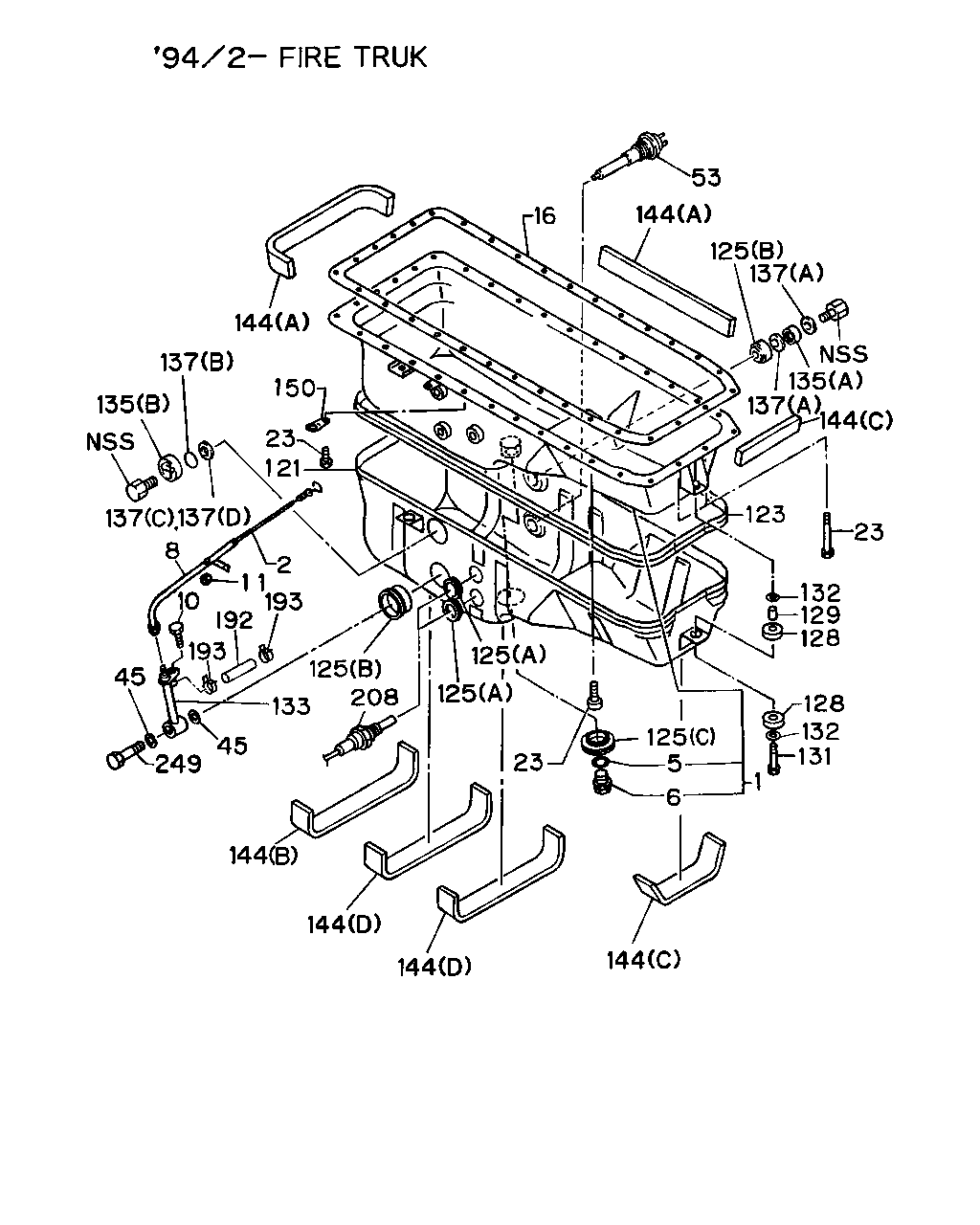

53 16 144 125 137 135 137 144 123 23 132 129 128 128 132 131 6 5 125 144 144 144 144 23 125 125 208 125 133 45 249 45 193 10 192 8 2 11 193 137 137 121 23 150 144 137 135

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	GAUGE; OIL LEVEL	1-11760-300-2	01	1	9002-	●	●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). FIRE TRUCK<RA9> ID=26.8	1-09623-058-0	01	1	9002-9401	●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). FIRE TRUCK<RA9>	1-09623-179-0	01	1	9402-	●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). EXC. FIRE TRUCK<RA9>. ID=26.8	1-09623-415-0	01	1	9002-	●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=26.8	1-09623-415-0	01	1	9002-		●
6	PLUG; OIL DRAIN FIRE TRUCK<RA9>	1-09604-022-0	01	1	9002-9401	●
6	PLUG; OIL DRAIN EXC. FIRE TRUCK<RA9> M24X17 FLANGE	1-09604-064-1	01	1	9002-9401	●
6	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-064-1	01	1	9002-9401		●
6	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-064-1	01	1	9402-	●	●
8	TUBE; GUIDE,OIL LEVEL GAUGE	1-11766-293-1	01	1	9002-9401	●
8	TUBE; GUIDE,OIL LEVEL GAUGE EXC. FIRE TRUCK<RA9>	1-11766-293-1	01	1	9402-	●
8	TUBE; GUIDE,OIL LEVEL GAUGE FIRE TRUCK<RA9>	1-11766-347-1	01	1	9402-	●
8	TUBE; GUIDE,OIL LEVEL GAUGE	1-11766-295-2	01	1	9307-		●
10	BOLT; GUIDE TUBE TAIWAN EQUIPMENT(WW5) M8X16 W/LK WASHER	0-50040-816-0	01	1	9307-	●	●
11	NUT; GUIDE,OIL LEVEL GAUGE M8 FLANGE	0-91150-108-0	01	1	9002-	●	●
16	GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11367-091-1	01	1	9002-9504	●
16	GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11367-105-0	01	1	9505-	●
16	GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11367-092-1	01	1	9307-9504		●
16	GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11367-104-0	01	1	9505-		●
23	BOLT; OIL PAN M8X18 W/LK&PL WASHER	1-09030-004-0	22	1	9002-	●
23	BOLT; OIL PAN M8X90 W/LK&PL WASHER	1-09030-078-0	10	1	9002-	●	●
23	BOLT; OIL PAN M8X18 W/LK&PL WASHER	1-09030-004-0	26	1	9307-		●
45	GASKET; GUIDE TUBE ALSO INCLUDED IN GASKET SET(ENGINE). FIRE TRUCK<RA9>	1-09623-179-0	02	1	9402-	●
45	GASKET; GUIDE TUBE ALSO INCLUDED IN GASKET SET(ENGINE). TAIWAN EQUIPMENT(WW5) EXC. FIRE TRUCK<RA9> ID=10.8	1-09623-274-0	01	1	9307-	●	●
53	HEATER ASM; OIL PAN FIRE TRUCK<RA9>	1-81900-141-0	01	1	9402-	●
121	COVER; OIL PAN FIRE TRUCK<RA9>	1-19381-288-0	01	1	9402-	●
123	RUBBER; SEAL OIL FIRE TRUCK<RA9> L=2168 SERVICED BY L=2742	1-19387-018-0	01	1	9402-	●
125	GROMMET; OIL PAN FIRE TRUCK<RA9> (C) ID=34	1-09333-032-0	01	1	9402-	●
125	GROMMET; OIL PAN FIRE TRUCK<RA9> (B) ID=18	1-09333-056-0	04	1	9402-	●
125	GROMMET; OIL PAN FIRE TRUCK<RA9> (A)	1-09333-067-0	02	1	9402-	●
128	RUBBER; MTG,OIL PAN FIRE TRUCK<RA9>	1-09337-004-0	06	1	9402-	●
129	TUBE; DIST FIRE TRUCK<RA9> M8X10	1-11369-081-0	03	1	9402-	●
131	BOLT; COVER NOISE SHIELD FIRE TRUCK<RA9> M8X50	0-10805-850-0	03	1	9402-	●
132	WASHER; PL,OIL PAN COVER FIRE TRUCK<RA9> ID=8.4 OD=26	9-09164-808-0	06	1	9402-	●
133	TUBE ASM; OIL PAN FIRE TRUCK<RA9>	1-11766-356-0	01	1	9402-	●
133	TUBE ASM; OIL PAN TAIWAN EQUIPMENT(WW5) EXC. FIRE TRUCK<RA9>	1-11766-300-0	01	1	9307-	●	●
135	ADAPTER; GUIDE TUBE FIRE TRUCK<RA9> (B)	1-11369-093-0	01	1	9402-	●
135	ADAPTER; GUIDE TUBE FIRE TRUCK<RA9> (A)	1-11369-126-0	01	1	9402-	●
137	GASKET; ADAPTER FIRE TRUCK<RA9> (A)	1-09623-185-0	02	1	9402-	●
137	GASKET; ADAPTER FIRE TRUCK<RA9> (B)	1-09623-203-0	01	1	9402-	●
137	GASKET; ADAPTER EXC. TAIWAN EQUIPMENT(WW5) (C)	1-09623-185-0	01	1	9002-	●
137	GASKET; ADAPTER (D)	1-09630-085-0	01	1	9002-	●	●
144	INSULATOR; OIL PAN FIRE TRUCK<RA9> (A) 420X50X10	1-19389-090-0	02	1	9402-	●
144	INSULATOR; OIL PAN FIRE TRUCK<RA9> (B) 530X50X10	1-19389-091-0	02	1	9402-	●
144	INSULATOR; OIL PAN FIRE TRUCK<RA9> (C) 180X50X10	1-19389-092-0	02	1	9402-	●
144	INSULATOR; OIL PAN FIRE TRUCK<RA9> (D) 300X50X10	1-19389-094-0	02	1	9402-	●
150	CLIP; WATER,OIL DRAIN	9-11229-070-0	01	1	9002-	●	●
192	HOSE; GUIDE TUBE FIRE TRUCK<RA9>	1-09360-297-0	01	1	9402-	●
193	CLIP; HOSE,GUIDE TUBE FIRE TRUCK<RA9> ID=11.6	1-09707-087-0	02	1	9402-	●
208	SWITCH; OIL THERMO,OIL PAN FIRE TRUCK<RA9>	1-82450-038-2	01	1	9402-	●
249	BOLT; EYE GUIDE TUBE FIRE TRUCK<RA9>	1-09675-112-0	01	1	9402-	●

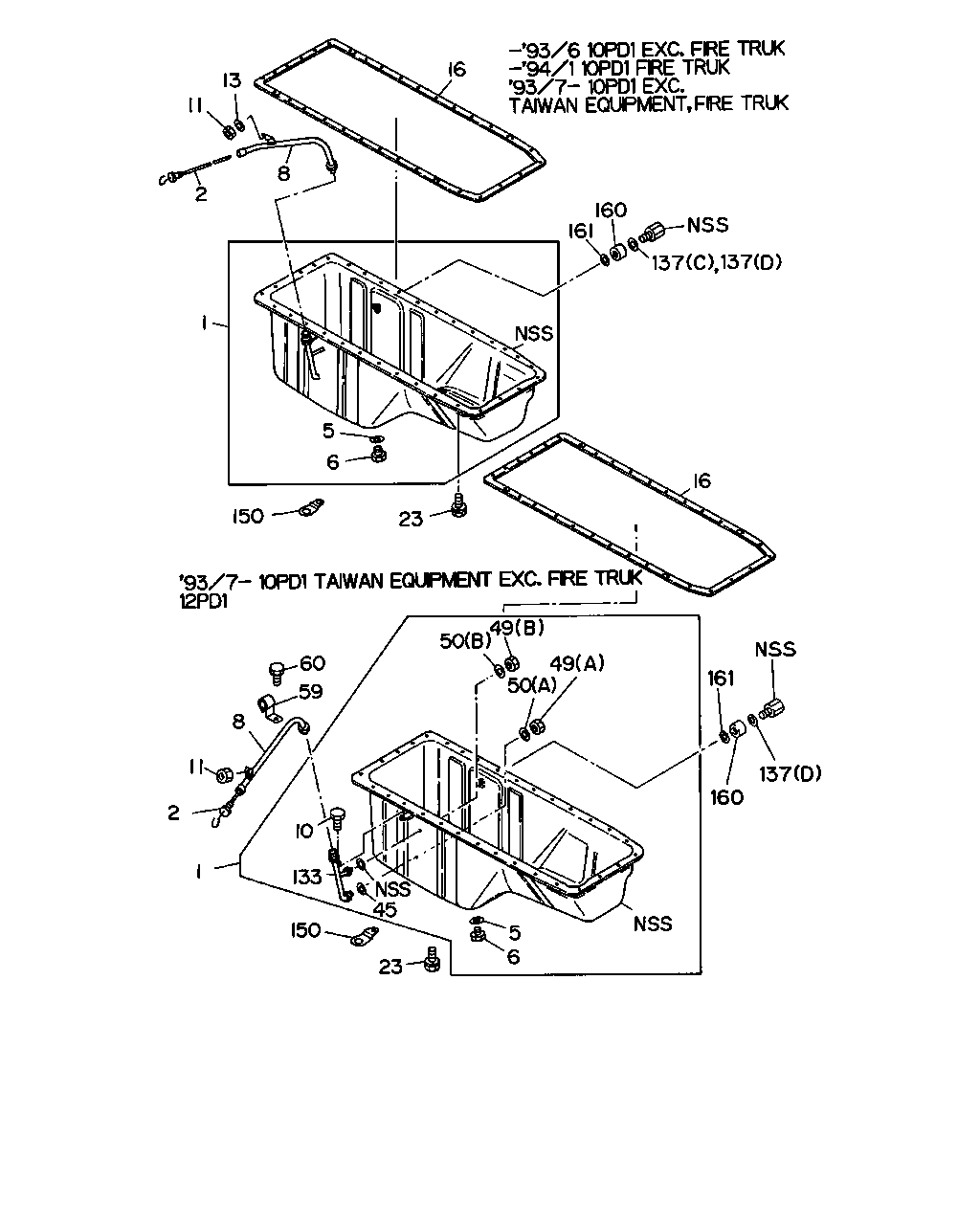

16 13 11 2 8 1 150 23 161 160 137 137 16 161 160 49 50 50 49 60 59 8 11 2 1 133 150 23 10 5 6 5 6 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PAN ASM; OIL FIRE TRUCK<RA9>	1-11360-738-0	01	1	9002-9401	●
1	PAN ASM; OIL FIRE TRUCK<RA9>	1-11360-729-1	01	1	9402-	●
1	PAN ASM; OIL EXC. FIRE TRUCK<RA9>,TAIWAN EQUIPMENT(WW5)	1-11360-715-2	01	1	9002-	●
1	PAN ASM; OIL TAIWAN EQUIPMENT(WW5) EXC. FIRE TRUCK<RA9>	1-11360-694-2	01	1	9002-	●
1	PAN ASM; OIL	1-11360-692-2	01	1	9307-		●
2	GAUGE; OIL LEVEL	1-11760-300-2	01	1	9002-	●	●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). FIRE TRUCK<RA9> ID=26.8	1-09623-058-0	01	1	9002-9401	●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). FIRE TRUCK<RA9>	1-09623-179-0	01	1	9402-	●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). EXC. FIRE TRUCK<RA9>. ID=26.8	1-09623-415-0	01	1	9002-	●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=26.8	1-09623-415-0	01	1	9002-		●
6	PLUG; OIL DRAIN FIRE TRUCK<RA9>	1-09604-022-0	01	1	9002-9401	●
6	PLUG; OIL DRAIN EXC. FIRE TRUCK<RA9> M24X17 FLANGE	1-09604-064-1	01	1	9002-9401	●
6	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-064-1	01	1	9002-9401		●
6	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-064-1	01	1	9402-	●	●
8	TUBE; GUIDE,OIL LEVEL GAUGE	1-11766-293-1	01	1	9002-9401	●
8	TUBE; GUIDE,OIL LEVEL GAUGE EXC. FIRE TRUCK<RA9>	1-11766-293-1	01	1	9402-	●
8	TUBE; GUIDE,OIL LEVEL GAUGE FIRE TRUCK<RA9>	1-11766-347-1	01	1	9402-	●
8	TUBE; GUIDE,OIL LEVEL GAUGE	1-11766-295-2	01	1	9307-		●
10	BOLT; GUIDE TUBE TAIWAN EQUIPMENT(WW5) M8X16 W/LK WASHER	0-50040-816-0	01	1	9307-	●	●
11	NUT; GUIDE,OIL LEVEL GAUGE M8 FLANGE	0-91150-108-0	01	1	9002-	●	●
13	WASHER; PL,GUIDE TUBE,OIL LEVEL GAUGE ID=8.4 OD=18	9-09164-608-0	01	1	9002-9306	●
16	GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11367-091-1	01	1	9002-9504	●
16	GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11367-105-0	01	1	9505-	●
16	GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11367-092-1	01	1	9307-9504		●
16	GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11367-104-0	01	1	9505-		●
23	BOLT; OIL PAN M8X18 W/LK&PL WASHER	1-09030-004-0	22	1	9002-	●
23	BOLT; OIL PAN M8X90 W/LK&PL WASHER	1-09030-078-0	10	1	9002-	●	●
23	BOLT; OIL PAN M8X18 W/LK&PL WASHER	1-09030-004-0	26	1	9307-		●
45	GASKET; GUIDE TUBE ALSO INCLUDED IN GASKET SET(ENGINE). FIRE TRUCK<RA9>	1-09623-179-0	02	1	9402-	●
45	GASKET; GUIDE TUBE ALSO INCLUDED IN GASKET SET(ENGINE). TAIWAN EQUIPMENT(WW5) EXC. FIRE TRUCK<RA9> ID=10.8	1-09623-274-0	01	1	9307-	●	●
49	NUT; GUIDE TUBE TAIWAN EQUIPMENT(WW5) EXC. FIRE TRUCK<RA9> (A) M22	9-09111-422-0	01	1	9307-	●	●
49	NUT; GUIDE TUBE TAIWAN EQUIPMENT(WW5) EXC. FIRE TRUCK<RA9> (B) M14	9-99111-414-0	01	1	9307-	●	●
50	WASHER; PL,GUIDE TUBE TAIWAN EQUIPMENT(WW5) EXC. FIRE TRUCK<RA9> (B) ID=15 OD=30	9-09160-614-0	01	1	9307-	●	●
50	WASHER; PL,GUIDE TUBE TAIWAN EQUIPMENT(WW5) EXC. FIRE TRUCK<RA9> (A) ID=23 OD=44	9-09160-622-0	01	1	9307-	●	●
59	CLIP; HARNESS ID=11 H=20 L=17.5	1-09700-562-1	07	1	9307-		●
60	BOLT; CLIP HARNESS M10X16 W/LK WASHER	1-09033-012-0	04	1	9307-		●
133	TUBE ASM; OIL PAN FIRE TRUCK<RA9>	1-11766-356-0	01	1	9402-	●
133	TUBE ASM; OIL PAN TAIWAN EQUIPMENT(WW5) EXC. FIRE TRUCK<RA9>	1-11766-300-0	01	1	9307-	●	●
137	GASKET; ADAPTER FIRE TRUCK<RA9> (A)	1-09623-185-0	02	1	9402-	●
137	GASKET; ADAPTER FIRE TRUCK<RA9> (B)	1-09623-203-0	01	1	9402-	●
137	GASKET; ADAPTER EXC. TAIWAN EQUIPMENT(WW5) (C)	1-09623-185-0	01	1	9002-	●
137	GASKET; ADAPTER (D)	1-09630-085-0	01	1	9002-	●	●
150	CLIP; WATER,OIL DRAIN	9-11229-070-0	01	1	9002-	●	●
160	ADAPTER	1-11369-126-0	01	1	9002-9401	●	●
160	ADAPTER EXC. FIRE TRUCK<RA9>	1-11369-126-0	01	1	9402-	●	●
161	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-185-0	01	1	9002-9203	●
161	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-588-0	01	1	9204-9401	●	●
161	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). EXC. FIRE TRUCK<RA9>	1-09623-588-0	01	1	9402-	●	●
