◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 10908 - FVZ(THAI) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-05A - CLUTCH PIPING ▶
2-05A — CLUTCH PIPING (#27314) — 62 parça

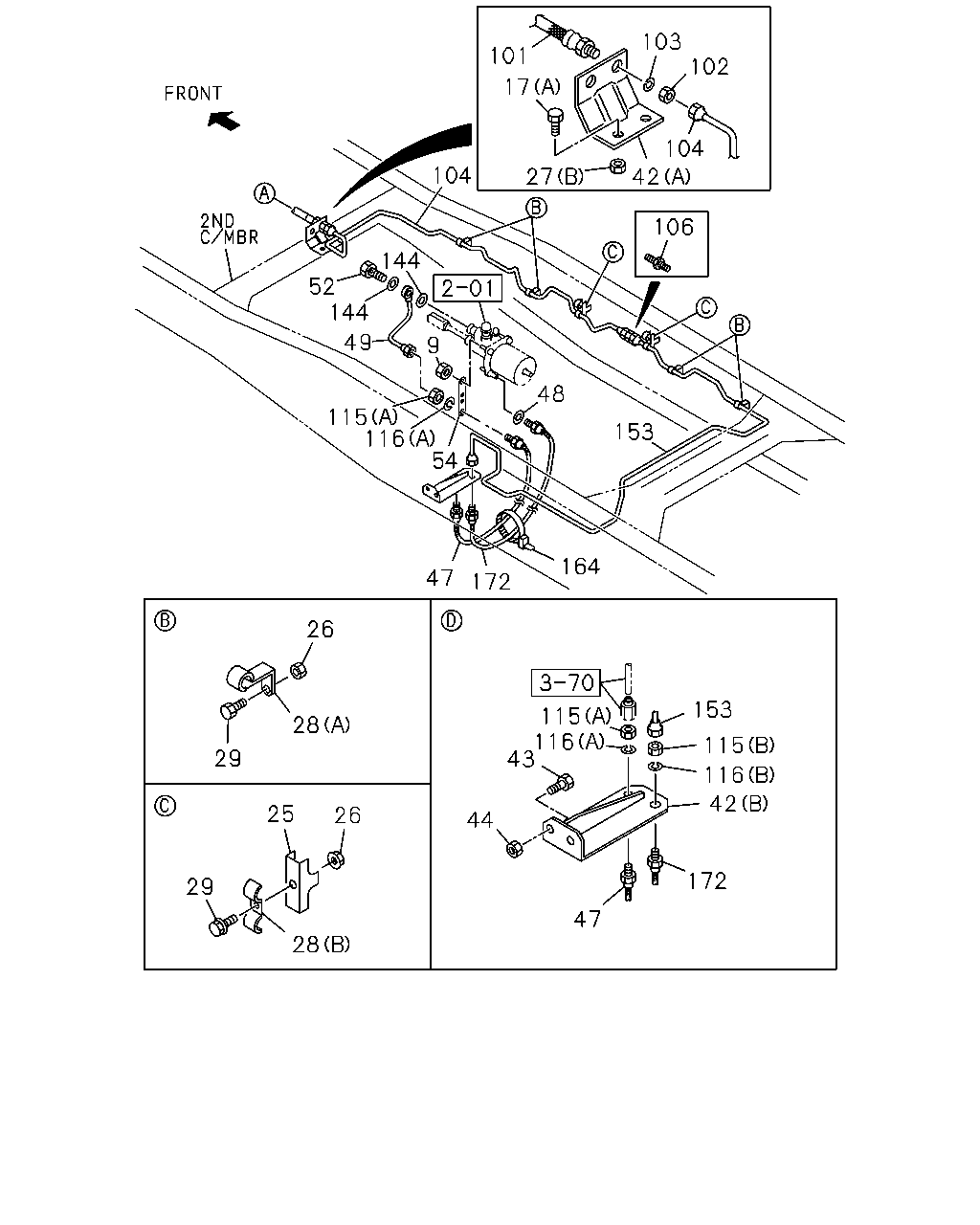

çizim 23487
103 101 102 17 104 42 104 27 106 144 52 144 9 49 48 115 116 153 54 164 47 172 26 153 115 116 43 28 115 29 116 42 25 26 44 172 29 47 28
BalonParca AdiParca NoAdetTipApplied Date
9 NUT; BRKT,FLEX HOSE
M8 FLANGE 		0-91150-108-0 02 1 0212-0403
9 NUT; BRKT,FLEX HOSE
M8 FLANGE 		0-91150-108-0 04 1 0404-
17 BOLT; BRKT
(A) M8X25 FLANGE 		0-28680-825-0 02 1 0212-
17 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER THA 		8-94279-201-0 02 1 0212-
25 BRACKET; OIL PIPE 1-47475-427-1 02 1 0212-
26 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91150-108-0 06 1 0212-
26 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91150-108-0 01 1 0301-
27 NUT; BRKT
(B) M8 FLANGE 		0-91150-108-0 02 1 0212-
27 NUT; BRKT
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 0212-
28 CLIP; OIL PIPE
(A) ID=8 H=20 L=20 THA 		1-09700-604-0 04 1 0212-
28 CLIP; OIL PIPE
(B) ID=7 & 9 L=17.5 & 17.5 THA 		1-09700-746-0 02 1 0212-
28 CLIP; OIL PIPE
ID=7 & 9 L=17.5 & 17.5 THA 		1-09700-746-0 01 1 0301-
29 BOLT; CLIP,OIL PIPE
M8X45 FLANGE 		0-28080-845-0 02 1 0212-
29 BOLT; CLIP,OIL PIPE
M8X30 FLANGE 		0-28680-830-0 04 1 0212-
29 BOLT; CLIP,OIL PIPE
M8X16 FLANGE 		0-28080-816-0 01 1 0301-
32 BRACKET; CLIP OIL PIPE
L=50 THA 		1-47475-299-2 01 1 0301-
42 BRACKET; FLEX HOSE,CLU CONT
(A) THA 		1-47476-781-0 01 1 0212-
42 BRACKET; FLEX HOSE,CLU CONT
(B) THA 		1-47476-912-1 01 1 0212-
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
M8X35 FLANGE 		0-28680-835-0 02 1 0212-
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
M8 FLANGE 		0-91150-108-0 02 1 0212-
47 HOSE; FLEX,CLU CONT
L=470 		1-09363-716-0 01 1 0212-
48 GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0 		9-09571-410-0 01 1 0212-
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
L=233 		1-47494-317-0 01 1 0212-
52 BOLT; EYE,AIR PIPE
M14X27 FLANGE 		1-09675-086-0 01 1 0212-
54 BRACKET; AIR,FLEX HOSE 1-47465-890-0 01 1 0212-
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
L=430 		1-09364-859-1 01 1 0212-
102 NUT; FLEX HOSE,CLU CONT
M14 		9-99111-414-0 01 1 0212-
103 WASHER; LK,FLEX HOSE,CLU CONT
ID=14.2 		9-09150-514-0 01 1 0212-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
THA 		8-97919-220-0 01 1 0212-
106 UNION; OIL PIPE
M14 STRAIGHT 		9-09223-008-1 01 1 0212-
115 NUT; FLEX HOSE,CLU CONT
(A) M12 		9-09840-280-0 02 1 0212-
115 NUT; FLEX HOSE,CLU CONT
(B) M14 		9-99111-414-0 01 1 0212-
116 WASHER; FLEX HOSE,CLU CONT
(A) ID=12.2 		9-09150-512-0 02 1 0212-
116 WASHER; FLEX HOSE,CLU CONT
(B) ID=14.2 		9-09150-514-0 01 1 0212-
144 GASKET; AIR PIPE
ID=14.2 OD=19.2 		1-09630-085-0 02 1 0212-
153 PIPE ASM; CLU,UNION TO FLEX
THA 		8-97922-295-0 01 1 0212-0306
153 PIPE ASM; CLU,UNION TO FLEX
L=2703 SERVICED BY L=3000 		1-47426-397-0 01 1 0307-
164 CLIP; BAND,FLEX HOSE
L=140 		5-09707-031-1 01 1 0212-
172 HOSE; FLEX,CLU BOOSTER
L=450 		1-09364-369-0 01 1 0212-

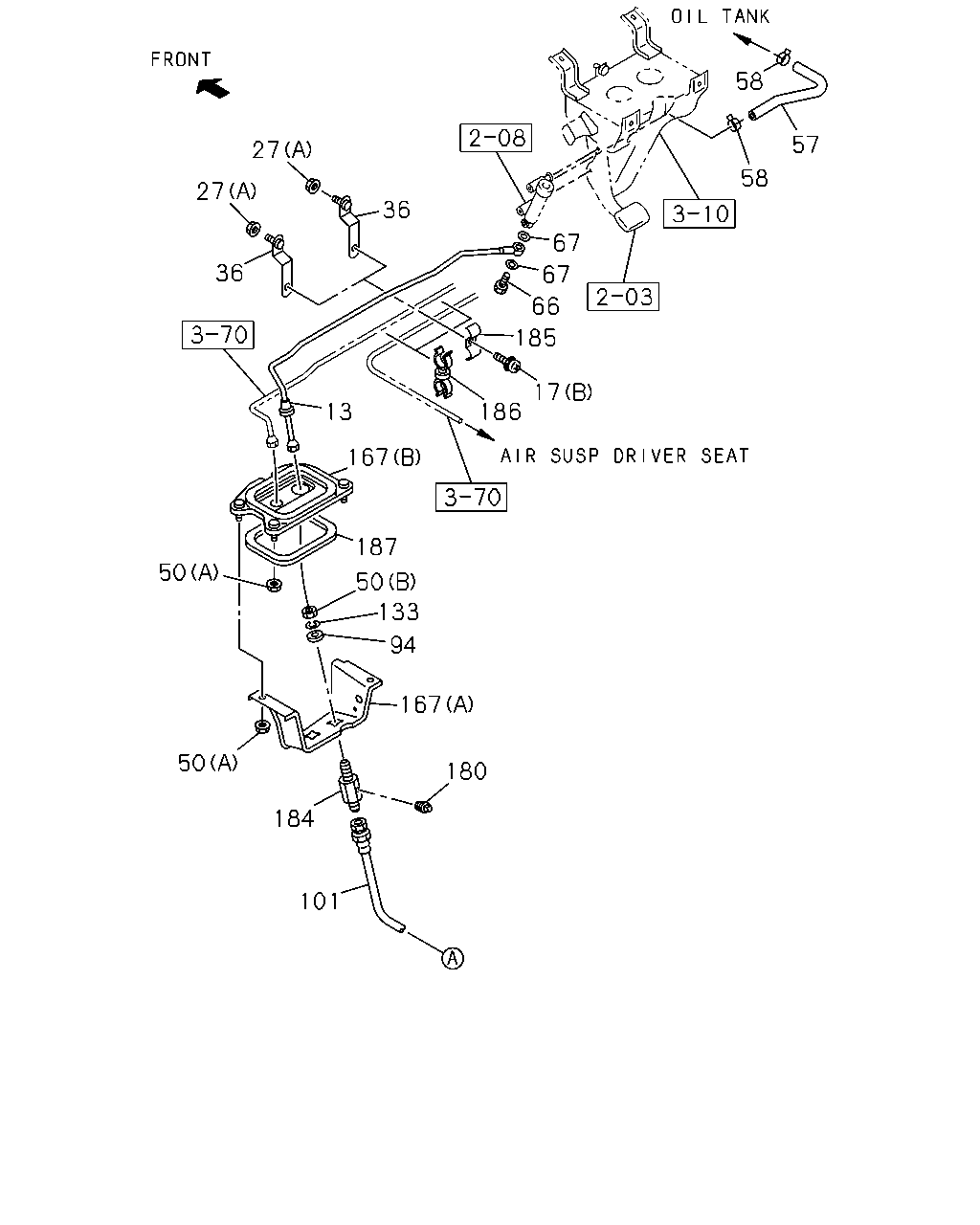

çizim 81919
58 57 27 58 27 36 67 36 67 66 185 17 13 186 167 187 50 50 133 94 167 50 180 184 101
BalonParca AdiParca NoAdetTipApplied Date
13 PIPE; OIL,FLEX HOSE TO CLU M/CYL
THA 		8-97916-209-0 01 1 0212-
17 BOLT; BRKT
(A) M8X25 FLANGE 		0-28680-825-0 02 1 0212-
17 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER THA 		8-94279-201-0 02 1 0212-
27 NUT; BRKT
(B) M8 FLANGE 		0-91150-108-0 02 1 0212-
27 NUT; BRKT
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 0212-
32 BRACKET; CLIP OIL PIPE
L=50 THA 		1-47475-299-2 01 1 0301-
36 BRACKET; CLIP
THA 		1-79738-186-1 02 1 0212-
50 NUT; UNION
(A) M8 CUTTING NUT W/FLANGE 		1-09985-340-0 03 1 0212-
50 NUT; UNION
(B) M14 		9-99111-414-0 01 1 0212-
57 HOSE; CLU M/CYL TO OIL TANK
THA 		8-97916-100-0 01 1 0212-
58 CLIP; RUBBER HOSE TO M/CYL
ID=14 		8-94238-572-0 02 1 0212-
66 BOLT; EYE JOINT,CLU M/CYL
M14X30 EYE-BOLT 		1-09675-146-0 01 1 0212-
67 GASKET; EYE JOINT,CLU M/CYL
ID=14.2 OD=19.2 		1-09630-085-0 02 1 0212-
94 WASHER; PL,UNION
ID=15 		9-09160-514-0 01 1 0212-
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
L=430 		1-09364-859-1 01 1 0212-
133 WASHER; LK,UNION
ID=14.2 		9-09150-514-0 01 1 0212-
167 BRACKET; UNION
(A) THA 		1-79738-193-6 01 1 0212-
167 BRACKET; UNION
(B) THA 		1-79738-845-0 01 1 0212-
180 PLUG; PIPE 9-09204-510-0 01 1 0212-
184 UNION; FLEX HOSE 1-09656-679-0 01 1 0212-
185 CLIP; BRKT
ID=5 & 8 		5-09700-165-0 02 1 0212-
186 HOLDER; CLIP
AIR SUSP DRIVER SEAT<A56> ID=6 & 4.8 THA 		8-94313-325-0 02 1 0212-
187 SEAL; BRKT 1-79738-190-0 01 1 0212-
