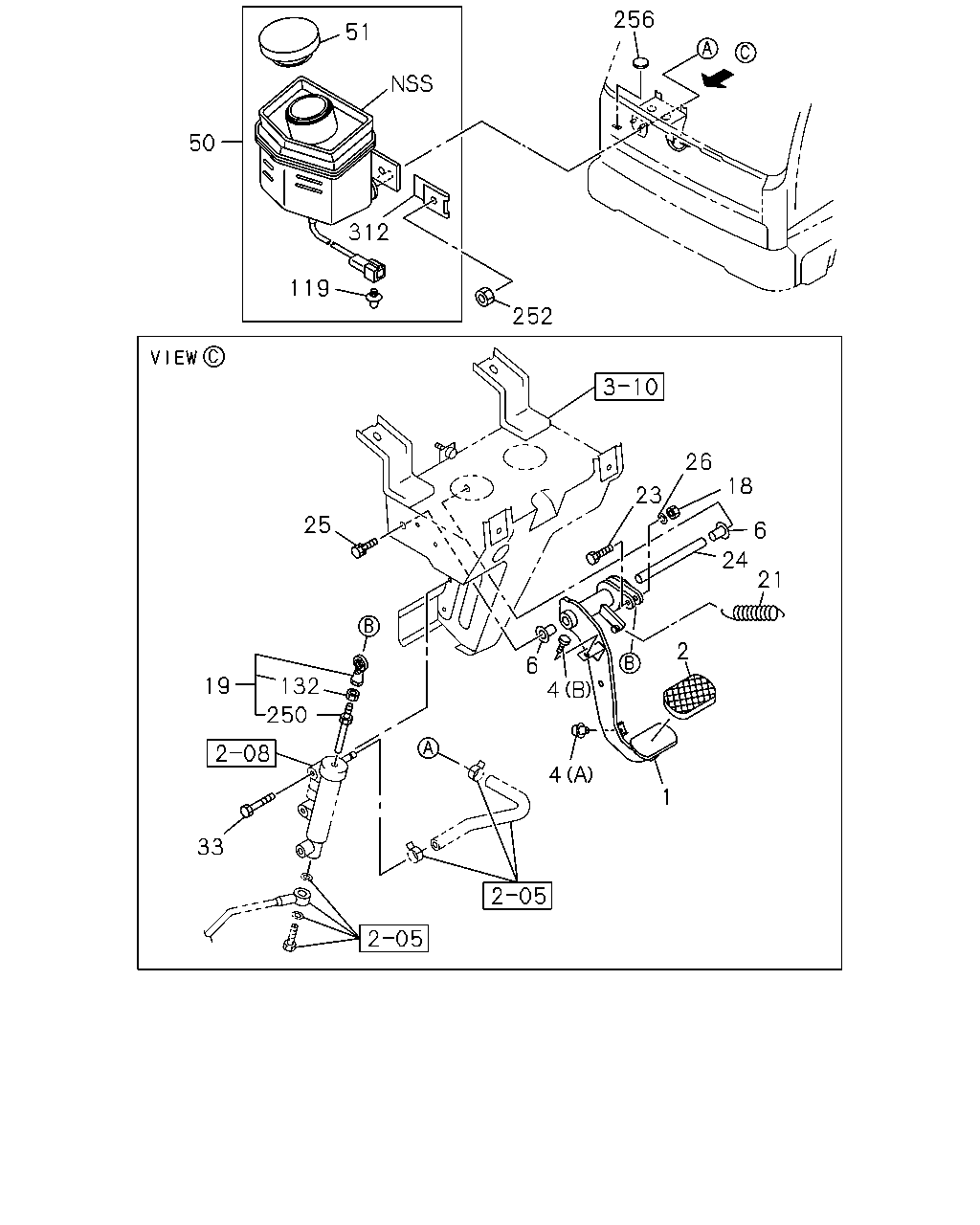

2-03 — CLUTCH PEDAL AND CONTROL
(#27313) — 21 parça
256
51
50
312
119
252
26
18
23
25
6
24
21
2
6
4
19
132
250
4
1
33
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PEDAL; CLU
THA
8-97917-221-2
01
1
0212-
2
COVER; CLU PEDAL
8-97893-618-1
01
1
0212-
4
STOPPER; CLU PEDAL
(A) THA
1-47319-014-1
02
1
0212-
4
STOPPER; CLU PEDAL
(B) THA
5-31419-003-0
01
1
0212-
6
BUSHING; CLU PEDAL
THA
1-09330-045-0
02
1
0212-
18
NUT; PUSH ROD
M8
9-09110-508-0
01
1
0212-
19
ROD ASM; PUSH,CLU
THA
1-73996-144-0
01
1
0212-
21
SPRING; RETURN,CLU PEDAL
THA
1-73908-265-0
01
1
0212-
23
BOLT; PUSH ROD
M8X35
9-01060-835-0
01
1
0212-
24
SHAFT; CLU PEDAL
THA
1-73998-936-1
01
1
0212-
25
BOLT; PEDAL
M10X25 W/LK WASHER
0-50051-025-0
02
1
0212-
26
WASHER; LK,PUSH ROD
ID=8.2
9-09150-608-0
01
1
0212-
33
BOLT; CLU M/CYL TO BRKT
M10X60 FLANGE
0-28081-060-0
02
1
0212-
50
TANK; OIL,CLU
1-47530-182-0
01
1
0212-
51
CAP; OIL TANK,CLU
8-94136-483-1
01
1
0212-
119
CLIP; CONNECTOR
OD=7 H=1.2
8-94364-750-0
01
1
0212-
132
NUT; LK,PUSH ROD
M8
9-09110-408-0
01
1
0212-
250
ROD; PUSH,CLU
THA
1-73996-219-0
01
1
0212-
252
NUT; OIL TANK
M8 FLANGE W/RUBBER
1-09984-176-0
02
1
0212-
256
SEAL; HOLE
OD=25 BLACK THA
1-76798-019-0
01
1
0212-
312
PLATE; OIL TANK,CLU
1-21249-007-1
01
1
0212-
