Isuzu WW
▶
TRUCKS
▶
FVZ
▶
10908 - FVZ(THAI)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-41 - FUEL PIPING; CHASSIS
▶

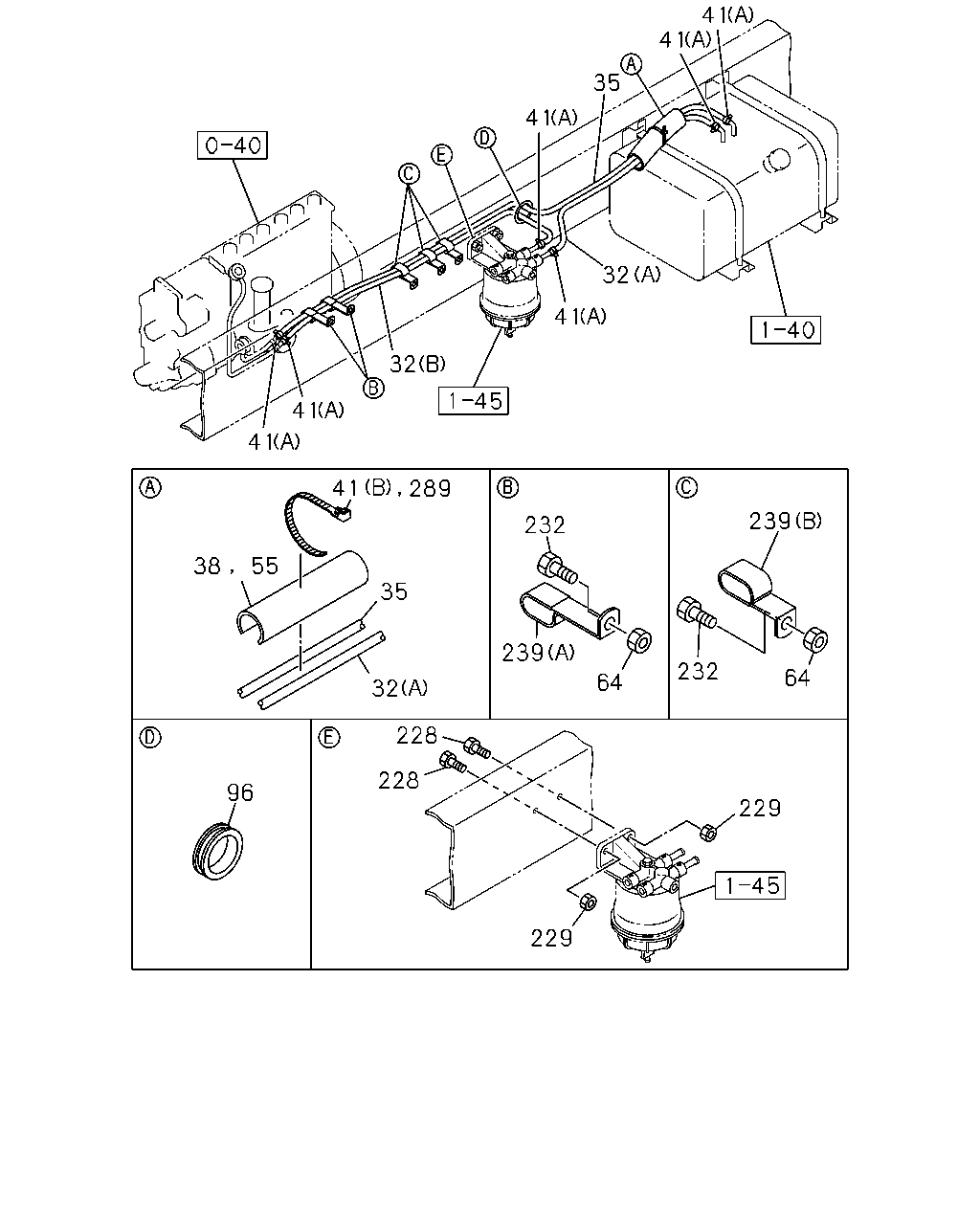

1-41 — FUEL PIPING; CHASSIS
(#27306) — 16 parça
41
41
35
41
32
41
32
41
41
239
232
38
55
35
239
232
64
64
32
228
228
96
229
229
41
289
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
32
PIPE; DELIVERY,FUEL TANK
(B) THA
8-97910-625-0
01
1
0212-
32
PIPE; DELIVERY,FUEL TANK
(A) THA
8-97910-630-0
01
1
0212-
35
PIPE; FUEL TANK,RETURN
THA
8-97910-618-0
01
1
0212-
38
SLEEVE; RUBBER,RUBBER HOSE
L=500 SERVICED BY L=1300
1-09360-677-1
01
1
0212-
41
CLIP; FUEL PIPE,FUEL TANK
(A) ID=14 THA
1-09704-102-0
06
1
0212-
41
CLIP; FUEL PIPE,FUEL TANK
(B) L=250 THA
5-09707-030-1
03
1
0212-
55
COVER; PIPE,FUEL TANK
L=350 SERVICED BY L=1300
1-09360-677-1
01
1
0212-
64
NUT; CLIP
M8 FLANGE
0-91150-108-0
05
1
0212-
96
GROMMET; PIPE,FUEL TANK
ID=28 OD=35 T=25
1-09332-011-1
01
1
0212-
96
GROMMET; PIPE,FUEL TANK
ID=28 OD=35 T=25
1-09332-011-1
01
1
0212-
228
BOLT; BRKT,SEDIMENTER
M10X45 FLANGE
0-28081-045-0
02
1
0212-
229
NUT; BRKT,FUEL FILTER
M10 FLANGE
0-91150-210-0
02
1
0212-
232
BOLT; CLIP,PIPE
M8X30 FLANGE
0-28680-830-0
05
1
0212-
239
CLIP; FUEL PIPE
(B) ID=14X2 H=30 L=25 THA
1-09701-101-0
03
1
0212-
239
CLIP; FUEL PIPE
(A) M13X2 H=20 L=60
1-09701-280-0
02
1
0212-
289
CLIP; BAND,HOSE
L=250 THA
5-09707-030-1
01
1
0212-
