0-12B — CYLINDER BLOCK (#2730) — 168 parça

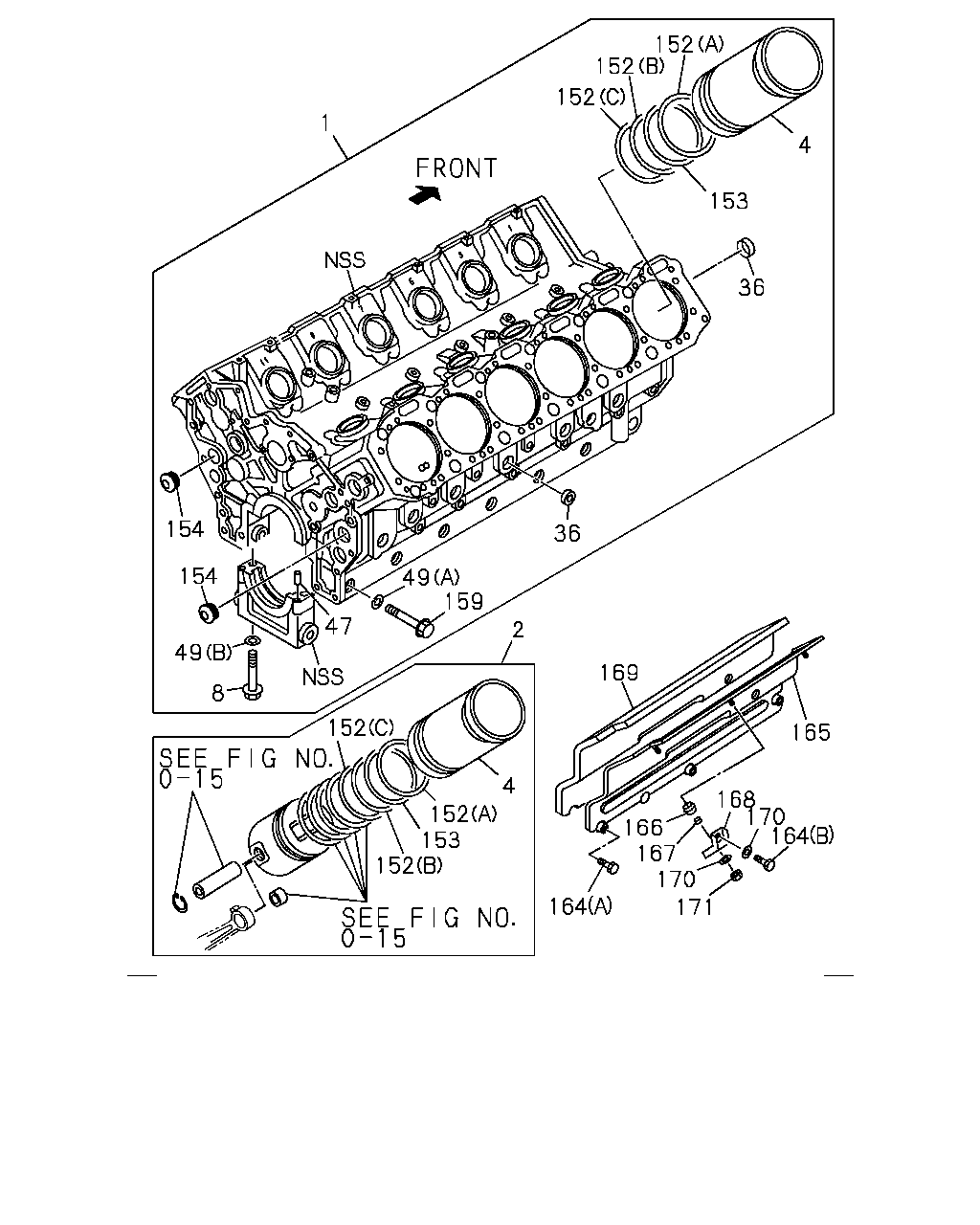

1 4 152 152 152 153 36 36 49 47 8 49 154 154 159 152 152 153 152 4 169 2 165 168 170 164 171 170 167 166 164

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BLOCK ASM; CYL ENGINE REAR PTO(SV1)	1-11210-548-4	01	1	9002-	●
1	BLOCK ASM; CYL EXC. ENGINE REAR PTO(SV1)	1-11210-502-4	01	1	9002-	●
1	BLOCK ASM; CYL	1-11210-523-4	01	1	9307-		●
2	LINER SET; ENG CYL TAIWAN EQUIPMENT(WW5) NON GRADE	1-87811-390-0	10	1	9002-	●
2	LINER SET; ENG CYL EXC. TAIWAN EQUIPMENT(WW5) NON GRADE	1-87811-396-0	10	1	9002-	●
2	LINER SET; ENG CYL NON GRADE	1-87811-390-0	12	1	9307-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=NON,ID GRADE=AX	1-11261-282-0	10	1	9002-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=NON,ID GRADE=CX	1-11261-283-0	10	1	9002-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=NON,ID GRADE=AX	1-11261-282-0	12	1	9307-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=NON,ID GRADE=CX	1-11261-283-0	12	1	9307-		●
8	BOLT; BRG CAP M16X138	1-09070-040-1	12	1	9002-	●
8	BOLT; BRG CAP M16X138	1-09070-040-1	14	1	9307-		●
36	CUP; SEALING,WATER JACKET OD=40	1-09600-020-0	09	1	9002-	●
36	CUP; SEALING,WATER JACKET OD=45	1-09600-005-1	01	1	9002-	●	●
36	CUP; SEALING,WATER JACKET OD=40	1-09600-020-0	10	1	9307-		●
47	PIN; BRG CAP OD=8 L=16	9-08150-816-0	02	1	9002-	●	●
49	WASHER; BRG CAP (A) ID=14.2	1-09503-050-0	12	1	9002-	●
49	WASHER; BRG CAP (B)	9-09851-672-2	12	1	9002-	●
49	WASHER; BRG CAP (A) ID=14.2	1-09503-050-0	14	1	9307-		●
49	WASHER; BRG CAP (B)	9-09851-672-2	14	1	9307-		●
152	GASKET; LINER TO BLOCK ALSO INCLUDED IN LINER SET. (A) ID=131.5 LINE OD=2.3	1-09623-409-0	10	1	9002-	●
152	GASKET; LINER TO BLOCK ALSO INCLUDED IN LINER SET. (B) ID=132.5 LINE OD=4.3	1-09623-410-0	10	1	9002-	●
152	GASKET; LINER TO BLOCK ALSO INCLUDED IN LINER SET. (C) ID=132.5 LINE OD=4.3	1-09623-538-0	10	1	9002-	●
152	GASKET; LINER TO BLOCK ALSO INCLUDED IN LINER SET. (A) ID=131.5 LINE OD=2.3	1-09623-409-0	12	1	9307-		●
152	GASKET; LINER TO BLOCK ALSO INCLUDED IN LINER SET. (B) ID=132.5 LINE OD=4.3	1-09623-410-0	12	1	9307-		●
152	GASKET; LINER TO BLOCK ALSO INCLUDED IN LINER SET. (C) ID=132.5 LINE OD=4.3	1-09623-538-0	12	1	9307-		●
153	GASKET; CREVICE,CYL LINER ALSO INCLUDED IN LINER SET.	1-09623-432-0	10	1	9002-	●
153	GASKET; CREVICE,CYL LINER ALSO INCLUDED IN LINER SET.	1-09623-432-0	12	1	9307-		●
154	PLUG; WATER DUCT	1-09605-022-0	02	1	9002-	●	●
159	BOLT; BRG CAP SIDE FIX M14X80 FLANGE	1-09070-034-1	12	1	9002-	●
159	BOLT; BRG CAP SIDE FIX M14X80 FLANGE	1-09070-034-1	14	1	9307-		●
164	BOLT; COVER BLOCK SKIRT TAIWAN EQUIPMENT(WW5) (A) M10X28 FLANGE	0-28181-028-0	03	1	9002-	●
164	BOLT; COVER BLOCK SKIRT (A) M10X28 FLANGE	0-28181-028-0	03	1	9002-		●
164	BOLT; COVER BLOCK SKIRT TAIWAN EQUIPMENT(WW5) (B) M10X16 W/LK WASHER	9-01931-016-0	03	1	9002-9004	●
164	BOLT; COVER BLOCK SKIRT TAIWAN EQUIPMENT(WW5) (B) M10X16 W/LK WASHER	1-09033-012-0	03	1	9005-	●
164	BOLT; COVER BLOCK SKIRT (B) M10X16 W/LK WASHER	1-09033-012-0	03	1	9005-		●
165	COVER; C/BL SKIRT TAIWAN EQUIPMENT(WW5)	1-19381-226-1	01	1	9002-	●
165	COVER; C/BL SKIRT	1-19381-210-2	01	1	9307-		●
166	MOUNT; COVER BLOCK SKIRT TAIWAN EQUIPMENT(WW5)	1-09337-020-0	06	1	9002-	●
166	MOUNT; COVER BLOCK SKIRT	1-09337-020-0	06	1	9002-		●
167	TUBE; DIST,SIDE COVER TAIWAN EQUIPMENT(WW5)	5-23332-003-0	06	1	9002-	●
167	TUBE; DIST,SIDE COVER	5-23332-003-0	06	1	9002-		●
168	BRACKET; SIDE COVER TAIWAN EQUIPMENT(WW5)	1-19386-012-3	03	1	9002-	●
168	BRACKET; SIDE COVER	1-19386-012-3	03	1	9002-		●
169	INSULATOR; SIDE COVER TAIWAN EQUIPMENT(WW5)	1-19389-066-3	01	1	9002-	●
169	INSULATOR; SIDE COVER	1-19389-067-0	01	1	9307-		●
170	WASHER; COVER TAIWAN EQUIPMENT(WW5) ID=10.5 OD=26	9-09160-710-0	06	1	9002-	●
170	WASHER; COVER ID=10.5 OD=26	9-09160-710-0	06	1	9002-		●
171	NUT; COVER & BRKT TAIWAN EQUIPMENT(WW5) M10	9-09110-410-0	03	1	9002-	●
171	NUT; COVER & BRKT M10	9-09110-410-0	03	1	9002-		●

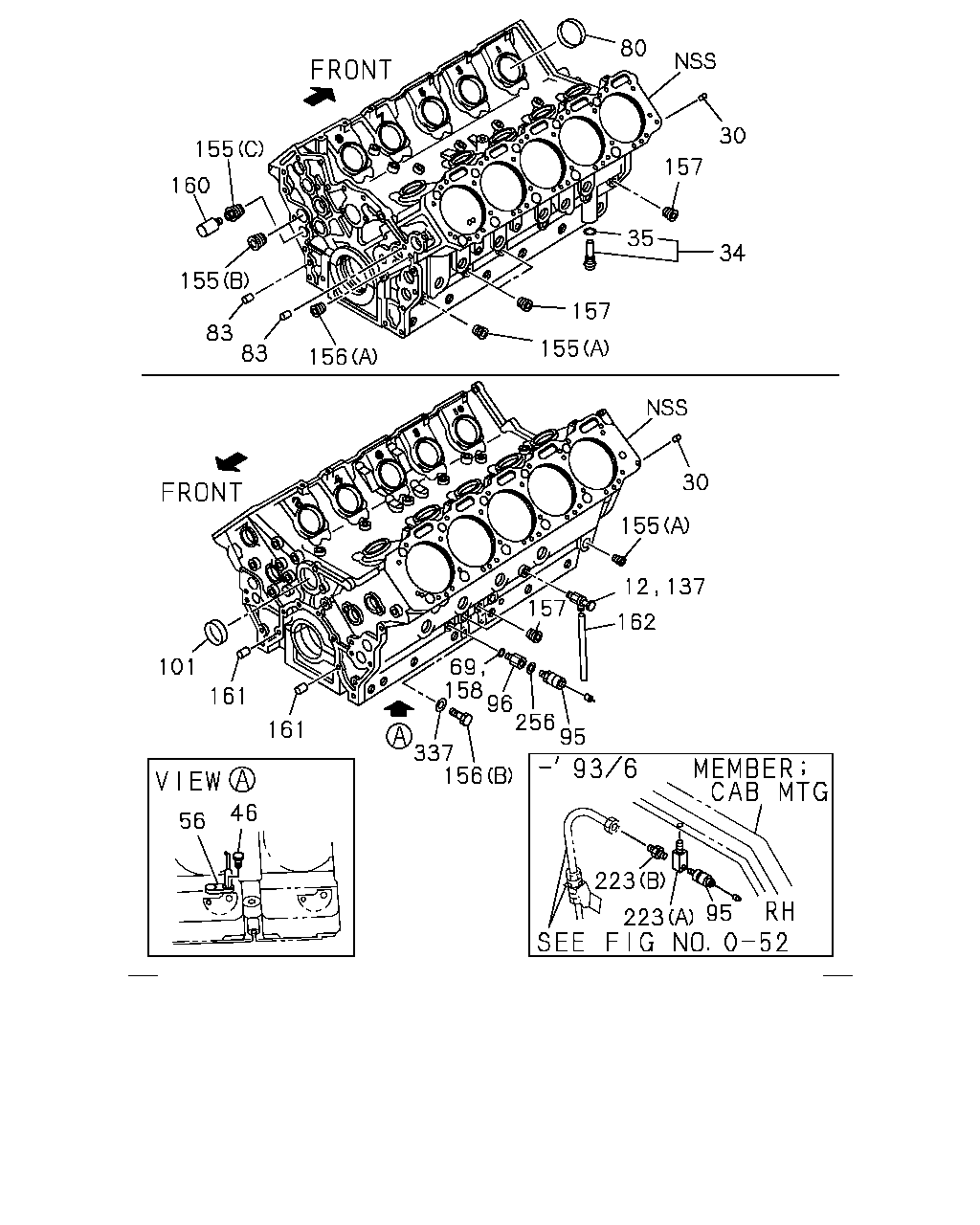

80 30 34 157 157 35 155 156 83 83 155 160 155 101 161 161 56 46 337 156 69 158 96 256 95 223 223 162 157 12 137 155 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	CONNECTOR; DRAIN COCK,WATER	1-09680-027-1	01	1	9002-9202	●
12	CONNECTOR; DRAIN COCK,WATER	1-09680-055-1	01	1	9203-9306	●
30	PIN; CYL HD GASKET SETTING OD=8 L=16	9-08150-816-0	04	1	9002-	●	●
34	VALVE; OIL RELIEF	1-13160-025-0	01	1	9002-	●	●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-145-0	01	1	9002-	●	●
46	BOLT; JOINT,OIL JET,PISTON COOLING M14X25	1-13349-033-0	10	1	9002-	●
46	BOLT; JOINT,OIL JET,PISTON COOLING M14X25	1-13349-033-0	12	1	9307-		●
56	JET; OIL,PISTON COOLING	1-13342-113-0	10	1	9002-	●
56	JET; OIL,PISTON COOLING	1-13342-113-0	12	1	9307-		●
69	GASKET; PLUG,OIL GALLERY,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	01	1	9002-9306	●
80	CUP; SEALING,TAPPET CHAMBER OD=62	1-09600-021-0	10	1	9002-	●
80	CUP; SEALING,TAPPET CHAMBER OD=62	1-09600-021-0	12	1	9307-		●
83	PIN; FLYWHEEL HSG	1-09740-036-0	02	1	9002-	●	●
95	PRESSURE UNIT; OIL	1-83151-035-0	01	1	9002-9306	●
95	PRESSURE UNIT; OIL	1-83151-041-0	01	1	9307-	●	●
96	ADAPTER; PRESS UNIT & SW	1-09669-115-0	01	1	9307-9508	●	●
96	ADAPTER; PRESS UNIT & SW	8-94390-391-0	01	1	9509-	●	●
101	CUP; SEALING CAM END	1-09600-022-0	01	1	9002-	●	●
137	COCK; DRAIN,WATER	1-09680-055-1	01	1	9307-	●	●
155	PLUG; OIL GALLERY END ENGINE REAR PTO(SV1) (C) PT1,PT1/8	1-09605-076-0	01	1	9002-	●
155	PLUG; OIL GALLERY END (A) PT3/4	1-09605-020-0	02	1	9002-	●	●
155	PLUG; OIL GALLERY END (B) PT1	1-09605-021-0	04	1	9002-	●	●
156	PLUG; IDLE GEAR (A) PT1/4	1-09605-019-0	02	1	9002-	●
156	PLUG; IDLE GEAR (B) M14X9	9-99202-314-0	01	1	9002-9306	●
156	PLUG; IDLE GEAR (B) M14X9	9-99202-314-0	01	1	9307-		●
157	PLUG; OIL GALLERY SIDE PT1/4	1-09605-019-0	07	1	9002-	●
157	PLUG; OIL GALLERY SIDE PT1/4	1-09605-019-0	10	1	9307-		●
158	GASKET; OIL PRESS UNIT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	01	1	9307-9508	●	●
158	GASKET; OIL PRESS UNIT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	01	1	9509-	●	●
160	JET ASM; OILING,PTO GEAR ENGINE REAR PTO(SV1)	9-13342-002-0	01	1	9002-	●
161	DOWEL; FRT COVER	9-11229-032-0	02	1	9002-9406	●	●
161	DOWEL; FRT COVER	1-11229-012-1	02	1	9407-	●	●
162	HOSE; WATER DRAIN,C/BL L=510 SERVICED BY L=10000	9-09914-701-0	01	1	9002-	●	●
223	CONNECTOR; OIL PRESSURE (A) M10	1-09664-168-1	01	1	9002-9306	●
223	CONNECTOR; OIL PRESSURE (B) M20	9-99220-610-0	01	1	9002-9306	●
256	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	01	1	9307-	●	●
337	GASKET; PLUG ID=14.2 OD=19.2	1-09630-085-0	01	1	9002-	●	●

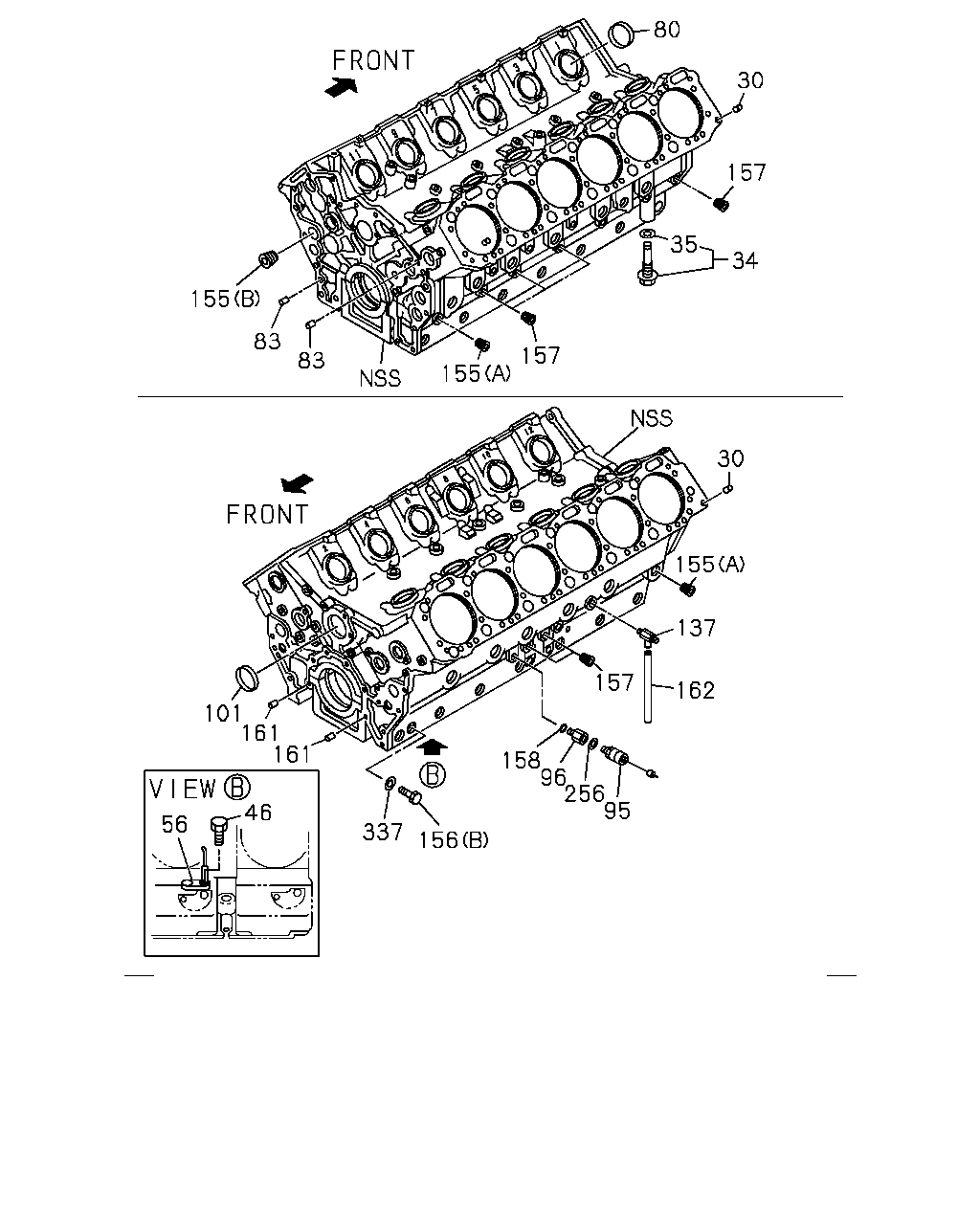

80 30 157 34 35 157 155 83 83 155 101 161 161 56 46 337 156 95 256 96 158 162 157 137 155 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
30	PIN; CYL HD GASKET SETTING OD=8 L=16	9-08150-816-0	04	1	9002-	●	●
34	VALVE; OIL RELIEF	1-13160-025-0	01	1	9002-	●	●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-145-0	01	1	9002-	●	●
46	BOLT; JOINT,OIL JET,PISTON COOLING M14X25	1-13349-033-0	10	1	9002-	●
46	BOLT; JOINT,OIL JET,PISTON COOLING M14X25	1-13349-033-0	12	1	9307-		●
56	JET; OIL,PISTON COOLING	1-13342-113-0	10	1	9002-	●
56	JET; OIL,PISTON COOLING	1-13342-113-0	12	1	9307-		●
80	CUP; SEALING,TAPPET CHAMBER OD=62	1-09600-021-0	10	1	9002-	●
80	CUP; SEALING,TAPPET CHAMBER OD=62	1-09600-021-0	12	1	9307-		●
83	PIN; FLYWHEEL HSG	1-09740-036-0	02	1	9002-	●	●
95	PRESSURE UNIT; OIL	1-83151-035-0	01	1	9002-9306	●
95	PRESSURE UNIT; OIL	1-83151-041-0	01	1	9307-	●	●
96	ADAPTER; PRESS UNIT & SW	1-09669-115-0	01	1	9307-9508	●	●
96	ADAPTER; PRESS UNIT & SW	8-94390-391-0	01	1	9509-	●	●
101	CUP; SEALING CAM END	1-09600-022-0	01	1	9002-	●	●
137	COCK; DRAIN,WATER	1-09680-055-1	01	1	9307-	●	●
155	PLUG; OIL GALLERY END ENGINE REAR PTO(SV1) (C) PT1,PT1/8	1-09605-076-0	01	1	9002-	●
155	PLUG; OIL GALLERY END (A) PT3/4	1-09605-020-0	02	1	9002-	●	●
155	PLUG; OIL GALLERY END (B) PT1	1-09605-021-0	04	1	9002-	●	●
156	PLUG; IDLE GEAR (A) PT1/4	1-09605-019-0	02	1	9002-	●
156	PLUG; IDLE GEAR (B) M14X9	9-99202-314-0	01	1	9002-9306	●
156	PLUG; IDLE GEAR (B) M14X9	9-99202-314-0	01	1	9307-		●
157	PLUG; OIL GALLERY SIDE PT1/4	1-09605-019-0	07	1	9002-	●
157	PLUG; OIL GALLERY SIDE PT1/4	1-09605-019-0	10	1	9307-		●
158	GASKET; OIL PRESS UNIT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	01	1	9307-9508	●	●
158	GASKET; OIL PRESS UNIT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	01	1	9509-	●	●
161	DOWEL; FRT COVER	9-11229-032-0	02	1	9002-9406	●	●
161	DOWEL; FRT COVER	1-11229-012-1	02	1	9407-	●	●
162	HOSE; WATER DRAIN,C/BL L=510 SERVICED BY L=10000	9-09914-701-0	01	1	9002-	●	●
256	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	01	1	9307-	●	●
337	GASKET; PLUG ID=14.2 OD=19.2	1-09630-085-0	01	1	9002-	●	●

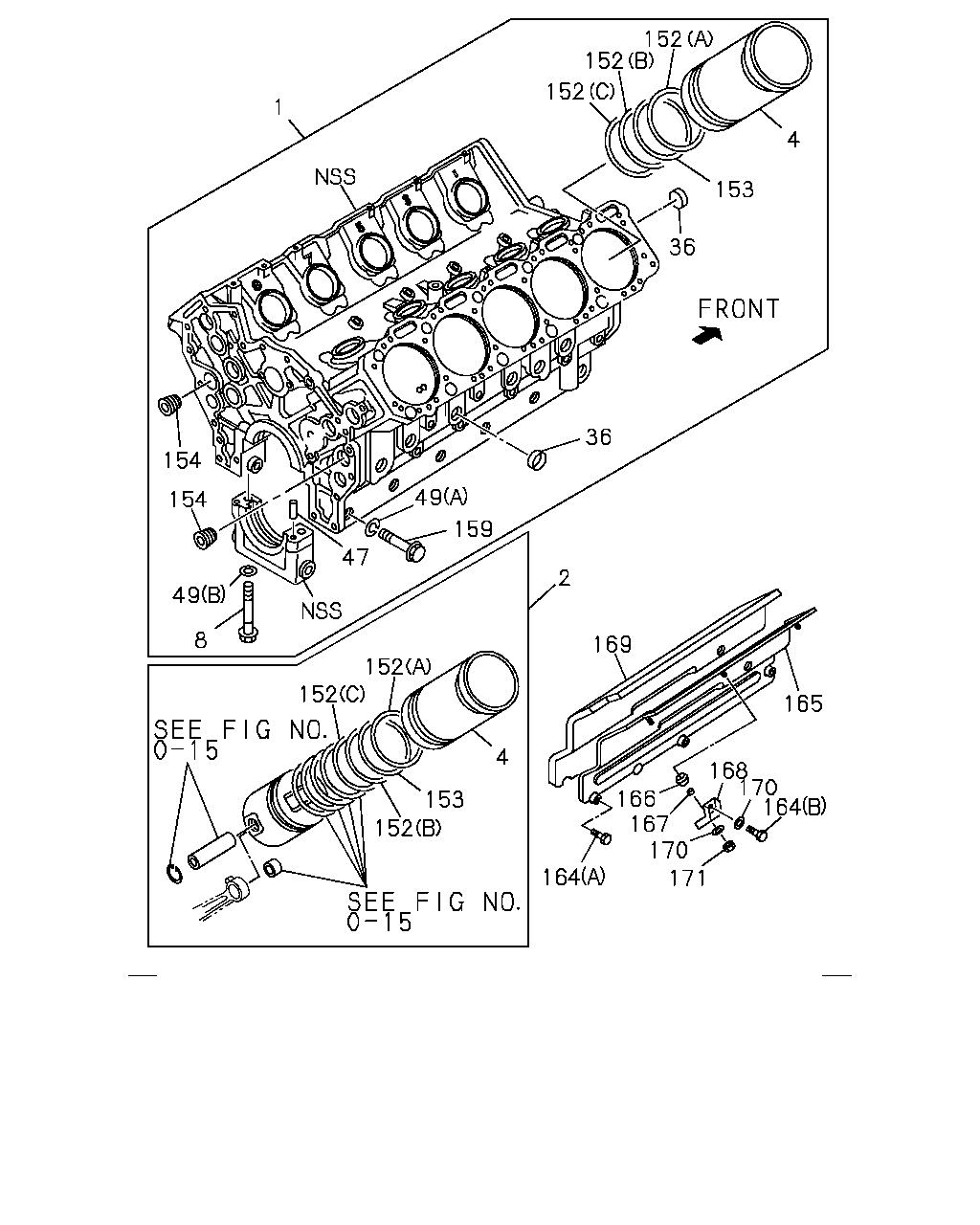

152 4 152 153 152 1 36 36 49 159 47 8 49 154 154 152 152 153 152 4 2 169 165 168 170 164 171 166 167 170 164

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BLOCK ASM; CYL ENGINE REAR PTO(SV1)	1-11210-548-4	01	1	9002-	●
1	BLOCK ASM; CYL EXC. ENGINE REAR PTO(SV1)	1-11210-502-4	01	1	9002-	●
1	BLOCK ASM; CYL	1-11210-523-4	01	1	9307-		●
2	LINER SET; ENG CYL TAIWAN EQUIPMENT(WW5) NON GRADE	1-87811-390-0	10	1	9002-	●
2	LINER SET; ENG CYL EXC. TAIWAN EQUIPMENT(WW5) NON GRADE	1-87811-396-0	10	1	9002-	●
2	LINER SET; ENG CYL NON GRADE	1-87811-390-0	12	1	9307-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=NON,ID GRADE=AX	1-11261-282-0	10	1	9002-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=NON,ID GRADE=CX	1-11261-283-0	10	1	9002-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=NON,ID GRADE=AX	1-11261-282-0	12	1	9307-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=NON,ID GRADE=CX	1-11261-283-0	12	1	9307-		●
8	BOLT; BRG CAP M16X138	1-09070-040-1	12	1	9002-	●
8	BOLT; BRG CAP M16X138	1-09070-040-1	14	1	9307-		●
36	CUP; SEALING,WATER JACKET OD=40	1-09600-020-0	09	1	9002-	●
36	CUP; SEALING,WATER JACKET OD=45	1-09600-005-1	01	1	9002-	●	●
36	CUP; SEALING,WATER JACKET OD=40	1-09600-020-0	10	1	9307-		●
47	PIN; BRG CAP OD=8 L=16	9-08150-816-0	02	1	9002-	●	●
49	WASHER; BRG CAP (A) ID=14.2	1-09503-050-0	12	1	9002-	●
49	WASHER; BRG CAP (B)	9-09851-672-2	12	1	9002-	●
49	WASHER; BRG CAP (A) ID=14.2	1-09503-050-0	14	1	9307-		●
49	WASHER; BRG CAP (B)	9-09851-672-2	14	1	9307-		●
152	GASKET; LINER TO BLOCK ALSO INCLUDED IN LINER SET. (A) ID=131.5 LINE OD=2.3	1-09623-409-0	10	1	9002-	●
152	GASKET; LINER TO BLOCK ALSO INCLUDED IN LINER SET. (B) ID=132.5 LINE OD=4.3	1-09623-410-0	10	1	9002-	●
152	GASKET; LINER TO BLOCK ALSO INCLUDED IN LINER SET. (C) ID=132.5 LINE OD=4.3	1-09623-538-0	10	1	9002-	●
152	GASKET; LINER TO BLOCK ALSO INCLUDED IN LINER SET. (A) ID=131.5 LINE OD=2.3	1-09623-409-0	12	1	9307-		●
152	GASKET; LINER TO BLOCK ALSO INCLUDED IN LINER SET. (B) ID=132.5 LINE OD=4.3	1-09623-410-0	12	1	9307-		●
152	GASKET; LINER TO BLOCK ALSO INCLUDED IN LINER SET. (C) ID=132.5 LINE OD=4.3	1-09623-538-0	12	1	9307-		●
153	GASKET; CREVICE,CYL LINER ALSO INCLUDED IN LINER SET.	1-09623-432-0	10	1	9002-	●
153	GASKET; CREVICE,CYL LINER ALSO INCLUDED IN LINER SET.	1-09623-432-0	12	1	9307-		●
154	PLUG; WATER DUCT	1-09605-022-0	02	1	9002-	●	●
159	BOLT; BRG CAP SIDE FIX M14X80 FLANGE	1-09070-034-1	12	1	9002-	●
159	BOLT; BRG CAP SIDE FIX M14X80 FLANGE	1-09070-034-1	14	1	9307-		●
164	BOLT; COVER BLOCK SKIRT TAIWAN EQUIPMENT(WW5) (A) M10X28 FLANGE	0-28181-028-0	03	1	9002-	●
164	BOLT; COVER BLOCK SKIRT (A) M10X28 FLANGE	0-28181-028-0	03	1	9002-		●
164	BOLT; COVER BLOCK SKIRT TAIWAN EQUIPMENT(WW5) (B) M10X16 W/LK WASHER	9-01931-016-0	03	1	9002-9004	●
164	BOLT; COVER BLOCK SKIRT TAIWAN EQUIPMENT(WW5) (B) M10X16 W/LK WASHER	1-09033-012-0	03	1	9005-	●
164	BOLT; COVER BLOCK SKIRT (B) M10X16 W/LK WASHER	1-09033-012-0	03	1	9005-		●
165	COVER; C/BL SKIRT TAIWAN EQUIPMENT(WW5)	1-19381-226-1	01	1	9002-	●
165	COVER; C/BL SKIRT	1-19381-210-2	01	1	9307-		●
166	MOUNT; COVER BLOCK SKIRT TAIWAN EQUIPMENT(WW5)	1-09337-020-0	06	1	9002-	●
166	MOUNT; COVER BLOCK SKIRT	1-09337-020-0	06	1	9002-		●
167	TUBE; DIST,SIDE COVER TAIWAN EQUIPMENT(WW5)	5-23332-003-0	06	1	9002-	●
167	TUBE; DIST,SIDE COVER	5-23332-003-0	06	1	9002-		●
168	BRACKET; SIDE COVER TAIWAN EQUIPMENT(WW5)	1-19386-012-3	03	1	9002-	●
168	BRACKET; SIDE COVER	1-19386-012-3	03	1	9002-		●
169	INSULATOR; SIDE COVER TAIWAN EQUIPMENT(WW5)	1-19389-066-3	01	1	9002-	●
169	INSULATOR; SIDE COVER	1-19389-067-0	01	1	9307-		●
170	WASHER; COVER TAIWAN EQUIPMENT(WW5) ID=10.5 OD=26	9-09160-710-0	06	1	9002-	●
170	WASHER; COVER ID=10.5 OD=26	9-09160-710-0	06	1	9002-		●
171	NUT; COVER & BRKT TAIWAN EQUIPMENT(WW5) M10	9-09110-410-0	03	1	9002-	●
171	NUT; COVER & BRKT M10	9-09110-410-0	03	1	9002-		●
