0-80 — INJECTION PUMP (#27295) — 160 parça

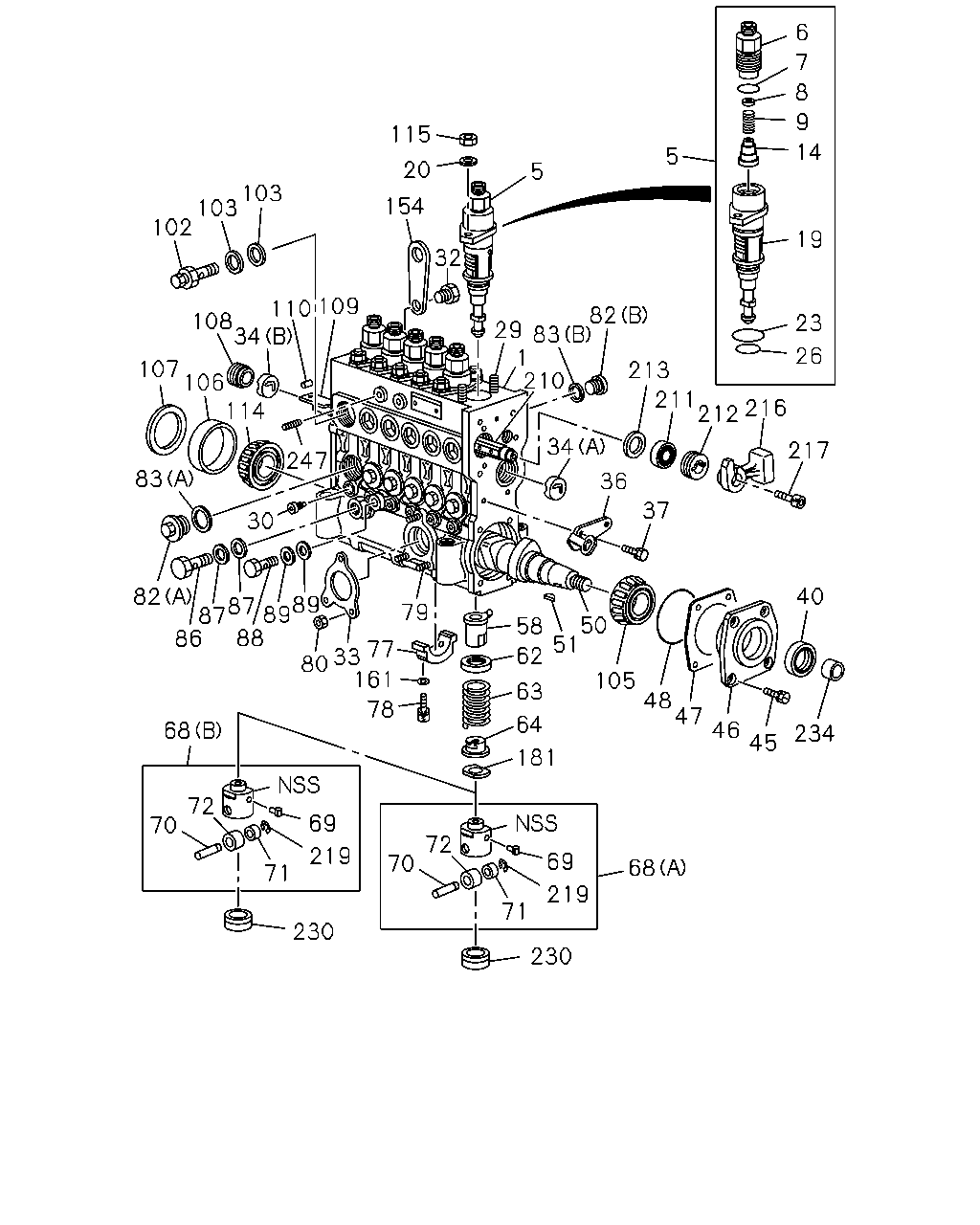

6 7 8 9 115 14 5 20 5 103 103 102 154 19 32 110 109 108 34 82 29 83 1 210 23 26 107 106 213 114 211 216 212 34 217 247 83 36 37 30 82 40 79 50 51 58 77 33 80 161 62 105 48 47 46 45 63 78 64 68 234 181 72 69 70 72 219 69 70 68 7 219 71 230 230 86 87 87 88 89 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOUSING; PUMP,FUEL INJ ASM PART: A = 8-94392-231-7	1-15611-202-0	01	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: A = 8-94392-231-7	1-15631-212-0	06	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: A = 8-94392-231-7	1-15644-018-0	06	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: A = 8-94392-231-7	1-15619-456-0	06	1	-
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: A = 8-94392-231-7	1-15639-104-0	06	1	-
9	SPRING; DELIVERY VLV ASM PART: A = 8-94392-231-7	1-15643-012-0	06	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: A = 8-94392-231-7	1-15619-453-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: A = 8-94392-231-7	1-15632-049-0	06	1	-
20	WASHER; PLUNGER BARREL ASM PART: A = 8-94392-231-7	1-15639-020-0	12	1	-
23	GASKET; PLUNGER,BARREL SIDE ASM PART: A = 8-94392-231-7	1-15629-131-0	06	1	-
26	GASKET; PLUNGER UPR ASM PART: A = 8-94392-231-7	1-15629-132-0	06	1	-
29	STUD; PLUNGER FIX,PUMP HSG ASM PART: A = 8-94392-231-7	1-15619-426-0	12	1	-
30	PLUG; SCREW,INJ PUMP HSG ASM PART: A = 8-94392-231-7	9-81215-130-0	06	1	-
32	BOLT; HANGER TO INJ PUMP ASM PART: A = 8-94392-231-7	9-02341-012-0	01	1	-
33	GASKET; FUEL FEED PUMP,INJ PUMP ASM PART: A = 8-94392-231-7	1-15619-320-0	01	1	-
34	BUSHING; CONT RACK,INJ PUMP ASM PART: A = 8-94392-231-7	1-15619-429-0	01	1	-
34	BUSHING; CONT RACK,INJ PUMP ASM PART: A = 8-94392-231-7	9-81215-123-0	01	1	-
36	POINTER; TIMING,INJ PUMP ASM PART: A = 8-94392-231-7	1-15619-452-0	01	1	-
40	SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: A = 8-94392-231-7	1-15749-498-0	01	1	-
45	BOLT; FRT COVER TO HSG ASM PART: A = 8-94392-231-7	1-15619-338-0	04	1	-
46	COVER; FRT,PUMP HSG ASM PART: A = 8-94392-231-7	1-15612-063-0	01	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.10 ASM PART: A = 8-94392-231-7	1-15639-166-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.12 ASM PART: A = 8-94392-231-7	1-15639-167-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.14 ASM PART: A = 8-94392-231-7	1-15639-168-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.16 ASM PART: A = 8-94392-231-7	1-15639-169-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.18 ASM PART: A = 8-94392-231-7	1-15639-170-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.30 ASM PART: A = 8-94392-231-7	1-15639-171-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.50 ASM PART: A = 8-94392-231-7	1-15639-172-0	AR	1	-
48	GASKET; FRT COVER TO HSG ASM PART: A = 8-94392-231-7	1-15619-318-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: A = 8-94392-231-7	1-15621-116-0	01	1	-
51	KEY; DRIVE GEAR,INJ PUMP ASM PART: A = 8-94392-231-7	1-15629-009-0	01	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: A = 8-94392-231-7	1-15635-006-0	06	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: A = 8-94392-231-7	1-15634-020-0	06	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: A = 8-94392-231-7	1-15634-022-0	06	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: A = 8-94392-231-7	1-15634-021-0	06	1	-
68	TAPPET; CM/SHF,INJ PUMP ASM PART: A = 8-94392-231-7	1-15622-014-0	04	1	-
68	TAPPET; CM/SHF,INJ PUMP ASM PART: A = 8-94392-231-7	1-15622-015-0	02	1	-
69	GUIDE; TAPPET,INJ PUMP ASM PART: A = 8-94392-231-7	1-15629-134-0	06	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: A = 8-94392-231-7	1-15619-431-0	06	1	-
71	BUSHING; TAPPET ROLLER,INJ PUMP ASM PART: A = 8-94392-231-7	1-15629-133-0	06	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: A = 8-94392-231-7	1-15619-430-0	06	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP ASM PART: A = 8-94392-231-7	1-15619-433-0	03	1	-
78	BOLT; CENTER BRG,INJ PUMP ASM PART: A = 8-94392-231-7	1-09054-030-0	06	1	-
79	STUD; FUEL FEED PUMP TO HSG ASM PART: A = 8-94392-231-7	9-81215-115-0	03	1	-
80	NUT; FUEL FEED PUMP FIX ASM PART: A = 8-94392-231-7	8-94171-110-0	03	1	-
82	PLUG; HSG,INJ PUMP ASM PART: A = 8-94392-231-7	1-15619-436-0	06	1	-
82	PLUG; HSG,INJ PUMP ASM PART: A = 8-94392-231-7	1-15619-437-0	07	1	-
83	GASKET; HSG PLUG ASM PART: A = 8-94392-231-7	1-15619-102-0	07	1	-
83	GASKET; HSG PLUG ASM PART: A = 8-94392-231-7	5-15729-021-0	06	1	-
86	BOLT; EYE,OIL RETURN,INJ PUMP ASM PART: A = 8-94392-231-7	1-15619-457-0	01	1	-
87	GASKET; OIL RETURN BOLT,INJ PUMP ID=14.2 OD=19.2 ASM PART: A = 8-94392-231-7	1-09630-085-0	02	1	-
88	BOLT; EYE,OIL FEED,INJ PUMP ASM PART: A = 8-94392-231-7	1-15619-092-0	01	1	-
89	GASKET; OIL FEED BOLT,INJ PUMP ASM PART: A = 8-94392-231-7	1-15719-093-0	02	1	-
102	VALVE; OVERFLOW,INJ PUMP ASM PART: A = 8-94392-231-7	1-15619-447-0	01	1	-
103	GASKET; OVERFLOW VLV,INJ PUMP ID=14.2 OD=19.2 ASM PART: A = 8-94392-231-7	1-09630-085-0	02	1	-
105	BEARING; CM/SHF RR,INJ PUMP ASM PART: A = 8-94392-231-7	9-81225-068-0	01	1	-
106	RING; HSG,INJ PUMP ASM PART: A = 8-94392-231-7	9-81225-064-0	01	1	-
107	SHIM; RR BEARING,CM/SHF T=0.60 ASM PART: A = 8-94392-231-7	1-15639-019-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.50 ASM PART: A = 8-94392-231-7	9-81215-176-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.80 ASM PART: A = 8-94392-231-7	9-81215-177-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=2.00 ASM PART: A = 8-94392-231-7	9-81215-178-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.20 ASM PART: A = 8-94392-231-7	9-88410-441-0	AR	1	-
108	BUSHING; CONT RACK END,INJ PUMP ASM PART: A = 8-94392-231-7	9-81215-125-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: A = 8-94392-231-7	1-15637-043-0	01	1	-
110	PIN; CONT RACK,INJ PUMP ASM PART: A = 8-94392-231-7	9-88410-440-0	01	1	-
114	BEARING; CM/SHF FRT,INJ PUMP ASM PART: A = 8-94392-231-7	9-81225-068-0	01	1	-
115	NUT; PLUNGER FIX,INJ PUMP ASM PART: A = 8-94392-231-7	1-15619-337-0	12	1	-
154	HANGER; RR,INJ PUMP ASM PART: A = 8-94392-231-7	1-15619-347-0	01	1	-
161	GASKET; SCREW,CENTER BRG THA ASM PART: A = 8-94392-231-7	5-15729-099-0	06	1	-
181	SHIM; TAPPET,INJ PUMP T=0.500 ASM PART: A = 8-94392-231-7	1-15639-106-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.525 ASM PART: A = 8-94392-231-7	1-15639-107-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.550 ASM PART: A = 8-94392-231-7	1-15639-108-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.575 ASM PART: A = 8-94392-231-7	1-15639-109-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.600 ASM PART: A = 8-94392-231-7	1-15639-110-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.625 ASM PART: A = 8-94392-231-7	1-15639-111-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.650 ASM PART: A = 8-94392-231-7	1-15639-112-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.675 ASM PART: A = 8-94392-231-7	1-15639-113-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.700 ASM PART: A = 8-94392-231-7	1-15639-114-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.725 ASM PART: A = 8-94392-231-7	1-15639-115-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.750 ASM PART: A = 8-94392-231-7	1-15639-116-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.775 ASM PART: A = 8-94392-231-7	1-15639-117-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.800 ASM PART: A = 8-94392-231-7	1-15639-118-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.825 ASM PART: A = 8-94392-231-7	1-15639-119-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.850 ASM PART: A = 8-94392-231-7	1-15639-120-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.875 ASM PART: A = 8-94392-231-7	1-15639-121-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.900 ASM PART: A = 8-94392-231-7	1-15639-122-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.925 ASM PART: A = 8-94392-231-7	1-15639-123-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.950 ASM PART: A = 8-94392-231-7	1-15639-124-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.975 ASM PART: A = 8-94392-231-7	1-15639-125-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.000 ASM PART: A = 8-94392-231-7	1-15639-126-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.025 ASM PART: A = 8-94392-231-7	1-15639-127-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.050 ASM PART: A = 8-94392-231-7	1-15639-128-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.075 ASM PART: A = 8-94392-231-7	1-15639-129-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.100 ASM PART: A = 8-94392-231-7	1-15639-130-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.125 ASM PART: A = 8-94392-231-7	1-15639-131-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.150 ASM PART: A = 8-94392-231-7	1-15639-132-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.175 ASM PART: A = 8-94392-231-7	1-15639-133-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.200 ASM PART: A = 8-94392-231-7	1-15639-134-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.225 ASM PART: A = 8-94392-231-7	1-15639-135-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.250 ASM PART: A = 8-94392-231-7	1-15639-136-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.275 ASM PART: A = 8-94392-231-7	1-15639-137-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.300 ASM PART: A = 8-94392-231-7	1-15639-138-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.325 ASM PART: A = 8-94392-231-7	1-15639-139-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.350 ASM PART: A = 8-94392-231-7	1-15639-140-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.375 ASM PART: A = 8-94392-231-7	1-15639-141-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.400 ASM PART: A = 8-94392-231-7	1-15639-142-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.425 ASM PART: A = 8-94392-231-7	1-15639-143-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.450 ASM PART: A = 8-94392-231-7	1-15639-144-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.475 ASM PART: A = 8-94392-231-7	1-15639-145-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.500 ASM PART: A = 8-94392-231-7	1-15639-146-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.525 ASM PART: A = 8-94392-231-7	1-15639-147-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.550 ASM PART: A = 8-94392-231-7	1-15639-148-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.575 ASM PART: A = 8-94392-231-7	1-15639-149-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.600 ASM PART: A = 8-94392-231-7	1-15639-150-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.625 ASM PART: A = 8-94392-231-7	1-15639-151-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.650 ASM PART: A = 8-94392-231-7	1-15639-152-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.675 ASM PART: A = 8-94392-231-7	1-15639-153-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.700 ASM PART: A = 8-94392-231-7	1-15639-154-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.725 ASM PART: A = 8-94392-231-7	1-15639-155-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.750 ASM PART: A = 8-94392-231-7	1-15639-156-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.775 ASM PART: A = 8-94392-231-7	1-15639-157-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.800 ASM PART: A = 8-94392-231-7	1-15639-158-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.825 ASM PART: A = 8-94392-231-7	1-15639-159-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.850 ASM PART: A = 8-94392-231-7	1-15639-160-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.875 ASM PART: A = 8-94392-231-7	1-15639-161-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.900 ASM PART: A = 8-94392-231-7	1-15639-162-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.925 ASM PART: A = 8-94392-231-7	1-15639-163-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.950 ASM PART: A = 8-94392-231-7	1-15639-164-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.975 ASM PART: A = 8-94392-231-7	1-15639-165-0	AR	1	-
210	ROD; CONT ASM PART: A = 8-94392-231-7	1-15637-032-0	01	1	-
211	BEARING; CONT ROD ASM PART: A = 8-94392-231-7	1-15629-098-0	01	1	-
212	BUSHING; CONT ROD ASM PART: A = 8-94392-231-7	1-15619-330-0	01	1	-
213	WASHER; CONT ROD ASM PART: A = 8-94392-231-7	1-15619-336-0	01	1	-
216	CONNECTOR; CONT ROD ASM PART: A = 8-94392-231-7	1-15619-428-0	01	1	-
217	BOLT; CONT ROD ASM PART: A = 8-94392-231-7	1-15619-335-0	01	1	-
219	RING; SNAP,ROLLER ASM PART: A = 8-94392-231-7	1-15619-432-0	06	1	-
230	PLUG; TAPPET ASM PART: A = 8-94392-231-7	1-15619-435-0	06	1	-
234	SLEEVE; FRT COVER ASM PART: A = 8-94392-231-7	1-15635-002-0	01	1	-
247	STUD; HOUSING,INJ PUMP ASM PART: A = 8-94392-231-7	1-15619-427-0	02	1	-

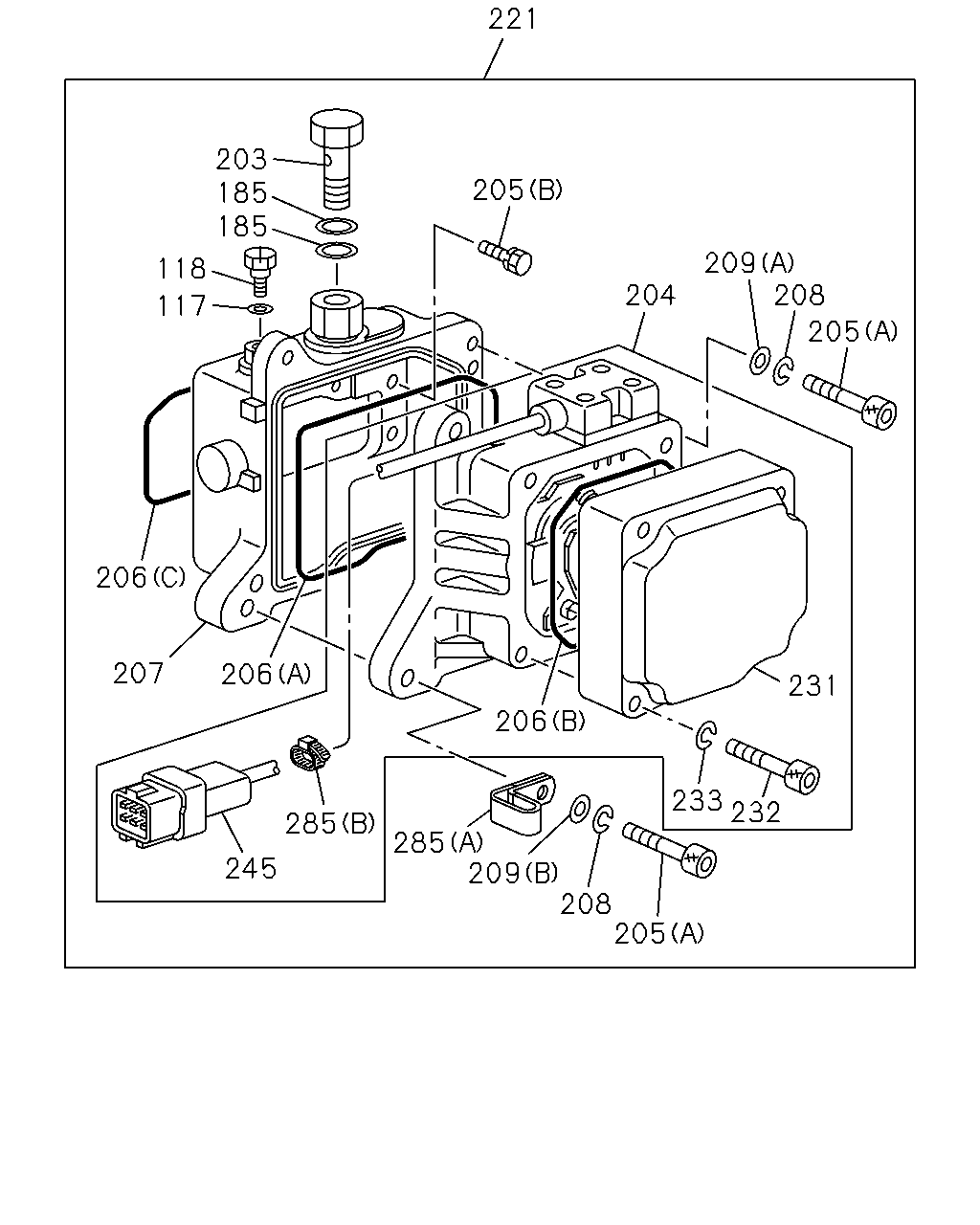

221 203 185 185 205 209 208 118 204 117 205 206 207 206 231 206 233 232 285 285 209 208 205 245

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
117	GASKET; EYE BOLT,INJ PUMP THA ASM PART: A = 8-94392-231-7	5-15729-099-0	01	1	-
118	BOLT; EYE,FUEL INL,INJ PUMP ASM PART: A = 8-94392-231-7	9-81215-148-0	01	1	-
185	GASKET; PLUG ID=14.2 OD=19.2 ASM PART: A = 8-94392-231-7	1-09630-085-0	02	1	-
203	BOLT; FUEL INL ASM PART: A = 8-94392-231-7	1-15759-011-0	01	1	-
204	ACTUATOR; INJ PUMP ASM PART: A = 8-94392-231-7	1-15612-084-3	01	1	-
205	BOLT; ACTUATOR ASM PART: A = 8-94392-231-7	1-09054-032-0	04	1	-
205	BOLT; ACTUATOR ASM PART: A = 8-94392-231-7	1-15619-348-0	04	1	-
206	GASKET; ACTUATOR ASM PART: A = 8-94392-231-7	1-15629-140-0	01	1	-
206	GASKET; ACTUATOR ASM PART: A = 8-94392-231-7	1-15629-141-0	01	1	-
206	GASKET; ACTUATOR ASM PART: A = 8-94392-231-7	1-15629-143-0	01	1	-
207	HOUSING; ACTUATOR ASM PART: A = 8-94392-231-7	1-15611-192-0	01	1	-
208	WASHER; LK,ACTUATOR ASM PART: A = 8-94392-231-7	8-94128-928-0	04	1	-
209	WASHER; PL,ACTUATOR ASM PART: A = 8-94392-231-7	1-15619-351-0	01	1	-
209	WASHER; PL,ACTUATOR ASM PART: A = 8-94392-231-7	1-15619-352-0	03	1	-
221	ACTUATOR ASM; INJ PUMP ASM PART: A = 8-94392-231-7	1-15612-083-3	01	1	-
231	COVER; ACTUATOR ASM PART: A = 8-94392-231-7	1-15619-460-0	01	1	-
232	BOLT; ACTUATOR COVER ASM PART: A = 8-94392-231-7	1-09054-032-0	04	1	-
233	WASHER; ACTUATOR COVER ASM PART: A = 8-94392-231-7	8-94128-928-0	04	1	-
245	HOUSING; SOCKET,INJ PUMP ASM PART: A = 8-94392-231-7	1-15619-441-0	01	1	-
285	CLIP; COVER,INJ PUMP ASM PART: A = 8-94392-231-7	1-15619-454-0	01	1	-
285	CLIP; COVER,INJ PUMP ASM PART: A = 8-94392-231-7	1-15619-459-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
