0 - Engine, Emission, Engine Electrical
▶
0-60 - ENGINE ELECTRICAL CONTROL PARTS
▶
0-60 — ENGINE ELECTRICAL CONTROL PARTS
(#27291) — 29 parça
◀

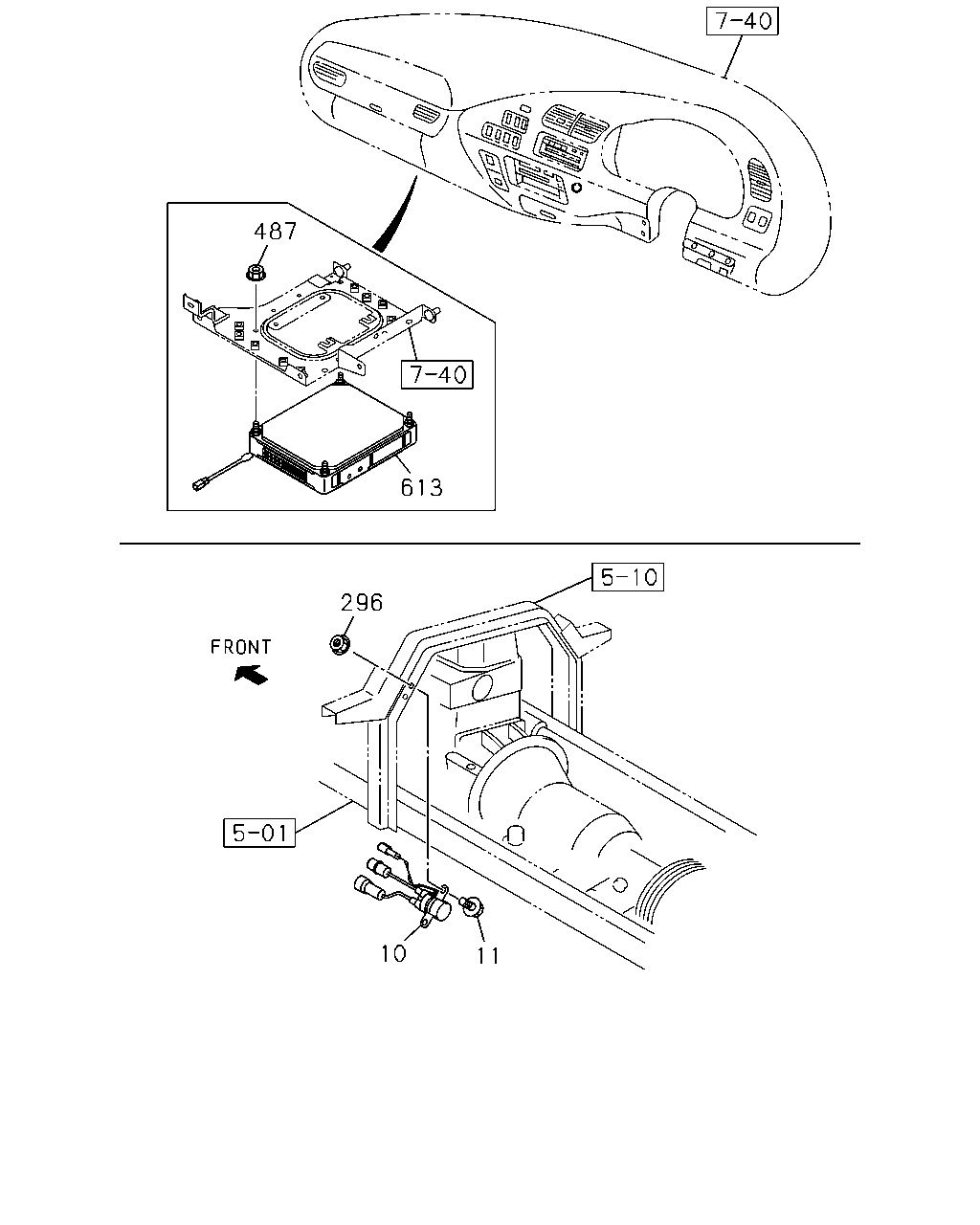

[060A] ENGINE CONTROL AND STARTER RELAY (5 parça)

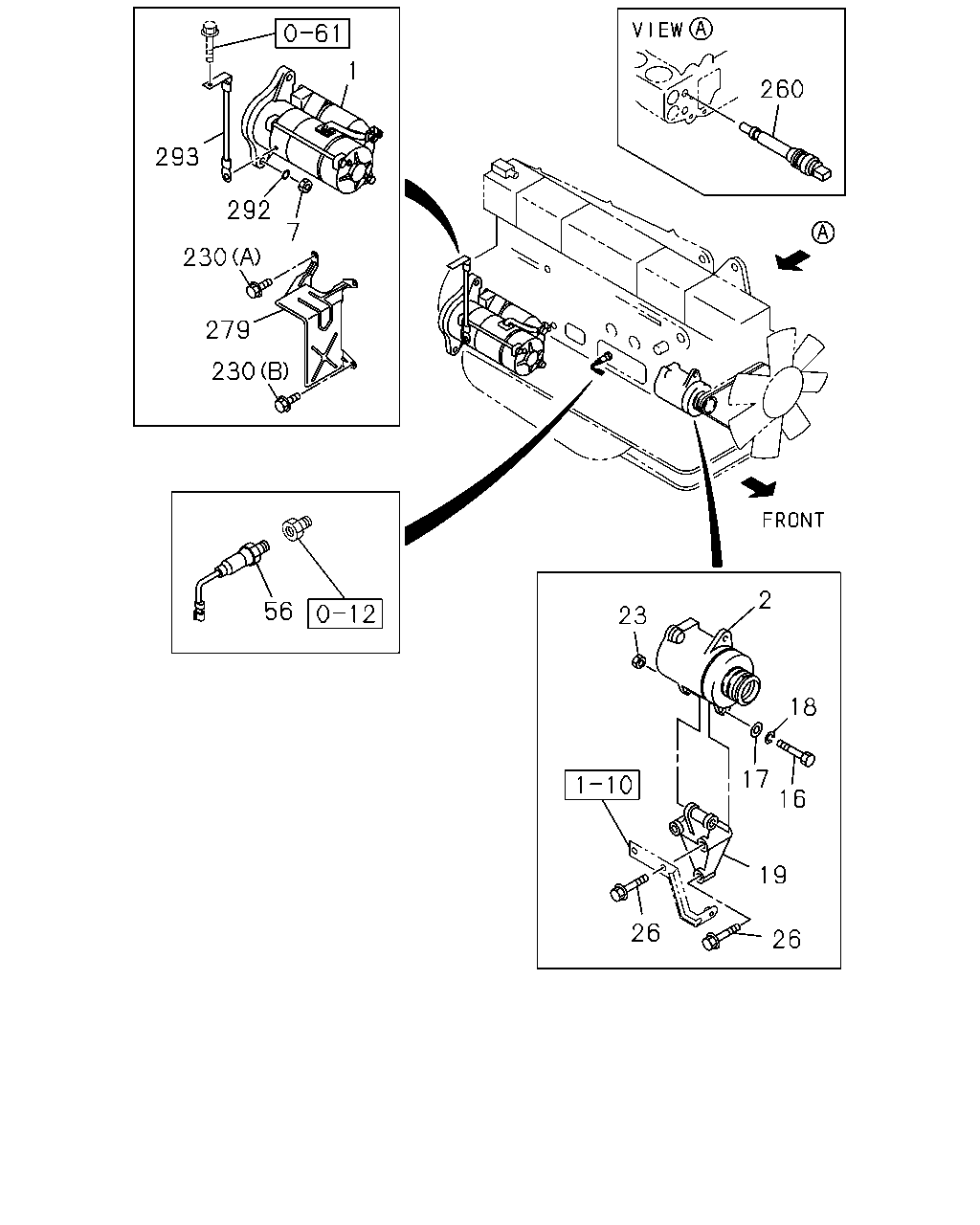

[060A] STARTER AND GENERATOR FIXING (17 parça)
[060A] ENGINE STOPPER AND MAGNETIC VALVE (7 parça)
▶
487
613
296
10
11
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
10
RELAY; STARTER
DENSO
1-81171-070-0
01
1
0212-
11
BOLT; RELAY STARTER
M8X25 FLANGE
0-28680-825-0
02
1
0212-
296
NUT; RELAY,STARTER
M8 FLANGE
0-91150-108-0
02
1
0212-
487
NUT
M6 FLANGE
0-91150-106-0
04
1
0212-
613
CONTROL UNIT; ENG
8-94392-232-2
01
1
0212-
1
260
293
292
7
230
279
230
2
56
23
18
17
16
19
26
26
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW DENSO THA
8-97915-995-1
01
1
0212-
2
GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A DENSO THA
8-97913-530-2
01
1
0212-
7
NUT; STARTER
M14
9-99110-414-0
02
1
0212-
16
BOLT; GEN
M14X135
1-09000-133-1
01
1
0212-
17
WASHER; PL,GEN
ID=15
9-09160-514-0
01
1
0212-
18
WASHER; LK,GEN
ID=14.2
9-09150-514-0
01
1
0212-
19
BRACKET; GEN
THA
8-97916-133-0
01
1
0212-
23
NUT; GEN
M14
9-99110-414-0
01
1
0212-
26
BOLT; GEN BRKT
M10X40 FLANGE
0-28181-040-0
01
1
0212-
26
BOLT; GEN BRKT
M10X80 FLANGE
0-28181-080-0
02
1
0212-
56
SWITCH; OIL PRESSURE WARNING
1-82410-170-0
01
1
0212-
230
BOLT; HEAT PROTECTOR
(A) M8X28 FLANGE
0-28080-828-0
01
1
0212-
230
BOLT; HEAT PROTECTOR
(B) M10X30 FLANGE
0-28181-030-0
01
1
0212-
260
SENSOR; WATER TEMP
1-80210-005-1
01
1
0212-
279
PROTECTOR; STARTER
8-94394-952-1
01
1
0212-
292
WASHER; LK,STARTER
ID=14.2
9-09150-514-0
02
1
0212-
293
CABLE; STARTER EARTH
THA
8-97917-989-0
01
1
0212-
428
441
428
441
428
489
488
492
210
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
210
BOLT; CABLE FIX
M8X16 W/LK&PL WASHER
8-97087-055-0
01
1
0212-
428
CLIP; HARNESS
(A) ID=35 L=50 THA
1-09701-214-0
02
1
0212-
428
CLIP; HARNESS
(B) L=300 THA
1-09707-001-1
03
1
0212-
441
BOLT; HARNESS TO FRAME
M8X25 FLANGE
0-28680-825-0
02
1
0212-
488
STOPPER; ENG
1-82840-128-2
01
1
0212-
489
BOLT; ENG STOPPER
M8X25 W/LK&PL WASHER
0-50140-825-0
02
1
0212-
492
BRACKET; ENG STOPPER
THA
1-82849-089-1
01
1
0212-
