0-12A — CYLINDER BLOCK (#2729) — 96 parça

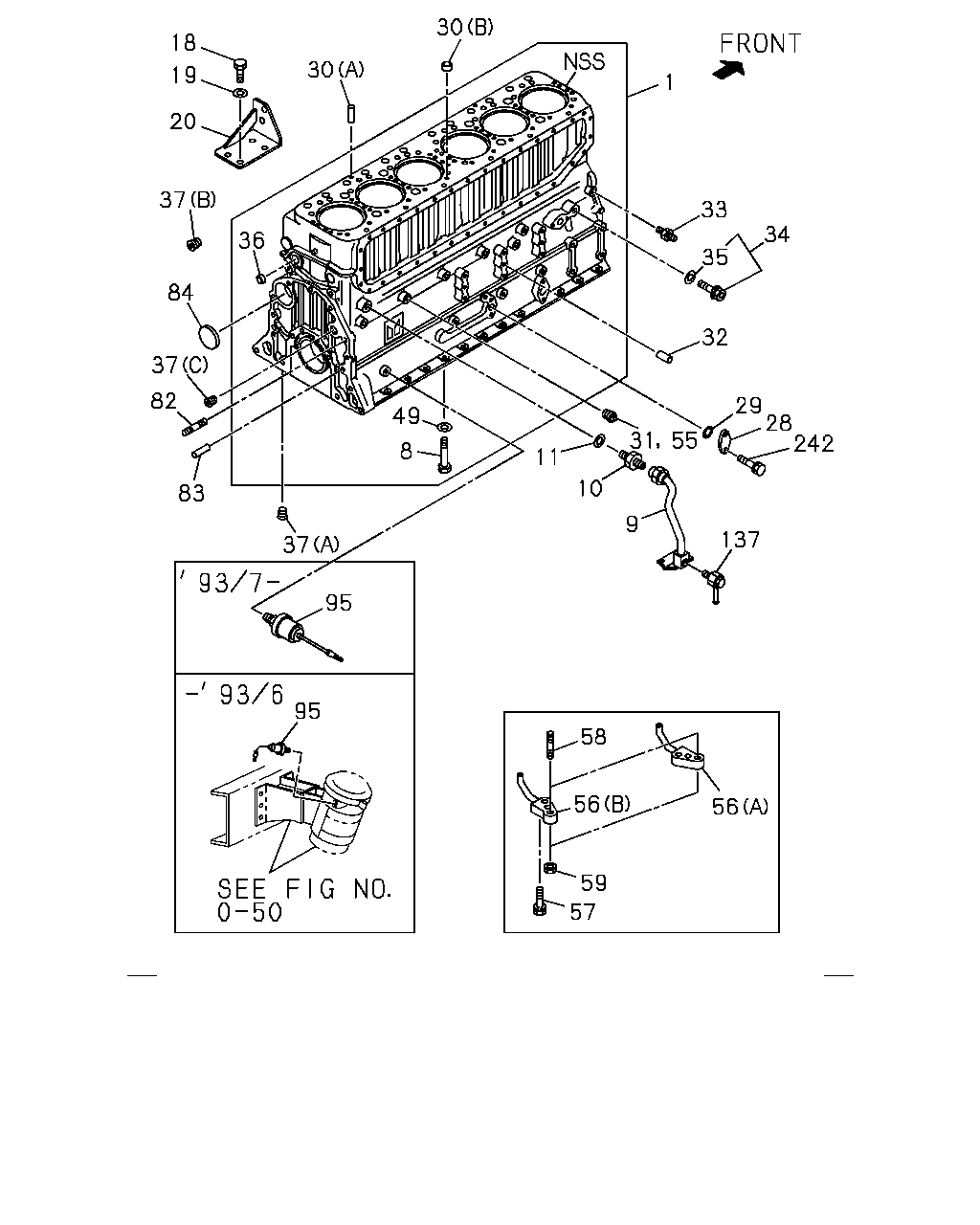

30 30 18 19 20 37 84 36 37 82 83 95 8 49 37 95 57 59 58 56 137 9 10 11 31 55 242 28 29 32 35 34 33 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BLOCK ASM; CYL	1-11210-421-0	01	1	9002-9201
1	BLOCK ASM; CYL	1-11210-588-0	01	1	9202-9311
1	BLOCK ASM; CYL	1-11210-421-0	01	1	9312-
8	BOLT; BRG CAP M20X150	9-09804-217-0	04	1	9002-
8	BOLT; BRG CAP M20X178	9-09804-218-0	10	1	9002-9201
8	BOLT; BRG CAP M20X178 M20X178	1-09029-064-0	02	1	9202-9311
8	BOLT; BRG CAP M20X178	9-09804-218-0	08	1	9202-9311
8	BOLT; BRG CAP M20X178	9-09804-218-0	10	1	9312-
9	PIPE ASM; WATER DRAIN COCK	1-13711-036-3	01	1	9002-
10	CONNECTOR; WATER DRAIN	1-09660-011-1	01	1	9002-
11	GASKET; CONN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=18	9-09571-418-0	01	1	9002-
18	BOLT; BRKT TO C/BL AIR COMPRESSOR HEAVY DUTY(E1Q) M10X22	9-02361-022-0	02	1	9002-
19	WASHER; BRKT AIR COMPRESSOR HEAVY DUTY(E1Q) ID=10.5 OD=22 T=4	1-09503-045-0	02	1	9002-
20	BRACKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19187-014-1	01	1	9002-
28	COVER; OIL PORT	9-11219-214-0	01	1	9002-
29	GASKET; COVER,OIL PORT ALSO INCLUDED IN GASKET SET(ENGINE). EXC. OIL FILTER CENTRIFUGAL<E6S> ID=27.7	1-09623-170-0	01	1	9002-9003
29	GASKET; COVER,OIL PORT ALSO INCLUDED IN GASKET SET(ENGINE). EXC. OIL FILTER CENTRIFUGAL<E6S> ID=27.7	1-09623-450-0	01	1	9004-
30	PIN; CYL HD GASKET SETTING (A) OD=8 L=16	9-08150-816-0	02	1	9002-
30	PIN; CYL HD GASKET SETTING (B) OD=20 L=15	9-11229-011-2	04	1	9002-
31	PLUG; OIL GALLERY CHEAPER CAB(SAX) PT1/4	1-09605-019-0	03	1	9010-9306
31	PLUG; OIL GALLERY PT1/4	1-09605-019-0	03	1	9307-
32	PIN; INJ PUMP BRKT OD=8 L=16	9-08150-816-0	02	1	9002-
33	CONNECTOR; OIL GALLERY	1-09660-034-0	01	1	9002-9102
33	CONNECTOR; OIL GALLERY AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09660-034-1	01	1	9103-
33	CONNECTOR; OIL GALLERY EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09660-580-0	01	1	9103-
34	VALVE; OIL RELIEF	9-13160-060-2	01	1	9002-
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-059-0	01	1	9002-
36	CUP; SEALING,WATER JACKET OD=45	1-09600-005-1	04	1	9002-
37	PLUG; OIL GALLERY (A),(B),(C) PT1/4	1-09605-019-0	04	1	9002-9009
37	PLUG; OIL GALLERY EXC. OIL FILTER CENTRIFUGAL<E6S> (A),(B),(C) PT1/4	1-09605-019-0	04	1	9010-9306
37	PLUG; OIL GALLERY (B) L=14 PT3/4	1-09605-025-0	01	1	9307-
37	PLUG; OIL GALLERY (C) PT3/8	1-09605-056-0	02	1	9307-
37	PLUG; OIL GALLERY (A) L=30.5 PT3/4,M8	1-09609-014-1	01	1	9307-
49	WASHER; BRG CAP OD=23.8	9-09851-915-0	14	1	9002-
55	PLUG; OIL GALLERY PT3/4	1-09605-025-0	01	1	9002-
56	JET; OIL,PISTON COOLING (A)	1-13342-082-0	03	1	9002-
56	JET; OIL,PISTON COOLING (B)	1-13342-083-0	03	1	9002-
57	BOLT; OIL JET M8X20	9-02050-820-0	06	1	9002-9005
57	BOLT; OIL JET M8X20	0-20800-820-0	06	1	9006-
58	STUD; OILING JET M8X20 L=32	9-04110-820-0	06	1	9002-
59	NUT; OILING JET M8	9-09110-408-0	06	1	9002-
82	STUD; FLYWHEEL HSG M14X42 L=63	9-04411-442-0	01	1	9002-
83	PIN; FLYWHEEL HSG	9-08151-428-0	02	1	9002-
84	PLUG; CAM BRG	9-09201-371-0	01	1	9002-
95	PRESSURE UNIT; OIL	1-83151-035-0	01	1	9002-9306
95	PRESSURE UNIT; OIL	1-83151-040-0	01	1	9307-
137	COCK; DRAIN,WATER	1-09680-026-0	01	1	9002-
242	BOLT; COVER,OIL PORT M8X20 W/LK WASHER	9-01910-820-0	02	1	9002-9005
242	BOLT; COVER,OIL PORT M8X20 W/LK WASHER	0-50040-820-0	02	1	9006-

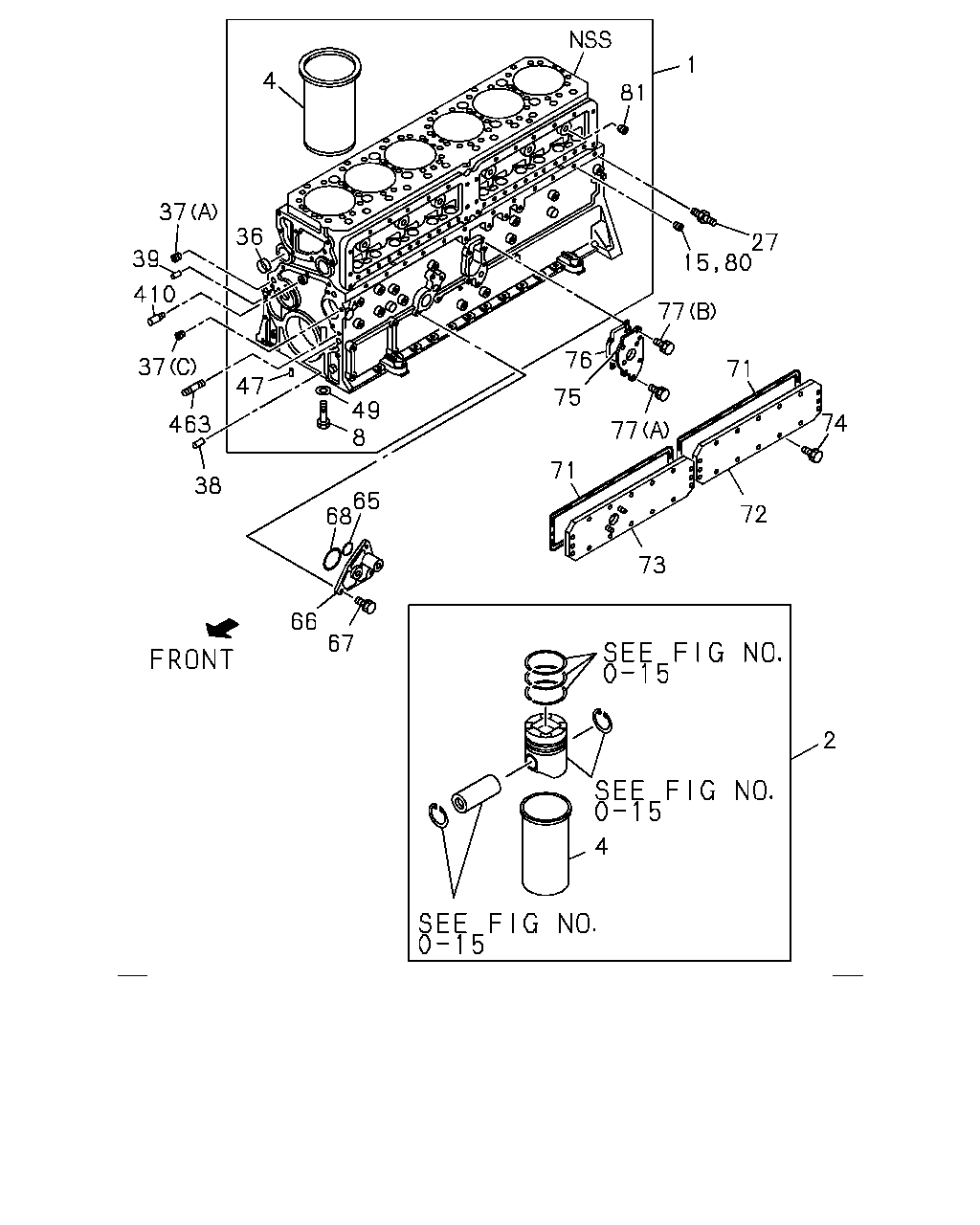

1 27 15 80 81 77 71 76 77 75 71 72 74 73 2 4 67 66 68 65 8 49 38 463 37 47 410 39 37 36 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BLOCK ASM; CYL	1-11210-421-0	01	1	9002-9201
1	BLOCK ASM; CYL	1-11210-588-0	01	1	9202-9311
1	BLOCK ASM; CYL	1-11210-421-0	01	1	9312-
2	LINER SET; ENG CYL GRADE=1	1-87811-465-0	06	1	9002-
2	LINER SET; ENG CYL GRADE=2	1-87811-466-0	06	1	9002-
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=NON	1-11261-288-0	06	1	9002-
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=NON	1-11261-289-0	06	1	9002-
8	BOLT; BRG CAP M20X150	9-09804-217-0	04	1	9002-
8	BOLT; BRG CAP M20X178	9-09804-218-0	10	1	9002-9201
8	BOLT; BRG CAP M20X178 M20X178	1-09029-064-0	02	1	9202-9311
8	BOLT; BRG CAP M20X178	9-09804-218-0	08	1	9202-9311
8	BOLT; BRG CAP M20X178	9-09804-218-0	10	1	9312-
15	PLUG; OIL GALLERY PT1/8	1-09605-050-0	15	1	9307-
27	NIPPLE; OIL GALLERY ENGINE REAR PTO(SV1)	9-09902-198-0	01	1	9002-9003
27	NIPPLE; OIL GALLERY ENGINE REAR PTO(SV1)	1-09660-568-0	01	1	9004-
36	CUP; SEALING,WATER JACKET OD=45	1-09600-005-1	04	1	9002-
37	PLUG; OIL GALLERY (A),(B),(C) PT1/4	1-09605-019-0	04	1	9002-9009
37	PLUG; OIL GALLERY EXC. OIL FILTER CENTRIFUGAL<E6S> (A),(B),(C) PT1/4	1-09605-019-0	04	1	9010-9306
37	PLUG; OIL GALLERY (B) L=14 PT3/4	1-09605-025-0	01	1	9307-
37	PLUG; OIL GALLERY (C) PT3/8	1-09605-056-0	02	1	9307-
37	PLUG; OIL GALLERY (A) L=30.5 PT3/4,M8	1-09609-014-1	01	1	9307-
38	PIN; TIMING GEAR CASE	9-08151-222-0	02	1	9002-
39	DOWEL; IDLE GEAR SPINDLE	1-11229-013-0	01	1	9002-
47	PIN; BRG CAP OD=8 L=16	9-08150-816-0	14	1	9002-
49	WASHER; BRG CAP OD=23.8	9-09851-915-0	14	1	9002-
65	GASKET; SUCTION EXC. OIL FILTER CENTRIFUGAL<E6S> ID=27.7	1-09623-170-0	01	1	9002-9003
65	GASKET; SUCTION EXC. OIL FILTER CENTRIFUGAL<E6S> ID=27.7	1-09623-450-0	01	1	9004-
66	CONNECTOR; PARTIAL FILTER EXC. OIL FILTER CENTRIFUGAL<E6S>	1-13341-077-2	01	1	9002-
67	BOLT; CONNECTOR EXC. OIL FILTER CENTRIFUGAL<E6S> M10X25 W/LK&PL WASHER	0-50151-025-0	03	1	9002-
68	GASKET; RETURN ALSO INCLUDED IN GASKET SET(ENGINE). EXC. OIL FILTER CENTRIFUGAL<E6S> ID=49.7	1-09623-171-0	01	1	9002-9003
68	GASKET; RETURN ALSO INCLUDED IN GASKET SET(ENGINE). EXC. OIL FILTER CENTRIFUGAL<E6S> ID=49.7	1-09623-541-0	01	1	9004-
71	GASKET; COVER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11292-028-0	02	1	9002-
72	COVER; TAPPET CHAMBER OIL FILLER CAB BACK DELETE<E6X>	1-11291-034-0	01	1	9002-
72	COVER; TAPPET CHAMBER EXC. OIL FILLER CAB BACK DELETE<E6X>	1-11291-048-3	01	1	9002-
73	COVER ASM; TAPPET CHAMBER	1-11291-035-1	01	1	9002-
74	BOLT; COVER TO C/BL M8X22	9-01910-822-0	29	1	9002-9005
74	BOLT; COVER TO C/BL M8X22 W/LK WASHER	0-50040-822-0	29	1	9006-
74	BOLT; COVER TO C/BL M8X25 W/LK WASHER	9-01910-825-0	03	1	9002-9005
74	BOLT; COVER TO C/BL M8X25 W/LK WASHER	0-50040-825-0	03	1	9006-
75	COVER; C/BL,OIL PUMP	1-11219-122-0	01	1	9002-
76	GASKET; COVER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-13114-008-0	01	1	9002-
77	BOLT; COVER TO C/BL (A) M10X35 W/LK WASHER	0-50051-035-0	03	1	9002-
77	BOLT; COVER TO C/BL (B) M10X40 W/LK WASHER	0-50051-040-0	02	1	9002-
80	CUP; SEALING,TAPPET CHAMBER PT1/8	1-09605-050-0	15	1	9002-9306
81	PLUG; WATER JACKET	9-09864-050-1	06	1	9002-
410	JET; OIL,TIMING GEAR	9-13342-002-0	01	1	9002-
463	STUD; TIMING GEAR CASE M12X77 L=95	9-09831-161-0	06	1	9002-
