Isuzu WW
▶
TRUCKS
▶
FVZ
▶
10908 - FVZ(THAI)
▶
0 - Engine, Emission, Engine Electrical
▶
0-50 - OIL COOLER AND OIL FILTER
▶

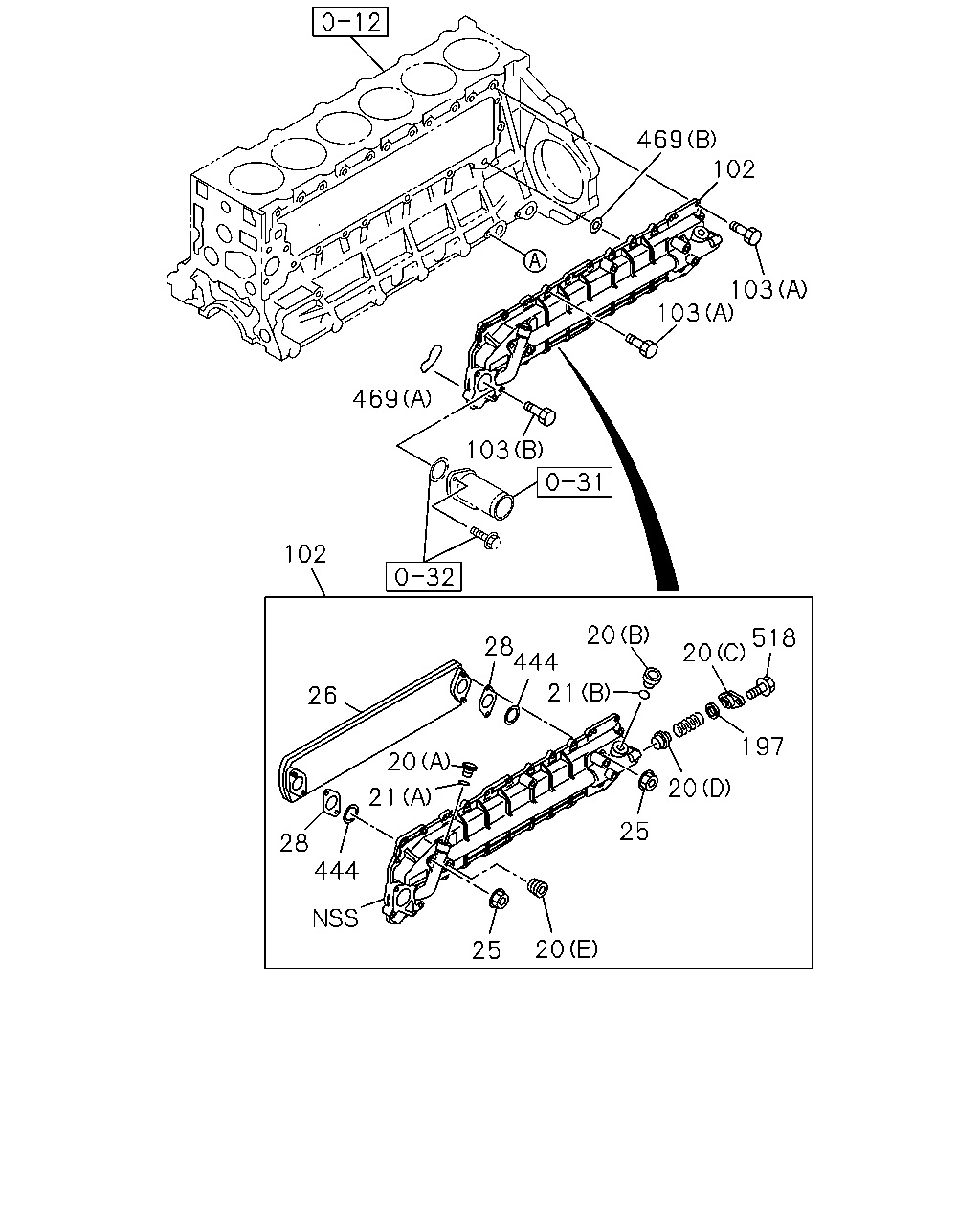

0-50 — OIL COOLER AND OIL FILTER
(#27288) — 28 parça
◀
[050A] OIL FILTER (10 parça)
[050A] OIL COOLER (18 parça)
▶
496
307
308
265
328
328
2
265
321
321
321
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
ELEMENT; OIL FILTER
8-94391-049-2
01
1
0212-
2
ELEMENT; OIL FILTER
BESTFIX
1-86750-303-0
01
1
0212-
265
BODY; OIL FILTER
8-94391-016-4
01
1
0212-
307
VALVE; OVERFLOW
8-94395-700-0
01
1
0212-
308
GASKET; VLV,OVERFLOW
ID=15.8
1-09623-163-0
01
1
0212-
321
GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8
8-94399-339-0
01
1
0212-
321
GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=22.1
8-94399-399-0
02
1
0212-
328
BOLT; OIL FILTER
(A) M10X30 FLANGE
0-28181-030-0
02
1
0212-
328
BOLT; OIL FILTER
(B) M10X90 FLANGE
0-28181-090-0
02
1
0212-
496
FILTER ASM; OIL
8-94391-015-5
01
1
0212-
469
102
103
103
469
103
102
20
518
20
28
444
21
26
197
20
20
21
25
28
444
20
25
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
20
PLUG; COOLER BODY
(A)
8-94393-604-0
01
1
0212-
20
PLUG; COOLER BODY
(B)
8-94396-753-0
01
1
0212-
20
PLUG; COOLER BODY
(C)
8-97602-092-0
01
1
0212-
20
PLUG; COOLER BODY
(D)
8-97602-093-0
01
1
0212-
20
PLUG; COOLER BODY
(E)
8-97602-094-0
01
1
0212-
21
GASKET; PLUG
(A)
1-13219-253-0
01
1
0212-
21
GASKET; PLUG
(B) M24
8-94396-755-0
01
1
0212-
25
NUT; CORE TO BODY
M10 FLANGE
1-13219-324-0
04
1
0212-
26
CORE ASM; OIL COOLER
8-94391-738-0
01
1
0212-
28
GASKET; CORE TO BODY
8-94394-930-0
02
1
0212-
102
COOLER ASM; OIL
8-94392-230-0
01
1
0212-
103
BOLT; OIL COOLER
(A) M8X22 FLANGE
0-28080-822-0
24
1
0212-
103
BOLT; OIL COOLER
(B) M8X35 FLANGE
0-28080-835-0
03
1
0212-
197
GASKET; THERMOSTAT
ID=25.7
8-94399-279-0
01
1
0212-
444
GASKET; ELEMENT TO BODY
8-94396-810-0
02
1
0212-
469
GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A)
8-94399-002-0
01
1
0212-
469
GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=25.7
8-94399-279-0
01
1
0212-
518
BOLT; PLUG,THERMOSTAT
M8X16 FLANGE
0-28080-816-0
02
1
0212-
