0-40 — FUEL INJECTION SYSTEM (#27285) — 59 parça

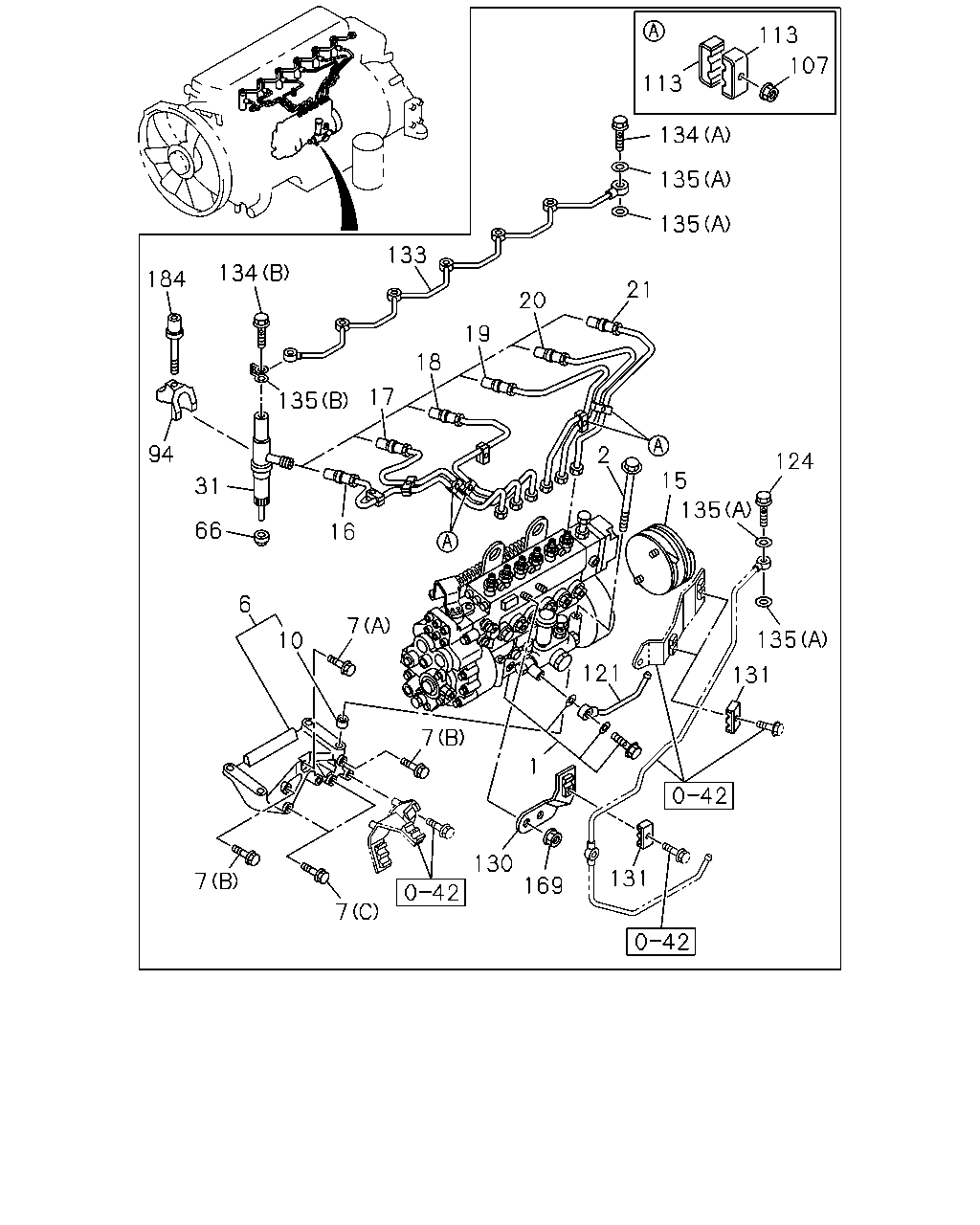

113 107 113 134 135 135 133 134 184 21 20 19 18 17 135 94 2 124 15 31 135 66 16 6 7 135 10 121 131 7 1 130 131 7 169 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-94392-231-7	01	1	0212-
2	BOLT; INJ PUMP M8X80 FLANGE	0-28080-880-0	04	1	0212-
6	BRACKET; INJ PUMP TO C/BL	8-94390-959-0	01	1	0212-
7	BOLT; INJ PUMP BRKT (A) M10X40 FLANGE	0-28181-040-0	01	1	0212-
7	BOLT; INJ PUMP BRKT (B) M10X75 FLANGE	8-94399-669-1	02	1	0212-
7	BOLT; INJ PUMP BRKT (C) M10X55 FLANGE THA	8-94399-863-1	02	1	0212-
10	DOWEL; INJ PUMP OD=14 L=9	9-19759-019-1	02	1	0212-
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	8-94392-050-0	01	1	0212-
16	PIPE; INJ NO.1	8-94392-519-0	01	1	0212-
17	PIPE; INJ NO.2	8-94392-520-0	01	1	0212-
18	PIPE; INJ NO.3	8-94392-521-0	01	1	0212-
19	PIPE; INJ NO.4	8-94392-522-1	01	1	0212-
20	PIPE; INJ NO.5	8-94392-523-0	01	1	0212-
21	PIPE; INJ NO.6	8-94392-524-0	01	1	0212-
31	NOZZLE ASM; INJ	8-94392-233-2	06	1	0212-
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1	8-97601-447-2	06	1	0212-
94	BRACKET; INJ NOZZLE	8-94390-988-0	06	1	0212-0407
94	BRACKET; INJ NOZZLE	8-97306-074-0	06	1	0408-
107	NUT; INJ PIPE CLIP M6 FLANGE	0-91150-106-0	04	1	0212-
113	CLIP; INJ PIPE ID=15 L=30	1-09701-132-1	08	1	0212-
121	PIPE; FUEL,FEED PUMP,SUCTION	8-94390-864-3	01	1	0212-
124	BOLT; EYE LEAK OFF PIPE M10X21 FLANGE	8-94396-711-0	01	1	0212-
130	BRACKET; OVERFLOW TO LEAK OFF	8-94390-945-0	01	1	0212-
131	CLIP; OVERFLOW LEAK OFF	1-09701-091-0	03	1	0212-
133	PIPE; INJ NOZZLE LEAK OFF	8-94390-451-0	01	1	0212-
134	BOLT; JOINT,LEAK OFF PIPE (B) M8X18 EYE BOLT	1-09675-037-1	06	1	0212-
134	BOLT; JOINT,LEAK OFF PIPE (A) M10X21 FLANGE	8-94396-711-0	01	1	0212-
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2 THA	1-09630-083-0	04	1	0212-
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3	8-97600-925-0	06	1	0212-
169	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0212-
184	BOLT; NOZZLE HOLDER	8-94390-989-1	06	1	0212-

31 32 145 140 44 42 43 47 45 138 140 43 272 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	NOZZLE ASM; INJ	8-94392-233-2	06	1	0212-
32	HOLDER ASM; NOZZLE	8-94392-147-2	06	1	0212-
35	NUT; NOZZLE RET,NOZZLE HOLDER	1-15349-145-0	06	1	0212-
42	GASKET; INL CONNECTOR,NOZZLE HOLDER	9-09561-112-0	06	1	0212-
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (A)	1-15342-002-0	06	1	0212-
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B)	1-15342-003-0	06	1	0212-
44	SPRING; NOZZLE,NOZZLE HOLDER	1-15343-005-0	06	1	0212-
45	ROD; PUSH,NOZZLE HOLDER	1-15349-129-0	06	1	0212-
47	SPACER; NOZZLE SPRING,NOZZLE HOLDER	1-15349-157-0	06	1	0212-
138	SPRING; NOZZLE LWR,NOZZLE HOLDER	1-15343-006-0	06	1	0212-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.40	1-15349-112-0	AR	1	0212-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.50	1-15349-113-0	AR	1	0212-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.52	1-15349-114-0	AR	1	0212-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.54	1-15349-115-0	AR	1	0212-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.56	1-15349-116-0	AR	1	0212-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.58	1-15349-117-0	AR	1	0212-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.60	1-15349-118-0	AR	1	0212-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.70	1-15349-119-0	AR	1	0212-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.40	1-15349-120-0	AR	1	0212-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.50	1-15349-121-0	AR	1	0212-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.52	1-15349-122-0	AR	1	0212-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.54	1-15349-123-0	AR	1	0212-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.56	1-15349-124-0	AR	1	0212-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.58	1-15349-125-0	AR	1	0212-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.60	1-15349-126-0	AR	1	0212-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.70	1-15349-127-0	AR	1	0212-
145	GASKET; RET NUT ID=23.3	8-94173-412-0	06	1	0212-
272	NOZZLE KIT; INJ	1-15319-021-0	06	1	0212-
