Isuzu WW
▶
TRUCKS
▶
FVZ
▶
10908 - FVZ(THAI)
▶
0 - Engine, Emission, Engine Electrical
▶
0-39 - AIR COMPRESSOR; BRAKE
▶

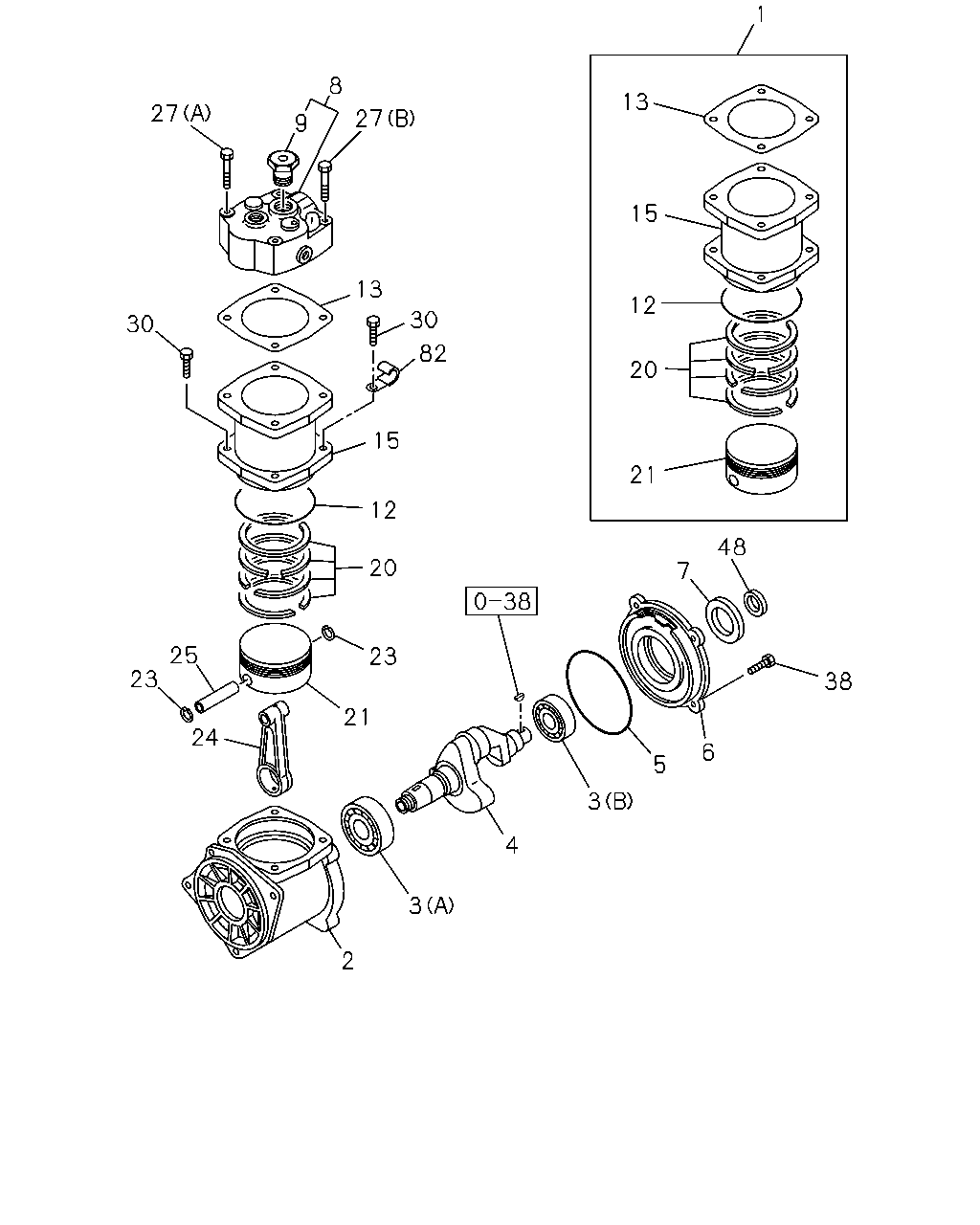

0-39 — AIR COMPRESSOR; BRAKE
(#27284) — 24 parça
1
8
13
27
27
9
15
13
12
30
30
82
20
15
21
12
48
20
7
25
23
23
38
21
24
6
5
3
4
3
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LINER KIT; CYL,AIR CMPR
1-19163-062-1
01
1
0212-
2
CRANKCASE; AIR CMPR
1-19151-282-2
01
1
0212-
3
BEARING; AIR CMPR
(A)
1-19177-009-0
01
1
0212-
3
BEARING; AIR CMPR
(B)
1-19177-010-0
01
1
0212-
4
CRANKSHAFT; AIR CMPR
1-19171-074-1
01
1
0212-
5
GASKET; AIR CMPR
1-09623-627-0
01
1
0212-
6
COVER ASM; BRG,AIR CMPR
1-19156-075-1
01
1
0212-
7
SEAL; OIL,BRG COVER,AIR CMPR
1-09625-534-0
01
1
0212-
8
HEAD ASM; CYL,AIR CMPR
1-19110-051-0
01
1
0212-
9
VALVE ASM; UNLOADER,AIR CMPR
1-19120-017-1
01
1
0212-
12
GASKET; AIR CMPR
1-09623-539-0
01
1
0212-
13
GASKET; AIR CMPR
1-09623-626-0
01
1
0212-
15
CYLINDER; AIR CMPR
1-19151-283-1
01
1
0212-
20
RING KIT; PISTON,AIR CMPR
1-19163-051-1
01
1
0212-
21
PISTON; AIR CMPR
1-19161-016-0
01
1
0212-
23
RING; SNAP,PISTON,AIR CMPR
9-19168-003-0
02
1
0212-
24
ROD ASM; CONN,AIR CMPR
1-19173-007-0
01
1
0212-
25
PIN; PISTON,AIR CMPR
9-19167-003-0
01
1
0212-
27
BOLT; HD
(B) M10X45
9-01066-045-0
02
1
0212-
27
BOLT; HD
(A) M10X60
9-01066-060-0
02
1
0212-
30
BOLT; CYL TO CRANKCASE
M10X25
9-01911-025-0
04
1
0212-
38
BOLT; COVER FIX
1-09100-018-0
02
1
0212-
48
SLEEVE; CR/SHF
1-19179-024-0
01
1
0212-
82
CLIP; AIR COMPRESSOR
1-19159-017-0
01
1
0212-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
