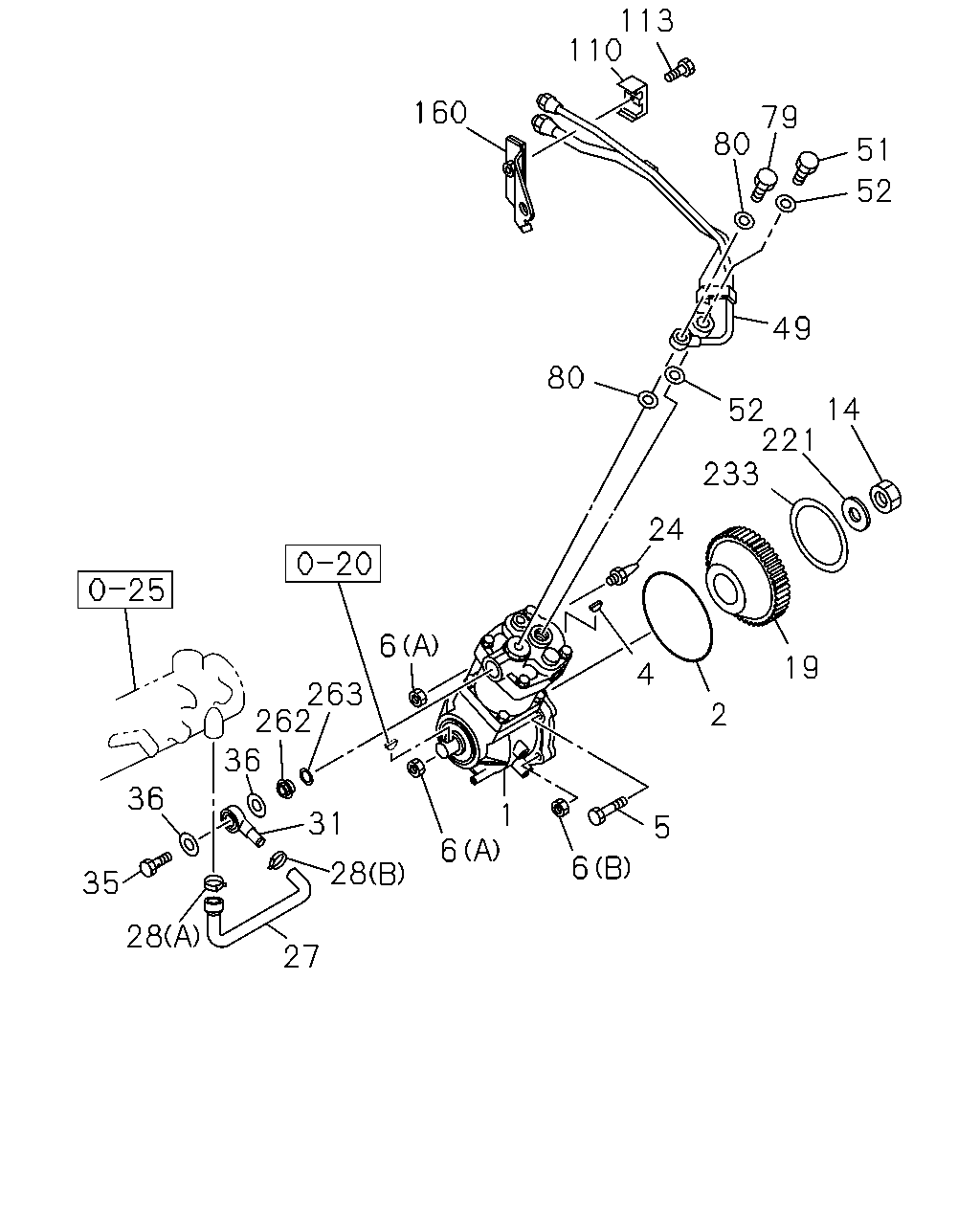

0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE (#27283) — 28 parça
çizim 81349
113 110 160 79 80 51 52 49 80 14 52 221 233 24 6 19 4 263 262 2 36 36 1 31 5 6 6 35 27 28 28
BalonParca AdiParca NoAdetTipApplied Date
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. 		8-97600-705-1 01 1 0212-
2 GASKET; AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6 		1-09623-464-0 01 1 0212-
4 KEY; INJ PUMP GEAR 9-08055-519-0 01 1 0212-
5 BOLT; AIR CMPR FIX
M12X110 		0-28186-211-0 01 1 0212-
6 NUT; AIR CMPR
(A) M10 FLANGE 		0-91150-110-0 02 1 0212-
6 NUT; AIR CMPR
(B) M12 FLANGE 		0-91150-112-0 01 1 0212-
14 NUT; GEAR
M24 		9-99110-524-0 01 1 0212-
19 GEAR; INJ PUMP
Z=35 		8-94390-998-2 01 1 0212-
24 POINTER; AIR CMPR
L=21 		9-11327-602-0 01 1 0212-
27 HOSE; AIR CMPR,SUCTION 8-94391-030-2 01 1 0212-
28 CLIP; HOSE,AIR CMPR
(A) ID=26 		1-09707-091-0 01 1 0212-
28 CLIP; HOSE,AIR CMPR
(B) ID=22.7 		8-94466-382-0 01 1 0212-
31 PIPE; AIR,AIR CMPR SUCTION 8-94390-949-0 01 1 0212-
35 BOLT; EYE,AIR PIPE
M24X39 		1-09675-132-0 01 1 0212-
36 GASKET; AIR PIPE TO AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32 		9-09571-424-0 02 1 0212-
49 PIPE; AIR,CHARGE 8-94392-073-0 01 1 0212-
51 BOLT; EYE,AIR PIPE TO CMPR
M24X39 		1-09675-132-0 01 1 0212-
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32 		9-09571-424-0 02 1 0212-
79 BOLT; EYE,AIR PIPE TO CMPR
M14X27 FLANGE 		1-09675-086-0 01 1 0212-
80 GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 02 1 0212-
110 CLIP; AIR PIPE 8-94393-037-0 01 1 0212-
113 BOLT; CLIP,AIR PIPE
M6X40 FLANGE 		0-28080-640-0 01 1 0212-
160 BRACKET; AIR PIPE 8-94393-091-0 01 1 0212-
221 WASHER; PL,GEAR
ID=25 		9-09160-524-0 01 1 0212-
233 RING; FRICTION 8-94390-562-0 01 1 0212-0311
233 RING; FRICTION 8-97603-297-0 01 1 0312-
262 ADAPTER; AIR SUCTION PIPE 8-94391-995-0 01 1 0212-
263 GASKET; ADAPTER
ID=30.5 OD=38.0 		9-09571-430-0 01 1 0212-
