Isuzu WW
▶
TRUCKS
▶
FVZ
▶
10908 - FVZ(THAI)
▶
0 - Engine, Emission, Engine Electrical
▶
0-22 - ENGINE MOUNTING
▶

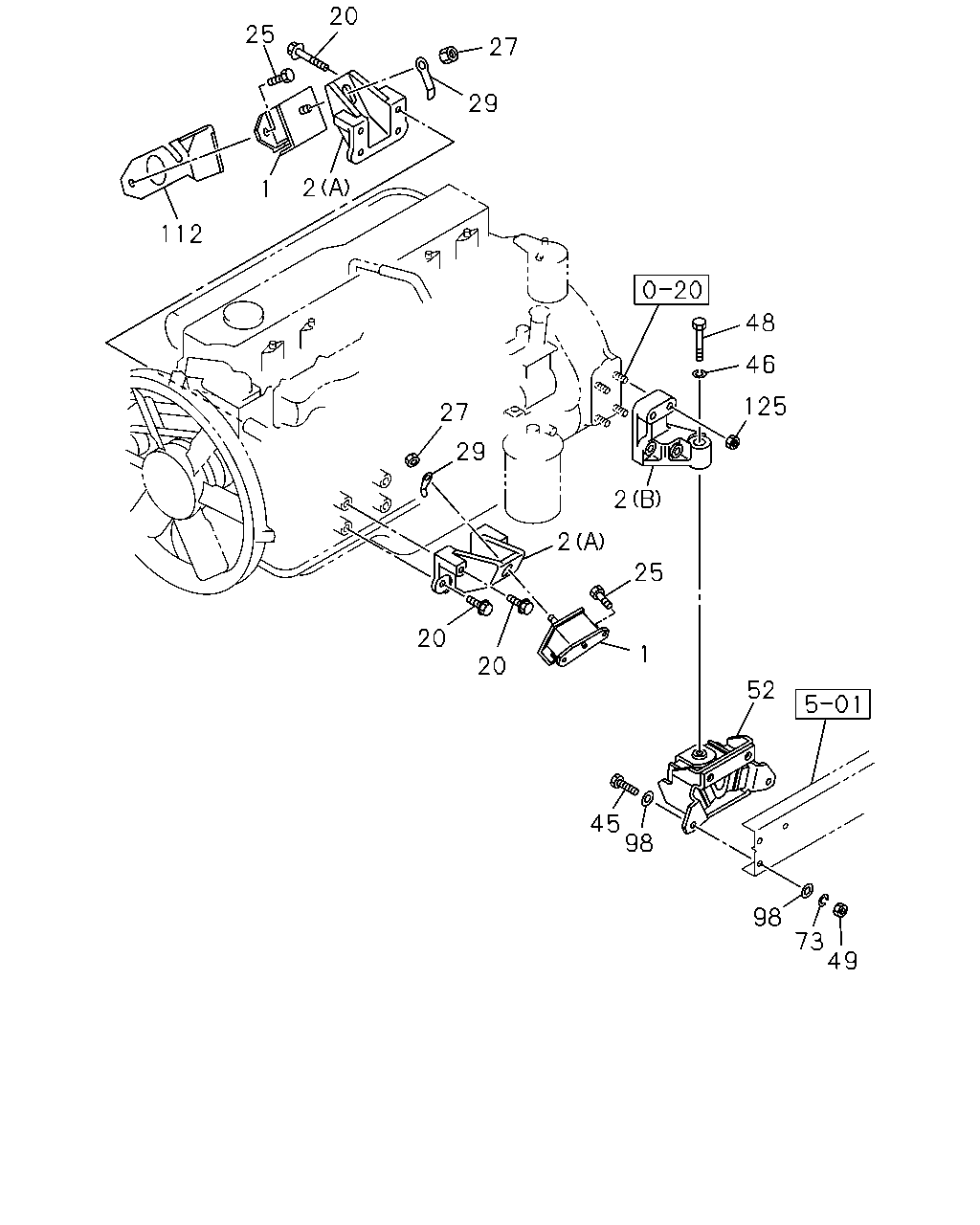

0-22 — ENGINE MOUNTING
(#27274) — 17 parça
20
25
27
29
2
1
112
48
46
125
27
29
2
2
25
20
1
20
52
45
98
98
73
49
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RUBBER; ENG FOOT,FRT
1-53215-187-0
02
1
0212-
2
FOOT; ENG
(A) FRONT
8-94393-491-1
02
1
0212-
2
FOOT; ENG
(B) REAR
8-94390-113-0
01
1
0212-
2
FOOT; ENG
(B) REAR
8-94390-112-0
01
1
0212-
20
BOLT; ENG FOOT
M10X20 FLANGE
8-94395-721-0
08
1
0212-
25
BOLT; CUSHION RUBBER TO BRKT
M12X35 FLANGE
0-28681-235-0
04
1
0212-
27
NUT; CUSHION RUBBER TO ENG FOOT
M12 FLANGE
0-91150-212-0
02
1
0212-
29
PLATE; LK,CUSHION RUBBER,FRT
1-53229-052-1
02
1
0212-
45
BOLT; CUSHION RUBBER TO FRAME
M14X50
9-92061-450-0
08
1
0212-
46
WASHER; PL,CUSHION TO ENG,RR
ID=23
9-09164-522-0
02
1
0212-
48
BOLT; CUSHION RUBBER TO ENG
M22X75
1-09020-087-2
02
1
0212-
49
NUT; CUSHION RUBBER TO FRAME
M14
9-99110-514-0
08
1
0212-
52
RUBBER; CUSHION,ENG MTG,RR
1-53225-316-0
02
1
0212-
73
WASHER; LK,CUSHION RUBBER TO FRAME
ID=14.2
9-09150-814-0
08
1
0212-
98
WASHER; PL,CUSHION RUBBER TO FRAME,RR
ID=15 THA
9-09651-069-0
16
1
0212-
112
PROTECTOR; HEAT
THA
1-53219-629-4
01
1
0212-
125
NUT; ENG FOOT
M12 FLANGE
8-94394-704-0
08
1
0212-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
