Isuzu WW
▶
TRUCKS
▶
CXM
▶
10669 - CXM/CXZ LHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-11A - CYLINDER HEAD
▶

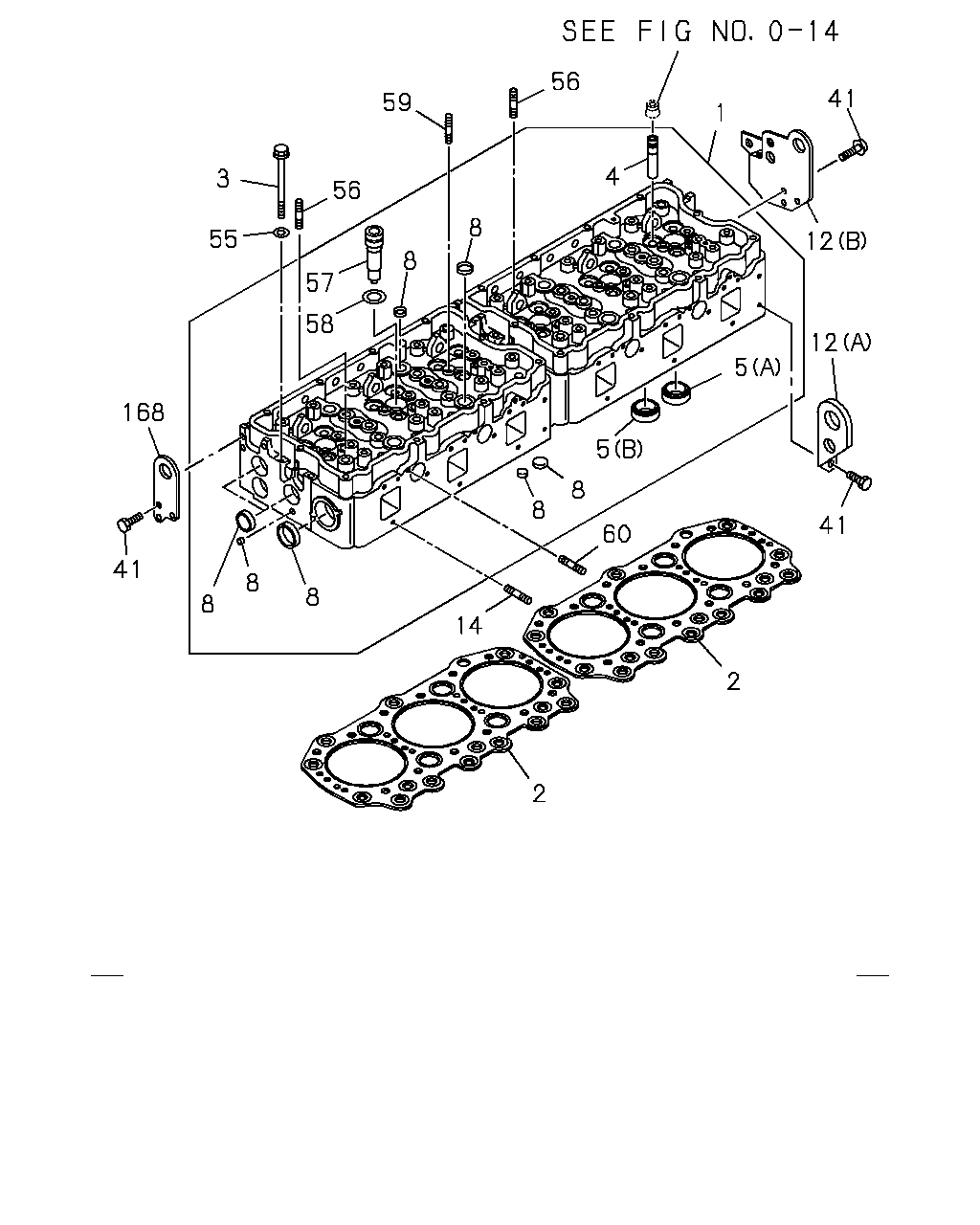

0-11A — CYLINDER HEAD
(#2727) — 28 parça
41
12
12
41
5
1
56
4
59
56
3
8
8
57
55
58
168
41
8
8
8
14
8
8
5
60
2
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HEAD ASM; CYL
1-11110-723-1
02
1
9002-
2
GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-11141-142-0
02
1
9002-
3
BOLT; CYL HD TO BLOCK
M16X163
1-09070-039-0
40
1
9002-
4
GUIDE; VLV
1-11721-001-0
24
1
9002-
5
SEAT; VLV INSERT
(A) EXHAUST ID=38
1-11711-047-0
12
1
9002-
5
SEAT; VLV INSERT
(B) INLET ID=39
1-11715-085-0
12
1
9002-
8
CUP; SEALING,WATER JACKET
OD=38
1-09600-003-0
08
1
9002-
8
CUP; SEALING,WATER JACKET
OD=45
1-09600-005-1
06
1
9002-
8
CUP; SEALING,WATER JACKET
OD=12
1-09600-010-1
04
1
9002-
8
CUP; SEALING,WATER JACKET
OD=32
1-09600-012-1
08
1
9002-
8
CUP; SEALING,WATER JACKET
OD=25
1-09600-016-0
04
1
9002-
8
CUP; SEALING,WATER JACKET
OD=20 HOLE ID=6
1-09600-054-0
06
1
9002-
8
CUP; SEALING,WATER JACKET
OD=32 W/HOLE
1-11129-022-0
04
1
9002-
8
CUP; SEALING,WATER JACKET
OD=16
1-11129-023-0
06
1
9002-
8
CUP; SEALING,WATER JACKET
OD=32
5-11219-015-0
04
1
9002-
12
HANGER; ENG,RR
(B)
1-11777-082-1
01
1
9002-
12
HANGER; ENG,RR
(A)
1-11777-112-0
01
1
9002-
14
STUD; EXH MANIF
M10X35 L=50
9-04411-035-0
02
1
9002-
14
STUD; EXH MANIF
M10X80 L=95
9-04411-080-0
16
1
9002-
41
BOLT; ENG HANGER
M10X22 W/LK WASHER
0-50051-022-0
08
1
9002-
55
WASHER; PL,CYL HD TO BLOCK
ID=16.2
9-09851-672-2
40
1
9002-
56
STUD; NOZZLE HOLDER
M8X35 L=47
9-04110-835-0
06
1
9002-
56
STUD; NOZZLE HOLDER
M10X55 L=75
9-04311-055-0
06
1
9002-
57
SLEEVE; NOZZLE HOLDER
1-11129-033-0
06
1
9002-
58
GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=27.7
9-09565-228-0
06
1
9002-
59
GUIDE; BRIDGE
1-11729-003-1
12
1
9002-
60
STUD; WATER OUTLET PIPE
M8X22 L=34
9-04110-822-0
08
1
9002-
168
HANGER; ENG,FRT
1-11777-102-0
01
1
9002-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
