◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 10907 - FXZ(THAI) ▶ 9 - Tools ▶ 9-01 - TOOLS ▶
9-01 — TOOLS (#27265) — 86 parça

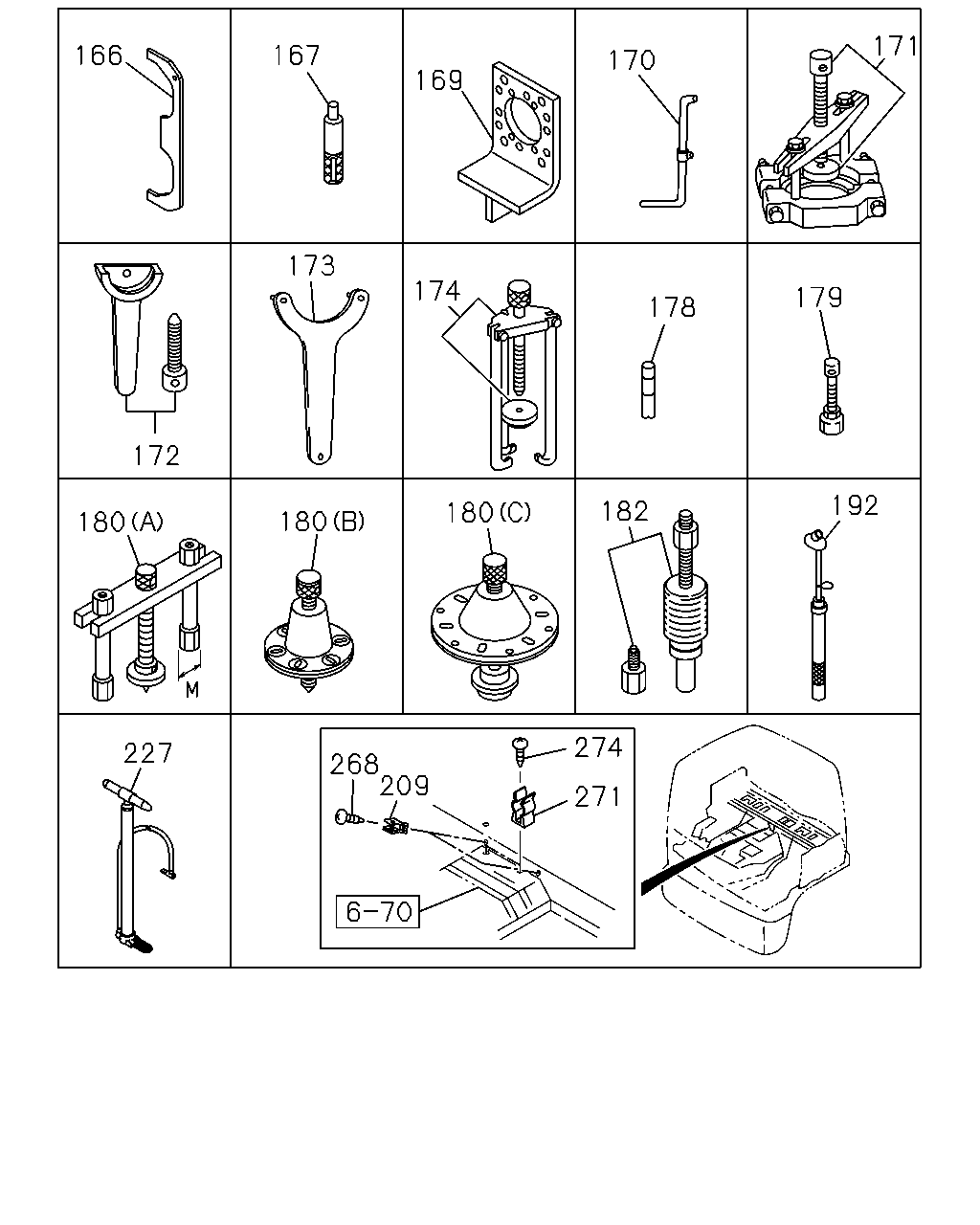

çizim 80717
171 167 166 170 169 173 174 179 178 172 192 182 180 180 180 274 227 268 209 271
BalonParca AdiParca NoAdetTipApplied Date A B
166 ALIGNER; CLU RELEASE LEVER
L=480 		1-85253-011-0 01 1 0210- ● ●
167 ALIGNER; CLU PILOT
L=190 		1-85253-022-0 01 1 0210- ● ●
169 BRACKET; SPLINE YOKE 9-85221-243-1 01 1 0210- ● ●
170 HANDLE; TURNING,FINAL 9-85251-121-0 01 1 0210- ● ●
171 PULLER ASM; PINION BRG 9-85210-172-0 01 1 0210- ● ●
172 PULLER ASM; BRG DIFF PILOT 9-85210-173-0 01 1 0210- ● ●
173 WRENCH; COUPLING DRIVER 9-85111-942-0 01 1 0210- ● ●
174 PULLER ASM; MAIN CLU SHAFT 9-85210-148-0 01 1 0210- ● ●
174 PULLER ASM; MAIN CLU SHAFT 9-85210-148-0 01 1 0210- ●
178 BAR; TRANS GUIDE 9-85291-203-0 01 1 0210- ● ●
179 PULLER; SPD METER GEAR 9-85210-181-0 01 1 0210- ●
180 PULLER; FRT & RR HUB
(B) 		1-85210-002-0 02 1 0210- ● ●
180 PULLER; FRT & RR HUB
(C) 		1-85210-003-0 01 1 0210- ● ●
180 PULLER; FRT & RR HUB
(A) M20 		9-85210-187-0 01 1 0210- ● ●
182 REMOVER ASM 9-85210-095-0 01 1 0210- ●
192 GAUGE; TIRE PRESSURE 1-85315-002-0 01 1 0210- ● ●
209 CLIP; JACK HANDLE
THA 		1-73638-011-1 02 1 0210- ● ●
227 PUMP ASM; TIRE 9-85521-132-0 01 1 0210- ● ●
268 SCREW; CLIP
M6X12 W/LK WASHER 		9-03910-612-0 02 1 0210- ● ●
271 CLIP; TIRE HANGER
THA 		1-73638-012-1 02 1 0210- ● ●
274 SCREW; CLIP
M6X12 W/LK WASHER 		9-03910-612-0 02 1 0210- ● ●

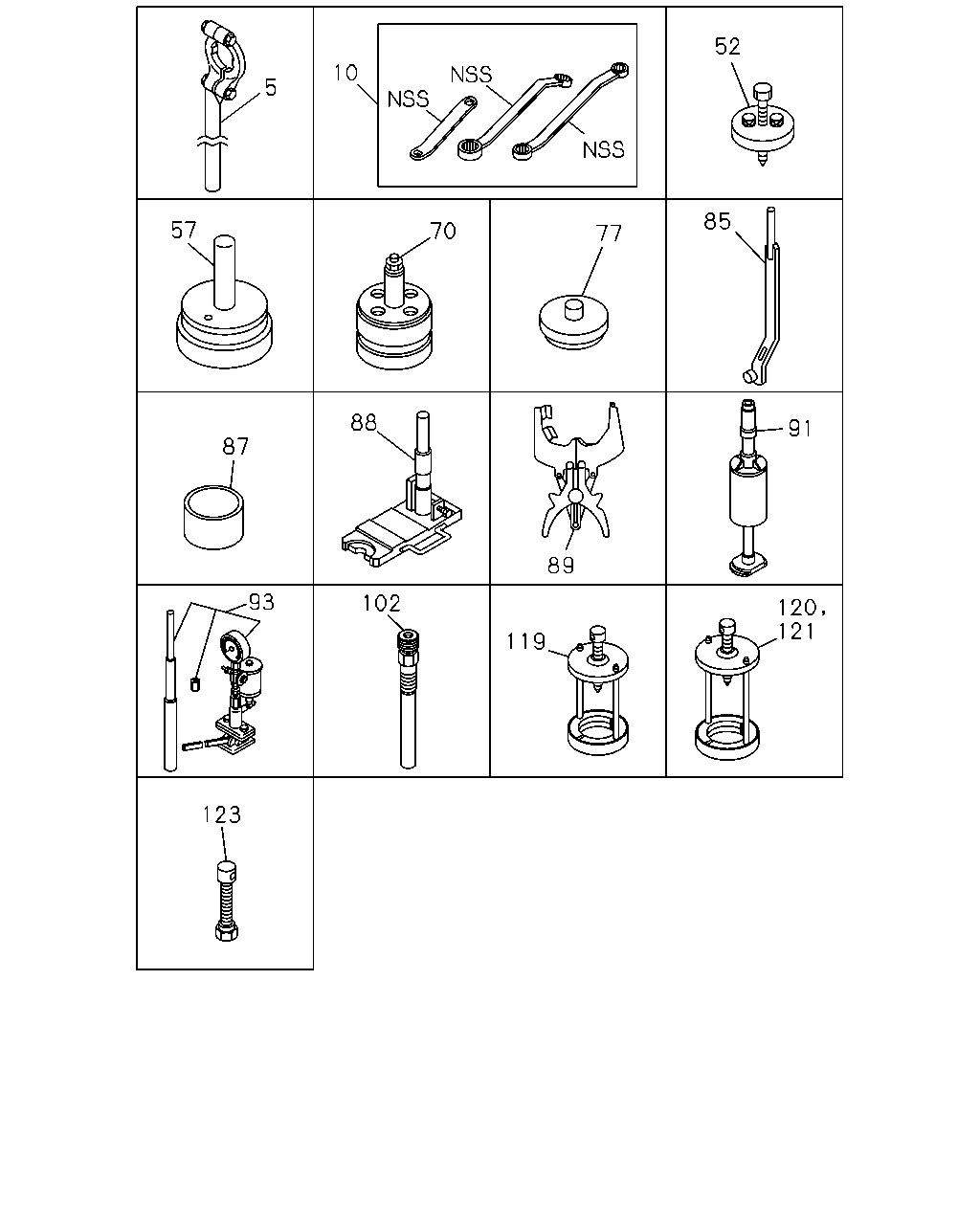

çizim 81924
52 10 5 85 57 70 77 88 91 87 89 93 102 120 121 119 123
BalonParca AdiParca NoAdetTipApplied Date A B
5 WRENCH ASM; NUT,MAINSHAFT 1-85110-010-0 01 1 0210- ●
10 WRENCH KIT; BRK ADJ 9-85110-013-0 01 1 0210- ● ●
52 REMOVER; WATER PUMP 1-85210-047-0 01 1 0210- ● ●
57 TOOL; SETTING CRANK GEAR
ID=144.5 		1-85221-072-0 01 1 0210- ● ●
70 TOOL; SETTING,OIL SEAL 1-85220-025-1 01 1 0210- ● ●
77 TOOL; SETTING,CYL LINER 1-85221-073-0 01 1 0210- ● ●
85 REPLACER ASM; VALVE SPR 1-85235-007-0 01 1 0210- ● ●
87 TOOL; PISTON 1-85221-082-0 01 1 0210- ● ●
88 TOOL; CONNROD BUSHING 1-85220-037-0 01 1 0210- ● ●
89 TOOL; PISTON RING 1-85221-029-0 01 1 0210- ● ●
91 REPLACER ASM; CYL LINER 1-85231-021-0 01 1 0210- ● ●
93 SETTING KIT; VALVE GUIDE
L=260 		9-85231-202-0 01 1 0210- ● ●
102 ADAPTER; COMP GAGE 5-85317-001-0 01 1 0210- ● ●
119 PULLER ASM; TOP GEAR BRG
L=235 		9-85210-190-0 01 1 0210- ●
120 PULLER ASM; MAIN REAR BRG
L=285 		9-85210-184-0 01 1 0210- ●
121 PULLER ASM; COUNTER REAR
L=285 		9-85210-184-0 01 1 0210- ●
123 PULLER; SPEEDOMETER BUSHING 9-85210-091-0 01 1 0210- ●
çizim 82051
13 17 9 12 23 22 21 20 29 29 29 115 39 40 38 37 36 237 193 208 230
BalonParca AdiParca NoAdetTipApplied Date A B
9 WRENCH; WHEEL PIN
41X21 L=445 THA 		8-97118-906-0 01 1 0210- ● ●
12 HANDLE; WRENCH,WHEEL PIN
OD=25 L=480 THA 		1-85116-011-0 01 1 0210- ● ●
13 WRENCH; MONKEY
L=255 THA 		1-85117-002-1 01 1 0210- ● ●
13 WRENCH; MONKEY
L=247 		1-85117-006-0 01 1 0212- ● ●
17 HAMMER
THA 		9-85121-406-0 01 1 0210- ● ●
20 WRENCH; 10X12
10X12 		9-09592-110-0 01 1 0210- ● ●
21 WRENCH; 14X17
14X17 		9-09592-114-0 01 1 0210- ● ●
22 WRENCH; 19X22
19X22 		9-99592-119-0 01 1 0210- ● ●
23 WRENCH; 24X27
24X27 		9-09592-124-0 01 1 0210- ● ●
29 DRIVER; SCREW
(B) <-> L=285 THA 		1-85151-004-0 01 1 0210- ● ●
29 DRIVER; SCREW
(C) <+>,<-> L=160 THA 		8-94242-798-1 01 1 0210- ● ●
29 DRIVER; SCREW
(A) <+> L=190 		9-09595-522-0 01 1 0210- ● ●
36 WRENCH; 24 9-85111-377-0 01 1 0210- ● ●
37 WRENCH; 27 9-85111-375-0 01 1 0210- ● ●
38 WRENCH; 32 9-85111-358-0 01 1 0210- ● ●
39 WRENCH; 36 9-85111-374-0 01 1 0210- ● ●
40 WRENCH; 41 9-85111-356-0 01 1 0210- ● ●
115 PLIER
THA 		5-85171-002-0 01 1 0210- ● ●
193 JACK ASM
10TON THA 		1-85510-013-1 01 1 0210- ● ●
208 HANDLE; JACK
L=600 THA 		1-85515-009-0 01 1 0210- ● ●
230 PUMP; GREASE
THA 		1-85556-007-2 01 1 0210- ● ●
237 BAG; TOOL
THA 		8-97917-409-1 01 1 0210- ● ●

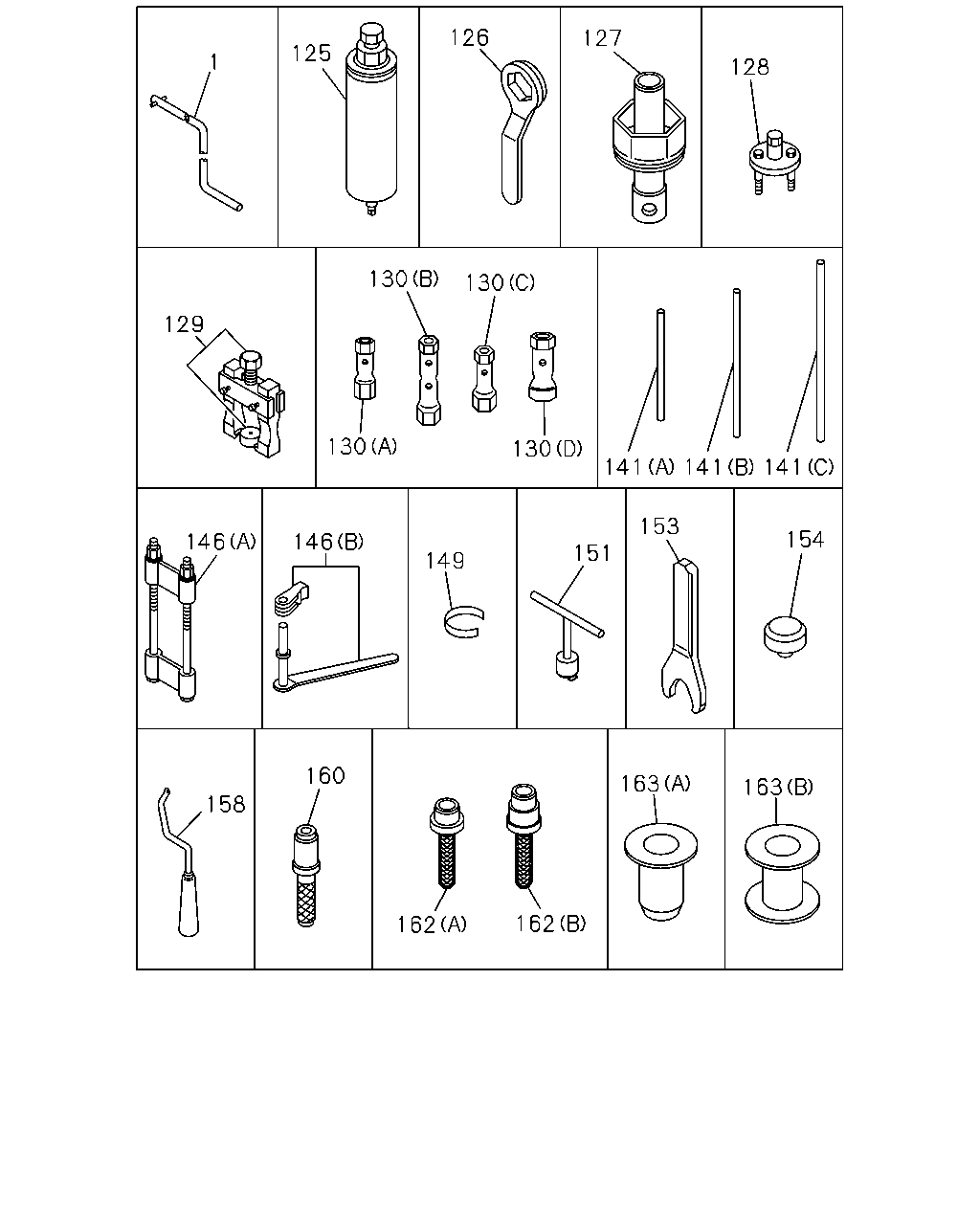

çizim 82055
126 127 125 1 128 130 130 129 130 130 141 141 141 153 154 146 146 151 149 160 163 163 158 162 162
BalonParca AdiParca NoAdetTipApplied Date A B
1 HANDLE; SPARE TIRE CARRIER
SPARE WHEEL CARRIER FRAME SIDE<P13> 		9-23110-019-0 01 1 0210- ●
1 HANDLE; SPARE TIRE CARRIER
SPARE WHEEL CARRIER FRAME REAR<P10> 		9-23110-019-0 01 1 0210- ●
125 PULLER ASM; KING PIN
L=450 		1-85210-009-0 01 1 0210- ● ●
126 WRENCH; FRT HUB BRG NUT
L=350 B=75 		1-85110-002-0 01 1 0210- ● ●
127 WRENCH ASM; HUB BRG NUT
B=105 		9-85113-509-0 01 1 0210- ● ●
128 PULLER ASM; STRG WHEEL 9-85210-099-0 01 1 0210- ● ●
129 PULLER ASM; PITMAN ARM 1-85210-011-0 01 1 0210- ● ●
130 WRENCH; BOX
(D) B=46 & 54 L=165 		9-85112-320-0 01 1 0210- ● ●
130 WRENCH; BOX
(A) B=32 & 41 L=150 		9-85112-322-0 01 1 0210- ● ●
130 WRENCH; BOX
(B) B=36 & 41 L=200 		9-85112-330-0 01 1 0210- ● ●
130 WRENCH; BOX
(C) B=41 & 46 L=165 		9-85113-401-0 01 1 0210- ● ●
141 HANDLE; WRENCH
(C) OD=25 L=480 THA 		1-85116-011-0 01 1 0210- ● ●
141 HANDLE; WRENCH
(B) OD=19 L=400 		9-85114-306-0 01 1 0210- ● ●
141 HANDLE; WRENCH
(A) OD=16 L=300 		9-85114-307-0 01 1 0210- ● ●
146 REPLACER KIT; LEAF SPR
(B) 		1-85237-016-0 01 1 0210- ● ●
146 REPLACER KIT; LEAF SPR
(A) 		9-85231-556-0 01 1 0210- ● ●
149 PLATE; PILOT BRG PULLER 1-85219-009-0 01 1 0210- ●
151 REMOVER; OIL BRK,FRT RETURN SPR 1-85237-002-0 01 1 0210- ● ●
153 DRIVER; WASHER,THRUST WASHER 1-85238-002-0 01 1 0210- ● ●
154 SLEEPER; KING PIN 1-85238-003-0 01 1 0210- ● ●
158 SETTING TOOL; RETURN SPR 9-85221-231-0 01 1 0210- ● ●
160 REMOVER; NEEDLE BRG
L=220 		1-85238-001-0 01 1 0210- ● ●
162 SETTING TOOL; NEEDLE BRG
(A) L=181 		1-85238-008-0 01 1 0210- ● ●
162 SETTING TOOL; NEEDLE BRG
(B) L=213 		1-85238-009-0 01 1 0210- ● ●
163 TOOL; SETTING
(A) L=195 		1-85221-162-1 01 1 0210- ●
163 TOOL; SETTING
(B) L=150 		1-85221-163-0 01 1 0210- ●
