8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#27257) — 12 parça

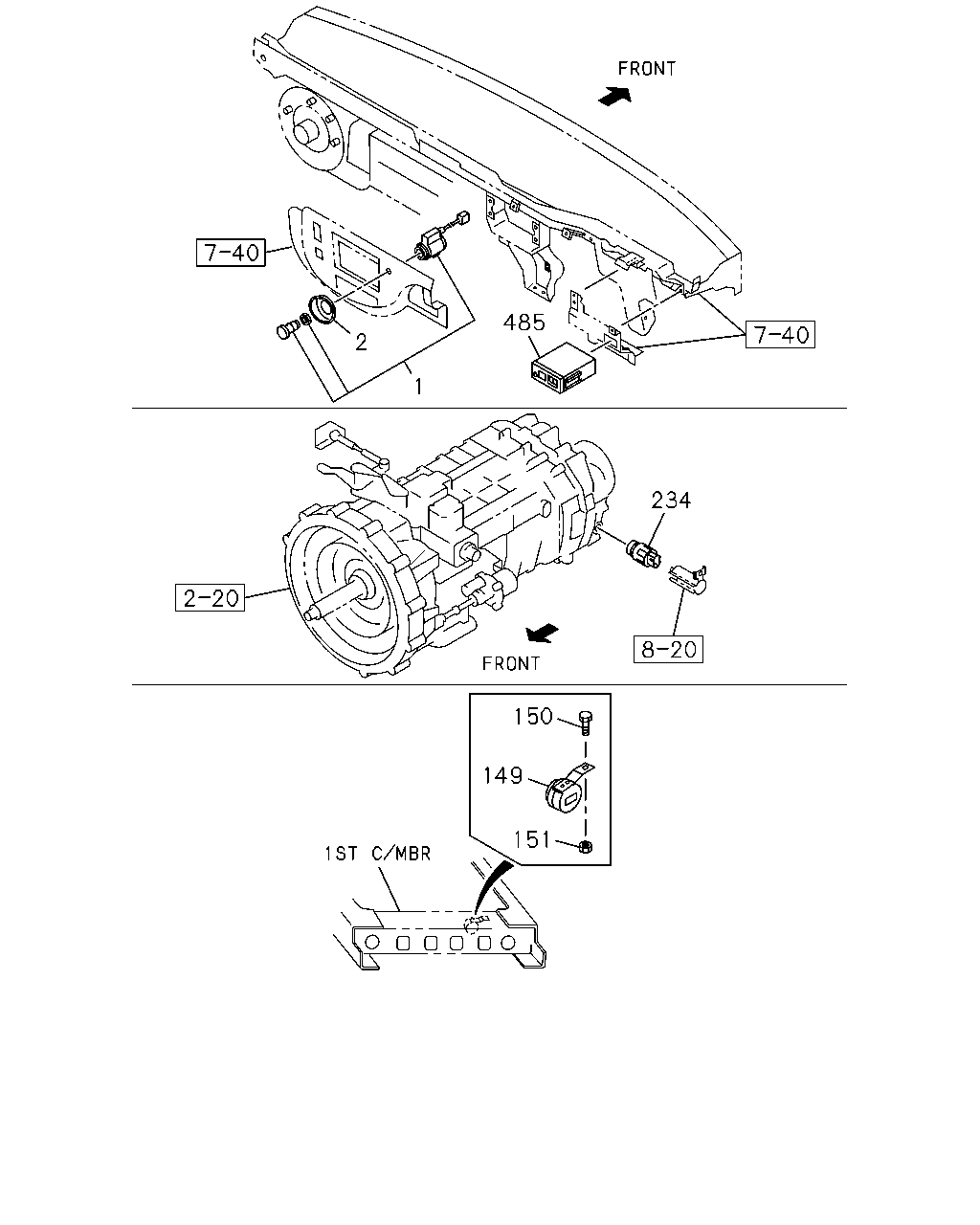

çizim 80226
485 2 1 234 150 149 151
BalonParca AdiParca NoAdetTipApplied Date A B
1 LIGHTER; CIGAR 8-97320-325-0 01 1 0210- ● ●
2 BEZEL; CIGAR LIGHTER 1-73998-883-2 01 1 0210- ● ●
149 BUZZER; BRK LK
NIKKO 		1-83460-064-0 01 1 0210- ●
150 BOLT; BUZZER BRK LK
M8X25 FLANGE 		0-28680-825-0 01 1 0210- ●
151 NUT; BUZZER BRK LK
M8 FLANGE 		0-91150-108-0 01 1 0210- ●
234 SENSOR; VEHICLE SPD
25 PULSE ALUMINUM 		8-97328-058-0 01 1 0210-0302 ●
234 SENSOR; VEHICLE SPD
25 PULSE ALUMINUM 		8-97328-058-0 01 1 0303- ● ●
485 CONTROL UNIT; SPEED SENSOR 1-80190-038-1 01 1 0210-0402 ● ●
485 CONTROL UNIT; SPEED SENSOR 1-80190-149-0 01 1 0403- ● ●

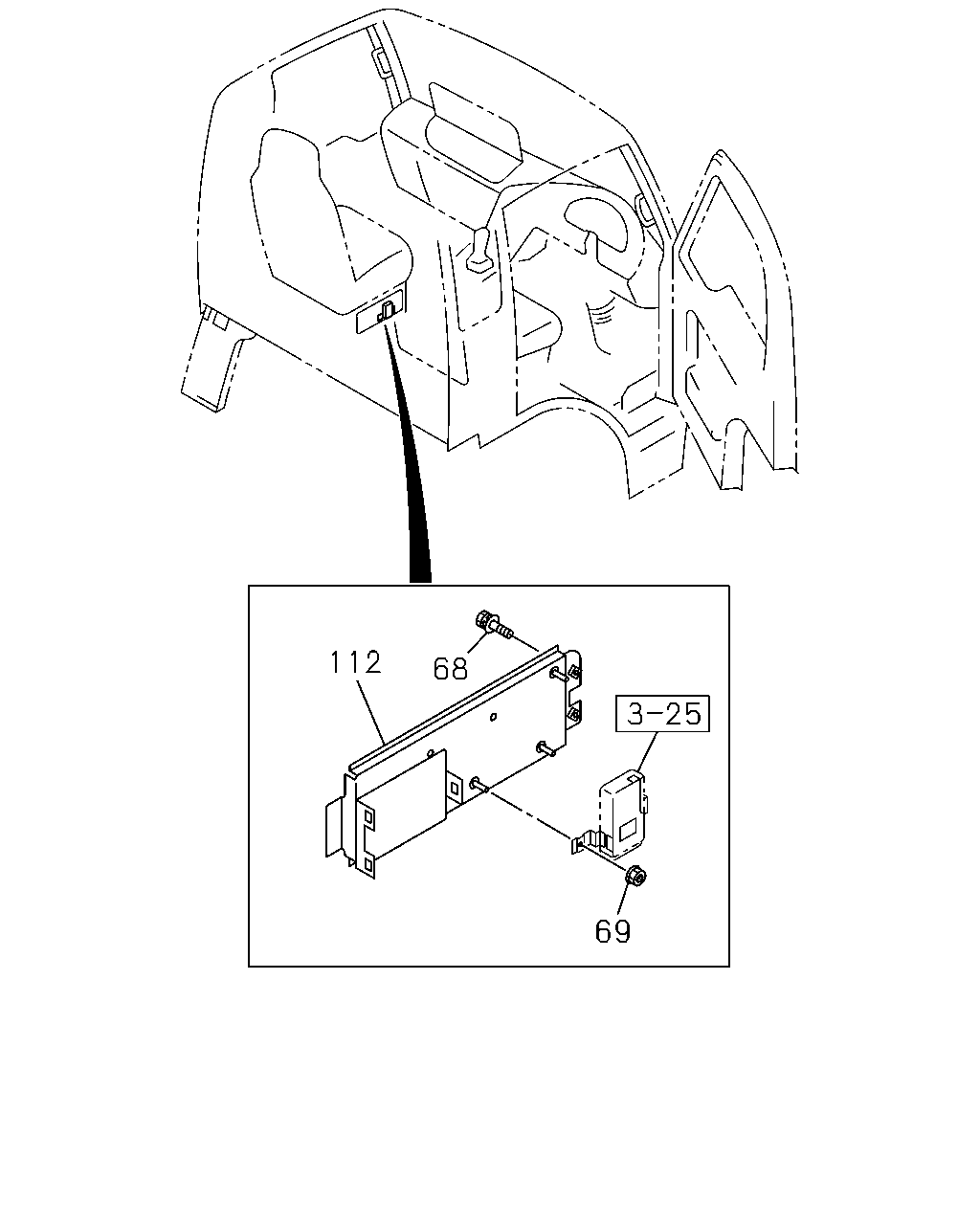

çizim 81955
112 68 69
BalonParca AdiParca NoAdetTipApplied Date A B
68 BOLT; BRKT
M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 0210- ●
69 NUT; BRKT
M6 FLANGE 		0-91150-106-0 02 1 0210- ●
112 BRACKET; CONT UNIT 1-75558-512-2 01 1 0210- ●
