◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 10907 - FXZ(THAI) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#27256) — 14 parça
çizim 24090
1 10 257 3 10 257 21
BalonParca AdiParca NoAdetTipApplied Date A B
1 SWITCH; COMB 1-82360-619-0 01 1 0210-0312 ● ●
1 SWITCH; COMB 1-82360-715-0 01 1 0401- ● ●
3 SCREW; COMB SW
M5X12 TAPPING W/PL WASHER 		0-74105-512-0 04 1 0210- ● ●
10 SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0210- ● ●
21 SWITCH; CLU 1-82380-114-2 01 1 0210- ● ●
257 COVER; HOLE,SW 1-82389-012-2 01 1 0210- ● ●
257 COVER; HOLE,SW 1-82389-011-2 01 1 0210- ● ●

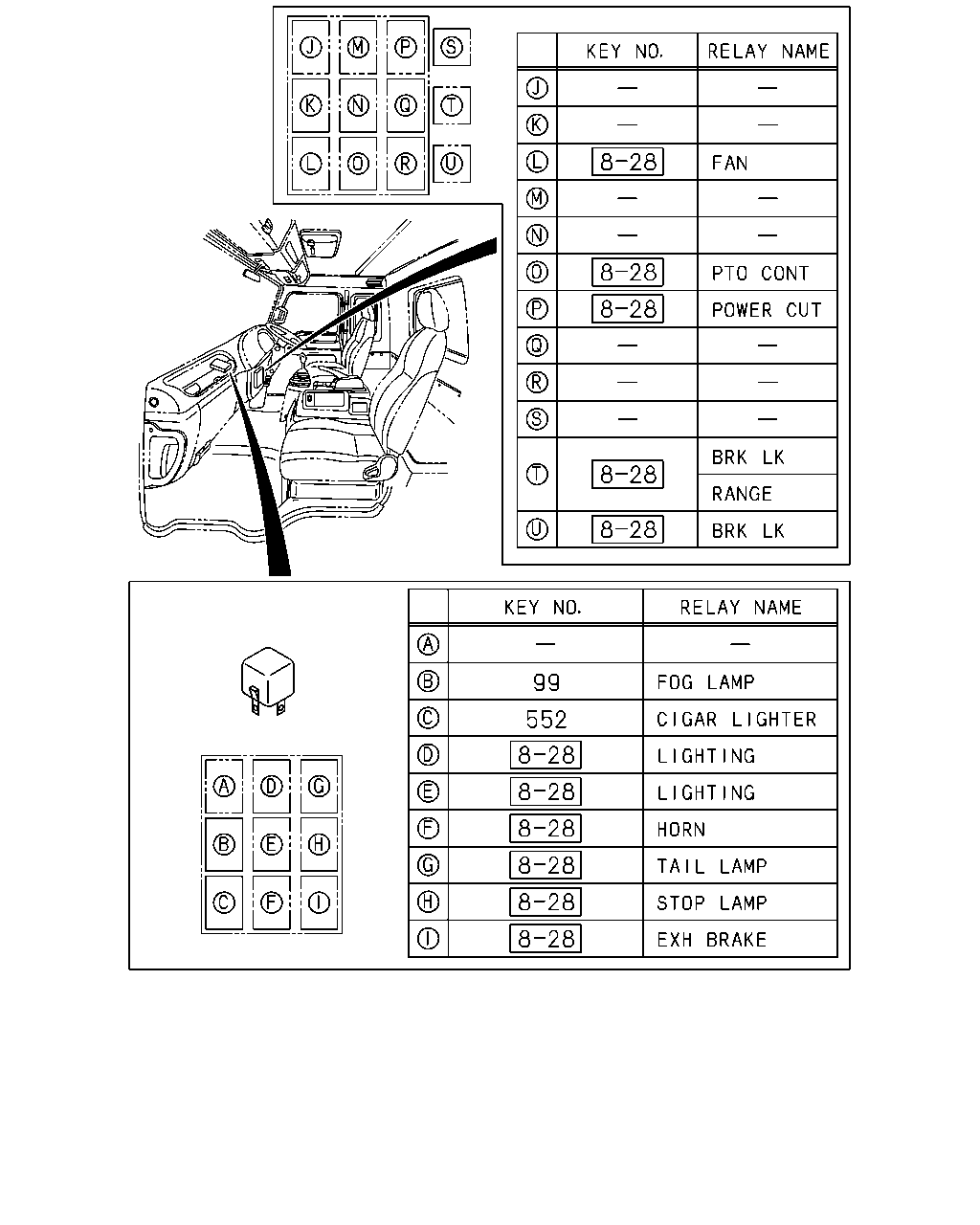

çizim 24091
99 552
BalonParca AdiParca NoAdetTipApplied Date A B
99 RELAY; FOG LAMP
24V 12.5A MATSUSHITA THA 		8-97262-933-0 01 1 0210- ● ●
552 RELAY; CIGAR LIGHTER
24V 12.5A MATSUSHITA THA 		8-97262-933-0 01 1 0210- ● ●

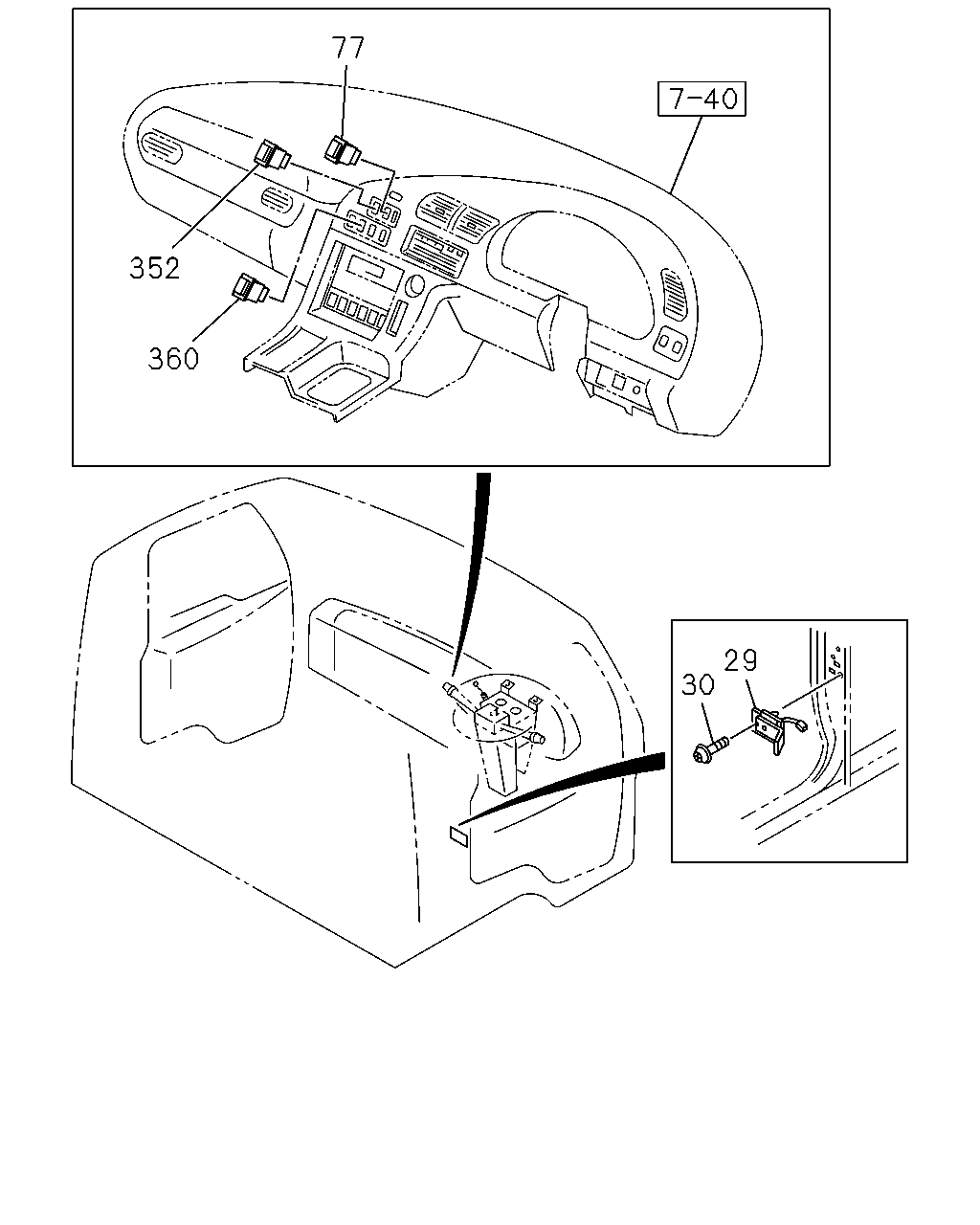

çizim 81957
77 352 360 29 30
BalonParca AdiParca NoAdetTipApplied Date A B
29 SWITCH; DOOR 8-97855-032-3 01 1 0210- ● ●
30 SCREW; DOOR SW
M5X11 		1-09981-536-1 01 1 0210- ● ●
77 SWITCH; PTO 1-82340-403-0 01 1 0210- ●
352 SWITCH ASM; BRK LK 1-82340-425-0 01 1 0210- ●
360 SWITCH ASM; DIFF LK 1-82340-404-0 01 1 0210- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
